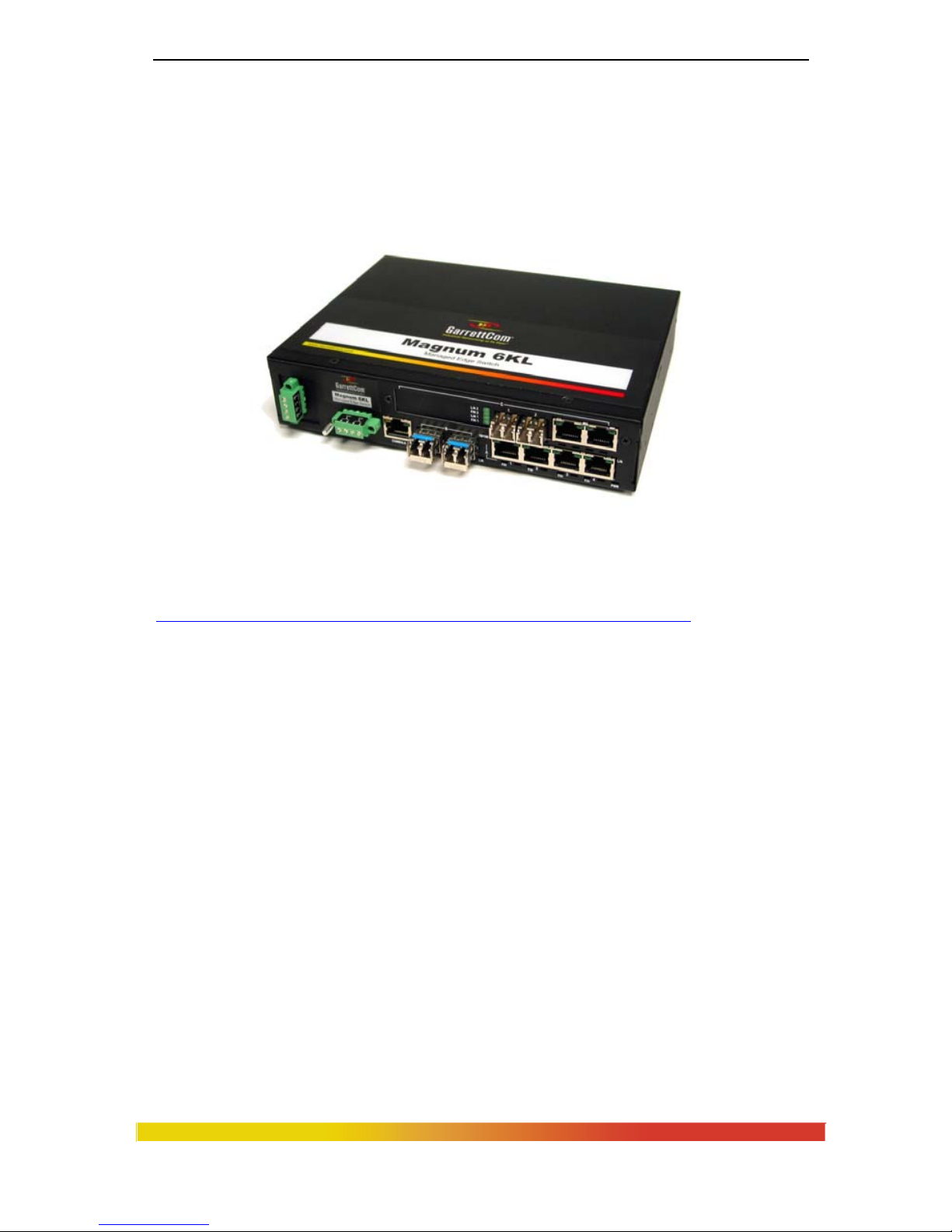

Magnum 6KL
Managed Edge Switch
Hardware
Installation and User Guide

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
i
www GarrettCom com ..
Magnum™6KL
Managed Edge Switch
Hardware
Installation and User Guide
Part #: 84-00184Z (Rev. E)
Trademarks
GarrettCom is a registered trademark and Magnum, Dymec, DynaStar, Personal
Switch, Link-Loss-Learn, S-Ring, Convenient Switch and Converter Switch
are trademarks of GarrettCom, Inc.
Ethernet is a trademark of Xerox Corporation
NEBS is a trademark of Telcordia Technologies
UL is a registered trademark of Underwriters Laboratories
Important: The Magnum 6KL Managed Edge Switch contains no user serviceable
parts. Attempted service by unauthorized personnel shall render all warranties null
and void. If problems are experienced with Magnum 6KL Switch products, consult
Section 6, Troubleshooting.
Copyright ©2009 GarrettCom, Inc. All rights reserved. No part of this publication may be
reproduced without prior written permission from GarrettCom, Inc.
Printed in the United States of America
GarrettCom, Inc. reserves the right to change specifications, performance characteristics
and/or model offerings without notice.
Contacting GarrettCom, Inc
Please use the mailing address, phone and fax numbers and email address listed below:
GarrettCom, Inc.
47823 Westinghouse Dr.
Fremont, CA 94539-7437
Phone [phone]
Fax [phone]
Website: http://www.GarrettCom.com
Email: [email protected]

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
ii
www GarrettCom com ..
Complies with FDA radiation performance
standards, 21CFR Subchapter J.
Federal Communications Commission
Radio Frequency Interference Statement
This equipment generates uses and can radiate frequency energy and if not
installed and used properly in strict accordance with the manufacturer's instructions, may
cause interference to radio communication. It has been tested and found to comply with the
limits for a Class A computing device in accordance with the specifications in Subpart J of
Part 15 of FCC rules, which are designed to provide reasonable protection against such
interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user, at their own expense,
will be required to take whatever measures may be required to correct the interference.
Canadian Emissions Statement
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil respecte toutes les exigences du R
é glement sur le mat é riel du Canada. Cet
appareil est Classe A.
Electrical Safety requirements:
1. This product is to be installed Only in Restricted Access Areas
(Dedicated Equipment Rooms, Electrical Closets, or the like).
2. 48VDC products shall be installed with a readily accessible disconnect
device in the building installation supply circuit to the product.
3. This product shall be provided with a maximum 10A DC Listed fuse or
circuit breaker in the supply circuit when connected to a 48V
centralized source.
4. The external power supply for DC units shall be Listed, Direct Plug In
power unit, marked Class 2, or listed ITE Power Supply, marked LPS,
which has suitably rated output voltage (i.e. 24VDC or 48VDC) and suitable
rated output current.
5. Product does not contain user replaceable fuses. Any internal fuses can
ONLY be replaced by GarrettCom personnel through the RMA process.
This equipment has the ordering option of being supplied to the purchaser without a Fiber
Optic Class 1 Laser transceiver included. In this case, it is the responsibility of the
purchasing party to apply the proper labeling required to the product, in accordance with
US 21CFR Subchapter J Part 1040, if a transceiver is installed by the purchaser. (See label
example below)

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
iii
www GarrettCom com ..
Table of Contents Page
1.0SPECIFICATIONS ............................................................................... 1
1.1Technical Specifications...................................................................... 1
1.2Ordering Information........................................................................... 4
2.0INTRODUCTION ................................................................................. 7
2.1Inspecting the Package and Product .................................................... 7
2.2 Product Description - Magnum 6KL Managed Edge Switch .............. 8
2.2.1Packet Prioritization, 802.1p QOS............................................... 9
2.2.2Frame Buffering and Flow Control............................................ 10
2.3Managed Network Software for Magnum 6KL................................. 11
2.4Features and Benefits......................................................................... 12
2.5Applications....................................................................................... 13
3.0INSTALLATION................................................................................ 17
3.1Locating Magnum 6KL Switches...................................................... 17
3.2Connecting Ethernet Media ............................................................... 18
3.2.1Connecting Twisted Pair (CAT3, CAT5, UTP or STP)............. 18
3.2.2Connecting Twisted Pair (CAT5e or better, UTP or STP) ........ 19
3.2.3Connecting Single-Mode Fiber Optic........................................ 19
3.2.4Gigabit SFP (Small Form-factor Pluggable) Transceivers ........ 20
3.2.5Connecting Fiber Optic Cable to SFP Transceivers .................. 20
3.3DIN-Rail Mounting the Magnum 6KL.............................................. 21
3.3.1Mounting Dimensions for 6KL with metal brackets.................. 22
3.4Powering the Magnum 6KL Managed Edge Switch.......................... 24
3.5Alarm Contacts for monitoring internal power, and Software Traps 25
3.6Connecting the Console Terminal to Magnum 6KL.......................... 26
3.6.1RJ45 Console port (Serial port) pin assignments....................... 26
4.0OPERATION....................................................................................... 27
4.1Switching Functionality..................................................................... 27
4.2Auto-Cross(MDIX) and Auto-negotiation, for RJ-45 ports............... 28
4.3Flow-control, IEEE 802.3x standard ................................................. 29
4.4Power Budget Calculations for 6KL Modules with Fiber Media...... 30
5.0Magnum 6KL Managed Edge Switch Port Modules........................ 30
5.16KL Modules..................................................................................... 30
5.1.16KL Module LED designations................................................. 31
5.1.2 6KL4-RJ45, 4 x 10/100Mb RJ45 (Slot C)................................ 33
5.1.3 6KL4-4MLC, 4 x Multimode LC (Slot C)................................. 34
5.1.46KL4-4SLC, 6KL4-4SLCL, 4 x Singlemode LC (Slot C) ........ 34
5.1.56KL4-2MLC2RJ, 2 x Multimode LC / 2 x RJ45 (Slot C) ......... 34
5.1.66KL4-2SLC2RJ, 6KL4-2SLCL2RJ (Slot C)............................. 35
5.1.76KL4-4MTRJ, 4 x Multimode MTRJ (Slot C).......................... 35
5.1.86KL4-2MT2RJ, 2 x Multimode MTRJ / 2 x RJ45 (Slot C)....... 36
5.1.96KL4-4MSC, -4MST, -4FLST, -2FX2FLMST (Slot C) ........... 36
5.1.106KL4-4SSC, 6KL4-4SSCL (Slot C).......................................... 37

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
iv
www GarrettCom com ..
5.1.116KL4-2MSC2RJ, 6KL4-2MST2RJ (Slot C) ............................. 37
5.1.126KL4-2SSC2RJ (Slot C)............................................................ 38
5.1.136KL4-2SL2MLC, 6KL4-1SL3MLC (Slot C)............................ 38
5.1.146KL4-1ML1SLC2RJ (Slot C).................................................... 38
5.1.156KL4-1MLC3RJ, 1 x LC Multimode / 3 x RJ45 (Slot C) ......... 39
5.1.166KL4-1SLC3RJ, 6KL4-1SLCL3RJ (Slot C)............................. 39
5.1.176KL4-1MT3RJ, 1 x MTRJ Multimode / 3 x RJ45 (Slot C)....... 39
5.1.186KL1-1MLC, -1SLC, -1SLCL, 1 x LC (Slot C)........................ 39
5.1.196KL1-1MT, 1 x MTRJ Multimode (Slot C) .............................. 39
5.1.20P6KL4-RJ45, 4 x PoE RJ45 (Slot C)......................................... 40
5.1.216KL-2GCU, 2 x Gigabit RJ45 (Slot B)...................................... 41
5.1.226KL-2GSFP, 2 x Gigabit SFP (Slot B)...................................... 41
6.0TROUBLESHOOTING...................................................................... 42
6.1Before Calling for Assistance............................................................ 42
6.2When Calling for Assistance ............................................................. 42
6.3Return Material Authorization (RMA) Procedure............................. 43
6.4Shipping and Packaging Information................................................. 44
APPENDIX A: WARRANTY INFORMATION.......................................... 44
APPENDIX B: DC Power Input..................................................................... 45
APPENDIX C: Internal DC Dual-Source Power Input Option.................. 48
APPENDIX D: Field Installation instructions for Slot C module............... 51
Revisions:
Rev. E 11/09: Updated Copper Gigabit Port LED designations (pg. 31)
Rev. D 10/09: Updated Sec. 1.1 (pg. 2) and Sec. 3.2 (pg. 18) to include SC
and ST fiber connectors
Rev. C 10/09: Added photos to Appendix D
Rev. B 09/09: Added additional module options,
changed Copper Gb LED configuration, see 5.1.1
Rev. A 07/09: Initial Release

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
1
www GarrettCom com ..
1.0 SPECIFICATIONS
1.1 Technical Specifications
Performance
Filtering / Forwarding Rate:
Ethernet (10Mb): 14,880 pps
Fast Ethernet (100Mb): 148,800 pps
Gigabit Ethernet (1000Mb): 1,488,000 pps
Switching Processing Type: Store and Forward with IEEE 802.3x full-
duplex flow -control, non-blocking
Data Rate: 10Mbps, 100Mbps and 1000Mbps
Address Table Capacity: 8K node, self-learning with address aging
Packet buffer size: 128 KB total
Latency: 6μs + packet time max. (TX-TX, TX-FX, FX-FX, TX-G, G-G)
Throughput with 8 10/100 and 2Glink max.- 4.17M pps (Transmit)
Back plane- 2.66Gb/s per slot
Network Standards and Compliance, hardware
Ethernet V1.0/V2.0 IEEE 802.3: 10BASE-T,
IEEE 802.3u: 100Base-TX, 100BASE-FX
IEEE 802.3z: 1000BASE-X Ethernet (Auto-negotiation)
IEEE 802.3ab: 1000BASE-X Ethernet
IEEE 802.1p: Priority protocol
IEEE 802.1d: Spanning tree protocol
IEEE 802.1w: Rapid Spanning tree protocol
IEEE 802.1q: VLAN Tagging
IEEE 802.3x: Flow Control
IEEE 802.3ad: Link Aggregation (Trunking)
IEEE 802.1x: Port based Network access control
IEEE 802.3af: Power over Ethernet
Maximum 10 Mbps Ethernet Segment Lengths
Unshielded twisted pair - 100 m (328 ft)
Shielded twisted pair - 150 m (492 ft)
10BASE-FL multi-mode fiber optic - 2 km (6,562 ft)
10BASE-FL single-mode fiber optic - 10 km (32,810 ft)
Maximum Standard Fast Ethernet Segment Lengths:
10BASE-T (CAT 3, 4, 5 UTP) - 100 m (328 ft)
100BASE-TX (CAT 5 UTP) - 100 m (328 ft)
Shielded twisted pair - 150 m (492 ft)
100BASE-FX, half-duplex, multi-mode - 412 m (1350 ft)
100BASE-FX, full-duplex, multi-mode - 2.0 km (6,562 ft)
100BASE-FX, half-duplex, single-mode - 412 m (1350 ft)
100BASE-FX, full-duplex, single-mode - 20.0 km (66K ft)
100BASE-FX, full-duplex, Long Reach - 40.0 km (122K ft)
Maximum Standard Gigabit Ethernet Segment Lengths:
1000BASE-T (CAT5e or higher is recommended) - 100m (328 ft)
1000BASE-SX, full-duplex, multi-mode (62.5μm cable) - 220m
1000BASE-SX, full-duplex, multi-mode (50μm cable) - 550m

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
2
www GarrettCom com ..
1000BASE-LX, full-duplex, multi-mode (50, 62.5μm cable) - 550m
1000BASE-LX, full-duplex, single-mode (9μm cable) - 5km
1000BASE-ZX, full duplex, single-mode (9μm cable) - >70km
Fiber Multi-mode connector types supported:
Fiber Port, MTRJ-type (plug-in): SFF Fiber multi-mode 100BASE-FX
Fiber Port, LC-type (plug-in): SFF Fiber multi-mode 100BASE-FX
Fiber Port, SC-type (plug-in), multi-mode 100BASE-FX
Fiber Port, ST-type (twist-lock), multi-mode 100BASE-FX
Fiber Port, 1000BASE-SX, SFP modules
Fiber Single-mode connector types:
Fiber Port, LC-type, Fiber SFF single-mode, 100BASE-FX
Fiber Port, SC-type, single-mode, 100BASE-FX
Fiber Port, 1000BASE-LX, SFP modules
LEDs: Per Port (one set at the port)
(see section 5.1.1 for detailed LED configurations)
Operating Environment
Ambient Temperature:
-40°to 140°F (-40°to 60°C) for UL60950 and Component Parts rating
-40°to 195°F (-40°to 85°C) for IEC 60068 Type Test short term rating
Storage Temperature: -60°to 210°F (-50°to 100°C)
Ambient Relative Humidity: 5% to 95% (non-condensing)
Altitude: -200 to 13,000 ft. (-60 to 4000m)
Conformal Coating (humidity protection) optional: Request quote
Alarm Relay Contacts
One NC indicating internal power, one NC software controllable
Packaging
Enclosure: High strength Cold rolled steel
Dimensions: 8.0 in H x 1.75 in W x 6.0 in D (in vertical mounting position)
20.3 cm H x 4.4 cm W x 15.2 cm D
Cooling method: Convection, fully-enclosed steel case used as a heat sink,
designed for vertical mounting, no fans
Weight: 2.1 lbs. (0.95 kg)
DC Power Supply (Internal, floating ground)
DC Power Connector: Terminal block
12VDC Power Input nominal (range 10 to 15VDC)
24VDC Power Input nominal (range 18 to 36VDC)
-48VDC Power Input nominal (range 36 to 60VDC)
Std. Terminal Block : “ -, GND, + ”
Power Input for PoE: add up to 15 watts per PoE port to the base unit
power draw

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
3
www GarrettCom com ..
DC Power Supply (Internal, floating ground)
DC Power Connector: IEC-320 type, male recessed from cord exiting unit
125VDC Power Input nominal (range 88 to 150VDC)
250VDC Power Input nominal (range 160 to 300VDC)
AC Power Supply (Internal)
AC Power Connector: IEC-320 type, male recessed
100-240VAC Power Input, 47 to 63 Hz (auto-ranging)
Power Consumption:
15 watts Max. (for a fully loaded fiber model with 2Gb)
10 watts Max. (for 8 port copper and 100Mb fiber model)
Dual DC Power Input (Optional)
A Dual-Source option is available for the 12VDC, 24VDC, –48VDC, and 125VDC
and 250VDC models. This provides for continuity of operation when either of the
DC input sources is interrupted. See Appendices B and C.
The Dual-Source Terminal Block is marked: “ +A, -A, -B, +B ”
Management Console connector
RJ45, see details at sec. 3.6
6KL Mounting:
Vertical mounting normal. Suitable for wall or DIN-Rail mounting
Agency Approvals and Standards Compliance:
UL listed (UL60950), cUL, CE, Emissions meet FCC Part 15 Class A
NEBS Level 3 and ETSI Compliant
IEEE 1613 Class 2 Environmental Standard for Electric Power Substations
See also Note for Power Substations in Section 3.2.1, 3.6.1, and 5.1.2
IEC 61850 EMC and Operating Conditions Class C for Power Substations
NEMA TS-2 and TEES for DC-powered and PoE-powered traffic control
equipment
Warranty: Three years, per UL 60950 temperature rating Made in USA
Email
[email protected] for additional information.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
4
www GarrettCom com ..
1.2 Ordering Information
MODEL DESCRIPTION
Magnum 6KL-24VDC: Magnum 6KL Managed Edge Switch, base unit with four
10/100 copper ports. Up to 4 100Mb fiber ports or up to four more 10/100 copper
ports (or combinations) may also be configured, and up to two Gb ports are
optional. Heavy duty metal case, IP52 for environmental protection, no fans.
For licensed managed networks software (MNS-6K, RS-Ring and S-Ring) including
GUIs for ease-of-use and industry-leading security features, see separate data sheets.
Magnum 6KL-12VDC: Same as 6KL-24VDC except the power input is 12VDC
Magnum 6KL-48VDC: Same as 6KL-24VDC except the power input is -48VDC
Magnum 6KLP-48VDC: PoE, same as 6KL-48VDC except the four 10/100 ports are
PoE-enabled, data pairs
Magnum 6KL-125VDC: Same as 6KL-24VDC except the power input is 125VDC
Magnum 6KL-250VDC: Same as 6KL-24VDC except the power input is 250VDC
Magnum 6KL-AC: Same as 6KL-24VDC except the power input is
AC 100 to 240VAC, 47 to 63 Hz
Please use this URL: for the complete Configuration Guide for the Magnum 6KL.
http://www.garrettcom.com/techsupport/insertion_guides/6KLcg.pdf
Configuration Options: (see following pages)
Each Magnum 6KL base unit may be configured with a choice of 1 modular slot (Slot C)
and fixed Gigabit ports (Slot B) in addition to the fixed RJ45 ports in Slot A.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
5
www GarrettCom com ..
Following modules can be configured in Slot C only
(Slot C is 10/100 RJ-45 or 100Mb Fiber only)
Magnum 6KL (Slot C) Port Modules:
6KL4-RJ45 adds four 10/100 copper ports
P6KL4-RJ45 adds four PoE 10/100 copper ports
6KL4-4MLC adds four MM 2Km 100Mb LC fiber ports
6KL4-2MLC2RJ adds two MM 2Km 100Mb LC fiber and two 10/100 copper ports
6KL4-4SLC adds four SM 20Km 100Mb LC fiber ports
6KL4-2SLC2RJ adds two SM 20Km 100Mb LC fiber and two 10/100 copper ports
6KL4-4SLCL adds four SM 40Km 100Mb LC fiber ports
6KL4-2SLCL2RJ adds two SM 40Km 100Mb LC fiber and two 10/100 copper ports
6KL4-4MTRJ adds four MM 2Km 100Mb MTRJ fiber ports
6KL4-2MT2RJ adds two MM 2Km 100Mb MTRJ fiber and two 10/100 copper ports
6KL4-4MSC adds four MM 2Km 100Mb SC fiber ports
6KL4-2MSC2RJ adds two MM 2Km 100Mb SC fiber and two 10/100 copper ports
6KL4-4SSC adds four SM 20Km 100Mb SC fiber ports
6KL4-2SSC2RJ adds two SM 20Km 100Mb SC fiber and two 10/100 copper ports
6KL4-4SSCL adds four SM 40Km 100Mb SC fiber ports
6KL4-4MST adds four MM 2Km 100Mb ST fiber ports
6KL4-2MST2RJ adds two MM 2Km 100Mb ST fiber and two 10/100 copper ports
6KL4-4FLST adds four MM 2Km 10Mb ST fiber ports
6KL4-2FX2FLMST adds two MM 2Km 100Mb and two MM 2Km 10Mb
ST fiber ports
6KL4-2SL2MLC adds two SM 20Km 100Mb LC fiber and two MM 2Km 100Mb LC
fiber ports
6KL4-1SL3MLC adds one SM 20Km 100Mb LC fiber and three MM 2Km 100Mb LC
fiber ports
6KL4-1ML1SLC2RJ adds one MM 2 Km 100Mb LC fiber, one SM 20Km 100Mb
LC fiber and two 10/100 copper ports
6KL4-1MLC3RJ adds one MM 2Km 100Mb LC fiber and three 10/100 copper ports
6KL4-1SLC3RJ adds one SM 20Km 100Mb LC fiber and three 10/100 copper ports
6KL4-1SLCL3RJ adds one SM 40Km 100Mb LC fiber and three 10/100 copper ports
6KL4-1MT3RJ adds one MM 2Km 100Mb MTRJ fiber and three 10/100 copper ports
6KL1-1MLC adds one MM 2Km 100Mb LC fiber port
6KL1-1SLC adds one SM 20Km 100Mb LC fiber port
6KL1-1SLCL adds one SM 40Km 100Mb LC fiber port
6KL1-1MT adds one MM 2Km 100Mb MTRJ fiber port
MM= Multi-mode fiber SM= Single-mode fiber

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
6
www GarrettCom com ..
Following modules can be configured in Slot B only
Magnum 6KL (Slot B) Gigabit Port Modules:
6KL-2GCU adds two auto-negotiating 10/100/1000Mb copper ports
6KL-2GSFP adds two SFP pluggable open transceiver ports for user selectable SFP
Gb transceivers in each
Gigabit (1000Mb) SFP (Small Form Pluggable) Transceiver option (6KL)
SFP-GTP Gb SFP transceiver, Copper 1000Base-T, 100m
SFP-SX Gb SFP transceiver, 1000Mb-SX, 850nm wavelength, 550m
SFP-ESX Gb SFP transceiver, 1000Mb, 1310nm wavelength, 2Km
SFP-LX10 Gb SFP transceiver, 1000Mb-LX, 1310nm wavelength, 10Km
SFP-LX25 Gb SFP transceiver, 1000Mb-LX, 1310nm wavelength, 25Km
SFP-ZX40 Gb SFP transceiver, 1000Mb-ZX, 1550nm wavelength, 40Km
SFP-ZX70 Gb SFP transceiver, 1000Mb-ZX, 1550nm wavelength, 70Km
MNS-6K License- MNS-6K managed software is pre-loaded from the factory.
S-RING-Key: S-Ring and RS-Ring Redundancy Manager licensed software for redundant
ring management. One S-Ring or RS-Ring key is for licensed use one 6K-managed self
healing Ring.
CONSOLE-CBLQD: Console attachment cable. Serial null modem (aka X-modem)
cable with RJ45 connector for the 6KL on one end and a DB-9 connector on other end.
CONSOLE-CBLQU: Same as above, but with USB connector
DIN-RAIL-6KL: Din-Rail mount for a secure vertical mount, with screws for 6KL
DUAL-SRC: Two separate power inputs (12/24/48, 125 or 250VDC)
CONFORM05-CRM: Conformal coating, heavy duty silicone at 5 mil thickness, for
interior PCBs, PS and modules (for moisture protection)
CONFORM14-CRM: Conformal coating, heavy duty silicone at 14 mil thickness, for
interior PCBs, PS and modules (for oil and gas industry)

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
7
www GarrettCom com ..
2.0 INTRODUCTION
2.1 Inspecting the Package and Product
Examine the shipping container for obvious damage prior to installing this
product; notify the carrier of any damage that you believe occurred during shipment or
delivery. Inspect the contents of this package for any signs of damage and ensure that
the items listed below are included.
This package should contain:
1Magnum 6KL Managed Edge Switch, base unit
(configured with user-selected port module options installed)
2 Set of two metal vertical mounting brackets, with screws to the case
1 6KL Installation and User Guide (this manual)
Remove the items from the shipping container. Be sure to keep the shipping
container should you need to re-ship the unit at a later date.
In the event there are items missing or damaged, contact the party from whom
you purchased the product. If the unit needs to be returned, please use the original
shipping container if possible. Refer to Section 6, Troubleshooting, for specific return
procedures.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
8
www GarrettCom com ..
2.2 Product Description - Magnum 6KL Managed Edge Switch
Magnum™ 6KL Managed Edge Switches provide configurability in an entry-
level industrial-grade package. The high performance 6KL base unit comes with four
10/100 copper ports (which may be either regular or PoE). Up to 4 100Mb fiber ports or
up to four more 10/100 copper ports or combinations, may also be configured. In
addition, one or two Gb ports may be configured as 10/100/1000 copper or SFP fiber in
any 6KL base unit.
Magnum 6KL comes with the best-of-breed MNS-6K managed networks
software. (MNS-6K-SECURE optional) See the Managed Networks Software (MNS-6K)
datasheet for more information at
http://www.garrettcom.com/techsupport/software/datasheets/mns6kds.pdf
Magnum 6KLs are ideal for building a switched, hardened Ethernet network
infrastructure, connecting edge devices such as PLCs and IEDs with upstream switches
or routers. Designed for use in industrial applications such as factory floors and control
cabinets, industrial video surveillance systems with PoE, power utility substations,
tariffed carrier field facilities, or transportation and oil and gas, the rugged Magnum 6KL
handles stressful workloads (mixes of bursty data traffic and priority streaming traffic) as
well as harsh environmental conditions.
The 6KL metal case serves as a heat sink and a sealed-case design enables the
unit to operate in harsh Industrial grade environments and achieves high EMI noise
immunity. Heavy duty Ethernet Switch jobs are readily accommodated with an extended
temperature rating of -40˚C to 60˚C by the UL Component Parts method, or -40˚C to
85˚C by the IEC 60068 Type-Test method. With options such as several popular DC
power input types, AC power and DIN-Rail mounting, the hardened Magnum 6KL is a
“multi-purpose” Industrial Ethernet Switch.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
9
www GarrettCom com ..
The 6KL managed switches also provides a PoE option via power –inside PoE
base unit (6KLP-48VDC) on Slot A and allows the users to utilize up to 4-ports of PoE to
support 802.3af Powered devices. See details for PoE base unit in sec 5.1.11. The Power
Sourcing Equipment (PSE) is fully compatible with Powered Devices (PD)(e.g wireless
access points, IP phones) that comply with the IEEE 802.3af PoE standard. The PoE
switch ports have an auto-sensing algorithm, so that they provide power only to 802.3af,
PoE end devices. PoE is managed by a multi-stage handshake to protect equipment
from damage and to manage power budgets .The PoE ports will discontinue supplying
power when the PoE powered devices are disconnected. This feature supports the
802.3af PoE PSE standard for over-current protection, under-current detection, and fault
protection.
High performance features include non-blocking unicast traffic speed on all
ports and 802.1p QoS Traffic Prioritization. Magnum 6KL switches are “plug-and-play”
and are designed for use in connecting edge devices such as PLCs, IEDs and PoE video
cameras with upstream switches and routers where a mix of bursty data traffic and
priority streaming traffic for video surveillance and cell-tower applications are present.
Magnum 6KL Managed Edge Switches have heavy-duty steel cases and are
readily available with standard Industrial grade 24VDC power. Alternative internal DC
power options are available. Internal AC power and DC power input types may be 12V,
24V, 48V, 125V, 250V and dual source DC input is optional on the 6KL.
Alarm Relay contacts provided on each Magnum 6KL Switch monitor the
hardware and software through traps, providing a record of any losses of power signals
and other user- defined software events. See Section 3.5 for details.
2.2.1 Packet Prioritization, 802.1p QOS
Quality of Service means providing consistent predictable data delivery to
users from datagram paths that go all across a network. As a LAN device, the Magnum
6KL can do its part to prevent any QOS degradation while it is handling Ethernet traffic
through its ports and buffers.
The Magnum 6KL switching hardware supports the IEEE 802.1p standard and
fulfills its role in support of QOS, giving packet processing priority to priority tagged
packets according to the 802.1p standard. In addition to hardware support for QOS, the
MNS software (R2) supports two priority queues that can be shared across the eight
levels of defined packet priorities for application-specific priority control by the user
through software configuration settings.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
10
www GarrettCom com ..
2.2.2 Frame Buffering and Flow Control
Magnum 6KL’s are store-and-forward switches. Each frame (or packet) is
loaded into the Switch’s memory and inspected before forwarding can occur. This
technique ensures that all forwarded frames are of a valid length and have the correct
CRC, i.e., are good packets. This eliminates the propagation of bad packets, enabling all
of the available bandwidth to be used for valid information.
While other switching technologies (such as "cut-through" or "express")
impose minimal frame latency, they will also permit bad frames to propagate out to the
Ethernet segments connected. The "cut-through" technique permits collision fragment
frames (which are a result of late collisions) to be forwarded which add to the network
traffic. Since there is no way to filter frames with a bad CRC (the entire frame must be
present in order for CRC to be calculated), the result of indiscriminate cut-through
forwarding is greater traffic congestion, especially at peak activity. Since collisions and
bad packets are more likely when traffic is heavy, the result of store-and-forward
operation is that more bandwidth is available for good packets when the traffic load is
greatest.
When the Magnum 6KL Switch detects that its free buffer queue space is low,
the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices
sending it packets to cause “flow control”. This tells the sending devices to temporarily
stop sending traffic, which allows the traffic to catch-up without dropping packets. Then,
normal packet buffering and processing resumes. This flow-control sequence occurs in a
small fraction of a second and is transparent to an observer.
Another feature implemented in the Magnum 6KL Switches is a collision-
based flow-control mechanism (when operating at half-duplex only). When the Switch
detects that its free buffer queue space is low, the Switch prevents more frames from
entering by forcing a collision signal on all receiving half-duplex ports in order to stop
incoming traffic.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
11
www GarrettCom com ..
2.3 Managed Network Software for Magnum 6KL
Magnum 6KL comes with licensed MNS-6K software or MNS-6K-SECURE, which
allow the user to configure the Magnum 6KL as a Managed Switch and implements
security features and other software enabled features.
(NOTE: Magnum 6KL managed switch will work with MNS-6K Rel v4.1.6
firmware or higher version only, or MNS-6K-SECURE v14.1.6 firmware or higher
version only. Using any earlier MNS-6K versions will not support the 6KL
hardware)
For additional information about MNS-6K, see the Magnum MNS-6K
Software User guide in pdf format, a separate document normally accessible via your
web-browser, at ftp://ftp.garrettcom.com/
or FTP client program at ftp.GarrettCom.com using
user : m6kuser
password : m6kuser
All MNS-6K software information, and the documentation related to MNS-6K and MNS-
6K-SECURE software, can be accessed at GarrettCom’s FTP site.
Alternatively, for the latest documentation and information, or needed
GarrettCom’s MIBs for SNMP, visit
www.GarrettCom.com/techsupport/index.htm#software and look for the
Magnum MNS-6K info.
For interactive training software which shows basic and advanced info about
the Magnum MNS-6K management software and for a useful tool for first time users,
visit Magnum MNS-6K Operator Training.
You may also email: [email protected] for further information.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
12
www GarrettCom com ..
2.4 Features and Benefits
Managed switching for high performance Ethernet LANs
Magnum 6KL Switches provide unicast non-blocking (all ports can run at full speed at
once) performance with standard Managed Network Software. They are typically
used in LAN traffic centers with up to 8 100Mb +2 Gigabit ports for backbone
connections, where managed network services are desired.
Switching services includes 802.1p QoS packet prioritization
The Magnum 6KL switching hardware supports QoS, giving packet processing
priority to priority tagged packets according to the IEEE 802.1p standard. For port-
and application-specific priorities of data, the QoS software may be configured.
Fiber Ports Built-In
Magnum 6KL Managed Edge Switches are designed to naturally include fiber ports,
and support mixes of multi-mode, single-mode, 100Mb and 1000Mb speed; full-and
half-duplex; classic Small Form Factor (SFF) and Small Form Pluggable (SFP) fiber
connectors. RJ-45 10/100 ports can also be configured in the mix of port types.
Relay Contacts for monitoring internal power and user-defined software events
Two Alarm Relay contacts monitor basic operations. One is for hardware, and will
signal loss of power internally. The other is software controlled and will signal user-
defined software events such as a security violation or an S-Ring fault condition.
Vertical mounting for efficient convection cooling, no fans, extended temperature
Mounting brackets for vertical mounting are included. DIN-Rail mounting hardware
is optional.
All types of power input, 12, 24, 48, 125, 250VDC and AC
The 6KL can be configured with the user’s choice of DC power supplies: 12V and
24V for factory floor, 48V for tariffed carrier field facilities and for PoE-powered
applications such as IP video surveillance, and 125V or 250V for substations. An
internal AC power supply may also be chosen, universal AC for use worldwide.
Heavy-duty design for Industrial Ethernet and extended temperature operation
Fiber ports take more power than copper ports, but the Magnum 6KL design provides
for this with heavy-duty components. The ambient temperature dual-rating is 60`C
per UL methods, and 85°C per IEC type test methods.
MNS-6K licensed Management Software
Managed Networks Software (MNS) basic version, combined with a
Magnum 6K-Series Switch, provides power and efficiency in a managed Ethernet
platform. A full range of industry-standard software functions in the MNS-6K
software product enables the versatile Magnum 6K Switches to perform efficiently
in a wide range of managed LAN applications, including redundant topologies.
MNS-6K-SECURE (optional, for extra security)
Magnum MNS-6K-SECURE software is designed for those customers demanding
extra security in their networks. MNS-6K-SECURE is an optional item--licensed per
switch. All of the features in regular MNS-6K are included, plus extra security.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
13
www GarrettCom com ..
S-Ring and Link Loss Learn for economical high availability using ring topology
S-Ring combined with the Link-Loss-Learn feature provides reliable fast recovery of a
fault in an economical ring topology combining unmanaged and managed switches.
RSTP-2004 for rings and meshes, fastest fault recovery, interoperability
RSTP-2004 provides reliable fast recovery from a fault in a redundant LAN, which
may include Magnum switches and routers as well as other vendors industry-standard-
RSTP products. Redundant topologies may include rings, dual-rings, and complex
meshes.
2.5 Applications
Magnum 6KL Edge Switches offer high performance, modularity and
availability. They provide the flexibility of 100Mbps fiber and copper ports as well as
single or dual Gigabit (1000Mb) ports, with industry-standard LAN management
software. Magnum 6KL Switches are easily used in a variety of applications including
client/server computing, secure VLAN- performance upgrades to departmental networks,
and stream traffic for VOIP and audio/video applications. They can also be used in a
much diversified combination of mixed media in Industrial floor applications. The
performance characteristics of the 6KL Switches enable them to inter-connect a series of
subnets (one subnet per 6KL Switch port) in a LAN traffic center. The subnet
connections may be via fiber or twisted pair cabling, 100Mbps or 10 Mbps speed, and
full-or half-duplex.
The mixed-media modular capability is ideal for industrial applications where
existing Ethernet LAN network cabling must be accommodated. The fiber-built-in
media capability is ideal for integrating future-proof fiber cabling into the LAN structure.

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
14
www GarrettCom com ..
Example 1: Magnum 6KL Switch for an Industrial Application
Equipped with lots of useful features including hardened enclosures, a wide
spread of DC power supply options, and extended temperature ratings qualifies the
Magnum 6KL Managed switch for any Industrial factory-floor, traffic control,
transportation system, or power utility application. The several MNS-6K software
operated features qualifies this managed switch to operate and perform securely and
reliably in all critical applications. The addition of S-Ring and the Link-Loss-Learn
software features allow this Managed switch to provide a very secure highly available
redundant network capability in any ring topology network.
The Managed 6KL’s modularity along with the MNS-6K management
software features remarkably handle industrial environments (i.e. where the factory
floors are networked with Ethernet based mixed-media LANs equipped with PLCs,
computers for taking readings and data from Machines, Client/ Server databases, etc. and
sending these important data to the central office data warehouses) very securely and
reliably. The DIN-Rail Mounting options on the Magnum 6KL allow the factory floor’s
industrial user to mount the 6KL securely anywhere on their Network setup.
The option of setting the ports at 10 or 100Mb on copper and 100Mb on fiber
media provide widespread options to the users to mix and match their legacy and
advance network needs. The modularity of the 6KL Managed Edge Switches make them
an attractive choice for use in applications with LAN connections to an organization’s
multiple site offices and factory- floors. The different locations can be easily connected
together with the Fiber ports supported by the Magnum 6KL Switch. A main NT-server
in a secure area protected from earthquake or fire hazards can be connected to the full
duplex Gigabit Fiber port.
Fig 2.5a The industrial factory floor application with Magnum 6KL

Magnum 6KL Managed Edge Switch Installation and User Guide 11/09
15
www GarrettCom com ..
Extended temperature ratings and a variety of options for AC/DC power
supplies qualify this managed 6KL switch for use in non-temperature controlled
networks and many other temperature sensitive critical Industrial applications where
above normal room temperatures occur while the network is in operation. Full-duplex
future proof fiber media can easily connect long distance subnets and provide a stable
secure network to all applications. The SNMP management capability of the Magnum
6KL Switch helps create a database of all the network subnets to easily manage the
network.
Example 2: A managed network is needed to provide a redundant ring topology for
maximum redundancy. In a network where any faulty cable, cable disconnection or
power failure can bring the whole thing down, a ring switch can be reconfigured and up
and running in milliseconds. The ring topology of the network consists of high speed
LAN segments supported by 100Mbps full-duplex future-proof fiber media to provide a
secure long distance LAN connection. The entire network is sharing a higher bandwidth
Gigabit-enabled data-mining server for the vital database located in a separate secured
building. The copper ports are required for multiple subnets inside the power plant to
check the status of other Ethernet units. The entire spread network will be manageable to
provide easy, detectable, uninterrupted support through a viewable SNMP monitor.
Fig 2.5b Magnum 6KL equipped with S-Ring in redundant ring solution
The Magnum 6KL Managed Edge Switch equipped with a mix of copper and
fiber ports provides an economical and seamless solution to many requirements. The
user-configurable Magnum 6KL provides an extra boost to the network requirements by
