Garrison 2477821 User manual

Thank you for purchasing our Portable Air Conditioner.
Portable Air Conditioner
(Local Air Conditioner)
Instruction Manual
Before using your air conditioner, please read this instruction manual carefully and keep it for future reference.
READ AND SAVE THESE INSTRUCTIONS!

Contents
1
Preparation
Safety Precautions
Cautions
Installation
Operation
Maintenance
Faults Diagnosis
Design and Compliance Notes
Sociable Remark
2
4
5
6
10
12
13
14
15
----------------------
------------------------
----------------------
------------------------
---------------------
------------------
------------------
----------------
-------

Preparation
RearFront
Control panel
Remote signal receptor
Handle
(both sides)
Horizontal louver control
lever(adjust manually)
NOTE: PHA cannot be
adjusted.
NOTE: PHA cannot be
adjusted.
Vertical louver control
lever(adjust manually)
Panel
Caster
Bottom tray
drain outlet
Air filter
(behind the grille)
Upper air intake
Air outlet
Lower air intake
Drain outlet
2

Preparation
NOTE: The unit you purchased may look like one of the following:
3

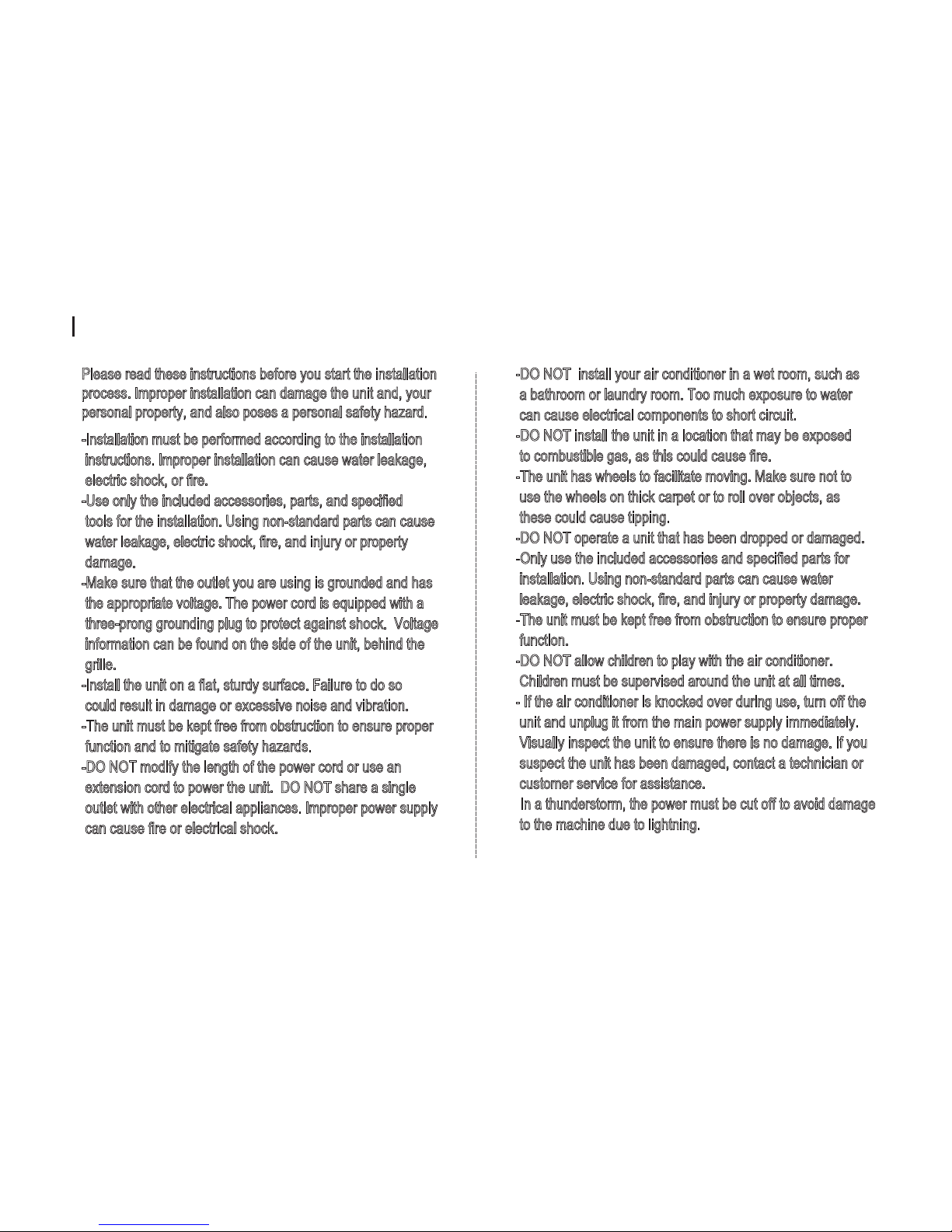

Safety Precautions
Please read these instructions before you start the installation
process. Improper installation can damage the unit and, your
personal property, and also poses a personal safety hazard.
-Installation must be performed according to the installation
instructions. Improper installation can cause water leakage,
electric shock, or fire.
-Use only the included accessories, parts, and specified
tools for the installation. Using non-standard parts can cause
water leakage, electric shock, fire, and injury or property
damage.
-Make sure that the outlet you are using is grounded and has
the appropriate voltage. The power cord is equipped with a
three-prong grounding plug to protect against shock. Voltage
information can be found on the side of the unit, behind the
grille.
-Install the unit on a flat, sturdy surface. Failure to do so
could result in damage or excessive noise and vibration.
-The unit must be kept free from obstruction to ensure proper
function and to mitigate safety hazards.
-DO NOT modify the length of the power cord or use an
extension cord to power the unit. DO NOT share a single
outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
-DO NOT install your air conditioner in a wet room, such as
a bathroom or laundry room. Too much exposure to water
can cause electrical components to short circuit.
-DO NOT install the unit in a location that may be exposed
to combustible gas, as this could cause fire.
-The unit has wheels to facilitate moving. Make sure not to
use the wheels on thick carpet or to roll over objects, as
these could cause tipping.
-DO NOT operate a unit that has been dropped or damaged.
-Only use the included accessories and specified parts for
installation. Using non-standard parts can cause water
leakage, electric shock, fire, and injury or property damage.
-The unit must be kept free from obstruction to ensure proper
function.
-DO NOT allow children to play with the air conditioner.
Children must be supervised around the unit at all times.
- If the air conditioner is knocked over during use, turn off the
unit and unplug it from the main power supply immediately.
Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or
customer service for assistance.
In a thunderstorm, the power must be cut off to avoid damage
to the machine due to lightning.
4

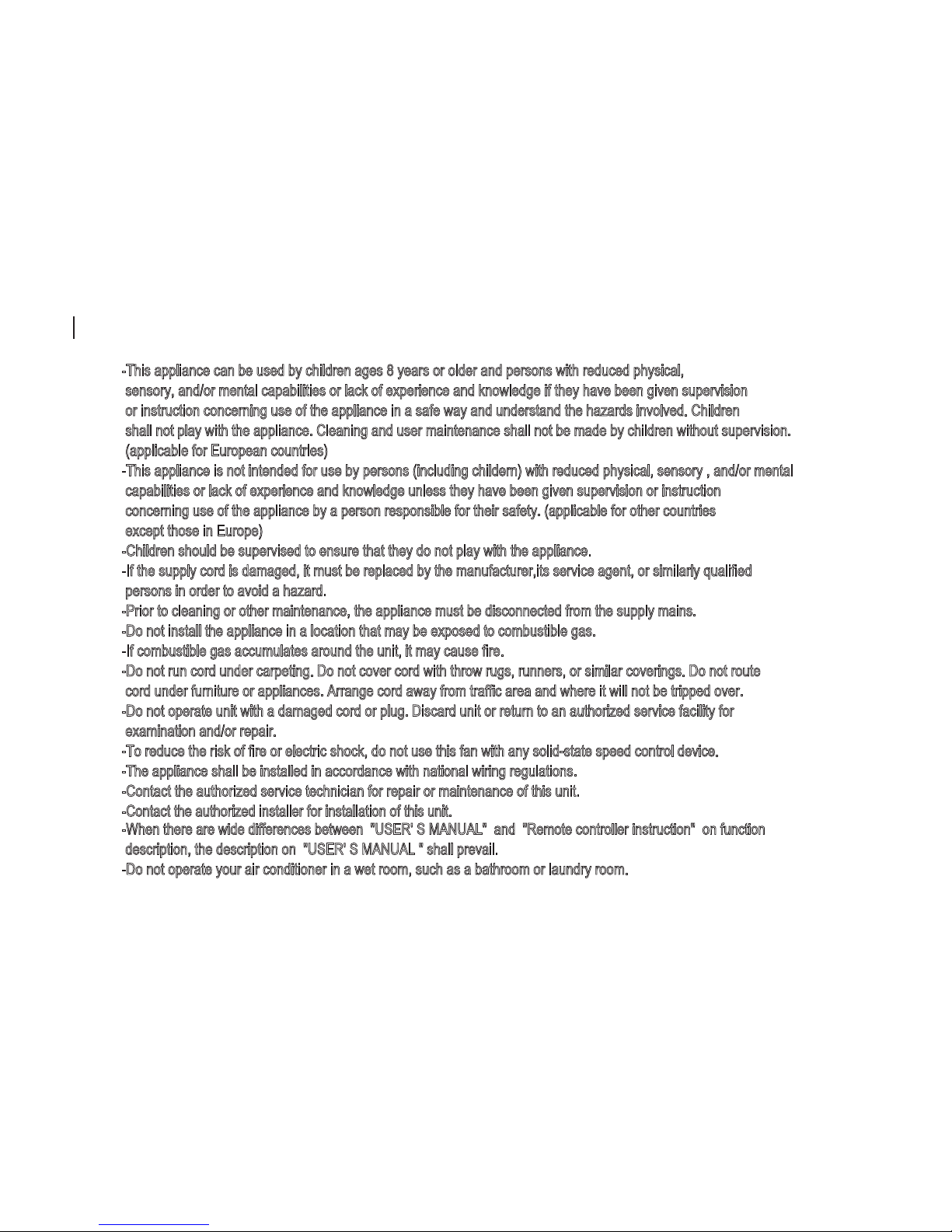

Cautions
-This appliance can be used by children ages 8 years or older and persons with reduced physical,
sensory, and/or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
(applicable for European countries)
-This appliance is not intended for use by persons (including childern) with reduced physical, sensory , and/or mental
capabilities or lack of experience and knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. (applicable for other countries
except those in Europe)
-Children should be supervised to ensure that they do not play with the appliance.
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent, or similarly qualified
persons in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not install the appliance in a location that may be exposed to combustible gas.
-If combustible gas accumulates around the unit, it may cause fire.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route
cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-Do not operate unit with a damaged cord or plug. Discard unit or return to an authorized service facility for
examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorized service technician for repair or maintenance of this unit.
- Contact the authorized installer for installation of this unit.
-When there are wide differences between "USER' S MANUAL" and "Remote controller instruction" on function
description, the description on "USER' S MANUAL " shall prevail.
-Do not operate your air conditioner in a wet room, such as a bathroom or laundry room.
5

Installation
Choosing the Right Location
Your installation location should meet the following requirements:
-Make sure that you install your unit on an even surface to minimize
noise and vibration.
-The unit must be installed near a grounded plug, and the Collection
Tray Drain (found on the back of the unit) must be accessible.

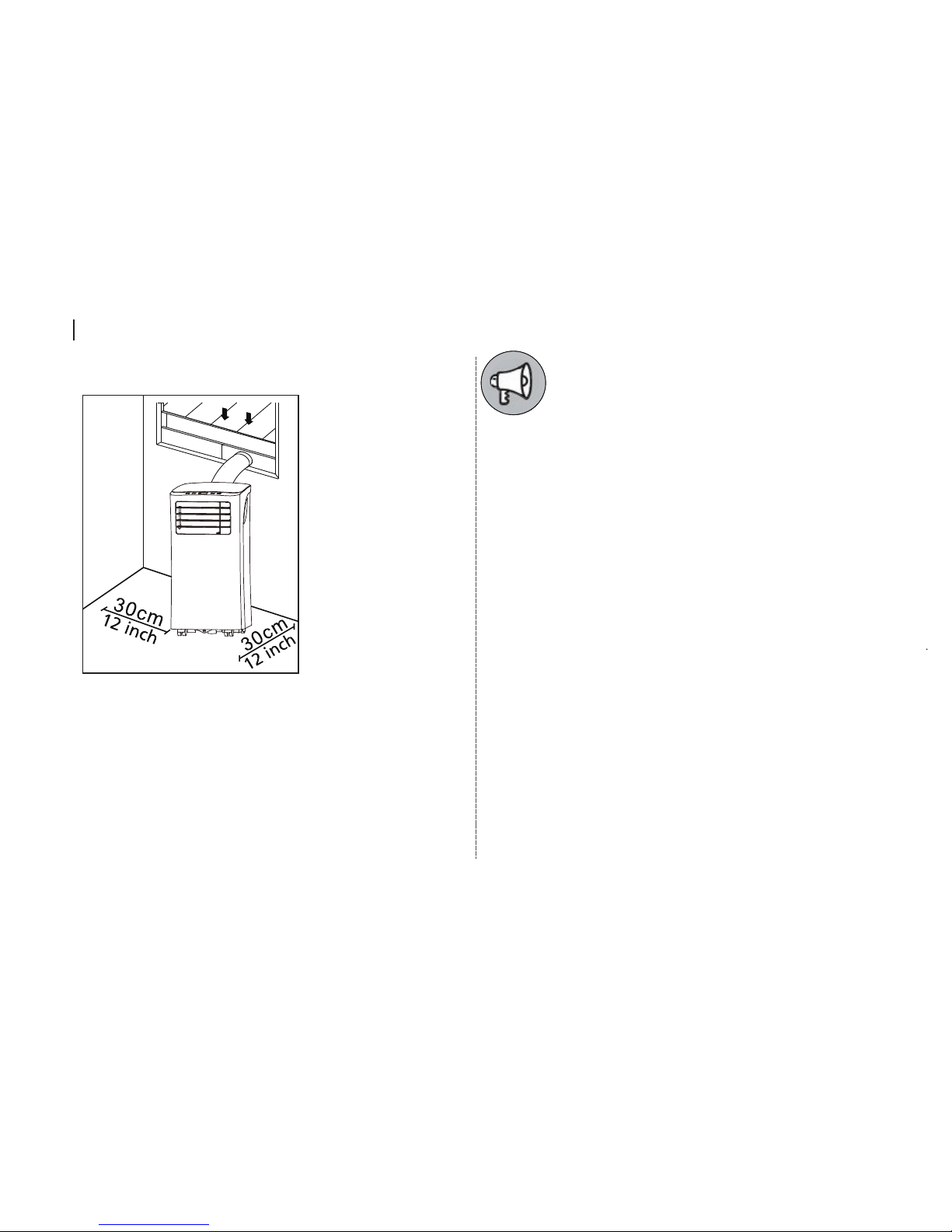

-The unit should be located at least 30cm (12”) from the nearest wall
to ensure proper air conditioning.
-DO NOT cover the intakes, outlets, or remote signal receptor of the
unit, as this could cause damage to the unit.
Note About Fluorinated Gasses
-This air-conditioning unit is a hermetically
sealed unit that contains fluorinated gasses.
For specific information on the types of gasses and
the amount, please refer to the relevant label
on the unit.
-Installation, service, maintenance, and repair of
this unit must be performed by a certified
technician.
-Product uninstallation and recycling must be
performed by a certified technician.
-If the system has a leak-detection system
installed, it must be checked for leaks at least
every 12 months.
-When the unit is checked for leaks, proper
recordkeeping of all checks is strongly
recommended.
NOTE:
All the illustrations in the manual are for explanatory
purposes only. Your machine may be slightly different.
The actual shape shall prevail.
The unit can be controlled by the unit control panel alone or
with the remote controller. This manual does not include
Remote Controller Operations. See the <<Remote Controller
Instruction>> packed with the unit for details.
6

Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (optional, to shorten window adapter for narrow windows)
Accessories
Your Window Installation Kit fits windows 67.5-123cm(26.5-48”) and can
be shortened for smaller windows.
Window Installation Kit
7

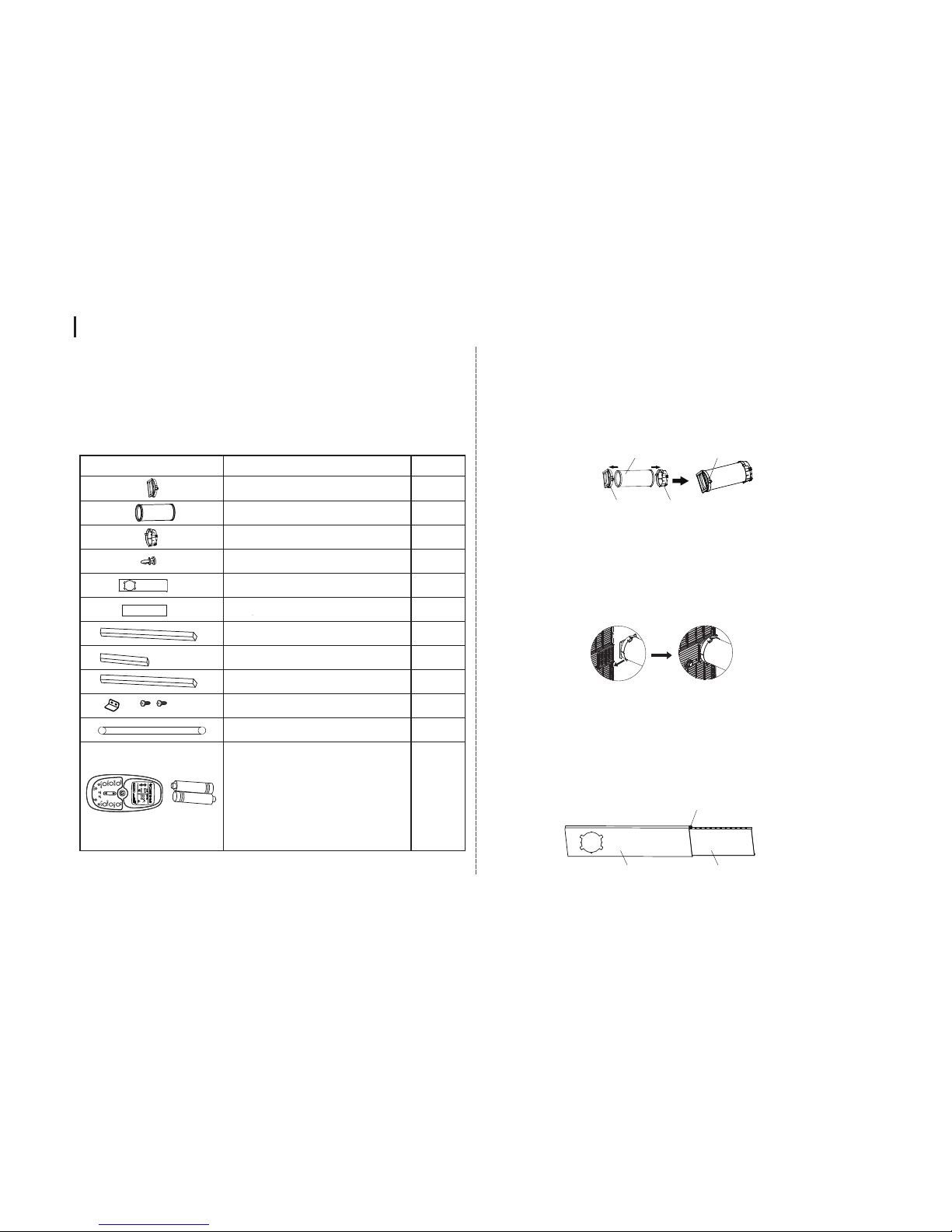

Part Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit Adapter
Window Slider Adapter
Window Slider A
Window Slider B
Exhaust Hose
Bolt
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Security Bracket and 2 Screws
Drain Hose
Quantity
Remote Controller and Battery
(For remote control models only)
Press the exhaust hose into the window slider adapter and unit adapter,
then clamp automatically by elastic buckles of the adaptors.
Push the Exhaust hose into the air outlet opening of the unit along the
arrow direction.
Unit adapter Window slider
adapter
Exhaust hose Exhaust hose
assembly
Step One: Preparing the Exhaust Hose assembly
Step Two: Install the Exhaust hose assembly to the unit
Step Three: Preparing the Adjustable Window Slider
1. Depending on the size of your window, adjust the size of the
window slider.
2. If the length of the window requires two window sliders, use the bolt
to fasten the window sliders once they are adjusted to the proper
length.
Window slider A Window slider B
Bolt

Installation
Note: Once the Exhaust Hose assembly and Adjustable Window Slider
are prepared, choose one of the following two installation methods.
Cut the adhesive foam seal A
and B strips to the proper
lengths, then attach them to
the window sash and frame
as shown.
Cut the adhesive foam seal A
and B strips to the proper
lengths, then attach them to
the window sash and frame
as shown.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adapter
into the hole of the window slider.
Insert the window slider
assembly into the window
opening.
Insert the window slider
assembly into the window
opening.
Type 1: Hung Window Installation
Foam seal B
(Adhesive type-shorter)
2 Screws
Security Bracket
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
8

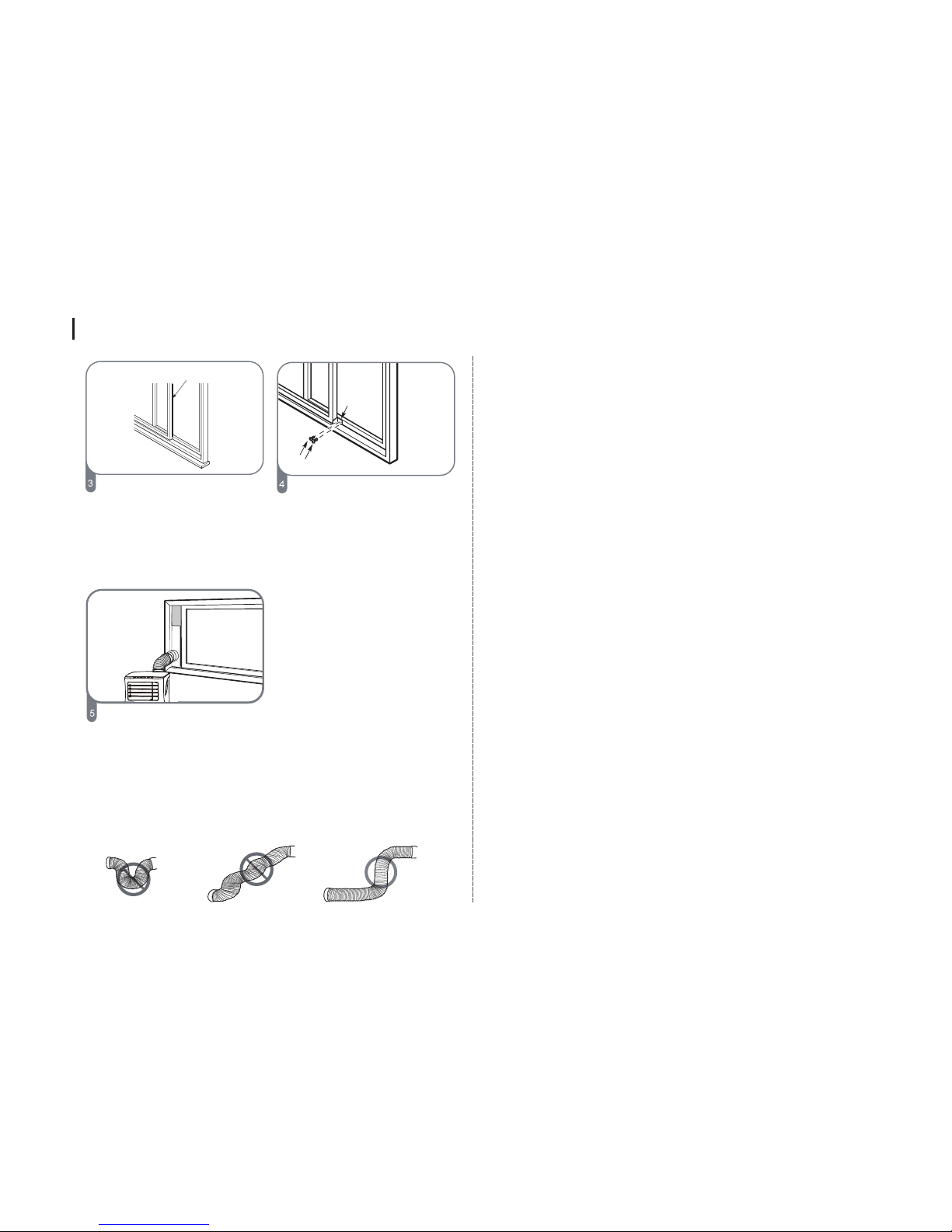

Type 2: Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)

Installation
9
Cut the non-adhesive foam
seal C strip to match the
window height. Insert the foam
seal between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adapter
into the hole of the window slider.
Foam seal C
(Non-adhesive type)
2 Screws
Security
Bracket
Note: To ensure proper function, DO NOT overextend or bend the hose.
Make sure that there is no obstacle around the air outlet of the exhaust
hose (in the range of 500mm) in order to ensure the exhaust system works
properly. All the illustrations in this manual are for explanatory purposes
only. Your air conditioner may be slightly different. The actual shape
shall prevail.

Operation
MODE button
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in the sequence of COOL, FAN,
and DRY .The mode indicator light illuminates
under each mode setting.
NOTE: On above modes, the unit operates
the auto fan speed automatically. You can
set fan speed only by the remote controller
on COOL and FAN modes.
Used to adjust (increase/decrease)
temperature settings in 1°C/1°F
increments in a range of 17°C/62°F to
30°C/86°F.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to
the other, press and hold the Up and Down
buttons at the same time for 3 seconds.
Power button
Power switch on/off.
Power
indicator light
Timer mode indicator
light (set only by
remote controller)
Up (+) and Down (-) buttons
LED display
Shows the set temperature while on cool mode. While on DRY
and FAN modes, it shows the room temperature.
Shows Error codes:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E4-Display panel communication error.
Shows protection code:
P1-Bottom tray is full--Connect the drain hose and drain the
collected water away.If protection repeats,call for service.
Note: When one of the above malfunctions occurs, turn off the
unit and check for obstructions. Restart the unit, but turn off the
unit and unplug the power cord if the malfunction is still present.
Contact the manufacturer , its service agents, or a similarly
qualified person for service.
10

Operation
Operation Instructions
COOL operation
-Press the "MODE" button until the "COOL" indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room
temperature. The temperature can be set within a range of
17°C~30°C/62°F~86°F.
-Press the "FAN SPEED" button on the remote controller to choose the
fan speed.
FAN operation
-Press the "MODE" button until the "FAN " indicator light comes on.
-Press the "FAN SPEED" button on the remote controller to choose the
fan speed. The temperature cannot be adjusted.
-Do not put the duct to the window.
SLEEP/ECO operation
This feature can be activated from the remote control ONLY.
To activate SLEEP feature, the set temperature will increase by
1°C/2°F) in 30 minutes. The set temperature will then increase
by another 1°C/2°F) after an additional 30 minutes. This new
temperature will be maintained for 7 hours before it returns to the
originally selected temperature. This ends the Sleep mode and the unit
will continue to operate as originally programmed.
NOTE: This feature is unavailabe under FAN and DRY modes.
DRY operation
-Press the "MODE" button until the "DRY" indicator light comes on.
-Under this mode, you cannot select a fan speed or adjust the
temperature. The fan motor operates at LOW speed.
-Keep windows and doors closed for the best dehumidifying effect.
-Do not put the duct to the window.
AIRFLOW DIRECTION ADJUSTMENT
Adjust the airflow direction manually:
-The louver can be set to the desired position manually.
-Do not place any heavy objects or other loads on the louver because,
doing so will damage the unit.
-Ensure the louver is fully opened under heating operation.
-Keep the louver fully opened during operation.
Other features
FOLLOW ME/TEMP SENSING feature(optional)
NOTE:This feature can be activated from the remote control ONLY. The
remote control serves as a remote thermostat, allowing for precise
temperature control at its location. To activate the Follow Me/Temp
Sensing feature, point the remote control toward the unit and press the
Follow Me/Temp Sensing button. The remote display shows the actual
temperature at its location. The remote control will send this signal to
the air conditioner every 3 minutes until the
Follow Me/Temp Sensing button is pressed again. If the unit does not
receive the Follow Me/Temp Sensing signal during any 7-minute interval,
the unit will exit the Follow Me/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN and DRY modes.
AUTO-RESTART
If the unit turns off unexpectedly due to power loss,it will automatically
restart with the previous function setting when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted in the first 3 minutes.
This is to protect the unit. Operation will automatically restart after
3 minutes.
11

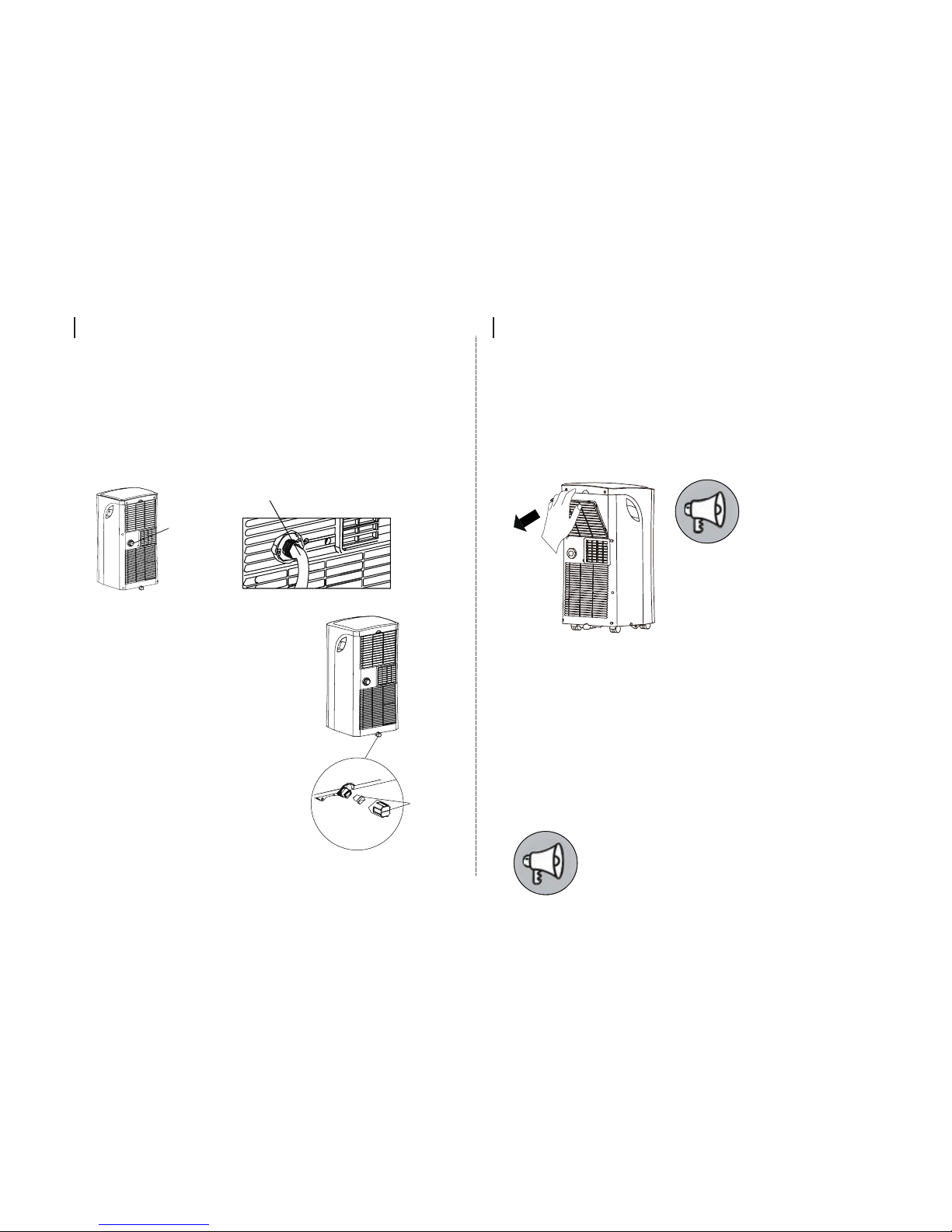

Water Drainage
-During dehumidifying modes, remove the drain plug from the back of
the unit, install the drain connector (5/8" universal female mender) with
3/4" hose (locally purchased). For the models without a drain connector,
attach the drain hose to the hole. Place the open end of the hose
directly over the drain area in your basement floor.
NOTE: When the continuous drain hose is not used, ensure that the drain
plug and knob are installed firmly to prevent leakage.
Remove the
drain plug
Continuous
drain hose
Safety Precautions
Maintenance Tips
-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. Doing so causes
electrical danger.
-DO NOT operate the machine if the power supply was damaged
during cleaning. A damaged power cord must be replaced with a
new cord from the manufacturer.
Clean the Air Filter
Clean the Unit
Store the unit when not in use
-Be sure to clean the air filter every 2
weeks for optimal performance.
-The water collection tray should be
drained immediately after P1 error occurs,
and before storage to prevent mold.
-In households with animals, you will have
to periodically wipe down the grill to
prevent blocked airflow due to animal hair.
Remove the air filter
Air filter
(take out)
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the
unit with a dry lint-free cloth.
-Drain the unit’s water collection tray according to the instructions in
the following section.
-Run the appliance on FAN mode for 12 hours in a warm room to dry
it and prevent mold.
-Turn off the appliance and unplug it.
-Clean the air filter according to the instructions in the previous section.
Reinstall the clean, dry filter before storing.
-Remove the batteries from the remote control.
Be sure to store the unit in a cool, dark place.
Exposure to direct sunshine or extreme heat can
shorten the lifespan of the unit.
-When the water level of the bottom tray
reaches a predetermined level, the unit
beeps 8 times and, the digital display area
shows "P1". At this time, the air
conditioning/dehumidification process will
immediately stop. However, the fan motor
will continue to operate (this is normal).
Carefully move the unit to a drain location,
remove the bottom drain plug, and drain
away the water. Reinstall the bottom
drain plug and restart the machine until
the "P1" symbol disappears. If the error
repeats, call for service.
NOTE: Be sure to reinstall the bottom
drain plug firmly to prevent leakage
before using the unit.
Bottom drain
plug
Operation Maintenance
12

Please check the machine according to the following form before asking for maintenance:
Faults Diagnosis
Problem Possible Cause
P1 Error Code
In COOL mode: room
temperature is lower than
the set temperature
The air filter is blocked with
dust or animal hair
The unit is low on
refrigerant
Temperature setting is too
high
The windows and doors in
the room are open
The room area is too large
Troubleshooting
Reset the temperature
Unit does not turn
on when pressing
ON/OFF button
Unit does not cool
well
The unit is noisy
and vibrates too
much
The unit makes a
gurgling sound
Exhaust hose is not
connected or is blocked
The Water Collection Tray is full.
Turn off the unit, drain the water
from the Water Collection Tray,
and restart the unit.
There are heat sources
inside the room
Turn off the unit and clean the
filter according to instructions
Call a service technician to inspect
the unit and top off refrigerant
Decrease the set temperature
Make sure all windows and doors
are closed
Double-check the cooling area
Turn off the unit, disconnect the
hose, check for blockage, and
reconnect the hose
Remove the heat sources if
possible
The ground is not level Place the unit on a flat, level
surface
The air filter is blocked with
dust or animal hair
Turn off the unit and clean the
filter according to instructions
This sound is caused by the
flow of refrigerant inside
the unit
This is normal
13

Design and Compliance Notes
Design Notice
Energy Rating Information
In order to ensure the optimal performance of our products, the
design specifications of the unit and remote control are subject
to change without prior notice.
The Energy Rating for this unit is based on an installation
using an unextended exhaust duct without window slider
adapter (as shown in the Installation section of this manual).
At the same time, the unit must operate one COOL
MODE and HIGH FAN SPEED by remote controller.
Unit Temperature Range
Cool 17-35°C (62-95°F)
Dry
13-35°C (55-95°F)
Mode Temperature Range
14

Sociable Remark
When using this dehumidifier in European countries, the following information must be followed:
DISPOSAL: Do not dispose of this product as unsorted municipal waste. Separate collection of such waste
for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be disposed of at least
free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacturer will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health because hazardous substances leak
into the groundwater and find their way into the food chain.
15
