GARZ&FRICKE Santaro series User manual

SANTARO 10.4" Boxed Manual
For PCB revision 0.7 or for HW 1.1 or later

SANTARO 10.4" Boxed Manual
2
Content
1Introduction 3
2Safety Hints 4
3Product Introduction 5
Product introduction 53.1 Type plate and device information 53.2 Related documents and online support 63.3
4Product Description 7
Technical data 84.1 PCB design and Pin assembly 114.2
5Installation and start up 12
Connection Scheme 125.1
6External interfaces and Schematics 13

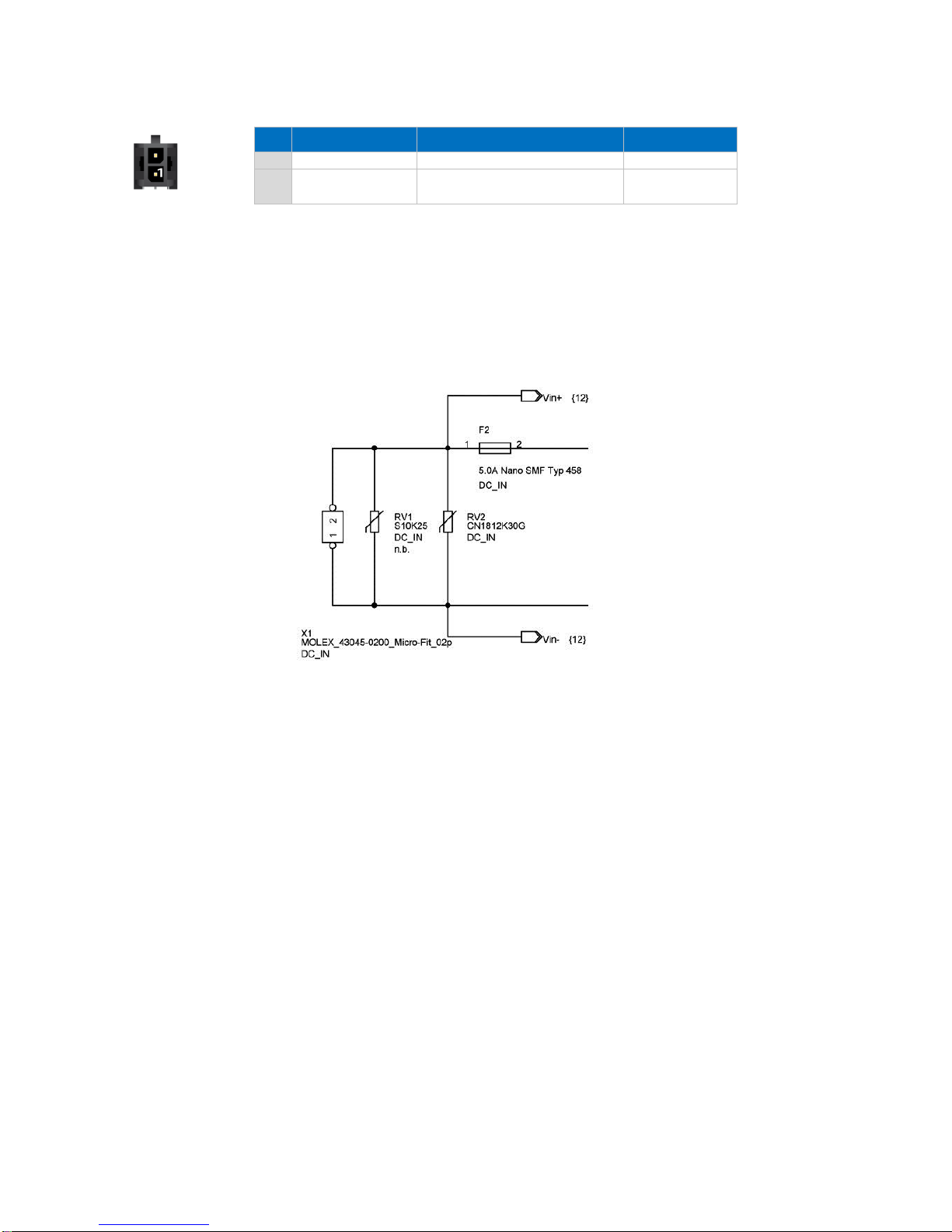

Ethernet (X24) 136.1 Power (X1) 146.2 Digital I/O (X14) 156.3 CAN/RS-485 Interface (X39) 166.4 Speaker (X9) 166.5 Keypad/SPI (X21) 176.6 RS-232/MDB (X13) 196.7 USB - Host (X34) 206.8 USB - OTG (X20) 206.9 Battery 216.10 HDMI Type-D (X111) 226.11
7Document revision history 23
8Technical support 24
Annex A: Assembly options 26
A-1 WIFI (USB) 26
Annex B: Hardware revision information 27
Annex C: Mechanical specifications 28
C-1 Mechanical Drawings 28
Annex D: Quality and Incoming Inspections 29
D-1 Display and Touch 29
D-2 Evaluation criteria of standard display module 30
Annex E: Battery 31
E-1 Battery Specifications 31
E-2 Replacement of the internal battery 32
Annex F: Guidelines and Standards 34
F-1 EC Declaration of Conformity 34
F-2 EMC Certifications 34
F-3 RoHS Declaration 34
F-4 UL Certification 34
Annex G: Common documentation 35
G-1 Warranty hints 35
G-2 Application notes 36
G-3 Trademarks and service marks 36

SANTARO 10.4" Boxed Manual
3
1 Introduction
Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use
and therefore we suppose extended technical knowledge and practice in working with such products.
The information in this manual is subject to technical changes, particularly as a result of continuous
product upgrades. Thus this manual only reflects the technical status of the products at the time of
printing. Before design-in the device into your or your customer’s product, please verify that this
document and the therein described specification is the latest revision and matches to the PCB
version. We highly recommend contacting our technical sales team prior to any activity of that kind.
The attached documentation does not entail any guarantee on the part of Garz & Fricke GmbH with
respect to technical processes described in the manual or any product characteristics set out in the
manual. We do not accept any liability for any printing errors or other inaccuracies in the manual
unless it can be proven that we are aware of such errors or inaccuracies or that we are unaware of
these as a result of gross negligence and Garz & Fricke has failed to eliminate these errors or
inaccuracies for this reason.
Garz & Fricke GmbH expressly informs that this manual only contains a general description of
technical processes and instructions which may not be applicable in every individual case. In cases of
doubt, please contact our technical sales team.
In no event, Garz & Fricke is liable for any direct, indirect, special, incidental or consequential
damages arising out of use or resulting from non-compliancy of therein conditions and precautions,
even if advised of the possibility of such damages.
Before using a device covered by this document, please carefully read
Annex G-1 Warranty hints
Annex G-2 Application notes
Embedded systems are complex and sensitive electronic products. Please act carefully and ensure
that only qualified personnel will handle and use the device at the stage of development. In the event
of damage to the device caused by failure to observe the hints in this manual and on the device
(especially the safety instructions), Garz & Fricke shall not be required to honour the warranty even
during the warranty period and shall be exempted from the statutory accident liability obligation.
Attempting to repair or modify the product also voids all warranty claims.

SANTARO 10.4" Boxed Manual
4
2 Safety Hints
Please read this section carefully and observe the instructions for your own safety and correct use of the
device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded
systems have been built and tested by us and left the company in a perfectly safe condition.
In order to maintain this condition and ensure safe operation, the user must observe the instructions and
warnings contained in this manual.
I. General handling
Don’t drop or strike the unit: The PCB, display and/or other parts might be damaged.
Keep away from water and other liquids, the unit is not protected against.
Operate the unit under electrical and environmental conditions according to the technical
specification.
The electrical installations in the room must correspond to the requirements of the local (country-
specific) regulations.
Take care that there are no cables, particularly power cables, in areas where persons can trip
over them.
Do not place the device in direct sunlight, near heat sources or in a damp place.
All plugs on the connection cables must be screwed or locked to the housing.
Repairs may only be carried out by qualified specialist personnel authorized by Garz & Fricke
GmbH or their local distributors.
Maintenance or repair on the open device may only be carried out by qualified personnel
authorized by Garz & Fricke GmbH which is aware of with the associated dangers.
II. LCD and touch handling
If equipped with, the soft surface of a resistive touch screen is not suitable for use with stencils
and/or other devices for touch operation. There are special plastics pens available in commercial
shops. A projective capacitive touch screen might be protected by a heat strengthened glass or
acrylic or polycarbonate cover lens. These are dedicated for use with finger tips. There are very
special pens available which might work with a PCT touch.
Protect the LCD/touch/cover lens against scratches and sharp edges. The warranty does not
cover pixel failures resulting from non-compliant handling.
Clean the LCD/touch/cover lens with a soft cotton cloth with alcohol. Don’t use organic solvents,
acid or alkali solutions.
Water drops, finger fat or any similar fouling should be removed immediately from the LCD,
cover lens and metal frame to avoid any staining.
III. Electricity
The embedded systems may only be opened in accordance with the description in this user’s
manual for
replacing of the (rechargeable, where applicable) lithium battery and/or
configuration of interfaces, where applicable
These procedures have to be carried-out only by qualified specialist personnel.
When accessing internal components the device must be switched off and disconnected from the
power source.
When purchased core or basic versions without protecting back cover, don’t touch the PCB
directly with your fingers. Especially these products need to be handled very carefully.
Don’t operate or handle the unit without typical ESD protection measures, such as ground
earthing.
Operate the unit according to the technical specification only.
IV. Damage or permanent malfunction
It must be assumed that a safe operation is no longer possible, in case
the device has visible damage or
the display is dark or shows strange pattern for longer period
the device doesn’t react after a reset
In these cases the device must be shut down and secured against further use

SANTARO 10.4" Boxed Manual
5
3 Product Introduction
This document is applicable for hardware revisions 1.0 or later of the SANTARO SERIES.
Please find the hardware version grid in Annex B:
Product introduction3.1
SANTARO is an Embedded System to be used as human machine interface (HMI) in various applications.
Please refer to Annex G-2 Application notes for further information. The system is equipped with a large
number of industrial interfaces. A wide variety of options is available as well.
Type plate and device information3.2
For service and later identification of the device, the type plate contains important information, such as article
numbers (linked to the PCB rev.), the order code and model name (which is valid for all PCB rev.) and the
serial number, that identifies the exact device.
(Exemplary illustration)

SANTARO 10.4" Boxed Manual
6
Related documents and online support3.3
This document contains product specific information. The following additional documentations are available:
Title
Link to Garz & Fricke Website
Description
Windows OS Manual
GF_WindowsCE_Manual_Vn.n.pdf
Contains information about
Windows Embedded CE, the tool
chain, the development
environment Visual Studio, Garz &
Fricke tools, etc.
Linux PTX OS Manual
GF_Linux_PTX_Manual_Vn.n.pdf
Contains information about Linux
BSP with PTX distribution, the tool
chain, Qt, etc.
Linux Yocto OS Manual
GF_Linux_Yocto_Manual_Vn.n.pdf
Contains information about Linux
BSP with development
environment Linux Embedded
System Yocto includes first
information about the bootloader
Flash N Go
Flash N Go User Manual
Tbd.
Contains information about the
usage of the Garz & Fricke Flash-
N-Go solution which consists of
three submodules: Flash-N-Go
Boot, Flash-N-Go System, Flash-
N-Go Update
Support for your Garz & Fricke embedded device is available on the Garz & Fricke website. You may find a list
of the documents available, as well as their latest revision and updates for your system:
Product
Link to Garz & Fricke Website
SANTARO 10.4”Boxed
http://www.garz-fricke.com/santaro-104-boxed_en.html?ptab=1

SANTARO 10.4" Boxed Manual
7
4 Product Description
This drawing is meant for your orientation. For drawing please refer to Annex C:
You will get 3 D model (CAD) Drawings after signed a NDA contract.
(Exemplary illustration. Singlecore M has no heatsink.)
Aluminium
Frame
Display with
resistive touch
Switches
SD-card slot
Power LED
Back cover
Internal speaker
6,3 mm male
spade
terminal
Front Cover
Heatsink
Connectors and
interfaces

SANTARO 10.4" Boxed Manual
8
Technical data4.1
CPU
Singlecore M
Singlecore
Dualcore
Quadcore
Type
CPU Freescale ARM®-CortexTM-A9 i.MX6S/D/Q
Cores1
1
2
4
Clock/Frequency
800 MHz
1 GHz per core
Features
NEON for SIMD media acceleration and VFP operations
L1 cache, 32 KB for instruction, 32 KB for data
512 KB L2 cache (Singlecore)
1 MB L2 cache (Dualcore and Quadcore)
Multi-format HD 1080p video decoder and HD 720p video encoder hardware
engine
HW Accelerators
OpenGL® ES 2.0
OpenVG™ 1.1 (emulated on 3D
GPU)
OpenVG™ 1.1
RTC
Depending on ambient temperature
Standard time´s deviation: +/- 30 ppm at 25°C
Memory
Singlecore M
Singlecore
Dualcore
Quadcore
RAM Standard (DDR3)
512 MB 32-Bit
1 GB 32-Bit
1 GB 64-Bit
RAM Maximum
Up to 2 GB DDR3 SDRAM
SRAM
512 KB
eMMC-Flash
4 GB eMMC
SD Card Slot
4 bit MMC/SDIO/SD/SDHC
Interfaces External
Singlecore M
Singlecore
Dualcore
Quadcore
Network
1x 10/100 Mbit/s Ethernet (RJ45)
Serial
2x RS-232 (RX/TX/CTS/RTS)
1x RS-485,
nonisolated
1x RS-485, with galvanic isolation
MDB2/1x MDB (Master / Slave optional)3instead of 2nd external RS-232
High-Speed USB 2.0
1x 480 Mbit/s Host (Type A)
1x 480 Mbit/s OTG (Type Micro-AB)4
CAN Fieldbus
1x CAN (ISO /
DIS 11898),
nonisolated
1x CAN (ISO/DIS 11898), with
galvanic isolation
Keypad/SPI
/I²C
multiplexed
Default
1x 7x7 Keypad, 1x I²C
Mode 1
1x 4x4 Keypad, 1x I²C, 1x SPI
Mode 2
1x 8x8 Keypad
Mode 3
1x 5x5 Keypad, 1x SPI
Speaker
1x speaker (connector) 1.5W RMS (8Ω)
Speaker output
Output sound pressure level (S.P.L.) 85 +-3 db/0.3 W @ 0.5m
Digital I/O
2x Input, 2x Output (0.7A)
1
The variants of core 4 are listed below
2
Option
3
The selection of a variant eliminates the other.
4
Mechanically the Micro-USB interface has not been designed for frequent contact operations. Please use an adapter cable
with a strain relief.

SANTARO 10.4" Boxed Manual
9
LCD Display
Singlecore M
Singlecore
Dualcore
Quadcore
Size [inch/mm]
10.4 / 264.0
Orientation
6 o`clock
Display Technology
TFT-TN
Width x Height [pixel]
800 x 600
Colors [bit]
18 (262 K colors)
Backlight Unit
LED
Luminance5[cd/m²]
400 (Typ.)
Active Area W x H [mm]
211.2 x 158.4
Viewing Angle
Typ. 50 / 60 / 70 / 70 (U/ D/ L/ R)/ Center CR>10
Resistive Touch
Type
4-wire analog resistive
Linearity
<=2.0%
Surface Treatment
Antiglare
Power Supply and Consumption
Supply [V DC]
Nom. 24
Max. 14 ~ 30
Consumption [W]
~ 9.66
Internal Backup Battery
(RTC)
Type: 3 V Li-Ion Type CR1220:
Lifetime (RTC only): Approximately 8 years, depending
on application
Type: 3 V Li-Ion
Type CR 2032:
Lifetime
(RTC+SRAM):
tbd.
Housing
Back Cover
1.4016 high quality steel, polished, 0.8mm
Front
Frame: Light metall
Décor: black
Protection class
Front: 66
Back: 20
Approximate Dimensions
W x H x D [mm]
279.20 x 224.0 x 36.14
Weight [g]
490
Environment
Humidity [%]
5 ~ 90 (non condensating)
Operating Temperature[°C]
0 ~ +60
Storage Temperature [°C]
-20 ~ +70
Max. Operating Altitude [m]
3,000
Max. Storage/Transit
Altitude [m]
10,000
Noise Level [db(A)] @ 1m
<<40 (fanless design)
5
Luminance applies to the entire device.
6
Measured with qt application: Video with sound, ethernet, 2 USB-Sticks

SANTARO 10.4" Boxed Manual
10
Lifetime
Backlight Lifetime7LCD
Display [h]
30,000
Operating Lifetime Touch
100,000 (by pen), 1,000,000 (by finger)
MTBF8[h]
≥ 50,000
7
Backlight lifetime is dictated by the LCD manufacture´s specification. Backlight lifetime is the approximate time at which
the brightness decreases to half of its original brightness. Reduction of brightness due to backlight lifetime is not
considered as failure. It is a natural aging of all electronic components.
8
Electrical products use the industrial standard term Mean Time between Failure (MTBF) as a statistical prediction of the
elapsed time between failures in a large population of systems.
The MTBF of all Garz & Fricke HMI products shall be 50,000 hours
A failure is anything that causes the product not to function to its specifications
Reduction in brightness due to backlight lifetime is not a failure
If the LCD used in the system exceeds its pixel defect specification it is considered a failure.

SANTARO 10.4" Boxed Manual
11
PCB design and Pin assembly 4.2
As this manual describes a boxed version, only the external interfaces will be mentioned in the following
chapter.
(The illustration shows the fully equipped Santaro Quadcore).
Pos.
Description
Pos.
Description
1
Ethernet (X24)
8
USB - Host (X34)
2
Power (X1)
9
USB - OTG (X20)
3
Digital I/O (X14)
10
Status LED (D30)
4
CAN/RS-485 Interface (X39)
11
SD card reader (X31)
5
Speaker (X9)
12
Clear all Switch (SW2)
6
Keypad/SPI (X21)
13
Reset Switch (SW1)
7
RS-232/MDB (X13)
14
HDMI Type-D (X111)

SANTARO 10.4" Boxed Manual
12
5 Installation and start up
The content of this document is limited to explain the device connectors and how to access SANTARO via FTP
over your local area network (LAN) within a few seconds. For advanced hardware specifications and software
support, please refer to chapter 3.3 Related documents and online support
Product
Link to Garz & Fricke Website
SANTARO 10.4" Boxed
http://www.garz-fricke.com/santaro-104-boxed_en.html?ptab=1
Connection Scheme 5.1
(Exemplary illustration)

SANTARO 10.4" Boxed Manual
13
6 External interfaces and Schematics
Ethernet (X24)6.1
Green LED (link) is default on and turns of when link is detected.
Yellow LED (act) flashes during sending/receiving packets.
9
Optional
Pin
Name
Description
Information
1
Tx+
Rx/Tx might be swapped
(Auto-MDIX)
+/- might be swapped
(Autom. polarity correction)
PoE might also be injected
via Rx/Tx lines.
2
Tx-
3
Rx+
4
SPARE1
Power Supply (PoE)9
5
6
Rx-
7
SPARE2
Power Supply (PoE)8
8
Header:
RJ45

SANTARO 10.4" Boxed Manual
14
Power (X1)6.2
Pin
Name
Description
Level
1
GND
DC Ground
0V
2
Vcc_In
DC Input voltage
Nom. 24 ± 15%
Max. 14  30
Header:
Molex 43045-0200 Micro-Fit 2p
Plug: Molex 43025-0200 Micro-Fit 2p,
crimp contact Molex 43030-0007
Shielding with 6,3 mm male spade terminal connector
Pin 1 (GND) is connected to frame/housing. GND/Vcc_In is not galvanic
isolated from System-GND

SANTARO 10.4" Boxed Manual
15
Digital I/O (X14)6.3
Pin
Name
Description
Level
1
DIG_IN1
Input 1
0V
Low
Typ. 8,3
mA / 24 V
2
DIG_IN2
Input 2
3-36V
High
3
GND_DIO
Ground for digital IO group
4
GND
Common ground, can be bridged
with GND_DIO, when galvanic
isolation is not required
5
DIG_OUT1
Output 1
0V
Low
Max. 800
mA / 24 V
6
DIG_OUT2
Output 2
Vcc_DI O
High
7
Vcc_DIO
Supply input for digital IO group
<36 V
8
Vcc
Supply output, can be bridged
with Vcc_DIO, when galvanic
isolation is not required
Directly connected to the
supply (x1) without fuses
or surge protection!
Vcc_In
Header:
Molex 43045-0800 Micro-Fit 8p
Plug: Molex 43025-0800 Micro-Fit 8p, crimp contact Molex 43030-0007
Shielding with 6,3 mm male spade terminal connector
Digital I/O (X14) is not galvanic isolated from System-GND/Housing

SANTARO 10.4" Boxed Manual
16
CAN/RS-485 Interface (X39)6.4
Pin
Name
Description
Level
1
GND_CAN_RS485
Ground for CAN and RS485 group
2
CAN1_TERM
To enable CAN1-Termination, bridge
with CAN1_H
3
CAN1_H
CAN bus 1 high
-24…+24 V
4
CAN1_L
CAN bus 1 low
-24…+24 V
5
CAN1_TERM
To enable CAN1-Termination, bridge
with CAN1_L
6
RS485_TERM
To enable RS485-Termination: bridge
with RS485_A
7
GND_CAN_RS485
Ground for CAN and RS485 group
8
n.a.
9
RS485_Y
TX+
-7…+12 V
10
RS485_Z
TX-
-7…+12 V
11
RS485_A
RX+, to enable Half-Duplex: bridge with
RS485_Y
12
RS485_B
RX- , to enable Half-Duplex: bridge with
RS485_Z
Header:
Molex 43045-1200 Micro-Fit 12p
Plug: Molex 43025-1200 Micro-Fit 12p, crimp contact Molex 43030-0007
Shielding with 6,3 mm male spade terminal connector
CAN/RS-485 (X14) is not galvanic isolated from System-GND/Housing
CAN1/CAN2 *
Pin
Name
Description
Level
1-5
Identical to standard
6
n.a.
7
GND_CAN_RS485
Ground for CAN group
8
CAN2_TERM
To enable CAN2-Termination, bridge
with CAN2_H
9
CAN2_H
CAN bus 2 high
-24…+24 V
10
CAN2_L
CAN bus 2 low
-24…+24 V
11
CAN2_TERM
To enable CAN2-Termination, bridge
with CAN2_L
12
n.a.
Speaker (X9)6.5
Pin
Name
Description
Level
1
Speaker +
Parallel to internal speaker
Max. 1.5 W @ 8 Ω or 3 W @ 4 Ω
2
Speaker -
Parallel to internal speaker
Header:
Header: JST S2B-PH-SM3-TB
Plug:
JST PHR-2 with crimp contacts SPH-002GW-P0.5L-
ND

SANTARO 10.4" Boxed Manual
17
Keypad/SPI (X21)6.6
Keypad/SPI/I²C, multiplexed
Pin
Name
Description
Level
Default mode
Mode 1
1
GND
Ground
Ground
3,3 V
2
GND
Ground
Ground
3
KP_ROW0
Keypad row 0
Keypad row 0
4
KP_COL0
Keypad column 0
Keypad column 0
5
KP_ROW1
Keypad row 1
Keypad row 1
6
KP_COL1
Keypad column 1
Keypad column 1
7
KP_ROW2
Keypad row 2
Keypad row 2
8
KP_COL2
Keypad column 2
Keypad column 2
9
KP_ROW3
Keypad row 3
Keypad row 3
10
KP_COL3
Keypad column 3
Keypad column 3
11
KP_ROW4
I²C2 SDA
I²C2 SDA
12
KP_COL4
I²C2 SCL
I²C2 SCL
13
KP_ROW5_DMA
Keypad row 5
SPI Interrupt Request
14
KP_COL5_SS1
Keypad column 5
SPI Slave Select 1
15
KP_ROW6_MISO
Keypad row 6
SPI Master in Slave out
16
KP_COL6_MOSI
Keypad column 6
SPI Master out Slave in
17
KP_ROW7_SLK
Keypad row 7
SPI Serial Clock
18
KP_COL7_SS0
Keypad column 7
SPI Slave Select 0
19
Aux_Out
500 mA (can be controlled by software)
5,0 V
20
Header:
JST SM20B-SRDS-G-TF, side entry, RM = 1.00
Plug:
JST SHDR-20V-S-B, crimp contact: SSH-003GA-P0.2

SANTARO 10.4" Boxed Manual
18
Keypad/SPI/I²C, multiplexed 1*
Pin
Name
Description
Level
Mode 2
Mode 3
1-10
Identical to standard
3,3 V
11
KP_ROW4
Keypad row 4
Keypad row 4
12
KP_COL4
Keypad column 4
Keypad column 4
13
KP_ROW5_DMA
Keypad row 5
SPI Interrupt Request
14
KP_COL5_SS1
Keypad column 5
SPI Slave Select 1
15
KP_ROW6_MISO
Keypad row 6
SPI Master in Slave out
16
KP_COL6_MOSI
Keypad column 6
SPI Master out Slave in
17
KP_ROW7_SLK
Keypad row 7
SPI Serial Clock
18
KP_COL7_SS0
Keypad column 7
SPI Slave Select 0
19
Aux_Out
500 mA (can be controlled by software)
5,0 V
20

SANTARO 10.4" Boxed Manual
19
RS-232/MDB (X13)6.7
RS-232/RS-232
Pin
Name
Description
Level
1
GND
Ground
2
RS232_TXD1
Port#1: Transmit data (Output)
3
RS232_RXD1
Port#1: Receive data (Input)
4
RS232_RTS1
Port#1: Request-to-send (Output)
5
RS232_CTS1
Port#1: Clear-to-send (Input)
6
GND
Ground
7
RS232_TXD2
Port#2: Transmit data (Output)
8
RS232_RXD2
Port#2: Receive data (Input)
9
RS232_RTS2
Port#2: Request-to-send (Output)
10
RS232_CTS2
Port#2: Clear-to-send (Input)
Header:
Molex 43045-1000 Micro-Fit 10p
Plug: Molex 43025-1000 Micro-Fit 10p,
crimp contact Molex 43030-0007
Shielding with 6,3 mm male spade terminal connector
RS-232/MDB (X13) is not galvanic isolated from System-GND/Housing
RS-232/MDB
Pin
Name
Description
Level
1-6
Identical to standard (pls. see 0)
7
MDB_TXD
MDB: Transmit data (Output)
8
MDB_RXD2
MDB: Receive data (Input)
9
MDB_WakeUp
MDB: WakeUp Signal (Output)
10
MDB: WakeUp PullUp VCC
0…5 V

SANTARO 10.4" Boxed Manual
20
USB - Host (X34)6.8
Pin
Name
Description
Level
1
USB_H1_VBUS
Power supply
5V/500mA (max)
2
USB_H1_DN
Data minus (D-)
3
USB_H1_DP
Data plus (D+)
4
GND
Ground
Header:
USB Type A
USB - OTG (X20)6.9
Pin
Name
Description
Level
1
USB_OTG_VBUS
Power supply
5V/500mA (max)
2
USB_OTG_DN
Data minus (D-)
3
USB_OTG_DP
Data plus (D+)
4
USB-OTG_ID
Device ID
5
GND
Ground
Header:
Micro-USB Type AB
