GAS Car Audio COMPETITION 7000.1D User manual

Manual size : 150 x 210mm
Owner’s Manual
MADE IN KOREA
COMPETITION 12000.1D HIGH CLASS D AMPLIFIER
12000 WATTS RMS
COMPETITION 7000.1D HIGH CLASS D AMPLIFIER
7000 WATTS RMS

2

Installation
3
If you intend to install the amplifier yourself, please read the owner’s manual carefully.
Before you start the installation, please take all the necessary precautions into consideration.
Preparation
Disconnect the negative (-) battery cable before mounting or making any connections.
Check the battery and alternator ground (-) connections. Make sure they are properly connected
and free of corrosion. Before selecting a mounting location for the amplifiers, please take cooling and
safety into consideration.
Avoid areas with excessive vibration !
For safety purposes, install the amplifier in a dry and well ventilated location and make sure no cables or
other harnesses in the car interfere with the mounting location.
+12V(B+), GND, REM CONNECTION
+12V / B+ (POWER CONNECTION)
Before mounting the amplifiers, disconnect the negative (-) wire from the battery to protect any accidental
damage to the amplifiers or the audio systems.
Connect the power cables to power terminal labeled as + 12V.
Some of the amplifiers are not equipped with fuses, so external fuses are required.
Connect one end of the fuse holder to the power cable and the other end of the fuse holder to the
positive battery terminal within 18" of the battery.
This fuse location will protect the system and the vehicle against the possibility of a short circuit
in the power cable.
Make sure that the fuses and the fuse holder are adequate for the desired application.
GND (GROUND CONNECTION)
Locate a secure grounding connection as close as possible to the amplifier.
Make sure the location is clean and provides direct electrical connection to the chassis of the vehicle.
Connect one end of an equal sized cable as the positive cable to the location of ground.
It is important that the ground cable is as short as possible, and no longer than 3 feet.
Run one end of the cable to the grounding point.
Run the other end of the cable to the mounting location.
Connect the ground cable to the terminal labeled as GND.
REM (REMOTE CONNECTION)
Run a remote turn on wire from the vehicles head unit.
Connect the remote turn on wire to the power terminal labeled as REM
Mounting
such as speaker boxes

MASTER
SLAVE
MASTER
OUTPUT SLAVE INPUT
INPUT
CH1 CH2
OUTPUT
CH1 CH2 DAISY-CHAIN
PWR
PRT
0.2V 70Hz 12dB 90Hz 250Hz 18010V 10Hz 0dB 30Hz 30Hz 0
REMOTE
SPEAKER
OUTPUTS
GAIN SUB
SONIC BASS
BOOST BASS
FREQ. LPF PHASE
SHIFT
1) INPUT
Minimum level input of 0.2V is essential for correct operation.
2) OUTPUT
Output RCA for signal routing to another amplifier.
3) GAIN (10V ~ 0.2V)
Matches the output voltage of the head unit’s RCA line-outs to the input section.
4) SUBSONIC FILTER (10Hz ~ 70Hz @ 24dB OCTAVE SLOPE)
Control the high pass point for the speaker outputs to eliminate xtreme low frequencies.
5) LOW PASS FILTER (30Hz ~ 250Hz @ 24dB OCTAVE SLOPE)
Controls the low pass points for speaker outputs.
6) BASS BOOST
Variable bass boost with 0-12 dB @ 30Hz ~ 90Hz.
7) PHASE CONTROL
Variable phase adjustment from 0~180 degrees
8) REMOTE LEVEL CONTROL PORT
Used for connecting to external wired remote controller.
9) REMOTE CONTROL (OPTIONAL ITEM)
Turn knob clockwise to increase level and likewise, turn knob counter clockwise decrease level.
10) MASTER OUTPUT / SLAVE INPUT
For linkable connection of 2 same amplifiers. Minimum impedance is 2 .
In this mode, the master amplifier will control gain settings on the subsequent slaved amplifier.
POWER & PROTECTION INDICATOR
Power LED, green-lit or blue-lit shows correct operation. Protect LED, Red-lit shows general malfunction,
faulty connection or thermal protection.
10)
Connect preamp signal cables from head unit to RCA input of amplifier.
11)
SPEAKER OUTPUTS
Amplifier connection to loudspeakers. Minimum size of speaker cable is 12 gauge.
Minimum impedance for single unit is 1 .
Minimum impedance in linked connections is 2 .
Panel Layout
(COMPETITION 7000.1D / 12000.1D)
4

PT LINK
POWER INPUT A
GND REM +12V GND
POWER INPUT B
+12V
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C

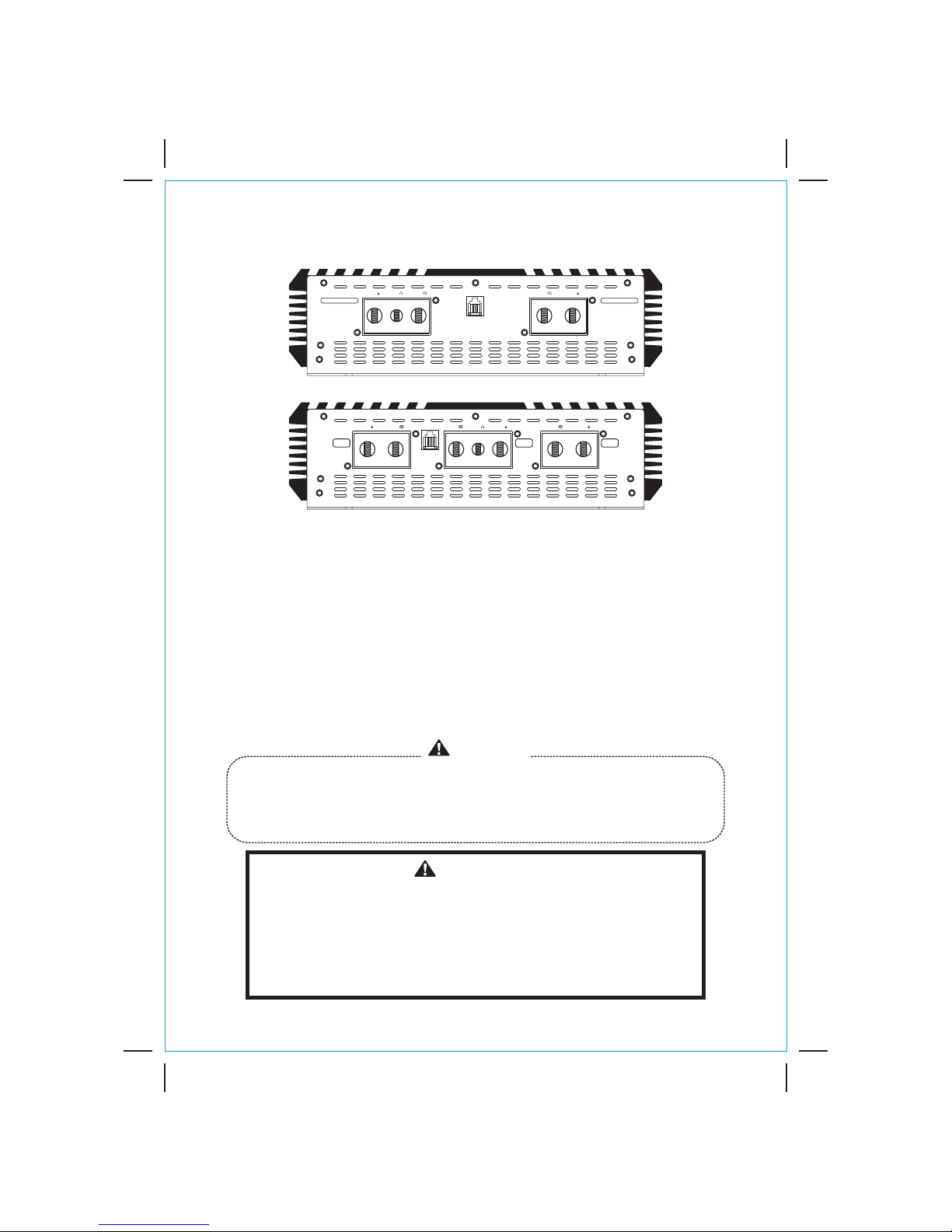

+12V(B+), GND, REM
(COMPETITION 7000.1D)
(COMPETITION 12000.1D)
5
Installation of the amplifier should be done in the following steps:
1. Ensure that the ground is appropriate, then connect it to the amplifier.
2. Next step is to connect the +12V wire. Ensure all power terminals are used.
This cable has to be fused at the battery for safety precautions.
3. The final step is connecting the switched remote.
CAUTION
Before attempting to make any connections to power supply, input and output connectors,
make sure the amplifier is in OFF state. Check polarity of cables carefully as using reversed
polarity will cause damage to amplifier. And to prevent power loss and overheating of wiring,
always use the recommended wire gauges.
CAUTION
GND (GROUND CONNECTION)
For connection to chassis ground. For optimum performance, 0 gauge cable is recommended.
REM (REMOTE)
Connect to switched +12V from the head unit.
+12V / B+ (POWER CONNECTION)
For connection to positive terminal of battery (+12).
For optimum performance, 0 gauge cable is recommended.
PT Link
If you link two same amplifiers as master and slave connection, then connect the 2 amplifies using
the PT Link cable provided. In case when the master unit enters into protection, the slave unit will also
enter into protection thereby protecting the slave unit from unexpected damage.

PT LINK
POWER INPUT A
GND REM +12V GND
POWER INPUT B
+12V
PT LINK
POWER INPUT A
GND REM +12V GND
POWER INPUT B
+12V
PT LINK
POWER INPUT A
GND REM +12V GND
POWER INPUT B
+12V
SINGLE CONNECTION
DAISY CHAIN (LINKED) CONNECTION
HEAD UNIT
Remote turn on
GROUND
BATTERY
Recommended Fuse Rating
(See page 10)
HEAD UNIT
Remote turn on
BATTERY
Remote turn on
GROUND
Recommended Fuse Rating
(See page 10)

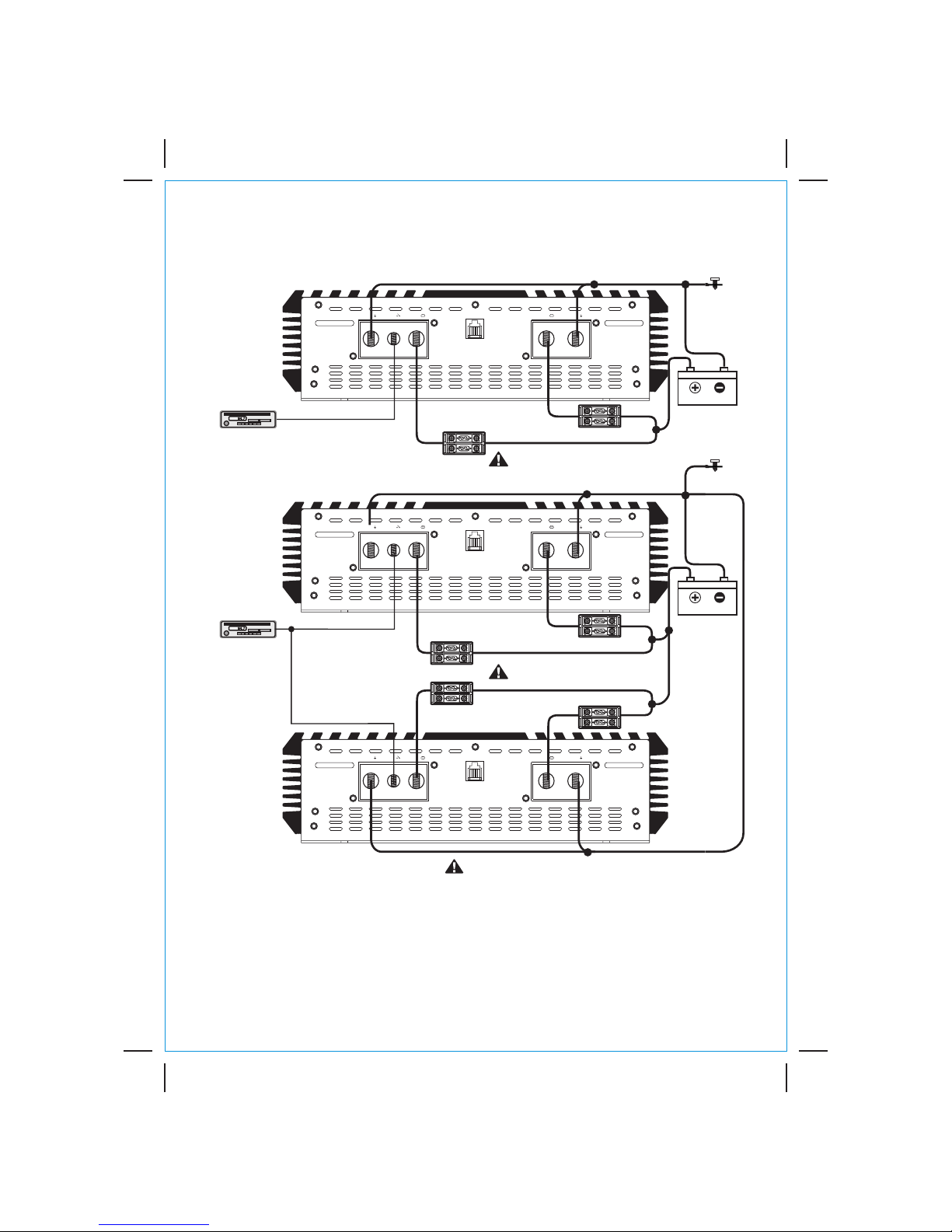

+12V ), GND, REM Connection(B+
(COMPETITION 7000.1D)
Run 12 AWG speaker cables from your speakers to the amplifier’s mounting location
Keep the speaker cables separate from the power cables and and the amplifier’s input cables.
Use grommets where the cables have to penetrate the vehicle chassis.
Connect the speaker wires according to the terminals on each speaker.
Strip 1cm, 3/8" of insulation of the end of each cable and twist the cables strands together tightly.
Make sure there are no stray strands that might touch other cables or terminals and cause short circuit.
Connect the cable ends to the amplifier as shown in the speaker wiring diagram.
We recommend using 12 AWG speaker cables to obtain intended performance.
Keep GROUND of equal length. This drawing is for illustration purposes only.
CAUTION
6

GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
GND GNDGND
REM
POWER
INPUT-B
PT LINK
+12V +12V+12V
POWER
INPUT-A POWER INPUT-C
DAISY CHAIN (LINKED) CONNECTION
HEAD UNIT
Remote turn on
GROUND
BATTERY
Recommended Fuse Rating
(See page 10)
HEAD UNIT
Remote turn on
BATTERY
Recommended Fuse Rating
(See page 10)
Remote turn on
GROUND
SINGLE CONNECTION
+12V ), GND, REM Connection(B+
(COMPETITION 12000.1D)
Run 12 AWG speaker cables from your speakers to the amplifier’s mounting location
Keep the speaker cables separate from the power cables and and the amplifier’s input cables.
Use grommets where the cables have to penetrate the vehicle chassis.
Connect the speaker wires according to the terminals on each speaker.
Strip 1cm, 3/8" of insulation of the end of each cable and twist the cables strands together tightly.
Make sure there are no stray strands that might touch other cables or terminals and cause short circuit.
Connect the cable ends to the amplifier as shown in the speaker wiring diagram.
We recommend using 12 AWG speaker cables to obtain intended performance.
Keep GROUND of equal length. This drawing is for illustration purposes only.
CAUTION
7

MASTER
SLAVE
MASTER
OUTPUT SLAVE INPUT
INPUT
CH1 CH2
OUTPUT
CH1 CH2 DAISY-CHAIN
PWR
PRT
0.2V 70Hz 12dB 90Hz 250Hz 18010V 10Hz 0dB 30Hz 30Hz 0
REMOTE
SPEAKER
OUTPUTS
GAIN SUB
SONIC BASS
BOOST BASS
FREQ. LPF PHASE
SHIFT
MASTER
SLAVE
MASTER
OUTPUT SLAVE INPUT
INPUT
CH1 CH2
OUTPUT
CH1 CH2 DAISY-CHAIN
PWR
PRT
0.2V 70Hz 12dB 90Hz 250Hz 18010V 10Hz 0dB 30Hz 30Hz 0
REMOTE
SPEAKER
OUTPUTS
GAIN SUB
SONIC BASS
BOOST BASS
FREQ. LPF PHASE
SHIFT
MASTER
SLAVE
MASTER
OUTPUT SLAVE INPUT
INPUT
CH1 CH2
OUTPUT
CH1 CH2 DAISY-CHAIN
PWR
PRT
0.2V 70Hz 12dB 90Hz 250Hz 18010V 10Hz 0dB 30Hz 30Hz 0
REMOTE
SPEAKER
OUTPUTS
GAIN SUB
SONIC BASS
BOOST BASS
FREQ. LPF PHASE
SHIFT
The minimum impedance as 1 unit is 1 .
In a daisy chain configuration the minimum impedance is 2 .

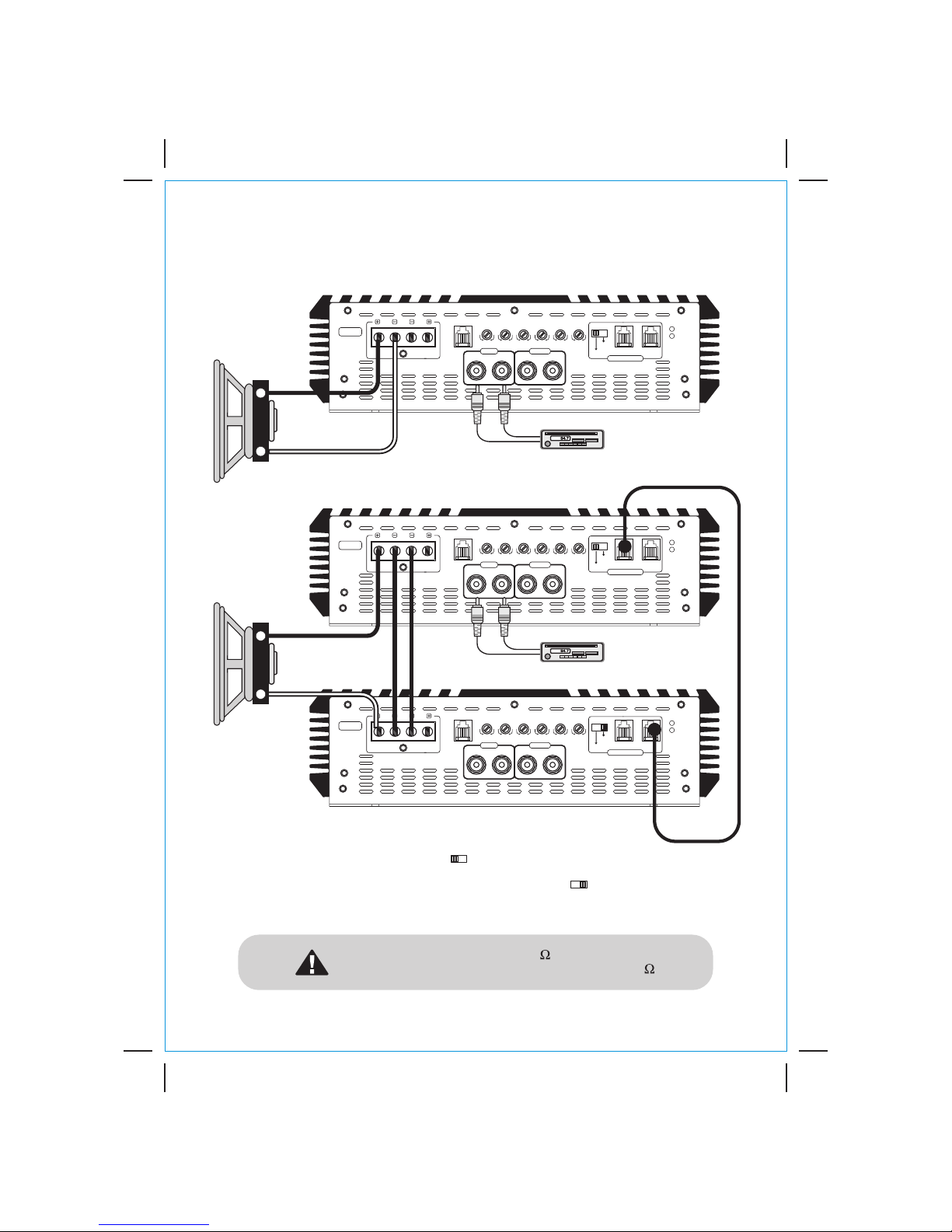

DAISY CHAIN (LINKED) CONNECTION
Daisy chain connection allows linking of 2 same amplifiers to work as 1 single amplifier.
Please read the following connection diagram cautiosly to ensure the correct connection.
Step 1. Connect the master amplifier to the head unit and set its output master
and input slave switch to output master position ( )
Step 2. Connect the master and slave amplifier in daisy chain RCA jack as shown in the diagram.
Step 3. Set slave amplifier output master & input slave switch to slave input position ( )
Step 4. Connect speaker cable (+) on master amplifier to subwoofer (+)
Step 5. Connect speaker cable (+) on slave amplifier to subwoofer (-)
Step 6. Connect speaker cable (-) on master amplifier to speaker cable (-) on slave amplifier using 8 AWG wire cable.
+
-
Speaker Impedance
1~8 ohms
HEAD UNIT
MASTER
AMPLIFIER
SLAVE
AMPLIFIER
Speaker Impedance
2~8 ohms
+
-
HEAD UNIT
MASTER
SLAVE
Speaker connection
SINGLE CONNECTION
(COMPETITION 7000.1D / COMPETITION 12000.1D)
8

Troubleshooting
Assure that the Power LED is on, if so please proceed with step # 3, if not, continue with the steps below;
1. Check the in line fuse (s) on the battery’s positive cable, replace if needed.
2. Assure that the Ground is properly attached to the vehicle’s chassis on a clean metal point, tighten or
grind the connection point once again.
3. Our amplifiers have a high voltage protection. Make sure that the operating voltage is between 8.5V~
18V and voltages above this range will cause the amplifier to go into protect.
Protect LED is on
1. The Protect LED will come on due to the possible circumstances;
a) The impedance connected is under the specified load.
b) Thermal (Overheat), allow for a more suitable mounting as recommened in the install section.
Thermal may also appear if the impedance is under the specified or the voltage is inadequate.
c) Short circuitry, voltage and DC offset.
- Short circuitry, go through all cables including speaker wires, GND, battery’s positive cable.
Voltage, please check step # 3, for DC offset, make sure that a voltage of no more than 4V is
available. Remove the RCA from the input and check whether the amplifier comes out of
protect. If so, check if the output from the Head unit has a DC of 4V, replace / repair if needed.
Audio output (no sound)
1. Assure that RCA connections from the Head unit and the amplifier is properly connected.
Check the entire cable for damages or its like. Test the RCA inputs for DC volts with the source unit on,
replace / repair if needed.
2. Check the routing of the cables, fuses and verify that all connections are connected accordingly.
3. Check whether the speakers are functional.
Turn on thump
1. Disconnect the signal input to the amplifier, then turn it on and off.
a) If the noise is cancelled, then connect a delay turn on module on the REM wire running from
the source unit to the amplifier.
b) Use another 12V source for REM lead to the amplifier. If the noise is cancelled, use a relay
to isolate the amplifier from the turn on thump.
Poor bass response
1. Check that the polarity of the speaker cables are correct. Speakers connected in anti-phase will
cancellate each other, thus the bass response will be absent.
Engine noise
1. Ensure that all signal transferring wires (RCA, speaker cables etc) are kept separately / away from
the power and the ground wires.
2. Bypass all electrical components between the Head unit and the amplifier.
Connect the Head unit directly to the amplifier’s input. If the noise is eliminated, the unit bypassed
is the one causing the noise.
3. Remove the existing ground wires for all electrical components installed. Ensure that the point of
ground is 100% metal which has been grinded free of rust, paint etc.
4. Replace the ground cable from the OEM battery / alternator and ensure it is grounded accordingly.
5. Test the battery and alternator load (can be carried out by a professional).
Ensure that the vehicle’s electrical system is in a good condition, this includes distributor,
spark plugs / wires, voltage regulators etc.
9

Continuous power output @14.4V Input
-RMS power, 4 ohms mono
-RMS power, 2 ohms mono
-RMS power, 1 ohm mono
-RMS power, 4 ohms linkable/dual mono
-RMS power, 2 ohms linkable/dual mono
Signal to noise ratio
Low pass frequency crossover
Subsonic filter
Bass boost
Bass boost Frequency
Phase shift control
Frequency response
T.H.D Continuous @ 4 ohm, 100Hz
Efficiency @ 4 ohm, 100Hz
Input sensitivity
Dimensions (mm)
Operating Voltage
RECOMMEND Fuse rating
10
Specifications
MODEL CODE COMPETITION 7000.1D
: 1800W x 1CH
: 3800W x 1CH
: 7500W x 1CH
: 7400W x 1CH
: 16500W x 1CH
: >100dB
: 30Hz~250Hz
: 10Hz~70Hz
: 0~12dB
: 30Hz~90Hz
: 0~180 degree
: 10Hz~350Hz (+/- 1dB)
: <0.15%
: 90%
: 10V ~ 200mV (+/- 5%)
: 290(W) x 76.5(H) x 600(L)
: DC 8.5V~16V
: 600A (linked: 1200A)
: 3150W x 1CH
: 6200W x 1CH
: 12500W x 1CH
: 12500W x 1CH
: 22500W x 1CH
: >100dB
: 30Hz~250Hz
: 10Hz~70Hz
: 0~12dB
: 30Hz~90Hz
: 0~180 degree
: 10Hz~350Hz (+/- 1dB)
: <0.15%
: 90%
: 8V ~ 200mV (+/- 5%)
: 290(W) x 76.5(H) x 950(L)
: DC 8.5V~16V
: 1200A (linked: 2400A)
COMPETITION 12000.1D

NOTES
11

MADE IN KOREA
