gassero Wallcon X-treme 67 User manual

INSTALLATION AND USER MANUAL
WALL HUNG CONDENSING BOILERS

     
Wallcon X-treme 42
Wallcon X-treme 50
Wallcon X-treme 67
WALLCON
X-treme

CONTENTS
1
1 Meanings of the Symbols and Safety 2
1.1 Meanings of the Symbols 2
1.2 General Warnings 2
1.3 Safety Instructions 2
1.4 Standards and Regulations 3
2 General 3
2.1 Purpose of Design 4
2.2 Introduction of the Product 4
2.3 Boiler Room and Ventilation 5
2.4 Warning Label 6
2.5 Packaging Label 6
2.6 Information Label 6
3 Technical Specifications 7
3.1 WALLCON X-treme Dimensions 7
3.2 Hydraulic Diagram 8
3.3 Contents 8
3.4 Technical Table 9
4 Installation Introductions 9
4.1 Installation 9
4.1.1 Packaging 9
4.1.2 Carrying 10
4.1.3 Mounting 10
4.1.4 Water Quality and Treatments 11
4.2 Hydraulic Connections 12
4.2.1 Expansion Tank 12
4.2.2 Safety Valve 12
4.2.3 Condensation Water Drain 13
4.2.4 Hydraulic Separator 13
4.2.5 Plate Heat Exchanger 13
4.2.6 Automatic Air Relief Valve 14
4.2.7 Deposit and Dirt Separator 14
4.2.8 Air Inlet Filter 14
4.2.9 Pump 15
4.3 Flue Connections 15
4.3.1 Flue Types 15
4.3.2 Flue Connection Lengths 16
4.3.3 Backdraught Shutter 16
4.4 Electrical Connections 16
4.4.1 Wiring Diagram 17
4.4.2 Outdoor Temperature Sensor 22
5 Installation Examples 23
6 Operation 26
6.1 General 26
6.2 Display and Buttons 26
6.3 Operating Mode Selection 28
6.4 Programming 29
6.5 Main Functions 30
7 Parameters 31
7.1 End User Parameters 31
8 Error / Fault Codes 32
9 Cascade 33
10 Combustion Adjustments 34
10.1 Emission Setpoints 34
10.2 Nominal Load Emission Settings 35
10.3 Minimum Load Emission Settings 35
11 LPG Conversion 36
12 Maintenance 37
12.1 Maintenance Process 37
13 Energy Saving Recommendations 38
14 Disposal 38
15 Product / Energy Labels 39
16 Trouble Shooting 40
17 Boiler Room Application Recommendations 42
IMPORTANT
PLEASE READ INSTRUCTIONS BELOW CAREFULLY BEFORE THE INSTALLATION AND USAGE
1. THIS MANUAL IS AN INSEPARABLE PART OF THE BOILER AND HAS TO BE STORED TOGETHER WITH THE
BOILER. IF THIS MANUAL DAMAGED OR LOST CONTACT GASSERO FOR A NEW COPY.
2. THE INFORMATION AND INSTRUCTIONS THAT ARE SPECIFIED IN THIS USER'S MANUAL APPLY ONLY FOR THE
BOILER MODELS SPECIFIED IN PAGE 3.
3. THE INSTALLATION OF THIS BOILER MUST BE MADE IN ACCORDANCE WITH THE CE DIRECTIVES AND THE
LOCAL GAS ORGANIZATIONS’ INSTRUCTIONS BY AUTHORIZED SERVICES.
4. SPECIFIED GAS MUST BE SUPPLIED BY AUTHORIZED GAS ORGANIZATIONS BEFORE THE COMMISSIONING OF
THE BOILER.
5. COMMISSIONING OF THE BOILER MUST BE MADE BY GASSERO’S AUTHORIZED SERVICES. OTHERWISE
BOILER WARRANTY WILL BE CANCELLED.
6. THE MANUFACTURER IS NOT THE RESPONSIBLE OF THE DAMAGE DUE TO WRONG OR IMPROPER
INSTALLATION OF THE BOILER.
7. SOME PARTS OF THE PURCHASED BOILER COULD BE DIFFERENT THAN SHOWN BOILER PARTS IN THIS
MANUAL.
8. MANUFACTURER (GASSERO) RESERVES THE RIGHT TO CHANGE THIS USER'S GUIDE WITHOUT NOTICE.
9. LIFE TIME OF THE BOILER IS 10 YEARS IF ALL OF THE INSTRUCTIONS FOLLOWED ACCORDING TO THIS USER
MANUAL.
10. BOILER MAINTENANCE MUST BE MADE AT LEAST ONCE IN A YEAR.

1. MEANINGS OF THE SYMBOLS AND SAFETY
1.1 MEANINGS OF THE SYMBOLS
The symbols which are used in this document and their
meanings are as follows:
WARNING: Danger of material damage or damage to
the environment.
ELECTRICAL HAZARD: Danger of death or serious
injury due to electric shock.
DANGER : Actions that are certainly not to be done.
Material damage and severe personal damage may
occur.
Refers to the Information / Recommendations to be
considered by the user
1.2 GENERAL WARNINGS
Your boiler must be used in accordance with the
instructions and purposes specified in the user
manual. The manufacturer cannot be held liable for
damage to the people, animals and property due to
improper installation, subsequent repairs and
modifications.
Boiler may not be used by persons with inadequate
physical, mental and perceptual capacity and
without experience and knowledge.
1.3 SAFETY INSTRUCTIONS
IF GAS SMELLS:
Do not open or close the power switches, do not
touch the plugs or sockets.
Do not smoke
Do not use your phone
Close the gas valve immediately
Ventilate the space by opening the doors and
windows.
Notify everyone in the building.
Call the emergency service of the gas distribution
company you are connected to. Do not allow
anyone to enter the boiler room until the
emergency service arrives.
If there is a sealing due to gas leakage, do not
disassemble the seal, contact the gas distribution
company to disassemble the seal after necessary
repair.
The smell of the waste gas formed after burning
with natural gas may resemble each other. Never
use the boiler in the event of a leak in the waste
gas system.
2

If the boiler is working with LPG, LPG will collapse
to the bottom as it is heavier than air. Sweep the
gas accumulated near the ground to the outside.
IF WATER LEAKAGE OCCURS IN THE BOILER:
Switch off the electrical and water connections of
the boiler and notify the authorized service.
Condensation water formed after combustion is
corrosive and corrosive. In case of leakage or
leakage of this water, inform the authorized service.
IF ELECTRICAL LEAK OCCURS IN THE BOILER:
Never touch the boiler.
Lower the main switch on the board and notify the
authorized service.
Do not touch the pipes or the chimneys. (there may
be a ground fault)
Do not cut, pull, or bend the cables even if the
switch is lowered and the power cut off.
DON’T TOUCH THE BOILER WHEN YOUR HANDS
ARE WET OR STEPPING ON A WET AREA.
1.4 STANDARDS AND REGULATIONS
This boiler is manufactured in accordance with the following
directives and standards:
EN 15502-2+A1
EN 15502-2-1+A1
Directives :
(EU) 2016/426 Gas Appliances Regulation (GAR)
2014/30/EU Electromagnetic Compatibility (EMC)
2014/35/EU Low Voltage Directive (LVD) 92/42/EEC
Boiler Efficiency
2. GENERAL
These installation and maintenance instructions are prepared for
the wall hung condensing boilers specified below:
Wallcon X-treme 42
Wallcon X-treme 50
Wallcon X-treme 67
CE LABEL:
This boiler complies with the essential requirements of the
relevant European directives. The CE marking certifies that the
products meet the essential requirements of the applicable
regulations in accordance with the type of label. Manufacturer can
be consulted for the declaration of conformity.
3

 
Gassero WALLCON X-treme Wall Hung Condensing Boilers with
Premix Burners are designed for heating purposes only. For hot
water use, the boiler must also be connected to the DHW tank.
Boiler can be used with in a cascade system or stand alone.
Maximum 16 boilers can work together in cascade systems. Multi-
purpose heating values can be achieved with cascade systems.
For example;
16 units of 150 kW boiler can reach 2400 kW heating power with

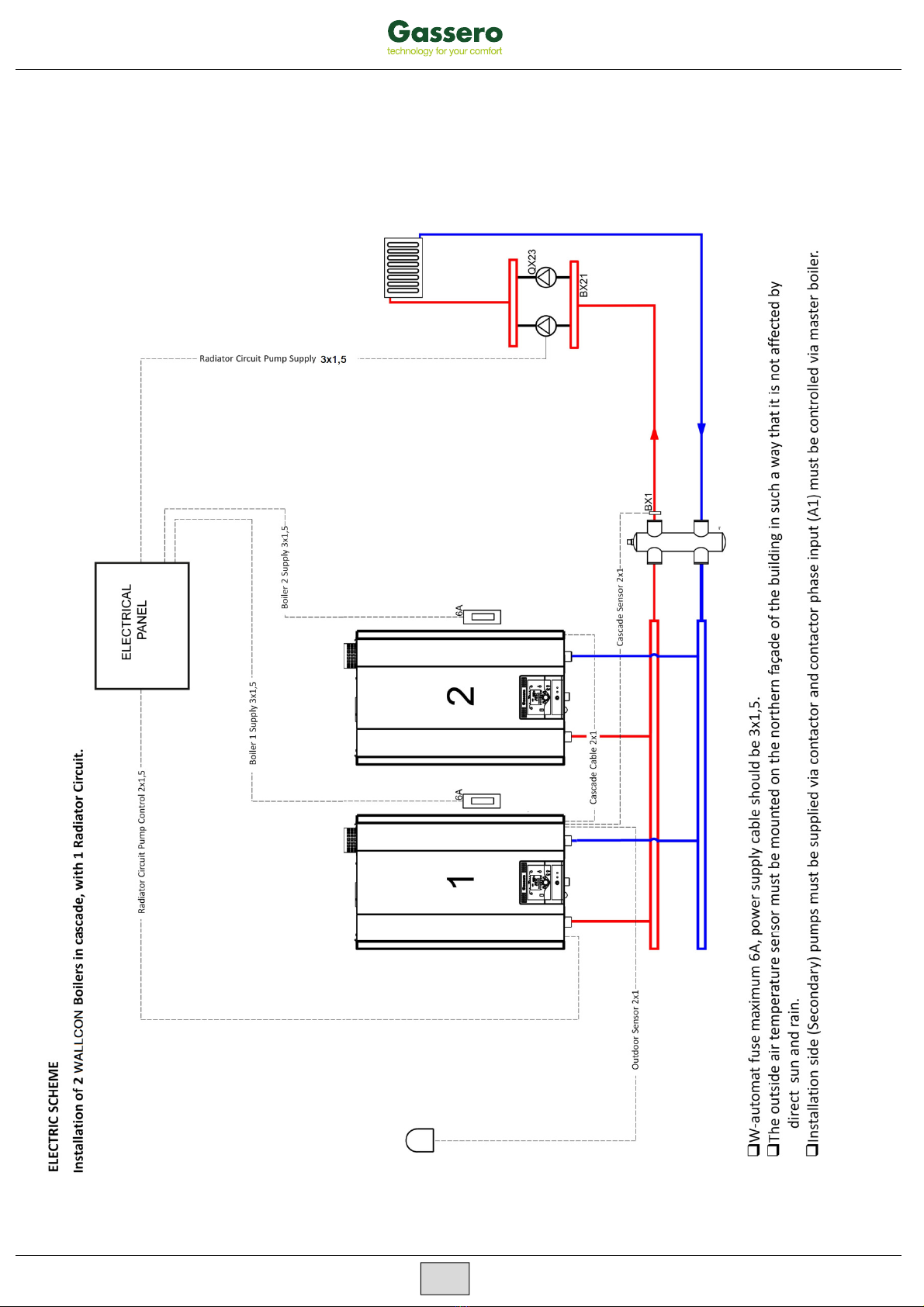

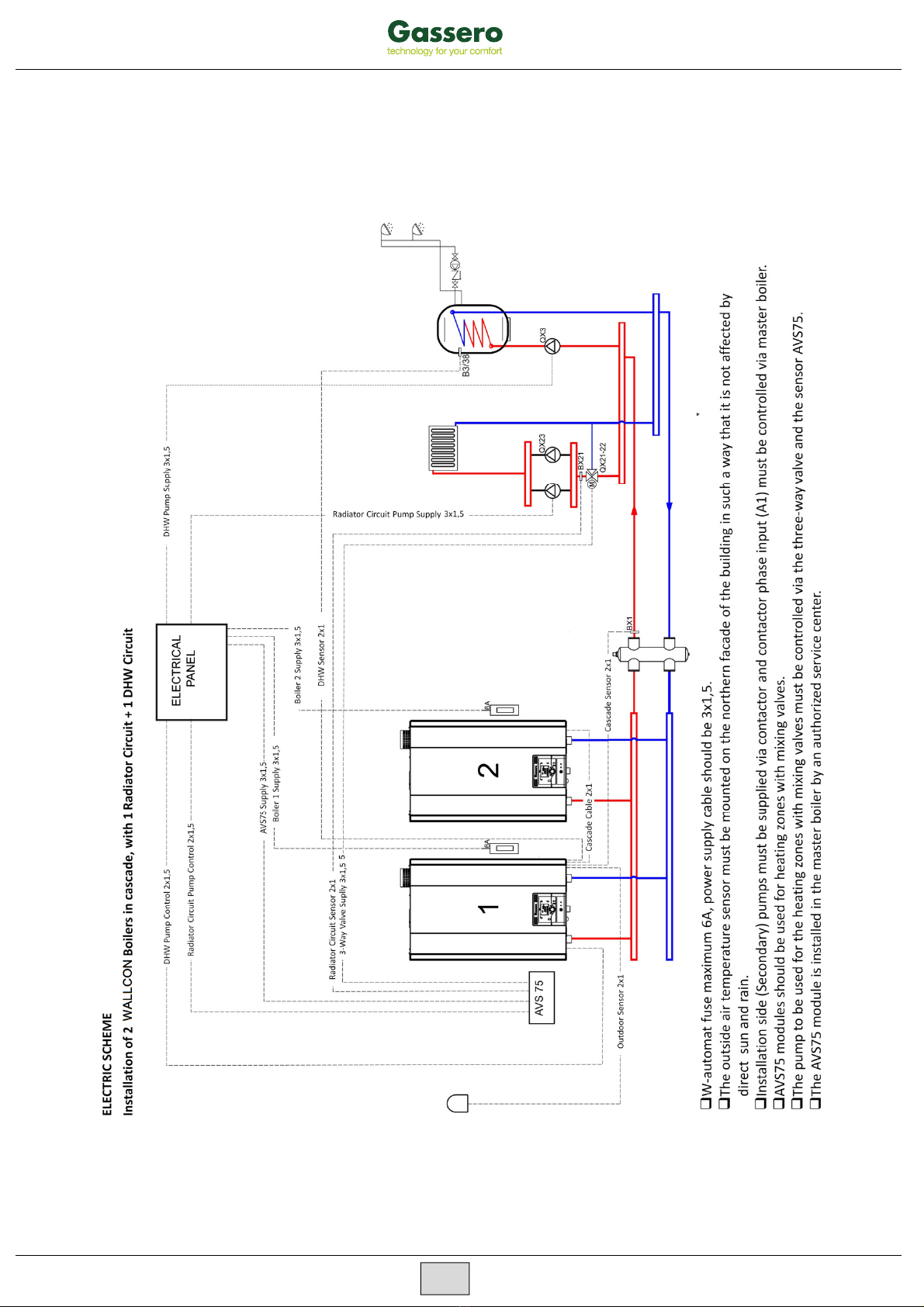

cascade system. Examples of stand alone and cascade systems
are shown in the SAMPLE INSTALLATION DIAGRAMS section.
For cascade systems, special cascade accessories such as
mounting frame, horizontal flue elements, connection pipes
between the boilers, main gas pipe and hydraulic mixer (balance
vessel) have been developed. Such accessories make the
cascade system easier to install with less effort. For more detailed
information on cascade systems, please contact your dealer or
manufacturer.
This boiler is not s itable for commercial or
ind strial p rposes. The man fact rer cannot
be held responsible for the problems ca sed
by the sege except of the design p rpose.
WARRANTY PERIOD AND LIFE TIME:
Warranty is 2 years from the date of invoice.
Service life of the boiler is 10 years (this period can be change
according to the installation, water quality and other environmental
conditions).
CONSUMER RIGHTS:
Consumers can apply for complaints and appeals to consumer
courts and consumer arbitration committees.
In case of defective goods;
a) Withdraw from the contract by stating that it is ready to return
the product;
b) If all costs incurred do not incur excessive costs,
to request free repair of the product,
c) Requesting the replacement of the product with a non-defective
product,
One of the rights can be used.
 
WALLCON X-treme is a condensing boiler which is modulated
with a stainless steel heat exchanger and pre-mix burner for
central heating and (optional) hot water production.
BASIC FEATURES OF WALLCON X-TREME BOILERS:
Stainless steel heat exchanger
% 109.4 boiler efficiency through premix burner (See the
technical table)
1/5 turndown ratio and NOx 6 emission class
4

2.3 BOILER ROOM AND VENTILATION
Through intelligent electronic control panel, it has 13 safety
systems and 3 separate zone control options
Room thermostat and outside temparature sensor provide
comfortable economic heating
Besides the ease of operation via smart digital panel, it provides
fault and error detection
Web server provides remote control of the boiler
Solar systems and pool temparature can be operated on the
same control panel
This boiler provides IPX4D electrical protection class. Check that
the place where the boiler is located complies with this protection
class.
Boilers must be placed 200 mm away from flammable materials
with flammability class B, C1, C2.
Boilers must be placed 400 mm away from the easily flammable
materials of the C3 class which can be ignited by themselves or
by ignition sources..
Never switch off the power supply of the boiler when the air
temperature falls below 0°C against the risk of freezing. Read the
FROST PROTECTION section.
WALLCON X-treme   ! "#$  $%   &%
$'%$ '%( $' %!) ($ %$ & %! $ #!!$
$%%! % %&& %  !# %$
 $ "*) $' ($ %$ &+ ($ %$ #$+ ($ %$
($ %  $  , $'" %*$! $' ""
(! # $'  !  & % -'! .( %"#$ * #$ %!
$!+ -'! %!! '&+ !!(+ .& ( '"%  %! $!
! #
* $'  ! !( $' "#$ %! *!" $' (!"$+ $'!
'#  $  %) - &!#! # $ $'! )$" /  !  $'
 ! !"
* $'  ! - &!%$ -$' 0+  $!% 1#&"$ "#$  %$
%$  "" %( *!" $' * !
'  ! "#$  $%   %!% -$' $'  $!% ( $%+
% % -%$! &!#! &*  $' $'% $% 
!# * $'  $!%   "%%$!)
(! -$' ** $' "% -' $'  !   &!%$ #'
'%(! "%) %# %!"% '%$ # 2#& % %"% $' '%$
.'%! % $'! #$ * $' )$"
5

2.4 WARNING LABEL
WARNINGS !
Read the technical instructions
and user manual carefully before
the commissioning.
Commissioning must be made
by an authorized Gassero
service.
The boiler must be located in a
location that is separate from the
living quarters and only in
accordance with the ventilation
legislation.
2.6 INFORMATION LABEL
2.5 PACKAGING LABEL
6
A B C D E F G H I
3 3+4  5 4+3 +6 45+4 5+ 3+4
   5 35 +6 36+ 5+ 
6 6  3 64 4+6 6  6

3 TECHNICAL SPECIFICATIONS
3.1 WALLCON X-treme DIMENSIONS
7800
92:3
7800
92:
7800
92:6
8 35"" 35"" 35""
; 3"" 3"" 3""
 6"" 6"" 6""
 4/3< 4/3< 4/3<
 6"" 6"" 6""
 5"" 5"" 5""
 < < <
 "" "" ""
 "" "" ""
 < < <
 "" "" ""
 "" "" ""
 =5"" =5"" =5""
 3"" 3"" 3""
 "" "" ""
 =5 =5 =5
> ="" ="" =""
7

3.3 CONTENTS

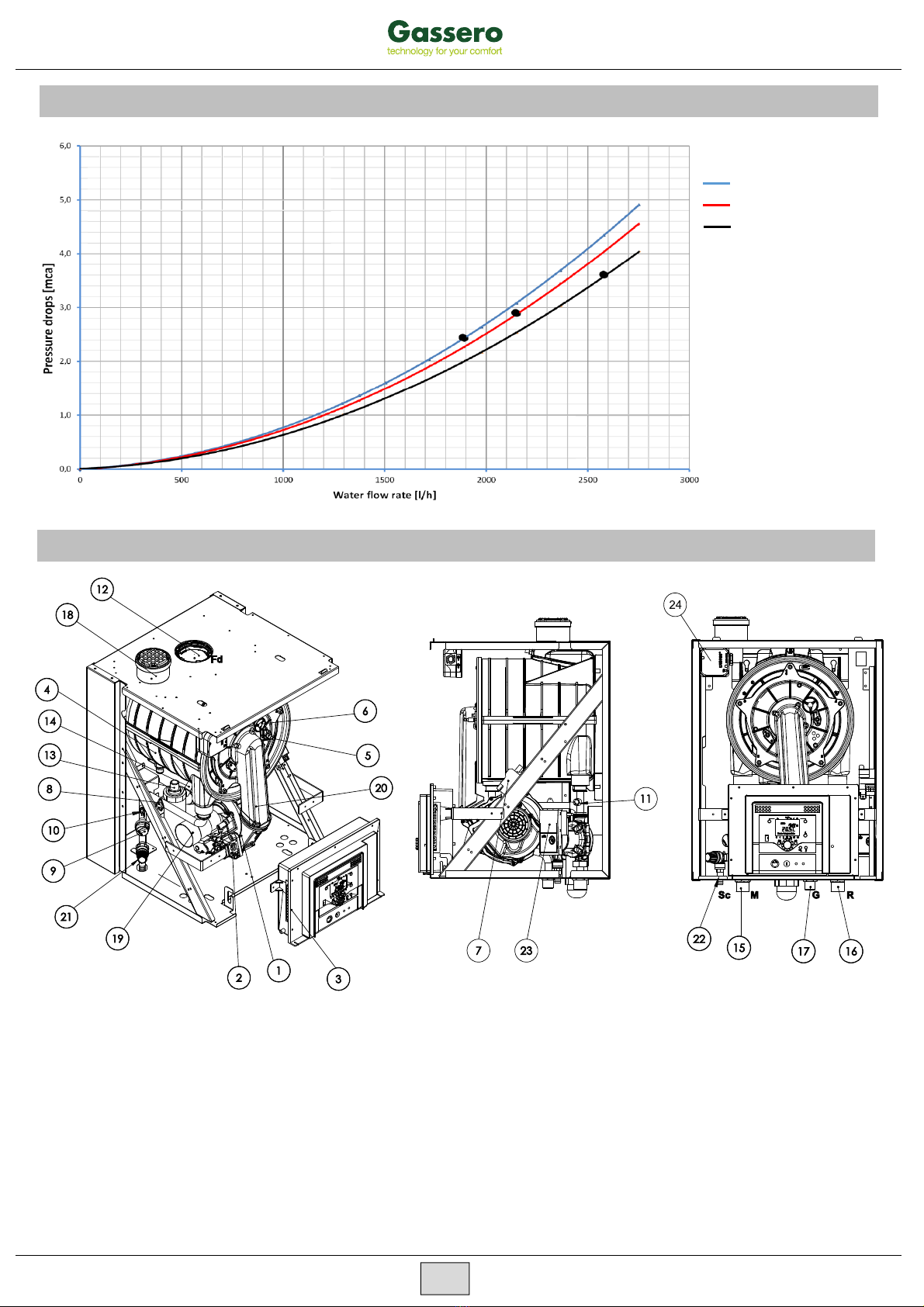

3.2 HYDRAULIC DIAGRAM
2 % 2  -! 2 ?$#!
2 %?% ( 2 $#!! 2 8!%:.&
42 $! % 2  #%#$ $ 2 !#!%*$)?% (
32 %$.'%! 42 )&' 2 !%
2 $ $! 32 )&'! 42 !# %$#"&
62 '$ % 2 7%$!#$ $$ 32 8!!#!-$'
2 $!%*!"! 62 7%$! $$
52 0"$'!"$%$ 2 % $
2 !#!! 52 8!$%,
7% 92$!"3
7% 92$!"
7% 92$!"6
8

3.4 TECHNICAL TABLE
4 INSTALLATION INTRODUCTIONS
4.1 INSTALLATION
4.1.1 PACKAGING
The Wallcon X-treme boilers are fully assembled, tested and
packed in a cardboard box which maintained with styrofoam.
PACKAGE CONTENTS :
Outdoor sensor
Wall hung equipments (2pcs. 12 mm wall plug and 2 pcs
12 mm hook)
User manual / Warranty certificate
Cascade sensor
DHW sensor (optional)
Air inlet filter (optional)
min max min max min max
"&%$ '"))&@ &
"% %$&#$A ,-
7,2 39,4 8,4 48,0 11,2 63,0
"% %$-!B526CD ,-
7,00 38,30 8,10 46,30 11,00 61,00
"% %$-!B24CDE ,-
7,60 41,30 8,90 50,10 12,00 67,00
7!,!#! %!
0,8 3,0 0,8 3,0 0,8 4,5
:%."#"7!,"&%!%$#! F
0"$"&!%$#! F
:"#"**)A"B526CD G
97,04 97,82 96,86 97,58 97,99 98,80
:"#"**)A"B24CD G
105,63 104,94 105,76 104,37 107,08 106,35
%!$% 0%+$#!4HB!$:$'D G
 #%"&!%$#!B526D
o
C
F
63,5 65,3 64,8 66,6 56,9 69,9
 #%"&!%$#!B24D
o
C
F
40,4 42,1 43,4 46,5 35,1 47,7
"BD G
8,9 9,1 9 9,3 8,6 9,1
:# %$%$
1: 5 1: 6 1: 6
. %  %
.?% # "/,7'
 #%:% /
3,00 17,00 4,00 21,00 5,00 28,00
7%$! - "I/'
0,315 1,698 0,399 2,12 0,49 2,89
)!%# 0 ,%
%* -B526CD "I/'
0,898 3,859 0,898 4,777 1,32 6,13
:%."#"%#&& )!#! ";%!
:"#"%#&& )!#! ";%!
 #!#! %
 #%&%"$! mm
$7'$ J
!7'$ J
48 48 53
55 55 60
100 140 170
Ø80 Ø80 Ø80
21 21 21
17 17 17
42 25 24
30 40 44
108,21 108,29 108,09
6 6 6
B23-C13-C33-C43-C53-C63-C83
80 80 80
105 105 105
WALLCON X-treme 42 WALLCON X-treme 50 WALLCON X-treme 67
9

When the boiler is unpacked, check the contents of
the package, contact the dealer if there is any
damage or missing companents.
Disposing of packaging materials and leaving them
accessible to children can be dangerous.
Disposing of packaging materials can be harmful
for people, animals and the environment.
Manufacturer is not liable for harmes that may arise
from such situations. Such wastes must be treated
according to current regulations.

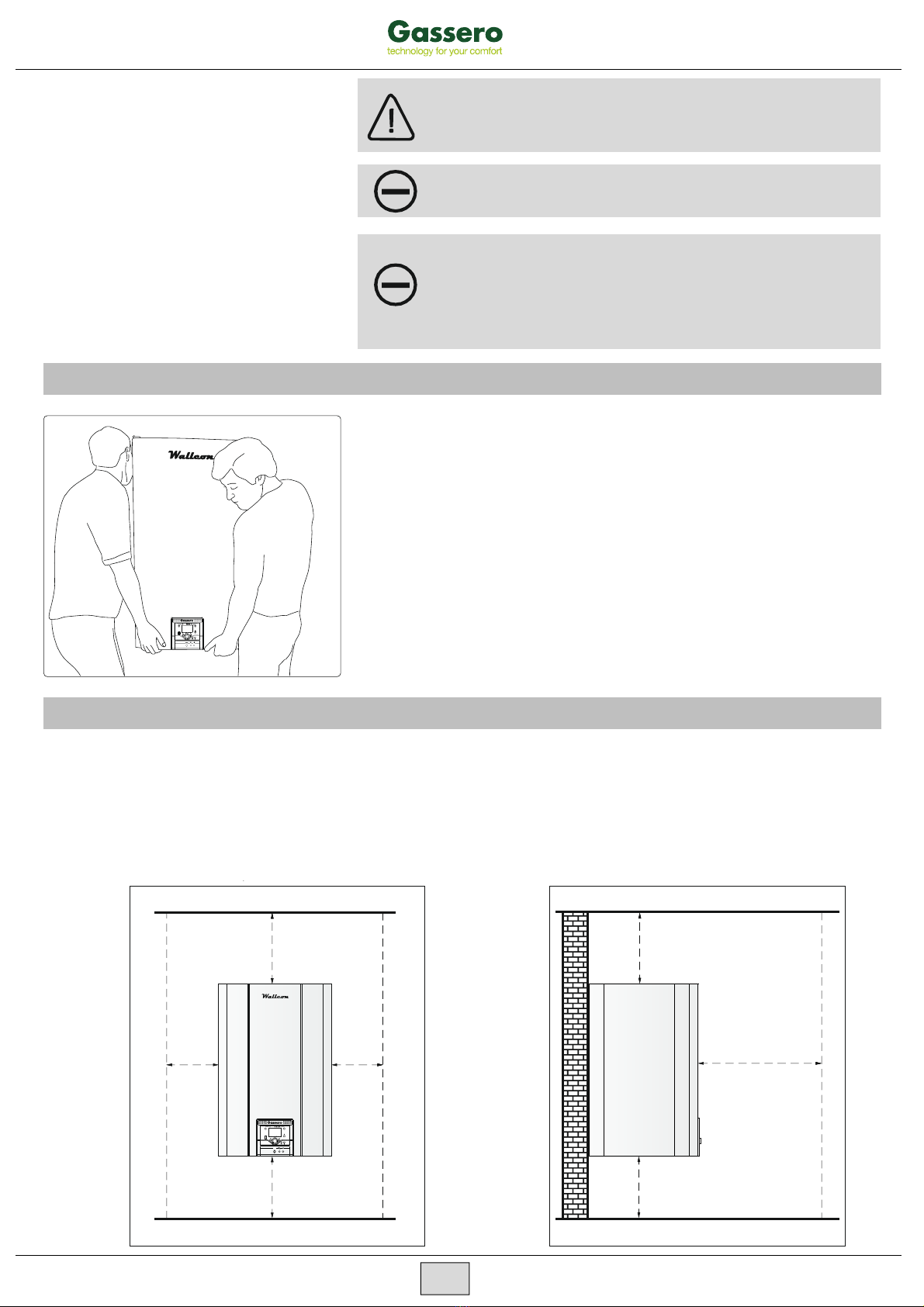

4.1.2 CARRYING
Carry the boiler together at least two persons together by
holding from the top and the bottom.
Do not carry or lift the boiler by holding the control panel.
After the boiler is removed from the box, it should not be
placed on the gas, water and condensate connections.
4.1.3 MOUNTING
The wall must be strong enough to hold a water filled boiler. If
the carrying capacity of the wall is not sufficient, an external
suspension device must be provided. For example; a footed
device may be used.
For ease of service operation to the boiler, the necessary
distances must be left arround the boiler.
RE S E T
350 mm
350 mm
600 mm250 mm
350 mm
350 mm
250 mm
10

4.1.4 WATER QUALITY AND TREATMENTS
Paying attention to the following issues related to water
quality will greatly reduce the problems that may arise during
the life time of the boiler and ensure the continuity of the
working efficiency:
Piping and installation companents must be cleaned
before installation.
In old installations, iron oxide, sludge, sediment and
similar deposits should be cleaned.
The water in the system should be analyzed in terms of
hardness, pH, iron content and conductivity.
If all or a part of the heating installation is to be
operated by UNDERFLOOR HEATING SYSTEM,
PLATE HEAT EXCHANGER should be used and the
system should be separated from each other as
primary and secondary.
Faults that may arise if the water conditions are not
in accordance with the values specified in the table,
boiler will be considered out of warranty.

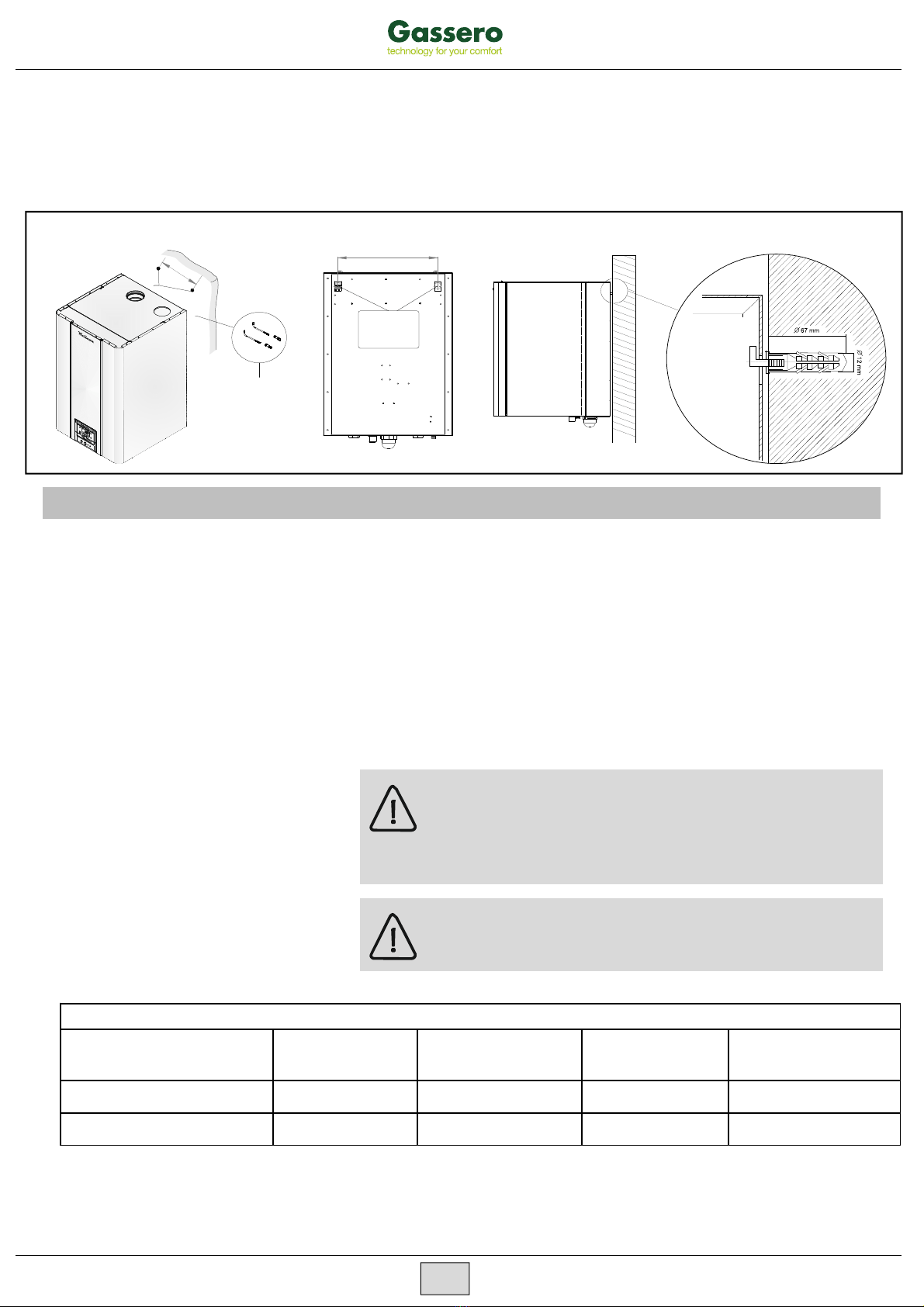

Wall Mount:
The dimensions of the hanger spaces behind the boiler are
shown below.
Drill the holes you marked with a 12 point drill.
Screw the hooks and hanger hooks into place.
Hang the boiler from the sling slots on the wall.
Askı Yuvası
Askı Kancası Dübel
1
2
375
375
Hanger Hooks
Hange
r
$% %!
H
& !
B$ #$D
#$($)
8098
+
+2+
K&&"
≤L/"
80::98
+
6+25+
K&&"
≤L/"
Gassero Water Specification
11

DYNAMIC AND CHEMICAL WASHING / FLUSHING:
In the newly established systems, to aviod the possible
substances in the installation (metal shavings, some oils,
residues of construction wastes etc.) flushing treatment is a
mandatory.
Likewise, it is a mandaory to apply the flushing treatment
without water given to the boiler in conversion of older
systems.
The methods of washing/ flushing are described in detail in
the manual GASSERO DYNAMIC AND CHEMICAL
WASHING / FLUSHING.
Neutral-based, non-acidic, non-alkaline registered products
can be used to clean the installation or keep the water
conditions at desired levels. You can get information from
GASSERO for cleaner, preservative or inhibitor type (stopper,
preventive) products or you can contact with SENTINEL or
FERNOX companies.
4.2 HYDRAULIC CONNECTIONS
According to the current legislation; total heating capacity of
the boiler or cascade system must be calculated to meet the
building's heat demand. All necessary components must be
installed and supplied correctly in the installation in a manner
to perform their duty. Protective and safety devices must be
used in the heating system as described in the current
legislation.
In order to separate the boiler from the installation, two
ball valves should be placed on the supply and the
return lines.
4.2.1 EXPANSION TANK
WALLCON X-treme boilers do not have an expansion tank.
So the capacity of the expansion tank should be selected
according to the capacity of the heating system and the static
pressure.
It is recommended to place the expansion tank on the
turn of the central heating system.

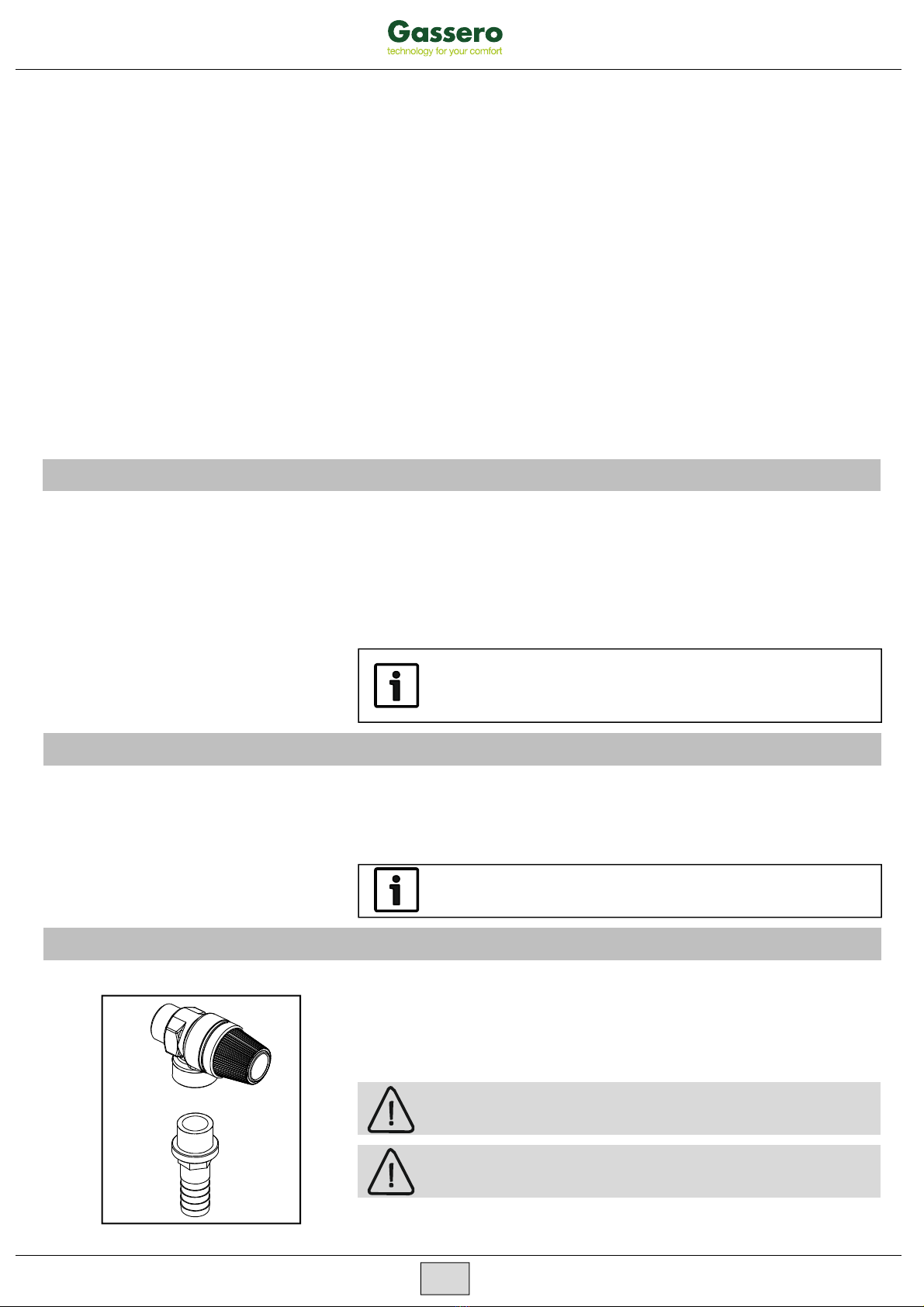

4.2.2 SAFETY VALVE
WALLCON X-treme boilers are equipped with a safety valve.
The hose of this safety valve must be connected to a drain.
Manufacturer cannot be held liable for damages caused by
water flow into the boiler or on the ground when excessive
pressure is generated in the heating installation.
Safety valve must not be used as a means of
draining water from the system.
Draining water of the safety valve can be very hot.
Beware of scalding.
12

4.2.3 CONDENSATION WATER DRAIN
Condansation water which is generated during to the
combustion, transfers to the water drain connection by the
syphon and drain hose.
Condensation water is acidic and corrosive (approx. 2 ph). So
all of the connections which are made for condensation water
must be made with PP type pipes. Condensation water must
be transferred to the drain with the shortest way possible. For
health and environmental reasons it mustn’t transfer such
places near people, animals and plants.
Condensation water must not be connected to rain drain
systems.
The condensate drain line must have a slope of at least
3%.
A neutralization tank should be used for condensate
water occurring in systems with a total power of 200 kW
and above.
It is mandatory to comply with the relevant local
regulations for the discharge of condensate water.
)&'!
4.2.4 HYDRAULIC SEPERATOR
These are used to compensate the pressure differences in systems
where multiple pumps and / or heating circuits are used, to eliminate
excessive pressure differences between boiler’s inlet and outlet
water temperatures and to prevent thermal stresses in the boiler.
Dimensions, input and output distances should be selected
correctly.
Via a sensor to be placed on it, the general temperature of the
system is determined by the hydraulic seperator.
There must be an automatic air relief valve on the hydraulic
seperator.
In case the water in the system is dirty, chalky or
corrosive, plate heat exchanger should be used
instead of balance container.

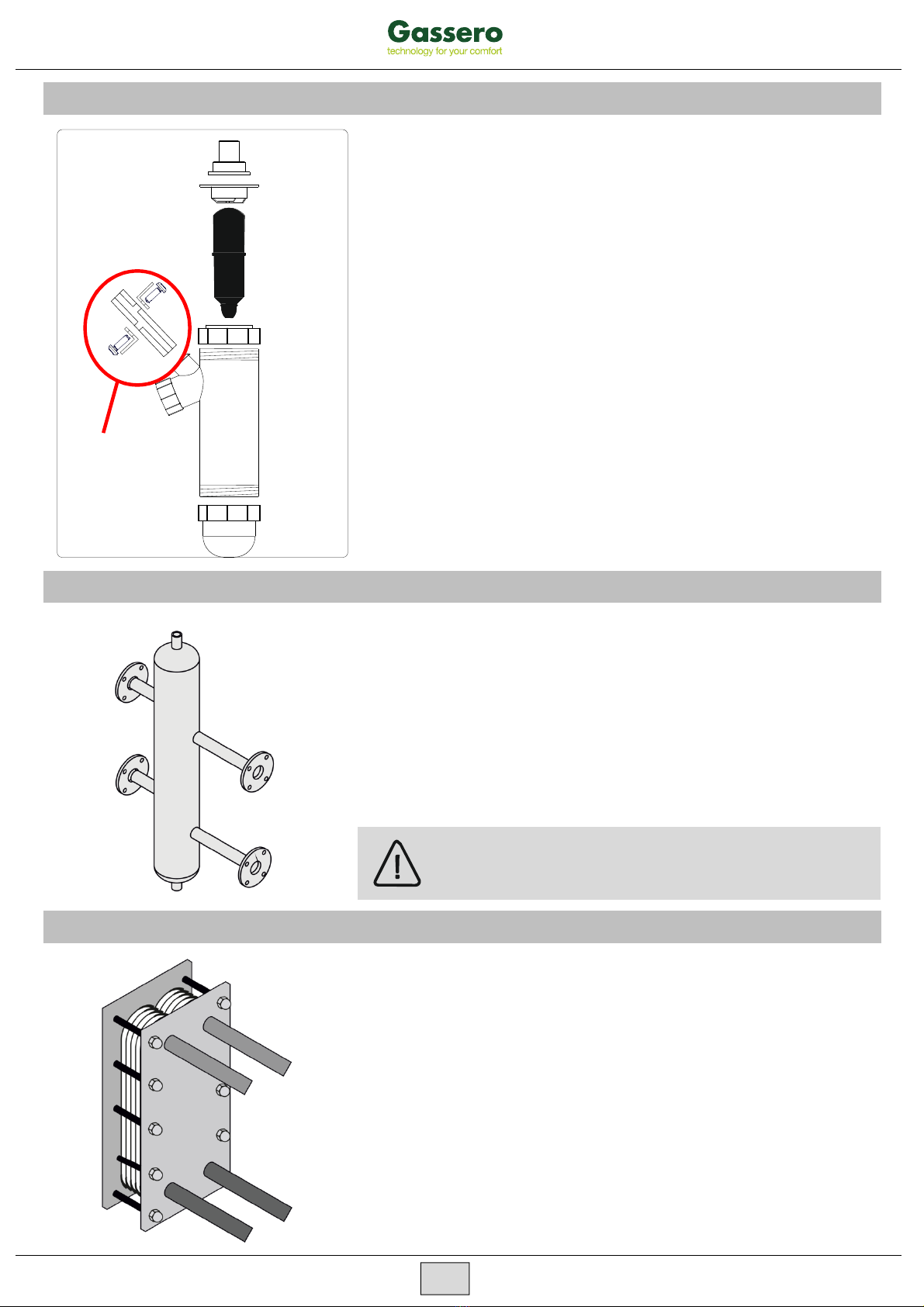

4.2.5 PLATE HEAT EXCHANGER
Plate heat exchangers are hydraulic equipments that separates the
boiler and the installation (primary and secondary zones). Unlike the
hydraulic separator circulating water in the plate heat exchanger never
interfere with the water goes through the boiler and the water goes
through the installation. Only heat transfer occurs here.
Preferred for many purposes;
If the water in the system is very dirty, chalky or corrosive,
If the working pressure of the system exceeds the working
pressure of the boiler,
If a part or all of the system is required to operate with lower
temperature values. (eg. underfloor heating systems)
13

The plate heat exchanger must be used in the
following cases and the system must be separated
into primary and secondary.
-Heating systems which are consist of partly of fully
floor heating,
-Used, older systems,
-Systems that are dirty, corrosive, bacterial and
calcareous water.
Periodic inspection and maintenance of the plate
heat exchanger is highly important for the efficiency
of the system.
4.2.6 AUTOMATIC AIR RELIEF VALVE
ALUCON boilers have an automatic relief valve for the
evacuation of the air accumulated in the heat exchanger.
However, for the evacuation of the air that may occur in the
installation, it is necessary to place one or more automatic air
relief valves in the appropriate places of the installation. Local
regulations must be followed in this regard.
4.2.7 DEPOSIT AND DIRT SEPARATOR
To remove the dirt and particles form the water, a strainer or
deposit nd dirt seperator must be placed on the return line of
the boiler.
When the dirt, particles and similar deposits in the
system water are not cleaned;
The efficiency of the system decreases,
Installation equipments (pumps, valves, plate heat
exchanger, etc.) may be damaged due to overheating
A boiler damage may occur due to heat exchanger
clogging. Manufacturer cannot be held liable for
damages that may occur in such cases.
Strainers or deposit and dirt seperators on the
system should be checked frequently and cleaned if
necessary.
4.2.8 AIR INLET FILTER (OPTIONAL)
If WALLCON X-treme boilers will be used in to a dirty air
environment, they must be supported with the air inlet filters.
This optional filter must be checked regularly.
When the air inlet filter becomes dirty;
Emission values would be deteriorated and efficient
combustion wouldn’t be achieved.
The accumulation of soot occurs in the heat exchanger.
Loud ignition and combustion occurs.
Overheating, leakage and deformation would be
observed in the flue system.
Manufacturer cannot be held liable for damages
caused by dirty combustion air.
Don’t block the air filter partially or totally.
14

4.2.9 PUMP
Wallcon X-treme boilers are equipped with modulated
pumps according to the last ErP regulation.
4.3 FLUE CONNECTIONS
Flue and chimney connections must be carried out in accordance
with applicable regulations and relevant standards. Materials which
are used for the flue and chimney must be resistant to the
temperature, corrosive effect of condensation water and
mechanical stresses and must be gas-tight.
Never use the new boiler with the flues which are
used for solid/liquid fuel boilers or shunt chimneys.
Chimney system and the condensation drainage
systems connected to it should be checked once a
year and cleaned if necessary.
2,5 3,0 3,52,01,51,00,50 0
20
40
60
80
H
/m
Wilo-Yonos PARA RS KU
15/7.5 , 20/7.5 , 25/7.5
1-230 V - Rp ½, Rp / , Rp 1
p
/k Pa
max.
Δp-v.
34
0
2
4
6
8
15

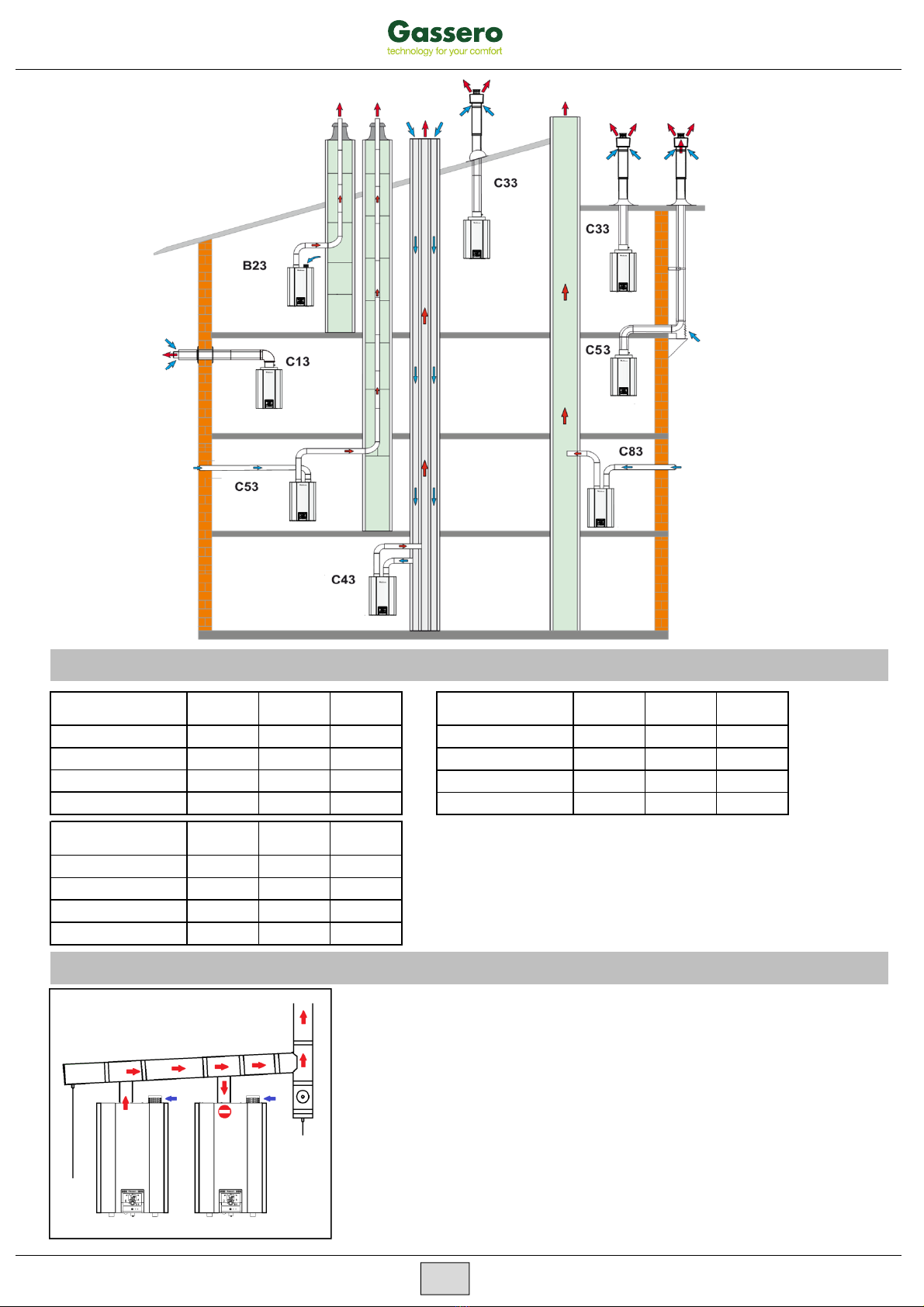

4.3.1 FLUE TYPES
B23 = It is a flue system that takes the combustion air from the environment and throws flue gas to the outside.
C13 = It is a flue system that takes the combustion air from the outside and throws flue gas to the outside with the
horizontal concentric flue pipe system.
C33 = It is a flue system that takes the combustion air from the outside and throws flue gas to the outside with the
vertical concentric flue pipe system.
C43 = It is a flue system that takes the combustion air from the outside and throws flue gas to the outside with
seperate flue pipes.
C53 = It is a flue system that takes the combustion air from the outside and throws flue gas to the outside with the
vertical and horizontal concentric flue pipe system.
C63 = It is a flue system that flue pipes are not supplied by the manufacturer. It has to be applied according to
one of the applicable flue systems which are mentioned in technical table in flue types section with CE certified
flue pipes.
C83 = It is a flue system which takes the combustion air from the outside with horizontal flue pipes and throws
flue gas to the self contained (negative pressure) chimney.

16
4.3.2 FLUE CONNCETIONS LENGTHS
Wallcon X-Treme 42 C13 C33 C43,C53
C63,C83
Air inlet "" "" 5""
Fl e 5"" 5"" 5""
Max. length " " "
Max. o tp t (
Δ
p) % % %
Wallcon X-Treme 50 C13 C33 C43,C53
C63,C83
Air inlet "" "" 5""
Fl e 5"" 5"" 5""
Max. length " " 4"
Max. o tp t (
Δ
p) 3% 3% 3%
Wallcon X-Treme 67 C13 C33 C43,C53
C63,C83
Air inlet "" "" 5""
Fl e 5"" 5"" 5""
Max. length " " "
Max. o tp t (
Δ
p) 4% 4% 4%
Wallcon X-treme boilers have an internal backdraught
shutter which prevents waste gas inlet into the boilers that are
not engaged or in standby position in cascade systems which
are combined with a chimney.
This shutter which is located between the fan and monifold
cannot be removed.
4.3.3 BACKDRAUGHT SHUTTER

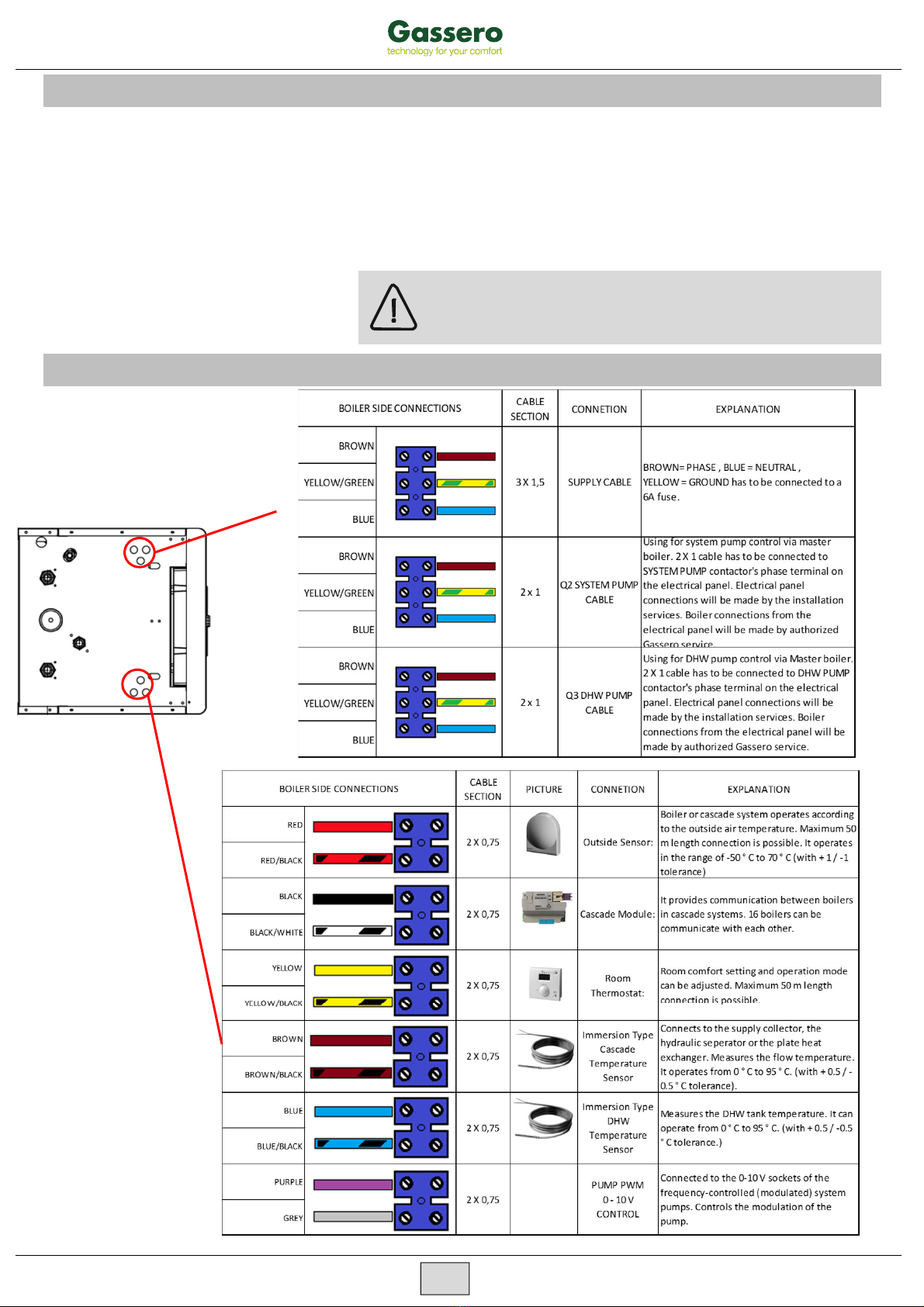

4.4.1 WIRING DIAGRAM
17
4.4 ELECTRICAL CONNECTIONS
For the operation of the boiler, a grounded electrical supply 230 VAC 50Hz is required (tolarance must be
between -15% ve +10% ).
Electric supply of the boiler must be cut off via a fuse during the maintenance.
Electrical operations must be made by authorized technical personal in in accordance with regulations and
standards.
Electrical cables should not be passed close to hot surfaces (such as hot water pipes).
L (phase), N(neutral) and grounding connections must be made properly.
All cables must be fitted with a ferrule.
The manufacturer cannot be held liable for damages
caused by negligence or incorrect operation in the
earthing of the boiler.

18

19
