APURO GL346-A User manual

Model:
GL346-A/GL347-A/GL348-A/GL349-A/HF150-A/HF151-A/
HF152-A/HF153-A/CU547-A/CU548-A/CU549-A/CJ549-A
Water Boiler
Instruction manual
CU547-A
GL347-A

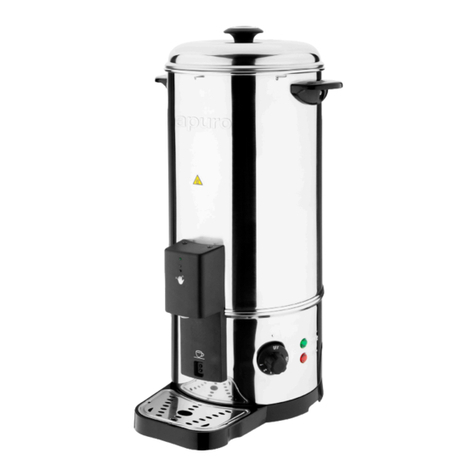

HF150-A
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 1GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 1 2023/2/23 16:012023/2/23 16:01

2
EN Telephone Helpline: 1300225960
Safety Instructions
Please take a few moments to carefully read
through this manual. Correct maintenance and
operation of this machine will provide the best
possible performance from your Apuro product.
• Position on a flat, stable
surface.
• A service agent/qualified
technician should carry out
installation and any repairs if
required. Do not remove any
components on this product.
• Consult Local and National
Standards to comply with the
following:
- Health and Safety at Work
Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• Ensure the location for the
appliance can support its
weight when full.
• DO NOT fill the appliance
above the ‘MAX’ level.
• DO NOT move the appliance
when full.
• DO NOT immerse the
appliance in water.
• DO NOT leave the machine
unattended during operation.
• DO NOT operate this
appliance when less than
one third full.
• Danger of burns!
Do not touch hot
surfaces and beware
of escaping steam.
• For indoor use only. Do
not use outdoors or under
extremely cold conditions.
Freezing up of the unit may
pose a safety hazard.
• Always switch off and
disconnect the power supply
to the appliance when not in
use.
• Keep all packaging away
from children. Dispose of
the packaging in accordance
to the regulations of local
authorities.
• If the power cord is damaged,
it must be replaced by an
Apuro agent or a recommended
qualified technician in order to
avoid a hazard.
• Please ensure that the tap is
screwed fully on before use.
• Apuro recommend that
this appliance should be
periodically tested (at least
annually) by a Competent
Person. Testing should
include, but not be limited
to: Visual Inspection, Polarity
Test, Earth Continuity,
Insulation Continuity and
Functional Testing.
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 2GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 2 2023/2/23 16:012023/2/23 16:01

3
EN
Telephone Helpline: 1300225960
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Pack Contents
The following is included:
• Apuro Water Boiler
• Tap adapter (for GL346-A/GL347-A/GL348-A/
GL349-A)
• Instruction manual
• Water tray (for HF150-A/HF151-A/HF152-A/
HF153-A)
Apuro prides itself on quality and service, ensuring that at the time of unpacking the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Apuro dealer immediately.
Operation Model shown: GL346-A
Do not install the appliance in an area where a
water jet could be used.
Before using for the first time, clean the interior
with warm water.
1. Remove the appliance from the packaging. Make
sure that all protective plastic film and plastic
coatings are thoroughly removed from all surfaces.
2. Ensure the Temperature Control knob is set to ‘OFF’.
3. Remove the lid and fill the appliance to at least half
of its capacity.
4. Replace the lid.
5. Connect to the mains power supply.
6. Set the Temperature Control knob to the required
temperature setting. The ‘BOIL’ indicator light
illuminates and the appliance begins to heat water.
7. When the water has reached the set temperature
the ‘BOIL’ Indicator light turns off and
the ‘KEEP WARM’ indicator light illuminates.
Tap
KEEP WARM
indicator light
Temperature Control knob
Handle
Lid
BOIL indicator
light
WARNING: Reduce the set temperature if the water begins to boil. DO NOT allow the water
to boil constantly.
Note: Once the water temperature drops 5-10ºC then the appliance will reheat the water.
WARNING: If the Temperature Control Knob is set to or close to ‘HIGH’ then the appliance
will constantly heat the water until knob is turned to ‘OFF” or the temperature is reduced.
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 3GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 3 2023/2/23 16:012023/2/23 16:01

4
EN Telephone Helpline: 1300225960
Serving
For GL346-A/GL347-A/
GL348-A/GL349-A 12
For HF150-A/HF151-A/
HF152-A/HF153-A 1 2
For CU547-A/CU548-A/
CU549-A/CJ549-A
Emptying the Appliance
GL346-A/GL347-A/GL348-A/GL349-A/
CU547-A/CU548-A/CU549-A/CJ549-A:
Drain the appliance by using the tap to empty.
HF150-A/HF151-A/HF152-A/HF153-A:
Drain the appliance with hand over the hand
sensor until empty.
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 4GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 4 2023/2/23 16:012023/2/23 16:01

5
EN
Telephone Helpline: 1300225960
Thermal Cut-Out Reset
This appliance is fitted with a Thermal Cut-Out safety feature. Should the temperature exceed safe levels
the appliance will automatically cut power.
The Safety Cut-out switch is located on the underside of the appliance.
To reset the appliance:
1. Empty the appliance and allow to cool.
2. Press the reset button until it clicks.
WARNING: Ensure the appliance has cooled down and is empty before resetting the switch,
as it may need to be tipped slightly to gain access to the switch.
3. The appliance is now reset and can be used as normal.
Cleaning, Care & Maintenance
• Always turn off and disconnect the appliance from the power supply before cleaning.
• Use soapy water and a damp cloth to clean the exterior of the appliance.
• Dry thoroughly after cleaning.
De-scaling
For the best water quality, Apuro recommend that a water filter is installed to the mains water supply,
particularly in hard water areas. Doing so will reduce the build up of limescale and contaminants in the
water tank thus maintaining energy efficiency and prolonging the life of the appliance.
To de-scale the appliance:
1. Pour a solution of de-scaler and water into the appliance.
2. Brush the interior gently with a soft bristled brush.
3. Discard the solution collected in the jug.
4. Fill the appliance with clean water and turn back On to flush out the system. Flush out the system
thoroughly to remove any de-scaler residue.
5. The appliance is now ready for use.
Note: Use a suitable de-scaler and always follow the instructions on the container.
Apuro recommend that this appliance is de-scaled every 3 months or more frequently in
hard water areas.
IMPORTANT: Failure to de-scale or maintain will invalidate your guarantee.
Troubleshooting
A qualified technician must carry out repairs if required.
Fault Probable Cause Solution
The unit is not working The unit is not switched on Check unit is plugged in and switched on
Plug or lead is damaged Replace Plug or lead
Mains power supply fault Check mains power supply
Thermal fuse has activated Reset Thermal fuse
Indicator light comes on but
water does not reach temperature
Thermostat fault Consult a qualified technician
The tap is leaking (for GL346-A
series and CU547-A series)
The tap has become loose Tighten the tap handle
Water not dispensing (for
HF150-A series)
Sensor not detecting the
cup
Not suited for glass cups, so ensure the
cup used is opaque
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 5GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 5 2023/2/23 16:012023/2/23 16:01

6
EN Telephone Helpline: 1300225960
Technical Specifications
Note: Due to our continuing program of research and development, the specifications herein may be
subject to change without notice.
Model Voltage Power Current Capacity
(litres)
Weight
(full)
(kg)
Heating Time
(Max. Temp.
when full)
Dimensions
h x w x d mm
GL346-A 230-240V~
50Hz
2020-
2200W
9.36A 10 12.9 30 minutes 470 x 304 x 313
HF150-A 13.2 530 x 313 x 313
CU547-A 15.6 29 minutes 538 x 330 x 330
GL347-A 20 23.8 60 minutes 535 x 361 x 374
HF151-A 24.2 595 x 385 x 374
CJ549-A 26.1 59 minutes 587 x 380 x 380
GL348-A 30 34.6 90 minutes 519 x 422 x 439
HF152-A 30.4 579 x 465 x 439
CU548-A 38.6 88 minutes 585 x 490 x 490
GL349-A 40 45 128 minutes 630 x 422 x 439
HF153-A 45.8 690 x 465 x 439
CU549-A 47.5 125 minutes 694 x 490 x 490
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
APURO parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
APURO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of APURO.
Every effort is made to ensure all details are correct at the time of going to press, however, APURO reserve the right to
change specifications without notice.
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 6GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 6 2023/2/23 16:012023/2/23 16:01

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo
Model • Modèle • Modell • Modello
• Modelo
Manual Fill - 10Ltr
Manual Fill - 20Ltr
Manual Fill - 30Ltr
Manual Fill - 40Ltr
Hands Free - 10Ltr
Hands Free - 20Ltr
Hands Free - 30Ltr
Hands Free - 40Ltr
Energy Efficient - 10Ltr
Energy Efficient - 20Ltr
Energy Efficient - 30Ltr
Energy Efficient - 40Ltr
GL346-A
GL347-A
GL348-A
GL349-A
HF150-A
HF151-A
HF152-A
HF153-A
CU547-A
CJ549-A
CU548-A
CU549-A
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en)
• Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo
Electrical Safety
IEC 60335-1:2010 +A1:2013 +A2:2016
IEC 60335-2-75:2012 +A1:2015 +A2:2018
Electro-Magnetic Compatibility
(BS) EN IEC 55014-1:2021
(BS) EN IEC 55014-2:2021
(BS) EN IEC 61000-3-2:2019 +A1:2021
(BS) EN 61000-3-3:2013 +A1:2019 +A2:2021
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante
Apuro
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)
and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Date • Data • Date • Datum • Data •
Fecha
20th December 2022
Signature • Handtekening • Signature
• Unterschrift Firma • Firma
Full Name • Volledige naam • Nom et
prénom • Vollständiger Name • Nome
completo • Nombre completo
Ashley Hooper
Brendan Denmeade
Position • Functie • Fonction • Position
• Qualifica • Posición
Technical & Quality Manager
Commercial Manager/ Responsible
Supplier
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift des
Herstellers • Indirizzo del produttore •
Dirección del fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
15 Badgally Road,
Campbelltown
NSW 2560
DocuSign Envelope ID: 3754925B-78E7-465C-A78A-97C96D7A05C1
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 7GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 7 2023/2/23 16:012023/2/23 16:01

GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_2023/02/23
GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 8GL346-A to GL349-A_HF150-A to HF153-A_CU547-A to CU549-A_CJ549-A_A5_v7_20230223.indb 8 2023/2/23 16:012023/2/23 16:01
