Gavita GAN Electronic 600W SE EU User manual

GAN Electronic 600W / 750W SE EU
1. Introduction
Thank you for purchasing the GAN Electronic 600 W / 750 W SE EU. This manual describes the mounting and installing of the
product and also describes how to use the product. Mounting and installing of the fixture may only be executed by certified
service personnel. Please read and understand this manual completely before using the product. Only use the product as
specified in this manual.
1.1. Used symbols
Warning! A warning indicates severe damage to the user and/or product may occur when a procedure is not carried out
as described.
Caution! A caution sign indicates problems may occur if a procedure is not carried out as described. It may also serve as
a reminder to the user.
Note: A note gives additional information, e.g. for a procedure.
This symbol indicates that the reflector and lamp can reach very high temperatures (>85 °Celsius).
Observe a cool down period before performing maintenance.
With this symbol Gavita declares that this product complies with legal European requirements.
The symbol on the material, accessories or packaging indicates that this product may not be discarded as household
waste. Dispose of the equipment through a recycling centre that handles electronics and electrical appliances within the
EU and in other European countries which use separate collection systems for used electronics and electrical appliances.
By disposing of the equipment in the proper way, you will be helping to prevent possible risks to the environment and
public health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of materials
contributes to the conservation of natural resources. Therefore, please do not dispose of your old electronics and
electrical appliances via household waste.
A
B
This symbol indicates the minimum distance (B) between the fixture (A) and the lit surface.
2. Product description
The GAN Electronic 600 W / 750 W SE EU is an electronic horticultural fixture. It can be used to drive a single ended high
frequency type (electronic) high pressure sodium lamp:
600 W SE EU:
Recommended lamps:
-Gavita Pro 600 W Electronic HPS E40.
-Philips Master GreenPower Plus 600 W EL.
750 W SE EU:
Recommended lamps:
-Gavita Pro 750W Electronic HPS.
The GAN Electronic 600 W / 750 W SE EU is intended to be used in greenhouses or in climate rooms.
In this manual, the GAN Electronic 600 W / 750 W SE EU will be referred to as: “the fixture”.

3. Product information and specifications
3.1. General product information
Product name GAN Electronic 600 W EU GAN Electronic 750 W 400 V SE EU
Manufacturer Gavita International bv Gavita International bv
Version 230-240 V 400 V 400 V
EAN Code 8718692230019 8718692230101 8718692230118
Part number 14.65.19.04.06 14.65.19.04.01 14.74.19.04.03
Plug type Wieland RST20i3 Wieland RST20i3 Wieland RST20i3
3.2. Technical specifications
Product name GAN Electronic 600 W EU GAN Electronic 750 W 400 V SE EU
Input voltage +/-10% 230 V / 240 V 400 V 400 V
Input wattage +/-3% 634 W 634 W 780 W
Apparent power +/-3% 647 VA 647 VA 796 VA
Input current at 100% 2,82 A 1,56 A 1,98 A
Max. current 3,15 A 1,6 A 2,1 A
Inrush current < 14 A / 1,8 mSec < 30 A / 1,6 mSec < 40 A / 1.0 mSec
Power factor > 0,98 > 0,98
Product weight 3,5 kg 3,53 kg
Dimensions (LxWxH) 56,5 x 24,5 x 19,5 cm (height excl. mounting hooks)
Temperature case < 70 °Celsius
Temperature ambient 0 ~ 35 °Celsius
Relative humidity < 70% (not condensating)
Total Harmonic Distortion < 10%
Frequency 50-60 Hz
Certification CE LDV
Insulation Class 1 - requires an earth connection / IP20
Power inlet Wieland RST20i3 connector
Ignition voltage 3,5 kV
Earth leakage current ≤ 1 mA
3.3. Compatible products and accessories
Product name Gavita part number
Replacement reflector Gavita HR96 SE 31.46.02.10
Compatible lamps
Gavita Pro 600 W Electronic HPS E40 26.64.40.02
Philips Master GreenPower Plus 600 W EL 21.64.16.21
Gavita Pro 750 W Electronic HPS 26.74.19.11
Compatible power cord Wieland RST20i3 0,6 m mains cable 63.70.11.51
3.4. Environment
The product is intended to be used in greenhouses and climate rooms. The product can be used in damp environments. The
product may not be used in wet environments or outdoors. The lamps function optimal when the ambient temperature is
between 20 ~ 30 °Celcius.
3.5. Legal
CE LVD approval according to: EN 60598-1: 2008 + A11: 2009.
CE EMC approval according to: EN 55015 (2013).

4. Safety recommendations and warnings
Warning! Carefully read the warnings below before using or working with the product!
• Always adhere to the local rules and regulations when installing or using the fixture.
• Do not open or disassemble the fixture, it contains no servicable parts inside. Opening the fixture can be dangerous and
will void the warranty.
• This product may cause interference to radio equipment and should not be installed near maritime safety communications
equipment or other critical navigation or communication equipment operating between 0.45 - 30 MHz.
• Do not use the fixture when either its lamp or its power cord are damaged. Replace the power cord only with original
certified cords. Replace the lamp only with lamps specified by Gavita (see paragraph 3.3).
• The use of other lamps may damage the product and lamp and will void the warranty.
• Modifications to the cords can lead to unwanted electromagnetic effects, which makes the product not comply with legal
requirements.
• Do not expose the fixture to:
-condensing humidity, heavy mist, fog or direct spray;
-(ambient) temperatures outside the specified range;
-dust and contamination;
-direct sunlight during use or HID light that could heat up the ballast.
• Always disconnect the fixture from mains before performing any maintenance.
• Always allow for a cool down period of at least 30 minutes before touching the lamp or reflector. Touching the lamp or the
reflector when the lamp is lit or immediately afterwards will result in severe burns!
• Never touch the lamp with bare hands as this will cause damage to the lamp.
• Do not use the fixture near flammable, explosive or reactive substances. The lamp and the reflector of the fixture reach
temperatures of >85 °Celsius.
• Do not use sulfur vaporizers or water misters. Sulfur and calcium deposits on your reflector will decrease its efficiency.
• The installation and use of the fixture is the responsibility of the end user. Incorrect use or installation can lead to failure
and damage to the fixture. Damage to the fixture and electronic circuitry as a result of incorrect installation and use
revokes the warranty.
5. Contents (1)
A. GAN Electronic 600 W / 750 W SE EU
1. Electronic ballast
2. Lamp bracket
3. Lever to unlatch reflector
4. Lamp socket
5. Reflector Gavita HR96 SE
6. Mounting points
B. Wieland RST20i3 female connector with
cable (3 x 1,5 mm2STL-UC DCa)*
*Could be delivered seperately
C. Gavita Pro 600 W Electronic HPS E40
lamp / Philips Master GreenPower Plus
600 W EL lamp / Gavita Pro 750W
Electronic HPS lamp
6. Controls, connections and
indications (2)
A. Wieland RST20i3 male connector
1. Ground connection
2. 230 / 240 V: Phase / neutral
connections
400 V: Phase / Phase connections
B. Status LED
B
A6
A1
A4
A6
A5
A3
A2
C
A6
A1
A4
A6
A5
A3
A2
B
1.
BB
AA1 AA2
AA
2.
Wieland RST20i3
Gavita HR96 SE

7. Installation
Warning! Mounting and installing of the fixture may only be executed by certified
service personnel, in accordance with the applicable local laws and regulations.
Warning! The fitter is responsible for correct and safe installation.
Warning! Ensure the local cabling can support the voltage and current
requirements of the fixture.
Warning! Avoid coiled cords and keep mains leads separated. This prevents
electromagnetic interference.
Warning! Do not connect or disconnect the Wieland RST20i3 plug under load.
7.1. Installation preparations
• Switch off mains power.
• Read the Gavita light distribution plan.
• If not done already, install the lamp in the fixture (see paragraph 10.2).
• If not done already, screw the mounting point into the fixture (3).
7.2. Installing the fixture
• Mount the suspension bracket* according to the light distribution plan.
• Hang the fixture by its two mounting points onto the suspension bracket (4). The
two mounting points are spaced 30 - 32 cm apart.
Caution! Always hang the fixture horizontally. Adjustments can be made by
screwing the mounting point in or out.
To install other fixtures, repeat the steps at paragraph 7.1 and 7.2.
* The suspension bracket is delivery dependent, it may differ from the image.
7.3. Connecting the fixture to the mains
Warning! Make sure mains power is switched off.
Warning! Always install the lamp before connecting the fixture to the mains.
Warning! Ensure the cord is not coiled and does not touch any hot surfaces.
Warning! Connect the cables according to local rules, safety regulations and
electrical code.
Warning! Ensure external switching gear can cope with the inrush current of
the fixture (see paragraph 3.2). Always use a double pole contactor suitable for
switching a capacitive load. Never use household timers to switch the fixture!
• Connect the wires of the female Wieland RST20i3 cable with the distribution
cable of the electrical installation.
Caution! Use a suitable sealed joint to connect the cables.
• Cable description:
Wire 230V 400V
Blue Neutral (N) Phase (N)
Brown Phase (L) Phase (L)
Green/yellow Ground ( ) Ground ( )
Warning! Make sure the wires are connected correctly to prevent short-circuit.
• Plug the Wieland RST20i3 female connection onto the Wieland RST20i3 male
connection of the fixture (5).
• Switch on mains power.
Warning! Do not connect or disconnect the Wieland RST20i3 plug under load.
B2
B3
B1
3.
4.
5.
B1
B2
B1
B2
600W
0,6 m
750W
0,75 m

8. Precautions when using the fixture
Warning! Never use the fixture without a lamp or reflector!
Warning! Always wait 20 - 30 minutes for the reflector to cool down!
9. Troubleshooting using the status LED
Note: Only present at 600 W models
The status LED provides information on the condition of the lamp and electronic ballast.
Consult table 1 to interpret the status LED. LED signals are represented by colored red dots.
9.1. Status indications
Status LED message Status fixture Description Action/Solution
 No error The lamp is working correctly No action required.
 EOL timer expired
Maximum number of ignition attempts
done without succesfull ignition or a
driver is locked or has failed
Reset mains cycle manually. If the
problem persists, it could be the end
of the lamp’s lifecycle. Replace the
lamp
 Cycle error
Maximum number ignition attempts
done (lamp stopped for unknown
reason)
Check the lamp. Replace the lamp
when damaged
 Low mains Mains voltage too low Check the voltage, mains cycle
automatically resets
 Thermal overload Maximum driver temperature
exceeded Reset mains cycle manually
 Lamp voltage out
of range
Lamp voltage too low, lamp voltage too
high or DC shift detected
This could be the end of the lamp’s
lifecycle. Replace the lamp
 High mains Mains voltage too high and/or DC-bus
voltage too high
Check the voltage, mains cycle
automatically resets
Ignition busy Ballast is trying to ignite the lamp No action required.
Legend
LED message Time (approx.)

256 ms.


512 ms.

Table 1

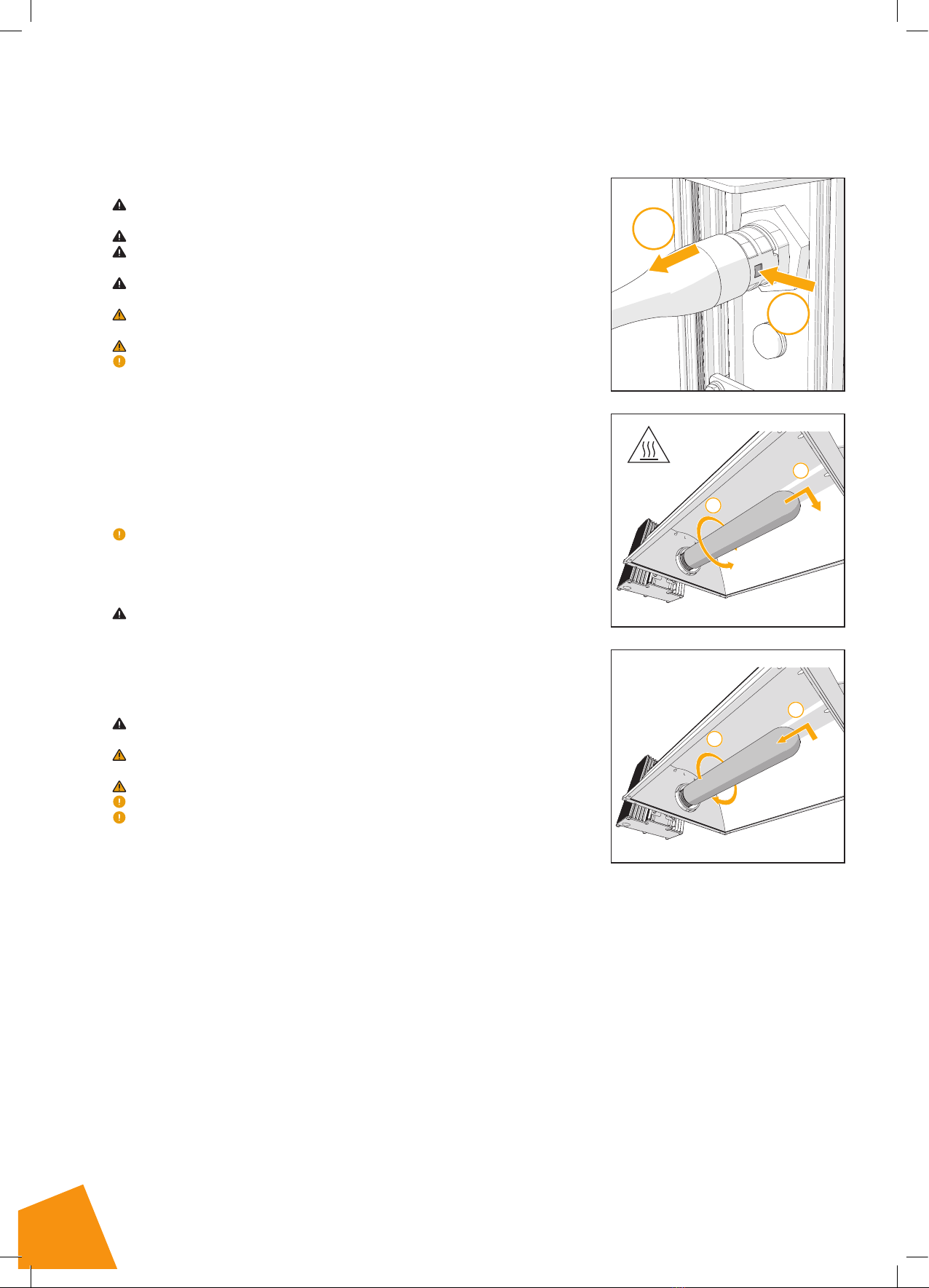

10.Inspection, maintenance and repair
Warning! Disconnect the product from mains before performing any
maintenance or repairs.
Warning! Do not connect or disconnect the Wieland RST20i3 plug under load.
Warning! Do not open or disassemble the fixture, it contains no servicable parts
inside. Opening the fixture can be dangerous and will void the warranty.
Warning! Always allow for a cool down period of at least 30 minutes before
touching the lamp or reflector.
Caution! Do not clean the fixture with detergents, abrasives or other agressive
substances.
Caution! Do not touch the inside of the reflector.
Note: Gavita recommends to measure the lamp and reflector for aging every
year. Replace the lamp and/or reflector when they are aged.
• Regularly check the fixture for dust or dirt buildup. Clean if necessary.
Contamination may couse overheating and decreased performance.
-Clean the inside of the reflector with soapy water, but use demineralised
water to rinse the reflector;
-Clean the electronic ballast and the outside of the fixture using a dry or damp
cloth.
• Check the lamp monthly for discolorations or black markings. Always replace a
damaged lamp.
Note: Before initial use, the lamp could have black markings. This will disappear
when the lamp runs on full power. If not, replace the lamp.
• Regularly check the wiring of the product to ensure it is undamaged.
10.1. How to disconnect the Wieland RST20i3 plug
Warning! Do not connect or disconnect the Wieland RST20i3 plug under load.
• Switch off mains power.
• Press the pin on the Wieland RST20i3 male connection downwards and pull the
Wieland RST20i3 female connection from the fixture (6).
10.2. Placement and replacement of the lamp
Warning! Always allow for a cool down period of at least 30 minutes before
touching the lamp or reflector.
Caution! Do not touch the lamp with bare hands as this will damage the lamp.
Always use a fabric glove to handle the lamp.
Caution! Only use lamps specified by Gavita (see paragraph 3.3).
Note: Gavita recommends replacing the lamp after 10000 lighting hours.
Note: Loosen the reflector (see paragraph 10.3) if there are any problems with
removing or placing the lamp.
• Switch off mains power.
• Use a fabric glove to carefully unscrew the lamp from the socket (7). Use a
protective glove if the lamp is damaged.
• Use a fabric glove to carefully screw a new lamp into the socket (8).
• Switch on mains power.
B1
B2
6.
1
2
1
2
7.
1
2
1
2
8.

10.3. Placement and replacement of the reflector
Warning! Always allow for a cool down period of at least 30 minutes before
touching the lamp or reflector.
Note: Gavita recommends replacing the reflector after 10000 lighting hours.
Depending on the environment and contamination levels the reflector will degrade.
The vega/Miro™ aluminum can be cleaned (see chapter 10), but we recommend to
change the reflector every two to four years. Also replace the lamp when replacing
the reflector.
• Switch off mains power.
• Remove the lamp from the fixture (see paragraph 10.2).
• Support the reflector on the side of the reflector lever to prevent it from falling
(8).
• Move the reflector lever up to retract the two pins holding the reflector in place
(9).
• Remove the reflector (10).
• Place the new reflector. Ensure the reflector lever is in the opened position to
allow the reflector to pass.
• Ensure the holes in the reflector are aligned with the pins in the fixture (11).
• Release the reflector lever so its two pins hold the reflector in place.
• Insert the lamp in the lamp holder (see paragraph 10.2).
• Switch on mains power.
11.Storage and disposal
• Store the fixture in a dry and clean environment, with an ambient temperature of
-20 ~ 85 °Celsius.
• The product must not be discarded as unsorted municipal waste, but must be
collected separately for the purpose of treatment, recovery and environmentally
sound disposal.
Caution! The lamps are chemical hazardous waste and must be delivered to the
designated authorities.
Caution! The lamp contains mercury.
12.Warranty
The warranty conditions are delivery dependent and can be found on a separate
sheet.
9.
10.
11.
12.

Gavita International bv
Oosteinderweg 127
1432 AH Aalsmeer
The Netherlands
Tel: [phone]
Fax: [phone]
E: [email protected]
W: www.gavita.com
Manual: GAN Electronic 600 W / 750 W SE EU
Changes reserved - Version 17/21
