Gazelle SOBOL User manual

Limited Liability Company «Automobile Plant GAZ»
(LLC «AVTOZAVOD GAZ»)
GAZelle
SOBOL
VEHICLES FAMILY
OPERATING INSTRUCTIONS
3302390211110ИЭ
2ndEdition
RUSSIA
NIZHNIY NOVGOROD
2005

3
INTRODUCTION
“GAZelle” and “SOBOL” trucks and buses are reliable and comfortable
vehicles. 4×2 trucks and buses are designed to be operated over improved roads
(4×4 ones – over all types of roads) in different climatic conditions.
“GAZelle” vehicles family presented in this Operating Instructions com
prises the following models:
GAZ3302 — 4×2 type and GAZ33027 – 4×4 type with threeseat cabin
GAZ33023 – 4×2 type and GAZ330273 – 4×4 type with sixseat cabin
GAZ330202 — longwheelbase, with threeseat cabin
GAZ330232 — longwheelbase, with sixseat cabin
GAZ2705 – 4×2 type and GAZ27057 – 4×4 type allmetal vans, with
threeor sevenseat cabin
GAZ3221 – 4×2 type and GAZ32217 4×4 type buses with 8 (9) passen
ger seats.
GAZ32213, GAZ322132 – 4×2 type and GAZ322173 – 4×4 type buses
with 12 (13) passenger seats
GAZ32214 – 4×2 type and GAZ322174 – 4×4 type ambulance vehicles
Note. In brackets there is indicated a number of seats when double passenger seat
is installed in bus cabin (except for the buses with 12 (13) seats where the cabin has
double passenger seat and the rear row of the body is threeor fourseat).
“Sobol” vehicle family presented in this Operating Instructions comprises
the following models:
GAZ2752 – 4×2 type and GAZ27257 – 4×4 type allmetal vans with low
or medium height roof and threeor sevenseat cabin.
GAZ2217 – 4×2 type and GAZ 22177 – 4×4 type buses with low roof.
GAZ22171 – 4×2 type and GAZ221717 – 4×4 type buses with medium
height roof.
The manufacturer reserves the right to constantly alter its vehicle design,
therefore some units and parts may slightly differ from those described in this
Operating Instructions.
You can surely expect reliable operation of the vehicle provided you ob
serve maintenance schedule specified in this Operating Instructions and Serv
ice Book.

4
1. USEFUL HINTS
Vehicles with ZMZ4063 and ZMZ40522 engines run on Research Oc
tane Number 9295 gasoline, with ZMZ4061 run on Research Octane Number
76 gasoline and with GAZ560, GAZ5601, 5602 and Sofim 8140.43 engines –
on diesel fuel (see subsection “Equivalents of Fuels, Oils, Lubricants and Flu
ids”).
Coast when the engine starter key is in position III is strictly prohibited
because in this case the steering control might be accidentally locked by the
antitheft device.
It is prohibited to close the doors with the button pushed down into the
“Locked” position. It may cause the damage of the lock.
Do not reset trip distance counter when the truck is running since this
might cause the damage of the counter.
After engine1) washing in cold weather it is necessary to warm it up for 5–
10 minutes at different speed to remove water from toothed pulleys and cam
shaft drive belt.
Do not run the engine1) when alternator drive belt is loose for it will cause
the sharp decrease of braking efficiency.
For liquid coolant draining the hose is fitted to monoblock1) cock. With
out the hose liquid coolant will not drain fully from the monoblock.
To avoid camshaft toothed timing belt slipping that leads to damage of
valve timing gear parts, do not throw hot water on the engine1) to facilitate its
starting.
To avoid oil leakage from GAZ560, GAZ5601, 5602 engines through the
seals, do not disconnect crankcase ventilation system hose from the intake pipe.
When engine runs do not keep the steering wheel turned as far as it will go
for more than 15 sec because it may cause the damage of power steering2) pump.
Do not start the engine when the level of oil in power steering2) tank is not
sufficient.
The exhaust system of the vehicles with ZMZ40522 engine is equipped
with catalyst converter (mounted on some of the vehicles).
To ensure the proper operation of the converter it is necessary to use un
leaded gasoline with Research Octane Number 92, only.
The converter can also go out of order when the ignition system of the
engine misfires, because in this case the gasoline that failed to burn will enter
1) For GAZ560, GAZ5601, 5602.
2) For vehicles with power steering.

5
the converter increasing sharply the temperature inside it and in its turn it
will cause appearing of cracks in its ceramic block.
During the operation the converter becomes very hot. Therefore when park
ing the vehicle be sure that there is no combustible material (dry grass, wiping
waste, chip etc.) under the converter.
Never start the engine by towing the vehicle to prevent damaging of the
converter.
When starting cold engine (ZMZ4063) it is necessary to step on the ac
celerator pedal, close the choke and release the accelerator pedal. On violating
of the above stated sequence the carburetor choke rod possibly be broken.
To prevent damaging of the gearbox when towing the vehicle by its par
tial loading, disconnect the propeller shaft flange from the axle drive. Then fix
reliably the disconnected end of the propeller shaft via a wooden block to the
bracket crossbar of parking brake system linkage cable equalizer arm.
On the vehicles with ZMZ40522 engine fuel tank contacts with atmos
phere by means of gasoline vapour recovery system (mounted on some of the
vehicles). It consists of steam pipes and valves such as safety valve and pres
surevacuum control valve, as well as adsorber (adsorbs gasoline vapour) with
electromagnetic valve of blowing.
To avoid fire dangerous situation and damaging of the adsorber when fuel
gets into it, fuel tank design insures fuel cutoff during fuelling. Forced filling
of extra fuel is not allowed.

6
2. VEHICLE IDENTIFICATION DATA
Identification number of the vehicle (VIN) and identification numbers of
cabin or allmetal body, engine and cargo body vehicle chassis refer to the ve
hicle identification data.
Vehicle Identification Number (VIN) on the vans with allmetal cargo
body and buses appears on the cab front outer panel under the hood on the
right side in direction of vehicle movement (see Fig. 2.1, arrow “A” view);

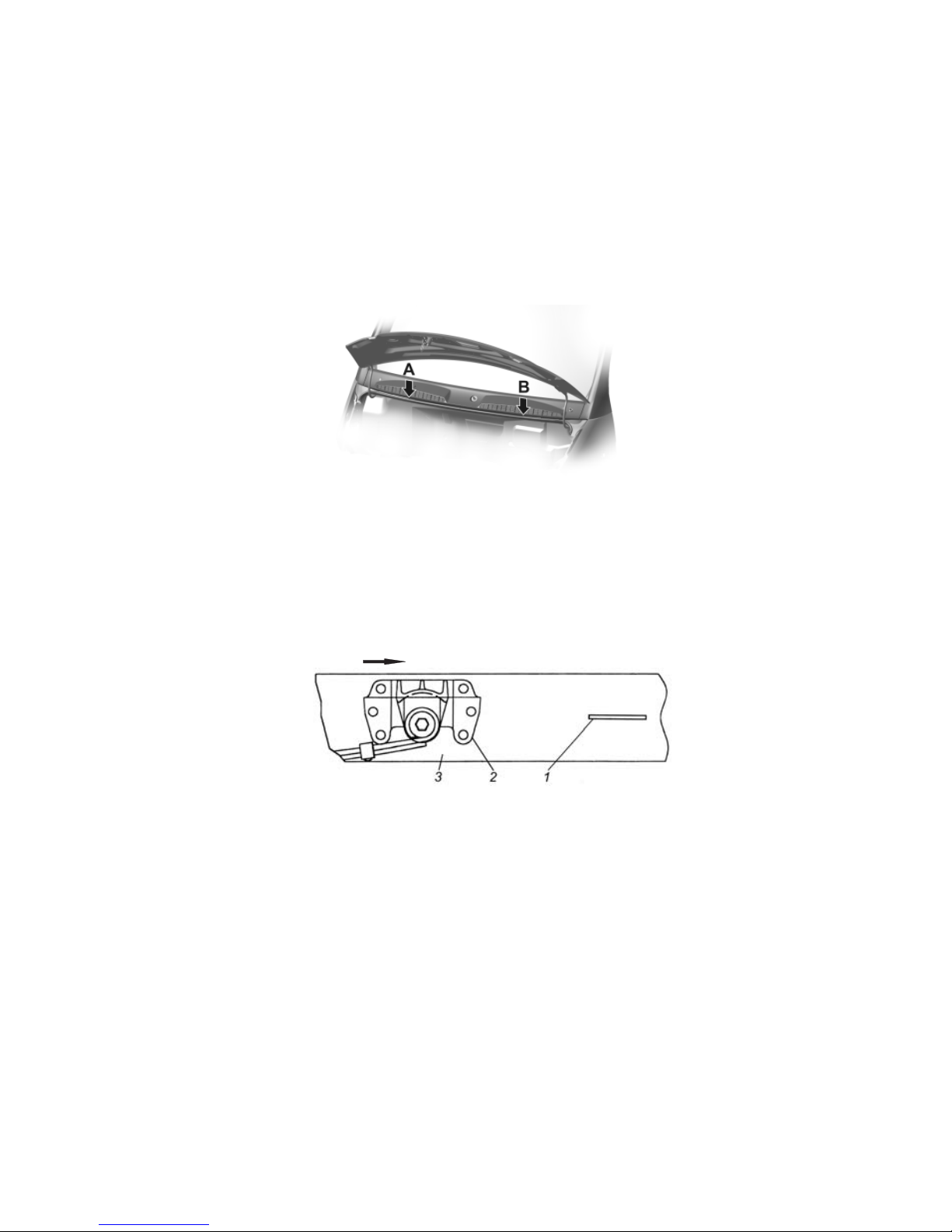

Fig. 2.1. A — location of vehicles VIN; B — location of cab number (vehicles with cargo
body) or body number (vans, buses).
Vehicle Identification Number (VIN) on the vehicles with cargo body
appears on the right side member before the rear spring front bracket (Fig. 2.2).
Fig. 2.2. Location of VIN on the vehicles with cargo body and chassis:
1 – location of identification number; 2 – rear spring front bracket; 3 – frame side member, right
Direction of movement
Example of Vehicle Identification Number:
X9633020050140794, where:
X96 – manufacturer international identification code,
330200 – “GAZelle” vehicle model,
221710 — “Sobol” vehicle model
5 – model year code (5 – 2005, 6 – 2006),
0140794 – vehicle serial number.

7
Model year is a period equal on the average to calendar year during which
the vehicles with identical design features are being manufactured.
Cab number (vehicles with cargo body) or body number (vans and bus
es) is located on the front outer panel under the hood, on the left in direction
of vehicle movement (see Fig. 2.1, arrow “B” view).
Example of Body (Cab) Number:
27050040100125,where:
270500 – “GAZelle” body index,
330200 – “GAZelle” cabin index
22171 – “Sobol” body index
5 – model year code,
0100125 – body (cabin) serial number.
ZMZ Engine identification number is stamped on the cylinder block on
the left side (see Fig. 2.3).
Fig. 2.3 Engine identification number
1 – engine model; 2 – cylinder block number; 3 — engine serial number; 4 – engine manufacturer
code; 5 – model year code; 6 — engine variant code; 7 — engine version
Identification number of cylinder block is punched above the engine iden
tification number.
Identification number of GAZ560, GAZ5601, 5602 engines (Fig. 2.4)
is stamped on the plain surface of engine framework (in its front part, on the
right, above alternator mounting flange). It contains engine index (GAZ560
or GAZ5601, 5602), model year code (5 — 2005; 6 — 2006) and engine serial
number.

8
Identification number of Sofim 8140.43C engine (Fig. 2.5) is punched
on the plane surface of the cylinder block in the rear part of the engine at the
right side.

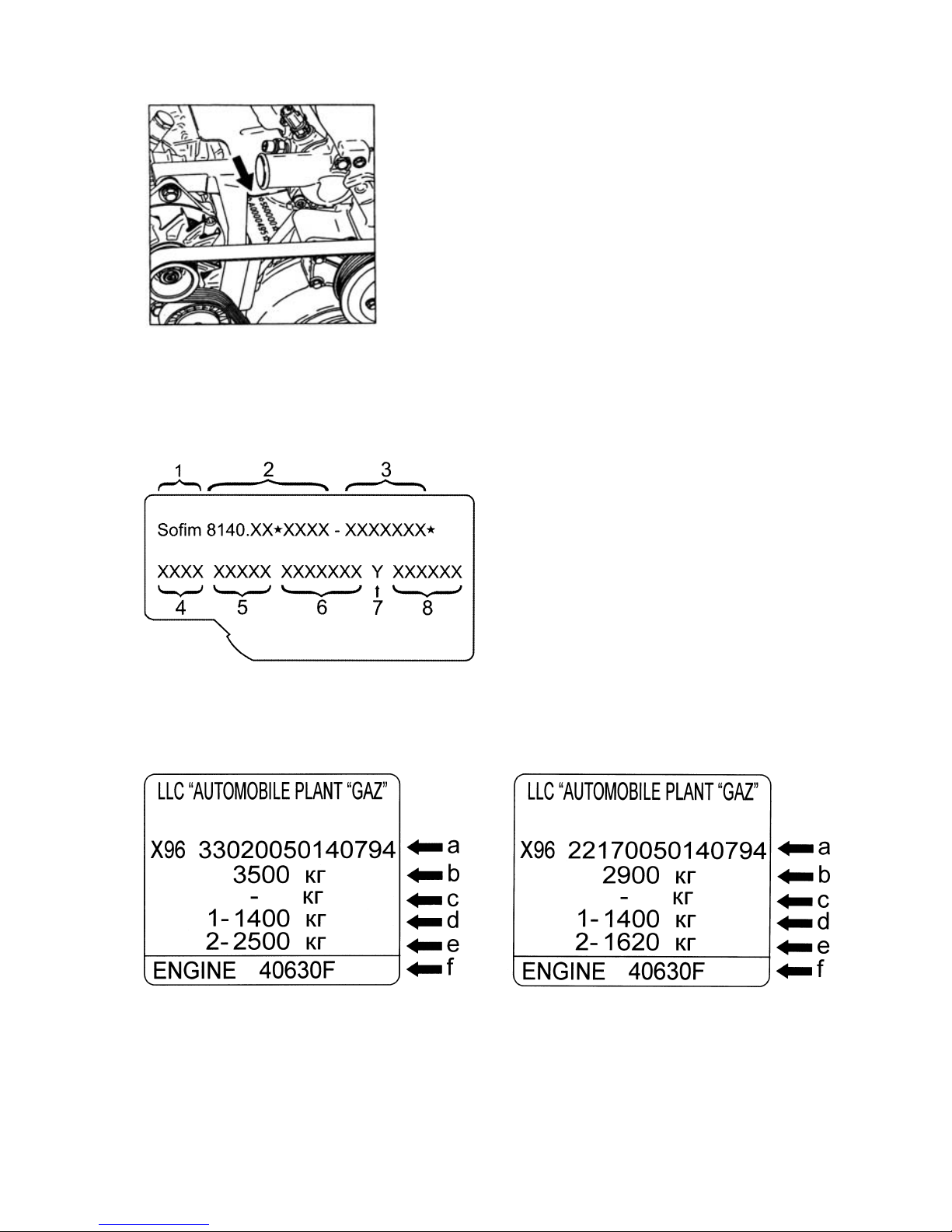

Fig. 2.4. Identification Number of
GAZ560, GAZ5601, 5602 Engines
Fig. 2.5. Identification Number of Sofim
8140.43C Engine
1 — engine manufacturer; 2 — engine vari
ant code; 3 — engine number; 4 — diameter
of cylinder; 5 —diameter of main bearings;
6 — certificate; 7 — engine manufacturer
code; 8 — the last six digits of engine
number.
Vehicle identification data also appears on manufacture’s plate (Fig. 2.6
and 2.7) located on the rear pillar of the cab side panel.
Fig. 2.7. Example of “Sobol” Vehicle
Manufacture’s Plate with Identification
Data
Fig. 2.6. Example of “GAZelle” Vehicle
Manufacture’s Plate with Identification
Data

9
a– vehicle identification number;
b – gross vehicle weight;
c– gross vehicle weight with trailer;
d– maximum front axle weight;
e– maximum rear axle weight;
f – engine index

10
Type Biaxial with rear axle drive 4 ×4 biaxial
Vehicle gross mass, kg 3500 3500 3500 3500 3500 3500 3500 3500
Vehicle kerb mass, kg:
— with engines
ZMZ4061, 4063,
40522 1850 2100 2050 2170 2000/ 2100 2300 2220/
20901) 23101)
— with engine
GAZ560 1900 2150 2100 2200 2050/ 2150 2350 2270/
21401) 23601)
— with engine
GAZ5601, 02 1950 2200 2150 2270 2140/ 2200 2400 2360/
21901) 24101)
— with Sofim engine 1950 2200 2150 2270 2100/ 2200 2400 2320/
21901) 24101)
Overall dimensions,
mm:
— length 5510 6616 5510 6295 5540 5570 5570 5600
— width 2095 2095 2095 2095 2075 2095 2095 2075
— height2) 2120 2120 2275 2275 2200 2200 2355 2300
— height over canvas
top, mm 2570 2570 2570 2570 — 2660 2660 —
GAZ27057
Vehicle model GAZ3302 GAZ33023 GAZ2705 GAZ33027 GAZ330273
3. SPECIFICATIONS
3.1. GENERAL DATA
3.1.1. “GAZelle” General Data
Trucks
1) For vans with two rows of seats.
2) Height over cab is given for the vehicles with the cargo body.
GAZ330202 GAZ330232

11
GAZ27057
Vehicle model GAZ3302 GAZ33023 GAZ2705 GAZ33027 GAZ330273GAZ330202 GAZ330232
Wheelbase, mm 2900 3500 2900 3500 2900 2900 2900 2900
Front wheels track,
mm 1700 1700 1700 1700 1700 1720 1720 1720
Rear wheels track
(between centres
of twin tyres), mm 1560 1560 1560 1560 1560 1560 1560 1560
Ground clearance
(under rear axle
housing at total
mass), mm 170 170 170 170 170 190 190 190
Minimum turning
radius (front outer
track), m 5.5 6.7 5.5 6.7 5.5 7.5 7.5 7.5
Maximum speed, km/h,
on flat, smooth high
way, not less than,
for vehicles with:
— ZMZ4061, 4063
engine 115 115 115 115 115 115 100 100
— ZMZ40522 engine 130 130 130 130 130 130 130 130
— GAZ560 engine 115 115 115 115 115 100 100 100
— GAZ5601, 5602
engine 120 120 120 120 120 120 115 115
— Sofim 8140.43C
engine 120 120 120 120 120 120 — —
Overhang angles
(laden), deg.:
— front 24 24 24 24 22 22 28 28
— rear 24 17.5 24 23 18 18 26 20

12
GAZ27057
Vehicle model GAZ3302 GAZ33023 GAZ2705 GAZ33027 GAZ330273GAZ330202 GAZ330232
Maximum climable
gradient for laden
vehicle, % 26 26 26 26 26 30 30 30
Cargo body (van)
loading height, mm 950 950 950 950 725 725 1040 825
Van freight compart
ment capacity, m3— — 9/61) 9/61) — 9/61)
Cargo body overall
dimensions (inner),
mm:
— length 3089 4168 2339 3089
— width 1978 1978 1978
— height 400 400 400 400
1) For vans with two rows of seats.

13
GAZ322174Vehicle model GAZ3221 GAZ32213 GAZ32214 GAZ32217 GAZ322173
Buses and Ambulances
With allmetal body
Type Biaxial with rear axle drive 4 x 4 biaxial
Vehicle gross mass1),
kg 3250 3500 3500 3470 3720 3500
35502) 37602)
35003)
Vehicle kerb mass, kg:
— with engines
ZMZ4061, 4063,
40522 2500 2440 2600 2720 2660 2870
— with engine
GAZ560 2450 2390 2650 2770 2710 2920
— with engine
GAZ5601, 5602 2500 2440 2700 2820 2760 2970
— with Sofim engine 2500 2440 2750 2820 2760 2970
Overall dimensions,
mm:
— length 5540 5540 5550 5600 5600 5560
— width 2075 2075 2075 2075 2075 2075
— height 2200 2200 25004) 2300 2300 25804)
Wheelbase, mm 2900 2900 2900 2900 2900 2900
Front wheels track,
mm 1700 1700 1700 1720 1720 1720
1) — Gross mass of the buses is specified including driver and passengers as per number of mounted seats.
2) — For vehicles with engines GAZ560, GAZ5601, 5602.
3) — For vehicles with Sofim 8140.43 engines.
4) — Height is specified over Signaling and Loudspeaker System.

14
GAZ322174Vehicle model GAZ3221 GAZ32213 GAZ32214 GAZ32217 GAZ322173
Rear wheels track
(between the centres
of twin tyres), mm 1560 1560 1560 1560 1560 1560
Ground clearance
(under rear axle
housing at total
mass), mm 170 170 170 190 190 190
Minimum turning
radius (front outer
track), m 5.5 5.5 5.5 7.5 7.5 7.0
Maximum speed,
km/h, on flat,
smooth highway,
not less than 1151) 1151) 1151) 1101) 1101) 1101)
1202) 1202) 1202) 1152) 1152) 1152)
Overhang angles
(laden), deg.:
— front 22 22 22 28 28 28
— rear 18 18 18 20 20 20
Maximum climbable
gradient for laden
vehicle, % 26 26 26 30 30 30
1) For vehicles with ZMZ4061, 4063,40522, GAZ560 engines.
2) For vehicles with GAZ5601, 5602 and Sofim engines.

15
GAZ221717Vehicle model GAZ2752 GAZ27527 GAZ2217 GAZ22177 GAZ22171
1) For 10passenger seat buses.
2) For vans with two rows of seats.
3) For vans with mediumheight roof.
Type Allmetal van Bus
4×24×44×24×44×24×4
Vehicle gross mass, kg
— with engines
ZMZ4063, ZMZ40522 2800 3000 2800/29801) 3000/31701) 2800/29801) 3000/31701)
— with engine GAZ560 2800 3000 2850/30301) 3020/32001) 2850/30301) 3020/32001)
— with engine GAZ
5601, 02 2800 3000 2900/30801) 3070/32501) 2900/30801) 3070/32501)
Vehicle kerb mass, kg:
— with engines
ZMZ4063, ZMZ40522 1880/19702) 2130/22202) 2130/21451) 2370 2150/21201) 2370
— with engine GAZ560 1930/20202) 2180/22702) 2180 2420 2180 2420
— with engine GAZ
5601, 02 1980/20702) 2230/23202) 2290 2470 2290 2470
Overall dimensions, mm:
— length 4840 4910 4840 4910 4840 4910
— width 2075 2075 2075 2075 2075 2075
— height2) 2100/22003) 2170/23003) 2100 2200 2200 2300
Wheelbase, mm 2760 2760 2760 2760 2760 2760
Front wheels track, mm 1700 1720 1700 1720 1700 1720
Rear wheels track, mm 1700 1700 1700 1700 1700 1700
Ground clearance (under
rear axle housing at to
tal mass), mm — 205 — 205 — 205
3.1. “SOBOL” GENERAL DATA

16
GAZ221717Vehicle model GAZ2752 GAZ27527 GAZ2217 GAZ22177 GAZ22171
Ground clearance (under
front suspension arms
at total mass), mm 150 — 150 — 150 —
Minimum turning radius
(front outer track), m 5.5 6.0 5.5 6.0 7.5 6.0
Maximum speed, km/h,
on flat, smooth high
way, not less than, for
vehicles with:
— ZMZ4061, 4063,
40522 engine 120 110 120 110 120 110
— GAZ560 engine 120 110 120 110 120 110
— GAZ5601, 5602
engine 120 120 120 120 120 120
Overhang angles (laden),
deg.:
— front 22 28 22 28 22 28
— rear 21 30 21 30 21 30
Maximum climbable
gradient for laden ve
hicle, % 29 30 29 30 29 30
Van loading height, mm 670 770 — — — —

17
3.2. ENGINE
3.2.1. Gasoline Engines
Model ZMZ405220¤ZMZ40610¤ZMZ40630¤
Type 4stroke, injection 4stroke, carburetor
Number of cylinders and their
arrangement 4, inline 4, inline 4, inline
Cylinder bore and piston stro
ke, mm 95.5×86 92×86
Displacement, l 2.464 2.285
Compression ratio 9.3 8.0 9.3
Rated power, net, kW (h.p.) 106.6 (145) 64.8 (88) 72.2 (98)
Max. torque, net, daN·m
(kgf·m) 20.79 (21.2) 16.8 (17.0) 17.2 (17.5)
— at the engine speed, rpm 4200±200 3500
Engine idle speed, rpm
—minimum (nmin. xx) 850±50 750±50
— increased (nincr.xx) 3150±50 2750±50
Fuel grade “Regular92” A76 АИ93, А92
Cylinders firing order 1 – 3 – 4 – 2 1 – 3 – 4 –2 1 – 3 – 4 –2
Direction of crankshaft rota
tion (looking from the fan
side) Righthand Righthand Righthand
Fuel supply system With liquid heating of airfuel mixture
Carburator — K151Д
3.2.2. Diesel Engines
Model GAZ560 GAZ5601, Sofim 8140.43C1)
GAZ5602
Type Diesel, 4stroke, with boost Diesel, 4stroke
pressure charge
Without su With super
percharged air charged air
cooling cooling
Number of cylinders and their
arrangement 4, inline 4, inline 4, inline
Cylinder bore and piston stro
ke, mm 85×94 94.4×100
Displacement, l 2.134 2.8
Compression ratio 20.5 18.5
¤— Symbol substituting the letter of engine version.
1) For “GAZelle” vehicles.

18
Rated power, net, kW (h.p.) 70.0 (95) 81.0 (110) —
Engine speed at rated power,
min1 3800 3600 —
Max. torque, net, daN·m (kgf·m) 20.0 (20.4) 25.0 (25.5) 25.0 (25.5)
— at engine speed, rpm 2300 2000 —
Maximum power, kW (h.p.) — — 78 (106.1)
Engine idle speed, rpm
— minimum (nmin xx) — — 800±25
— increased (nincr. xx) — — 4200±50
Fuel grade Diesel fuel
Cylinders firing order 1—3—4—2
Direction of crankshaft rota
tion (looking from the fan
side) Righthand
Fuel supply system Multipoint
with distributor
fuel injection pump
and injectors
Pumpandinjector units 590/1 —
Turbocompressor C12 or KO4 —
Glow plugs
0100226227 «Beru» or
0250 202.022 «Bosch» or
11721659 «АЕТ» or
ИЮМА.387524 ФГУП УАПО —
Governor — — Mechanical,
allspeed
High pressure fuel pump
(HPFP) — — Bosch (type VE)
3.3. TRANSMISSION
Clutch Singleplate, dry, with hydraulic drive
Gearbox Mechanical, 5gears, with synchromesh unit in
all gears
Transmission ratios:
— 1st gear – 4.05
— 2nd gear – 2.34
— 3dgear – 1.395
— 4th gear – 1.0
— 5th gear – 0.849
— reverse gear – 3.51
Transfer case1) Mechanical, with two gears: high gear (i = 1.07)
and underdrive (i = 1.87) and equalizing central
controlled slip differential
1) For vehicles type 4×4

19
Cardan drive Two shafts with three universal joints (with
nee dle bearings) and intermediate support.
Three shafts1) with six open type cardan joints,
with needle bearings
Front axle1)
— final drive Hypoid, transmission ratio is 5.125
— differential Bevel, geartype
— steering knuckles With Hook’s joints
Rear axle
— final drive Hypoid, transmission ratio is 5.1253) (4.556)2), (4.1)4)
— differential Bevel, geartype
— axle shafts Full floating
3.4. RUNNING GEAR
3.4.1. “GAZelle” Vehicles
Wheels Disk type with solid rim 5Ѕ1 /
2×16H2
Tyres Pneumatic, radial, with tube, size 175R16C or
185/75R16C (195R16C)5)
Suspension:
— front Two longitudinal semielliptic springs
— rear Two longitudinal semielliptic springs with hel
per springs5) and antiroll bar6)
Shock absorbers Four pcs. – hydraulic, telescopic, dual acting.
Mounted on the front and rear axles
3.4.1. “Sobol” Vehicles
Wheels Steel, pressed, disk type with solid rim 6J×16H2
Tyres Pneumatic, radial, with tube, 225/75R161) or
215/60R16 or 215/65R16 – for buses or 215/65R16,
185/75R16C (for GAZ2310, GAZ2752)
Suspension:
— front Wishbonetype independent suspension with
cylindrical springs and lateral stabilizer; shock
absorbers – filled with gas, telescopic, dual acting.
Two1) longitudinal semielliptic springs
1) For vehicles type 4×4.
2) For “GAZelle” vehicles with ZMZ40522, GAZ5601, 5602 engines and “Sobol” vehicles.
3) For “Sobol 4×4” vehicles and “GAZelle” vehicles with ZMZ4061, 4063 and GAZ560 engines.
4) For vehicles with Sofim engine.
5) Except for 4×2 type buses.
6) Optional.

20
— rear Two longitudinal semielliptic springs with later
al stabilizer; shock absorbers – hydraulic, tele
scopic, dual acting
3.5. STEERING GEAR
Steering gear without
power steering Mechanical, “screwball nut” type
Steering gear with
power steering Integral type, “screwball nut”
Power steering pump ШНКФ 45347111540 for Sofim engine,
Power steering pump ZF firm product
Steering gear transmission
ratio (in the middle part) 23.09 (for vehicles without power steering), 17.3
(for vehicles with power steering)
3.6. BRAKE SYSTEMS
Service brake system Doublecircuit, with hydraulic drive and vacuum
booster
Brake gears:
— front wheels Disk
— rear wheels Drum
Emergency brake system Each circuit of service brake system
Parking brake system With mechanical cable drive to rear wheel brake
gears
3.7. ELECTRICAL EQUIPMENT
Type Direct current, single wire. Negative terminals
of electrical equipment elements are connected
to frame
Rated voltage, V 12
Alternator
— for engines ZMZ4061,
ZMZ4063, ZMZ40522 9422.3701 or 2502.3771
— for engines GAZ560,
GAZ5601, 5602 Bosch 6 033 GB001
Starter:
— for engines ZMZ4061,
ZMZ4063, ZMZ40522 6012.3708000 or 4216.370800007 or 406.3708000
— for engines GAZ560,
GAZ5601, 5602 Bosch 0 001 109042 or Iskra Avtoelektrika AZE 2573
ZMZ4061, ZMZ4063
engine control system:
— control unit 243.376301 or 309.376301 or 243.376321
or 309.3763021)
1) — With the function of fan electric coupling relay control.

21
— timing sensor 02612101131) or 23.3847 or ДС1
— absolute pressure sensor 45.3829 or 02612300371)
— coolant temperature sensor
(engine control system sensor) 19.3828 or 405226
— knock sensor 02612310461) or GT 305 or 18.3885
ZMZ40522 engine control system:
— control unit 241.376364
— mass airflow sensor 20.3855
— air throttle position sensor 0 280 122 0011) or НРК 18
— oxygen sensor 5WK91000
— phase sensor 0 232 103 0061), 406.384705001 or ДФ1
— engine speed and timing sensor 0 261 210 1131) or 23.3847 or ДС1
— inlet pipeline air temperature
sensor, coolant temperature sensor 19.3828 or 405226
— knock sensor 0 261 231 0461), GT305 or 18.3855
— engine idle run governor 0 280 140 5451) or PXX60
— electromagnetic nozzles 0 280 150 7111), 0280 150 5601) or ZMZ DEKA
IA 92612), DEKA ID (ZMZ 6354)2)
GAZ560, GAZ5601, 5602 en
gines fuel supply control system:
— control unit 2176814/2 (for GAZ560)
2176824/0 (for GAZ5601)
220.4001/0 (for GAZ5602)
— accelerator pedal position
sensor 2176830/3
— engine speed sensor 2176734/2
— boost air pressure sensor 2203662/1
— air temperature sensor 2174425/2 or ИЦФР 405213.001
— coolant temperature sensor 2174623/3 or ИЦФР 405213.002
— electric fuel pump 2173396/1
— pumpandinjector units con
trol electromagnet with rack
position sensor 2205211/2
— electromagnetic control valve
of exhaust gases recirculation
system 1902.3741
— glow plug relay 0332.002156 Bosch
— engine electronic control sys
tem and electric fuel pump cut
tingin relay (2 pcs.) 2206107/0 or 94.374.000
Servo drive reducing gear of fuel ДПР281212
injection timing control mech
anism (GAZ5602)
1) — Made by “BOSCH” .
2) Made by “SIEMENS”.
