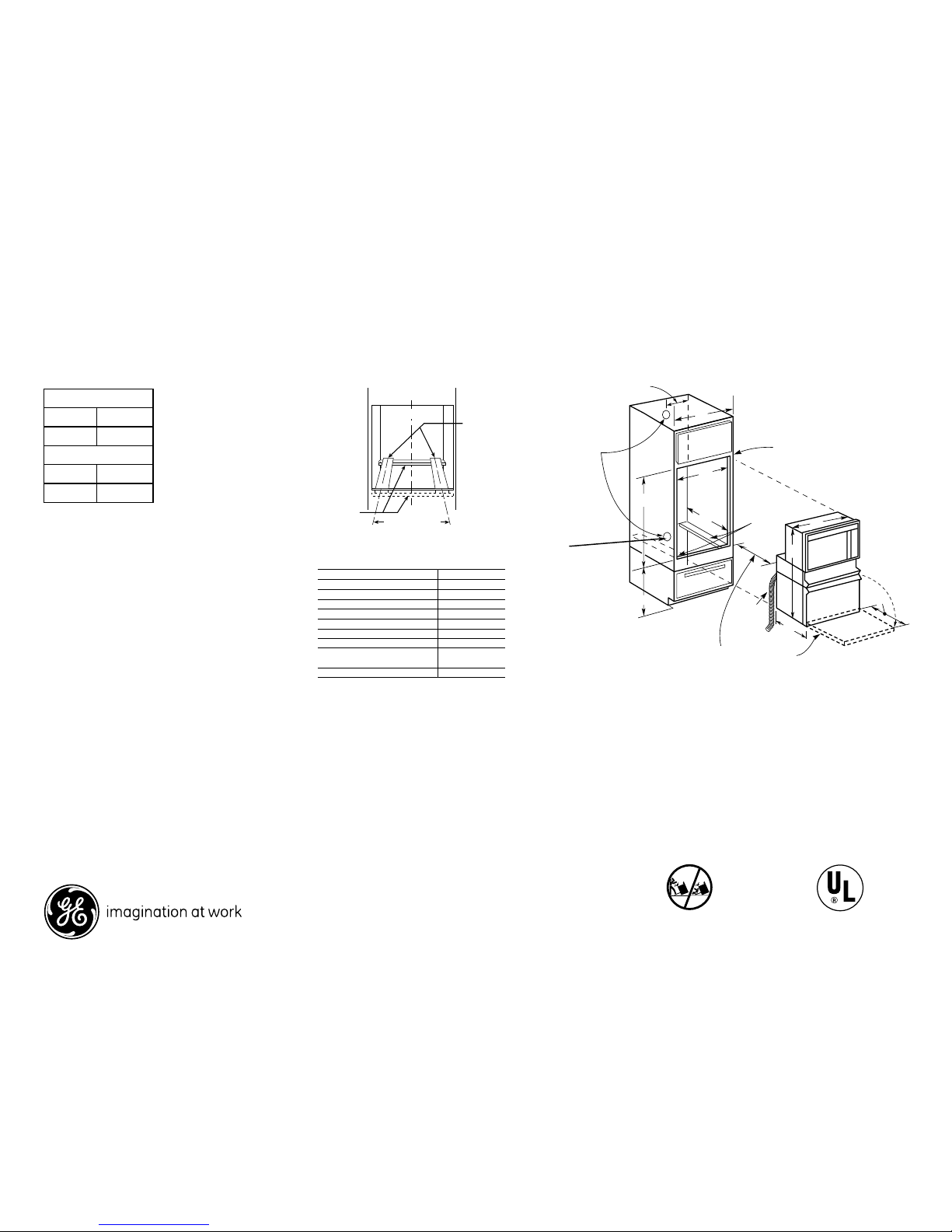

Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 1/07 320374
JKP90BM/CM/WM
GE®27" Built-In Double Microwave/Thermal Wall Oven
KW Rating
240V 6.4
208V 4.8
Breaker Size
240V 30 Amps
208V 30 Amps
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 41-1/4" max
E – Minimum cutout location from floor 22"
Oven
F – Overall depth* 23-5/8"
G – Overall height with trim 43" - 43-7/8"
Overall height without trim 42-1/8"
H – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to
26-8/10" max.
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
18"
over centerline
of cabinet
(must support 275 lbs.)
E
Minimum
cutout location
from floor
Allow minimum of
21" for clearance
to adjacent corners,
drawers, walls, etc.
21
2" X 4" or
equiv. runners
Conduit
(48-1/2"
long)
Allow 3/4" for overlap
of oven over all
edges of cutout
10
A
D
Recommended
j
unction box
locations.
Locate junction
box either 5" MIN.
below cutout
floor or 48" MIN.
above cutout
floor
C
B
F
G
H
Access
from
adjacent
cabinet
required
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Note: if marks, blemishes or the cutout opening is
visible above the installed oven, it may be necessary
to add wood shims under the runners and front trim
until the marks or openings are covered.
Note: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90° walls
should be placed to avoid interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle. They must
be hard wired in accordance with installation
instructions.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 41-1/4" max
E – Minimum cutout location from floor 22"
Oven
F – Overall depth* 23-5/8"
G – Overall height with trim 43" - 43-7/8"
Overall height without trim 42-1/8"
H – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to
26-8/10" max.
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
18"
over centerline
of cabinet
(must support 275 lbs.)
E
Minimum
cutout location
from floor
Allow minimum of
21" for clearance
to adjacent corners,
drawers, walls, etc.
21
2" X 4" or
equiv. runners
Conduit
(48-1/2"
long)
Allow 3/4" for overlap
of oven over all
edges of cutout
10
A
D
Recommended
j
unction box
locations.
Locate junction
box either 5" MIN.
below cutout
floor or 48" MIN.
above cutout
floor
C
B
F
G
H
Access
from
adjacent
cabinet
required

Specification Created 1/07 320374
Features and Benefits
• Self Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items
at once
• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for
simple oven operation
• TrueTemp™System - Delivers even heat distribution and maximum oven control
• 1.6 Cu. Ft. Capacity (Upper Oven Only) - Provides a large interior to accommodate a
variety of cookware, dinnerware and food containers
• Sensor Cooking Control (Upper Oven Only) - Provides a built-in sensor in the upper
microwave that automatically calculates and adjusts cooking times and power levels for
your favorite foods
• Turntable (Upper Oven Only) - Steadily rotates your food and ensures even cooking with
no cold spots
• Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver a clean
interior appearance
• Six-Pass Bake Element - A powerful, continuous heating element that loops throughout
the oven, delivering evenly cooked foods
• Model JKP90BMBB - Black on black
• Model JKP90CMCC - Bisque on bisque
• Model JKP90WMWW - White on white
JKP90CM/WM/BM
JKP90BM/CM/WM
GE®27" Built-In Double Microwave/Thermal Wall Oven
