GE Profile Advantium PSB1200 User manual

Installation
I struct" n
Advantium ®120V
Built-ln SpeedCook
Ovens
PSB1200
PSB1201
ZSC1201
ZSC1202
For a Spanish version of this manual, visit our Website at ge.com.
Para cons@tar una version en espaflol de este manual de instrucciones,
visite nuestro sitiode internet ge.com.
i49-40593-! i
HFL5906090!
12-08 JR

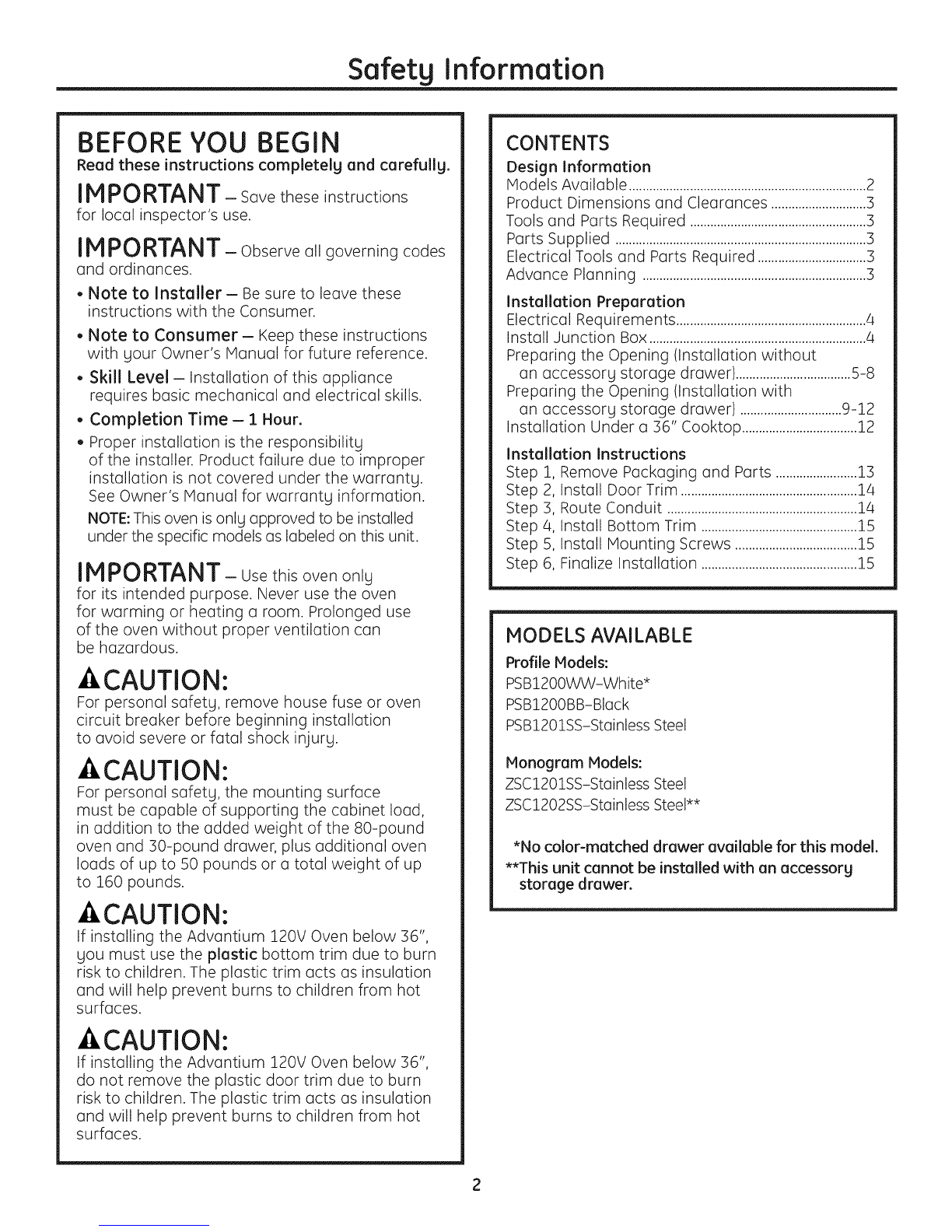

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IN PORTANT- Savetheseinstructions
for local inspector's use.
IM PORTANT-Observeollgoverningcodes
ond ordinonces.
• Note to Installer- Be sure to leave these
instructions with the Consumer.
• Note to Consumer- Keep these instructions
with gour Owner's Honuol for future reference.
• Skill Level- Instollotion of this opplionce
requires bosic mechonical and electrical skills.
• Completion Time - 1 Hour.
• Proper instollotion is the responsibility
of the instoller. Product foilure due to improper
instollotion is not covered under the worrontg.
See Owner's Honuol for worront9 informotion.
NOTE:This oven isonly opproved to be instolled
under the specific models as labeled on this unit.
IMPORTANT- Use thisoven onlg
foritsintendedpurpose.Never use the oven
forworming orheotingo room. Prolonged use
ofthe oven withoutproperventilationcan
be hazardous.
-&CAUTION:
For personol safety, remove house fuse or oven
circuit breaker before beginning installation
to ovoid severe or fatal shock injurg.
-&CAUTION:
For personol safety, the mounting surfoce
must be copoble of supporting the cobinet Iood,
in oddition to the odded weight of the 80-pound
oven ond 30-pound drower, plus odditionol oven
Ioods of up to 50 pounds or o total weight of up
to 160 pounds.
-&CAUTION:
If instolling the Advontium 120V Oven below 36",
gou must use the plastic bottom trim due to burn
risk to children. The plostic trim octs os insulation
and will help prevent burns to children from hot
surfoces.
-&CAUTION:
If instolling the Advontium 120V Oven below 36",
do not remove the plostic door trim due to burn
risk to children. The plostic trim octs os insulation
and will help prevent burns to children from hot
surfoces.
CONTENTS
Design Information
Models Avoiloble ......................................................................2
Product Dimensions and Clearances ............................3
Tools ond Ports Required ....................................................3
Ports Supplied ..........................................................................:3
Electricol Tools ond Ports Required ................................:3
Advonce Plonning ..................................................................3
Installation Preparation
Electrical Requirements ........................................................4
Install Junction Box ................................................................4
Preparing the Opening (installation without
an accessorg storage drawer) ..................................5-8
Preparing the Opening (installation with
an accessorg storage drawer) ..............................9-12
Installation Under a :36" Cooktop ..................................12
Installation Instructions
Step 1, Remove Pockoging ond Parts ........................1:3
Step 2, Instoll Door Trim ....................................................14
Step :3,Route Conduit ........................................................14
Step 4, Instoll Bottom Trim ..............................................15
Step 5, Instoll Mounting Screws ....................................15
Step 6, Finalize Installation ..............................................15
MODELS AVAILABLE
Profile Models:
PSB1200WW-White*
PSB1200BB-Black
PSB1201SS-Stainless Steel
Monogram Models:
ZSC1201SS-Stoinless Steel
ZSC1202SS-Stoinless Steel**
*No color-matched drawer available for this model.
**This unit cannot be installed with an accessorg
storage drawer.

Design Information
PRODUCT DIMENSIONS AND CLEARANCES
1-1/8"
\
13/16" _
_21-1/2"
/
5/8"
NOTE: Appearance will vary by model.
29-3/4"
LJ
__ m 1
19"
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED}
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32" diameter
• 3/8" slot-head screwdriver
• Level
I Saw
• 2 x 4 or 2 x 2 lumber for installing runners
or 3/8" plgwood for floor (if required)
Wood screws or other hardware for installing
runner or shelf to support oven (if required)
Safetg glasses or goggles
PARTS SUPPLIED
• 6 screws (3 required, 3 extra)
• 5 color-matched screws (4 required, 1 extra)
• Bottom trim (2)
ADVANCEPLANNING
• These ovens mag be installed directlg into a 30" wide
oven cabinet.
• Cutout dimensions are NOTthe same for installation
with or without an accessorg storage drawer.
Make sure to use the correct cutout when preparing
the opening.
NOTE:ZSC1202 models CANNOT be installed
with an accessorg storage drawer. See Installation
Preparation Without an Accessorg Storage Drawer
for this model.
Allow for clearance to adjacent corners, walls,
drawers, etc.
The oven must be securelg installed in a cabinet
that is firmlg attached to the house structure.
Weight on the oven door could cause the oven
to tip and result in injurg. Never allow angone
to climb, sit, stand or hang on the oven door.
If installing the drawer accessorg, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessorg Storage Drawer
Assembl£ Instructions.

Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium 120 Installation:
This product requires a 120-volt, 60 Hz, 1S-amp circuit
and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage
and frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating.
• The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be
located within reach of the 48" power cord.
ELECTRICAL LOCATION
11
Locate outlet box in the shadedarea
t
9"
Install a recessed electrical outlet in the back wall
of the opening within 6" of either side and at least
9" above the cutout floor.
IMPORTANT: (Please read carefullg).
The power cord of this appliance is equipped with
a three-prong (grounding) plug that mates with
a standard three-prong grounding wall receptacle
to minimize the possibility of electric shock. The
customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properlg grounded and has
the correct polaritg.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the consumer to have it replaced with
a properly grounded three-prong wall receptacle.
Do not, under ang circumstances, cut or remove
the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD.
4

Installation Preparation
PreparationWITHOUTanAccessoryStorageDrawer
PREPARE THE OPENING
The Advantium 120V can be installed in
combination with other GE/Monogrom oppliances.
AlwoLIs follow eoch product's Installotion
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30" wide single oven cobinet or cut
the opening in a wall to the dimensions shown.
\\ \
\\\\
Construct
Base
Min. 3/8"
_Plyw00d
Supported
by2x40r
2 x 2 Runners
all FourSides
• Allow 2-1/8" cose trim overlop on the sides,
1-1/16" overlop on the top ond 7/8" overlop
on the bottom of the opening for oll models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When instolled over o single oven or o warming
drower, allow ot least 2" between the two openings.
This separotion will provide clearonce for bottom
overlap of the Advantium 120V and the other
applionce overlaps.
Construct o solid oven floor of 3/8" min. thick plgwood
supported bg 2 x 4 or 2 x 2 runners on oll sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
PREPARE THE OPENING {cont.)
Installation over a GE/Monogram
Warming Drawer:
17-1/2"
23-1/2" Construct
SolidBottom
Min. 3/8"
Plywood
_ Supp0rted
by2x40r2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
PerWarming
Drawer
Requirement
NOTE: Additionol cleoronces between the cutouts
mall be required. Check to be sure the oven supports
above the Warming Drawer Iocotion do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.

Installation Preparation
PreparationWITHOUTanAccessorgStorageDrawer
PREPARE THE OPENING {cont.)
Installationover a GE/Monogram oven:
17-1/2"
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
x4or2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
Per Oven
Requirement
• If Uou are replacing a GE/IVlonogram electric
double oven with the combined installation
of an Advantium 12OV and a single oven, use
the dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING {cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
23-1/2"
PerWarming
DrawerRequirement
ConstructSolid
BottomMin.
3/8" Plywood
Supportedby
_2x4or2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
Per Oven
Requirement
Min.
(3" Recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
-&CAUTION: Forpersonal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds
or a total weight of 1:30 pounds.

Installation Preparation
PreparationWITHOUTanAccessorgStorageDrawer
PREPARE THE OPENING {cont.)
Installationover another GE/Monogram
Under-the-Counter (UTC) oven:
30" ..........._-- 23-1/2"
17-1/2"
Construct Solid
Bottom Min.
3/8" Plywood
_Supported by
2x4or2x2
Runnersall
FourSides
Min.
Recommended)
17-1/2"
• If Uou are mounting an Under-the-Counter
GE/IVlonogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING {cont.)
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
30" ....................._,,._,i_3-1/2"
PerOven
Requirement
17-1/2"
PerWarming
Drawer Requirement
ConstructSolid
BottomMin.
3/8" Plywood
ySupported by
2x4or2x2
Runnersall
FourSides
Min.
4.5" Recommended)
Min.
(3"Recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
_4,CAUTION: Forpersonal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds
or a total weight of 1:30 pounds.

Installation Preparation
PreparationWITHOUTanAccessorgStorageDrawer
PREPARE THE OPENING {cont.)
Installation beside another GE/Monogram
Built-in Speedcook Oven:
•If you are mounting one Under-the-Counter
GE/IVlonogram oven beside the other, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the a-1/2" minimum shown.
17-1/2"
23-1/2"
/
Min.
(5-1/2"Recommended)
PREPARE THE OPENING {cont.)
Installation under a GE/Monogram 30" or 36" Cooktop or Countertop:
Gas or electric cooktops mag be installed over this oven. See cooktop installation instructions for the cutout
size. See the label on top of the oven for approved cooktop models. This oven requires a separate, properly
grounded 15-Amp, 120-Volt, 60Hz power supplg. The cooktop requires a separate power supplg. Use a 36"
or wider base cabinet.
Cooktop
36"
_- Countertop
Height
4" High
Toekick J_
17_1/2"
/4"
25-1 Cooktopheightincludingdepth
of electricalboxonsomemodels.
Referto cooktopinstallation
instructions.
Nominimumclearancerequired
betweencooktopandoven.
NOTE: Theoven is only approvedto be installed
under the specific models as labeled on the unit.

Installation Preparation
PreparationWITH anAccessoryStorageDrawer
NOTE:MODELZSC1201CANONLYBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWERIFINSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITHAN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING {cont.)
The Advantium 12OV can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 12OV Installation:
Order a 30" wide single oven cabinet or cut
the opening in a wall to the dimensions shown.
25-1/4"___,.
4 .... Min.
21"
36-3/4"
Min.*
\\
\\\ \\
ConstructBase
Min. 3/8" Plywood
"Supported by 2 x 4
or 2 x 2 Runners
all FourSides
*Requiredfor
Monogrammodels
•Allow 2-1/8" case trim overlap on the sides,
1-1/16" overlap on the top and 7/8" overlap
on the bottom of the opening for all models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2" between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium 120V and the other
appliance overlaps.
Construct a solid oven floor of 3/8" min. thick plgwood
supported bg 2 x 4 or 2 x 2 runners on all sides.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
PREPARE THE OPENING {cont.)
Installation over a GE/Monogram
Warming Drawer:
23-1/2"
21"
36-3/4"
Min.*
ConstructSolid
BottomMin. 3/8"
f PlywoodSupported
by2x4or2x2
Runnersall FourSides
2" Min.
(3"Recommended)
PerWarming
Drawer
Requirement
×-Requiredfor
Monogrammodels
NOTE: Additional clearances between the cutouts
mag be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.

Installation Preparation
PreparationWITH anAccessoryStorageDrawer
NOTE:MODELZSC1201CANONLYBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWERIFINSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITHAN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING {cont.)
Installationover a GE/Nonogram Oven:
30" 23-1/2" b
.......................... _ _----- ______
_,-- 25-1Min/4"._____,,.
36-3/4"
Min.
45-1/4"
Recommended
Construct Solid
Bottom Min.
3/8" Plywood
_Supported by
2x4or2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
PerOven
Requirement
×%quiredfor
Monogrammodels
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
, If you are replacing a GE/Monogram electric
double oven with the combined installation
of an Advantium 120V and a single oven, use
the dimensions shown. The middle rail separating
the two openings mag need to be larger than
the 2" minimum shown.
PREPARE THE OPENING {cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
23-1/2"
ConstructSolid
BottomMin.
3/8" Plywood
Supportedby
_2x4or2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
PerOven
Requirement
Min.
(3" Recommended)
Drawer Requirement
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
.4,CAUTION: Forpersonal safetg, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven and 30-pound
drawer, plus additional oven loads of up to
50 pounds or a total weight of 160 pounds.
10

Installation Preparation
PreparationWITH anAccessoryStorageDrawer
NOTE:MODELZSC1201CANONLYBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWERIFINSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING {cont.)
Installationover another GE/Monogram
Under-the-Counter (UTC) oven:
30"-- I _,- 23-1/2"
-,4 ............................ _ ---- ---[-- ---
1"*
Construct Solid
Bottom Min.
3/8" Plywood
_Supported by
2x4or2x2
Runnersall
FourSides
:2" Min.
(3" Recommended)
*Profilemodelsonly
• If Uou are mounting an Under-the-Counter
GE/Monogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING {cont.)
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
.................... 23-1/2"
Per Oven
Re(uirement
1"*
PerWarming
DrawerRec '
ConstructSolid
BottomMin. 3/8"
_Plywood Supported
by2x4or2x2
Runnersall Four
Sides
3.5"Min.
(4.5"Recommended)
2" Min.
(3"Recommended)
×-Profilemodelsonly
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
-&CAUTION: Forpersonal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds
or a total weight of 1:30 pounds.
11

Installation Preparation
PreparationWITH anAccessoryStorageDrawer
NOTE:MODELZSC1201CANONLYBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWERIFINSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING {cont.)
Installation beside another GE/Monogram
Built-in Speedcook Oven:
•If you are mounting one Under4he-Counter
GE/Monogrom oven beside the other, use
the dimensions shown. The middle rail seporating
the two openings mog need to be larger than
the 4-1/2" minimum shown. 21"
23-1/2"
/
4-1/2" Min.
(5-1/2" Recommended)
PREPARE THE OPENING {cont.)
Installation under a GE Profile 30" or 36" Cooktop or Countertop:
Gas or electric cooktops mag be installed
over this oven. See cooktop installation
instructions for the cutout size. See the
label on top of the oven for approved
cooktop models. This oven requires
oseporote, properlg
grounded 15-Amp,
120-Volt, 60Hz power
supplg. The cooktop
requires a separate power
supplg. Use a 36" or wider
base cabinet.
IMPORTANT:
For Profile models onlg.
The Monogram oven
and drawer combination
cannot be installed below
a countertop.
23-1/2"
4" High f
Toekick
Cooktop
36"
_- Countertop
Height
\\
,pheightincludingdepth
of electricalboxonsomemodels.
Referto cooktopinstallation
instructions.
Nominimumclearancerequired
betweencooktopandoven.
NOTE: Theoven is only approved to be installed
under the specific models as labeled on the unit.
12

Installation Instructions
| REMOVE THE PACKAGING AND PARTS
• Remove all packing material and tape.
• Locate parts package containing mounting screws.
• Remove the oven from the carton. Do not lift unit
bg handle or conduit. Two people are required to lift
this oven.
• Open the door and remove ang packaging in oven.
Owner's
Hanual
Installation
Instructions
Rack
_4,CAUTION: ifinstalling theAdvantium
120V Oven below 36", you must use the plastic
bottom trim due to burn risk to children. The
plastic trim acts as insulation and will help
prevent burns to children from hot surfaces.
Owner'sManual Installation
Instructions I ]
BottomTrim- Plastic
Cook Book Cooking
Guide
BottomTrim- Metal
CookBook CookingGuide 6 BrassScrews
(3 required,3 extra) 5 C010r-MatchedScrews (4 required,1 extra)
GlassTray TurntableRing IMPORTANT: If installing the Advantium 120V Oven
with an accessory storage drawer, read the storage
drawer assembly instructions to assemble the
products together before proceeding to Step 2.
Metal Trays(2)
13

Installation Instructions
[_] DOOR TRIM REMOVAL FOR ABOVE
36" INSTALLATION ONLY
If installing the Advantium 120V Oven above 36"
from the floor, you mag remove the plastic trim
from the bottom of the door for esthetic purposes
if desired.
-&CAUTION: ifinstalling theAdvantium
120V Oven below 36", do not remove the
plastic door trim due to burn risk to children.
The plastic trim acts as insulation and will help
prevent burns to children from hot surfaces.
• If installing above 36", remove the 3 screws that
secure the plastic trim to the bottom of the door.
• Discard plastic trim. Replace screws.
J
&
SLIDE THE OVEN INTO THE CUTOUT
CAUTION: Twopeopleare required to
lift the oven into the opening. Grasp the bottom
at front and rear. DO NOT USETHE HANDLE TO LIFT
THE OVEN. DAMAGE WILL OCCUR.
• Lift and hold the oven at the front of the opening.
Hold the oven at an angle and plug in the power
cord.
• Carefullg, slide the oven into the cabinet part
wag. Leave the oven a few inches forward of
the cabinet frame.
• Check to be sure the power cord is not trapped
under the oven or along the sides of the oven.
14

Installation Instructions
[-4-I INSTALL BOTTOM TRIM
CAUTION: ifinstallingtheAdvantium
120V Oven below 36",you must use the plastic
bottom trimdue toburn risktochildren.The plastic
trimactsas insulationand willhelppreventburns
tochildrenfrom hot surfaces.
NOTE: If installing the Advantium 120V Oven
with an accessory storage drawer, the bottom trim
is not required. Proceed to Step 5.
• Installation Below 36", align trim tabs on the plastic
trim to slots in the bottom of the oven.
_-Plastic Trim
• Installation Above 36", align trim tabs on the plastic
or metal trim to slots in the bottom of the oven.
_, ,_ .... Plastic Trim
I _- OR
[---]_ i l--_l_ ...... Metal Trim
• Secure the bottom trim to the bottom of the oven
using 3 screws provided.
[_] INSTALL MOUNTING SCREWS
_o
CZZZZ3CZZ:] CZZC] CIK13 [ZZZZD CZIZ3
• Slide the oven the remaining way into the opening
so that the side flanges and control panel are
against the cabinet frame. Make sure that the oven
is centered in the opening.
• Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
• Drill pilot holes through the side flanges.
• Drive the color-matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
If installing oven with an accessorg storage
drawer:
• Open the drawer.
• Drill pilot holes through the side flanges.
• Drive color-matched screws into the side flanges.
It is recommended that the screws be hand
tightened.
NOTE: If installing the Profile Advantium 120V Oven
with an accessory storage drawer, you must use
the Under-the-Counter (UTC)mounting bracket for
the drawer.
If installing the Monogram Advantium integrated
model ZSC1201 above 36'%the UTCmounting bracket
for the accessory storage drawer must be used.
INSTALL BOTTOM TRIM WITH
ACCESSORY DRAWER
If installing with an accessory drawer, see
installation instructions on page 17 or instructions
that come with the accessory drawer.
| FINALIZE INSTALLATION
• Turn power on at the source. The interior light
should come on when the door is opened.
• Refer to Owner's Manual for operating instructions.
15

GE Consumer
As e & Industrial Appliances
bl Instructions
Advantium ®Built-in Accessory
J×2200, J×2201, Z×2201 Storage Drawer
BEFORE YOU BEGIN
Readthese instructions completely and carefully. Read
the Installation Instructions for the Advantium 120V or
240V oven completely and carefully for cutout
dimensions and step-by-step instructions.
IMPORTANT- savetheseinstructionsfor
local inspector's use.
IMPORTANT- Observe allgoverningcodes
and ordinances,
• NOTE TO INSTALLER: Be suretoleavethese
instructionswiththeConsumer,
• NOTE TO CONSUMER: Keep theseinstructionswith
yourAdvantium 120V or240V Oven Owner'sManual
forfuturereference,
• SKILL LEVEL: Installation of this appliance requires
basic mechanical skills.
•COMPLETION TIME: One hour with the installation
of an Advantium 120V or 240V oven.
•Proper installation isthe responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty. See the Advontium
120V or 240V Oven Owner's Manual for warranty
information.
MODELS AVAILABLE
Profile Models:
JX2200BB-BIock
JX2201SS-Stoinless Steel
Monogram Models:
ZX2201SS-Stainless Steel (for installation above 36" only)
NOTE: Advantium 240V model ZSC2202SS and
Advantium 120V model ZSC1202 CANNOT be
installed with an accessory storage drawer. See
Installation Preparation Without on Accessory Storage
Drawer in the Installation Instructions for these models.
PRODUCT DIMENSIONS AND CLEARANCES
_5"
Allow 15" clearance
when fully open
NOTE:Appearance will vary by model.
TOOLS REQUIRED
• #2 Phillipsscrewdriver
PARTS SUPPLIED
• 2 SideSupports
• Screws(8)
Screws(color-matched)(5)
Under-the-Counter Mounting Bracket(1)
16

ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN
REMOVE PACKAGING AND PARTS
• Remove the drawer from the carton.
• Remove all packing material and tape.
Open the drawer and remove anLl parts inside.
Locate parts.
Assemblg
Instructions
SideSupports(2)
AssemblyInstructions Under-the-C0unter(UTC)
MountingBracket
Screws C010r-Matched
(6required, Screws
2 extra) (4required,
1extra)
i-_ UNDER-THE-COUNTER {UTC)
MOUNTING BRACKET INSTALLATION
NOTE: For UTC models PSB1200, PSB1201 and
ZSC1201 onlLl.
Open the accessorg drawer so gou have
access to the top bracket.
Remove the three screws securing the top
bracket.
rc1 Install the new UTC mounting bracket using
the screws removed previouslLl.
rD1 Close the drawer and proceed with the
installation.
[] ASSEMBLING THE OVEN TO DRAWER
Place storage drawer on a surface with
the front of drawer hanging over the edge
of the surface. Not placing the front edge
of drawer over the edge of the surface mall
result in damage to the drawer since the front
edge of drawer hangs below the bottom
of drawer.
Place the oven on top of the storage drawer.
Make sure that the back and sides of the oven
align with the back and sides of drawer.
NOTE: The bottom of the oven side flanges will
sit directlll in front of the top of the storage
drawer side flanges.
17

ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN
ASSEMBLING THE OVEN TO DRAWER
{cont.)
[_ Remove the front two bottom screws on each
side of the oven and the top center screw on
each side of the storage drawer.
F6]Place the side supports into the tabs on the
drawer and secure using the screws supplied
and the screws removed in Step C.
Side
Support
120vonly f
F£1The oven and storage drawer assemblg is now
readg to be installed. Return to the Advantium
120V or 240V Built-in SpeedCook Oven
Installation Instructions to complete
the installation.
18

Notes
19

Printed in Korea
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
NOTE: Product improvement is o continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications ore subject to change without notice.
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KV/40225
ge.com
