GE EER 3001 User manual

wvvw.GEAppliances.com
Safetylnstruc_ions ......... 2_
Operating Instructions
Clock and Timer ............. 14
Oven .................... 10-20
Power Outage .............. 11
Dabbath Feature .......... 17, 18
Sell'Cleaning ............ 19, 20
Special Features ............. 16
Thermostat ................. 18
Timed Baking & Roasting ..... 15
Surl:ace Units .............. 7-9
Care and Cleaning
Broiler Pan &Grid ........... 23
Control Knobs .............. 21
Glass C_ktop ............ 24, 25
Lift-Off _en Door ........... 22
Light ...................... 23
Shelves ..................... 23
Troubleshooting Tips ..... 26-29
Accessories ................. 30
Consumer Support
C_msumer Support ..... Back Cover
Warranty ................... 31
EER3000
EER3001
6oo
71o
JBP64
JBP66
JBP67
JBP68
JBP69
JBP71
JBP78
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label
behind the storage drawer on
the front of the range frame.
164D4290P334 49-80178 03-03JR

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
For your safe_ the information in this manual must be followed to minimize the risk of fire,
electric shock, or to prevent property damage, personal injury, or loss of life.
WARNINGANTI-TIPDEVICE
All ranges can tip and injurycould result.
Toprevent accidental tipping of the range, attach it to the wall and floor by installing the Anti- tip
device supplied.
If the Anti- tip device supplied with the range does not fit this application, use the universal Anti- 77p
device WB2X7909.
Tocheck if the device is installed and engaged properly, remove the kick panel or storage drawer
and inspect the rear leveling leg. Make sure it fits securely into the slot.
If you pull the range out from the wall lbr any reason, make sure tile device is properly
engaged when you push the range back against the wall. If it is not, there is a possible risk of
tile range tipping over and causing injury if you or a child stand, sit or lean on an open d_r.
Please refer m the Anti-Tip device information in this manual. Failure m take this precaution
could result in tipping of the range and injury.
IMPORTANTSAFETYNOTICE
The Califomia Safe Drinking Water and ToxicEnforcement Act requires the Govemor of Califomia to
publish a list of substances known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential exposure to such substances.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation
fan or hood.
2

wwvc.GEAppliances.com

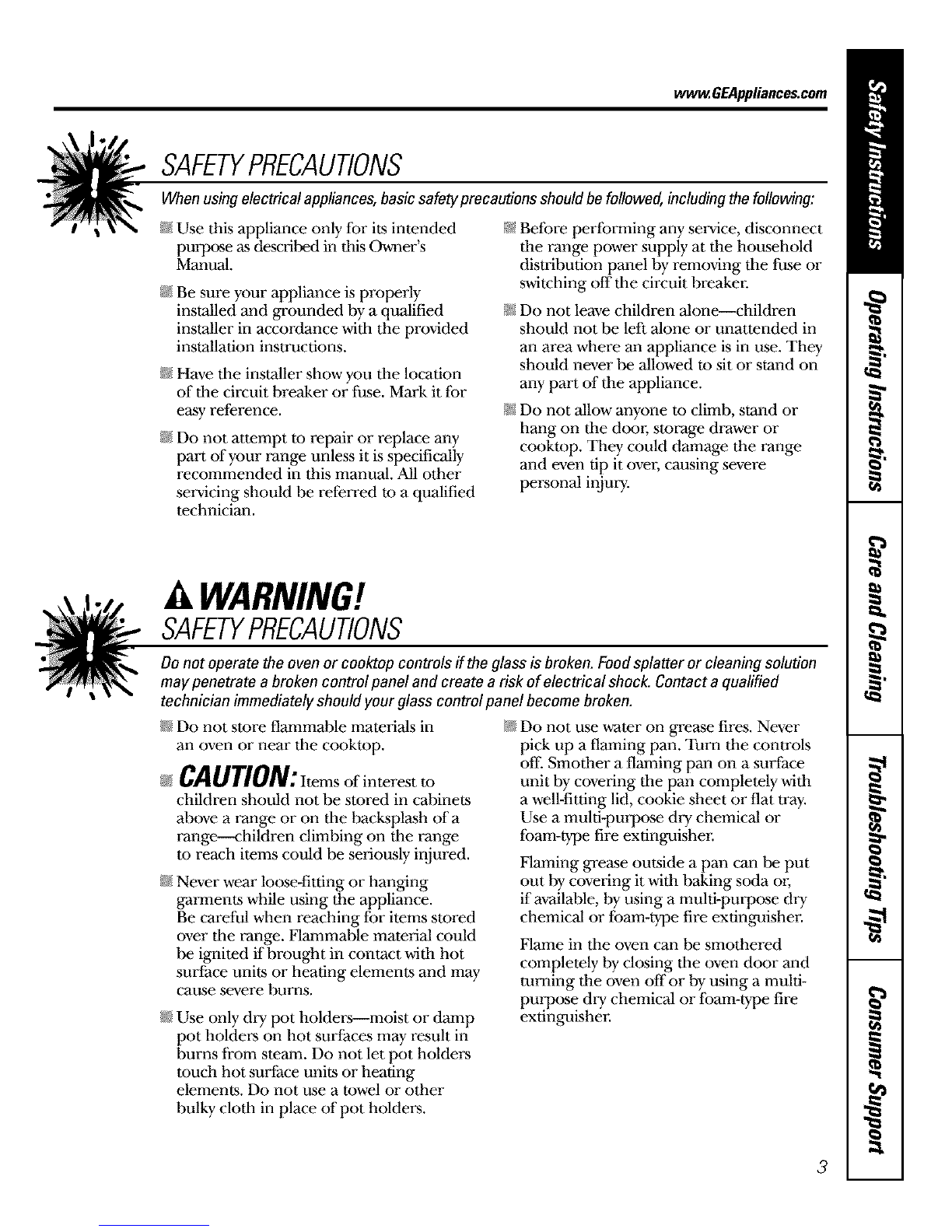

SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
N Use this appliance only lbr its intended
pui_se _s described in this Owner's
Manual.
@ Be sure your appliance is properly
installed and grounded by a qualified
installer in accordance with the provided
installation instructions.
N Have tile installer show you tile location
of tile circuit breaker or fuse. Mark it Ibr
e_y reference.
N Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be refelTed m a qualified
technician.
@ Belore perlbrming any se_Mce, disconnect
tile range power supply at tile household
distribution panel by removing tile fuse or
switching off tile circuit breaker.
N Do not leave children alone--children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed m sit or stand on
any part of tile appliance.
@ Do not allow anyone m climb, stand or
hang on tile door; storage drawer or
cooktop. They could damage the range
and even tip it over, causing severe
personal injmy.
WARNING!
SAFETYPRECAUTIONS
Do not operate the oven or cooktop controls if the glass is broken. Foodsplatter or cleaning solution
may penetrate a broken control panel and create a risk of electrical shock. Contact a qualified
technician immediately should your glass control panel become broken.
N Do not store flammable materials in
an oven or near tile c_ktop.
CAUtiON:Items of interest to
children should not be stored in cabinets
above a range or on tile backsplash of a
range--children climbing on tile range
m reach items could be seriously irgured.
N Never wear loose41tting or hanging
garments while using the appliance.
Be careful when reaching Ior items stored
over tile range. Flammable material could
be ignited if brought in contact with hot
surface units or heating elements and may
cause severe bums.
N Use only di T lx_t holders-moist or damp
pot holders on hot surfaces may result in
burns ['rom steam. Do not let pot holders
Much hot surface units or heating
elements. Do not use a towel or other
bulky cloth in place of pot holders.
Do not use water on grease fires. Never
pick up a flaming pan. Turn the controls
off. Smother a flaming pan on a surface
unit by covering tile van completely with
a well41tting lid, cookie sheet or flat tray.
Use a multi-pu_se dry chemical or
Ibam-type fire extinguisher
Flaming grease outside a pan can be put
out by covering it with baking soda or;
if a_lable, by using a multi-purpose dry
chemical or [ham-type fire extinguisher
Flame in tile oven can be smothered
completely by closing tile oven d_r and
mining tile oven offor by using a multi-
purpose dry chemical or Ibam-type fire
extinguisher
3

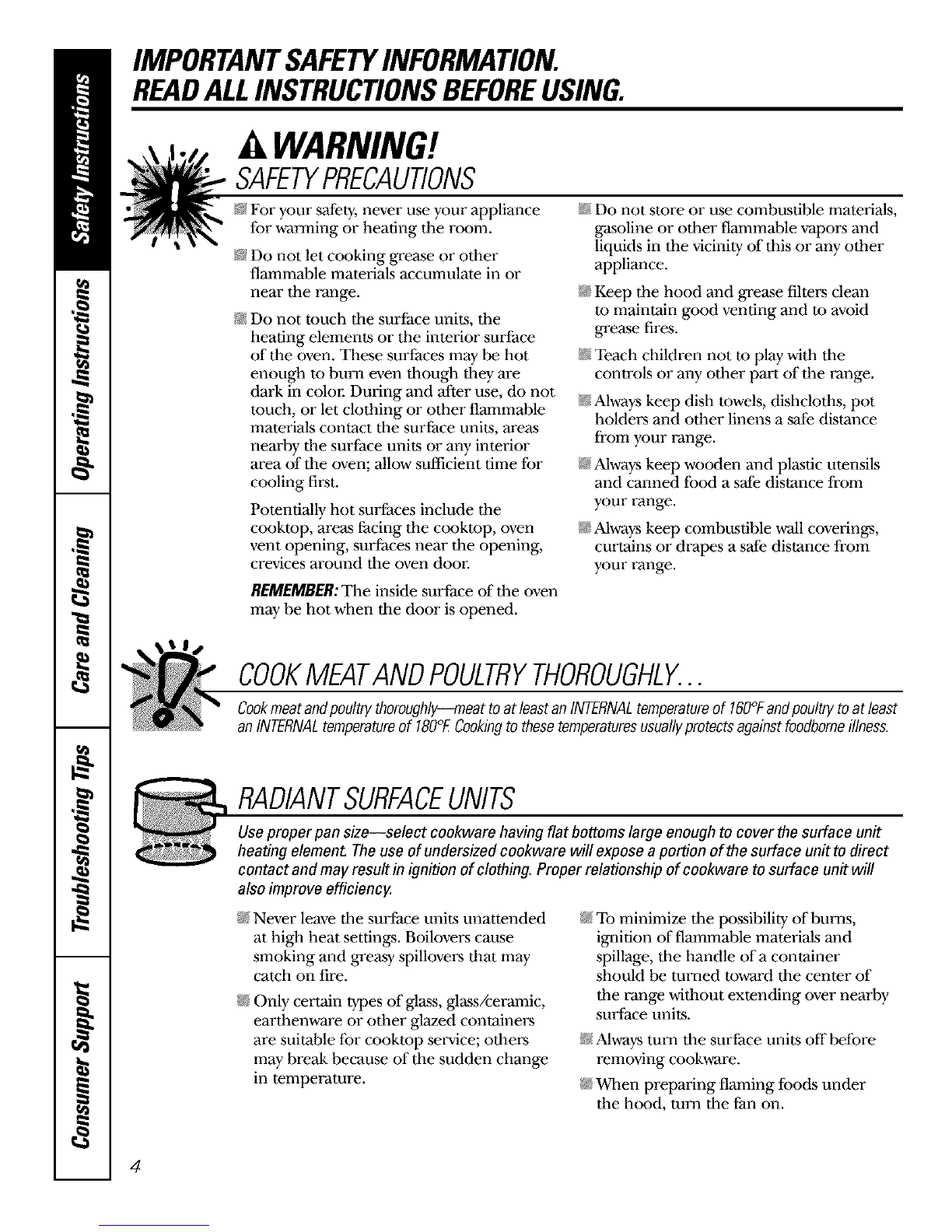

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
i_ _,,,_
WARNING!
SAFETYPRECAUTIONS
_ For your s_ety, never use your appliance
for wa*aqfing or heating the room.
N Do not let cooking grease or other
flammable materials accumulate in or
near the range.
N Do not touch tile surface units, the
heating elements or the interior surface
of the oven. These surfaces may be hot
enough to burn even tilough tiley are
dark in color" During and Mter use, do not
touch, or let clothing or other flammable
materials contact tile surface units, areas
nearby tile surface units or any interior
area of tile oven; allow st_mient time for
cooling first.
Potentially hot surfaces include the
cooktop, areas facing the cooktop, oven
vent opening, surfaces near the opening,
crevices around tile oven door;
@ Do not store or use combustible materials,
gasoline or other flammaMe vapors and
liquids in the vicinity of this or any other
appliance.
N Keep the hood and grease filte*:s clean
to maintain good venting and to avoid
gwease fires.
N Teach children not to play with tile
controls or any other part of the range.
NMways keep dish towels, dishcloths, pot
holde*:s and other linens a s_e distance
from your range.
NMways keep wooden and plastic utensils
and canned f_d a s_e distance from
your range.
N Always keep combustible wall covering,
curtains or drapes a s_e distance from
your range.
REMEMBER: The inside surface of the oven
may be hot when tile door is opened.
COOKMEATANDPOULTRYTHOROUGHLY...
Cookmeatandpoultry thoroughly_me@ to at leastan INTERNALtemperatureof 160°Fandpoultry to at least
an INTERNALtemperatureof 180% Cookingtothese temperaturesusuallyprotects againstfoodborneillness.
RADIANTSURFACEUNITS
Use proper pan size--select cookware having flat bottoms large enough to cover the surface unit
heating element Theuse of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will
also improve efficiency.
@ Never leave tile surface units unattended
at high heat setting. Boilovers cause
smoking and greas T spillove_s that may
catch on fire.
N Only certain types of glass, glass/ceramic,
earthenware or other glazed containe*:s
are suitable lbr cooktop service; others
may break because of tile sudden change
in temperature.
N To minimize the possibility of burns,
ignition of flammable materials and
spillage, tile handle of a container
should be turned toward tile center of
the range witilout extending over nearby
surface units.
@ Always turn tile surlSce units off belbre
removing cookware.
@ When preparing flaming tbods under
the hood, turn tile fan on.
4

ww_. GEAppliances.com

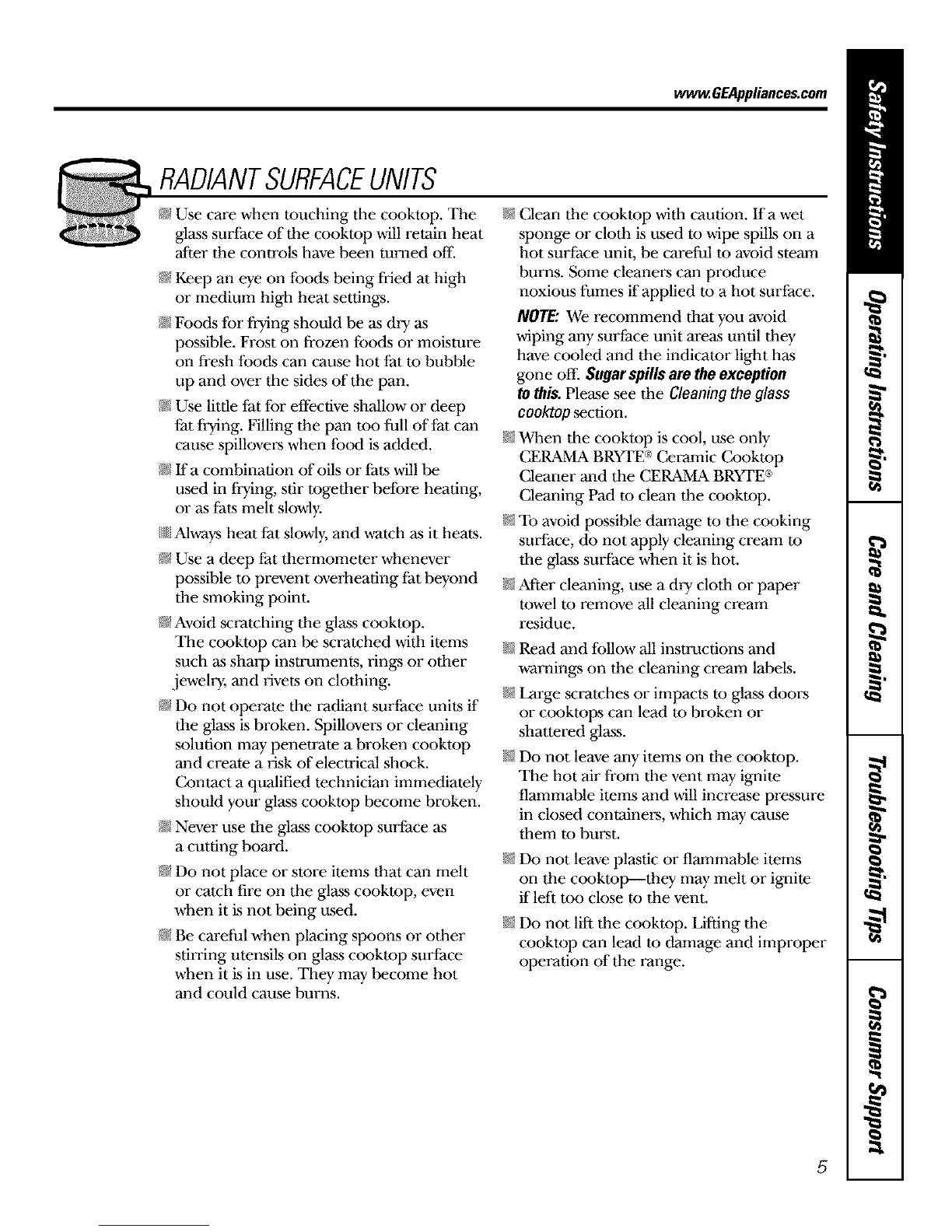

RADIANTSURFACEUNITS
N Use care when touching tile c_ktop. The
glass surface of the cookmp will retain heat
_ter the controls have been turned oII:
N Keep an eye on foods being flied at high
or medium high heat setting.
N Foods for hTing should be as dry as
possible. Frost on frozen foods or moisture
on fresh foods can cause hot fat m bubble
up and over tile sides of the pan.
@ Use little fat for effective shallow or deep
fat [i_ing. Filling the pan mo full of fat carl
cause spillovers when lbod is added.
N If a combination of oils or lats will be
used in [i_ing, stir together beibre heating,
or as lats melt slowly.
{{{{1iAlways heat lat slowly, and watch as it heats.
@ Use a deep fat thermometer whenever
possible m prevent overheating lat beyond
tile smoking point.
N Avoid scratching the glass cookmp.
Tile c_ktop can be scratched with items
such as sharp instruments, rin_ or other
jewelry, and rivets on clothing.
@ Do not operate tile radiant surface units if
tile glass is broken. Spillovers or cleaning
solution may penetrate a broken cooktop
and create a risk of electrical shock.
Contact a qualified technician immediately
should your glass c_ktop become broken.
N Never use the glass cooktop surface as
a cutting board.
_;_Do not place or store items that can melt
or catch fire on the glass cookmp, even
when it is not being used.
N Be careful when placing spoons or other
stirring utensils on glass cookmp surt:ace
when it is in use. They may become hot
and could cause burns.
@ (;lean the cookmp with caution. Ifa wet
sponge or cloth is used m wipe spills on a
hot surl:ace unit, be careful to avoid steam
burns. Some cleaners can produce
noxious fumes if applied m a hot surface.
NOTE: We recommend that you avoid
wiping any surface unit areas until they
have c_led and the indicator light has
gone off. Sugarspills are theexception
tothis.Please see the Cleaning the glass
cooktop section.
N When the cooktop is cool, use only
CERAMA BRYI'E ®Ceramic Cookmp
Cleaner and the CERAMA BRYTE ®
Cleaning Pad m clean the cookmp.
N To avoid possible damage m the cooking
surt:ace, do not apply cleaning cream m
the glass surt:ace when it is hot.
N After cleaning, use a dr7 cloth or paper
towel m remove all cleaning cream
residue.
N Read and lbllow all instructions and
warnings on the cleaning cream labels.
NLarge scratches or impacts m glass doors
or cookmps can lead m broken or
shattered glass.
N Do not leave any items on the c_ktop.
Tim hot air from the vent may ignite
flammable items and will increase pressure
in closed containe*:s, which may cause
them to bur:st.
N Do not leave plastic or flammable items
on the cookmp--they may melt or ignite
if left too close to the vent.
N Do not lift the c_ktop. Lifting the
cookmp can lead m damage and improper
operation of the range.
5

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
OVEN
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause
bums to hands, face and/or eyes.
@ Do not heat unopened food containers.
Pressure could build up and tile container
could burst, causing an irgu*y.
N Keep the oven vent unobstructed.
N Keep the oven free from grease buildup.
N Place the oven shelf in tile desired position
while the oven is cool. If shelves must be
handled when hot, do not let pot holder
contact the heating elements.
N When using cooking or roasting ba_ in
tile oven, fbllow the mantffacturer's
directions.
N Do not use tile oven to dry newspapers.
If overheated, they can catch on fire.
Do not use tile oven for a storage area.
Items stored in an oven can ignite.
N Do not leave paper products, cooking
utensils or food in the oven when not
in use.
N Do not use aluminum foil m line oven
bottoms, except as suggested in this
manual. Improper installation of
aluminum foil may result in a risk of
electric shock or fire.
N Pulling out tile shelf m tile stop-lock is a
convenience in lifting heavy fbods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls.
SELF-CLEANINGOVEN
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven. Residue from oven cleaners will damage the inside
of the oven when the self-clean cycle is used.
@ Do not clean the door gasket. The door
gasket is essential fbr a good seal. Care
should be taken not m rub, damage or
move tile gasket.
N Before sell'cleaning the oven, remove tile
broiler pan, grid and other cookware.
@ Take tile shelves out of tile oven before
you begin the self:dean cycle or they
may discolor.
N Be sure to wipe off excess spillage belbre
starting the seltq:leaning operation.
N If tile self:cleaning mode mallhnctions,
turn the oven off and disconnect the
power supply. Have it se*viced by a
qualified technician.
N Clean only parts listed in this Owner's
Manual.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
6

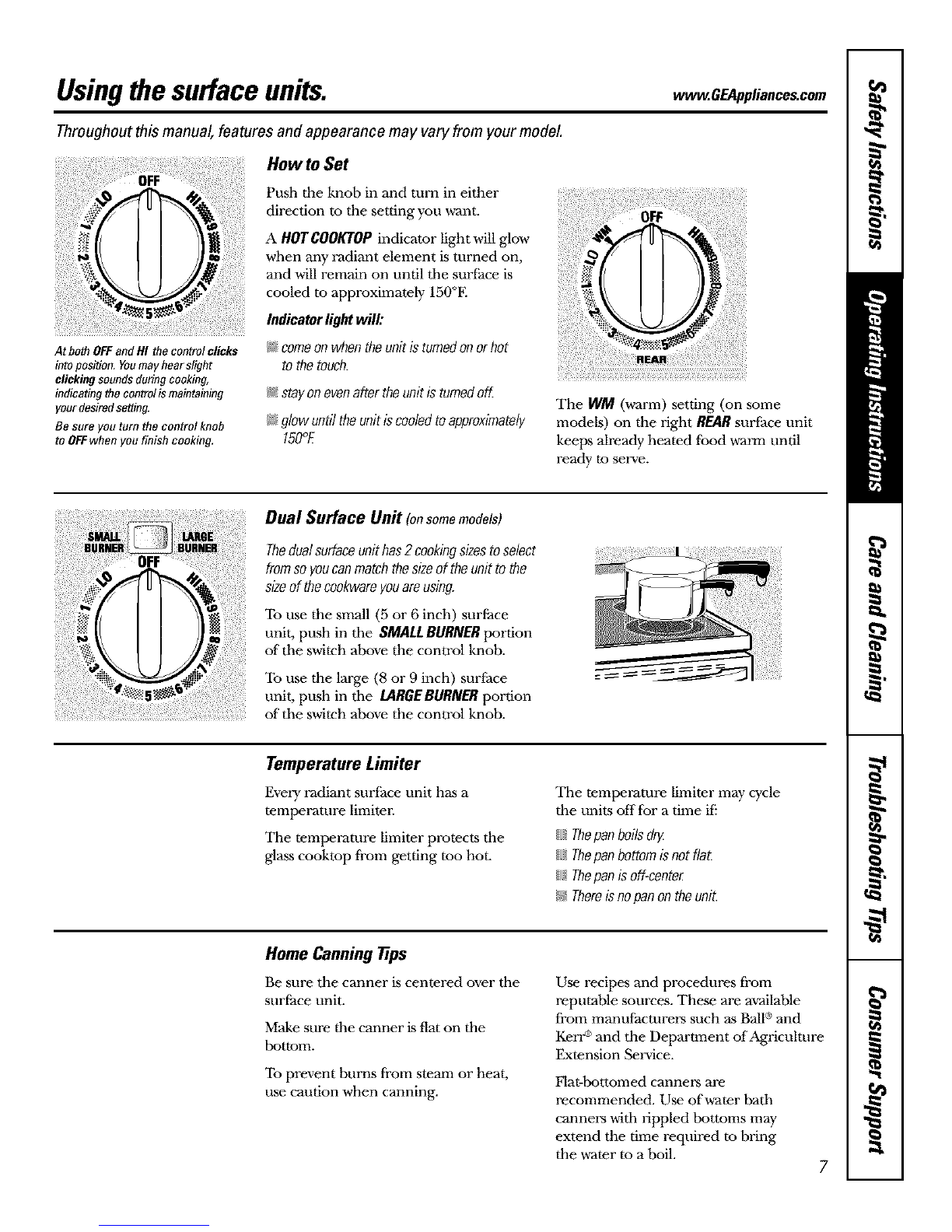

Usingthesurfaceunits. .. GEA ,lianco,com
Throughout this manual, features and appearance may vary from your model.
How to Set
At both OFFand HI thecontrol clicks
intoposition. Youmayhear slight
clicking sounds during cooking,
indicatingthe controlis maintaining
yourdesiredsetting.
Besure you turn the control knob
to #FFwhen you finish cooking,
Push the knob in and turn in either
direction tu the setting you want.
AHOTCOOKTOP indicator light Mll glow
when any radiant element is turned on,
and will remain on until tile suri;ace is
cooled to approximately 150°F.
Indicatorlightwill:
_comeonwhentheunitisturnedonorhot
tothetouch.
_stayon evenafter the unit is turnedoff.
_glowuntiltheunitiscooledtoapproximately
150°E
The WM (warm) setting (on some
models) on the fight REARsurface unit
keeps already heated food warm until
ready to serve.
Dual Surface Unit (onsomemodels)
Thedualsurfaceunithas2cookingsizestoselect
fromsoyoucanmatchthesizeoftheunittothe
sizeof thecookwareyouareusing.
To use the small (5 or 6 inch) surface
unit, push in tile SMALl. BURNER portion
of tile switch above the control knob.
To use the large (8 or 9 inch) surface
unit, push in the LARGEBURNER portion
of the switch above the control knob.
Temperature Limiter
Every radiant suri;ace unit has a
temperature limiter.
The temperature limiter protects the
glass cooktop from getting too hot.
The temperature limiter may cycle
the units offfor a time ifi
{{1_Thepan boilsdr_
{{1_Thepan bottom is not flaL
{{{I;Thepan isoff-center
I;_ Thereisnopan on the unit.
Home Canning tips
Be sure the canner is centered over the
surface unit.
Make sure the canner is flat on the
bottom.
To prevent burns from steam or heat,
use caution when canning.
Use recipes and procedures from
repu 'table sources. These are a'cailable
from manufacturers such as Ball®and
Ken a and the Department of Agriculture
Extension Service.
Flat-bottumed canners are
recommended. Use of water bath
canners with rippled bottoms may
extend the time required to bring
the water to a boil. 7

Usingthesurface units.
Throughout this manual, features and appearance may vary from your model
WokCooking
Werecommendthatyouuseonlya flabbottomed
wok.Theyareavailableatyourlocalretailstore.
Do not use woks that have support rings.
Do not use round bottom woks.
You could be seriously burned if tile
wok tipped ove_:
Use only flat-bottomed wok&
Thefollowing information will help you choose cookware which will give good performance on glass cooktops.
Never cook directly on the glass,
Always use coekware.
About the radiant surface units...
Always place the pan in the center of
thesurface unityou are cooking on,
Tile radiant cooktop features heating
units beneath a smooth glass surface.
NOTE:A slightodorisnormalwhenanew
cooktopisusedforthefirsttime.It iscausedby
theheatingofnewpartsandinsulatingmaterials
andwilldisappearina shorttime.
NOTE:OnmodelswithIighbcoloredglass
cooktops,it isnormalforthecookingzonesto
changecolorwhenhotorcoolingdown.Thisis
temporaryandwill disappearastheglasscools
toroomtemperature.
Tile surface unit will cycle on and offm
maintain your selected control setting.
It is safe tu place hot cooky€are on the
glass surt:ace even when the cooktop
is cool.
Even after the surface units are turned
off, the glass cookmp retains enough
heat to continue cooking. To avoid
overcooking, remove pans from the
suriZaceunits when the food is cooked.
Avoid placing anything on the surface
unit until it has cooled completely.
Do not slide cookware across the
cooktop because it can scratch the
glass--the glass is scratch-resistant,
not scratchproof.
_Waterstains(mineraldeposits)areremovable
usingthecleaningcreamorfull-strengthwhite
vinegar
_Useof windowcleanermayleavean
iridescentfilmonthecooktop.Thecleaning
creamwillremovethisdiscoloration.
_Don'tstoreheawitemsabovethecooktop.
ff theydropontothecooktop,theycancause
damage.
_Donotusethesurfaceasacuttingboard.
8

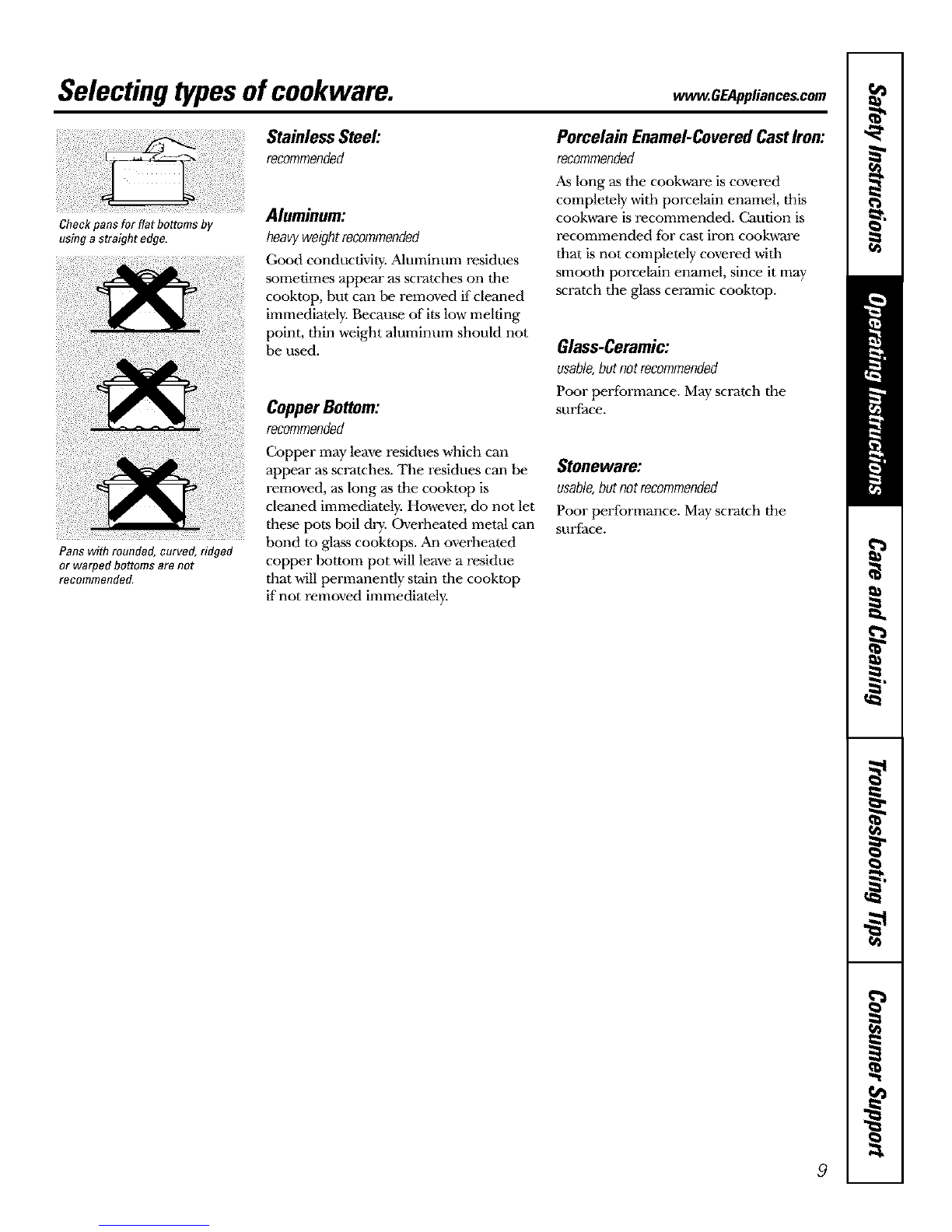

Selectingtypesofcookware.
Check pans for flat bottoms by
using a straight edge.
Pans with rounded, curved, ridged
or warped bottoms are not
recommended,
Stainless Steel:
recommended
Aluminum:
heavyweightrecommended
Good conductMry. _Muminum residues
sometimes appear as scratches on tile
cookmp, but can be removed if cleaned
immediately. Because of its low melting
point, thin weight aluminum should not
be used.
Copper Bottom:
recommended
Copper may leave residues which can
appear as .scratches. The residues can be
removed, as long as the cooktop is
cleaned immediately. Howevm; do not let
these pots boil dry. Overheated metal can
bond to glass cooktops. An overheated
copper tx_ttom pot will leave a residue
that will permanently stain the cooktop
if not removed immediately.
Porcelain Enamel-CoveredCastIron:
recommended
As long as the cookw_re is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended fbr cast iron cookware
that is not completely covered with
smooth porcelain enamel, since it may
scratch the glass ceramic cooktop.
Glass-Ceramic:
usable,butnotrecommended
Poor performance. May scratch the
surtZace.
Stoneware:
usable,butnotrecommended
Poor performance. May scratch the
surtZace.
9

Usingtheovencontrols.
Throughout this manual, features and appearance may vary from your model
10
OvenControl,ClockandTimerFeaturesandSettings
oBAKE/TEMP RECALLPad 0
Touch this pad to select the bake ftinction.
BAgE Light
Flashes while in edit mode--you can change
the oven temperature at this point. Glows
when the oven is in bake mode.
START/ONPad
Must be touched to stml any cooking or
cleaning function.
OOisplay
Shows the time of"day, oven temperature,
and the times set for the timer or autumatic
oven operations. Tile display will show PRE
while preheating. When the oven reaches
the selected temperature, the oven control
will beep and the display will show the oven
temperature.
If "F-andanumberorletter"flashinthedisplayandthe
ovencontrolsignals,thisindicatesa functionerrorcode.
If yourovenwassetfora timedovenoperationand
apoweroutageoccurred,theclockandallprogrammed
functionsmustbereseL
Thetimeofdaywill flashinthedisplaywhentherehas
beenapoweroutage.Resettheclock.
ff thefunctionerrorcodeappearsduringtheself-cleaning
cycle,checktheovendoorlatch.Thelatchhandlemayhave
beenmoved,evenif onlyslightly,fromthelatchedposition.
Makesurethelatchismovedtotherightasfarasit willgo.
TouchtheCLEAR/OFFpad.Allowtheoventocoolfor
onehourPuttheovenbackintooperation,ff thefunction
errorcoderepeats,disconnectthepowertotherangeand
callforservice.
0
0
0
KITCHEN TIMER ON/OFF
or TIMER ON/OFFPad
Touch this pad to select the timer feature.
Titan press +and -pads to adjust time.
TIMER Light
Flashes while in edit mode-you can change
the set time at this point. Glows when the
timer has been activated. Flashes again when
the time has run out until the control is reset.
_O_d
To set the clock, press this pad mice and
then press the +and - pads. Tiae time of
day will flash in the display when the oven
is first turned on.
STARTTIME Pad (on some models)
Use along widl the COOKINGTIMEor
SELFCLEANpads to set the oven to start
and stop automatically at a time you set.
STARTTIME Light
Flashes while in edit mode---you can change
the star1 time at this point. Glows when the
function has been activated.
COOKINGTIME Pad (on some models)
Touch this pad and then touch the +or -
pa&s to set the amount of time you ,a-ant
your food to cook. The oven will shut off
when the cooking time has run out.
COOKING TIME Light
Flashes while in edit mode-you can change
the set time at this point. Glows when the
function has been activated. Flashes again
when the time has run out until the control
is reset.

ww_.GEAppliances.com

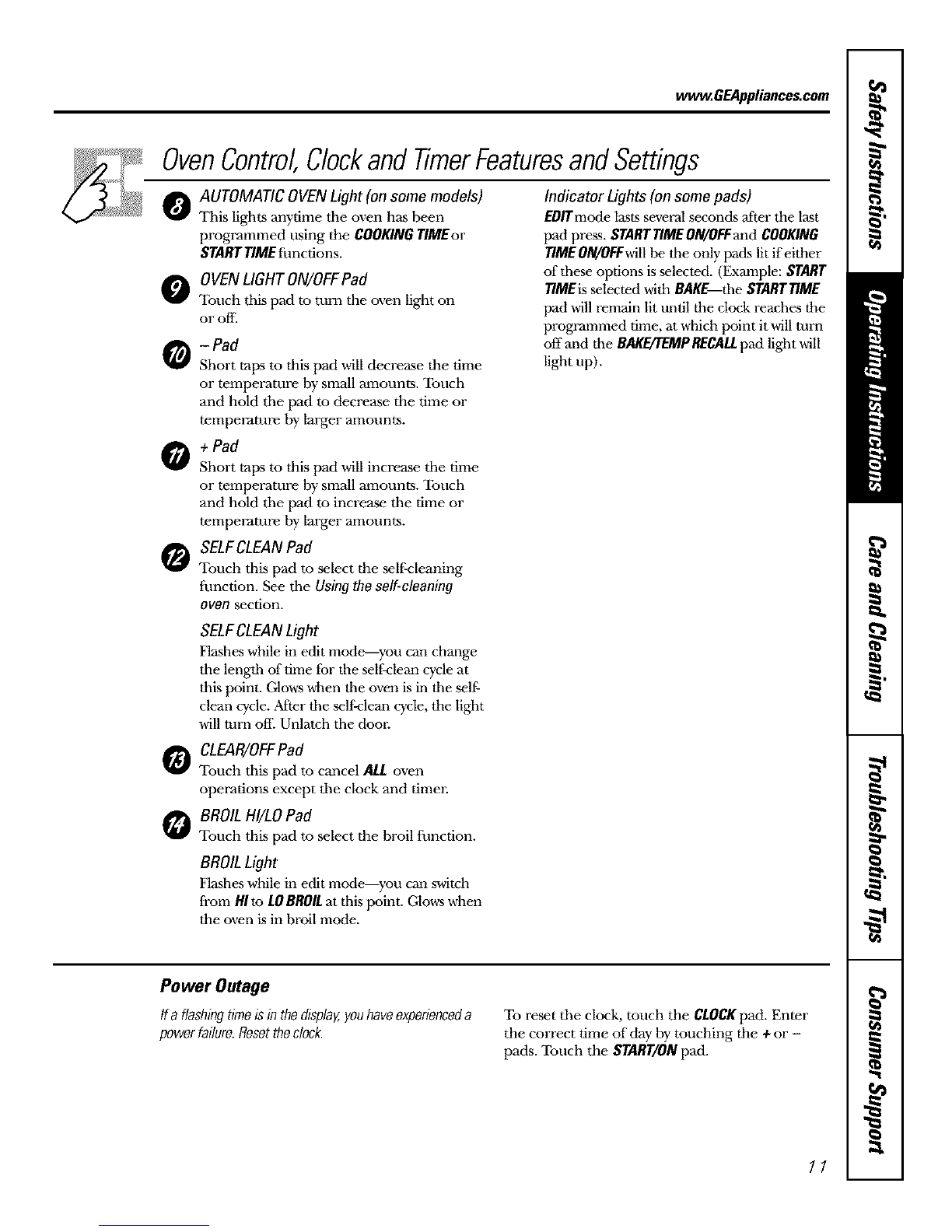

OvenControl,ClockandTimerFeaturesandSettings
oAUTOMATIC OVENLight (on some models) Indicator Lights (on some pads)
This lights anytime tile oven has been ED/Tmode lasts several seconds after the last
programmed using the COOKING TIME or pad press. STARTTIME ON/OFFand COOKING
STARTTIME functions. TIME ON/OFFwill be the only pads lit if either
of these options is selected. (Example: START
TIMEis selected with BAKE the STARTTIME
pad will remain lit until the clock reaches the
programmed time, a* which point it will turn
off and the BAK_q'EMP RECALLpad light will
light up).
oOVENLIGHTON/OFFPad
Touch this pad to turn the oven light on
or o]_.
-Pad
Short taps to this pad will decrease the time
or temperature hy small amounts. Touch
and hold the pad to decrease the time or
temperature by larger amounts.
+Pad
Short taps to this pad will increase the time
or temperature hy small amounts. Touch
and hold the pad to increase the time or
temperature by larger amounts.
_SELFCLEAN Pad
Touch this pad to select the selJ[Xcleaning
function. See the Usingtheself-cleaning
oven section.
SELFCLEAN Light
Flashes while in edit mode--you can change
dm length of time for the self-dean cycle at
dlis point. Glows when the oven is in the self-
clean cycle. After the self-clean cycle, dm light
will turn off. Unlatch the door:
GCLEAR/OFFPad
Touch this pad to cancel ALL oven
operations except the clock and timer.
oBROIL HI/LOPad
Touch this pad to select the broil function.
BROILLight
Flashes while in edit mode--you can switch
from RI to tO BROIL a_ this point. Glows when
dm oven is in broil mode.
Power Outage
Ifa flashingtimeisin thedisplay,youhaveexperienceda
powerfailure.Resettheclock. To reset the clock, touch the CLOCKpad. Enter
the correct time of day by touching the +or -
pads. Touch the START/ON pad.
11

Usingtheoven.
Toavoid possible burns, place the shelves in the desired position before you turn the oven on.
The oven has 6 sheff positions.
Before you begin...
The shelves have stop-locks,so that when
placed correctly ell file shelf supports(A
through F), theywillstop before coming
completely out, and willnot flit.
When placing and removing cookware,
pull the shelf out to the bump on the shelf
support.
TOremoveashelf, pull it toward you, tilt tile
front end up and pull it out.
Foroplaco,place tile end of the shelf
(stop-locks) on the support, tilt up tile front
and pttsh tile shelf in.
CAUTION:Whenyouareusingtheshelfinthelowest
position(,4),youwillneedtousecautionwhenpulling
theshelfoe_Werecommendthatyoupulltheshelf
outseveralinchesandthen,usingtwopotholders,pull
theshelfoutbyholdingthesidesofit.Theshelfislow
andyoucouldbeburnedifyouplaceyourhandinthe
middleoftheshelfandpullallthewayou_Bevery
carefulnottoburnyourhandonthedoorwhenusing
theshelfinthelowestposition(A).
How to Set the Oven for Baking or Roasting
Yourovenisnotdesignedforopen-doorcooking.
[] Touch the BAKEpad.
[] Touch the +or - pads until tile
desired temperature isdisplayed.
[] Touch the START/ONpad.
The ovenwillstart automatically. The display
willshow PREwhilepreheating. When the
oven roaches file selected temperature, file
oven control willbeep several times and file
displaywillshow tile oven temperature.
TochangetheoventemperatureduringBAKEcycle,
touchtheBAKEpadandthenthe+ or- pedstoget
thenewtemperature.
[] Touch the CLEAR/OFFpad when baking
is finished and then remove the food
from the oven.
Typeof Food Shelf Position
Frozenpies(oncookiesheet) D
Angelfoodcake A
8undtorpoundcakes Cor D
8iscuits,muffins,brownies, Cor D
cookies,cupcakes,
layercakes,pies
Casseroles Cor D
Turkey A
[] Check food for doneness at minimum
Umeon recipe. Cook longer ifnecessar}:
_.a-.-///,11_ \ \\\q_._
Center bakin9pans in the even.
Cutslits in the for just like the grid.
Preheating and Pan Placement
Preheat the oven ifthe recipe callsfor it.
Pmheaflng is necessary for good results when
baking cakes, cookies, pastry and breads.
TheDisplaywillshow"PRE"whilepreheating.When
theovenreachestheselectedtemperature,theoven
controlwillbeepandthedisplaywillshowtheoven
temperature.
Baking results Mll be better if baking pans are
centered in the oven as much aspossible. If
baking with more than one pan, place the
pans s_ each has at least 1m 1½"of air space
around it. If baking four cake layet_at the
same time, place twolayet_on rack B and two
layer_on rack D. Stagger pans on the rack so
one is not directlyabove tile othen
12
Aluminum Foil
Nevercovertheovenbottomwithaluminumfoil.
You can ttse aluminum foil to line tile broiler
pan and broiler grid. However; you mttst
mold the foil tightly to the grid and cut slits in
it just like the grid.
Aluminum foil mayalso be used to catch a
spillovenTo do so, place a smallsheet of foil
on a lowershelfseveral inches below tile food.
Never endrely cover a shelf with aluminum
foil. This will disturb the heat circulation and
result in poor baking.

Leave the door open tothe broil
stop position. The door stays open
by itself, yet the proper temperature
is maintained in the oven,
ww_. GEAppliances.com

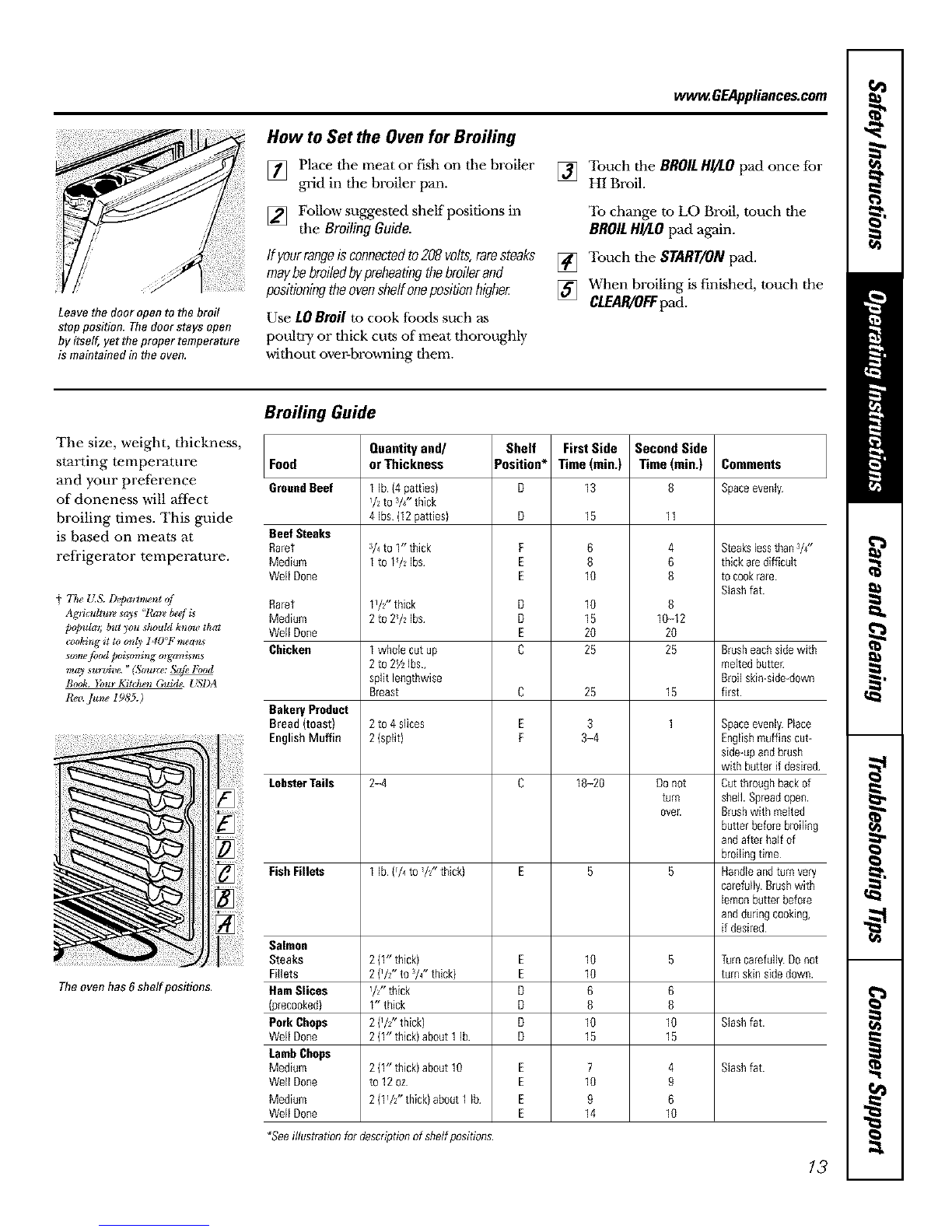

How to Set the Oven for Broiling
[] Place the meat or fish on the broiler
grid in the broiler pan.
[] Follow suggested shelf positions in
the Broilin9 Guide.
If yourrangeisconnectedto208volts,raresteaks
maybebroiledbypreheatingthebroilerand
positioningtheovensheffonepositionhigher
Use LO Broil to cook foods such as
poult_ 7 or thick cuts of meat thoroughly
without over-browning them.
[] Touch the BROILHI/LOpad once for
HI Broil.
To change to LO Broil, touch the
BROILNI,q.O pad again.
[] Touch tile START/0N pad.
[] When broiling is finished, touch the
gila R/0_" pad.
The size, weight, thickness,
starting temperature
and your prefbrence
of doneness will affect
broiling times. This guide
is based on meats at
refrigerator temperature.
Thg {£X i)q)ai_mgnt of
Ag'&vltun, _a)s "Rale beq" i_
p_ula_ but you shoukl know that
L_&ing it to _ly 140_F r_o_am
Book. _m ¸Kikl_e_ Gu#le. US1)A
IO_,. Ju_ 1985.)
i i!iiiii)i:i i!!!i iiii
The oven has 6sheff positions.
Broiling Guide
Food
GroundBeef
Beef Steaks
Beret
Medium
Well Done
Raret
Medium
Well Done
Chicken
Bakery Product
Bread (toast)
English Muffin
LobsterTails
FishFillets
Salmon
Steaks
Fillets
HamSlices
srecooked}
Pork Chops
Well Done
LambChops
Medium
Well Done
Medium
Well Done
Quantityand/
orThickness
1Ib (4patties)
_/_to3/4"thick
4Ibs (12patties}
3/4to1" thick
1to 1/_ Ibs
17J thick
2tO2/_ Ibs
1whole cut up
2to 27zIbs,
split lengthwise
Breast
2to 4slices
2{split}
2-4
11b {74t0 7g'thick}
2(1" thick}
2(Tz" tO3/4"thick}
7_" thick
1" thick
2{7/'thick)
2(1" thick}about 1lb.
2{1" thick}about 10
to12oz
2(17Z' thick)about 1Ib
Shelf
Position*
P
E
E
B
B
E
C
C
E
P
E
E
B
B
B
B
E
E
E
E
First Side
Time (min.)
13
15
6
8
10
10
15
20
25
25
3
3-4
18-20
10
10
6
8
10
15
7
10
9
14
SecondSide
Time (min.)
8
11
4
6
8
8
10-12
20
25
15
1
Do not
turn
ovec
6
8
10
15
4
9
6
10
Comments
Spaceevenly
Steakslessthana/a"
thick aredifficult
to cook rare
Slashfat.
Brusheachsidewith
melted butteE
Broilskin-side-down
first.
Spaceevenly Place
Englishmuffins cut-
side-upandbrush
with butterif desired
Cutthroughbackof
shell.Spreadopen.
Brushwith melted
butterbeforebroiling
andafter half of
broilingtime
Handleandturn very
carefully Brushwith
lemonbutterbefore
andduringcooking,
if desired
Turncarefully Donot
turn skin sidedown.
Slash fat.
Slash fat.
*Seeillustration fordescriptionof shelfpositions
13

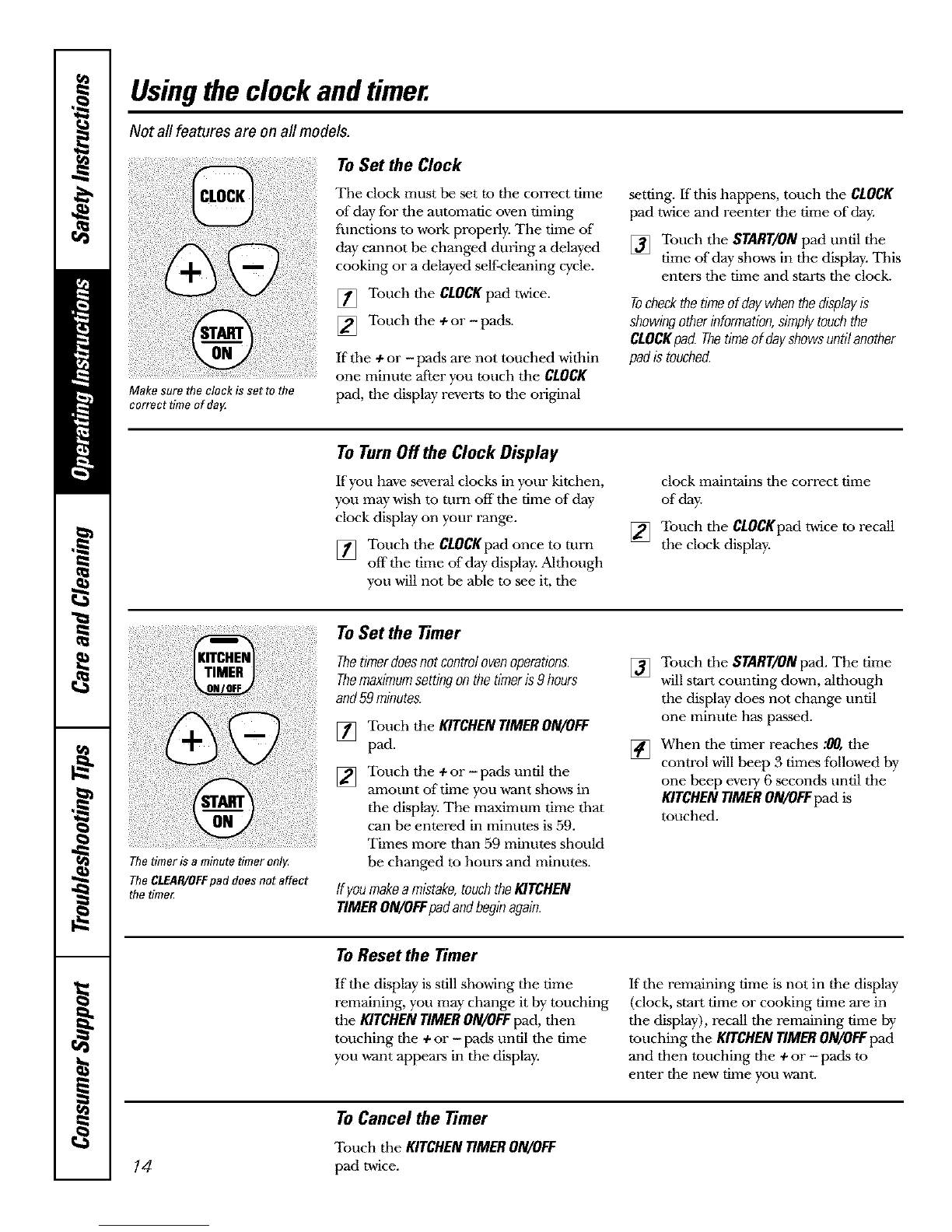

Usingtheclock and timer.
Not all features are on all models.
Make sore the clock is set to the
correct time of dag
To Set the Clock
The clock must be set to the correct time
of day fbr the automatic oven timing
tractions to work properly. The time of
day cannot be changed during a delayed
cooking or a delayed self-cleaning cycle.
[] Touch tile CLOCK pad twice.
[] Touch tile +or - pads.
If tile +or - pads are not touched within
one minute after you touch the CLOCK
pad, the display reverts to the original
setting. If this happens, touch tile CLOCK
pad twice and reenter the time of day.
[] Touch the START/ON pad until the
time of day shows in the display. This
enters the time and starts the clock.
Tocheckthetimeofdaywhenthedisplayis
showingotherinformation,simplytouchthe
CLOCKpad.Thetimeofdayshowsuntilanother
padistouched.
ToTurnOffthe Clock Display
If you have several clocks in your kitchen,
you may wish to turn off the time of day
clock display on your range.
[] Touch the CLOCKpad once to turn
off the time of day display. Although
you will not be able to see it, the
clock maintains the correct time
of day.
[] Touch the CLOCKpad twice to recall
the clock display.
To Set the Timer
Thetimer does not controloven operations.
Themaximumsetting onthe timer is9 hours
[] Touch the KITCHEN TIMER 0N/0FF
pad.
[] Touch the +or - pads until the
amount of time you want shows in
the display. The maximum time that
can be entered in minutes is 59.
Times more than 59 lninutes should
The timeris a minute timeronlg he changed to houL-s and minutes.
TheCLEAR/OFFpaddoesnot affect
thetimer tfyou makea mistake,touchthe KITCHEN
TIMER ON/OFFpadand beginagain.
[]
[]
Touch the START/ONpad. The time
will start counting down, although
the display does not change until
one minute has passed.
When the timer reaches :00, the
control will beep 3 times J[bllowed by
one heep evmy 6 seconds until the
KITCHEN TIMER ON/OFFpad is
touched.
To Reset the Timer
K the display is still showing the time
remaining, you may change it by touching
the KITCHEN TIMER ON/OFF pad, then
touching the +or - pacts until the time
you want appears in the display.
tithe remaining time is not in the display
(clock, start time or cooking time are in
the display), recall the remaining time by
touching the KITCHEN TIMER ON/OFF pad
and then touching the +or - pads to
enter the new time you want.
14
To Cancel the timer
Touch the KITCHENTIMERON/OFF
pad twice.

Usingthetimedbakingandmastingfeatures.(onsomemodels) ww .GEAppliances.com
Do not lock the oven door with the latch during timed cooking. Thelatch is used for self-cleaning only.
NOTE: Foods that spoil easily--such as milk, eggs, fish, stuffings, poultry and pork--should not be allowed to sit for
more than I hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
Theovenwillturnonimmediatelyandcookfora
selectedlengthof time.At theendofthecooking
time,theovenwill turnoff automaticallg
[] Touch the BAKEpad.
[] Touch the +or - pads to set the
oven temperature.
[] Touch the COOKINGTIMEpad.
NOTE:If yourreciperequirespreheatingyoumay
needtoaddadditionaltimetothelengthofthe
cookingtime.
] Touch the +or - pads to set the
baking time.
The cooking time that you entered
will be displayed. (lfyou select Cooking
Time first and then adjust the Bake
Temperature, the oven temperature
will be displayed instead).
[] Touch tile START/ONpad.
The display shows either the oven
temperature that you set or tile cooking
time countdown. (The display starts with
PREif showdng the oven temperature.)
The oven will continue to cook for tile
programmed amount of time, then turn
off automatically.
[] Touch the CLEAR/0FFpad to cancel
if necessary.
Removethefoodfromtheoven.Remember,even
thoughtheovenshutsoff automatically,foods
continuecookingaftercontrolsareoff.
How to Set a Delayed Start and Automatic Stop
Theovenwill tumonatthetimeofdayyouset,
cookforaspecificlengthoftimeandthenturnoff
automaticallg
Make sure the clock shows the correct
time of day.
[] Touch the BAKEpad.
[] Touch the +or -pads to set the
oven temperature.
[] Touch the COOKING TIME pad.
[] Touch the +or - pads to set the
desired length of cooking time.
[] Touch the START TIME pad.
[] Touch the +or - pads to set the time
of day you want the oven to turn on
and start cooking.
[] Touch the START/ON pad.
NOTE.'Ifyou would like to check the times
you have set, touch the STARTTIMEpad to
check the start time you have set or touch
the COOKINGTIMEpad to check the length
of cooking time you have set.
When the oven turns on at the time of day
you have set, the display will show PRE
until it reaches the selected temperature,
then it will display the oven temperature.
At the end of cooking time, the oven
will turn off and the end-of_'ycle tone
will sound.
[] Touch the CLEAR!OFFpadto cancel
if necessary.
Removethe foodfromthe oven.Remember,even
thoughtheovenshutsoffautomatically,foods
continuecookingaftercontrolsareoff.
NOTE:Anattentiontonewillsoundif youare
usingtimedbakinganddonottouchthe
START/ONpad.
15

Specialfeaturesofyourovencontrol
Yournew touch pad controlhas additional features that you may chooseto use. Thefollowing are the features and
how you may activate them.
Thespecial feature modes can only be activated while the display is showing the time of day. They remain in the
control's memory until the steps are repeated.
When the display shows your choice, touch the START/ONpad. Thespecial features will remain in memory after
a power failure.
NOTE: TheSabbath feature and the Thermostat Adjustment feature are also Special Features, but they are
addressed separately in the following sections.
12Hour Shut-Off
Withthisfeature,shouldyouforgetandleavethe
ovenon,thecontrolwillautomaticallytumoff the
ovenafter 12hoursduringbakingfunctionsor
after3 hoursduringa broilfunction.
lfyou wish to turn OFF this feature, fbllow
the steps below.
[] Touch the BAKE and BROILHI/LO
pads at the same time for 3 seconds
until the display shows SF.
[] Touch the CLOCKpad. The display
will show ON (12 hour shut-oil).
Touch the CLOCKpad repeatedly
until tile display shows OFF (no
shut-off).
[] Touch the START/ON pad to activate
tile no shut-off and leave tile control
set in this special features mode.
/6

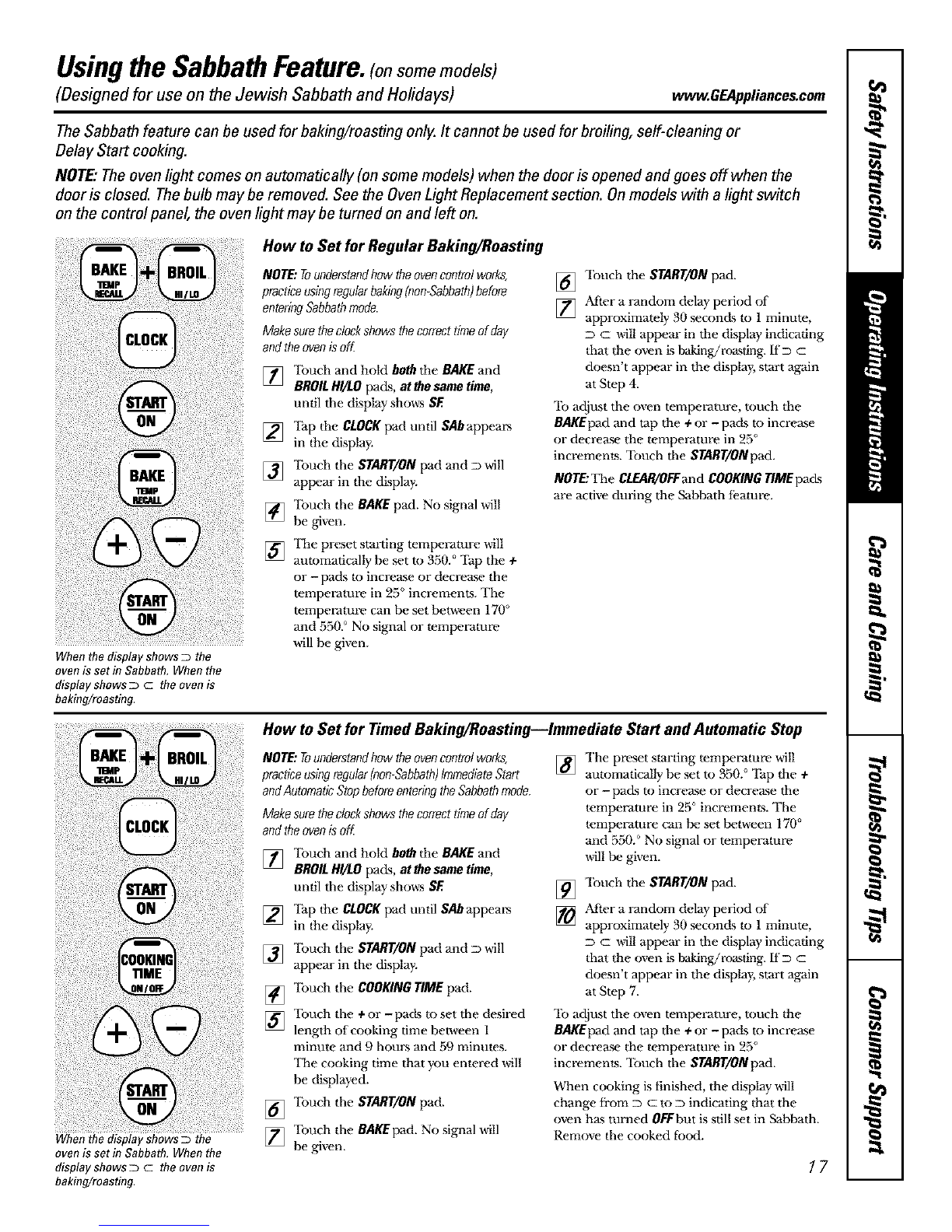

UsingtheSabbathFeature.(onsome models)
(Designed for use on the Jewish Sabbath and Hofidays) www.GEAppliances.com
TheSabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning or
Delay Start cooking.
NOTE: Theoven light comes on automatically (on some models) when the door is opened and goes off when the
door is closed. Thebulb maybe removed. See the Oven Light Replacement section. On models with a light switch
on the control panel, the oven light may be tumed on and left on.
How to Set for Regular Baking/Roasting
When the disptay shows _the
even is set in Sabbath. When the
display shews _c the even is
baking/roasting,
NOTE:Tounderstandhowtheovencontrolworks,
practiceusklgregularbaking(non-Sabbath)before
enteringSabbathmode.
Makesuretheclockshowsthecorrecttimeofday
andtheovenisoff.
[] 'lbuch and hold boththe BAKEand
BROILHI/tO pads, at thesametime,
until the display show SE
[] 'l_p the CLOCK pad until SAbappears
in the display.
[] 'lbuch the START/ON pad and D will
aplx,ar in the display.
[] 'lbuch the BAKEpad. No signalwill
be given.
[] The preset stall.ing temperature will
atm)matically be s_,t to 350. ° 'l_p the +
or - pads to increase or decrease the
temperature in 25 °increments. The
temperature can be set between 170 °
and 550. ° No signal or temlx, rature
will be given.
[] 'Ibuch the START/ONpad.
] After a random delay period of
approximately 30 seconds to 1 minute,
cwill appear in the display indicating
that lhe oven is baking/roasting. IfD c
doesn't appear in the display, start again
at Step 4.
'Ib adjust the oven temperature, touch the
BAKEpadand tap the +or -pads m increase
or decrease the mmperature in 25°
increments. Touch the START/ONpad.
NOTE:The CLE4R/OlaTandCOOKINGTIMEpacts
are active during the Sabbath tbature.
When the disptay shows Dthe
even is set in Sabbath. When the
display shews _c the even is
baking/roasting.
How to Set for TimedBaking/Roasting--lmmediate Start and Automatio Stop
NOTE:Tounderstandhowtheovencontrolworks,
practiceusklgregular(non-Sabbath)ImmediateStart
andAutomaticStopbeforeenteringtheSabbathmode.
Makesuretheclockshowsthecorrecttimeofday
andtheovenisoff.
[] 'lbuch and hold boththe BAKEand
BROILHI/tO pacts, at thesametime,
until the display shows SE
[] 'l_p the CLOCK pad until SAbappears
in the display.
[] 'lbuch the START/0N pad and D will
appear in the display.
[] 'lbuch the COOKING TIME pad.
] 'lbuch the +or -pacts reset the desired
length of cooking time between 1
minule and 9 hours and 59 minums.
The cooking time that you entered will
be displayed.
'lbuch the START/ONpad.
[]
[] 'lbuch the BAKEpad. No signal win
be given.
[] The preset starting temtx, rature will
automatically be set to 350. ° 'lhp the +
or - pacts to increase or decrease the
temperature in 25 ° increments. The
temperature can Ix' set between 170 °
and 5NI. ° No signal or temperature
will be given.
[]
[]
'Ibuch the START/ONpad.
After a random delay period of
approximately 30 seconds to 1 minute,
cwill appear in the display indicating
that file oven is baking/roasting. IfD c
doesn't appear in the display, start again
at Step 7.
'Ib adjust the oven temperature, touch the
BAKEpad and tap the +or - pads m increase
or decrease the mmperature in 25°
increments. 'Ibuch the START/0N pad.
When cooking is finished, the display will
change from D cm D indicating dmt the
oven has turned 0EFbut is still set in Sabbath.
Remove the cooked filed.
17

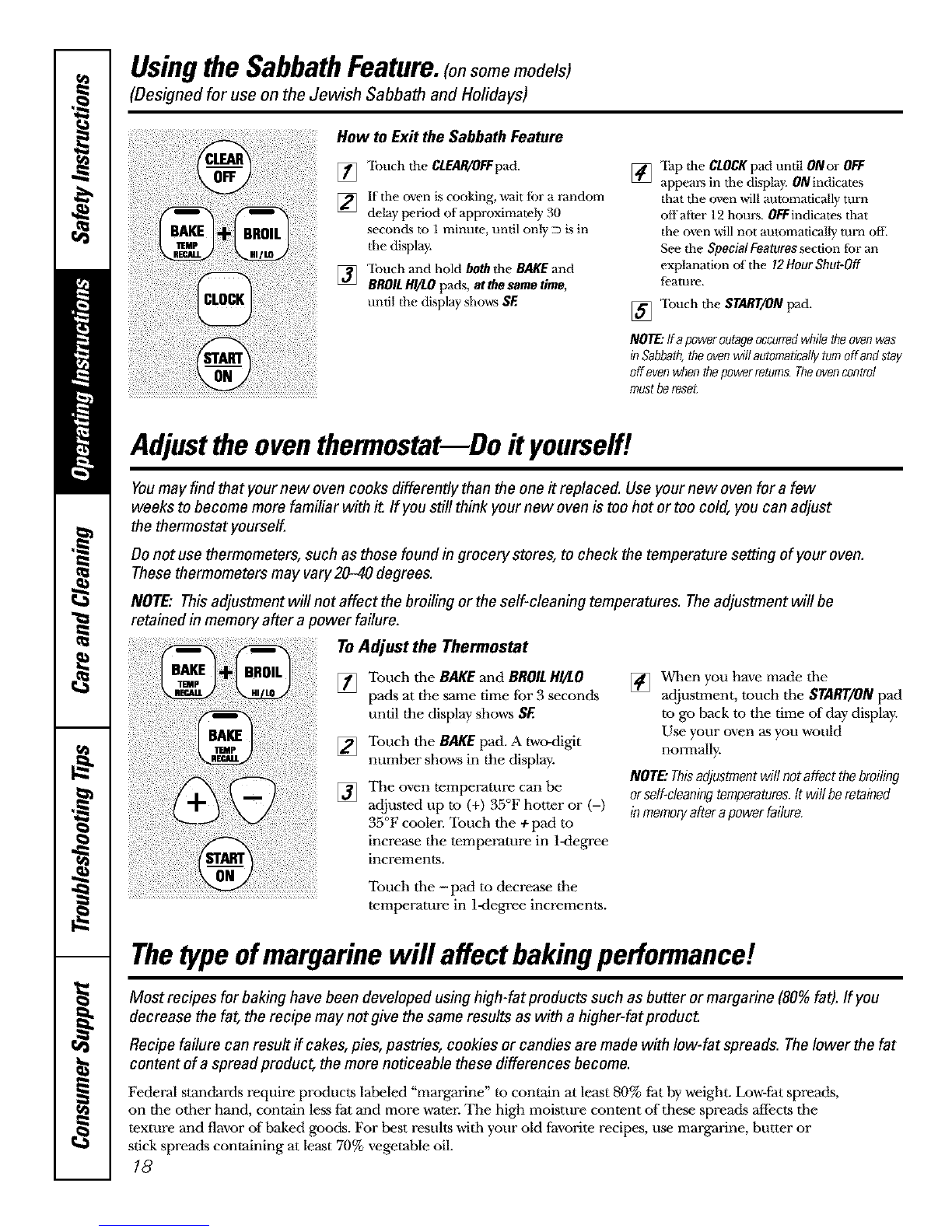

Usingthe SabbathFeature.(onsome models)
(Designed for use on the Jewish Sabbath and Hofidays)
How to Exit the Sabbath Feature
[] 'Ibuch the CLEAR/OFFpad.
] If the oven is cooking, wait i_)r a random
delay Ix.Hod of approximately 30
secon&s to 1 minute, until only D is in
the display.
] 'Ibuch and hold boththe BAKEand
BROILH!/LOpads, at thesametime,
until the display sho_ SE
[] 'Iitp the CLOCKpad until ONor OFF
appeals in the display. 0Nindicates
that the oven will automatically turn
ott atier 12 hours. 0FFindicates that
the oven will not automatically turn ott:
See the SpeciaIFeatures section fbr an
explanation of the 12HourShubOff
f;t.ature.
[] 'Ibuch the START/ONpad.
NOTE:If apoweroutageoccurredwhiletheovenwas
in Sabbath,theovenwill automaticallyturnoffandstay
off evenwhenthepowerreturn&Theovencontrol
mustbereset.
Adjust the oventhennostatmDo #yourself!
Youmay find that your new oven cooks differently than the one it replaced. Use your new oven for a few
weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust
the thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20-40 degrees.
NOTE: Thisadjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be
retained in memory after a power failure.
To Adjust the Thermostat
[]
[]
[]
Touch the BAKEand BROILHI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the BAKEpad. A twomligit
number shows in the display.
The oven temperature can be
adjusted up m (+) BS°Fhotter or (-)
BS°Fcooler. Touch the +pad to
increase the temperature in l<tegree
increments.
[] When you have made the
adjustment, much the START/ONpad
to go back m the time of day display.
Use your oven as you would
normally.
NOTE:Thisadjustmentwill notaffectthebroiling
orself-cleaningtemperatures.It willberetained
inmemoryafterapowerfailure.
Touch the - pad to decrease the
temperature in l_egree increments.
Thetypeofmargarine will affect bakingperformance!
Q
Most recipes for baking have been developed using high-fat products such as butter or margarine (80%fat). If you
decrease the fat, the recipe may not give the same results as with a higher-fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. Thelower the fat
content of a spread product, the more noticeable these differences become.
Federal standards require products labeled "margarine" m contain at least 80% fht by weight. Low-Pat spreads,
on the other hand, contain less fat and more water: The high moisture content of these spreads affects the
texture and flavor of baked goods. For hest results with your old favorite recipes, use margarine, butter or
stick spreads containing at least 70% vegetable oil.
18

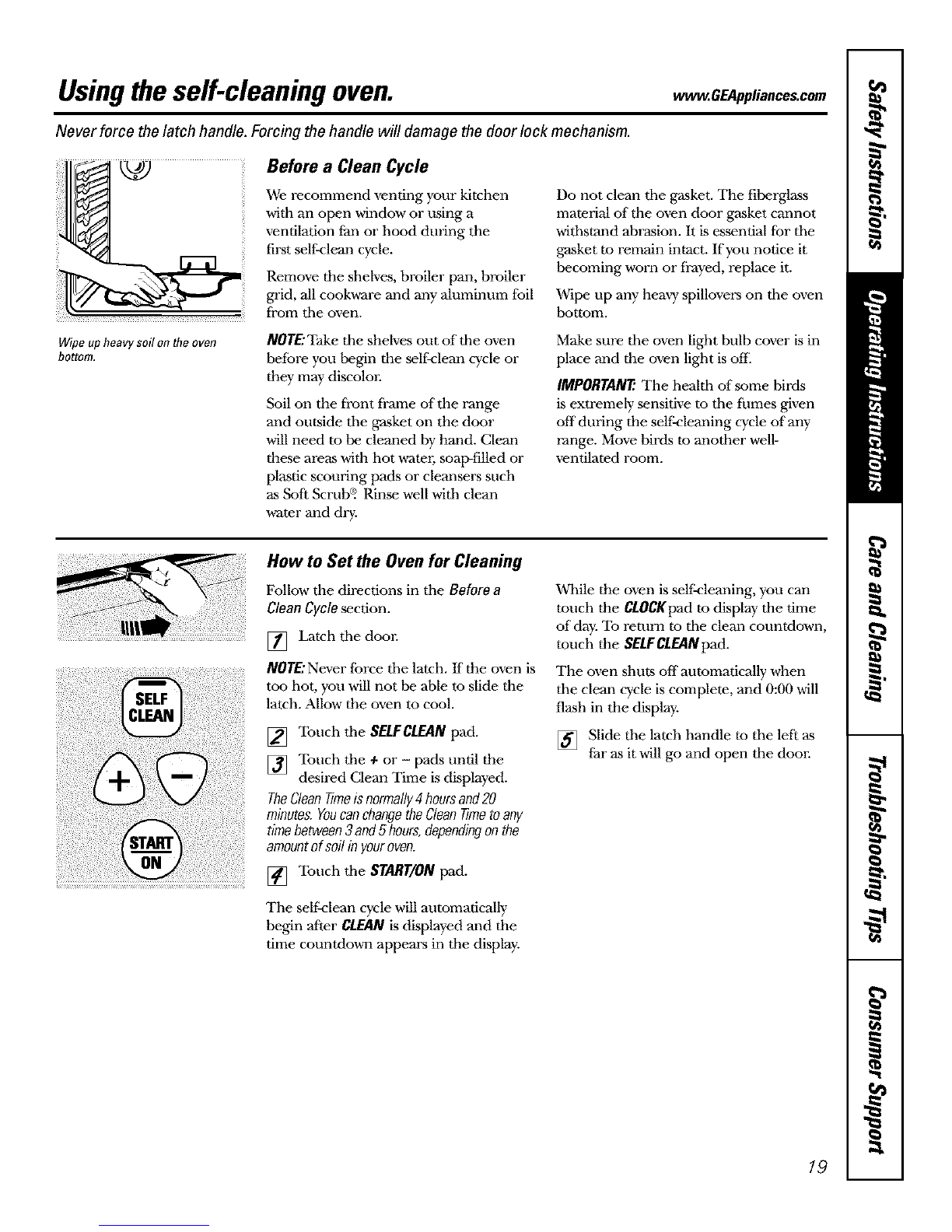

Usingtheself-cleaning oven. com
Never force the latch handle. Forcing the handle will damage the door lock mechanism.
Wipe upheavy soil on the oven
bottom,
Before a Clean Cycle
We recommend venting your kitchen
with an open window or using a
ventilation fan or hood during the
first self-clean cycle.
Remove the shelves, broiler pan, broiler
grid, all cookware and any aluminum foil
from the oven.
NOTE:Take the shelves out of the oven
before you begin the selfMean cycle or
they may discolor.
Soil on the front frame of the range
and outside tile gasket on the door
will need m be cleaned by hand. Clean
these areas with hot water, soap-filled or
plastic scouring pads or cleansers such
as Soft Scrub_ Rinse well with clean
water and di T.
Do not clean the gasket. The fibe@ass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on tlle oven
bottom.
Make sure the oven light bulb cover is in
place and the oven light is offl
IMPORTANT: The health of rome birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
range. Move birds to another well-
ventilated room.
How to Set the Oven for Cleaning
Follow the directions in the Beforea
CleanCyclesection.
[] Latch the door.
NOTE:Never force the latch. If the oven is
too hot, you will not be able to slide the
latch. Allow the oven to cool.
[] Touch the SELFCLEANpad.
[] Touch the +or - pads until the
desired Clean Time is displayed.
TheCleontimeisnormally4hoursand20
minutes.YoucanchangetheCleantimetoany
timebetween3and5 hours,dependingonthe
amountofsoilinyouroven.
[] Touch tlle START/ONpad.
The selfMean cycle will automatically
begin after CLEANis displayed and the
time countdown appears in tlle display.
While the oven is self-cleaning, you can
touch the CLOCKpad to display the time
of day. To return to the clean countdown,
touch the SELFClEANpad.
The oven shuts off automatically when
the clean cycle is complete, and 0:00 will
flash in the display.
[] Slide the latch handle to the left as
far as it will go and open tlle door.
19

Usingtheself-cleaning oven.
How to Delay the Start of Cleaning
Make sure the clock sbows the correct
time of day.
[] Latch the door.
[] Touch tim SELFCLEANpad.
[] Using tile ÷ or - pads, enter the
desired clean time.
[]
[]
Touch the STARTTIMEpad. The
earliest start time you can set will
appear in tile display.
Using tile +or - pads, enter the
time of day you ,a-ant the clean cycle
to starL
[] Touch the START/ONpad.
The display will show tile start time. It
will not be possible to unlatch tile oven
door until tile temperature drops below
the lock temperature.
ToStop a Clean Cycle
Touch tile CLEAR/OFFpad.
Wait until the oven has cooled below tile
locking temperature to unlatch tim door.
You will not be able to open the door
right away unless the oven has cooled
below the locking temperature.
After a Clean Cycle
You may notice some white ash in the
oven. Wipe it up witb a damp cloth after
tim oven cools.
If whitespotsremain,removethemwithasoap-
filledsteelwoolpadandrinsethoroughlywith
a vinegarandwatermixture.
These deposits are usually a salt
residue that cannot be removed by
the clean cycle.
If the oven is not clean after one clean
cycle, repeat the cycle.
/;55You cannot set tim oven J[brcooking
until the oven is cool enough fbr the
door to be unlatched.
/})5While the oven is self-cleaning, you
can press tbe CLOCKpad to display
the time of day. To remm to tim
clean countdown, press the SELF
CLEANpad.
N Apply a small amount of vegetable oil
to a paper towel and wipe the edges of
the oven shelves with the paper towel.
Do not spray with Pam ®or other
lubricant sprays.
2O
