GE GLE12HSPSS Original instructions
SAFETY INFORMATION .........3
USING THE REFRIGERATOR
Controls ..............................5
Shelves and Racks and Pans ............6
Door Bins .............................7
Freezer Drawers .......................7
CARE AND CLEANING ...........8
INSTALLATION INSTRUCTIONS
Preparing to Install the Refrigerator.....10
Reversing the Door Swing ............. 11
TROUBLESHOOTING
Normal Operating Sounds .............13
Troubleshooting Tips..................14
LIMITED WARRANTY .............16
ACCESSORY.......................17
Icemaker Installation Instructions .......18
CONSUMER SUPPORT ..........28
ENGLISH/FRANÇAIS/
ESPAÑOL
Write the model and serial
numbers here:
Model #_________________
Serial # _________________
Find these numbers on a label
inside the fresh food compartment.
49-60769 Rev. 4 06-20 GEA
GLE12HSLSS
GLE12HSPSS
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
REFRIGERATORS
Bottom-Freezer
GE is a trademark of the General Electric Company. Manufactured under trademark license.
249-60769 Rev. 4
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GEAppliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-60769 Rev. 4 3
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.
Ŷ 'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUP
water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact, such as bumping or dropping.
Tempered glass is designed to shatter into many
small pieces if it breaks.
Ŷ .HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDV
clearances between the doors and between the
doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
Ŷ 'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HU
compartment when hands are damp or wet, skin
may stick to these extremely cold surfaces.
Ŷ 'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHG
completely.
Ŷ ,QUHIULJHUDWRUVZLWKDXWRPDWLFLFHPDNHUVDYRLG
contact with the moving parts of the ejector
mechanism, or with the heating element that
UHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGV
on the automatic ice making mechanism while the
refrigerator is plugged in.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow
these basic safety precautions:
Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHG
DQGORFDWHGLQDFFRUGDQFHZLWKWKH,QVWDOODWLRQ
,QVWUXFWLRQVEHIRUHLWLVXVHG
Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUV
replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJ
Ŷ 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
vapors and liquids in the vicinity of this or any other
appliance.
Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVRO
cans with a flammable propellant in this appliance.
Ŷ 'RQRWXVHDQH[WHQVLRQFRUG
Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGV
WRFKLOGUHQUHPRYHWKHIUHVKIRRGDQGIUHH]HU
doors from any refrigerator before disposing of it or
discontinuing its use.
Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRW
stand on, or play in or with the appliance.
Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHG
Ŷ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROG
and similar applications such as: staff kitchen areas
LQVKRSVRIILFHVDQGRWKHUZRUNLQJHQYLURQPHQWV
IDUPKRXVHVE\FOLHQWVLQKRWHOVPRWHOVEHG
EUHDNIDVWDQGRWKHUUHVLGHQWLDOHQYLURQPHQWV
catering and similar non-retail applications.
Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRU
Certain cleaners will damage plastic which may
cause parts such as the door or door handles to
detach unexpectedly. See the Care and Cleaning
section for detailed instructions.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING EXPLOSION HAZARD Flammable Refrigerant
This appliance contains isobutane refrigerant,
R600a, a natural gas with high environmental
compatibility. However, it is also combustible.
Adhere to the warnings below to reduce the risk of
injury or property damage.
1. When handling, installing and operating the
appliance, care should be taken to avoid damage to
the refrigerant tubing.
2. 6HUYLFHVKDOORQO\EHSHUIRUPHGE\DXWKRUL]HG
VHUYLFHSHUVRQQHO8VHRQO\PDQXIDFWXUHUDXWKRUL]HG
service parts.
3. 'LVSRVHRIUHIULJHUDWRULQDFFRUGDQFHZLWK)HGHUDO
DQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWDQG
insulation material used require special disposal
procedures. Contact your local authorities for the
environmentally safe disposal of your refrigerator.
4. .HHSYHQWLODWLRQRSHQLQJVLQWKHDSSOLDQFH
enclosures or in the built-in structure clear of
obstruction.
5. 'RQRWXVHPHFKDQLFDOGHYLFHVRURWKHUPHDQVWR
accelerate the defrosting process.
6. 'RQRWGDPDJHUHIULJHUDQWFLUFXLW
7. 'RQRWXVHHOHFWULFDODSSOLDQFHVLQVLGHWKHIRRG
storage compartment of the appliance.
449-60769 Rev. 4
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
)DLOXUHWRIROORZWKHVHGLVSRVDOLQVWUXFWLRQVFDQUHVXOWLQGHDWKRUVHULRXVLQMXU\
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
UHIULJHUDWRUVRUIUHH]HUVDUHVWLOOGDQJHURXVHYHQLIWKH\
ZLOOVLWIRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXU
ROGUHIULJHUDWRURUIUHH]HUSOHDVHIROORZWKHLQVWUXFWLRQV
below to help prevent accidents.
Before You Throw Away Your Old Appliance
Ŷ7DNHRIIWKHIUHVKIRRGDQGIUHH]HUGRRUV
ŶLeave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
'LVSRVHRIUHIULJHUDWRULQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWDQGLQVXODWLRQ
material used require special disposal procedures. Contact your local authorities for the environmentally safe
disposal of your refrigerator.
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKH
SRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFH
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
'RQRWXVHDQDGDSWHU
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
$9ROW$&+]RUDPSIXVHGJURXQGHG
electrical supply is required. This provides the best
performance and also prevents overloading house
ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURP
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
,PPHGLDWHO\GLVFRQWLQXHXVHRIDGDPDJHGVXSSO\
FRUG,IWKHVXSSO\FRUGLVGDPDJHGLWPXVWEH
replaced by a qualified service professional with an
DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHU
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWKILUHRUHOHFWULFDOVKRFN
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION
WARNING EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDVJDVROLQHDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQILUH
explosion, or death.
49-60769 Rev. 4 5
The control location for GLE12HSLSS model is on the
RXWVLGHRIWKH)UHVK)RRGGRRU)RU*/(+6366
PRGHOLWLVRQWKHOHIWVLGHZDOORIWKHLQVLGHRIWKH)UHVK
)RRGFRPSDUWPHQW
Refrigerator Temperature Control
7KLVUHIULJHUDWRUKDVWHPSHUDWXUH]RQHVFridge,
Freezer, TempZone. Their temperature ranges are:
)ULGJH)&WR)&)UHH]HU)
WR)7HPS=RQH)&)&
)&<RXUUHIULJHUDWRUZLOOFRPHZLWKWKH
UHFRPPHQGHGIDFWRU\VHWWLQJDW)&IRU)UHVK
)RRG)&IRU)UHH]HUDQG)&IRU
7HPS=RQHSDQ7HPSHUDWXUHGLVSOD\ZLOOVKRZWKH
DFWXDOVHWWHPSHUDWXUHDQGWKH]RQHOLJKWFridge,
Freezer or TempZone) will be on.
7RDGMXVWWKH7HPSHUDWXUHIRUHDFK]RQHSUHVVZone
Select7KHVHOHFWHG]RQHOLJKWZLOOEHRQ.HHSSUHVVLQJ
WRWRJJOHEHWZHHQWHPSHUDWXUH]RQHV=RQHZLOOEH
set after 3 seconds. Adjust the temperature by pressing
Temp Control. The temperature display will show the
temperature moving up as you press it. Once you find
the temperature you want, the control will automatically
set the refrigerator to this setting. You don’t need to
press any button.
TurboCool and TurboFreeze
'XULQJ7XUER&RROUHIULJHUDWRUWHPSHUDWXUHFDQUHDFK
33)&'XULQJ7XUER)UHH]HIUHH]HUWHPSHUDWXUH
can reach 13) if room temperature is above
73)&, -7)& if room temperature is
below 73)&.
To enter TurboCool or TurboFreeze or both, press
mode. TurboCoolZLOOOLJKWXS,I\RXOHDYHZLWKRXW
pressing any button, TurboCool will be set. Pressing
mode a second time will light up TurboFreezeleave
without pressing any button, TurboFreeze will be set.
Pressing mode a third time will light up both TurboCool
and TurboFreezeOHDYHZLWKRXWSUHVVLQJDQ\EXWWRQ
both functions will be set.
To exit Turbo functions, press mode again.
NOTE:'XULQJ7XUERPRGHVWKHUHIULJHUDWRURUIUHH]HU
temperature can be adjusted..
Lock
Press the lock symbol, hold for 3 seconds. The circle
around the lock symbol with light up and the control
display will be locked. Buttons will not be active.
To exit the lock, press the lock symbol again and hold
for 3 seconds. The light around the lock will go off.
NOTE: The display will turn off after 30 seconds if the
control display has not been touched. Touch any button
on the control panel and it will display again.
Controls
USING THE REFRIGERATOR: Controls
Sabbath Mode
3UHVVWKH=RQH6HOHFWDQG7HPS&RQWUROVLPXOWDQHRXVO\
for 5 seconds to enter and exit Sabbath Mode. Activate
Sabbath Mode to turn off interior lights, temperature
control and advanced features. The compressor will
run on a timed defrost when in Sabbath Mode. Sabbath
Mode will last for 76 hours if you do not manually exit the
mode.
°F
Zone Select
Fridge
Freezer
TempZone
Temp Control
Turbo
Cool Turbo
Freeze
Mode
Control Lock hold 3 sec
Model GLE12HSLSS
Model GLE12HSPSS
649-60769 Rev. 4
Shelves and Racks and Pans
USING THE REFRIGERATOR: Shelves, Racks and Pans
Tuck Away Shelf
To create space for large tall milk and drink bottles.
Lift the back of the front shelf, pull out slightly and
release the shelf. The back of the shelf will drop down
automatically. Push the front shelf underneath the back
shelf.
To remove the shelf, lift the front frame out of the clips
and pull out.

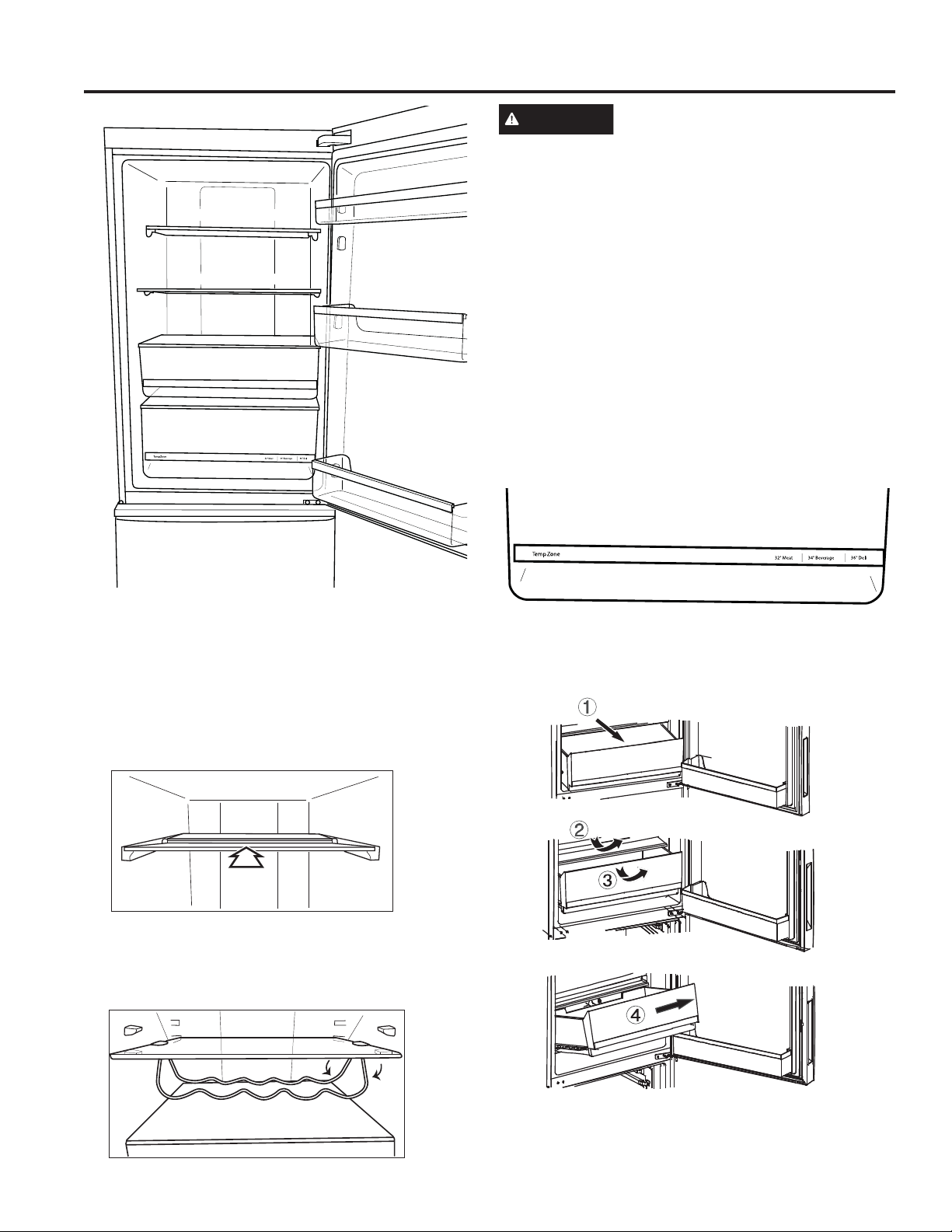

Shelf with Racks
Rotate both wine racks down as picture shown for wine
storage. This shelf can be adjust to 2 locations
CAUTION 'RQRWFOHDQJODVVVKHOYHVRUFRYHUV
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
NOTE:'RQRWEORFNDLURXWOHWE\SODFLQJIRRGLWHPV
directly against it. Erratic temperatures may result.
Multipurpose Pan
This pan can use for storing vegetable, fruit, snack etc.
To remove, pull the pan straight out.
TempZone Pan
Adjust the pan temperature through temperature control
SDQHO7KLVSDQFDQKDYHWHPSHUDWXUHVHWWLQJV)
))&&&,WFDQEHXVHGDVPHDW
pan when it set at lowest temperature.
7RUHPRYH7HPS=RQHSDQSXOORXWSDQOLIWWKHSDQ
cover slightly (2), tilt the pan up (3), pull the pan out (4).
To remove the pan cover, simply pull them straight out.
Tuck Away Shelf
Shelf with Racks
Mutipurpose Pan
7HPS=RQH3DQ
49-60769 Rev. 4 7
Door Bins
Freezer Drawers
USING THE REFRIGERATOR: 'RRU%LQV)UHH]HU'UDZHUV

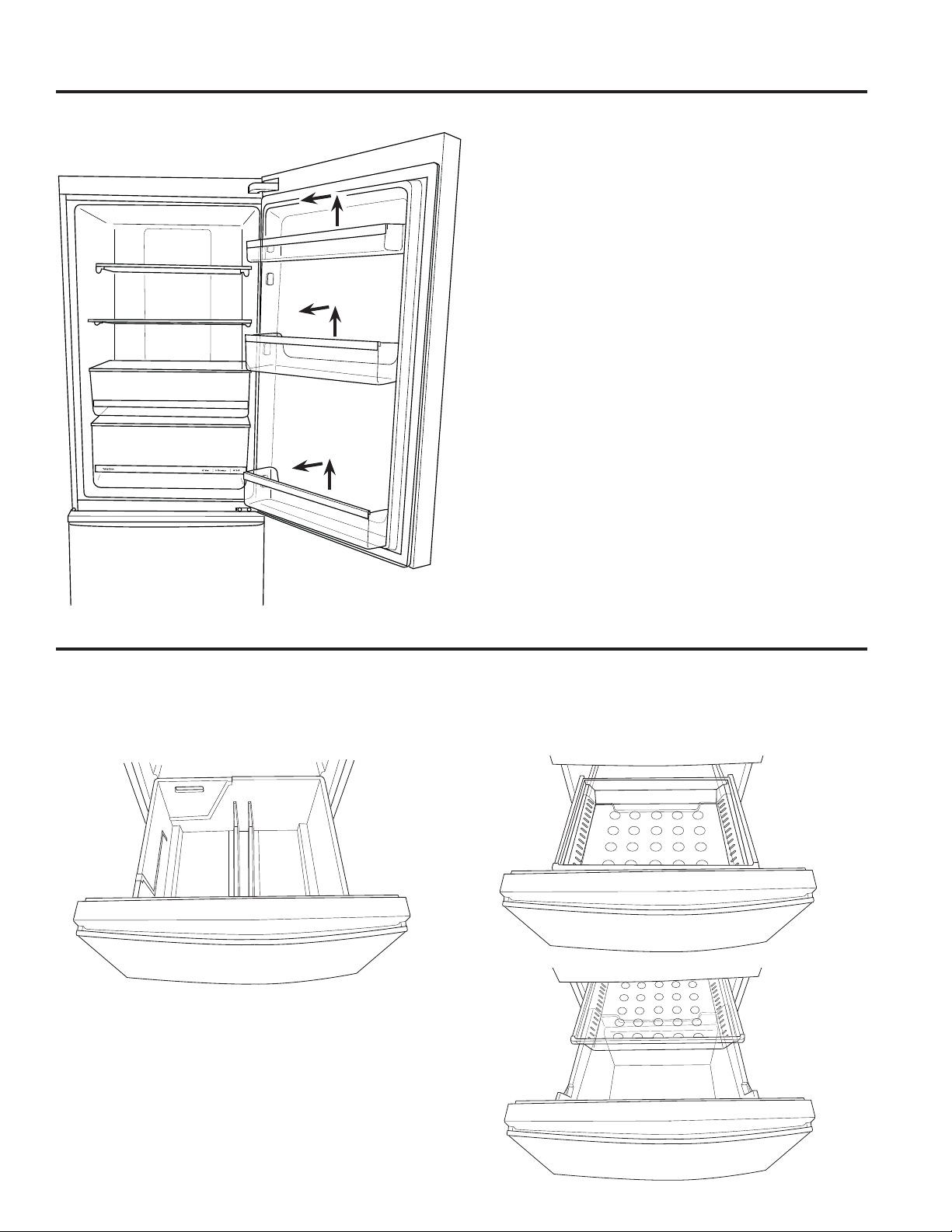

Fridge Door Bins
To remove door bins, slide bin up over the rib in the door
and pull out.
To install door bins, slide the bin over the rib in the door.
The small bin goes at the top on either set of ribs. Large
bins go at the bottom and in the middle.
NOTE: Placing the door bins in the wrong locations will
FDXVHWKH)UHVK)RRGGRRUQRWWRFORVH
Upper Drawer
The divider can be placed in 2 positions for better
RUJDQL]DWLRQRIWKHGUDZHU/LIWWKHGLYLGHURXWWRUHPRYH
it. Slip it over one of the 2 ribs in the drawer to install.
Lower Drawer
The lower drawer has a removable tray that slides back
and forth to make more storage space. To remove the
tray, lift it out of the drawer.
49-60769 Rev. 4
Care and Cleaning
CARE AND CLEANING
Light
7KLVUHIULJHUDWRUKDV/('OLJKWLQJ&DOOVHUYLFHLIWKHOLJKW
is broken or goes out. 7KHIUHH]HUOLJKWORFDWHGXQGHUWKHIUHVKIRRGGRRUZLOO
RQO\EHRQZKHQWKHXSSHUIUHH]HUGUDZHULVRSHQ1R
OLJKWZLOOEHRQZKHQWKHORZHUIUHH]HUGUDZHULVRSHQ
Moving the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces.
Pull the refrigerator straight out and return it to position
by pushing it straight in. Moving the refrigerator in a
side direction, or leaning the unit to the corner to pull
or push, may result in damage to the floor covering or
refrigerator.
When pushing the refrigerator back, make sure you don’t
roll over the power cord or ice maker supply line (on
some models).
Adjust leveling legs and make sure the unit is leveled.
Cleaning the Inside
To help prevent odors, leave an open box of baking
VRGDLQWKHIUHVKIRRGDQGIUHH]HUFRPSDUWPHQWV
Unplug the refrigerator before cleaning.
,IWKLVLVQRWSUDFWLFDOZULQJH[FHVVPRLVWXUHRXWRI
sponge or cloth when cleaning around switches, lights or
controls.
8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ²DERXWD
tablespoon (15 ml) of baking soda to a quart (1 liter) of
ZDWHU7KLVERWKFOHDQVDQGQHXWUDOL]HVRGRUV5LQVHDQG
wipe dry.
After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side.
This helps keep the gaskets from sticking and bending
out of shape.
CAUTION 'RQRWFOHDQJODVVVKHOYHVRUFRYHUV
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
'RQRWZDVKDQ\SODVWLFUHIULJHUDWRUSDUWVLQWKH
dishwasher.
Directions for Cleaning Outside Surfaces, Door Handles, and Trim
DO USE DO NOT USE
Soft, clean cloth or sponge Abrasive cloths, scrubbing sponges, scouring or steel
wool pads
Mild detergent mixed with warm water
$SSURYHGVWDLQOHVVVWHHOFOHDQHUV9LVLWWKH&DIp
Appliances parts store for approved stainless steel
cleaners: geapplianceparts.com RUFDOO
&OHDQHUVZLWKR[DOLFDFLGVXFKDV%DU.HHSHUV)ULHQG6RIW
Cleanser™ can be used to remove surface rust, tarnish
and small blemishes on stainless steel surfaces only.
Abrasive powders or sprays
Window Sprays or Ammonia
Citrus or plant oil-based cleaners
Acidic or vinegar-based cleaners
Oven cleaners
Cleaners containing acetone (propanone)
$Q\FOHDQHUZLWK:$51,1*DERXWSODVWLFFRQWDFW
NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle
KDUGZDUHDQGOLQHUV,IXQLQWHQWLRQDOFRQWDFWRIFOHDQHUVZLWKSODVWLFSDUWVGRHVRFFXUFOHDQSODVWLFSDUWZLWKD
sponge and mild detergent mixed with warm water.
Cleaning the Outside
49-60769 Rev. 4
CARE AND CLEANING
Care And Cleaning
Preparing for Vacation
)RUORQJYDFDWLRQVRUDEVHQFHVUHPRYHIRRGDQG
XQSOXJWKHUHIULJHUDWRU8QSOXJWKHUHIULJHUDWRU7KLV
refrigerator will remember the current setting when you
plug it in again. Clean the interior with a baking soda
solution of one tablespoon (15 ml) of baking soda to one
quart (1 liter) of water. Leave the doors open.
,IDQLFHPDNHUKDVEHHQLQVWDOOHGLWPXVWEHWXUQHGRII
PRYHWKHVZLWFKWRWKH2))SRVLWLRQRQWKHSRZHUVZLWFK
model. Shut off the water supply to the refrigerator.
,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHD
qualified servicer drain the water supply system (on
some models) to prevent serious property damage due
to flooding.
Preparing to Move
Secure all loose items, such as shelves and drawers, by
taping them securely in place to prevent damage.
To prevent the doors from opening while moving, secure
them to the case with tape. Be sure the refrigerator stays
in an upright position during moving.
10 49-60769 Rev. 4
Installation Instructions GLE12HSLSS
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
•IMPORTANT – Save these instructions for
local inspector’s use.
•IMPORTANT – Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – .HHSWKHVH
instructions for future reference.
• Skill level±,QVWDOODWLRQRIWKLVDSSOLDQFH
requires basic mechanical skills.
• Completion time±5HIULJHUDWRU,QVWDOODWLRQ
15 minutes
5HYHUVLQJWKH'RRU6ZLQJ
15 minutes
•Proper installation is the responsibility of the
installer.
•Product failure due to improper installation is not
covered under the Warranty.
• 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH
WHPSHUDWXUHZLOOJREHORZ)&EHFDXVH
it will not run often enough to maintain proper
temperatures.
• 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH
WHPSHUDWXUHZLOOJRDERYH)&EHFDXVH
it will not perform properly.
• 'RQRWLQVWDOOWKHUHIULJHUDWRULQDORFDWLRQH[SRVHG
to water (rain, etc.) or direct sunlight.
,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\
loaded.
REFRIGERATOR LOCATION
Allow the following clearances for ease of
installation, proper air circulation and plumbing and
electrical connections.
6LGHV ´PP
7RS ´PP
%DFN ´PP
CLEARANCES
Leveling legs near each front corner of the
refrigerator are adjustable. They firmly position the
refrigerator and prevent it from moving when the
doors are opened. Leveling legs should be set so
the front of the refrigerator is raised just enough that
the doors close easily when opened about halfway.
Turn the leveling legs clockwise to raise the
refrigerator, counterclockwise to lower it.
ROLLERS AND LEVELING LEGS
If you have questions, call 1.800.GE.CARES or visit our Website at: GEAppliances.com.
,Q&DQDGDFDOO or Visit our Website at: geappliances.ca
INSTALLATION INSTRUCTIONS
High
Leveling Leg Lo
49-60769 Rev. 4 11

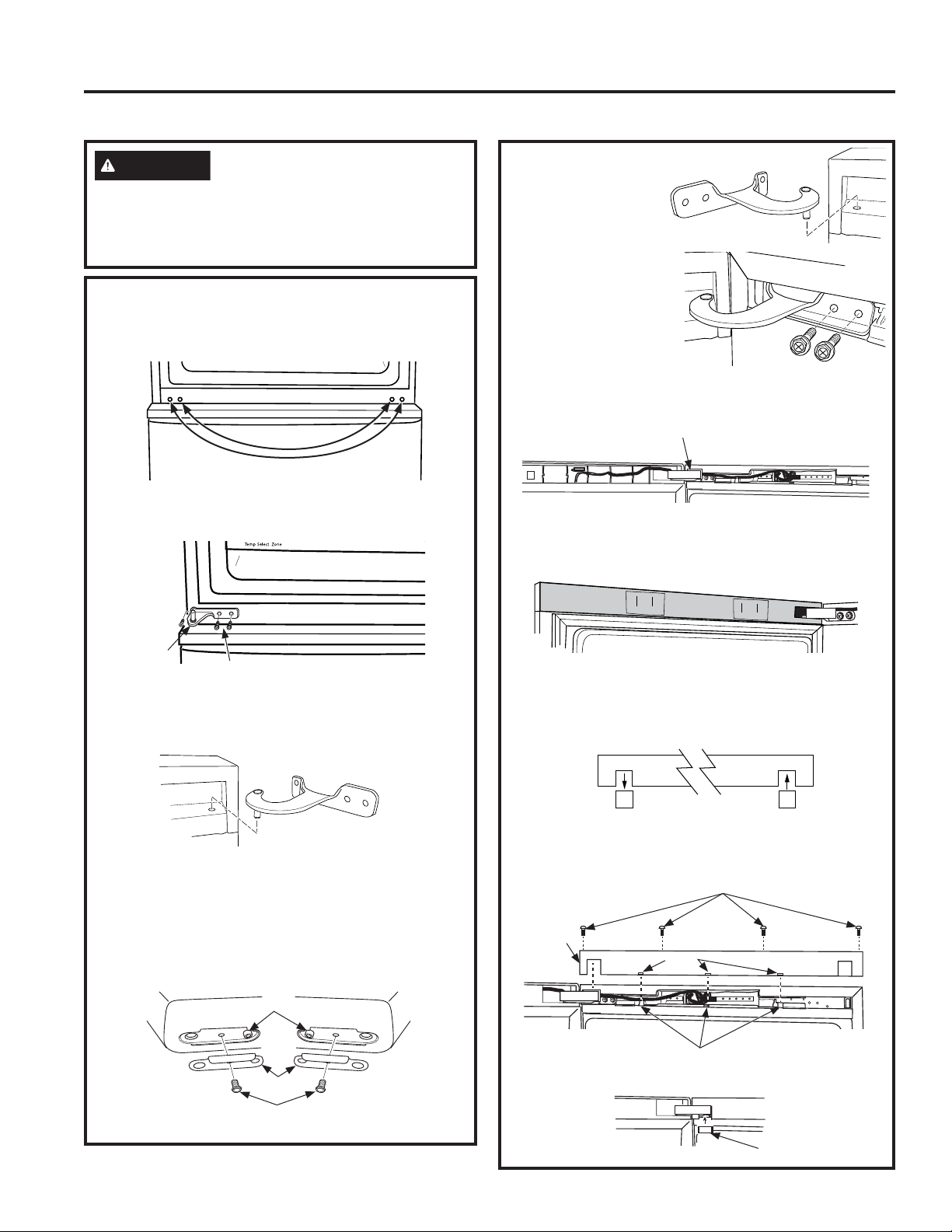

1. 8QVFUHZVFUHZVRQWRSRIIURQWFDVH
2. Remove top front case cover and cover insert. The
cover insert slides out toward the bottom of the
cover.
3. Remove the hinge cover. Carefully pull the wires
IUHHRIWKHFOLSV'LVFRQQHFWWKHZLUH
4. Remove the top door cap by inserting a flat head
screw driver into the gap between the door cap
and door case. Apply pressure to pop the door
cap out.
5. 8QVFUHZWKHWRS
hinge from the
cabinet while
holding the door.
6. Lift the door
straight off of the
bottom hinge. Set
the door aside.
7. 8QVFUHZDQG
remove the
bottom hinge
from the
cabinet.
INSTALLATION INSTRUCTIONS
Installation Instructions
When reversing the door swing:
• Read the instructions all the way through before
starting.
• Tighten all hinge screws but avoid over-tightening
to prevent stripping.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid
losing them.
• Provide a non-scratching work surface for the
doors.
CAUTION Lifting Hazard
7KH)UHVK)RRGDQG)UHH]HUGRRUVDUHKHDY\8VH
both hands to secure the doors before lifting.
IMPORTANT: Once you begin, do not move the
cabinet until door-swing reversal is completed.
These instructions are for changing the hinges from
WKHULJKWVLGHWRWKHOHIWVLGH²LI\RXHYHUZDQWWR
change the hinges back to the right side, follow these
same instructions and reverse all references to left
and right.

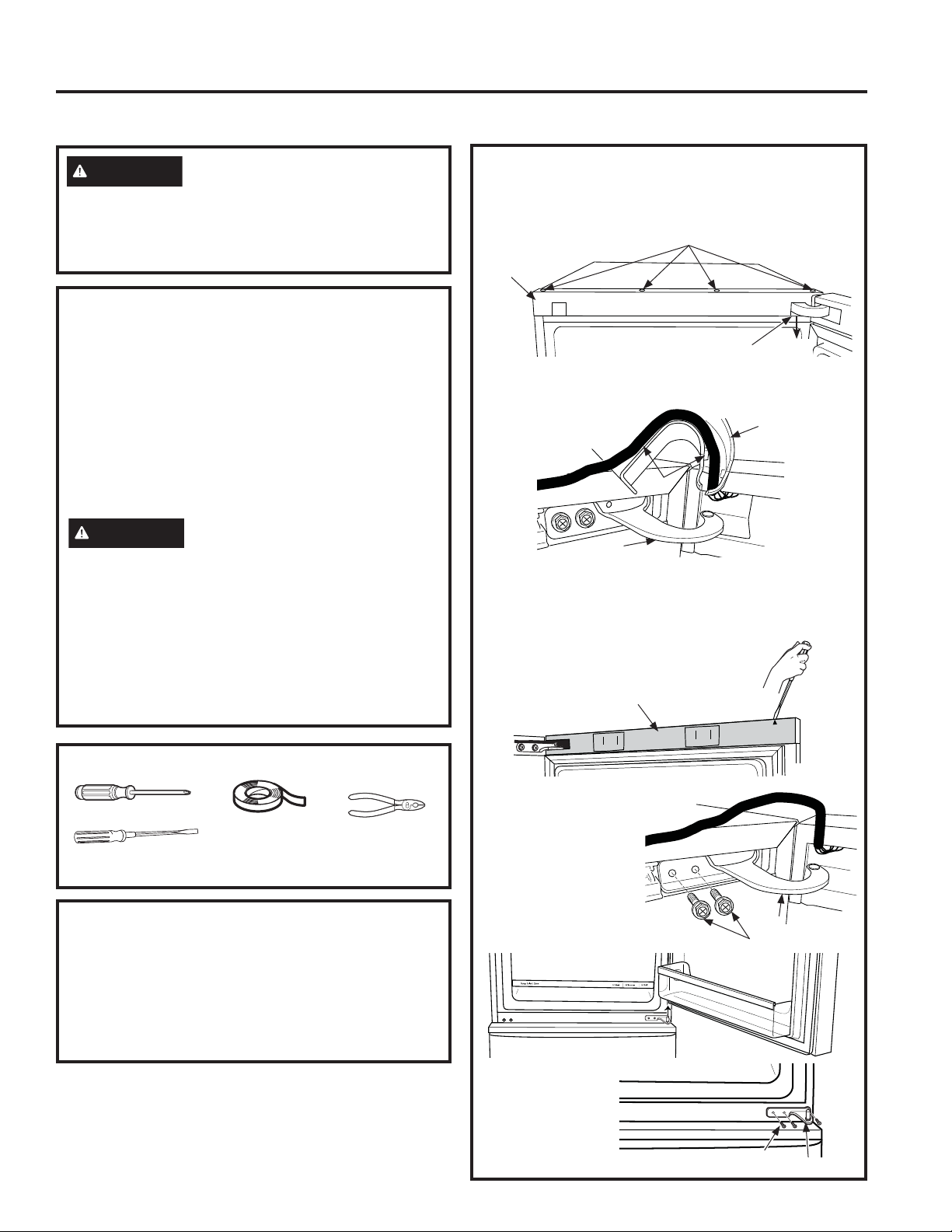

IMPORTANT NOTES
REVERSING THE DOOR SWING
Phillips screwdriver
)ODWKHDGVFUHZGULYHU
TOOLS REQUIRED
Masking tape
BEFORE YOU START
1. Unplug the refrigerator from its electrical
outlet.
2. Empty all door shelves, including the dairy
compartment.
IMPORTANT: 'RQRWOHWGRRUGURSWRWKHIORRU7R
do so could damage the door stop.
Pliers
7RS'RRU&DS
Hinge Cover
Clips
Hinge
Screws
&RYHU,QVHUW Pull
'RZQ
)URQW
Case
Cover
Screws
Hinge
Screws Bottom Hinge
WARNING )ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
12 49-60769 Rev. 4
8. Remove the screw hole covers on the left side of
the middle mullion where the new hinge will be
installed. Place the screw hole covers over the
holes where you removed the old hinge.
9.,QVWDOOWKHQHZOHIWERWWRPKLQJHWKDWFDPHZLWK
the unit into left side of the middle mullion. Place
the door to new installed left bottom hinge.
10.Remove the top hinge from the door. Set aside the
right top and bottom hinges. Retain for returning door
swing to original configuration.
11.8QVFUHZWKHGRRUVWRSIURPERWWRPULJKWVLGHRIWKH
door. Move the door stop to the bottom left side of the
door. Line the door stop with locating pin, screw hole,
andhingepinholeatthebottomleftsideofdoor.Secure
the stopper tightly using screw provided.
12.,QVWDOOWKHWRSOHIW
hinge that came
with the unit into the
hinge hole on the
top left of the door.
13. 8VLQJWKHVFUHZV
provided, attach the
top left hinge to the
top of the case.
14. Connect the wire and
redress wire around
the hinge cover, top
case and top of the door.
15. Place the new hinge cover on top of the hinge.
16. Turn the top door cap around and replace cap
with the opening over the hinge cover. Press into
place.
17. Pull down to remove the square insert on the left
side of the front case cover. Slide this insert into
the opening on the right side where the hinge
cover was.
18. Replace the front case cover using the screws
removed earlier. There are clips on the inside of
the case cover that fit into notches on the case.
19. ,QVWDOOWKHFRYHULQVHUWXQGHUWKHKLQJHFRYHU
Installation Instructions
REVERSING THE DOOR SWING (CONT.)
INSTALLATION INSTRUCTIONS
Hinge Cover
Case
Cover
Screws
Notches in case
Clips
&RYHU,QVHUW
Bottom
Hinge Screws
'RRU6WRSV
Locating
Collar
Screws
Bottom Right
6LGHRI'RRU
Bottom Left
6LGHRI'RRU
WARNING )ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
49-60769 Rev. 4 13
Normal Operating Sounds
Ŷ The new high
efficiency compressor
may run faster and
longer than your old
refrigerator and you may hear a high-pitched hum
or pulsating sound while it is operating.
Ŷ You may hear a whooshing sound when the doors
FORVH7KLVLVGXHWRSUHVVXUHHTXDOL]LQJZLWKLQWKH
refrigerator.
Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer
technology.
Ŷ You may hear the fans spinning at high
speeds.
This happens when the refrigerator
is first plugged in, when the doors
are opened frequently or when a
large amount of food is added to the
UHIULJHUDWRURUIUHH]HUFRPSDUWPHQWV
The fans are helping to maintain the
correct temperatures.
&/,&.63236
&5$&.6DQG&+,536
Ŷ You may hear cracking or popping sounds when
the refrigerator is first plugged in. This happens as
the refrigerator cools to the correct temperature.
Ŷ The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
Ŷ Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
Ŷ On models with an ice maker, after an ice making
cycle, you may hear the ice cubes dropping into the
ice bucket.
:$7(56281'6
Ŷ 7KHIORZRIUHIULJHUDQWWKURXJKWKHIUHH]HUFRROLQJFRLOV
may make a gurgling noise like boiling water.
Ŷ Water dropping on the defrost heater can cause a
VL]]OLQJSRSSLQJRUEX]]LQJVRXQGGXULQJWKHGHIURVW
cycle.
Ŷ A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
Ŷ Closing the door may cause a gurgling sound due to
SUHVVXUHHTXDOL]DWLRQ
Do you hear what I hear? These sounds are normal.
HUMMM...
WHOOSH...
TROUBLESHOOTING TIPS: Normal Operating Sounds
14 49-60769 Rev. 4
Troubleshooting Tips... Before you call for service
6DYHWLPHDQGPRQH\5HYLHZWKHFKDUWVRQWKHIROORZLQJSDJHVILUVWDQG\RXPD\QRWQHHGWRFDOOIRUVHUYLFH,I
needed, service can be scheduled by visiting us online GEAppliances.comRUFDOOLQJ*(&$5(6
,Q&DQDGDYLVLWGEAppliances.ca RUFDOO
Problem Possible Causes What to Do
Refrigerator does not operate Refrigerator in defrost cycle. Wait about 30 minutes for defrost cycle
to end.
(LWKHURUERWKFRQWUROVVHWWR2)) Set the controls to a lower temperature
setting.
Refrigerator is unplugged. Push the plug completely into the outlet.
7KHIXVHLVEORZQFLUFXLWEUHDNHULV
tripped. Replace fuse or reset the breaker.
Motor operates for long periods
or cycles on and off frequently.
(Modern refrigerators with more
VWRUDJHVSDFHDQGDODUJHUIUHH]HU
require more operating time. They
start and stop often to maintain even
temperatures.)
Normal when refrigerator is first
plugged in. Wait 24 hours for the refrigerator to
completely cool down.
Often occurs when large amounts of
food are placed in refrigerator. This is normal.
'RRUOHIWRSHQ Check to see if package is holding door
open.
Hot weather or frequent door
openings. This is normal.
Temperature controls set at the
coldest setting. See Temperature Control section.
5HIULJHUDWRURUIUHH]HUFRPSDUWPHQW
too warm Temperature control not set cold
enough. See Temperature Control section.
Warm weather or frequent door
openings. Set the temperature control one step
colder. See Temperature Control
section.
'RRUOHIWRSHQ Check to see if package is holding door
open.
)URVWRULFHFU\VWDOVRQIUR]HQIRRG
(frost within package is normal) 'RRUOHIWRSHQ Check to see if package is holding door
open.
Too frequent or too long door
openings. This is normal.
'LYLGHUEHWZHHQUHIULJHUDWRUDQG
IUHH]HUFRPSDUWPHQWVIHHOVZDUP Automatic energy saver system
circulates warm liquid around
WKHIURQWHGJHRIWKHIUHH]HU
compartment.
This helps prevent condensation on the
outside.
Automatic ice maker does not work
(if installed). ,FHPDNHUSRZHUVZLWFKLVLQWKH
2))SRVLWLRQ Set the power switch to ON position.
Water supply turned off or not
connected. 6HH,QVWDOOLQJWKHZDWHUOLQHVHFWLRQRI
the ice maker installation instructions.
)UHH]HUFRPSDUWPHQWWRRZDUP Wait 24 hours for the refrigerator to
completely cool down.
Piled up cubes in the storage bin
cause the ice maker to shut off. Level cubes by hand.
,FHFXEHVVWXFNLQLFHPDNHU 7XUQRႇWKHLFHPDNHUUHPRYHFXEHV
and turn the ice maker back on.
,FHFXEHVKDYHEDGRGRUWDVWH ,FHVWRUDJHELQQHHGVFOHDQLQJ (PSW\DQGZDVELQ'LVFDUGROGLFH
)RRGWUDQVPLWWLQJRGRUWDVWHWRLFH Wrap foods well.
,QWHULRURIUHIULJHUDWRUQHHGV
cleaning. See Care and Cleaning section.
6ORZLFHFXEHIUHH]LQJ 'RRUOHIWRSHQ Check to see if package is holding door
open.
TROUBLESHOOTING TIPS
49-60769 Rev. 4 15
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Causes What to Do
)UHTXHQWEX]]LQJVRXQGIURPWKHLFH
maker (if installed). ,FHPDNHUSRZHUVZLWFKLVLQWKH21
position but the water supply to the
refrigerator has not been connected.
6HWWKHSRZHUVZLWFKWRWKH2))
SRVLWLRQ.HHSLQJLWLQWKH21SRVLWLRQ
will damage the water valve.
No ice cube production (if ice maker
is installed). Supply line or shutoff valve is
clogged. Call a plumber.
Refrigerator has odor. )RRGVWUDQVPLWWLQJRGRUWR
refrigerator. )RRGVZLWKVWURQJRGRUVVKRXOGEH
tightly wrapped.
.HHSDQRSHQER[RIEDNLQJVRGD
LQWKHUHIULJHUDWRUUHSODFHHYHU\
months.
,QWHULRUQHHGVFOHDQLQJ See Care and Cleaning section.
Moisture forms on outside of
refrigerator. Not unusual during periods of high
humidity. Wipe surface dry.
Moisture collects inside (in humid
weather, air carries moisture into
refrigerator when doors are opened)
'XHWRWKHKLJKHUKXPLGLW\LQWKH
refrigerator, you may on occasion
experience fog or small amounts
of moisture in the refrigerator
compartment.
This is normal and may come and
JRDVGLႇHUHQWIRRGORDGVDQG
environmental conditions change.
Wipe dry with a paper towel if desired.
,QWHULRUOLJKWGRHVQRWZRUN No power at the outlet. Replace fuse or reset the breaker.
Light bulb is burned out. See Care and Cleaning section.
Hot air from the bottom of the
refrigerator 1RUPDODLUIORZFRROLQJPRWRU,QWKH
refrigeration process, it is normal
that heat be expelled in the area
under the refrigerator. Some floor
coverings are sensitive and will
discolor at these normal and safe
temperatures.
This is normal.
Refrigerator never shuts off but the
temperatures are ok. Adaptive defrost keeps compressor
running during door openings. This is normal. The refrigerator will
F\FOHRႇDIWHUWKHGRRUUHPDLQVFORVHG
for 2 hours.
'RRUQRWFORVLQJSURSHUO\ 'RRUJDVNHWRQKLQJHVLGHVWLFNLQJ
or folding over. $SSO\SDUDႈQZD[WRWKHIDFHRIWKH
gasket.
'RRUGRHVQRWFORVHE\LWVHOI Leveling legs need adjusting. See Rollers and Leveling Legs in the
,QVWDOODWLRQLQVWUXFWLRQVVHFWLRQ
)UHH]HUGRRURSHQVZKHQ
refrigerator door is closed. This is normal if the door closes
after it pops open. This indicates that there is a good
VHDORQWKHIUHH]HUGRRU,IWKHIUHH]HU
door does not automatically close after
popping open, then see Door does
not close by itself, above.
)RRGIUHH]LQJLQWKHUHIULJHUDWRU )RRGWRRFORVHWRWKHDLUYHQWDWWKH
back of the refrigerator. Move food away from the air vent.
Refrigerator control is set too cold. Move the refrigerator control to a
warmer temperature.
+DQGOHLVORRVHKDQGOHKDVDJDS Handle needs to be adjusted. 6HH5HYHUVLQJ'RRU+DQGOHVLQWKH
,QVWDOODWLRQ,QVWUXFWLRQVVHFWLRQ
16 49-60769 Rev. 4
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
Refrigerator Limited Warranty
For US Customers, DOOZDUUDQW\VHUYLFHSURYLGHGE\RXU)DFWRU\6HUYLFH&HQWHUVRUDQDXWKRUL]HG&XVWRPHU&DUH®
technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.comRUFDOO*(&$5(6
3OHDVHKDYHVHULDOQXPEHUDQGPRGHOQXPEHUDYDLODEOHZKHQFDOOLQJIRUVHUYLFH
In Canada, FDOO
ŶService trips to your home to teach you how to
use the product.
ŶImproper installation, delivery or maintenance.
ŶFailure of the product if it is abused, misused, or
used for other than the intended purpose or used
commercially.
ŶLoss of food due to spoilage.
ŶReplacement of house fuses or resetting of circuit
breakers.
ŶDamage caused after delivery.
ŶReplacement of the water filter cartridge, if
included, due to water pressure that is outside
the specified operating range or due to excessive
sediment in the water supply.
ŶReplacement of the light bulbs, if included, or
water filter cartridge, if included, other than as
noted above.
ŶDamage to the product caused by accident, fire,
floods or acts of God.
ŶIncidental or consequential damage caused by
possible defects with this appliance.
ŶProduct not accessible to provide required service.
ŶDamage caused by a non-GE Appliances Brand
water filter.
ŶDamage to finish, such as surface rust, tarnish, or
small blemishes not reported within 48 hours of
delivery.
ŶProducts which are not defective, broken, or which
are working as described in the owner’s manual.
What is Not Covered:
For US Customers: This limited warranty is extended to the original purchaser and any succeeding
RZQHUIRUSURGXFWVSXUFKDVHGIRUKRPHXVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUH
VHUYLFHE\D*($SSOLDQFHV$XWKRUL]HG6HUYLFHULVQRWDYDLODEOH\RXPD\EHUHVSRQVLEOHIRUDWULSFKDUJH
RU\RXPD\EHUHTXLUHGWREULQJWKHSURGXFWWRDQ$XWKRUL]HG*($SSOLDQFHV6HUYLFHORFDWLRQIRUVHUYLFH
,Q$ODVNDWKHOLPLWHGZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited
warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s
Attorney General.
Warrantor US: GE Appliances, aHaier company
Louisville, KY 40225
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair
as provided in this Limited Warranty. Any implied warranties, including the implied warranties
of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law.
For the Period of: GE Appliances Will Replace
One Year
)URPWKHGDWHRIWKH
original purchase
Any part of the refrigerator which fails due to a defect in materials or workmanship.
'XULQJWKHlimited one-year warranty, GE Appliances will also provide, free of
charge,all labor and related service to replace the defective part.
For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding
owner for products purchased in Canada for home use within Canada. In-home warrant service will be
provided in areas where it is available and deemed reasonable by Mabe to provide.
Warrantor Canada: MC Commercial, Burlington, Ontario, L7R 5B6
LIMITED WARRANTY
49-60769 Rev. 4 17
ACCESSORY
Icemaker Accessory Kit IM4D:
$Q,0'LFHPDNHUDFFHVVRU\NLWLVDYDLODEOHDWH[WUD
cost.
7RRUGHUFDOO*($SSOLDQFHVDW*(&$5(6
RUYLVLWGEAppliances.com,Q&DQDGD
visit GEAppliances.caRUFDOO
)ROORZWKHLQVWDOODWLRQLQVWUXFWLRQVRQWKHIROORZLQJ
pages. You will use these instead of the instructions that
come with your icemaker.

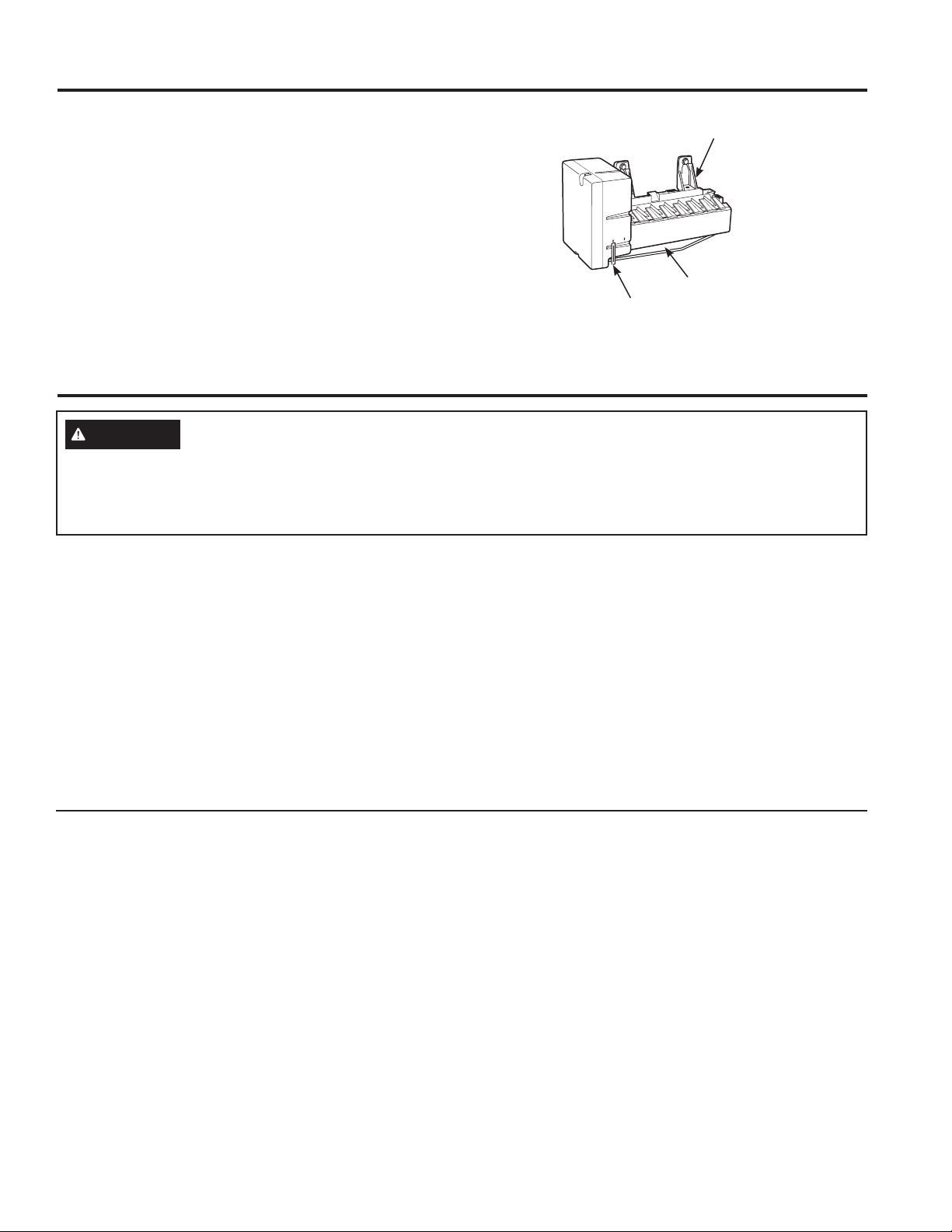

Accessory
About the IM4D Icemaker
ON OFF
,FHPDNHU
)HHOHU$UP
Power Switch
CAUTION
'RQRWSODFHILQJHUVRUKDQGVLQWKHDXWRPDWLF
icemaking mechanism while the refrigerator is plugged
in. This will help protect you from possible injury.
,WZLOODOVRSUHYHQWLQWHUIHUHQFHZLWKPRYLQJSDUWVRI
the ejector mechanism and the heating element that
releases the cubes, located on the bottom of the
icemaker.
7KHLFHPDNHUZLOOSURGXFHVHYHQFXEHVSHUF\FOH²
approximately 70-100 cubes in a 24-hour period,
GHSHQGLQJRQIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRP
temperature, number of door openings and other use
conditions.
,IWKHUHIULJHUDWRULVRSHUDWHGEHIRUHWKHZDWHUFRQQHFWLRQ
is made to the icemaker, set the power switch to OFF.
When the refrigerator has been connected to the water
supply, set the power switch to ON.
7KHLFHPDNHUZLOOILOOZLWKZDWHUZKHQLWFRROVWRIUHH]LQJ
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
<RXZLOOKHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHU
fills with water.
Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
,WLVQRUPDOIRUVHYHUDOFXEHVWREHMRLQHGWRJHWKHU
,ILFHLVQRWXVHGIUHTXHQWO\ROGLFHFXEHVZLOOEHFRPH
cloudy, taste stale and shrink.
Preparing for Vacation
Set the icemaker power switch to OFF and shut off the
water supply to the refrigerator.
,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHD
qualified servicer drain the water supply system (on
some models) to prevent serious property damage due
to flooding.
When you should set the icemaker power
switch to OFF
Ŷ:KHQWKHLFHVWRUDJHELQLVUHPRYHGIRUPRUHWKDQD
minute or two.
Ŷ:KHQWKHZDWHUVXSSO\ZLOOEHVKXWRIIIRUVHYHUDO
hours.
Ŷ:KHQWKHUHIULJHUDWRUZLOOQRWEHXVHGIRUVHYHUDOGD\V
49-60769 Rev. 4
Accessory Installation Instructions
ACCESSORY INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions for
local inspector’s use.
•IMPORTANT – Observe all governing codes
and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – .HHSWKHVHLQVWUXFWLRQV
for future reference.
• Skill level±,QVWDOODWLRQRIWKLVDSSOLDQFHUHTXLUHV
basic mechanical skills.
• Completion time – 20–60 minutes
•Proper installation is the responsibility of the
installer.
•Product failure due to improper installation is not
covered under the Warranty.
,I\RXKDYHTXHVWLRQVFDOO*($SSOLDQFHVDW1.800.GE.CARES or visit our Website at:
GEAppliances.com.,Q&DQDGDFDOO1.800.561.3344 or visit our Website at: geappliances.ca
Damage – Shipment/Installation
Ɣ,IWKHXQLWLVGDPDJHGLQVKLSPHQWUHWXUQWKHXQLW
to the store in which it was bought for repair or
replacement.
Ɣ,IWKHXQLWLVGDPDJHGE\WKHFXVWRPHUUHSDLURU
replacement is the responsibility of the customer.
Ɣ,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHULIRWKHUWKDQ
the customer), repair or replacement must be made
by arrangement between customer and installer.
ITEMS NEEDED FROM IM4D KIT
,QVWDOODWLRQ,QVWUXFWLRQV
2
Hex-Head Screw
IRU:DWHU/LQH&ODPS´
5
Water Valve and
Tube Assembly
3
,FHPDNHU
1
,QVWDOODWLRQ
,QVWUXFWLRQV
,FH%XFNHW
8
Water Line Clamp
(strain relief), for
house water line
6
10 Phillips Head Screws,
for mounting icemaker (2)
´
Warranty Label
7
ICEMAKER
WARRANTY VERIFICATION
Date Installed
Dealer
13
17
16
,FHPDNHU)LOO&XS
(side-mounted)
Hex-Head Screws, for
bracket extension (1)
´
Bracket Extension
49-60769 Rev. 4
YOU WILL NEED
Accessory Installation Instructions
INSTALLING IM4D ICEMAKER KIT
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING ELECTRICAL
SHOCK HAZARD To eliminate the
risk of electric shock or injury during
installation, you must first unplug the
refrigerator before proceeding.
)ODWEODGHDQG3KLOOLSV
screwdrivers Pliers Sharp knife
PREPARE THE REFRIGERATOR
,QVLGHRIWKHIUHH]HU
remove the cover for the
icemaker power supply
socket.
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF.
Power
Switch
(Appearance may vary)
INSTALL THE ICEMAKER FILL CUP
,QVWDOOWKHicemaker fill cup (13) into the icemaker
as shown.
PLUG IN THE ICEMAKER
Plug the icemaker power cord into the socket making
sure the prongs and holes are matched. Press the
plug firmly into the socket.
Lock the plug in place by
clipping the restraints into
each side of the plug. Make
sure the restraints click into
place. Make sure the power
cord is still in the hook on
back of the icemaker.
Hook
ACCESSORY INSTALLATION INSTRUCTIONS
Cover for
icemaker
socket
MOUNT THE ICEMAKER
Ɣ)RUHDV\LQVWDOODWLRQUHPRYHWKHXSSHUIUHH]HU
basket.
Ɣ'ULYHDPRXQWLQJVFUHZKDOIZD\LQWRLQVLGHVFUHZ
hole on the support bracket of the left side upper
ZDOOLQWKHIUHH]HU/LIWWKHLFHPDNHUVRWKHILOOWXEH
assembly fits in the fill cup opening. Hang the
icemaker on the screw and on the L-shaped tab
in front of the supporting bracket. Then drive the
second mounting screw into the support bracket.
Make sure:
ƔThe power cord is still firmly in the socket.
Ɣ7KHfill tube assembly extends into the fill cup
opening at the back of the icemaker. (Check the
rear of the refrigerator to make sure the fill tube has
not been pushed out of the back of the refrigerator).
Ɣ7KHLFHPDNHUPRXQWLQJVFUHZVVKRXOGEHORFDWHGLQ
the uppermost position of the mounting slots on the
icemaker bracket.
Ɣ7KHLFHPDNHULVOHYHO
Ɣ7KHLFHPDNHUSRZHUVZLWFKLVLQWKHOFF position.
SECURELY TIGHTEN THE ICEMAKER MOUNTING
SCREWS.
Mounting
screws
L-shaped
tab
)LOOFXS
)LOOWXEH
,FHPDNHU
support
bracket
20 49-60769 Rev. 4
Accessory Installation Instructions
INSTALLING ICEMAKER IM4D (CONT.)

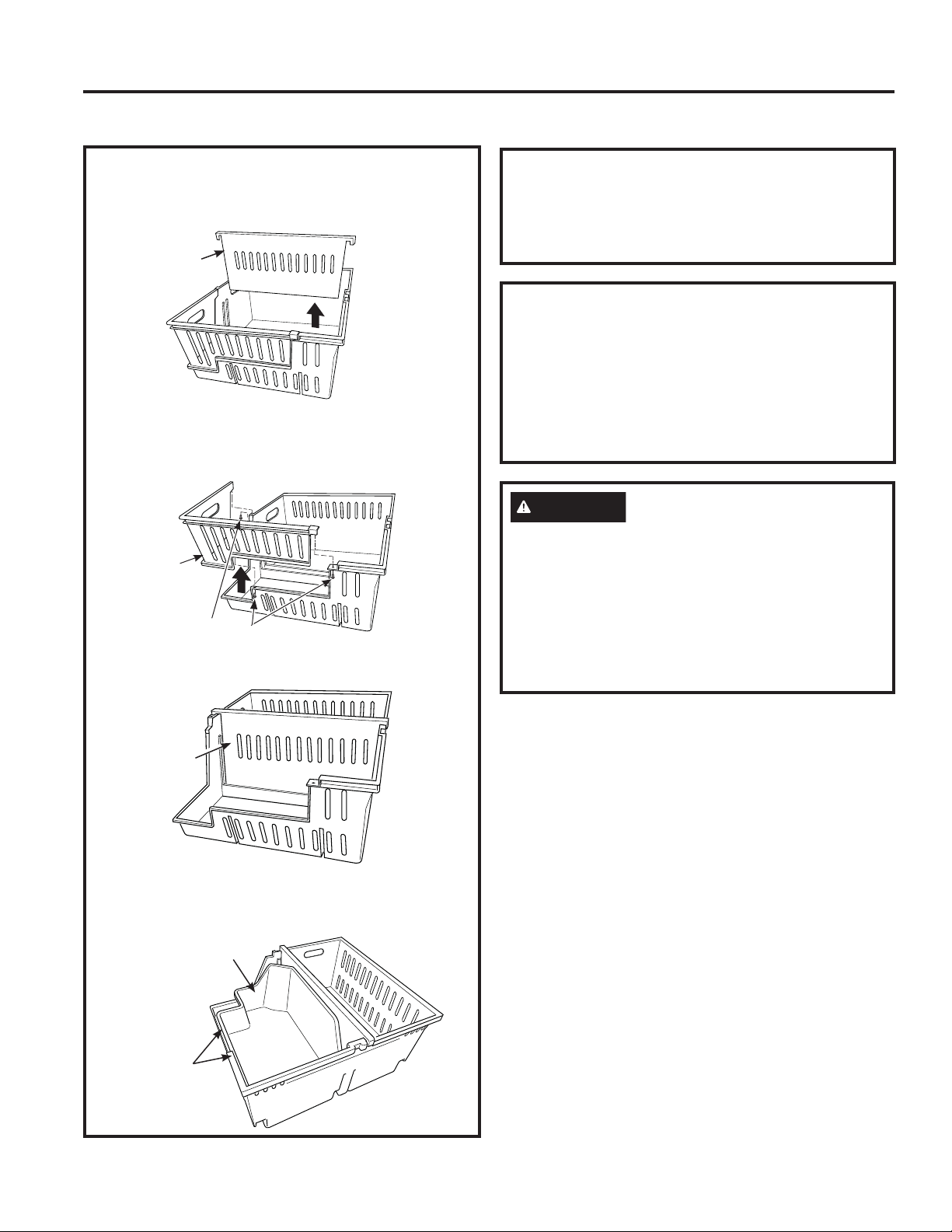

INSTALL THE ICE BUCKET
Ɣ5HPRYHWKHPLGGOHGLYLGHUIURPWKHWRSIUHH]HU
drawer.
Ɣ5HPRYHWKH/VKDSHGLQVHUWE\XQVFUHZLQJWKH
VFUHZVRQHDFKHQG,QVHUWWKHEXWWRQVSURYLGHG
into the holes in the ice bucket.
Ɣ,QVWDOOWKHPLGGOHGLYLGHULQWRWKHULJKWVORW
Ɣ3ODFHWKHLFHEXFNHWRQWKHERWWRPULEVLQWKHOHIW
side of the drawer.
ATTACH WARRANTY LABEL
A label is provided with this kit to record the date of
installation for warranty purposes. Apply it to the back
of the refrigerator.
KEEP THE MANUAL
The warranty for the icemaker is printed in the
manual that came with your icemaker kit. Keep
this manual with your Refrigerator Owner’s
Manual.
7KHLFHPDNHULQVWDOODWLRQLQVLGHWKHIUHH]HULVQRZ
complete. Continue to the Water Valve Assembly
section.
CAUTION
'RQRWSODFHILQJHUVRUKDQGVLQWKHDXWRPDWLF
icemaking mechanism while the refrigerator is
plugged in. This will help protect you from possible
injury.
,WZLOODOVRSUHYHQWLQWHUIHUHQFHZLWKPRYLQJSDUWVRI
the ejector mechanism and the heating element that
releases the cubes, located on the bottom of the
icemaker.
ACCESSORY INSTALLATION INSTRUCTIONS
5LEVIRU,FH
Bucket (under
ice bucket)
,FH
Bucket
Middle
'LYLGHU
Middle
'LYLGHU
,QVHUW
Screws
This manual suits for next models
1
Table of contents
Languages:
Other GE Refrigerator manuals
GE
GE Monogram ZIF36N LH User manual
GE
GE Profile PSHS6PGZSS Manual
GE
GE 49-6514 Installation instructions
GE
GE Profile PDF22MCR User manual
GE
GE Profile PSSS9RGX User manual
GE
GE Side by Side 26 User manual
GE
GE PFSF0MFCBB Manual
GE
GE GMR03BLH Original instructions
GE
GE Profile PSSS3RGZSS Assembly instructions
GE
GE Side by Side 22 Dispenser User manual
GE
GE PFCS1NFCSS Assembly instructions
GE
GE GTR11AAPR User manual
GE
GE MonogramZISW/B360DX Manual
GE
GE TFX27F Installation instructions
GE
GE monogram ZDBC240 User manual
GE
GE Profile PGSS5NFYSS Manual
GE
GE ZIR360NHRH User instructions
GE
GE Profile Arctica Service manual
GE
GE GSHF5KGX Manual
GE
GE Profile PCF25PGT Manual
