GE PSW26MSTSS Manual

PSW26MST
GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
"94 SxS Refer
A
Front View
Top View
G
D
C
F
BE
H

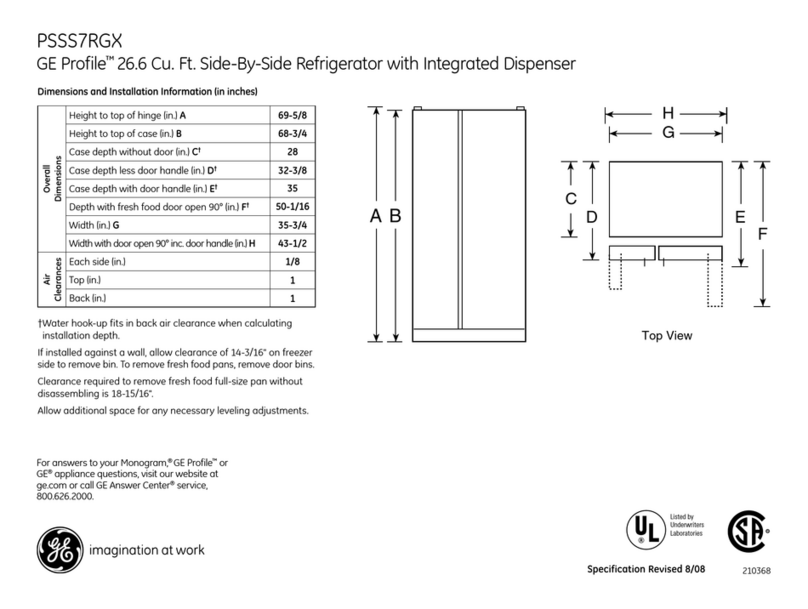

Dimensions and Installation Information
*When cap is removed: 69-1/4"
**Width including top caps is 35-7/8".
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 12/05 210341
R
R
Overall
Dimensions
Height to top of hinge (in.) A 70-3/4*
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C†28-1/2
Case depth less door handle (in.) D†32-3/4
Case depth with door handle (in.) E†35-3/8
Depth with fresh food door open 90° (in.) F†50-9/16
Width (in.) G 36**
Width with door open 90° less door handle (in.) H 42-3/8
Air
Clearances
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
PSW26MST
GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 12/05 210341
R
R
To Remove Top Caps and Doors on PSW26MST
Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top
cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward
to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by pushing against the collar
on the left side. Disconnect wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully
remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh
food door in the same manner. Note: Do not remove bottom hinges! Door alignment
will be difficult if bottom hinges are removed.
Step 5: Place refrigerator onto a hand truck, upright and against one side.
Move refrigerator to the installation location.
Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and
electrical connector through the bottom hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top
and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
Water Line Coupler
1.
366-15A
Hinge Screws
Wire Harness
Toekick Screw
4.
3.
2.

PSW26MST
GE Profile™ ENERGY STAR® 25.6 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
PSW26MSTSS
WATER
LOCK
Hold 3 seconds
CRUSHED
DOOR
ALARM
CUBED
LIGHT
Hold 3 seconds to Reset
QUICK ICE
RSET
FILTER
Specification Created 12/05 210341
Features and Benefits
• Stainless-Wrapped - Provides stainless steel doors, side panels and top for a truly dramatic look
• ClimateKeeper™ System - Best Temperature Management System You Can Buy!
• ExpressChill™ with 3 settings - Chills beverages quickly. Select 15, 30 or 45 minute with easy one
button selection
• Electronic controls with actual temperature display - Eliminates guesswork in setting
refrigerator temperatures
• Tall LightTouch! Dispenser with Child Lock - Delivers chilled water, cubed ice or crushed ice at the
slightest touch. A child lockout option keeps the dispenser off limits to little hands
• Slide ‘n Store™ Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet, providing
easy loading and unloading
• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
• Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access to
bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Model PSW25MSTSS - Stainless steel
