Gecko EXODUS ODYSSEY MXR3604L User manual

GECKO® EXODUS ODYSSEY MXR 3604L / MXR 5204L
www.geckomusic.net
www.geckomusic.net
OWNER'S MANUAL
OWNER'S MANUAL

GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be
read carefully.
SYMBOLS:
SYMBOLS:
SAFETY INSTRUCTIONS:
SAFETY INSTRUCTIONS:
•To reduce the risk of electrical shock, do not remove covers. No user serviceable parts inside. Please
refer servicing to qualified personnel.
•To reduce the risk of electrical shock or fire, do not expose the equipment to rain or moisture.
•Do not impose unnecessary stress on your equipment (i.e. placing heavy objects on it, overscrewing its
mounting etc).
•Read and keep the instruction manuals in a safe place for future references.
•Do not attempt to clean the equipment with chemical solvents as this may damage the finish. Clean only
with dry cloth.
•Do not block any ventilation openings.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
•Do not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the grounding prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for the replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
•Unplug the apparatus during lightning storms or when it is not in use for a long period of time.
NOTES
NOTES
Contain important information and useful tips on the operation of your equipment.
WARNING
WARNING
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to
alert the user to the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
CAUTIONS
CAUTIONS
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in thee
literature accompanying the appliance. Please read the manual carefully.
H
HEADPHONES
EADPHONES
SAFETY
SAFETY
WARNIN
WARNING
G
Contain important information and use
useful tips on headphones outputs and monitoring
levels.
!

•Use only attachments / accessories specified by the manufacturer.
•Always shut down power supply when not in use to save energy and for prolonged lifespan.
•Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if
exposed to sufficiently intense noise for a period of time. The U.S. Government’s Occupational Safety
and Health Administration (OSHA) has specified the permissible noise level exposures shown in the
following chart. According to OSHA, any exposure in excess of these permissible limits could result in
some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels
use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or
over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if
exposure is in excess of the limits set forth here:

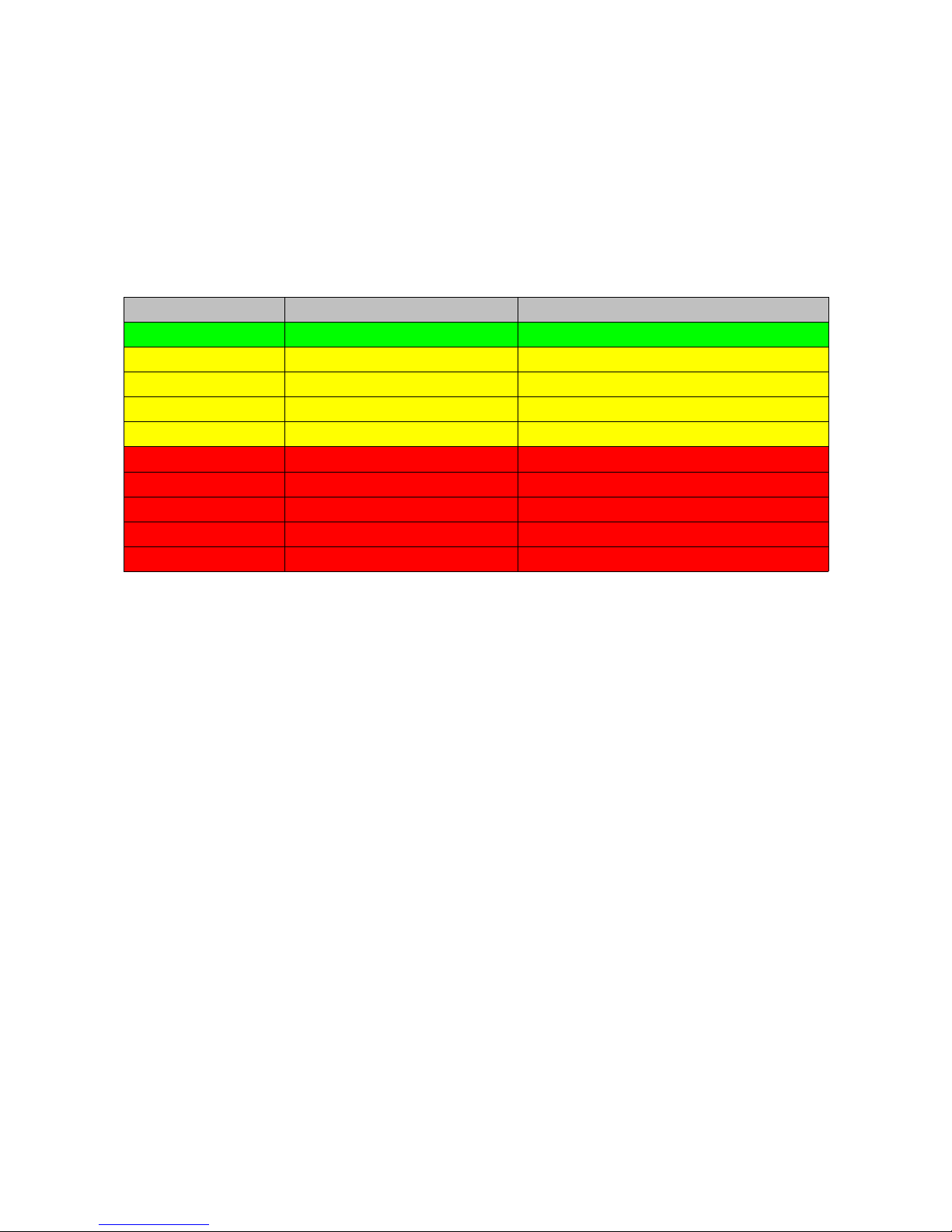

Duration/Day (Hours) dB, Sound Pressure Level (SPL) Descriptions
Below 90 dB Safe zone
8.00 90 Hearing damage
6.00 92
4.00 95
3.00 97
2.00 100 Serious hearing damage
1.50 102
1.00 105
0.50 110
0.25 or less 115 Human pain threshold
GECKO MUSIC GROUP
GECKO MUSIC GROUP
No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas,
Paya Rumput, 76450 Melaka, Malaysia.
Mobile: +6012.204 2175

FOREWORD
FOREWORD
Dear Friends,
Thank you very much for purchasing quality products by GECKO MUSIC GROUP. I am indeed very
delighted that we have journeyed this far, setting new standards in the audio and music industry while
touching and changing lives along the way!
At GECKO MUSIC GROUP we focus on developing nothing but the best professional audio equipment and
premium grade musical instruments you ever need! It has been our philosophy all this while that good sound
reproductions can be achieved at a fraction of a premium. Our engineering team is constantly doing research
and development to meet this objective. We thank God that by HIS grace, we have succeeded in developing
the revolutionary C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being
encoded, reproduced and managed!
On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our
traditions in serving music and audio communities around the world with more value-added highest possible
quality GECKO® professional audio equipment and premium grade musical instruments!
Once again, thank you very much for your support.
Yours truly,
Daniel Foo
Founder / Chairman
GECKO MUSIC GROUP

TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION 1
PACKAGE CONTENTS 2
PANEL LAYOUTS 3
INSTALLING THE CONSOLEE LAYOUT 6
CONNECTING POWER 7
CONNECTIONS 9
THE CONSOLE CONNECTORS 12
MONAURAL INPUT CHANNEL 16
STEREO INPUT CHANNEL 19
GROUP / AUX MASTERS 21
L-R-M MASTERS 22
7x4 MATRIX 23
MONITOR, TALKBACK, SIGNAL GENERATOR 25
BLOCK DIAGRAM 27
SPECIFICATIONS 28
WARRANTY 30
NOTES: This manual covers the large-format 36-channel GECKO® EXODUS
ODYSSEY MXR 3604L C.R.I.S.T.A.L.® Audiophile mixing console and the 52-
channel GECKO® EXODUS ODYSSEY MXR 5204L C.R.I.S.T.A.L.® Audiophile
mixing console. As both consoles are operationally identical, this manual will discuss
the GECKO® EXODUS ODYSSEY MXR 5204L.
______________________________________________________________________________________
© GECKO MUSIC GROUP. All Rights Reserved.

INTRODUCTION
INTRODUCTION
World's first audiophile grade consoles. The GECKO® EXODUS ODYSSEY MXR 3604L and MXR 5204L
C.R.I.S.T.A.L.® Audiophile mixing consoles are designed for professional engineers and audiophiles seeking
those “long lost” pure, smooth, warm tones for their music recording, mixing, mastering, and live sound
applications in this world very much filled with digital colorations and noises.
Everything about the EXODUS ODYSSEY has been designed to give you optimum audio fidelity, from the
superb sounding C.R.I.S.T.A.L.® Audiophile PreAmps to the linearly noiseless VCA faders.
Equipped with a comprehensive range of features such as assignable talkback functions, matrices, individual
channel direct out, etc... you can be sure that the EXODUS ODYSSEY desk is not only a fantastic piece of
engineering, it also makes complex mixes easy!
C.R.I.S.T.A.L.® Audiophile mixing consoles are the ultimate analogue mixing consoles for the modern audio
world.
Features at a glance:
•36 channels frame (MXR 3604L) / 52 channels frame (MXR 5204L)
•C.R.I.S.T.A.L.® Audiophile PreAmps for smooth gain structure and headroom
•C.R.I.S.T.A.L.® Audiophile circuitry for uncolored, lossless stereo summing
•MAIN LR (stereo) mix
•Multi-mode M output
•7 x 4 MATRIX
•6 AUX sends
•4 GROUP sends
•100mm dust-protected VCA faders for linearly noiseless operations
•Channel DIRECT OUT for multitrack recordings
•PRE/POST EQ and PRE/POST fader switching for AUX and DIRECT OUT
•Assignable TALKBACK
•1kHz OSCILLATOR / PINK Noise generator
•Per channel +48V PHANTOM, POLARITY, HPF, LINE/PAD
•Audiophile-precision channel EQ with BYPASS function
•Solid copper ground buss
•Dual-functionality console for front-of-house and monitoring
•HEADPHONES and MONITOR outputs
•Stabilized power supplies: Built-in Universal Power Supply (MXR 3604L) / JORDAN PS 2410U
(MXR 5204L)
•and many other wonderful features.
______________________________________________________________________________________
1
1
© GECKO MUSIC GROUP. All Rights Reserved.

PACKAGE CONTENTS
PACKAGE CONTENTS
EXODUS ODYSSEY MXR 3604L:
•GECKO® EXODUS ODYSSEY MXR 3604L 36-channel C.R.I.S.T.A.L.® Audiophile mixing console
•IEC Power Cord. EXODUS ODYSSEY MXR 3604L comes with built-in universal power supply.
EXODUS ODYSSEY MXR 5204L:
•GECKO® EXODUS ODYSSEY MXR 5204L 52-channel C.R.I.S.T.A.L.® Audiophile mixing console
•IEC Power Cord
•GECKO® JORDAN PS 2410U universal power supply with 10-pin DC power cable
______________________________________________________________________________________
2
2
© GECKO MUSIC GROUP. All Rights Reserved.

PANEL LAYOUTS
PANEL LAYOUTS
FRONT
______________________________________________________________________________________
3
3
© GECKO MUSIC GROUP. All Rights Reserved.

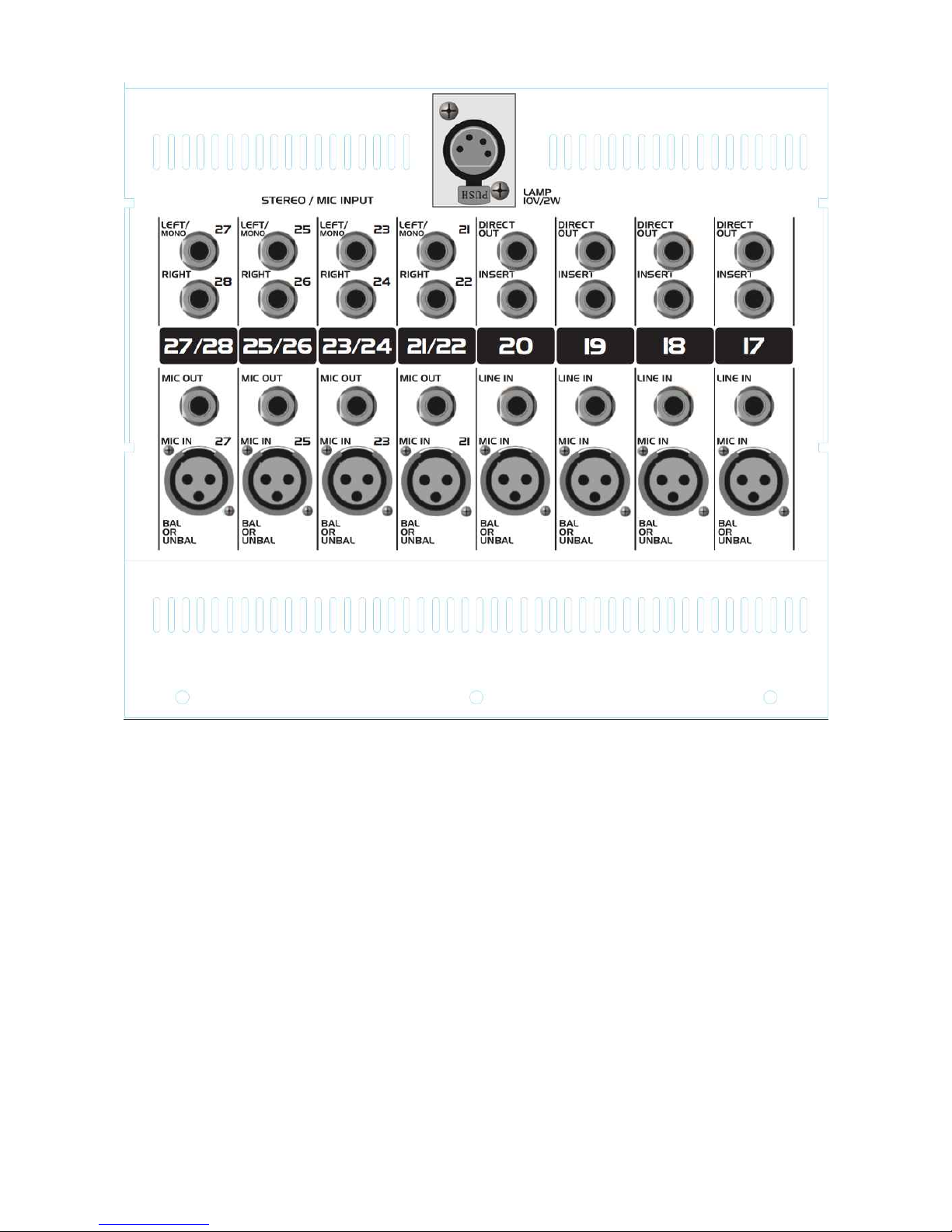

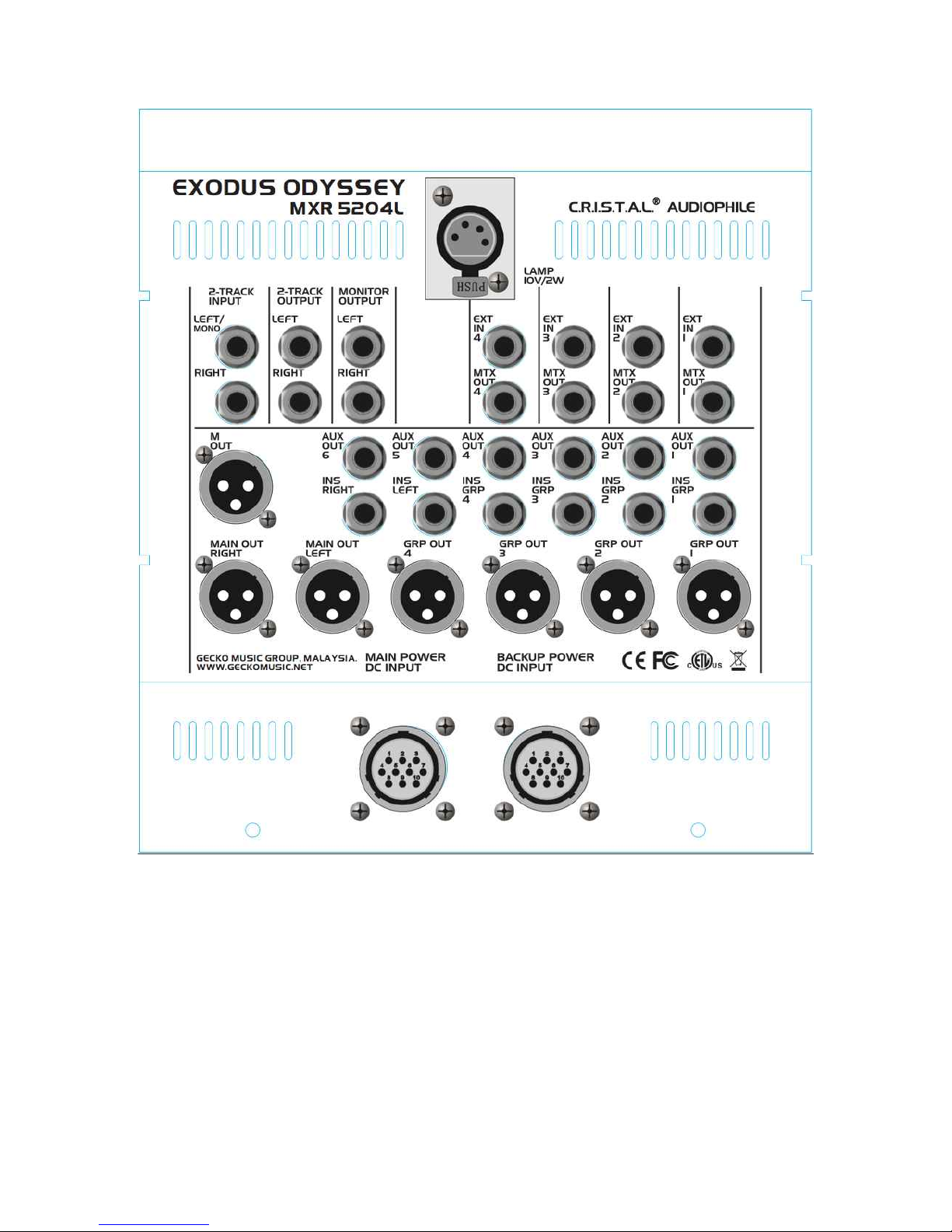

REAR
______________________________________________________________________________________
4
4
© GECKO MUSIC GROUP. All Rights Reserved.

______________________________________________________________________________________
5
5
© GECKO MUSIC GROUP. All Rights Reserved.

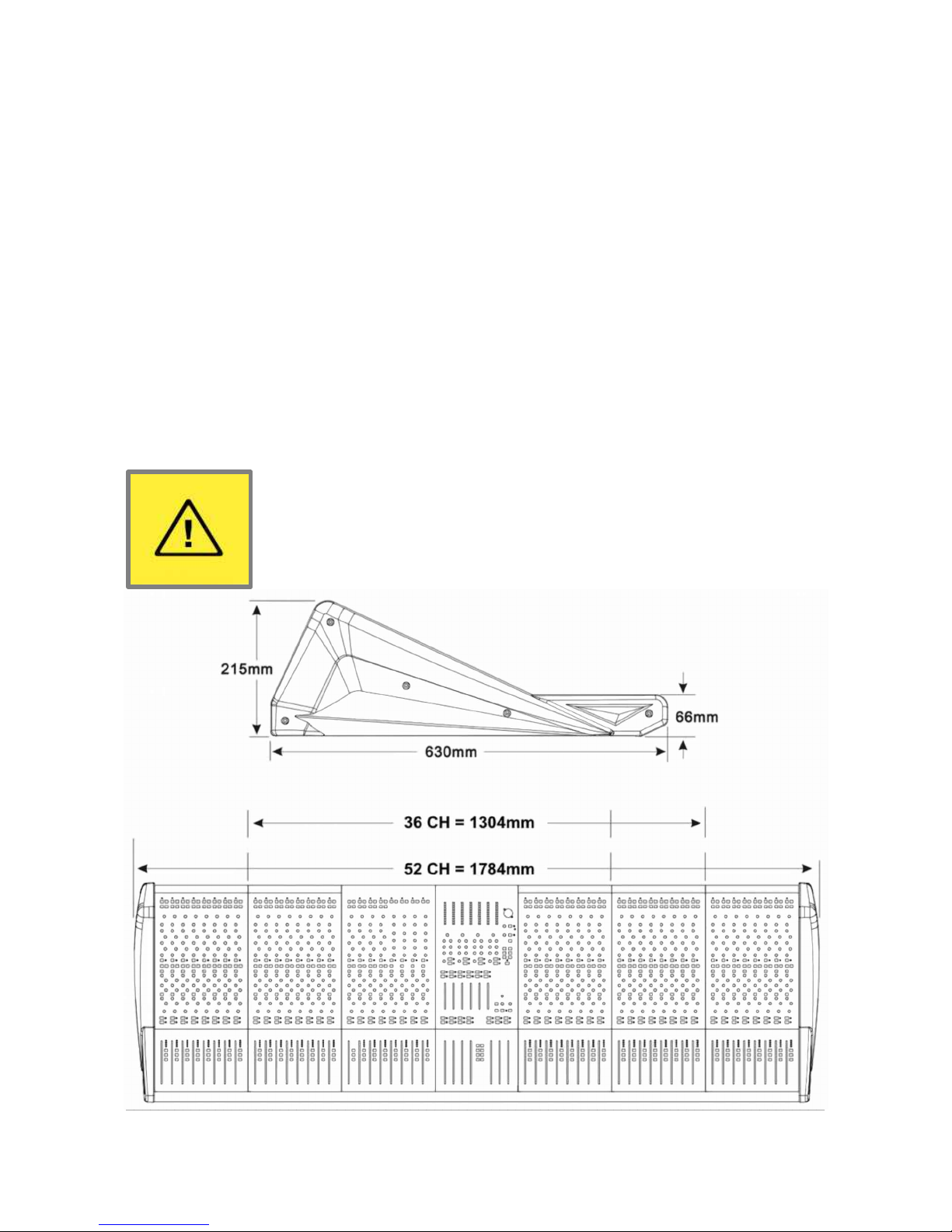

INSTALLING THE CONSOLE
INSTALLING THE CONSOLE
The EXODUS ODYSSEY mixing console has a space saving, compact chassis design. This is convenient,
both in saving seats for the paying audience in a busy venue, and in reducing the size, complexity and
weight of flight casing for on-the-road use. The control surface has a 10 degree slope for optimum visibility
during operations.
Free Standing
The console has rubber feet fitted for free standing operation on a flat surface. Make sure the surface is well
supported, stable and big enough for the console to sit securely on all its feet. Allow enough space behind
the console for access to its connectors.
Flight Casing
The console is shaped for easy flight casing. Make sure it is supported on all sides using suitably thick,
shock absorbent foam intended for this purpose. Ensure no part of the case or its lid touches the controls or
connectors. If you include a rear “doghouse” to house the connections, make sure the cables can be
supported in a way that prevents putting stress on the console connectors. To prevent transit damage
through inadequate protection, we recommend you have the flight case supplied or approved by a
professional, and or a specialist equipment case manufacturer.
CAUTIONS: Do not obstruct the ventilation openings on the top and rear surfaces.
Ensure adequate air flow around these surfaces. To avoid audible hum, buzz or
other performance degradation, do not place equipment that radiates strong
electromagnetic fields such as mains power supplies, amplifiers, and computers next
to or directly underneath the console.
______________________________________________________________________________________
6
6
© GECKO MUSIC GROUP. All Rights Reserved.

CONNECTING POWER
CONNECTING POWER

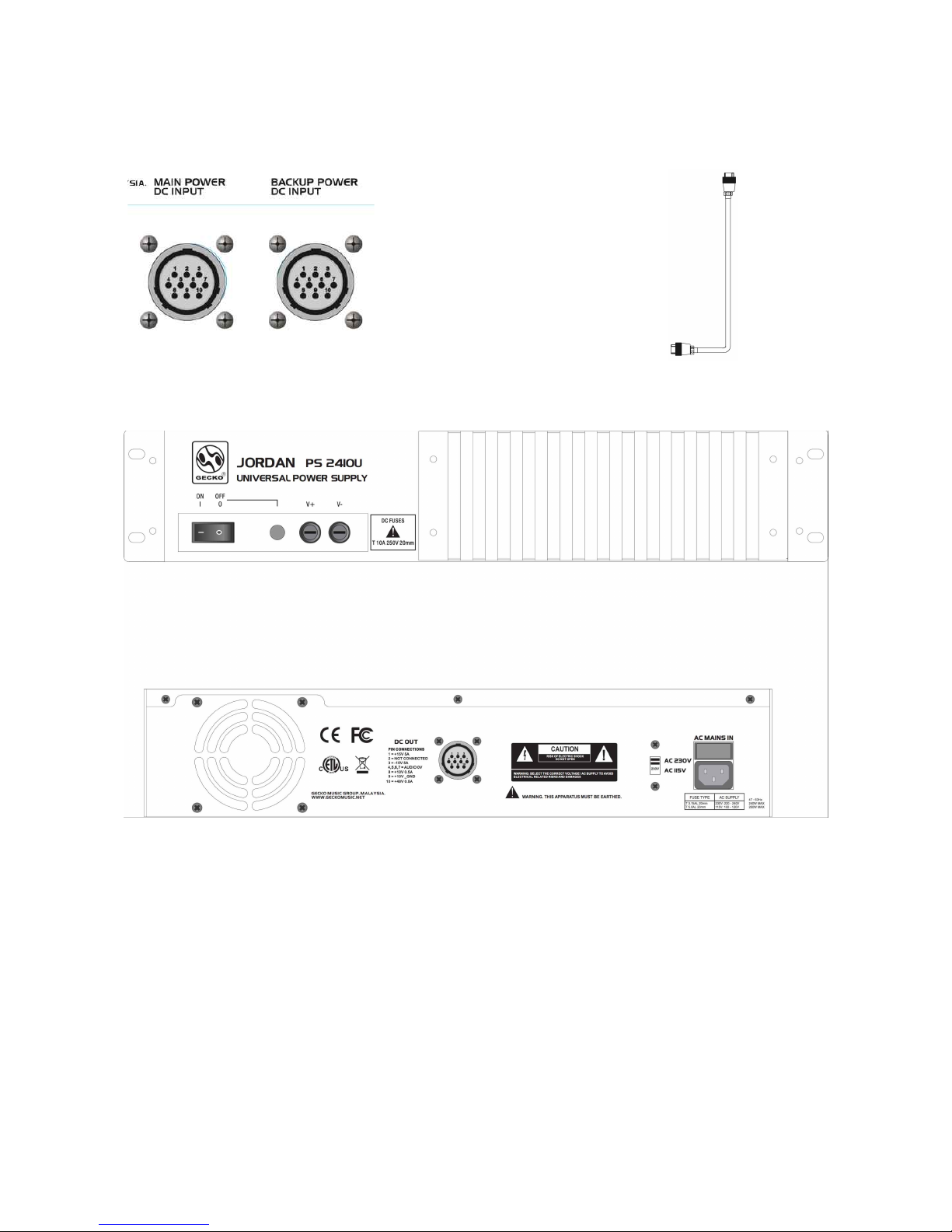

EXODUS ODYSSEY MXR 5204L 10-PIN DC INPUTS
JORDAN PS 2410U UNIVERSAL POWER SUPPLY
Read and understand the Safety Instructions printed at the start of this manual, and the warnings printed
on the rear of the console. Check that your local mains supply voltage is the same as that selected on the
rear of the JORDAN PS 2410U universal power supply unit. Connect the supplied 10-pin DC power cable to
the MAIN POWER DC INPUT on the console and to DC OUT at the rear of the JORDAN PS 2410U. Check
that the correct mains lead with moulded plug has been supplied. Make sure the IEC mains plug is pressed
fully into the panel socket of the JORDAN PS 2410U before switching on.
GROUNDING
The connection to ground in an audio system is important for two reasons:
1. SAFETY – To protect the operator from high voltage electric shock, and
2. AUDIO PERFORMANCE – To minimize the effect of ground (earth) loops which results in audible
hum and buzz, and to shield the audio signals from interference.
______________________________________________________________________________________
7
7
© GECKO MUSIC GROUP. All Rights Reserved.

CONNECTING THE POWER SUPPLY
Connect the supplied 10-pin DC power cable to the MAIN POWER DC INPUT on the console and to DC
OUT at the rear of the JORDAN PS 2410U.
SWITCHING THE CONSOLE ON AND OFF
It is a good practice to turn power amplifiers off before switching the console and other connected equipment
on or off. This prevents any unexpected clicks or thumps when the equipment is powered up.
CAUTIONS: Turn power amplifiers and powered speakers on last and off first.
Turn the EXODUS ODYSSEY MXR 5204L console on and off using the ON/OFF power switch on the front
of the JORDAN PS 2410U (there is no separate ON/OFF switch on the MXR 5204L console itself). The red
neon indicator on the front panel of the JORDAN PS 2410U will illuminate to show the JORDAN PS 2410U
universal power supply is powered up. The green POWER ON LED indicator on console front panel will
illuminate to show the console is switched on.
To turn the MXR 3604L on, press the ON/OFF button found at the rear panel of the console. The green
MAIN LED / ACTIVE POWER SUPPLY next to the ON/OFF button will illuminate to show main power supply
is in operation. The green POWER ON LED indicator on console front panel will illuminate to show the
console is switched on.
CONNECTING A BACKUP SUPPLY
A second power socket, labelled “BACKUP POWER DC INPUT” is included for plugging in an optional power
supply. This provides the reassurance of power supply dual redundancy, a feature usually found only on
expensive top end consoles. The console uses Diode Combining technology so that both supplies can be
powered at the same time. One will automatically take over should the other be switched off or stopped
working. The recommended backup supply for the EXODUS ODYSSEY MXR 5204L is a second JORDAN
PS 2410U and JORDAN PS 2310U for EXODUS ODYSSEY MXR 3604L.
CAUTIONS: Use only the recommended power supply unit. Do not attempt to
modify any other power unit to work with the console. Do not attempt to modify or
extend the DC power cable that comes with the supply.
______________________________________________________________________________________
8
8
© GECKO MUSIC GROUP. All Rights Reserved.
For safety it is important that all equipment grounds are connected to mains grounds
so that exposed metal parts are prevented from carrying high voltage which can
injure or even kill the operator. Do not disconnect the ground on the mains lead. It is
recommended that the system engineer check the continuity of the safety ground
from all the points in the system including microphone bodies, turntable chassis,
equipment cases, rack metalwork and so on.

The green BACKUP LED / ACTIVE POWER SUPPLY next to the ON/OFF button on the EXODUS
ODYSSEY MXR 3604L will illuminate to show backup power supply is active.
CONNECTIONS
CONNECTIONS
______________________________________________________________________________________
9
9
© GECKO MUSIC GROUP. All Rights Reserved.

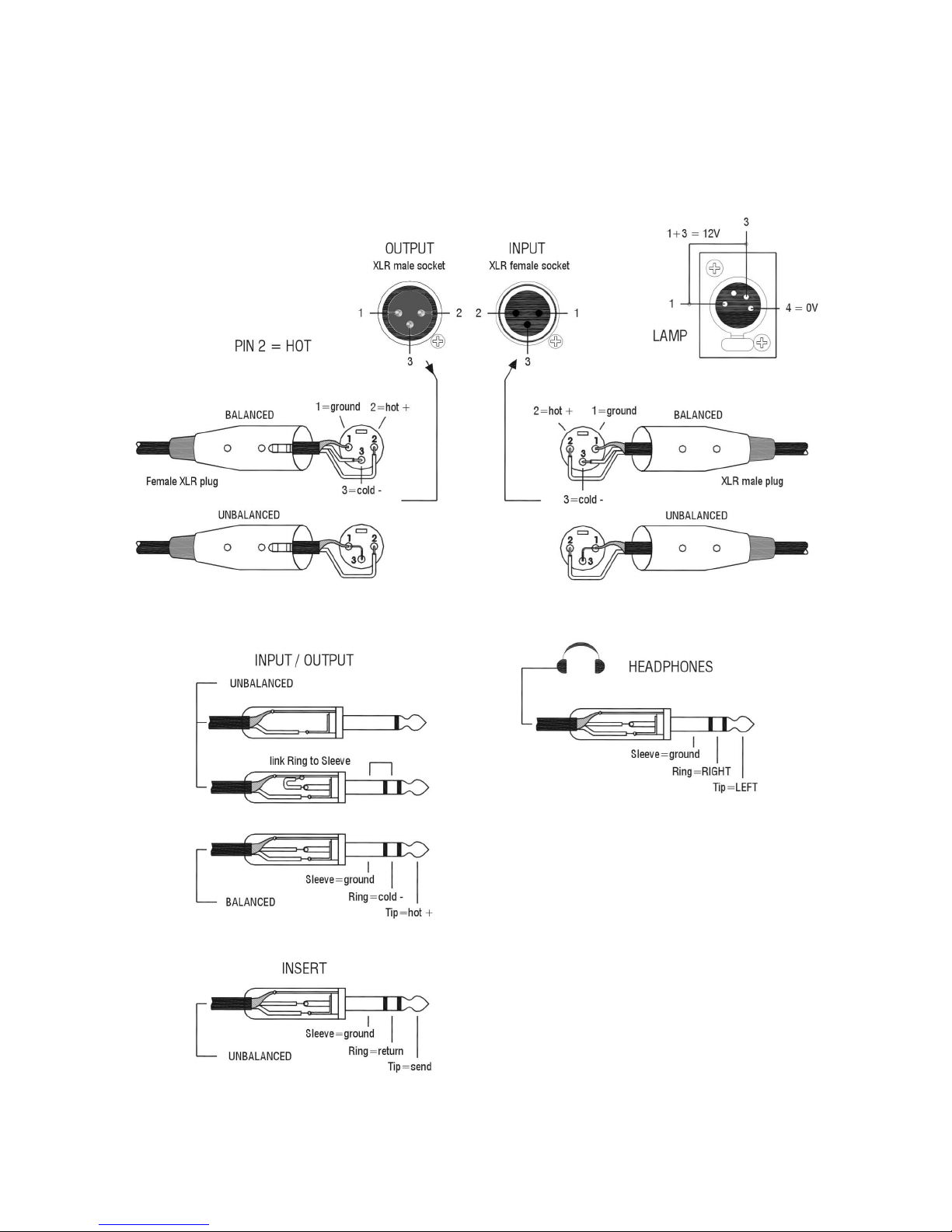

Notes: All the TRS and
TS connectors illustrated
here are of ¼” (6.3mm)
diameter.

This mixer uses professional grade 3-pin XLR (male and female) and ¼” TRS (3-pole) sockets. To ensure
best performance, we recommend that you use high quality TRUTH T3AL audiophile signal cables and
OLYMPIAN series audiophile connectors for your connections. Take time to check for reliable and accurate
cable assembly. It is well known that most audio system problems (and sound quality degradations) are due
to faulty or sub standard interconnecting leads and connectors.
______________________________________________________________________________________
10
10
© GECKO MUSIC GROUP. All Rights Reserved.
Notes: All the TRS and TS connectors illustrated here are of ¼” (6.3mm) diameter.

DEALING WITH GROUND LOOPS, BUZZ, AND INTERFERENCE
For optimum performance, all audio signals should be referenced to a solid, noise-free ground (earth) point,
also known as “star point” or “clean earth”.
A ground loop is created when potential differences exist between grounds at different points in the system,
and the signal has more than one path to ground. In most cases, ground loops do not result in audible
problems. Should you experience hum or buzz caused by a ground loop, check first that each piece of
equipment has its own separate path to ground. If so, operate ground lift switches on connected equipment
(i.e. DI boxes) in accordance to their respective instruction manuals.
Alternatively, disconnect the cable screen at the destination end only. This breaks the offending loop while
keeping the signal shielding down the length of cable.
WARNING: For operator safety, do not remove the ground (earth) connection in the
power lead of the console or connected equipment.
To avoid interference pickup, keep audio cables away from mains power units and cables, lighting cables,
thyristor dimmer units, computer equipment, and mobile phones. Where this cannot be avoided, cross the
cables at right angle (90 degrees) to minimize interference.
A NOTE ON BALANCED CONNECTIONS
A differentially balanced connection has two signal wires, signal + (hot) and signal - (cold), and a shield. The
signal source generates positive going polarity down the + wire and negative polarity down the - wire. The
destination input stage accepts the + signal on its non-inverting (+) input pin, but it inverts the - signal, adding
it to the + signal. The result is that the wanted signal is boosted. Now examine what happens when
unwanted interference (hums and noise) is induced into the cable. The noise is induced equally and with the
same polarity into both wires. At the destination input, the - wire signal gets inverted and added to the +
signal. Because the polarity is the same on both input wires, the noise cancels itself out at this point
(destination). For this interference rejection to work, it is important that the source, the cable, and the
destination input are all balanced. Balancing provides greatest advantage with low level signals such as
those produced by microphones.
An impedance balanced output provides similar interference rejection, but not as much maximum drive
capability as the differentially balanced output, typically +20dBu versus +26dBu. It does not generate a
negative polarity signal at its - output. Instead the - wire has no signal but is held at the same impedance at
the + wire. This means that both wires pick up the noise equally, resulting in the advantage of noise
cancellation as described above when connected to a balanced input stage.
______________________________________________________________________________________
11
11
© GECKO MUSIC GROUP. All Rights Reserved.

THE CONSOLE CONNECTORS
THE CONSOLE CONNECTORS
© GECKO MUSIC GROUP. All Rights Reserved.
1. MONAURAL (MONO) CHANNEL MIC IN / LINE IN
The LINE/PAD switch selects either the MIC IN XLR or LINE IN ¼” TRS as the
input source. The XLR is normalled through the ¼” TRS jack so that it can be
used for microphone or line level signals when nothing is plugged into the jack
socket. The channel is fitted with C.R.I.S.T.A.L.® Audiophile PreAmps for purest
of sound amplification, with massive headroom of +34dBu maximum input
capability using XLR or TRS jack. Both inputs are balanced and can be wired to
work with unbalanced signals when required. The MIC IN XLR can be switched
to provide +48V DC PHANTOM for condenser microphones and other
equipment requiring phantom powering.
CAUTIONS: Do not connect unbalanced sources or
cables to the XLR input when +48V PHANTOM power is
selected. To avoid loud thumps, always turn the channel
off by pressing MUTE when switching +48V PHANTOM
on or off, and when plugging or unplugging cables.
2. DIRECT OUT
Each mono channel DIRECT OUT is available on an impedance balanced ¼”
TRS jack, providing a line level signal operating at 0dBu (output of
C.R.I.S.T.A.L.® Audiophile PreAmps). A great feature for recording individual
tracks into a multi-track recording system. The source is pre-fade by default.
You can opt for post-fade by pressing the DIR POST FADER button on the
channel strip. You can choose to have your DIRECT OUT source to be pre-EQ
or post-EQ by using the AUX/DIR POST EQ function button on the channel strip
too (pressing in the AUX/DIR POST EQ button will post-EQ your DIRECT OUT
and AUX source on that channel).
3. INSERT
A single 3-pole TRS jack carries the unbalanced insert signal for each mono
channel and main mix (MAIN L/R) output. The channel inserts are post-HPF ,
pre-EQ, and operate at 0dBu. The group (INS GRP 1-4) and LR mix (INS LEFT,
INS RIGHT) inserts are pre-fader and operate at -2dBu. Use these to patch in
line level signal processing equipment such as compressors, outboard EQ,
delay units and so on. The wiring of a suitable cable is shown on the diagram
below.
2
3
1
1

______________________________________________________________________________________
13
13
© GECKO MUSIC GROUP. All Rights Reserved.

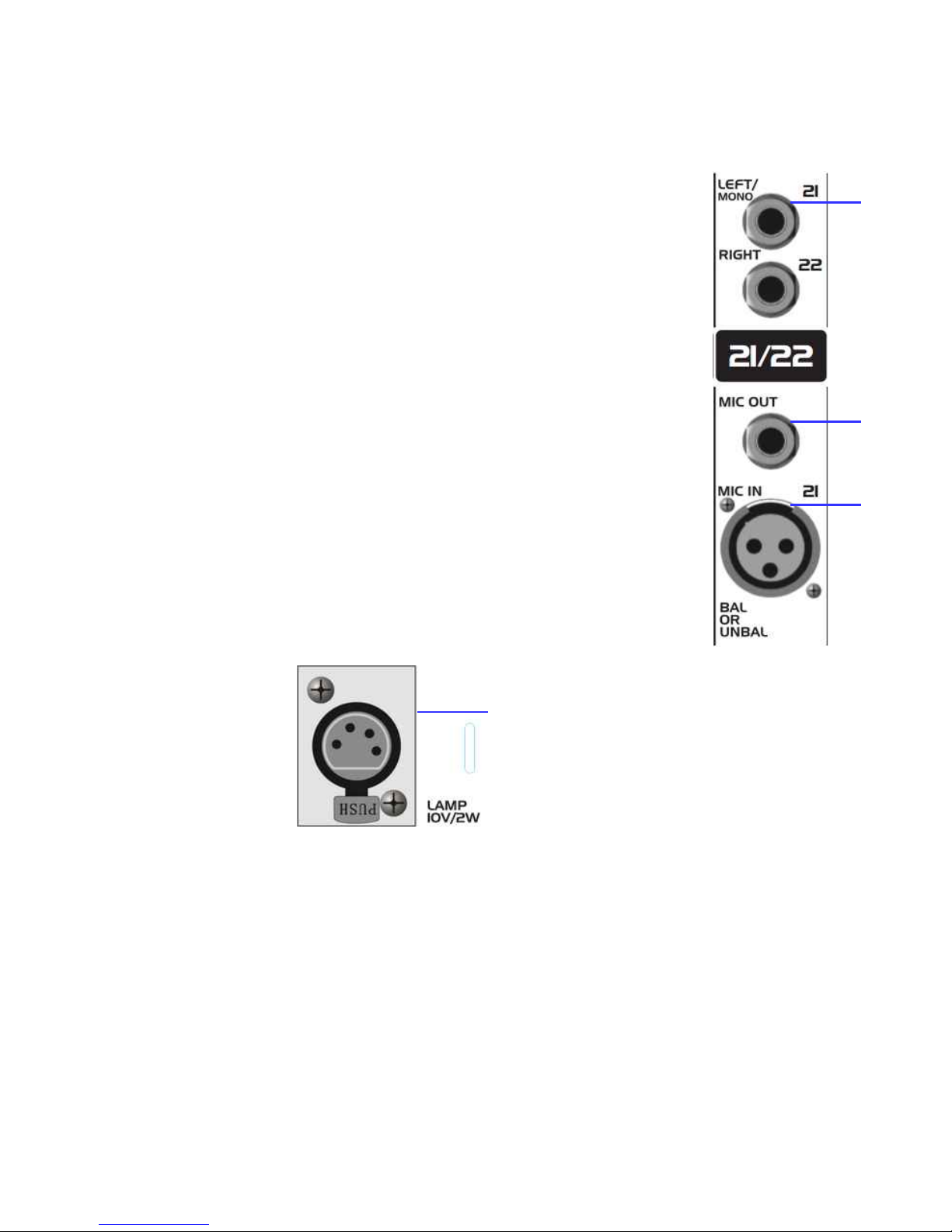

4. STEREO CHANNEL MIC IN
Each stereo channel features a mono microphone XLR input (MIC IN) and two
independent stereo line inputs (LEFT/MONO RIGHT). The balanced MIC IN
input accepts a maximum of +14dBu and can be switched to provide +48V DC
phantom power.
5. STEREO CHANNEL MIC OUT
The output of the microphone preamp (C.R.I.S.T.A.L.® Audiophile PreAmps) is
available on the MIC OUT (¼” TRS) jack socket. This is impedance balanced
and operate at a nominal 0dBu line level. Plugging into this socket breaks the
signal into the associated stereo channel. This means that the microphone
preamp can be used independently of the channel, for example, to create
ambience microphone feed for recording, or as a preamp for RTA measurement
system.
6. STEREO CHANNEL LINE IN
The LEFT/MONO input is normalled through the RIGHT socket to accept mono
signals on a single jack.
7. LAMP
The 36-channel EXODUS ODYSSEY MXR 3604L has five, while the 52-
channel EXODUS ODYSSEY MXR 5204L has seven 4-pin XLR sockets to plug
in standard 10V/2W gooseneck lamps to illuminate the operating surface when
working in dark environment. Only use lamps intended for this purpose.
6
5
4
7

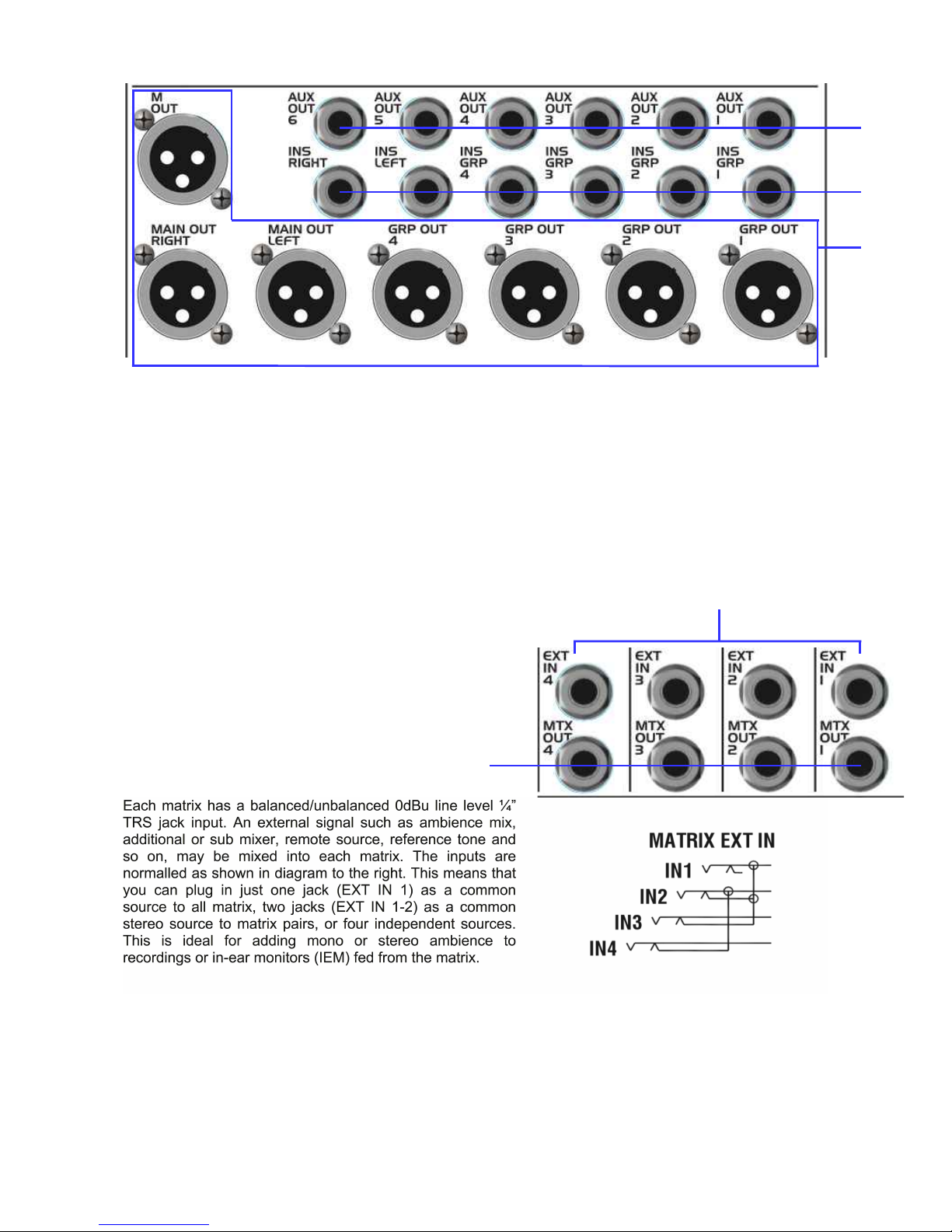

8. GROUP, MAIN L/R, M OUTPUTS
The main console mix outputs are on electronically balanced XLR. These produce professional standard
+4dBu when meters read “0”, and provides up to a maximum +32dBu. The MAIN LEFT and RIGHT outputs
typically feed the house system in live mixing, or a 2-track recorder for stereo summing in studio mixing and
mastering. The L and R summed mono source is fed at the M output for various audio applications.
9. AUX (1-6) OUTPUTS
Each aux send is available on an impedance balanced ¼” TRS jack operating at +4dBu line level. The aux
sends are typically used to feed monitors, effects devices (i.e. reverb and delay), and for special mix
requirements.
______________________________________________________________________________________
14
14
© GECKO MUSIC GROUP. All Rights Reserved.
10. MATRIX (1-4) OUTPUTS
Each matrix output is available on an impedance balanced
¼” TRS jack operating at +4dBu line level. The matrix
outputs, MTX (1-4) OUT, are typically used for stereo or
mono recording or broadcast feeds, delay and fill speakers,
zone feeds, additional monitors such as in-ear monitors
(IEM), hearing assist loop and so on.
11. MATRIX EXTERNAL IN (1-4)
8
3
9
10
11

______________________________________________________________________________________
15
15
© GECKO MUSIC GROUP. All Rights Reserved.

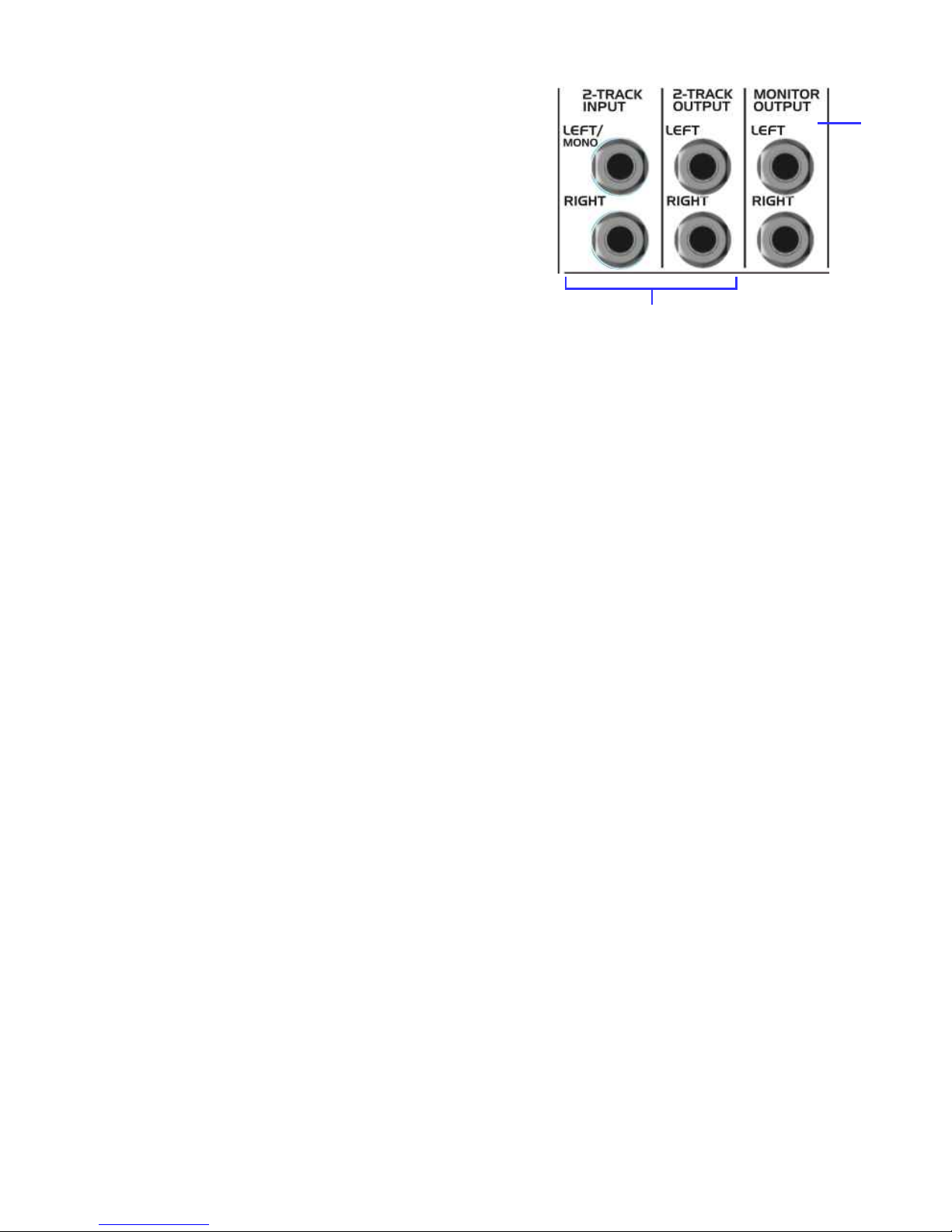

12. 2-TRACK INPUT / OUTPUT
Unbalanced ¼” TRS jack outputs and inputs connect to
popular recording and playback devices such as CD
player/recorder and or computer audio interface. Nominal
line level is -2dBu. The 2-TRACK OUTPUT always follow
the post-fader MAIN L/R mix regardless of mode switch
configuration. The 2-TRACK INPUT can be used for
monitoring a mono or stereo recording, or as a simple input
for playback of walk-in and background music. The
LEFT/MONO input normals through the RIGHT socket for
plugging in a mono source on a single jack.
13. MONITOR OUTPUT
These impedance balanced line level ¼” TRS jack outputs
follow the post-fader MAIN L/R level monitor signal.
Separate sockets are provided for the LEFT and RIGHT
signals. Use these to feed local reference monitor speaker
systems.
13
12
This manual suits for next models
1
Table of contents
Other Gecko Music Mixer manuals
