GECKO® REVELATION SR 612RF / SR 615RF
www.geckomus c.net
www.geckomus c.net
OWNER'S MANUAL
OWNER'S MANUAL

GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be
read carefully.

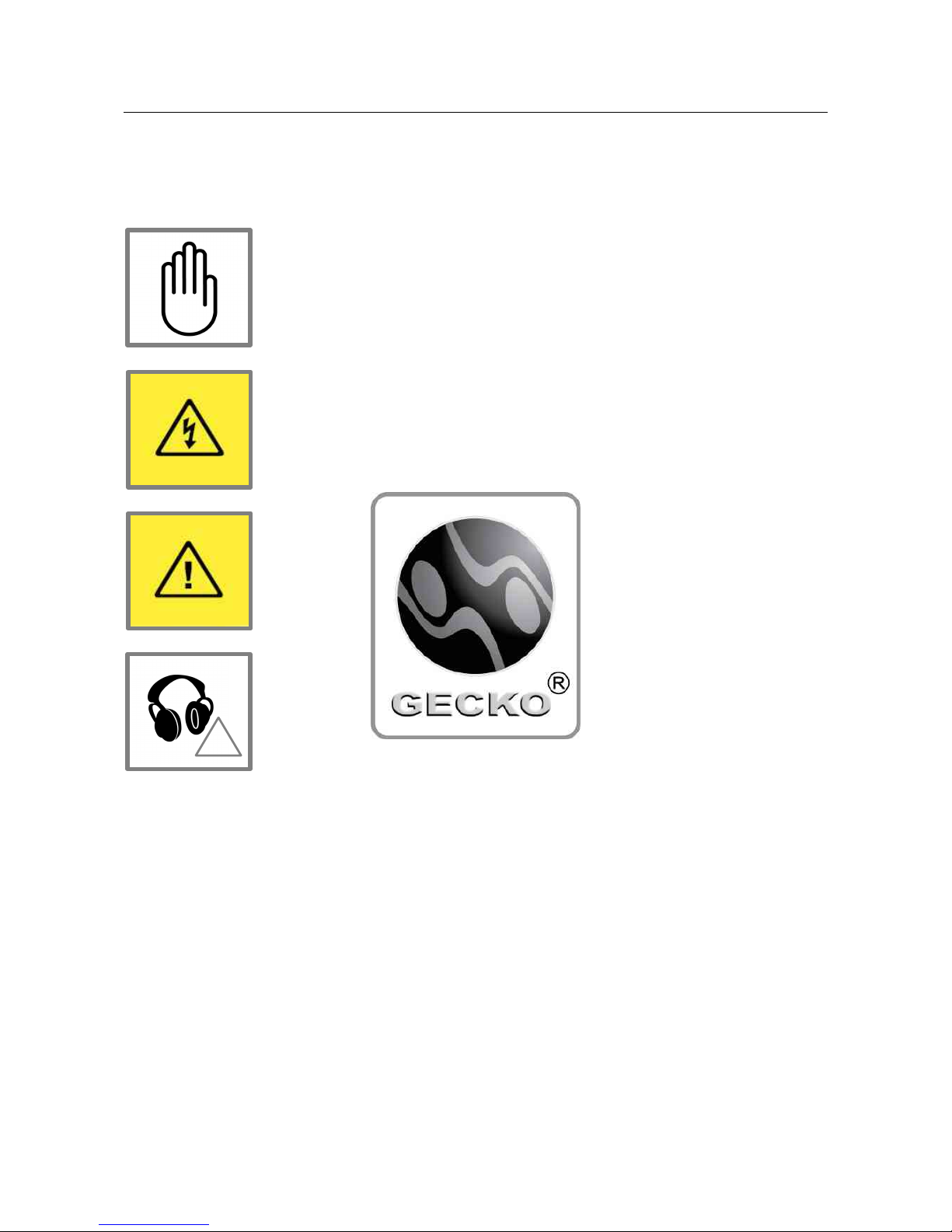

SYMBOLS:
SYMBOLS:
SAFETY INSTRUCTIONS:
SAFETY INSTRUCTIONS:
•To reduce the risk of electrical shock, do not remove covers. No user serviceable parts inside. Please
refer servicing to qualified personnel.
•To reduce the risk of electrical shock or fire, do not expose the equipment to rain or moisture.
•o not impose unnecessary stress on your equipment (i.e. placing heavy objects on it, overscrewing its
mounting etc).
•Read and keep the instruction manuals in a safe place for future references.
•o not attempt to clean the equipment with chemical solvents as this may damage the finish. Clean only
with dry cloth.
•o not block any ventilation openings.
•o not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
•o not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the grounding prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for the replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
•Unplug the apparatus during lightning storms or when it is not in use for a long period of time.
NOTES
NOTES
Contain important information and useful tips on the operation of your equipment.
WARNING
WARNING
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to
alert the user to the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
CAUTIONS
CAUTIONS
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in thee
literature accompanying the appliance. Please read the manual carefully.
H
HEADPHONES EADPHONES SAFETY SAFETY WARNIN WARNING G
Contain important information and use useful tips on headphones outputs and monitoring
levels.
!

•Use only attachments / accessories specified by the manufacturer.
•Always shut down power supply when not in use to save energy and for prolonged lifespan.
•Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if
exposed to sufficiently intense noise for a period of time. The U.S. Government’s Occupational Safety
and Health Administration (OSHA) has specified the permissible noise level exposures shown in the
following chart. According to OSHA, any exposure in excess of these permissible limits could result in
some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels
use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or
over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if
exposure is in excess of the limits set forth here:
Duratio /Day (Hours) dB, Sou d Pressure Level (SPL) Descriptio s
Below 90 dB Safe zone
8.00 90 Hearing damage
6.00 92
4.00 95
3.00 97
2.00 100 Serious hearing damage
1.50 102
1.00 105
0.50 110
0.25 or less 115 Human pain threshold
GECKO MUSIC GROUP
GECKO MUSIC GROUP
No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas,
Paya Rumput, 76450 Melaka, Malaysia.
Mobile: [phone]
Email: [email protected]t • Website: www.geckomusic.net

FOREWORD
FOREWORD
ear Friends,
Thank you very much for purchasing quality products by GECKO MUSIC GROUP. I am indeed very
delighted that we have journeyed this far, setting new standards in the audio and music industry while
touching and changing lives along the way!
At GECKO MUSIC GROUP we focus on developing nothing but the best professional audio equipment and
premium grade musical instruments you ever need! It has been our philosophy all this while that good sound
reproductions can be achieved at a fraction of a premium. Our engineering team is constantly doing research
and development to meet this objective. We thank God that by HIS grace, we have succeeded in developing
the revolutionary C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being
encoded, reproduced and managed!
On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our
traditions in serving music and audio communities around the world with more value-added highest possible
quality GECKO® professional audio equipment and premium grade musical instruments!
Once again, thank you very much for your support.
Yours truly,
aniel Foo
Founder / Chairman
GECKO MUSIC GROUP

TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION 1
SPEAKER ELEMENTS 2
MAKING CONNECTIONS 4
INSTALLATION CONSIDERATIONS 4
SPECIFICATIONS 5
WARRANTY 6
NOTES: This manual covers the 12” GECKO® REVELATION SR
612RF and the 15” GECKO® REVELATION SR 615RF. As both
speakers are functionally identical, this manual will discuss the
GECKO® REVELATION SR 615RF.
______________________________________________________________________________________
© GECKO MUSIC GROUP. All Rights Reserved.

INTRODUCTION
INTRODUCTION
The GECKO® REVELATION SR 612RF 12” and SR 615RF 15” 2-way full-range audiophile long-throw
speakers are designed to handle extremely demanding high Sound Pressure Levels (SPL) in live sound
situations with ease. Both the SR 612RF and SR 615RF are designed to produce a remarkable audiophile
precision with its GECKO® C.R.I.S.T.A.L.® Audiophile circuitry.
The REVELATION SR 612RF and SR 615RF enclosures are also prepared with flexible installation features,
making them the perfect choice for multi-style professional audio installations and applications such as front-
of-house (F.O.H.), side-fill, down-fill, rigged/suspended clusters/arrays, and as premium quality concert
theater/studio reference monitors. The REVELATION SR 612RF and SR 615RF speakers come equipped
with C.R.I.S.T.A.L.® WaveGuide technology, where multi-point and equal-volume referencing is made
possible!
The GECKO® REVELATION SR 612RF and SR 615RF include the following features and more:
* C.R.I.S.T.A.L.® WaveGuide optimizes widest coverage area for all applications;
* passive C.R.I.S.T.A.L.® audiophile crossover for natural, uncompressed, precise sound reproduction;
* unique enclosure design provides multi-style mounting angles.
______________________________________________________________________________________
1
1
© GECKO MUSIC GROUP. All Rights Reserved.

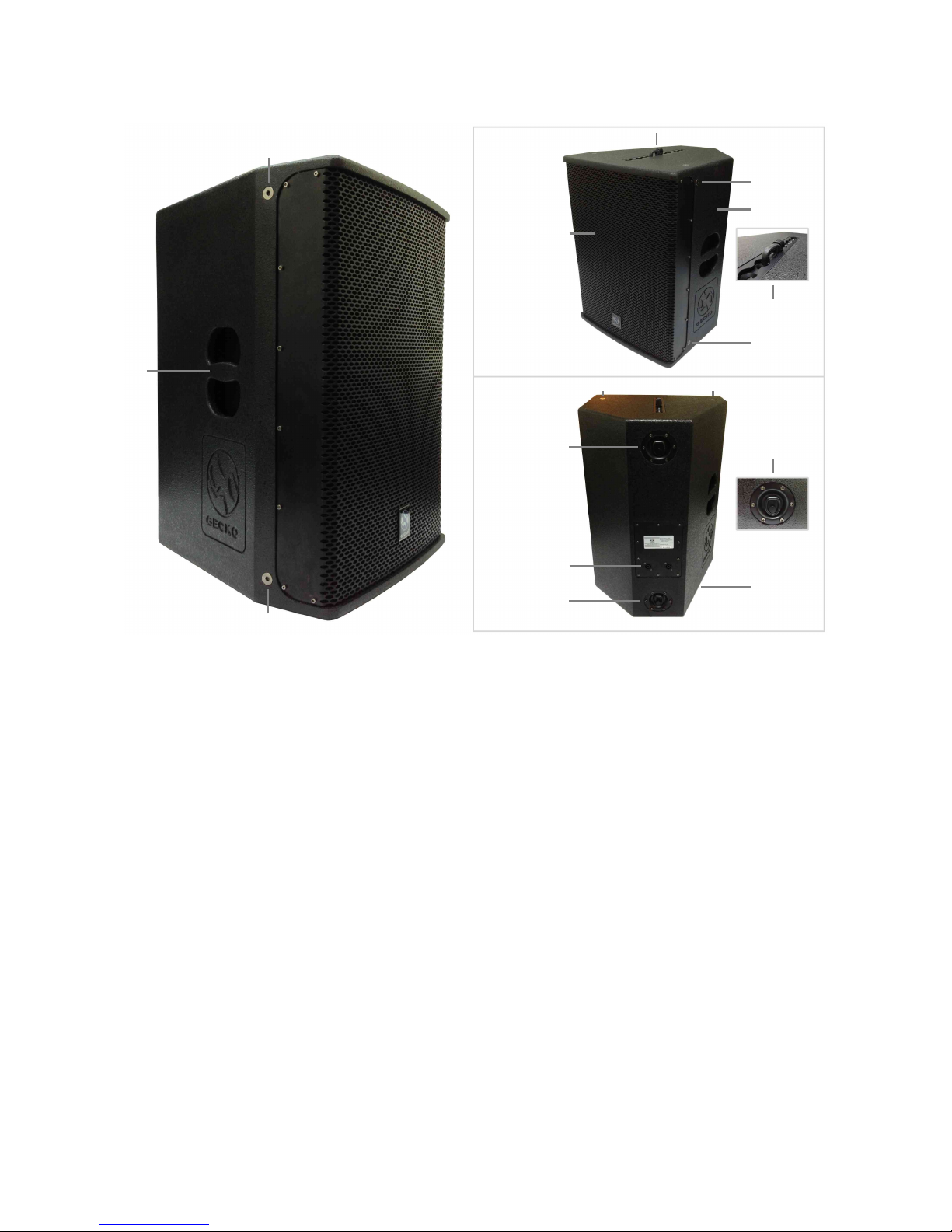

SPEAKER ELEMENTS
SPEAKER ELEMENTS
1. GRILLE
Foam-backed, powder coated perforated steel grille to protect the REVELATION SR 615RF's woofer and
tweeter from possible damages contributed by external factors.
2. ENCLOSURE
All REVELATION series enclosures are made using Baltic birch plywood, oven-baked painted with textured
wear resistant black paint to ensure best resonance and durability.
3. CARVED HANDLE
To ease the carrying of the REVELATION SR 615RF.
4. MOUNTING POINTS
These are 3/8” - 16 threaded mounting/rigging points. You can use these points to mount the REVELATION
SR 615RF on a wall bracket, fly rigging system, rigged/suspended clusters/arrays system, and/or on any
customized mounting/rigging system.
5. RECESSED PAN WITH STUD AND RING
You can use these to mount the REVELATION SR 615RF on a wall bracket, fly rigging system,
rigged/suspended clusters/arrays system, and/or on any customized mounting/rigging system.
______________________________________________________________________________________
2
2
© GECKO MUSIC GROUP. All Rights Reserved.
12
5
4
7
2
3
5
5
4
4
6
6
8
4
4
4

6. FLY TRACK WITH FLYING POINT
This is a 12-position fly track with flying point. You can use this to mount the REVELATION SR 615RF on a
wall bracket, fly rigging system, rigged/suspended clusters/arrays system, and/or on any customized
mounting/rigging system.
7. POLE MOUNT CUP
Located at the bottom of the enclosure, the pole mount cup is commonly used to hold the REVELATION SR
615RF on a speaker stand.
8. CONNECTORS
These are 4-pole SPEAKON® connectors. These connectors work both as INPUT as well as OUTPUT
connectors.
______________________________________________________________________________________
3
3
© GECKO MUSIC GROUP. All Rights Reserved.

MAKING CONNECTIONS
MAKING CONNECTIONS
To connect the GECKO® REVELATION SR 615RF to your sound system, refer to the following steps:
1. Turn OFF all equipment before making any connections.
2. Mount the GECKO® REVELATION SR 615RF on a stand, wall bracket, fly rigging system,
rigged/suspended clusters/arrays system, and/or on any customized mounting/rigging system
according to the given setup/installation instructions and safety guidelines (optional accessories are
sold separately).
3. For purest of sound, make connections using only quality audio cables (i.e. GECKO® TRUTH T2,
GECKO® TRUTH T3AL), connectors (i.e. GECKO® OLYMPIAN connectors), amplifiers (i.e.
GECKO® GENESIS amplifiers), and mixing consoles (i.e. GECKO® EXO US mixing consoles)
according to your requirements.
4. Turn ON all equipment after making connections.
INSTALLATION CONSIDERATIONS
INSTALLATION CONSIDERATIONS
HOOKUPS AND CABLING
The GECKO® REVELATION SR 615RF is designed with 8Ω impedance. The two 4-pole SPEAKON®
connectors at the back are wired in parallel and function as both OUTPUT and INPUT connectors. Either one
of these connectors can be used to hookup to another GECKO® REVELATION SR 615RF when necessary.

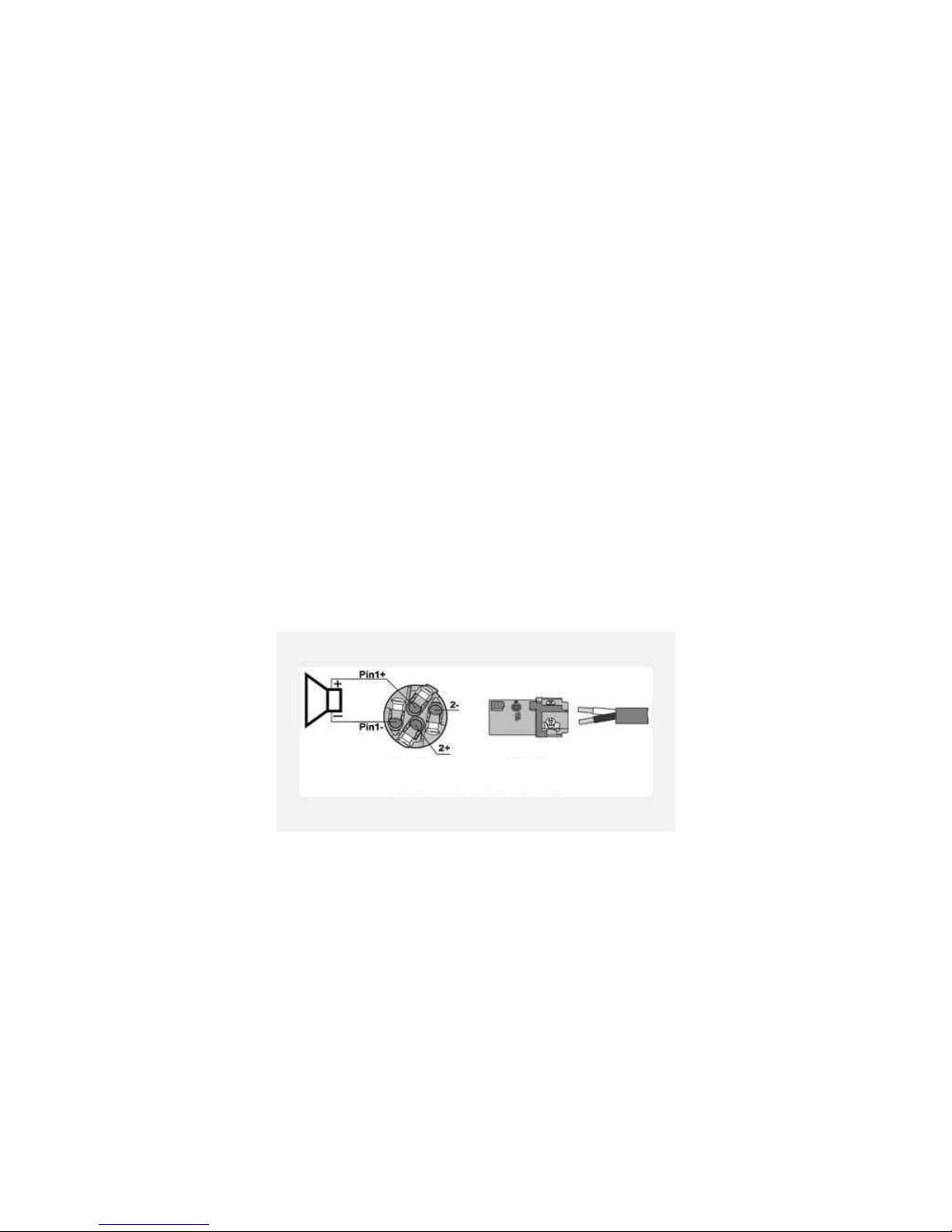

INPUT AND OUTPUT CABLE CONFIGURATIONS
The following diagram illustrates the polarities and connections of the GECKO® REVELATION SR 615RF.
______________________________________________________________________________________
4
4
© GECKO MUSIC GROUP. All Rights Reserved.
Rear view Side view
GECKO® TRUTH T2
Professional Speaker Cable
GECKO® OLYMPIAN SPK 404 Pro 4-Pole SPEAKON®
Connector
+
-

SPECIFICATIONS
SPECIFICATIONS
Speaker:
GECKO® REVELATION SR 612RF:
12” Woofer with iecast Aluminium Frame
GECKO® REVELATION SR 615RF:
15” Woofer with iecast Aluminium Frame
Tweeter:
40mmø C.R.I.S.T.A.L.® river
Max RMS:
GECKO® REVELATION SR 612RF:
500W
GECKO® REVELATION SR 615RF:
700W
Impeda ce:
8Ω
Freque cy Respo se:
45Hz ~ 20kHz (C.R.I.S.T.A.L.® Audiophile Linear Response)
Nomi al Coverage:
C.R.I.S.T.A.L.® WaveGuide 90° (H) x 60° (V) Coverage
Se sitivity:
98dB/W/m
Physical Properties:
GECKO® REVELATION SR 612RF:
Enclosure: 18mm Baltic Birch Plywood
Finish: Wear Resistant Textured Black Paint
Hardware: 6 x 3/8” - 16 Threaded Mounting/Rigging Points, 5-Position Fly Track with Flying Point (Top), 2 x
Recessed Pan with Stud and Ring (Rear), 1 x Pole Mount Cup (Bottom)
Grille: Powder Coated Perforated Steel, Foam-Backed (Black)
Connectors: 4-Pole SPEAKON® (2)
Net Weight: 22.50Kg
imension: (H) 640mm x (W) 367mm x ( ) 387mm
GECKO® REVELATION SR 615RF:
Enclosure: 18mm Baltic Birch Plywood
Finish: Wear Resistant Textured Black Paint
Hardware: 6 x 3/8” - 16 Threaded Mounting/Rigging Points, 12-Position Fly Track with Flying Point (Top), 2 x
Recessed Pan with Stud and Ring (Rear), 1 x Pole Mount Cup (Bottom)
Grille: Powder Coated Perforated Steel, Foam-Backed (Black)
Connectors: 4-Pole SPEAKON® (2)
Net Weight: 26.10Kg
imension: (H) 660mm x (W) 463mm x ( ) 483mm
Specifications subject to change without prior notice. Manufactured under ISO9000 certified management
system.
______________________________________________________________________________________
5
5
© GECKO MUSIC GROUP. All Rights Reserved.

GECKO
GECKO® ® TERMS OF WARRANTY TERMS OF WARRANTY
WARRANTY:
GECKO MUSIC GROUP warrants its GECKO® products for a period of three (3) years from the original date
of purchase, in accordance to the warranty regulations described below.
WHAT IS COVERED:
uring the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in
materials and workmanship and against malfunctions. GECKO MUSIC GROUP will remedy all such defects
and malfunctions without charge for parts or labour if the warranty applies. In the case that other parts are
used which constitutes an improvement, GECKO MUSIC GROUP may, at its discretion, charge the customer
for the additional cost of these parts. Final determination of warranty coverage lies solely with GECKO
MUSIC GROUP.
WHAT IS NOT COVERED:
1. If the product needs to be modified or adapted in order to comply with applicable technical or safety
standards on a national or local level, in any country which is not the country where the product was
originally developed and manufactured, this modification/adaptation shall not be considered a defect in
material or workmanship.
2. Normal wear and tear, in particular, of faders, cross faders, potentiometers, keys/buttons, valves,
guitar/bass strings, machine heads, pick-up covers, vinyl covers, illuminants, and similar parts are not
covered by this warranty.
3. Improper handling, neglect or failure to operate the unit in compliance with the instructions given in the
user or service manuals.
4. Connection or operation of the unit in any way that does not comply with the technical or safety
regulations applicable in the country where the product is used.
5. amages/defects caused by force of nature or any other condition that is beyond the control of GECKO
MUSIC GROUP.
6. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the
warranty.
7. Modification or removal of serial numbers.
OBTAINING WARRANTY SERVICE:
To return a GECKO® product for warranty service, first fill out the O li e Tech ical Report on
www.geckomusic. et and submit for an authorization/service number. Write the authorization/service
number so that it is prominently displayed on the outside of the shipping carton. Any products received
without an authorization/service number that is clearly visible upon arrival at the factory will be refused.
Enclose proof of the original delivery date or a copy of the original sales receipt/invoice. Enclose a
description of the suspected defect or malfunction and the condition, if any, which caused the problem.
Return the product to GECKO MUSIC GROUP.
WARRANTY SHIPPING:
You are responsible for prepaying shipping costs F.O.B. GECKO MUSIC GROUP, Melaka, Malaysia.
Shipped product(s) must be properly packaged. Use original shipping cartons and packing materials where
possible. GECKO MUSIC GROUP is not responsible for damages resulting from inadequate and or improper
packing. Products received with damages due to improper packaging will be deemed out of warranty.
______________________________________________________________________________________
6
6
© GECKO MUSIC GROUP. All Rights Reserved.

Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense.
GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written
repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O. . with a
separate invoice for freight and packing. Such costs will also be invoiced separately when the buyer has sent
in a written repair order.
WARRANTY RIGHTS:
This warranty is exclusive and extended to the original buyer and is not transferable to anyone who may
subsequently purchase this product. No other person (apart from authorized GECKO® Stores) shall be
entitled to give any warranty promise on behalf of GECKO MUSIC GROUP.
+-
______________________________________________________________________________________
7
7
© GECKO MUSIC GROUP. All Rights Reserved.
