GefenTV GTV-CR-2SP User manual

Gefen TV CR Speaker
User Manual
www.gefentv.com
GTV-CR-2SP - GTV-CR-3SP - GTV-CR-5SP
®

ASKING FOR ASSISTANCE
Rev A1
Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday Pacific Time
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefentv.com
[e-mail]
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
GefenTV CR Speaker is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners.

CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The Gefen TV CR Speaker
7 Specifications
8 Warranty

1
Congratulations on your purchase of the GefenTV CR Speaker. Your complete
satisfaction is very important to us.
GefenTV
GefenTV is a unique product line catering to the growing needs for innovative
home theater solutions. We specialize in total integration for your home theater,
while also focusing on going above and beyond customer expectations to ensure
you get the most from your hardware. We invite you to explore our distinct
product line. Please call us so we can better assist you with your particular
needs.
The GefenTV CR Speaker
The GefenTV CR speaker system consists of exquisitely designed and tuned
speakers which perfectly compliment the small confines of a bedroom or
conference room. The CR speakers have been designed for high-quality audio
fidelity rather than booming bass and high volume output. These wall-mountable
speakers feature a handsome exterior construction and will fit stylishly in a
variety of decors.
The Gefen CR speakers are perfectly suited to work with any audio amplifier,
especially the GefenTV Audio Processor, for which they were designed.
How It Works
Simply connect the Gefen CR speakers to your amplifier. The CR speakers are
equipped with 5-way binding posts having connectors as follows: bare wire,
spade lug connectors, pin connectors, and two types of banana plugs (single and
dual).
Once all of your AV system connections are established, set the amplifier’s
volume to a low level, turn on all connected AV equipment, and then increase
speaker output volume to a comfortable level.
INTRODUCTION

2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE GEFENTV CR SPEAKER
• GefenTV CR Speaker are rated for a maximum power handling of 50 Watts
RMS.
• The GefenTV CR Speaker was designed to be placed within 8 inches of
a wall. For this reason the GefenTV CR Speaker comes ready to be wall
mounted.
• Gefen recommends the GTV-MB-CRSP mounting bracket for use with these
speakers.
• The GefenTV CR Speaker weighs approximately 6.4 pounds. Appropriate
caution should be taken when mounting these units on walls.
• For additional bass response the GefenTV CR Speakers should be paired
with a subwoofer. In this scenario, the speaker setting in the amplifier/
receiver should be set to “small”. The crossover should be set to 80Hz.
OPERATION NOTES

3
Features
• Carefully designed and tuned speakers
• Incredibly pristine sound from a compact design
• Designed to fill small rooms with high-quality sound
• Speaker baffle naturally tilts upward on flat surfaces
Package Includes
GTV-CR-2SP
(1) CR-2SP Set of 2 Speakers
(1) User’s Manual
GTV-CR-3SP
(1) CR-3SP Set of 3 Speakers
(1) User’s Manual
GTV-CR-5SP
(1) CR-5SP Set of 5 Speakers
(1) User’s Manual
FEATURES

4
Front View
Back View
1
2
3
4
PANEL LAYOUT

5
1 GefenTV CR Speaker Grille
This removable grille will protect the speaker divers from getting damaged and
will provide a stylish look to your speaker.
2 Speaker Mounting Bracket
This speaker system was designed to work with the GTV-MB-CRSP speaker
bracket.Aftermarket brackets can be used. If you choose to use an aftermarket
speaker bracket, please note that the minimum weight capacity of the
aftermarket bracket must exceed 6.4 lbs.
3 Positive Speaker Terminal
This terminal is a 5-way binding post that will accept multiple connector types.
For a complete listing of these types, please see page 6. This binding post
should be connected to the positive terminal on an amplifier.
4 Negative Speaker Terminal
This terminal is a 5-way binding post that will accept multiple connector types.
For a complete listing of these types, please see page 6. This binding post
should be connected to the negative terminal on an amplifier.
PANEL DESCRIPTIONS

6

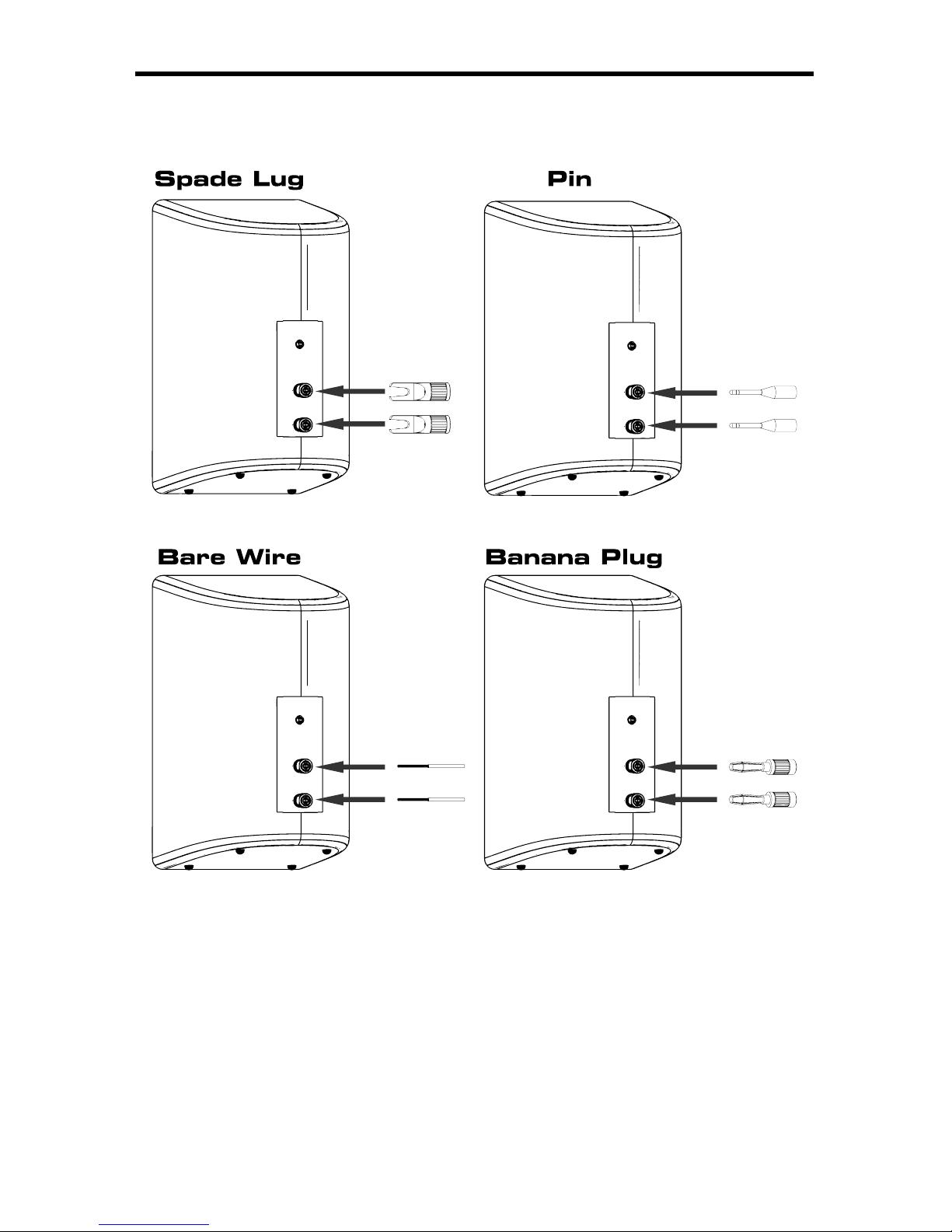

How to Connect the GefenTV CR Speaker
1. Connection options for the GefenTV CR Speaker are shown below:
NOTE: These are 5-Way binding posts. In addition to the connectors above,
this speaker will also accept Dual Banana Plug connectors.
To connect all types of connectors (except for the Banana Plug type), unscrew
the binding post in a counter-clockwise motion, then insert the speaker wire/
connector into the post and tighten the binding post. Connectors only need to
have good contact and should only be hand tightened.
Banana Plug connectors can simply be inserted into the opening on the end of each
binding post.
CONNECTING AND OPERATING THE GEFENTV CR SPEAKER

7
System:
Low Frequency Driver Low Frequency 1 x 100mm Driver
with 25mm voice coil & ferrite mo-
tor. Pulp paper cone coated black
surrounded by NBR rubber.
High Frequency Driver 1 x 25mm with Neodymium motor &
silk dome.
Frequency Response (-3dB) 75Hz -- 18kHz
Frequency Response (-10dB) 60Hz – 20kHz
System Sensitivity (2.83V@1m) 85dB
Nominal Impedance 4 Ohms
Maximum Output SPL
Average 99dB
Peak 105dB
Long term power (W) 30W
Weight (Ibs / kg) 6.4lbs / 2.9kg
Enclosure:
Enclosure Type 2-Way Reflex
Enclosure Material Medium Density Fibreboard
Finish Matte White
Dimensions (H x W x D):
mm 256 x 145 x 184
Inches 10 x 5.7 x 7.2
SPECIFICATIONS

8
Gefen warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen is notified within two (2)
years from the date of shipment, Gefen will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications. Equipment that fails under conditions
other than those covered will be repaired at the current price of parts and labor in
effect at the time of repair. Such repairs are warranted for ninety (90) days from
the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including
without limitation, any implied warranty or merchantability or fitness for any
particular purpose, all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from
Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their
original condition.
The information in this manual has been carefully checked and is believed to
be accurate. However, Gefen assumes no responsibility for any inaccuracies
that may be contained in this manual. In no event will Gefen be liable for
direct, indirect, special, incidental, or consequential damages resulting from
any defect or omission in this manual, even if advised of the possibility of such
damages. The technical information contained herein regarding the features and
specifications is subject to change without notice.
For the latest warranty coverage information, please visit Gefen’s Warranty web
page at http://www.gefen.com/kvm/aboutus/warranty.jsp
PRODUCT REGISTRATION
Please register your product online by visiting Gefen’s web site at
http://www.gefen.com/kvm/Registry/Registration.jsp
WARRANTY

*ma-CR-2SP* *ma-CR-3SP* *ma-CR-5SP*
Rev A1
Pb
20600 Nordhoff St., Chatsworth CA 91311
1-800-545-6900 818-772-9100 fax: [phone]
www.gefentv.com [email protected]
