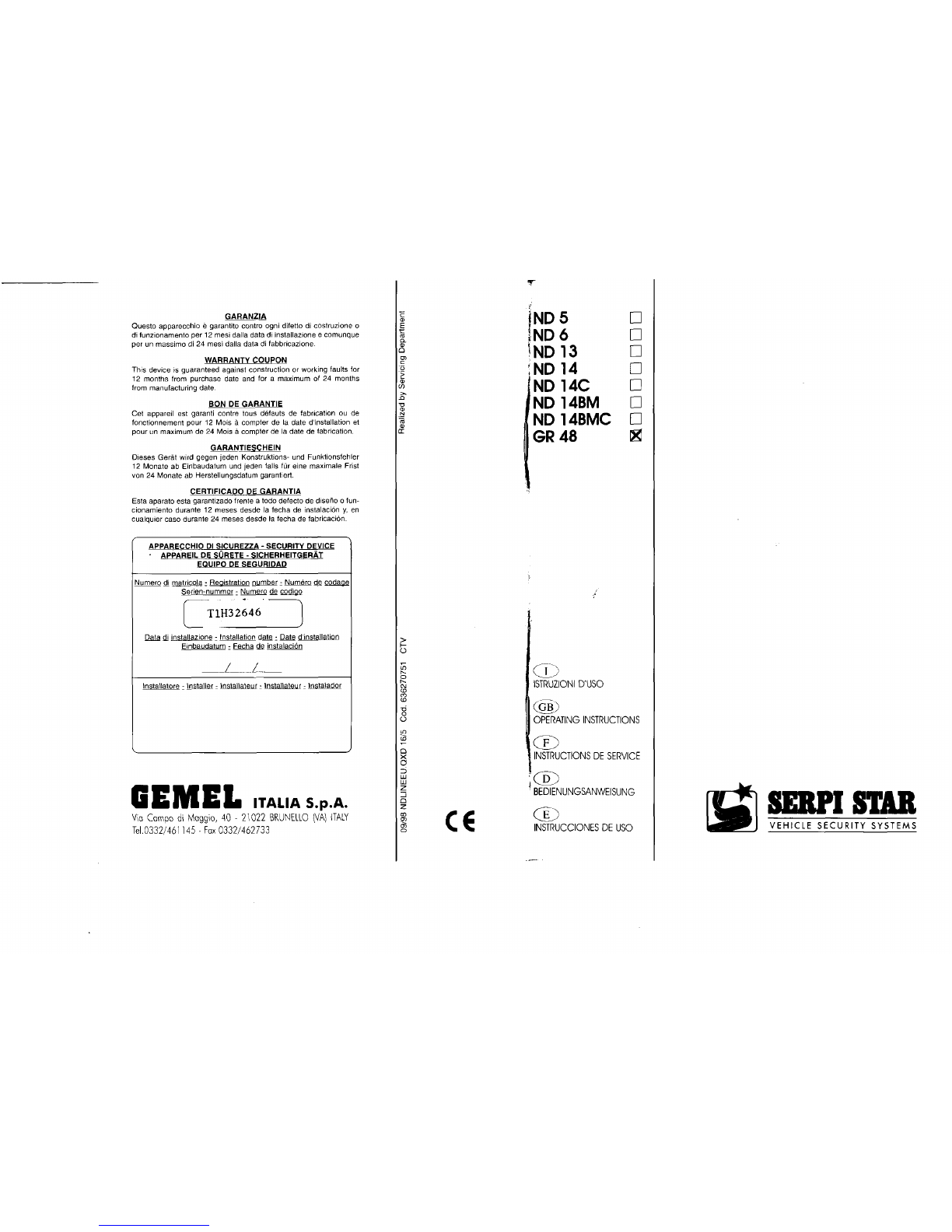

GEMEL Serpi Star ND 5 User manual

GARANZIA
Questo apparecchio e garantito contro ogni difetto di costruzione o
. .
d t~nzonamenlo per 12 mes oa a ua1a d nsta az one e c0mLnq.e
per .I> mass rno a 24 nes na a naln d Isobrncazone
WARRANTYCOUPON
This devlce
IS guaranteed against construction or working faults for
12 months from purchase date and for a maximum of 24 months
from manufacturingdate.
EON DE GARANTIE
Cet apparel1 est garanti contre tous defauts de fabr~cationou de
fonctionnement pour 12 Mois
a compter de la date d'instailation et
pour un maximum de 24 Mois
B compter de la date de fabrication.
GARANTIESCHEIN
--
Dleses GerBt wird gegen jeden Konstruktions- und Funktionsfehler
12 Monate ah Einbaudatum und jeden falls fur eine maxlmale Frist
von 24 Monate ah Herstellungsdatumgarantert.
CERTIFICADO DE GARANTIA
Esta aparato esta garantizado frente a todo defect0de dlseno o fun-
cionamiento durante 12 meses desde la fecha de instalaci6n
y, en
cualquler caso durante 24 meses desde la fecha de fabrication.
APPARECCHIO Dl S!CUREUA - SECURITY DEVICE
- APPAREIL DE SURETE - SICHERHEITGERAT
EQUIP0 DE SEGURIDAD 1
Numero dl matr~cola : Reolstratloner - Numdro de codaoe
--
Serlen-nummer : Numero de codlao
Ci1~32646 7
Installatore - Installer: Lnstallateul: Installateur : Instalador
GEM EL ITALIA S.D.A.
Via Campo di Maggio, 40 - 21022 BRUNELLO (Vk) ITALY
Te1.03321461 145 - Fax [phone]
lSTRUZlONl D'USO
OPERATING INSTRUCTIONS
(33
INSTRUCTIONS DE SERVICE

Congratulations! You have chosen a SERPl STAR car alarm, a truly outstanding product. Please take the
5)
DISARMING THROUGH REMOTE CONTROL
time to read thls manual as it is indispensable. Locatethe system, that is hi-lightedon the cover, in the chart
on page
1. On the left of the chart is the function column numbered 1 to 25. The stars under your alarm
~~~:~i~~)~~~ ~,$~~~Yb~:ressingpush-butt0n (A)'
indicate the section numbers you need to referto learn about the features associated with that system.
-
1 flash of the d~rectionliahts facility:
I buzzer sound: o (withGR48 version only with GS3A98 siren)
@ Functionto beselectedatthe timeofinstallation. Doors w~llunlock (~fthls functlon IS connected).
#
In the Belgiumversion these functions are maskedandcannotbechanged.
-
The dashboard LED will extinguish.
1
The alarm canbeintegrated withadditionalmodules, i.e. Shocksensor (GMS),Anti-Tilt (Only with GR 48 versions)
- It w~llbe poss~Dleto illum~natethe ceiling lamp for about 20 seconds. if the
(GMA), Window lift, Ultrasonic & Bi-volumetric modules(this function isalready included veh~cleallows this.
in GR48)andEngineimmobiliser(This function is alreadyincludedthe NDS, ND6, andGR48).
6) ARMING THROUGH ELECTRONIC KEY (GR48 Only) \
1) ROLLING CODE TRANSMITTERS
Today's technology has enabled these alarms to be manufactured with a rolling code system. The codes are
changed randomly every time the ONIOFF button is pressed. This guarantees the highest level of security
available against any attempt to scanor grab the activating code. It is possible to have up to a maximum of 4
transmitters programmed to the system at any one time. Each time the ignition swltch IS turned OFF the
alarm LED will flash once for each transmitter programmed.
In the event of a transmitter being lost or stolen, the
remaining transmitterls can be reprogrammed to the
alarm thus cancelling the lostlstolen transmitter.
If a transmitter appears to be workinq but does not activatelde-activate the alarm, refer to the
It is also possible to arm the alarm system with the Electron~cOverr~dekey
by touching the key end onto the dashboard LED. When armed with thls
key the doors will not lock and the Car Check functionwill not be available.
The acoustic alarm will be operative only after 45 seconds. When arming
with the Electronlc Override key there will be a delay of
5 seconds the
following circuits:
- Door push-button:
- UltrasoniC5:
- Voltage Diop. @
RE-SYNCHRONISATION section. -
2) ARMING THROUGH REMOTE CONTROL
Press push-button (A).
The alarm armlng
will be signalled by:
- 2 flashes of direction lights facility:
- 2 audible tones; @ (With GR 48 version only with GS3A98 siren)
- Doors will lock (if this function is connected):
- Windows will close, (when connected), by keeping the push-button pressed up
to the wished position):
@
- lllumination of the alarm LED. After 45 seconds it will start to flash.
NB During the 45 seconds arming period, triggering any of the alarm lines will be
signalled by a single audible tone (with GR48 version only with GS3A98 siren)
and a short extinction of the dashboard LED.
7)
DISARMING T.HROUGHELECTRONIC KEY (GR48 Only)
It is possible to disarm the alarm system using the Electronic Override key by touching the key end onto the
AA dashboard LED.
PANIC ALARM @ (~cousticalarm only)
This funct~onis activated for 5 seconds by pressing push-button (6) 45 seconds after the armlng period or
with the alarm is in the disarmed state It can be deact~vatedby presslngthe push-button (0) again (wlthout
'the alarm condi'n)
DASHBOARD LED
The Dashboard LED hasthe lollowlng functions:
-
It signals the armlng time (flrst45 seconds after arming the system) with a static signal:
-
It signals the change from the arming time to the fully armed state by startlng to flash:
-
It sianals the exclusionof the siren sound;
3) OPTIONAL MODULE EXCLUSION iND5. ND6, ND14) ''.
Arm the alarm system and then press push-button(6).
If this operation IS carrled out wlthin 45seconds from the arming, all the installed optional sensor modules
are excluded.
The exclusion will besignalled by-
- 3 buzzer sounds: @
-
3 flashing lights of direction lights facility:
-
3 flashesof the LED.
-
It signals the number of programmed remote controls and electronic keys (only on GR48), each flash
signals one remote control programmed and two seconds after the first signalling 11signals number of
electronic override keys programmed each time you switch the engine off);
-
It signals the alarm memory;
-
It signals alarm causes dur~ngarmlng tlme:
- Selectionlconfirmation during function programming.
- It signals the passive and anti-distraction arming.
Also, during the 45 second arming period it is possible to test the alarm to ensure correct operation
Activatina the various alarm trlaaers durina this oerlod will be acknowledaed bv a buzzer tone and the
dashboaFd LED WIII flash the sysiem after 45 seconds
WIII cause tiemaln slren to sound
4)
U.S.. SHOCKS AND ANTI-TILT OPTIONAL MODULES EXCLUSION (Onlv for GR481
. .
The ultrasonics and optional modules can only be excluded during the first 45 seconds from the alarm
arming, this can be done by one of two separate actions. Arm the alarm system and press the push-button
(0).The ultrasonics are excluded when pressing the push-button for the first tlme.
The exclusion will besignalled by:
-
3 buzzer sounds: @(Onlywlth GS3A98 siren)
-
3 flashesof the direction lights facility;
-
3 flashes of the dashboard LED.
By pressing the (6) push-button again, you will exclude any remaining optional modules. The alarm confirms
thls exclusion, by repeating the above signals.
10)
ENGINE IMMOBILISER AUTOMATIC ARMING (PASSIVE FUNCTION) €3 #
(If connected and enabled by programming)
The immobiliser
IS automatically engaged 16 seconds after the ignition 1s turned OFF and the drlver's door
opened and closed If the door is not opened then the immobiliser will be engaged after
5 minutes. activation
will be signalled by.
-
1 flash of direction lights:
-
1 buzzer sound; @ (With GR48 version only with GS3A98 siren)
- lllumination of the LED

Todisarm:
-
Press the transmitter push-button (A) twice or turn the ignition key to the ON position (without starting the
vehicle) and then press push-button (A)once. After disarming the system with the transmltter, if one of the
doors is NOT OPENED within 2 minutes, the immoblliser will re-activate with the same signals as before.
11)
ENGINE IMMOBILISER AND ALARM SYSTEM AUTOMATIC ARMING @# A
Passive arming, if enabled by programming, will be activated inthe followlng manner.
Turn the ianition kev to the OFF Dosition. oDen and close the driver's door. After 45 seconds the dashboard
LED will iliuminate, ihedirection indicators killflash twice and
2 buzzer tones will be heard. At this point the
engine will be immobilised. After a further 45 seconds the alarm will be armed. This is signalled by the
dashboard LED starting to flash. Automatic Armina does not activate the door lockina. Disarm bv Dressina
, .
push-button(A) on the transmitter.
If you wish to temporarily disable the automatic armlng
function, refer to section VEHICLE MAINTENANCE
OR GARAGE STOP.
12) SIREN MUTING
With the siren sounding it is possible to mute the noise by pressing push-button (6).
This action does not disarm the system or change the alarm state.
13) SIREN FUNCTION EXCLUSION
Depending on the 'Rules in Force' at a particular parking area i.e. near Hospitals etc. it is possible to arm the
alarm but exclude the siren in case the system IS triggered. To activate this feature carry out the following
steps:
Before turning the ignition OFF, press push-button(A) for approximately 2 seconds (the dashboard LED will
illuminate for a moment). Turn the ignition OFF within 10 seconds. Now, arming the alarm in the normal
way will exclude the slren for that armed period.
14)
ALARM PROTECTIONS AND CAUSES A
Your car can be protected by:
- Permetric protection (push-buttons):
- Protection through external module:
- Starting attempt:
-
Volumetric protection; (Only for GR 48 versions)
- Interior lighting.
15) CAR CHECK
At the time of arming the system, the alarm checks the position of the doorslbootlbonnet switches to ensure
they are in the correct position i.e it checks if the doors are open or closed. If one of the doorslbootlbonnet
has been left open the alarm will respond by giving a single buzzer tone after the normal arming signals (if
programmed) and a single blink of the dashboard LED.
16) ANTIDISTRACTION e #
After the disarming through the remote control. if one of the doors IS NOTOPENEDwithin 2 minutes, then
the alarm will automatically rearm. (Without locking the doors).
17) ALARM LIMITATION
A
For every arming cycle the alarms are limited to a maximum of:
STANDARD VERSION
6 duetoeachof the followingcauses: 3 duetoeach for:
- Doors (PP); - Ultrason~cs(US) (Only for GR 48)
- Voltage Drop (3W): ' - Optional sensor (SO)
- Ignition Attempt (TA);
-
Bonnet and boot opening (PC)
-
Voltage drop with armedalarm (CA) (Allexcept ND 5 - ND 13 - GR48).
N.6: IN UK VERSION, ALL ALARMS ARE LIMITEDTO 9
Pi,.. 12
18) ALARM STORAGE
IQL PC-PP
If after d~sarmlngthe alarm the dashboard LED continues to flash thls will slgnal that
01 01 US
one or more acoustlc alarms have occurred dur~ngyour absence To ~dentlfythe
alarm cause consult adjacent table and the
associated letters In the prevlous 91 191
QI 3w
sectlon The alarm system goes on storlng thls slgnal untll you e~therturn the
lgnltlon ON or rearm the alarm
Q JQI 010 m
QLIQL~QLQ~ 4 CA
l9)
AUTOFEED (ND6 & GS3A98 only)
lip' iv 0' lo[ IQ joL SO
The alarm module is provided w~thinternal batteries. If the alarm wires are cut or the vehicle battery is
disconnected. while the system is armed, the siren will sound on its own power supply. When the battery is
re-connected, the sound will stop within 30 seconds after the connection.
Autofeed will follow for a cycle of 30 seconds.
When arming the alarm if the back-up battery is dead then rnstead of the two normal
buzzer sounds, two d~fferentsounds will follow.
NBInGR48 version thefunction isactive only If integratedwith GS3A98
REMOTE CONTROL BATTERY REPLACEMENT INDICATION
Your remote control contalns an alkal~nebattery
Csol
The alarm system will indicatewhen the battery needs tobe replaced in 2 ways.
-
Whrle drsarmrngthe alarm system the buzzersounds w~llgetsofter
-
The remote control LED will lkght up only for an Instant (20 mllllseconds) after whlch ~t
will remaln OFF even ~fyou go on presslng the remote button
BATTERY REPLACEMENT 1 &ino
It 1s Important to carry out the battery replacement near the veh~cle
Remove the screw at the back of the transmltter and separate the 2 halves of the case
Remove the old battery and replace 11wlth a new one Be sure to replace 11the rlght way
round Reassemble the transmltter and replace the screw
'sl
When replayhg a LITHIUM battery use model CR2032 3v Ensure the battery 1s placed
with the + slgn ontop and that contact IS not made wlth adjacent electronic components
Following battery replacement the transmltter LED will be on constant
To ext~ngu~shthe LED press push button (6) If the alarm does not respond carry out the
re-synchron~sat~onprocedure SEE NEXTSECTION
NOTE Take care In ensurlng that you dispose the old battery so as not to harm the
environment
3V BATTERY
RE-SYNCHRONIZA TION ~~2032
If the transmltter push button IS pressed more than 256 tlmes out of the maxlmum range of
the recelver then ~twlllbe necessary to carry out the procedure of re synchronlsatlon
Press buttons (A) and (6) simultaneously and hold untll the transmltter LED goes out (Approximately 10
seconds)
- Releas~ngthe buttons w~llcause the LED to ~llum~nate
- Press one of the push-buttons wlthln range of the alarm
- The alarm should now respond
20) IMMOBILISER
The lmmobil~sermodule enables to carry out a multiple engine immobiliser In additional to the current alarm
device system. By arming the alarm device the immobil~sermodule sets Itself
automatically and starts
working at any motor stalling attempt Disarming is set through a coded control of the alarm devlce.
On activated alarm the module is always active even if disconnected from the alarm.
Requiredfunction
in the Kit: ND 14 BMC
Notrequiredfunction
in the Kitbutwhich canbecoupled: ND 14 - ND 14 BM - ND 14 C - GR 48
Notrequiredfunction in the Kitbutwhich cannotbecoupled: ND 5 - ND 6 - ND 13

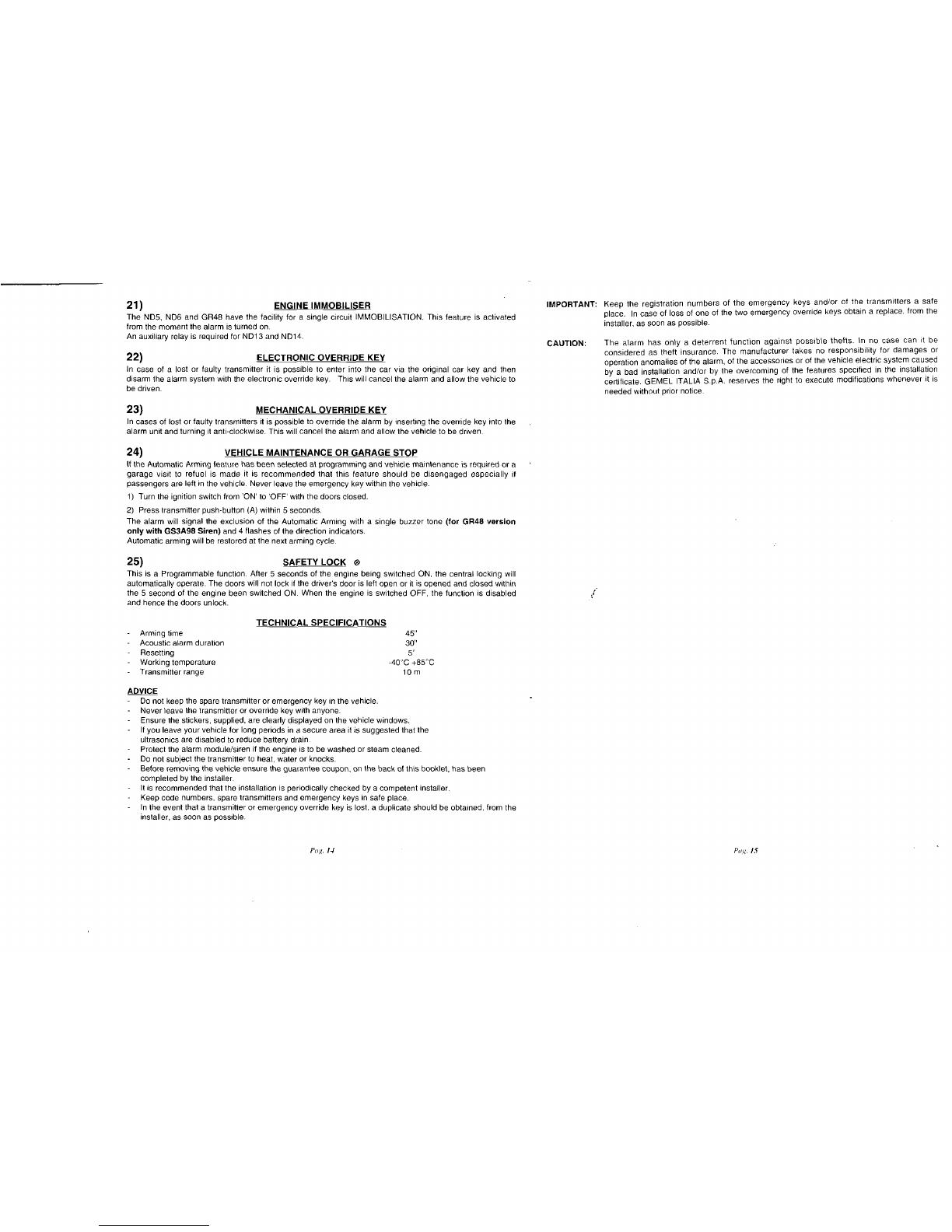

21 ENGINE IMMOBILISER
The ND5. ND6 and GR48 have the fac~lityfor a single circuit IMMOBILISATION. This feature is activated
fromthe moment the alarm is turned on.
An auxillaly relay is required for ND13and ND14.
22) ELECTRONIC OVERRIDE KEY
In case of a lost or faulty transmitter it is posslble to enter info the car vla the orlgtnal car key and then
disarm the alarm system with the electronic override key. Thls will cancel the alarm and allow the veh~cleto
be driven.
23) MECHANICAL OVERRIDE KEY
Incases of lost or faulty transmitters it is possible to override the alarm by lnsertlng the override key into the
alarm unit and turning 11anti-clockwise. This w~llcancel the alarm and allow the vehicle to be drlven
24)
VEHICLE MAINTENANCE OR GARAGE STOP
If the Automatic Arming feature has been selected at programming and vehtcle maintenance is requiredor a
garage vis~tto refuel is made it is recommended that thls feature should be disengaged especially ~f
passengers are left In the vehicle. Never leave the emergency key withln the vehicle.
1) Turn the ignltion switch from 'ON' to 'OFF' w~ththe doors closed.
2) Press transmitter push-button (A) within 5 seconds.
The alarm will signal the exclusion of the
Automatic Armlng with a slngle buzzer tone (for GR48 version
only with GS3A98 Siren) and
4 flashes of the direction indicators.
Automatic arming
will be restored at the next arming cycle.
25) SAFETY LOCK @
This is a Programmable function. After 5 seconds of the engine be~ngswitched ON, the central locking will
automatically operate. The doors will not lock if the dr~ver'sdoor is left open or it
IS opened and closed wlthin
the 5 second of the engine been switched ON. When the engine is swltched OFF. the functlon IS disabled
and hence the doors unlock.
TECHNICAL SPECIFICATIONS
- Arming time 45"
- Acoustic alarm durat~on 30"
- Resetting
5"
- Working temperature -40°C +85"C
- Transmitter range 10m
ADVlCE
-
DOnot keep the spare transmitter or emergency key In the vehicle.
-
Neverleave the transmitter or override key wlth anyone.
-
Ensure the stlckers, supplied, are clearly d~spiayedon the vehicle wlndows.
-
Ifyou leave your vehicle for long periods in a secure area it issuggested that the
ultrasonics are disabled to reduce battery drain
-
Protect the alarm modulelsiren if the engine IS to be washed or steam cleaned.
-
DOnot subject the transmitter to heat, water or knocks.
-
Beforeremovingthe vehicle ensure the guarantee coupon, on the back of thts booklet, has been
completed by the installer.
-
It IS recommended that the installatlorl is period~callychecked by a competent installer.
-
Keep code numbers. spare transmltters and emergency keys Insafe place.
-
Inthe event that a transmitter or emergency override key is lost, a dupi~cateshould be obtained. from the
Installer, as soon as posslble.
IMPORTANT: Keep the registration numbers of the emergency keys andlor of the transmltters a safe
place. In case of loss of one of the two emergency override keys obtain a replace, from the
installer, as soon as possible.
CAUTION: The alarm has only a deterrent function against poss~blethefls. In no case can 11be
considered as theft insurance. The manufacturer takes no responsibility for damages or
operation anomalies of the alarm, of the accessorles or of the vehicle electric system caused
by a bad installation andior by the overcoming of the features speclfled in the lnstailation
certificate. GEMEL ITALIA S.pA reserves the r~ghtto execute modifications whenever it is
needed wlthout prior notice.
