Foreword
Motorcycle is a challenge to your driving ability, spirit of adventure. Under your control, the motorcycle run in the wind line, the
feeling can't be felt in other locomotive driving. Different automobiles, you aren't surrounded by an iron box on a motorcycle. For
your safety and the full enjoyment of adventure, please read this manual carefully before driving this motorcycle.
If you prepare enough for your own safety and the problems faced in charge, you can control the motorcycle on the road. It is
very important that you can protect yourself when you drive. Through the instructions you can find a lot of useful suggestions for you.
In accordance with the instructions, rightly use and maintenance, can effectively protect traffic safety and maintain the car the
best performance, and extended the life of the car.
The manual contains instructions, diagrams and specifications; they are in accordance with previously printed information on the
product to be prepared. Because the Company Forever Pursue product design and continuously improve tbe quality, maybe instruction
is different from the motorcycle. In this case, please subject to the material. If you carefully read the instructions and have any
questions, please promptly contact the company's distributor. T sincerely hope that you can offer some suggestions for the design,
manufacture, quality, etc., and promptly notify us in order to improve.
Thanks for choosing our motorcycle and wish you enjoy the comfort and pleasure during your future trip.
Security issues
You are equal to otbers in safety. Safe manipulation of the motorcycle is an important duty for you.
In order to let you know how safe operation, we provide the rules for the operation and otber relevant information in the body
labels and instructions. This information can alert you to the potential harm for you or others.
Of course, this specification can not serve as a warning to all harm of you may arise at the course of operation and maintenance.
You must be right to make their own judgments.

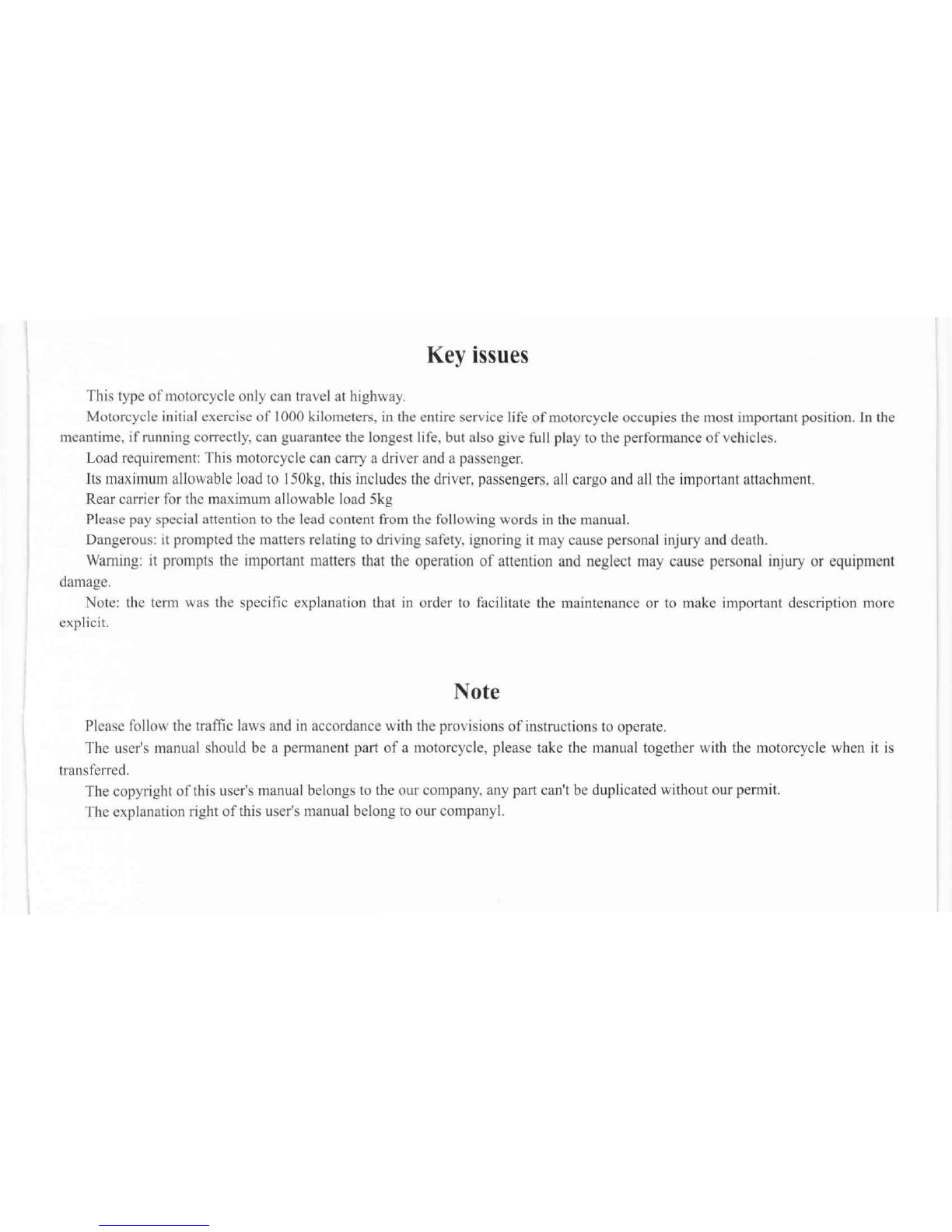

Key issues
This type of motorcycle only can travel at highway.
Motorcycle initial exercise of 1000 kilometers, in the entire service life of motorcycle occupies the most important position. In the
meantime, ifrunning correctly, can guarantee the longest life, but also give full play to the performance of vehicles.
Load requirement: This motorcycle can carry a driver and a passenger.
Its maximum allowable load to 150kg, this includes the driver, passengers, all cargo and all the important attachment.
Rear carrier for the maximum allowable load 5kg
Please pay special attention to the lead content from the following words in the manual.
Dangerous: it prompted the matters relating to driving safety, ignoring it may cause personal injury and death.
Waming: it prompts the important matters that the operation of attention and neglect may cause personal injury or equipment
damage.
Note: the term was the specific explanation that in order to facilitate the maintenance or to make important description more
explicit.
Note
Please follow the traffic laws and in accordance with the provisions of instructions to operate.
The user's manual should be a permanent part of a motorcycle, please take the manual together with the motorcycle when it is
transferred.
The copyright of this user's manual belongs to the our company, any pert can't be duplicated without our permit.
Tbe explanation right of this user's manual belong to our companyl.

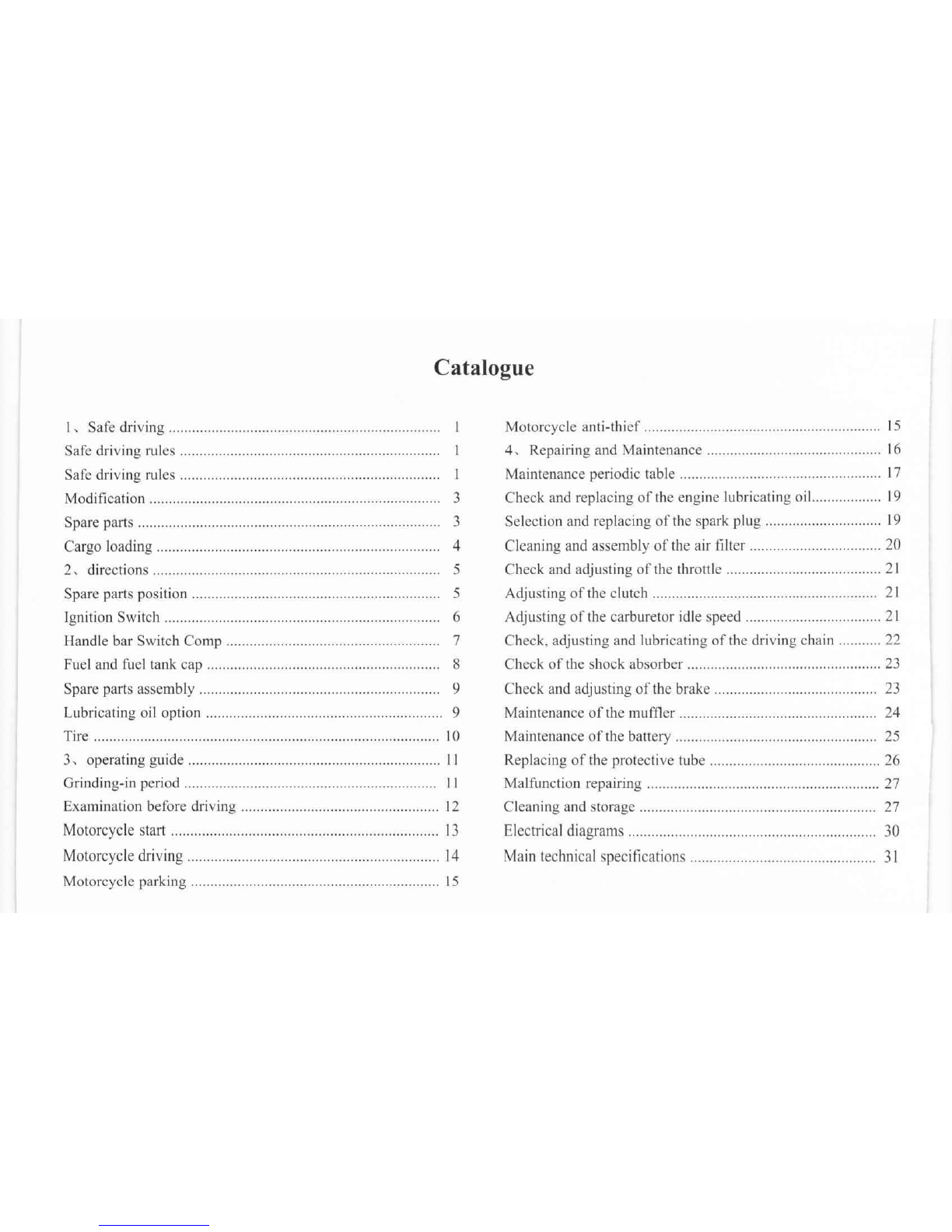

Catalogue
1, Safe driving .
Safe driving rules ..
Safe driving rules .
Modification 3
Spare parts 3
Cargo loading 4
2, directions 5
Spare parts positjon 5
Ignition Switch 6
Handle bar Switch Comp 7
Fuel and fuel tank cap............................................................ 8
Spare parts assembly 9
Lubricating oil option 9
Tire 10
3, operating guide II
Grinding-in period II
Examination before driving 12
Motorcycle start , 13
Motorcycle driving 14
Motorcycle parking 15
Motorcycle anti-thief 15
4, Repairing and Maintenance............................................. 16
Maintenance periodic table 17
Check and replacing of the engine lubricating oil 19
Selection and replacing of the spark plug 19
Cleaning and assembly of the air filter 20
Check and adjusting of the throttle 21
Adjusting of the clutch 21
Adjusting of the carburetor idle speed 21
Check, adjusting and lubricating of the driving chain 22
Check of the shock absorber 23
Check and adjusting of the brake 23
Maintenance of the muffler 24
Maintenance of the battery...... 25
Replacing of the protective tube 26
Malfunction repairing 27
Cleaning and storage 27
Electrical diagrams 30
Main technical specifications 31

1, Motorcycle safe driving
Motorcycles are a unique motor vehicle, it can bring rider comfort and convenience. In order to ensure the best performance of
your motorcycle, you must rightly maintain motorcycle. As a rider, you must confirm your health status as well, you are not tired so
that at your best to control vehicle. YOLIshould not ride after taking drugs or alcohol, especially alcohol, even a small amount of
alcohol will greatly increase the possibility of distress.
Strictly comply with traffic laws! Drunk driving is strictly prohibited!
Prohibited the exercise of speeding!
[Safe Driving Rules 1
Motorcycle drivers must pass the traffic management department's examination and you can ride motorcycle
after obtaining a driving license. And you can not lend you motorcycle to a person without a driving license.
Your driving skills and mechanical knowledge, are the basis of safe driving. At first a small open place to practice until you can
completely be familiar with the motorcycle's mechanical properties and its method of operation. At any time, you must drive after
master the driving ski11.
If you are responsible for your own safety seriously, and you are familiar with driving problem which may encounter on the road,
then your motorcycle can give you many years' service and driving pleasure.
Warning: Before starting the engine. you must first check their vehicles to make sure vehicles are safe for normal.
To avoid damage, you should do as follow:
I. Observance the traffic rules.
2. Keep sat distance with the other vehicles.
3. Over-speed is prohibit, the speed should be controlled within the roadway.
4. Wear the bright colored clothes.
5. Use the turning light, horn, brake ect correctly.
6. Be more careful when you at turning, crossway, park or there are blindfolds on the road.
7. Always be remember when it is overcast or rainy: the distance of brake is twice of the sunny day.
8. Be careful well cover, oil and moist on the road. Please slow down when you don't know the road condition.
9. Usually, the crosswind occurs at tunnel, valley or large vehicles exceed from the back, you should slow down when you drive
on abovementioned road condition.
-I-

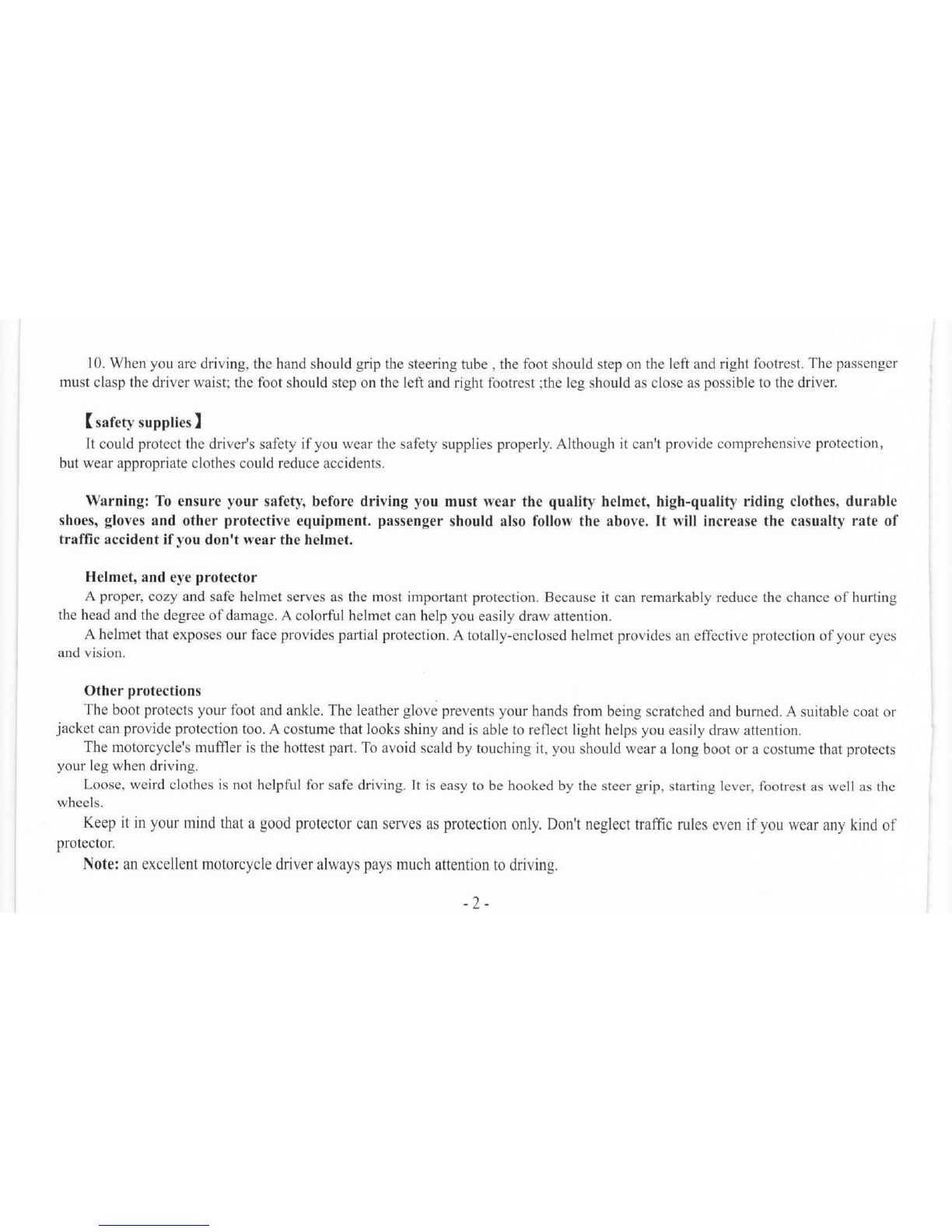

10. When you are driving, the hand should grip the steering tube, the foot should step on the left and right footrest. The passenger
must clasp the driver waist; the foot should step on the left and right footrest ;the leg should as close as possible to the driver.
[safety supplies 1
It could protect the driver's safety if you wear the safety supplies properly. Although it can't provide comprehensive protection,
but wear appropriate clothes could reduce accidents.
Warning: To ensure your safety, before driving you must wear the quality helmet, high-quality riding clothes, durable
shoes, gloves and other protective equipment. passenger should also follow the above. It will increase the casualty rate of
traffic accident if you don't wear the helmet.
Helmet, and eye protector
A proper, cozy and safe helmet serves as the most important protection. Because it can remarkably reduce the chance of hurting
the head and the degree of damage. Acolorful helmet can help you easily draw attention.
Ahelmet that exposes our face provides partial protection. Atotally-enclosed helmet provides an effective protection of your eyes
and vision.
Other protections .
The boot protects your foot and ankle. The leather glove prevents your bands from being scratched and burned. A suitable coat or
jacket can provide protection too. A costume that looks shiny and is able to reflect light helps you easily draw attention.
The motorcycle's muffler is the hottest part. To avoid scald by touching it, you should wear a long boot or a costume that protects
your leg when driving.
Loose, weird clothes is not helpful for safe driving. lt is easy to be hooked by the steer grip, starting lever, footrest as well as the
wheels.
Keep it in your mind that a good protector can serves as protection only. Don't neglect traffic rules even if you wear any kind of
protector.
Note: an excellent motorcycle driver always pays much attention to driving.
- 2 -

( The modifying of the vehicle 1
Warning: the users must obey the regulations by the traffic administration department. Casual modifying or dismantling
the original vehicle never guarantees Driving safety.
Dismantling or modifying of light, muffler, transmission controlling system or other parts makes your motorcycle illegal.
It is strongly commended that you should not dismantle any original parts or modify the vehicle in any possible way. By doing so
, the design of the motorcycle and its operation will be changed. The modifications mentioned above have an impact on the operation.
stability and brake capability of the motorcycle and reduce Driving safety. If you have any good modification ideas, wirte to us, and
we will put it into practice after it is approve.
[parts]
We strongly recommend you to use the original parts which pass our company's professional design and testing, because our
company's parts are all specially designed and bave gotten a lot of testing on motorcycle. Maybe there are various kinds of parts on
the market which could be installed on your motorcycle, but our company couldn't test it one by one, and can not directly control the
quality and application. The surface of some the other company's parts is look the same with the original parts, but actually, the effect
will be quite different. You must be responsible for yourself actions, if you select, install and use the other company's products. We
suggest that you ask your distributor to help you select high-quality parts on the market, and make the right installation. Please
according to the "safe driving rules," and pay attention to the followings:
1. To ensure that the parts do not affect the lighting, reduce ground clearance, angle, suspension stroke and direction of steering.
2. Any additional weight of accessories, or the accessories easy to head wind, the installation location should be as low as
possible, close to the body and near the center of gravity. Shelf and accessories must be carefully inspected to insure whether they are
installed firmly. Or, it will create dangerous.
3. To check the installation height of the accessories and roll angle whether they are appropriate, wrong installation will reduce
safety factors. Don't hinder the effective of shock absorber, turning and control functions.
4. It will severely create imbalance if the accessory is installed at the steering tube and front fork. This will reduce the sensitivity
of tuming, result front-wheel vibration, drive instability. You should installed the lowest weight parts on the steering tube and front
fork.5. Windshield boards, backrest, saddle bags, suitcases and so on are all head wind, easily lead to instability on the road. In
particular, when the crosswind occurs or the large vehicles interleaving evident. If you install the accessories incorrect or install with
- 3 -

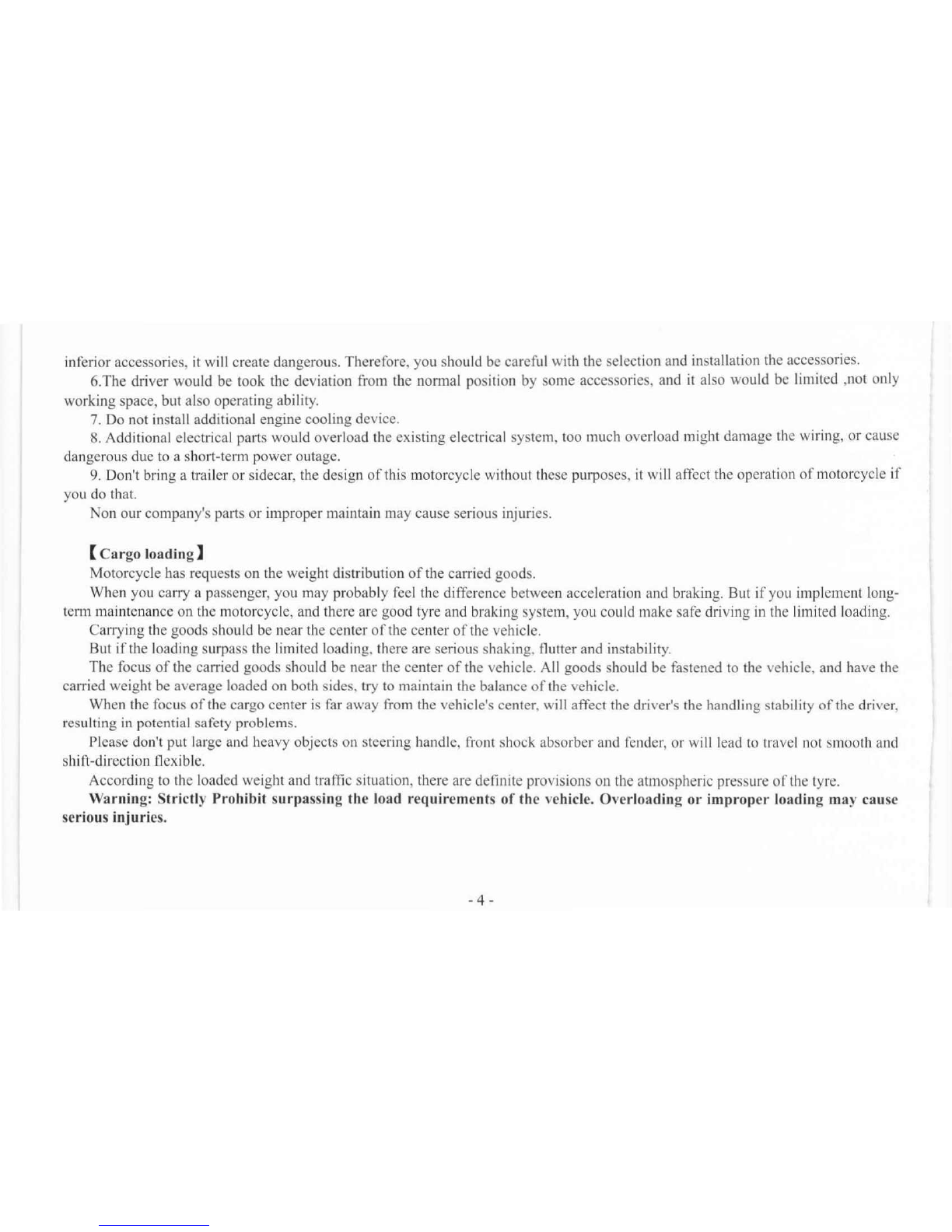

inferior accessories, it will create dangerous. Therefore, you should be careful with the selection and installation the accessories.
6.The driver would be took the deviation from the normal position by some accessories, and it also would be limited ,not only
working space, but also operating ability.
7. Do not install additional engine cooling device.
8. Additional electrical parts would overload the existing electrical system, too much overload might damage the wiring, or cause
dangerous due to a short-term power outage.
9. Don't bring a trailer or sidecar, the design of this motorcycle without these purposes, it will affect the operation of motorcycle if
you do that.
Non our company's parts or improper maintain may cause serious injuries.
[ Cargo loading 1
Motorcycle has requests on the weight distribution of the carried goods.
When you CatTY a passenger, you may probably feel the difference between acceleration and braking. But if you implement long-
term maintenance on the motorcycle, and there are good tyre and braking system, you could make safe driving in the limited loading.
Carrying tbe goods should be near the center of tbe center of the vehicle.
But if the loading surpass the limited loading, there are serious shaking, flutter and instability.
The focus of the carried goods should be near the center of the vehicle. All goods should be fastened to the vehicle, and have the
carried weight be average loaded on both sides, try to maintain the balance of the vehicle.
When the focus of the cargo center is far away frOI11 the vehicle's center, will affect the driver's the handling stability of the driver,
resulting in potential safety problems.
Please don't put large and heavy objects on steering handle, Erontshock absorber and fender, or will lead to travel not smooth and
shift-direction flexible.
According to the loaded weight and traffic situation, there are definite provisions on the atmospheric pressure of the tyre.
Warning: Strictly Prohibit surpassing the load requirements of the vehicle. Overloading or improper loading may cause
serious injuries.
- 4 -

2, INSTRUCTION MANUAL
[The location of the parts]
(I) front wheel ;
(7) engine;
(8)
(~)
(5)(4)
I .
(2) front brake;
(8) taillight;
(3) front shock absorber;
(9) muffler;
(4) head light; (5) rear view minor;
( 10) rear brake: (11) rear wheel.
(6) tank;
- 5 -

(I) Left grip;
(2) Left handle switch ;
(3) Meter;
(4) ignition switch;
(5) right handle switch;
(6) right grip.
Vehicle identification number
Record of frame (YIN)
Engine number :
When you register your motorcycle, you have to provide the frame no and engine no. so, keep record of these number in
case of need • Please fill in the blank space provided by the vehicle identification number, engine number, it will also help you to
order spare parts from our company or entrust the special services to us, or when your motorcycle is stolen for use as a query.
The location of identification number
(J)Yin engraved on the frame steering tube.
(2)Engine number engraved at the left side below the engine crankcase.
Ignition switch: combination of ignition switch is at bottom of meter. Tum on the ignition switch before stan the
motorcycle.
u ~ "
ltO"
( off)
( on) : disconnect the entire circuit, the engine should not
start. the key can be removed.
: the circuit is connected ,the engine can be started, the key can not be removed.
Direction lock
When packing and direction locked, turn steering handle bar to left end, then press the key
from " ~" (off) position, and turn anriclockwise direction to t, OJ" (lock) to lock steering
system, and take out the key; turn the direction lock on , tum clockwise direction to " l:SS) "
(off) , and take out the key 0
Attention: when the motorcycle stops, you must lock tbe steering system. 0 While driving a motorcycle, prohibit
rotating ignition switch key to the locked position of the direction lock, otherwise will cause the motorcycle out of control.
- 6 -
