Genie CCTV HDC221 User manual

Model: HDC221
Digital Day/Night HD-SDI 2.1MP
Bodied Camera
User Guide

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 1 -
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
This installation should be made by a qualified service person and
should conform to all local codes.
CAUTION: To prevent electric shock and risk of fire hazards.
Do NOT use power sources other than those specified.
Do NOT expose this appliance to rain or moisture.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 2 -
Contents
Dimensions
3
3
4
5
7
6
22
23
Package Contents
General Features
Safety Instructions
Precautions
Specication
Troubleshooting
Menu Set Up
• Set Up Menu
• Menu Set Up
• Lens
• Exposure
• Back Light Compensation
• Day & Night
• White Balance
• DNR
• Image
• Motion Detection
• System
• Exit
7
9
10
11
13
13
14
15
16
18
20
21

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 3 -
Camera Dimensions
Package Contents
123mm
40mm
ڐڍۈۈ
58mm
75mm
ڣڟڈڨڳڳڳٻڮڟڤٻڝڪڳٻ㙹㉬㇠⫠
INSTRUCTION MANUAL 1EA IRIS JACK 1E
A

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 4 -
General Features
DNR (Digital Noise Reduction)
DNR technology utilises both an adaptive 2D filter which reduces noise in the brightness of the image
and an adaptive 3D filter which reduces noise caused by movement. The result is that the HD-SDI
camera supports Motion Adaptive DNR which removes noise and greatly reduces motion blur.
HD (High Definition) Surveillance
HD-SDI cameras provide superb surveillance images compared to a normal VGA camera.
WDR (Wide Dynamic Range)
WDR is a powerful and ultra advanced technology that captures cleaner and superior high resolution
images even where they appear dark due to a strong back light presence.
HLC (High Light Compensation)
High Light Compensation function is especially effective for reading car number plates at night time. Users
can select and define the required observation area for the target object and ignore strong highlight areas.
Illumination
With an incredible minimum illumination of 0.5 Lux, images can be captured even in extremely low light
conditions and signal noise is significantly reduced by the ultra advanced DNR (Digital Noise Reduction)
technology.
Privacy Zone
Privacy Zones can be set to block viewing for specific areas in the picture.
Additional Functions
OSD - On Screen Display menu
P rivacy Masking - 32 zones, Sens-Up - x64 times, Digital Zoom - x8
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR
DNR
Digital
Reduction
Noise
Illumination
Minimum
High Definition
HD
DSP
3D-DNR
OSD
Privacy Zone
HLC
Wide Dynamic Range
Digital
WDR

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 5 -
Do not expose the camera to rain
or spill liquids on it.
Do not expose the camera to
radioactivity.
If it gets wet, wipe dry immediately.
Liquids can contain minerals that
corrode the electronic components.
If exposed to radioactivity the CCD
will fail.
NOTE
Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Do not install or use the camera in an
environment where the humidity is high.
Do not install or use the camera in an
environment where the humidity is high.
Never keep the camera pointed
directly at strong light.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-20°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
* If the camera is exposed to
spotlightorobjectreecting
strong light, smear or blooming
may occur.
* Please check that the power
satisesthenormalspecication
before connecting the camera.
Severe lighting which changes or flickers
can cause the camera to work improperly.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 6 -
Safety Instructions
Precautions for use
Please handle this camera carefully
Thiscamerashouldbeinstalledbyaqualiedpersononly.
There are no user serviceable parts inside.
Do not disassemble this camera other than to make initial adjustments.
Only use a CE approved regulated DC12V, or AC24V power supply.
Useappropriatelowvoltagepowercabletopreventreorelectricalshock.
Please ensure that your installation area can support the weight of the camera.
Do not use strong or abrasive detergents when cleaning the camera.
Do not expose the camera to direct sun.
Do not install the camera in places where humidity is high.
Do not install near cooling or heating devices.
Do not expose the camera to rain or moisture.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 7 -
SET UP MENU DEFAULT SET
INDOOR
OUTDOOR
RETURN
MANUAL
BRIGHTNESS
AUTO
Manual
AGC
RETURN
RETURN
H - POS
V - POS
H - SIZE
V - SIZE 0 ~ 20 Level Selectable
RETURN
WE IGHT
RETURN
COLOUR
B/W
DELAY
RETURN
AGC THRES
MARGIN
DELAY
RETURN
ATW
PRESET
R - GAIN
B - GAIN
RETURN
AWB
SHARPNESS
GAMMA
COLOUR GAIN0 ~ 20 Level Selectable
MIRROR
FLIP
D - ZOOM x1 ~ x8 Level Selectable
D - WD R
ON
ZONE NUM
ZONE DISP
H - POS
V - POS
H - SIZE
V - SIZE
Y LEVEL
CR LEVEL
CB LEVEL
RETURN
OFF
RETURN
SENSITIVITY
DET H - POS
DET V - POS
DET H - SIZE
DET V - SIZE
MOTION OSD
ALARM
RETURN
OFF
CAM ID
BAUDRTE
ID DISPLAY
RETURN
FRAME RATE
CVBS
RESETON
RETURN
EXIT
25 FPS / 30 FPS Selectable
NTSC / PAL Selectable
PUSHING
LENS
COM.(Option)
DAY/NIGHT
DNR
ON
AUTO
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
ON / OFF Selectable
MANUAL
MOTION
PRIVACY ZONE
SYSTEM
0 ~ 40 Level Selectable
0 ~ 60 Level Selectable
0 ~ 40 Level Selectable
0 ~ 20 Level Selectable
0 ~ 60 Level Selectable
0 ~ 20 Level Selectable
2400 / 4800 / 9600 / 57600 / 115200 Selectable
ON
0 ~ 40 Level Selectable
ON / OFF Selectable
ON / OFF Selectable
0 ~ 31 Level Selectable
ON / OFF Selectable
MENU
0 ~ 60 Level Selectable
0 ~ 40 Level Selectable
0 ~ 40 Level Selectable
0 ~ 20 Level Selectable
ON / OFF Selectable
OFF /LOW / MIDDLE / HIGH Level Selectable
SHADING 1% ~ 100% Level Selectable
OFF
MODE
DC
SHUTTE R1/25,1/30, 1/60, 1/50, FLK , 1/240, 1/500, 1/1000, 1/2000, 1/4000,
1/8000,1/16000, 1/30000, 1/60000
x2 , x3, x4, x8, x16, x32, x64 Level Selectable
OFF
SENS -UP
O.45, 0.5, 0. 55, 0. 6, 0.65 Level Selectable
ON / OFF Selectable
EXPOSURE
HLC
0~20 Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
BLC
WD R
EXTLOW / MIDDLE / HIGH Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
LOW / MIDDLE / HIGH
LOW / MIDDLE / HIGH Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
PUSHING
LOW / MIDDLE / HIGH Level Selectable
BACKLIGHT
OFF
OFF
0 ~ 10 Level Selectable
0 ~ 20 Level Selectable
0 ~20 Level Selectable
Setup Menu

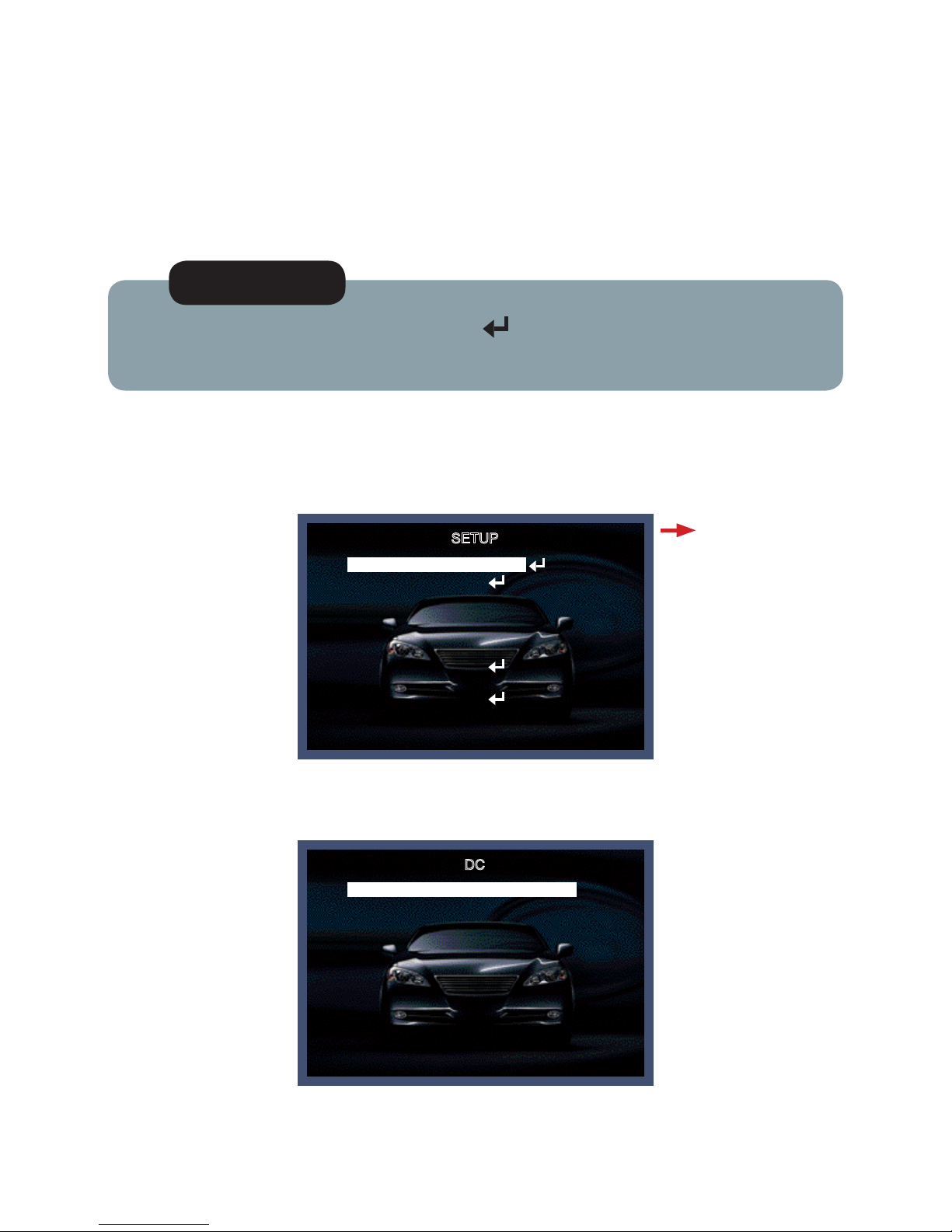

How to Set Up the Camera Menu

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 8 -
SET UP MENU DEFAULT SET
INDOOR
OUTDOOR
RETURN
MANUAL
BRIGHTNESS
AUTO
Manual
AGC
RETURN
RETURN
H - POS
V - POS
H - SIZE
V - SIZE 0 ~ 20 Level Selectable
RETURN
WE IGHT
RETURN
COLOUR
B/W
DELAY
RETURN
AGC THRES
MARGIN
DELAY
RETURN
ATW
PRESET
R - GAIN
B - GAIN
RETURN
AWB
SHARPNESS
GAMMA
COLOUR GAIN 0 ~ 20 Level Selectable
MI RROR
FLIP
D - ZOOM x1 ~ x8 Level Selectable
D - WD R
ON
ZONE NUM
ZONE DISP
H - POS
V - POS
H - SIZE
V - SIZE
Y LEVE L
CR LEVEL
CB LEVEL
RETURN
OFF
RETURN
SENSITIVITY
DET H - POS
DET V - POS
DET H - SIZE
DET V - SIZE
MOTI ON OSD
ALARM
RETURN
OFF
CAM ID
BAUDRTE
ID DISPLAY
RETURN
COLOURSPACE
FRAME RATE
CVBS
RESETON
RETURN
EXIT
OFF/COLOUR1 / COLOUR2 / COLOUR3 Selectable
25 FPS / 30 FPS Selectable
NTSC / PAL Selectable
PUSHING
LENS
COM. (O ption)
DAY/NIGHT
DNR
ON
AUTO
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
ON / OFF Selectable
MANUAL
MOTI ON
PRIVACY ZONE
SYSTEM
0 ~ 40 Level Selectable
0 ~ 60 Level Selectable
0 ~ 40 Level Selectable
0 ~ 20 Level Selectable
0 ~ 60 Level Selectable
0 ~ 20 Level Selectable
2400 / 4800 / 9600 / 57600 / 115200 Selectable
ON
0 ~ 40 Level Selectable
ON / OFF Selectable
ON / OFF Selectable
0 ~ 31 Level Selectable
ON / OFF Selectable
MENU
0 ~ 60 Level Selectable
0 ~ 40 Level Selectable
0 ~ 40 Level Selectable
0 ~ 20 Level Selectable
ON / OFF Selectable
OFF /LOW / MIDDLE / HIGH Level Selectable
SHADING1% ~ 100% Level Selectable
OFF
MODE
DC
SHUTTE R1/25,1/30, 1/60, 1/50, FLK , 1/240, 1/500, 1/1000, 1/2000, 1/4000,
1/8000,1/16000, 1/30000, 1/60000
x2 , x3, x4, x8, x16, x32, x64 Level Selectable
OFF
SENS -UP
O.45, 0.5, 0. 55, 0. 6, 0.65 Level Selectable
ON / OFF Selectable
EXPOSURE
HLC
0~ 20 Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
BLC
WD R
EXTLOW / MI DDLE / HIGH Level Selectable
0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
LOW / MI DDLE / HIGH
LOW / MI DDLE / HIGH Level Selectable
WH ITE BAL0 ~ 20 Level Selectable
0 ~ 20 Level Selectable
PUSHING
LOW / MIDDLE / HIGH Level Selectable
BACKLIGHT
OFF
OFF
0 ~ 10 Level Selectable
0 ~ 20 Level Selectable
0 ~20 Level Selectable

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 9 -
Menu items can be selected by using the camera OSD buttons.
1. Press the Set Up button.
The Set Up menu will be displayed on the monitor.
Menu Set Up
SETUP
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
2. Move and select the required function using the Up and Down buttons.
SETUP
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 10 -
3. Change menu settings using the Left or Right buttons.
Available values or status's are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After changing the setting, move the arrow indicator to EXIT and press the SET button to
EXIT.
1. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right buttons.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* Submenu is not available when this symbol is display "- - - -"
Lens
DC: DC Auto Iris Lens
Manual: C-Mount Lens
3. Press RETURN to go back to the SETUP menu.
SETUP
DC
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
MODE
RETURN
OUTDOOR

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 11 -
This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen, select EXPOSURE by using the Up or Down buttons.
2. Select the desired brightness mode by pressing the Left or Right buttons.
Exposure
SETUP
EXPOSURE
3. Brightness can be adjusted. The brightness control range is 1 ~ 20.
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
BRIGHTNESS
SHUTTER
SENS-UP
AGC
RETURN
10
AUTO
X32
16

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 12 -
EXPOSURE
EXPOSURE
EXPOSURE
NOTE
*Shutter: Select Shutter using the Left or Right buttons, you can adjust the shutter speed
from AUTO to MANUAL (1/25,1/50,FLK,1/240,1/500,1/1000,1/2000,1/4000,1/8000,1/16000,
1/30000,1/60000)
4. Select the desired shutter mode by pressing the Left or Right buttons.
5. SENS-UP: Select the desired Sens-Up mode by pressing the Left or Right buttons.
6. AGC: Select the desired AGC mode by pressing the Left or Right buttons.
At night and/or in dark conditions, the Sens-Up mode can be selected to desired value from x2 ~ x64
BRIGHTNESS
SHUTTER
SENS-UP
AGC
RETURN
10
AUTO
X32
16
BRIGHTNESS
SHUTTER
SENS-UP
AGC
RETURN
10
AUTO
X32
16
BRIGHTNESS
SHUTTER
SENS-UP
AGC
RETURN
10
AUTO
X32
16
AGC mode can be selected to desired value from 0 ~ 20. (If the level of the AGC increases, noise can also be increased.)

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 13 -
SETUP
NOTE
Day / Night
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
Images can be displayed in either colour or black and white.
1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen.
HLC (High Light Compensation): If the scene contains extremely bright light areas such as; from car headlights,
the light can mask out much of the on-screen detail.
LEVEL: Adjust the level of the HLC function.
BLC: Enables a user to directly select a desired area from a picture, and to view the area more clearly.
TOP / BOTTOM / LEFT / RIGHT: Adjust the area to be enhanced.
WDR: The camera delivers clear high quality pictures even in backlight, by increasing exposure in dark areas while
decreasing it in bright areas; thereby producing a corrected image with clear details.
LOW / MIDDLE / HIGH: Adjust the level of WDR.
Back Light Compensation (BLC)
This camera uses DSP to provide intelligent light level control to overcome even strong backlight conditions.
1. On the Set Up menu screen, select BACKLIGHT by using the Up or Down buttons.
*Backlight: Select Backlight using the Left or Right buttons. You can choose OFF / HLC / BLC and WDR.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 14 -
SETUP
SETUP
White Balance
The White Balance function is used to control the “on-screen” colours.
1. Move the arrow indicator to WHITE BALANCE on the SETUP menu screen using the Up and Down buttons.
2. Select the desired mode by using the Left or Right buttons.
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
2. Select the desired mode using the Left and Right buttons.
COLOUR: The picture is always displayed in colour.
BW: This picture is always displayed in black and white.
AUTO: The mode will automatically switch to COLOUR in normal condition and switch to BW mode
when ambient illumination is low.
Press the SET button to set the switching time or AGC THRES (AGC), MARGIN (AGC) in AUTO mode.
DELAY: You can select the duration time about changing the day/night mode.
EXTERN: Select delay level LOW / MIDDLE / HIGH

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 15 -
DNR is used to reduce the level of background noise in a low luminance environment.
1. Move the arrow indicator to DNR by using the Up and Down buttons.
DNR
SETUP
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
Three user selectable White Balance settings are available.
ATW: (Auto Tracking White Balance)
Normalsetting;whenthecolourtemperaturerangeisfrom1,800˚Kto10,500˚K.(Ex:afluorescentlamporoutdoors)
AWB: The White Balance is automatically adjusted in a specific environment.
PRESET: To obtain the best results, press the SET button while the camera is focused onto white paper.
If the environment, and/or light source change, the White Balance will require re-adjustment.
MANUAL: Used for fine adjustment of White Balance. Set White Balance first using ATW or AWC and then
change to MANUAL and press SETUP button. Increase or decrease the value of R-Gain (Red) and B-Gain (Blue) while
monitoring the colour of the image.
2. Select OFF / LOW / MIDDLE / HIGH for 3DNR by using the Left and Right buttons.
: motion adaptive temporal IR filtering
: edge preserving & ghost elimination
: adaptive weight control by noise level

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 16 -
SETUP
SHARPNESS
GAMMA
COLOR GAIN
MIRROR
FLIP
D-ZOOM
D-WDR
SHADING
PRIVACY
RETURN
10
0.45
20
ON
ON
X 8
OFF
ON
ON
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOUR
ATW
MIDDLE
OFF
SHARPNESS: Improving image clarity. The level can be adjusted to obtain an improved image.
However, when the level is set too high, it can distort the image or cause noise.
You can adjust the sharpness from level 1 to 10.
GAMMA: Desired gamma values can be adjusted from 0.45 ~ 0.65.
COLOUR GAIN: Using the left and right buttons, the level of colour image can be adjusted with dark or bright .
MIRROR: Flip the image horizontally on the screen.
FLIP: Flip the image vertically on the screen.
1. Move the arrow indicator to IMAGE by using the Up and Down buttons.
2. Select the desired sharpness mode by pressing the Left or Right buttons.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 17 -
①
AREA SELECT: You can select up to 32 MD area.
② AREA DISPLAY: OFF: Disabled
ON: Activates area display
PRIVACY
ZONE NUM
ZONE DISP
H - POS
V - POS
H - SIZE
V - SIZE
Y LEVEL
CR LEVEL
CB LEVEL
RETURN
31
ON
60
40
40
40
20
20
20
POSITION SIZE
PICTURE 1 PICTURE 2
D-ZOOM: Up to x8 bi-cubic linear digital zoom and PIP using anti-aliasing down scaling.
D-WDR: This camera uses DSP to provide intelligent light level control to overcome even strong backlight conditions.
OFF: D-WDR function does not operate.
When there are simultaneous bright & dark image areas, WDR makes them both distinct and can be selected as
OUTDOOR and INDOOR.
SHADING: Adjust the level of brightness between center and side.
PRIVACY: Select an area you want to hide on the screen.

Digital Day/Night HD-SDI 2.1MP Bodied Camera
- 18 -
MOTION
SETUP
1. Move the arrow indicator to MOTION by using the Up and Down buttons.
LENS
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
DNR
MOTION
SYSTEM
EXIT
DC
OFF
COLOR
ATW
MIDDLE
OFF
③ Move the arrow indicator to the H-POS to select the desired area positon by using the LEFT or RIGHT buttons
between the level 0 ~ 60.
④ Move the arrow indicator to the V-POS to select the desired area positon by using the TOP or BOTTOM buttons
between the level 0 ~ 40.
⑤ Move the arrow indicator to the H-SIZE to select the desired area positon by using the LEFT or RIGHT buttons
between the level 0 ~ 40.
⑥ Move the arrow indicator to the V-SIZE to select the desired area positon by using the TOP or BOTTOM buttons
between the level 0 ~ 40.
⑦ Move the arrow indicator to COLOUR to select the desired colour of each area cells by using the Left / Right
buttons to select between the 15 different colours.
RETURN: Move the arrow indicator to RETURN after completing the setup to return to the IMAGE menu.
