Genius IPCAM SECURE300W - V 1.0 User manual

IPCam SECURE300W
User’s Manual
Version 1.0

IPCam SECURE300W User’s Manual
KYE Systems Corp. 1
Index
INTRODUCTION .................................................................................. 2
FEATURES AND BENEFITS............................................................. 2
PACKAGE CONTENTS...................................................................... 4
SYSTEM REQUIREMENTS ............................................................... 5
HARDWARE OVERVIEW................................................................... 6
HARDWARE INSTALLATION......................................................... 11
SECURITY........................................................................................... 14
CONNECTING THE CAMERA BEHIND A ROUTER....................... 15
USING THE SETUP WIZARD.......................................................... 18
USING THE CONFIGURATION MENU.......................................... 26
WEB CONFIGURATION UTILITY................................................... 27
VIEW VIDEO-ACTIVEX MODE........................................................ 52
VIEW IMAGE-JAVA MODE ............................................................. 53
IPVIEW SE .......................................................................................... 55
APPENDIX .......................................................................................... 79

IPCam SECURE300W User’s Manual
KYE Systems Corp. 2
Introduction
Congratulations on your purchase of our IPCam SECURE300W!
Unlike a PC Camera, the IPCam SECURE300W is a standalone
system with a built-in CPU and Web server that transmits real-time
and high quality video images for monitoring. The IPCam
SECURE300W can be accessed remotely and controlled from any
PC/Notebook over the Intranet or Internet via a web browser. The
simple installation procedures and web-based interface allow you to
integrate it into your network easily. With comprehensive
applications supported, the IPCam SECURE300W is your best
solution for remote monitor, high quality, and high performance
video images.
Features and Benefits
Simple to Use
The IPCam SECURE300W is a standalone system with built-in CPU
requiring no special hardware or software such as PC frame grabber
cards. The IPCam SECURE300W supports both ActiveX mode (for
Internet Explorer users) and Java mode (for Internet Explorer and
Netscape Navigator users). Therefore, all that is required is a web
browser software such as Internet Explorer 5.0 or above or Netscape
6.0 or above. Just plug and view the picture from the IPCam
SECURE300W with a valid IP Address.

IPCam SECURE300W User’s Manual
KYE Systems Corp. 3
Support IEEE 802.11g wireless LAN or Ethernet/Fast
Ethernet
The IPCam SECURE300W provides IEEE802.11 wireless LAN or
Ethernet/Fast Ethernet connectivity, making the IPCam
SECURE300W easy to integrate into your existing network
environment.
Support Variety of Platforms
The IPCam SECURE300W supports TCP/IP networking, SMTP e-
mail, HTTP and other Internet related protocols, and can be utilized
in a mixed operating system environment such as Windows, Unix,
and Mac. It can be integrated easily into other www/Intranet
applications.
Web Configuration
Applying a standard web browser, the administrator can configure
and manage IPCam SECURE300W directly from its own web page
via the Intranet or Internet. That means you can access the IPCam
SECURE300W at any time from anywhere in the world. Up to 64
users name and password are permitted with privilege setting
controlled by the administrator.
Remote Utility
The powerful IPView SE application assigns the administrator with a
pre-defined user ID and password, allowing the administrator to
modify the IPCam SECURE300W settings from the remote site via
Intranet or Internet. When new firmware is available, you can also

IPCam SECURE300W User’s Manual
KYE Systems Corp. 4
upgrade remotely over the network for added convenience. Users
are also allowed to monitor the image, and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the IPCam
SECURE300W can provide the ideal solution for live video images
over the Intranet and Internet for remote monitoring. The IPCam
SECURE300W allows remote access from a web browser for live
image viewing and allows an administrator to manage and control
the IPCam SECURE300W anywhere and any time in the world.
Apply the IPCam SECURE300W to monitor various objects and
places such as homes, offices, banks, hospitals, child-care centers,
amusement parks and other varieties of industrial and public
monitoring. The IPCam SECURE300W can also be used for
intruder detection; in addition, it can capture still images for
archiving and many more applications.
Package Contents
 Genius IPCam SECURE300W
 Quick Installation Guide
 CD-ROM with Software and Manual
 Camera Stand with screws and Mounting Bracket
 Cat. 5 Ethernet Cable
 Power Adapter
 IEEE 802.11g Antenna

IPCam SECURE300W User’s Manual
KYE Systems Corp. 5
System Requirements
 Networking
a. Local Area Network: 10Base-T Ethernet or 100Base-
TX Fast Ethernet.
b. Wireless Local Area Network: IEEE 802.11g Wireless
Router or Access Point.
 Accessing the IPCam SECURE300W
a. For Web Browser Users
- Operating System: Microsoft® Windows® 98SE / ME/
2000/XP
- CPU: Intel Pentium II, 266 MHz or above
- Memory Size: 32MB (64MB recommended)
- Resolution: 800x600 or above
- Microsoft® Internet Explorer 5.0 or above (ActiveX
& JAVA Mode – Image View for Windows OS and
JAVA Mode – Image View for other OS); Netscape 6.0
or above (JAVA Mode – Image View)
b. For IPView SE Application Users
- Operating System: Microsoft® Windows® 98SE /
ME/ 2000/XP.
- CPU: Intel Pentium III, 450 MHz or above
- Memory Size: 128 MB (256 MB recommended)
- Resolution: 800x600 or above

IPCam SECURE300W User’s Manual
Hardware Overview
This section describes features of the IPCam SECURE300W.

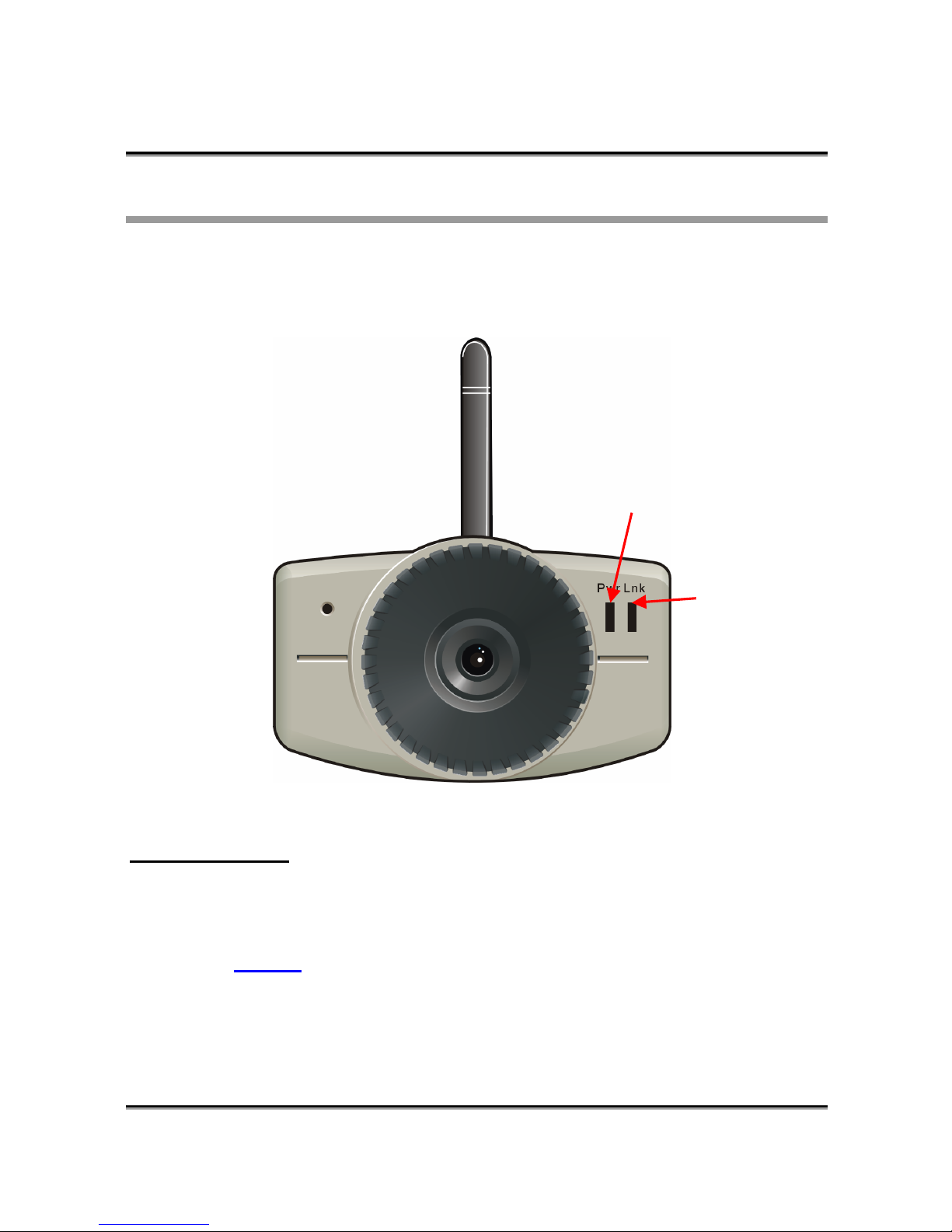

Front Panel
① Power LED
② Link LED
1. Power LED
The Power LED is positioned on the right side of the IPCam
SECURE300W’s lens while facing the IPCam SECURE300W.
A steady BLUE light confirms that the IPCam SECURE300W is
powered on.
KYE Systems Corp. 6

IPCam SECURE300W User’s Manual
2. Link LED
The Link LED is positioned on the right side of the IPCam
SECURE300W’s lens while facing the IPCam SECURE300W. It is
located to the right of the Power LED
A steady ORANGE light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to indicate
that the IPCam SECURE300W is receiving/sending data from/to the
network.
Rear Panel
② External Antenna ③ Reset Button
① Network Cable Connector ④DC Power Connector
KYE Systems Corp. 7

IPCam SECURE300W User’s Manual
KYE Systems Corp. 8
1. Network Cable Connector
The IPCam SECURE300W’s rear panel features an RJ-45 connector
for connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling (which should be Category 5 twisted-pair cable).
The port supports the N-Way protocol and “Auto-MDIX” function,
allowing the IPCam SECURE300W to automatically detect or
negotiate the transmission speed of the network.
2. External Antenna
The rotatable external antenna allows you to adjust its position to
obtain the maximum signal.
3. Reset Button
Reset will be initiated when the reset button is pressed once, and
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to light
up. Release the reset button and the Power LED will begin to flash,
indicating the IPCam SECURE300W is changing to factory reset.
When factory reset is completed, the IPCam SECURE300W will be
set to default on channel 11 and SSID is set as “NULL String” (This
default setting will let the IPCam SECURE300W connect to ANY
access point on the infrastructure network). The IP address will also
return to the default setting as 192.168.0.20.
4. DC Power Connector
The DC power input connector is located on the IPCam
SECURE300W’s rear panel, and is labeled DC5V with a single jack

IPCam SECURE300W User’s Manual
socket to supply power to the IPCam SECURE300W. Power will be
generated when the power supply is connected to a wall outlet.
Note:
Using the power supply with different voltage rating will damage the
IPCam SECURE300W.
Top/Bottom Panel
Top Panel
KYE Systems Corp. 9
Screw Hole

IPCam SECURE300W User’s Manual
Bottom Panel
KYE Systems Corp. 10
Screw Hole
Screw Hole
Located on the top/bottom panel of the camera, the screw hole is
used to connect the camera stand onto the camera by attaching the
screw head on the camera stand into the screw hole of the camera.

IPCam SECURE300W User’s Manual
Hardware Installation
Attach the Camera to the Stand
The IPCam SECURE300W comes with a camera stand (optional)
with a swivel ball screw head that can be attached to the IPCam
SECURE300W's bottom screw hole. Attach the camera stand to the
IPCam SECURE300W and station it for your application. There are
three holes located in the base of the camera stand allowing the
IPCam SECURE300W to be mounted on the ceiling or any wall
securely.
KYE Systems Corp. 11

IPCam SECURE300W User’s Manual
Attach the Antenna
Please attach the Antenna to the antenna connector located on the
back of the IPCam SECURE300W.
Connect the Cat 5 Ethernet Cable
If you would like use the IPCam SECURE300W in the wired
networking environment, you can connect an Ethernet cable to the
network cable connector located on the IPCam SECURE300W’s rear
panel, and then attach it to the network. The port also supports
MDI/X, which allows the use of either straight through or crossover
cables.
KYE Systems Corp. 12

IPCam SECURE300W User’s Manual

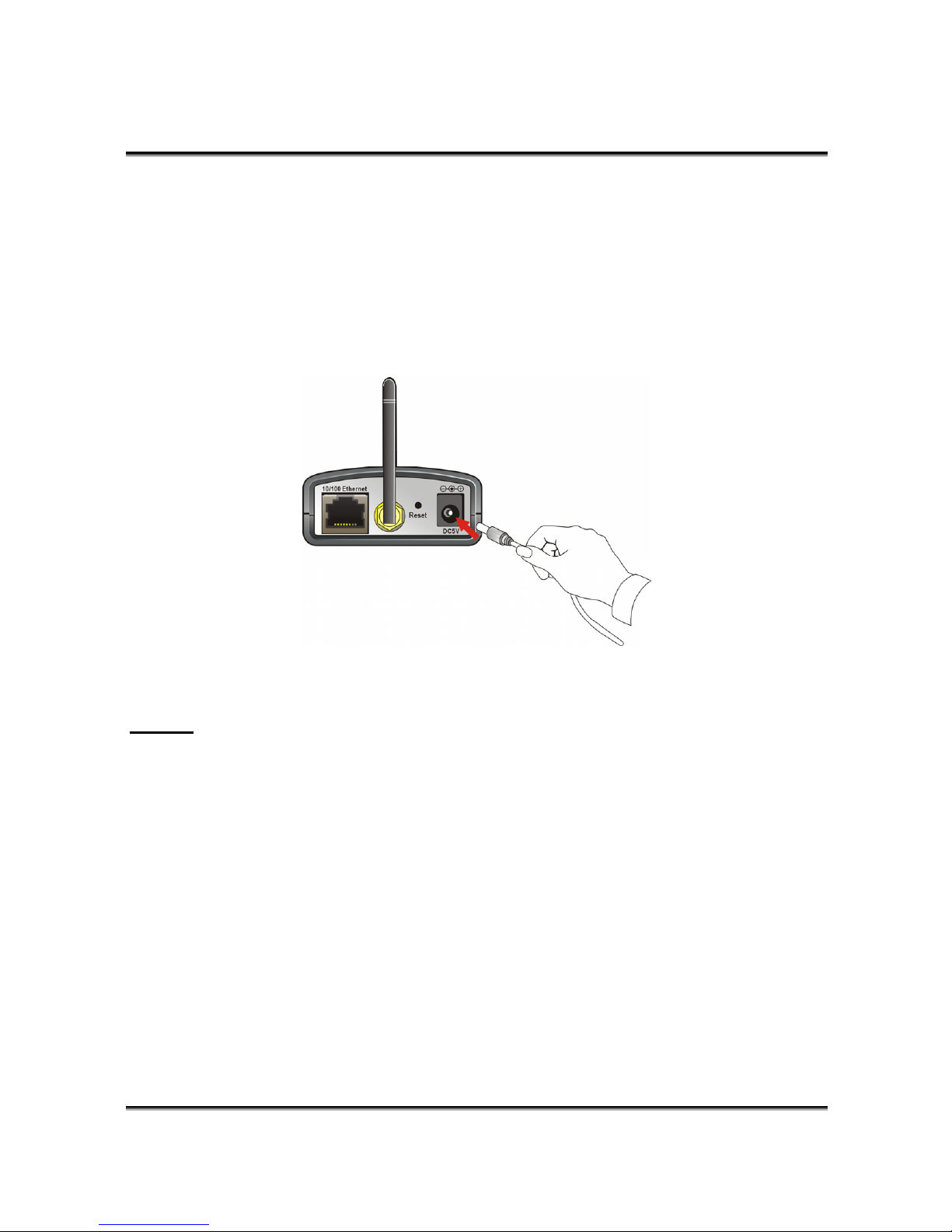

Attach the Power Supply
Attach the external power supply to the DC power input connector
located on IPCam SECURE300W’s rear panel, and then connect it to
your local power supply.
Note:
You can confirm power source is supplied from the LED
indicators. The Power LED on the IPCam SECURE300W
should be illuminated.
KYE Systems Corp. 13

IPCam SECURE300W User’s Manual
KYE Systems Corp. 14
Security
To ensure the highest security and prevent unauthorized usage of the
IPCam SECURE300W the Administrator has the exclusive privilege
to access the System Administration for settings and control
requirements to allow users the level of entry and authorize the
privileges for all users. The IPCam SECURE300W supports multi-
level password protection and access to the IPCam SECURE300W is
strictly restricted to the user who has a “User Name” and “User
Password” that is assigned by the Administrator.
The administrator can release a public user name and password so
when remote users access the IPCam SECURE300W they will have
the right to view the image transmitted by the IPCam SECURE300W.
Note:
Since the default settings are Null String, it is highly recommended
to set the "Admin ID" and "Admin Password" for the first time
when you use the IPCam SECURE300W. Once the ID and
Password are defined, only the administrator has access to
management the IPCam SECURE300W. This procedure should be
done as soon as possible since the security features with the IPCam
SECURE300W will not be enabled until the "Admin ID" and
"Admin Password" is defined.

IPCam SECURE300W User’s Manual
KYE Systems Corp. 15
Connecting the Camera behind a Router
Step 1: Hardware Installation
Follow the “Hardware Installation” section to setup the IPCam
SECURE300W itself.
Step 2: Look up the IP address you have with your
computer while connecting to the Internet.
For configuring the IPCam SECURRE300W, you will to
assign the IP Address which is correspondent to the networking
settings.
The “ipconfig” command can be used to look up the IP address
of connecting to the Internet.
Start a DOS window:
StartÆProgramÆAccessoriesÆCommand PromptÆType
ÆipconfigÆPress “Enter”
You will see the networking settings.

IPCam SECURE300W User’s Manual
Step 3: Disconnect the Internet and Connect the Camera
For configuring the IPCam SECURE300W, you will need to
disconnect the Internet first and connect the IPCam
SECURE300W directly to the computer through Cat. 5
Ethernet cable.
Step 4: Change the IPCam SECURE300W settings
The default IP Address of the IPCam SECURE300W is
192.168.0.20. Before configuring the IPCam SECURE300W,
you will need to change the networking settings of the
computer. In that way, the computer can communicate with the
IPCam SECURE300W.
KYE Systems Corp. 16

IPCam SECURE300W User’s Manual
KYE Systems Corp. 17
Therefore, you have to change the computer networking
settings to correspond to the IPCam SECURE300W.
StartÆProgramÆControl PanelÆNetworkÆRight click on
“Network”ÆDouble click on “TCP/IP” ÆType the IP
Address of 192.168.0.X(you can use any value between 1 to
254, except 20)ÆType the Subnet Mask: 255.255.255.0Æ
Click on “Save” and then exit.
Step 5: Configure the IPCam SECURE300W
Open the Internet BrowserÆType the IP Address of
192.168.0.20ÆClick on “System Administration” to configure
the IPCam SECURE300W.
For more information about the configuration, please refer to
the “Web Configureaiotn Utility”
Note:
If your router has UPnP function, I will suggestion you to
enable the UPnP function of the IPCam SECURE300W. After
enabling the UPnP function, you can link to the IPCam
SECURE300W directly from “My Networking Places”.

IPCam SECURE300W User’s Manual
Using the Setup Wizard
The Setup Wizard is a convenient tool that will guide you through
the installation of the IPCam SECURE300W easily and quickly
Insert the Installation CD into your CD-ROM drive. Click Install
Wizard.
KYE Systems Corp. 18

IPCam SECURE300W User’s Manual

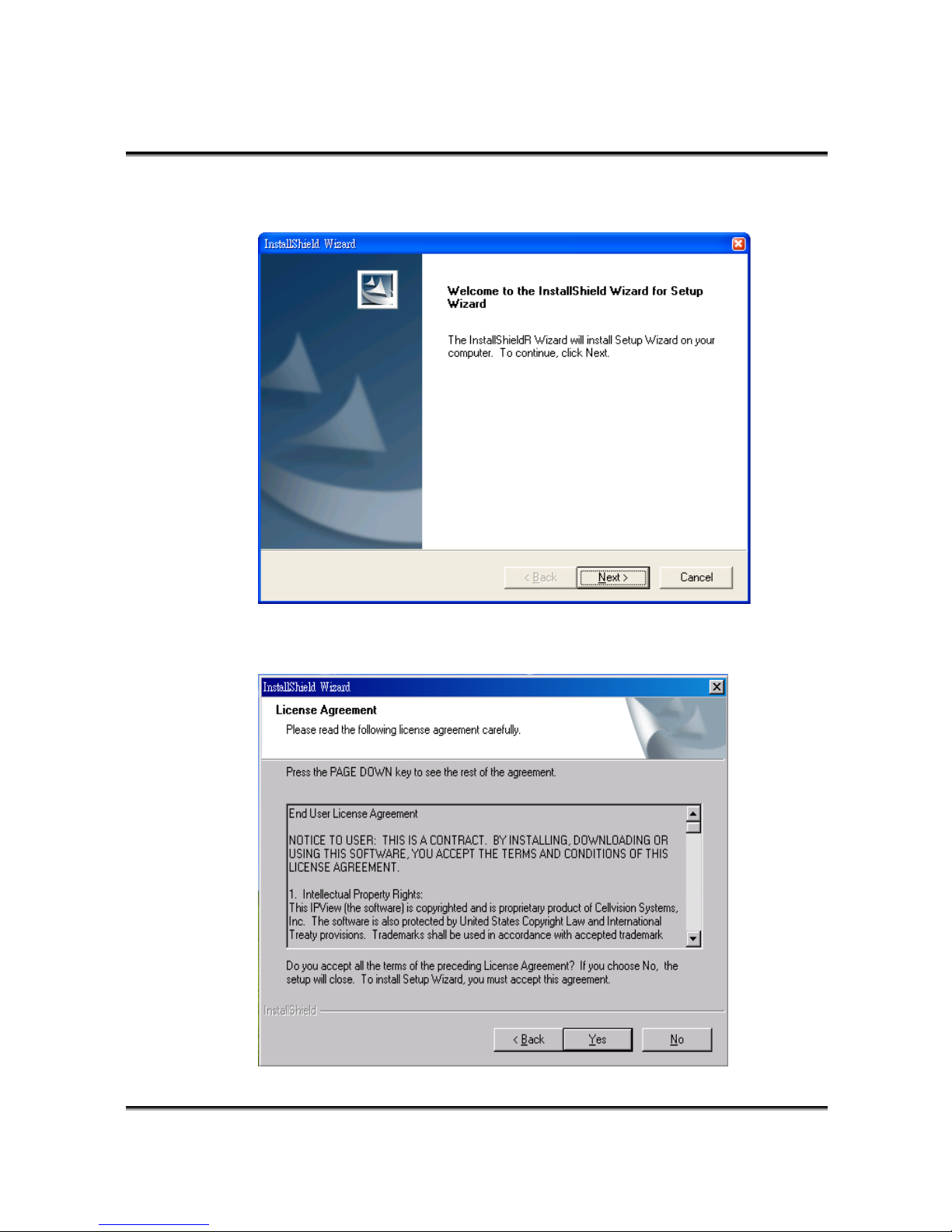

Click Next
Click Yes
KYE Systems Corp. 19
