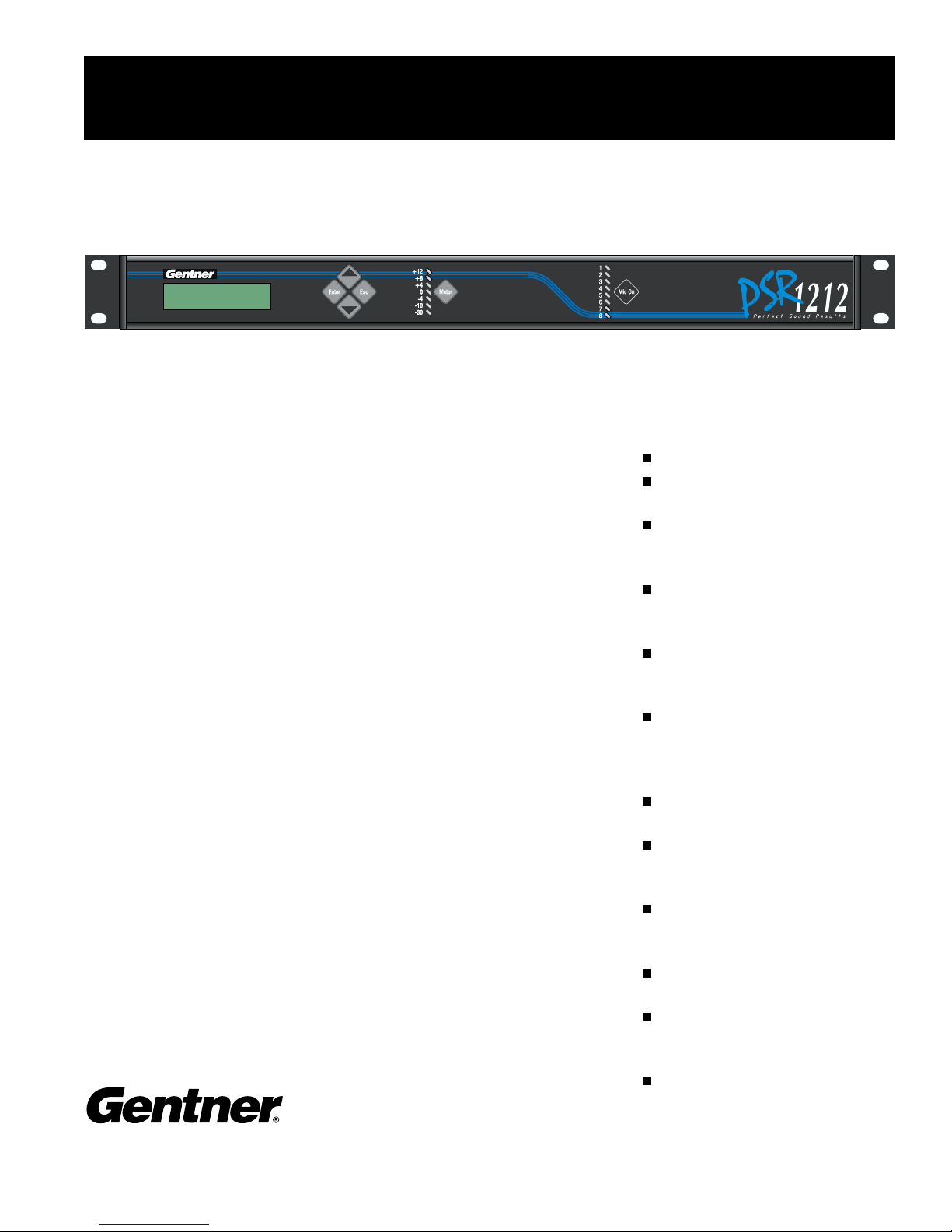

Gentner PSR1212 User manual
DIGITAL MATRIX MIXER WITH AUDIO PROCESSING
PSR1212
PRODUCT OVERVIEW FEATURES/BENEFITS
100 percent digital signal processing.
12 x 12 matrix with level control at
the cross points.
Twelve line output channels. All
output levels are adjustable and can
be muted.
Eight audio processing buses that can
be placed anywhere within the matrix
mixer audio path.
Eight-channel automatic microphone
mixer with four line inputs. The mixer
operates across linked units.
Input gain, configurable audio
processing, muting, and automatic
mixer are programmable per input
channel (inputs 1-8 only).
Configurable audio processor with four
filters on inputs 1-8.
All interconnected devices can be
accessed, controlled, and programmed
via a single RS232 connection.
Program, operate, and diagnose with a
connected PC (direct or via modem)
or other serial remote-control device.
32 programmable presets for instant
configuration changes.
Allows grouping of mics across four
automatic mic mixers within a single
PSR1212.
Internal room combining capabilities.
The PSR1212 is a highly-advanced
twelve-by-twelve digital matrix mixer
with audio processing. It utilizes an
internal macro language and 32 user-
definable presets to quickly adapt to a
variety of sound reinforcement and
room-combining applications in
auditoriums, stadiums, theatres,
gymnasiums, hotel/convention centers,
conference rooms, training rooms, and
boardrooms.
The PSR1212 facilitates local and
remote PC setup and diagnostics.
Microphone inputs can be individually
customized to gate on and off as you
wish, while Automatic Gain Control
keeps the overall sound level consistent.
All microphone mixing parameters can
be customized and any combination of
inputs can be routed to any combination
of outputs, allowing flexibility in
accommodating different applications
and customer requirements.
Adjustments in routing, level, and other
functions can be made through an
RS232 serial interface or buttons
connected to the rear panel.
The PSR1212 features eight audio
processing buses. Each bus has 15 filters
which can be configured as parametric,
high pass, low pass, CD horn, high
shelving, low shelving, all pass, or
crossover. Each bus also includes delay
and compressor/limiter functions. This
allows you to tailor the PSR1212’s
audio response to optimize the audio
quality and fidelity characteristics of a
wide variety of sound reinforcement
systems.
Macro Pro, a scripting language, enables
sophisticated control without the need
for an expensive external control system.
This gives you real-time flexibility to
meet a variety of audio reinforcement
and room-combining requirements.
A digital audio and control bus allows up
to eight PSR1212s to be connected and
controlled as a single unit.
1.800.945. 30
1.801.9 5. 200 Send this document to any fax machine with Gentner’s Fax-On-Demand: 800.695.8110 Doc. #2004
Mic 55, 25
Channel Mute AGC
aOn/Off
On/Off
1.800.945. 30
1.801.9 5. 200
Processing outputs are looped back to matrix
500mS
Expansion
Bus
Expansion Bus In/Out
DIGITAL MATRIX MIXER WITH AUDIO PROCESSING
PSR1212
SYSTEM CONFIGURATIONS
Number of Open Microphones (NOM)
PA Adaptive Mode
First Mic Priority Mode
Last Mic Mode
Maximum # of Mics Mode
Ambient Level
Gate Threshold Adjust
Off Attenuation Adjust
Hold Time
Decay Rate
Line Outputs:
CONNECTOR: Removable terminal
block; 0dBm nominal level adjustable,
balanced
Impedance: 50 Ohms
Other Connectors:
RS232: DB9 female (DCE)
9600/19,200/38,400/57,600/115,200
baud
Control/Status A: DB25 female
Inputs A: active low (pull to ground)
Outputs A: Open collector, 20V max,
40mA each
Control/Status B: DB25 female
Inputs B: active low (pull to ground)
Outputs B: Open collector,
20V max, 40mA each (2)
+5VDC, 300mA each
Fuse: 2 amp, 250VAC, slow blow type
Operating Temperature:
32 - 100ºF / 0 - 38ºC
Approvals: FCC Part 15, CSA NRTL/C, CE
Gentner Communications Corporation
1825 Research Way
Salt Lake City, UT 84119 USA
1.800.945. 30
1.801.9 5. 200
Fax: 1.801.977.0087
www.gentner.com
©2000 Gentner Communications Corporation. Printed in USA, 7/00. Features, specifications, and descriptions are
accurate as of this printing. Gentner reserves the right to modify this information without prior notice or obligation.
Perfect Communication through Technology, Service, and Education.
TM
Send this document to any fax machine with Gentner’s Fax-On-Demand: 1.800.695.8110 Doc. #2004
G-Ware (setup/diagnostics software)
Dimensions (L/W/H):
48.3 x 4.45 x 25.4 cm
Weight:
4.5 kg dry
5.9 kg shipping
Power Requirements:
Auto-adjusting power module
INPUT RANGE:
100-240VAC; 50/60Hz
POWER CONSUMPTION:
30W, typical
95 BTU/Hr
PHANTOM POWER: 24V,
input selectable
Audio Performance
FREQUENCY RESPONSE: 20Hz to
20kHz ± .5dB
NOISE: (EIN 20Hz to 20kHz) -125dB
THD: <0.05%
SNR: >100dB
Automatic Mic/Line Inputs:
CONNECTOR: Removable terminal
block; -55, -25, or 0dBu nominal
adjustable, balanced, bridging
Impedance: 7kOhms
Non-Automatic Line Inputs:
CONNECTOR: Removable terminal
block; 0dBu nominal adjustable,
balanced, bridging
Impedance: > 20kOhms
CHANNEL CONFIGURATIONS
Microphone inputs may be configured
globally or individually, including:
Input gain adjust
Mic or line level
Phantom power on/off
Mute on/off
Chairman override on/off
High-pass filter on/off
EQ adjustable, on/off
AGC on/off
Auto gate/Manual gate/Gate override
Adaptive ambient on/off
SPECIFICATIONS
AUDIO FUNCTIONS
Filters: All pass; low pass; high pass; low
shelving; high shelving; PEQ; CD horn
EQ; crossover; and Bessel, Butterworth,
and Linkwitz-Riley crossovers;
compressor/limiter; matrix mixer w/cross
point level control; automatic gain
control; and automatic microphone
mixer.
Signal Delay: Adjustable up to 500ms.
G-Ware calculates distances.
