Gericom GTW3208 Picasso User manual

Users Manual
MODEL : Picasso (PAL)

2
Contents
Contents..............................................................................................................2
SAFETY ADVICE:..............................................................................................4
Attention: PLEASE NOTE..........................................................................10
ACCESSORIES:...............................................................................................11
SCREEN INSTALLATION:.............................................................................12
Installation:.................................................................................................................................................. 12

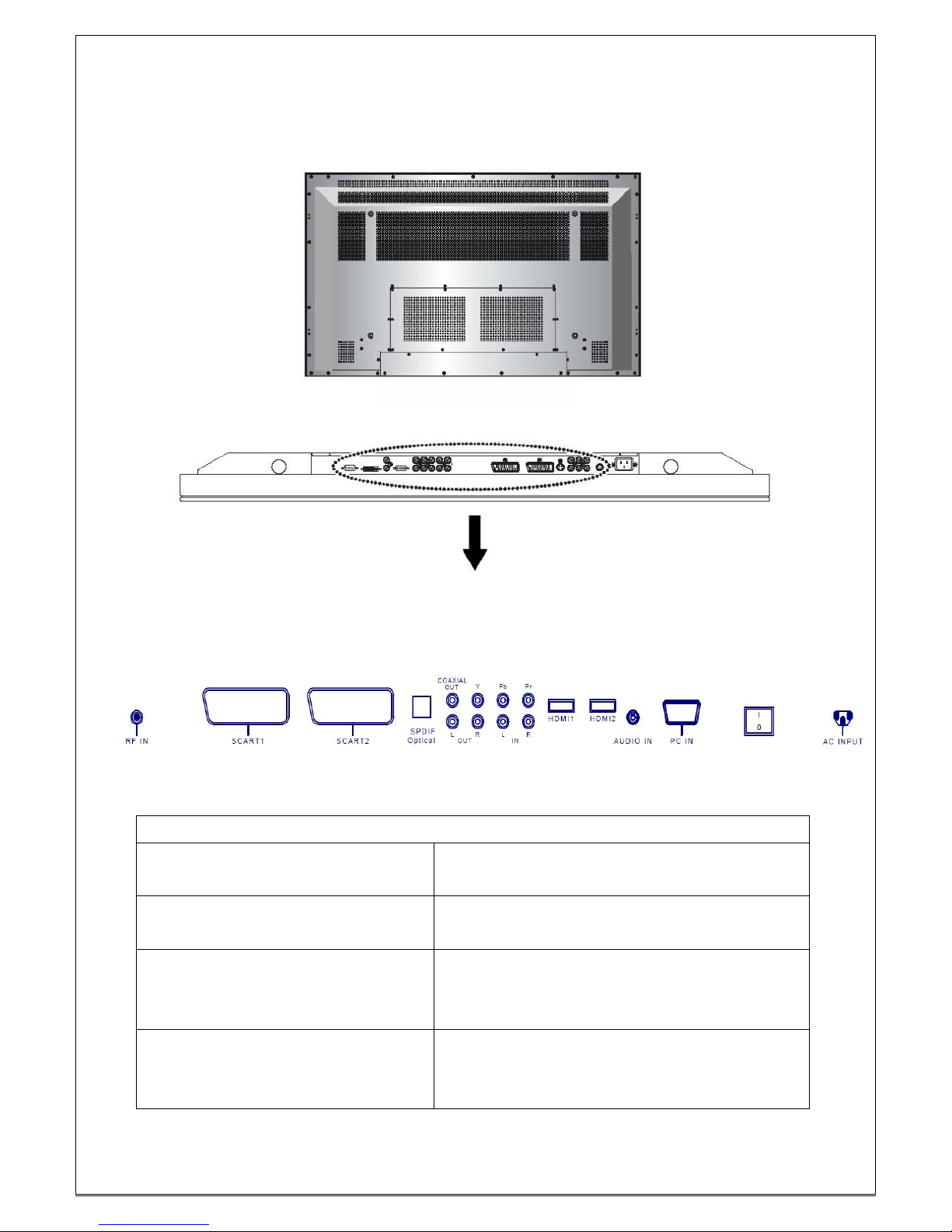

CONNECTIONS ON THE REAR OF THE APPLIANCE:.........................14
KEY CONTROL ON THE CASE ...................................................................16
REMOTE CONTROL.......................................................................................17
Remote Control Picture.......................................................................................................................... 17
Remote control Key Operations........................................................................................................... 18
Basic Operation..............................................................................................20
Turning PDP/LCD TV On And Off......................................................................................................... 20
Select Source............................................................................................................................................ 20
Volume Control......................................................................................................................................... 21
OSD Menu Structure......................................................................................22
Example of OSD Menu............................................................................................................................ 22
PICTURE ...........................................................................................................23
Picture Mode ......................................................................................................................................... 23
Custom ................................................................................................................................................... 24
Color Tone.............................................................................................................................................. 26
Size .......................................................................................................................................................... 27
NR............................................................................................................................................................. 28
TV CHANNEL...................................................................................................29
Country................................................................................................................................................... 29
Auto Store.............................................................................................................................................. 30
Manual Store ......................................................................................................................................... 31
Manual Store Prog........................................................................................................................... 32
Manual Store Colour System........................................................................................................ 33
Manual Store Sound System......................................................................................................... 34
Manual Store Channel .................................................................................................................... 35
Manual Store Search....................................................................................................................... 36
Manual Store Store.......................................................................................................................... 37
Add/Delete.............................................................................................................................................. 38
Sort .......................................................................................................................................................... 39
Name ....................................................................................................................................................... 40

3
Fine Tune................................................................................................................................................ 41
TV SOUND ........................................................................................................42
Mode........................................................................................................................................................ 42
Volume.................................................................................................................................................... 43
Balance................................................................................................................................................... 44
Equalizer................................................................................................................................................. 45
Auto Volume .......................................................................................................................................... 46
Sound Mode .......................................................................................................................................... 47
SETUP................................................................................................................48
Reset ....................................................................................................................................................... 48
Time Clock......................................................................................................................................... 49
Time On Timer .................................................................................................................................. 50
Time Off Timer.................................................................................................................................. 51
Time On Time Channel................................................................................................................... 52
Time On Time Volume..................................................................................................................... 53
Language................................................................................................................................................ 54
OSD Tone ............................................................................................................................................... 55
Blue Screen ........................................................................................................................................... 56
TTX Group.............................................................................................................................................. 57
PICTURE (PC)..................................................................................................58
Picture..................................................................................................................................................... 58
Custom ................................................................................................................................................... 59
Color Tone.............................................................................................................................................. 60
Color Tone.............................................................................................................................................. 61
Size .......................................................................................................................................................... 62
PC............................................................................................................................................................. 63

4
SAFETY ADVICE:
This symbol is intended to alert the user to
un-insulated “dangerous voltage” within the
appliance, which is so high that it can lead to
an electric shock.
This symbol is intended to alert the user to
important operating and maintenance advice
that accompanies the appliance.
WARNING
TOAVOID DANGER OF BURNS OR ELECTRIC SHOCKS,
THE DEVICE SHOULD NOT BE PLACED IN THE RAIN
OR IN A DAMP ENVIRONMENT.
WARNING
This maintenance information is only intended for qualified customer service employees. In order to keep the danger of electric
shock to a minimum, repairs which are not contained in these instructions may only be carried out by qualified tradesmen.
WARNING ADVICE
•
Protect the appliance from splash water or immersion in liquid, under no circumstances place objects filled with water – such as
vases, etc. – on top of the appliance.
•
This is a Class B product. This product can cause radio interference in the household, which the user must then take suitable
measures to remedy.
•
In order to reduce the risk of burning or electric shocks, do not expose the appliance to rain or dampness.
FCC-EXPLANATION:
This appliance has been tested and is equivalent to a Class B digital appliance according to Part 15 of the FCC-
Regulations. These standards serve to protect against damaging radio interference in the household as well as in
commercial, industrial or business environments. This appliance may produce, use and emit high frequency energy
and improper installation can, in exceptional cases, cause damage to the radio and television reception. The
manufacturer does not provide any kind of guarantee relating to interference with specific equipment or appliances.
Whether this appliance causes interference to radio or television reception can be determined by switching the appliance
on and off. It may also be possible for the user to correct this interference using one of the following measures:
- Turn the antenna in a different direction or mount it in another place.
- Increase the distance between the appliance and the receiver.
- Plug the appliance into a plug socket which belongs to a different circuit from that of the receiver.
- Ask your retailer or an experienced radio / TV technician for advice.
The manufacturer rejects any claims for alterations to this appliance which have been made without the previous express permission
of the manufacturer.
Use jacketed signal cable for the installation of earthed peripheral devices.
Always handle the monitor with extreme care. To reduce the risk of burns, electric shocks and other injuries,
always follow this safety advice during assembly, use and maintenance of your appliance.
Read all safety and operating
instructions before using the monitor. Retain the safety and operating instructions for future calibration. Heed all warnings on the monitor and in the operating instructions.

5
SAFETYADVICE:
Always handle the monitor with care. To reduce the risk of burns, electric shocks and other injuries,
always follow this safety advice during assembly, use and maintenance of your appliance.
1) Read through all instructions carefully.
2) Maintain these instructions in good condition.
3) Heed all warning advice.
4) Follow all instructions.
5) Do not use the equipment near to water.
6) Only clean the appliance with a dry cloth.
7) Do not block the ventilation slots. Install the appliance in accordance with the manufacturers
instructions.
8) Do not place the appliance near a heat source, e.g. radiator, oven or other heat producing
equipment (including amplifiers).
9) Do not remove or damage the seal of the polarised or earthed plugs. A polarised plug has two
connectors, one wider than the other. An earthed plug has two connectors plus a third earthed
connector. The wider or third connector is provided with safety in mind. If the delivered plug does
not fit in your plug socket, ask an electrician to change the old plug socket
10) The electricity cable should be placed in such a way that it cannot be walked on or pinched, pay
particular attention near the plug and plug socket as well as at the point where the cable exits the
appliance.
11) Only use accessories and adaptors, which are recommended by the manufacturer.
12) Always use trolleys, stands, tripods, frames or tables which are
specifically recommended or sold by the manufacturer of the
appliance. When using a trolley or when moving the appliance
onto a trolley, take care that it does not tip over and thus cause
injury.
13) Un-plug the device during storms or during long periods of non-use.
14) Repairs should only be carried out by qualified maintenance technicians. It is essential that
repairs are carried out if the appliance becomes damaged in any way, e.g. the electricity cable or the
plug, if liquid or objects have fallen into the appliance, if the appliance has been subjected to rain or
dampness, if the appliance does not function properly or if it has been dropped.

6
SAFETYADVICE
Follow all safety instructions. Un-plug the monitor from the
mains before cleaning. To
clean, wipe with a damp cloth,
do not use any liquid detergent
or sprays.
Never connect accessories
which have not been expressly
permitted by the manufacturer.
Such accessories could
increase the risk of burns,
electric shocks and other
injuries.
Do not place the monitor near to water, e.g.
baths, sinks, washing machines, swimming
pools, etc.
Do not place the monitor on an unstable trolley,
stand, tripod, frame, table or floor where it may
tip over. A fallen monitor can cause serious
injury to a child or
adult as well as
damaging the material
itself. Only use
trolleys, stands,
tripods, frames or
tables which are
recommended or sold
by the manufacturer of
the appliance. Move
monitors and trolleys carefully. Abrupt
stopping, overly strong efforts and uneven
surfaces could cause damage to the monitor
and the trolley.
Questions about
vertical montage
should be made
directly to the
manufacturer.
Wide-Monitor
When placing the monitor on a table, pay strict
attention that it is not placed on the edge of the
base.
The monitor could fall off and cause severe injury
to a child or adult as well as to the material itself.

7
SAFETYADVICE
100-240V AC
AC100-125V AC200-240V AC240 (TYPE SAA)
Ensure that there is good ventilation. Ventilation
slots can be found in the monitor housing to prevent
over-heating. Under no circumstances should these
slots be blocked by objects, additionally the monitor
should not be placed on a bed, sofa, rug or similar
surface. Do not place the appliance in close
proximity to radiators or any heat source. Should
the monitor be placed on a shelf or in a cupboard,
ensure that there is suitable air-circulation and that a
gap of at least 30cm exists between the ventilation
slots and the shelf above as well as to the left and
right of the appliance. The manufacturer accepts
no liability for potential damage caused by the lack
of suitable ventilation.
In order to avoid electric shocks, only use the
electricity cable recommended for this appliance.
The monitor is supplied with a mains voltage of
100-240V AC and the enclosed mains cable is
equivalent to this exact voltage. To guarantee
safety and the EMV regulations, only use the mains
cable recommended by our retailers. If the
appliance is used with another supply voltage, the
mains cable must also be changed. Please contact
your retailer. Ensure that the plug socket is
within easy reach when assembling the appliance so
that it can be quickly disconnected from the mains
in the event of an emergency.
Earth connectors
AC 100-240V
Only use earthed or polarised plug sockets. This
monitor is equipped with a polarised AC power
capacity plug for your safety, of which one
connector is wider than the other. This plug only
fits into the socket one way. Should you not be
able to fully insert the plug, try inserting it the other
way up. An electrician should be contacted if the
plug can still not be inserted into the socket, so that
the plug socket can be changed.
Avoid overhead wires. An external antenna
should never be attached in the direct vicinity of
overhead cables, electric lights or power lines, or in
places where such mains or overhead power lines
can fall onto it. Proceed very carefully when
installing an external antenna, ensure that you do
not touch any power lines or electric circuits. The
touching of such lines can result in fatalities.
Un-plug the monitor from the mains and disconnect
the antenna or antenna cable during thunderstorms
or when the appliance is not being used for a long
period of time. This protects the appliance from
damage in the event of lightening strike or power
surges.
Protect the electricity cable. The electricity cable
should be placed in such a way that it cannot be
walked on or pinched by objects laid on top of it.
Pay particular attention near the plug and the plug
socket as well as at the point where the cable exits
the appliance.

8
SAFETYADVICE
Do not overload wall mounted
plug sockets or extension leads.
Overload can lead to burns or
electric shocks.
Do not stick objects into the
openings on the appliance,
otherwise you will touch
particularly dangerous voltage
points and you could damage
appliance parts. Never allow any
kind of liquid to penetrate the
monitor.
Protect the antenna cable between
the inside and outside of the
building, thus preventing the
penetration of rainwater.
Otherwise water could penetrate
the monitor and lead to electric
shocks.
Earth external antennas. When connecting an external antenna or cable system to the appliance, the antenna or
cable system must be earthed in such a way that it protects against power surges and electro-static charges.
Article 810 of the National Electricity Law, ANSI/-NFPA No. -1984-1984, gives information regarding the
faultless earthing of antenna masts and their protection, earthing of the supply wiring of an antenna loading unit,
the size of earth wires, the installation location of an antenna loading unit and the connection to an earth
electrode.
Do not install an external antenna in the vicinity of
overhead cables, lights or electricity wiring.
- This could lead to electric shocks.
There should be sufficient distance left between an
external antenna and electricity cables so that the
electricity cables are not touched, including if the
antenna should fall.
- This could lead to electric shocks.
Do not attempt to repair the monitor. Repairs should only be carried out by qualified maintenance
technicians. Un-plug the appliance from the mains and consult a customer service advisor for help in the
following situations:
zIn the event of damage to the electricity cable or plug socket.
zIf liquid has been spilled onto the appliance or objects have fallen on it.
zIf the monitor has been exposed to rain or water.
zIf the monitor does not function correctly despite having followed the operating instructions.
zIf the monitor has been dropped or the housing has been damaged.
zIf the monitor suffers a strong loss of power.

9
SAFETYADVICE:
Should replacement parts be
necessary to repair the appliance,
ensure that the customer service
technician carrying out the repairs
uses parts which have been
expressly recommended by the
manufacturer, or which have the
identical qualities of the original
parts. Unlicensed parts could
cause further damage to the
appliance.
After each repair or maintenance
check, please ask the customer
service technician to carry out a
safety check to ensure that the
Monitor is working without
faults.
If you carry out the installation
yourself, remain within the
parameters, which are described
in detail in the instruction
manual. Other settings could
damage the appliance and often
result in the need for extensive
work by a qualified technician to
bring the monitor back to its
normal setting.
Only use the type of battery
indicated.
- Non-adherence to this
instruction could lead to damage
to the monitor or electric shock.
Do not place any objects
containing liquid on top of the
appliance.
- The non-adherence to this
instruction could lead to damage
to the monitor or electric shock.
If smoke or a strong smell comes
out of the monitor, switch it off
immediately, un-plug the
electricity cable and inform the
customer service agent or retailer.
- Non-adherence to this
instruction could lead to damage
to the monitor or electric shock.
The distance between your eyes
and the monitor should always be
5 – 7 times as big as the diagonal
width of the monitor.*
Otherwise it could make your
eyes water.
If the monitor with attached loud
speakers is to be taken to a
different location, under no
circumstances carry the appliance
by the loudspeakers. The
monitor could fall down and
cause severe injury to a child or
adult as well as damaging the
material itself.
Avoid fixed images over long
periods of time. Such pictures
generally originate from video
recorders. If a picture image
or test signal is available, then it
can burn into the monitor.

10
Attention: PLEASE NOTE
Picture freezing
Please do not leave a single image (e.g. from a video game) showing on the plasma or LCD monitor, this can lead to the screen
freezing. This phenomenon is also known as ‘Screen Burn’. In order to avoid this phenomenon, please reduce the brightness
and contrast of the monitor if a single image is showing.
Heat on the top side of the plasma or LCD TV
The topside of the appliance can become hot after prolonged use, this is due to heat emanating from the ventilation slots on the
upper part of the housing. This is totally normal and means that is not due to any damage to the appliance or a malfunction.
Children should, however, not be allowed to touch the upper part of the appliance.
The appliance makes ‘cracking’noises
A ‘crack’ can occur if the appliance expands or contracts due to changes in the environment such as temperature or humidity.
This is normal and does not mean that the appliance is faulty.
Pixel cell defects
Plasma or LCD displays use a large number of pixels, requiring highly developed technology. One or two light or dark pixels
can appear on the screen though. These pixels have no effect on the performance of the appliance.
Avoid using the television in temperatures below 5°C (41ºF).
A still image left on the screen for too long can lead to permanent damage to the Plasma/LCD
monitor.
Leaving an image on the plasma or LCD TV for too long can result in traces being left
on the left, right and centre of the screen. This is brought about by differences in
the luminous radiation of the monitor. The reproduction of a DVD or video game can
have a similar effect on the monitor. The damages evoked by this effect are not covered in the guarantee.
After-image
The display of a still-image for a long period of time from a video or computer game can cause the display of after-images. To
avoid these effects, you should reduce the ‘contrast’ and ‘brightness’ when displaying still images on the screen for long periods
of time.
Guarantee
The guarantee does not cover any damages due to screen burns.
Burnt-in images are not covered in the guarantee.
Installation
Please use a qualified customer service technician for the installation of your appliance in environments with large amounts of
dust, high or low temperatures, high levels of humidity and chemical substances or if the appliance is to be used 24 hours a day,
e.g. in an airport, train station, etc.
This could otherwise lead to damage to the appliance.

11
ACCESSORIES:
1 x Electricity cable
1x Instruction manual
1 x Remote control
2 x Alkaline batteries for the remote control
1 x Foot stand
1 x Service guarantee card

12
SCREEN INSTALLATION:
Installation:
Stand – Table User´s Guide
1. If not assembled, screw the bar into the foot stand (see
Diagram)
2. Use screw type A (8x18) for this.
A-screw Bar
Stand base
Stand Bar
3. Attach the foot stand to the appliance
4. B-Screw in (4X30)
5. C-Screw in (4 x 16)
Footstand opening
insert
footstand

13
Fully insert the stand in the stand opening.
Tighten the screws!!!
SCREW

14
CONNECTIONS ON THE REAR OF THE APPLIANCE:
Connections on the rear of the appliance
Connections on the rear of the appliance
1.TV- Antenna-BOX Connection to a TV antenna cable for an analogue television
using an antenna, e.g. cable TV.
2.SCART (Euro connector)
Box 1
SCART 1: Half-SCART (CVBS only input).
3.SCART (Euro connector)
Box 2
SCART2: Full-SCART-connector (CVBS & RGB input/output).
Connection of a SCART-Signal (Euro cable) from a video
recorder or a DVD player.
4. Optical (digital ) Audio Output
Only available in HDMI Mode
Connect the TV over optical cable with an external 5.1 amplifier.
Supports Dolby Digital and DTS signals. This interface could be
activated in HDMI mode (not in analog TV mode) The 5.1 sound is
1. 2. 3. 4. 5. 6. 9. 10. 11. 12. 13. 14.
7. 8.

15
only available if the movie over DVB-S reiceiver or DVD Player
supports Dobly Digital or DTS signal.
5. Coaxial (digital) Audio Output
(RCA yellow) Only available in HDMI mode
Connect the TV over RCA with an external 5.1 amplifier. Supports
Dolby Digital and DTS signals. This interface is activated in HDMI
mode (not in analog TV mode). The 5.1 sound is only available if the
movie over DVB-S receiver or DVD Player supports Dobly Digital or
DTS signal.
6. Component (RCA green, blue, red)
Connects a three separate component video signal form a
component output jack of a DVD player or Set Top box. Supports
480i/60Hz, 480p/60Hz, 576i/50Hz, 576p/50Hz, 720p/60Hz,
1080i/50Hz, 1080i/60Hz signals (i: interlace,p: progressive)
7. Audio Output (RCA red/white)
Audio Output is always activated (depends on the select source). So
you can connect an external music amplifier to send stereo sound
over bigger loudspeaker
8. Audio Input (RCA red/white) Audio Input for Component source.
9.HDMI 1 Connection with a digital video signal from a HDMI-output box of
a HD DVD Player or a Set-Top-Box. Supports HDMI Version 1.0.
10.HDMI 2 Connection with a digital video signal from a HDMI-output box of
a HD DVD Player or a Set-Top-Box. Supports HDMI Version 1.0.
11.PC-Audio-Input (3,5mm jack) Connection of a PC soundcard to the TV, for the transfer of
tones, if your PC is connected to a D-Sub-cable
12.RGB PC-INPUT (D-SUB) Connection with a video signal from PC a video output box. The
connection cables to PCs differ according to the appliance,
please refer to your retailer.
13.On-/Off Switch Switch the TV ON or OFF.
14.PLUG -ELECTRICITY INPUT BOX Plug in the enclosed electricity cable as far as possible. Insert
the plug correctly in the socket.

16
KEY CONTROL ON THE CASE
Following buttons are available on the TV to navigate without remote control.
Key Name Operation
Power Key ► Power on / off
Menu Key
► Activates main OSD when no main OSD activated
► Navigates parent menu when main OSD activated
► Stops auto frequency search
Select Key
► Activates source select OSD when no main menu activated.
► Changes input source that selected by source select navigation
► Executes function by OSD help commands when main OSD activated
► Activates child menu when child menu exists.
Vol+ (Up Key)
► Decreases speaker / headphone sound volume when no OSD activated.
► Executes function by OSD help commands when main OSD activated
► Decreases values of user menu when main OSD activated.
Volume - (Down Key)
► Increases speaker / headphone sound volume when no OSD activated.
► Executes function by OSD help commands when main OSD activated
► Increases values of user menu when main OSD activated.
Channel+ (Left Key)
► Increases program number & tune channel when no OSD activated.
► Navigates input source when source OSD activated
► Executes function by OSD help commands when main OSD activated
► Navigates previous menu when main OSD activated.
Channel -Right Key
► Decreases program number & tune channel when no OSD activated.
► Navigates input source when source OSD activated.
► Executes function by OSD help commands when main OSD activated
► Navigates next menu when main OSD activated.

17
REMOTE CONTROL
Remote Control Picture
Works only if the TV
supports DVB-T Tuner

18
Remote control Key Operations
Key Name Operation
1.Power ► Power On/Off
2.Menu ► Same as Menu key on keypad.
3. Up ► Same as Up key on keypad
4. Down ► Same as Down key on keypad
5. Right ► Same as Right key on keypad
6. Left ► Same as Left key on keypad
7. Select ► Same as Select key on keypad
8. Info ► Displays input source information
9. Sleep Time
► Displays current sleep timer value by minute when no sleep timer OSD activated
► Setup minimum sleep timer value more than current sleep timer value when sleep timer
OSD activated.
► If sleep timer is maximum value, disables sleep timer.
10. Mute ► Toggles speaker/headphone sound mute status..
11. Source ► Activates source change OSD when source change OSD is not activated.
► Deactivates source change OSD when source change OSD is activated
12.PSM(Picture Standard
Mode)
► Displays picture standard when picture standard OSD is not activated.
► Changes picture standard when picture standard OSD is activated.
13. SSM(Sound Standard
Mode)
► Displays sound standard when sound standard OSD is not activated.
► Changes sound standard when sound standard OSD is activated.
14. ARC ► Displays aspect ratio of image when aspect ratio OSD is not activated.
► Changes aspect ratio when aspect ratio OSD is activated.
15. STILL ► Toggles status between motion and still image.
16. PRE_CH ► Changes to last tuned program.
17. Dual I-II ► Displays MTS of sound format when MTS OSD is not activated.
► Changes sound format when MTS OSD is activated.
18. Pip ► Toggles PIP status
19. Pip Input ► Changes PIP input sources when PIP is on
20. Pip Size ► Changes PIP image size when PIP is on.
21. Pip Position ► Changes PIP position when PIP image size is not double screen.
22. Swap ► Swaps main input source and PIP input source.
23. S.Select ► Selects main / PIP sound source when PIP is on.
24. PC ► Changes to PC / DVI source
► If current input source is PC, input source is changed to DVI.

19
25. TV ► If current input source is not TV, changes to TV input source.
26. 0~9 ► Enters digit value to change program directly.
27. TTX ON ► If main input source is TV that includes TTX information, enters TTX display mode.
28. TTX MIX ► If TTX mode on, toggles TTX mix and TTX full display mode.
29. TTX
RED/GREEN/ CYAN/YELLOW ► Sends TTX Red / Green / Cyan/ Yellow command.
30. TTX HOLD ► Holds current TTX page.
31. TTX REVEAL ► Reveals concealed information.
32. TTX LIST/FLOF ► Toggles LIST and FLOF mode
33. TTX Store ► Stores ROW24 page to non-volatile memory in LIST mode.
34. TTX Update ► Updates pages.
35. TTX Time ► Displays time/date information.
36. DTV Setup ► Enters Digital TV setup menu
37. GUIDE ► Activates digital TV program guide
38. TV/RADIO ► Switches TV/Radio channels in digital TV
39. FAV ► Enters favorite channels menu
40. PG UP/DOWN ► Executes page up/down at digital channel list menu
41. PIP CH Up/Down ► Increases/Decreases channel if pip video is TV or Digital TV
is PIP option.
is DVB-T option.

20
Basic Operation
Turning PDP/LCD TV On And Off
Press Power button on the remote control. The PDP/LCD will turn on and you will be ready to use its
features. You can also use the Power key on the front panel. Sometimes there is also a Power key on
the back panel to switch the device completely OFF or into the standby mode.
Select Source
Press Source button on the remote control. Then you can see the source list menu shown as below.
Press CH+ / CH- button on the remote control to select the source.
You can select one between several sources.
< source list >
