Gianni Ferrari Turboloader S322 User manual

User Manual Turboloader
Page 1
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
USER MANUAL
Turboloader
S322 – S328 – M280 – H360 – H440 – H440-2S
English version translated from the original Italian version

User Manual Turboloader
Page 2
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
PRODUCT REGISTRATION
Fill in on-line the PRODUCT REGISTRATION FORM on the website www.gianniferrari.com
By registering your new Gianni Ferrari® product, the manufacturer’s warranty is instantly activated. In addition
registering helps Gianni Ferrari to provide you with a quicker and more efficient service.
After registering, if you wish to, you will receive information relating to new products, initiatives and updates to enable
you to get the most out of your new Gianni Ferrari® product.
To validate the manufacturer’s warranty, registration must be carried out within 15 days of purchasing the product.
GENERAL WARRANTY CONDITIONS
The Gianni Ferrari® product you have purchased was designed and manufactured with advanced technology to
guarantee the highest quality and reliability over time.
Before delivery, the Gianni Ferrari® dealer has carried out a series of checks and controls and has provided you with all
the information required to properly use and maintain the product.
The main checks and controls carried out by the dealer before handing over the machine include:
- controls, technical checks and adjustments for the operational start-up;
- checking the oil level and level of other liquids;
- hand-over of the operator’s manual, complete with EC declaration of conformity;
- hand-over of the documentation regarding the engine;
- illustration of the functioning of the product;
- illustration of the functioning of safety devices / components;
- illustration of the importance of regular and scheduled maintenance;
- illustration of the warranty conditions.
1. DURATION OF THE WARRANTY
The manufacturer’s warranty does not penalize the legal rights of the Purchaser in relation to the Seller (Dealer)
and provides additional information compared to the information provided by the Seller (Dealer) in relation to the
sales contract. Without prejudice to the guarantees enshrined in the applicable local legislation, and unless the law
stipulates a longer period, Gianni Ferrari guaranteed its product for a period of:
 2 years for private users (consumers);
 1 year in all other cases.
By private user (consumer) what is meant is any natural person who is acting for purposes which are not related to
his trade, business or profession.
The engine has a separate warranty, as shown by the dedicated documentation. Management of the engine warranty
(and its components) is the exclusive responsibility of the Technical Support Department of the engine
manufacturer.
2. WARRANTY COVER
During the warranty period, via its Dealer, the technical staff of Gianni Ferrari shall repair or replace without
charge any component which proves to be defective, whether a manufacturing or material defect. The repair or
replacement work of the defective component does not prolong or renew the warranty period. The warranty covers
the product only of it has been used for the purposes for which it was designed and in compliance with the
instructions in the operator’s manual supplied with the machine.
3. WARRANTY EXCLUSIONS
The warranty is not valid if the defect is caused by:
- lack of care;
- bad or improper use;
- poor treatment;
- maintenance not carried out at the times and in the ways specified in the operator’s manual;
- an accident;
- the use of non-original spare parts;
- modifications not authorized by Gianni Ferrari.
Damage following bumping or caused by stones or foreign bodies in the work area is not covered by warranty.
The normal wear and tear of parts such as filters, oil, spark plugs, tyres, belts, blades etc. is not covered by
warranty.
Gianni Ferrari will consider warranty claims only if the PRODUCT has been REGISTERED on the website
www.gianniferrari.com and the registration is complete with the PURCHASE DOCUMENT.
Registration must be carried out within 15 days of purchasing the product.

User Manual Turboloader
Page 3
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
INDEX
1 IDENTIFICATION DATA
2 TO OUR CUSTOMER
2.1 COPYRIGHT
2.2 USE RESTRICTION
3 OPERATOR’S RESPONSIBILITIES
4 SAFETY REGULATIONS
4.1 SAFETY DEVICES
4.2 SAFETY LABELS
5 MAIN PARTS OF THE TURBOLOADER
6 TECHNICAL FEATURES
7 DIMENSIONS
8 LOAD DIAGRAM
9 TRANSPORT
10 CONTROLS AND INSTRUMENTS
11 STARTING AND USING THE MACHINE
12 INSPECTIONS AND MAINTENANCE
13 ACOUSTIC LEVEL AND VIBRATIONS
14 OPTIONAL
15 ENVIRONMENTAL REMARKS
16 MAIN MAINTENANCE OPERATIONS
17 SERVICE CHART
Attached:
- Engine operator’s manual

User Manual Turboloader
Page 4
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
1 – IDENTIFICATION DATA
CE mark with the above data consist o fan indelible label affixed under the seat in the right side .
The serial number of the machine is stamped in the lower part of the rear frame adjacent of the articulation.
Please indicate this number when requesting technical assistance or ordering spare parts.
Serial number ………………………………………………..

User Manual Turboloader
Page 5
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
2 – TO OUR CUSTOMERS
We are proud to welcome you amongst our customers.
Before starting work, the operator should become thoroughly familiar with the instructions in this manual in
order to use and service the machine in the best possible way.
The machine has been designed and built in order to offer the best service in the most varied conditions. As
always, the quality of the job will depend upon correct routine maintenance of the equipment.
Contact the dealer for specific information and advice on matters not covered in this handbook. He will be more
than happy to offer assistance regarding use and maintenance of the machine.
2.1 – COPYRIGHT
The reserved rights regarding this manual " Use And Maintenance " remain in possession of the Manufacturer.
Every information (draw, photo etc.) here brought is reserved. Anybody part of the manual present can be
reproduced and diffused (entirely or partially) with any mean of reproduction (photocopies filmed etc.) without
special authorization written from the Manufacturer.
2.2 – USE RESTRICTION
The Turboloader is an articulated multifunction tools carrier designed for a professional use.
The machine cannot operate or be transferred if it is not fitted out at least with one of the equipment described in
this manual. The equipment must be produced by Gianni Ferrari or should be explicitly approved by Gianni
Ferrari.
Use with other equipment (or without equipment) is to be considered improper and dangerous because it is not
covered by our risks analysis.
Transport of other people (in addition to the driver), things or animals on the machine is not allowed.
The operator is responsible for improper use of the machine and for the use that does not comply with the
instructions given in this manual.
THIS SYMBOL IS USED TO DRAW YOUR ATTENTION TO THE SAFETY PRECAUTIONS WHICH
MUST BE TAKEN BY THE OPERATOR TO AVOID ACCIDENTOR INJURY.
PAY THE UTMOST ATTENTION WHEN YOU SEE THIS SYMBOL: YOUR SAFETY AND THOSE OF
OTHERS WILL BE AT STAKE.
The use of the protection structure ROPS with safety belts is mandatory when it may occur the risk of
rolling over in the working area. As an example the following situations can be considered dangerous:
slope variation, accidental slope, working area with strong slope variation. The use of the protection
structure ROPS does not allow to work on slopes higher than the maximum limit slope of 13° (23%).

User Manual Turboloader
Page 6
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
3 – OPERATOR’S RESPONSIBILITIES
The operator must carefully read this manual and become familiar with the correct way in which to operate,
lubricate and service the machine.
The operator is responsible for inspecting the machine and must replace or repair those parts subject to
continuous wear which could if neglected cause harm to others.
The operator is responsible for any harm to third parties, to himself or to property resulting from improper use of
the machine or by failure to comply with the instructions given in this manual.
The machine has been designed for professional users and should only be used after an adequate training period.
Never allow children or untrained personnel to use the machine. Never carry passengers, things or animals.
The operator must not tamper with the machine, or make modifications to it or to any accessories fitted, or fit
any parts or equipment which have not been supplied by our company.
Only use spare parts or accessories which have been designed and supplied by our company for the specific
model in your possession. Please contact your retailer for further information. It is absolutely forbidden to make
changes or to modify the machine other than in the ways expressly indicated in this manual.
THE OPERATOR MUST COMPLY WITH THE SAFETY INSTRUCTIONS GIVEN IN THIS
MANUAL WHEN USING THE MACHINE.
The user and the operator are responsible for accidents and hazards caused to other people and to their
goods.
4 – SAFETY REGULATIONS
THE PRUDENT OPERATOR IS THE BEST OPERATOR.
Many accidents can be prevented by compliance with the instructions given in this manual. The machine must
ONLY be used by professionally trained operators.
GENERAL INSTRUCTIONS
1) Carefully read all parts of this manual
2) Before starting work, always inspect all parts of the machine for any malfunction, loose bolts and screws, worn
belts, blades and any other damaged or badly fixed parts. It is absolutely forbidden to use the machine unless it
is in a perfect condition. Always carry out the recommended inspections and maintenance operations before
use.
3) Become familiar with all parts and controls of the machine before starting up.
4) Never carry passengers on the machine and never allow children or untrained personnel to use it.
5) Ensure that the operating area of the machine clear of persons (other than the operator). Particularly check that
there are no children, animals or obstructions nearby. Never allow anyone to stand near the machine while
working or during the maneuver.
6) Only use genuine parts and accessories supplied by our company and never carry out or permit any
modifications or changes to the machine. Contact your Dealer for information.
7) Ensure that the work area is clear of any object which could damage the machine or cause injury to any person,
such as glass, metal, wood etc.
8) Replace all damaged, illegible or missing safety or warning decals and ensure that they are kept clean and
legible. Check the list of decals in the relative safety section.
9) The operator must ensure that his/her hands, feet, clothing and hair are kept away from all moving parts.
10) Never use the machine without first checking that all guards and covers are serviceable and in their correct
positions.

User Manual Turboloader
Page 7
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
11) If the machine hits or drags up an object, immediately stop it, put on the parking brake, switch off the engine,
remove the key, rest the machine on the ground and check all parts. Before restarting check that conditions
have been reset for optimum machine operation.
12) When the machine is not in use, lower the attachment allowing it to rest on the ground, switch off the engine,
remove the key and set the parking brake.
13) When moving to another location out of the operating area, keep the attachment as indicated in the manual
relating to the attachment itself. If the machine is homologated for driving on roads, please verify with which
attachments the circulation is allowed and remember to comply with the rules pertaining to the Country in
which you are operating.
14) Never dismount from the machine whilst any part is in motion or when the engine is running.
15) Never switch on the engine in a closed place or without adequate ventilation. Exhaust fumes are toxic.
16) Never allow work with flames or sparks to be carried out near the fuel tank or the battery. Leave the engine
cooling before parking the machine in closed places. If you have to empty the tank from fuel, execute this
operation outdoor.
17) Never park the machine on a downward slope. If this is necessary for short periods and with the possibility of a
visual control, try to park transversally to the slope and check that the parking brake is engaged. However,
follow the limits that are specified in the next pages.
18) Always use the machine and attachments at a speed compatible with safety requirements.
19) TAKE GREAT CARE WHEN USING THE MACHINE ON SLOPES. AVOID AS MUCH AS POSSIBLE
WORKING TRANSVERSALLY ON THE SIDE. REDUCE A SPEED TO A MINIMUM AND REST THE
ATTACHEMENTS ON THE GROUND.
THE MAXIMUM SLOPE ON WHICH THE MACHINE MAY BE USED MUST NOT EXCEED 23% (13°)
AVOID OBSTRUCTIONS AND IRREGULAR GROUND WHICH COULD AFFECT THE STABILITY
OF THE MACHINE.
DO NOT STOP OR START THE MACHINE SUDDENDLY.
USE THE LIFTING ARM UNTIL THE MAXIMUM CONSENTED OF THE ANTIROLLOVER
DEVICE
(see also paragraph 4.1).
20) Always wear suitable clothing when using and servicing the machine: goggles, gloves, shoes and other
protective garments.
21) Use the machine during daylight only or with good artificial light.
22) Do not modify the setting of the speed and of the rpm of the engine.
23) In conclusion, pay attention to all hidden dangers not expressly mentioned in this manual in order to
ensure both your own safety and that of others.
THE MACHINE MUST BE REFUELLED IN THE OPEN OR IN A SUFFICIENTLY WELL
VENTILATED PLACE. THE ENGINE MUST BE SWITCHED OFF AND THE AREA MUST BE
WELL CLEAR OF NAKED FLAMES AND SPARKS.
ENSURE THAT DIESEL FUEL IS USED IF MACHINE IS POWERED BY A DIESEL ENGINE.

User Manual Turboloader
Page 8
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
4.1 – SAFETY DEVICES
The machine is equipped with the following safety devices:
The electric horn sounds:
1 when the coolant temperature is too high
2 by manual operation with pushbutton
3 when the hydraulic oil temperature is too high
The buzzer sounds:
1 when the unit is going in reverse
2 when the maximum limit of frontal load is overcome
The engine does not start when:
1 when the operator is not seated on the seat
2 the selector of hydraulic taking is in ON position (not for S series)
3 the second pump is engaged (not for S series)
4 the operator even if seated on the seat, press one of the two pedals to move the machine
ANTIROLLOVER DEVICE : Stability sensor
On Turboloader is installed a device with a buzzer and a bright signal that advice, in
condition of job the dancer of rollover. When it works with loads frontally suspended
the led signals if we are effecting a job in safety. More it draws near a maximum
limit of load the light and the buzzer start to work, and it advises the operator the
danger situation. From this moment, on the series M and H is not more possible
activate the telescopic arm, but is only possible retract the frontal load.
WHEN THE LIGHT AND THE BUZZER ARE ON, IS MANDATORY DO
NOT EXECUTE ANY MOVMENT OF THE ARM THAT CAN ALLOW TO
DISPLACE AHEAD THE BARICENTER OF THE LOAD
THE OPERATOR CAN WORK ONLY IF ALL THESE DEVICES ARE
OPERATING.
Check the above described function of the electric horn and of the buzzer
Check the non-starting of the engine in each of the 4 described conditions. It is important for safety that
the test with operator out of place and with absence of hand brake is executed on a level ground and with
the operator standing little up from the seat itself.
It is important for safety that the test with operator out of place is executed on a level ground and with the
operator standing little up from the seat itself.
IT IS ABSOLUTELY FORBIDDEN TO ESCAPE AND/OR TO TAMPER WITH ANY TIPE OF
SAFETY DEVICE. IT IS OBLIGATORY REPLACE IMMEDIATELY DAMEGE OR NOT WORKING
DEVICES.
TO ASK FOR QUALIFIED PEOPLE’S INTERVENTION ( GIANNI FERRARI STAFF OR AFTER
SALES DPT IDENTIFIED FROM GIANNI FERRARI) FOR THE SUBSTITUTION AND/OR
REPARATION OF THE SAFETY DEVICES.

User Manual Turboloader
Page 9
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
EACH INTERVENTION (REPARATION, SUBSTITUTION ETC …) DONE FROM NO QUALIFIED
STAFF RECOMMENDED FROM GIANNI FERRARI, DECLINE IT FROM ANY RESPONSIBILITY
AND/OR DAMAGES AT PEOPLE ANIMALS AND THINGS PRODUCED FROM THE
TURBOLOADER.
4.2 – SAFETY LABELS
On the machine are present the following safety labels.
1
2
3

User Manual Turboloader
Page 10
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
1.1 Shears risk to hands and arms.
1.2 Do not approach hands: wounding and sharinh danger.
1.3 Safety distance: when machine is working keep other people at a minimum distance of 10 meters.
1.4 Read the User Manual.
2.1 General danger warning.
2.2 Read the User Manual.
2.3 Do not operate the machine on slopes >13° (23%).
2.4 Throwing objects: wounding danger
3 Hooking for transport and lifting.
VERIFY PERIODICALLY THE GOOD CONDITIONS OF THE SAFETY LABELS. EVERY TIME
THAT THE LABELS ARE DAMAGED OR REMOVED IS EXTREMLY NECESSARY REPLACE
IT WITH THE NEW LABELS (see the code on the labels).
1
3
2
2.3
2.2
2.1
1.4
1.3
1.2
1.1 2.4
1.1

User Manual Turboloader
Page 11
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
5 – PARTS OF THE LOADER
The following picture shows the main parts of the Turboloader
1 FRONTAL FRAME : part the machine in front of the articulation joint. On it are mounted the all
controls of the machine, the drive seat, the telescopic arm, the fuel tank, the front tyres and the swift
connection for the fittings .
2 REAR FRAM : part of the machine behind the articulation joint. Here there is the engine, the hydraulic oil
tank, the battery, the rear tyres and the ballasts if required.
3 ARTICULATION JOINT: the articulation joint connects the 2 frames. Hydraulic hoses and electric wires
are conducted through this articulation joint. During the transport this articulation must be blocked.
4 LIFTING ARM : the frontal arm is telescopic.
5 FITTINGS PLATE : the fittings are mounted on the machine through this plate. The hooking and the
release of them is automatic using a switch on the control panel.
6 FIXED ROPS - CAB : designed by the standard regulations.
7 SWIFT CONNECTION FOR FITTIGS : the Turboloader is equipped with swift connection for fittings.
6
5
7
4
1
2 3

User Manual Turboloader
Page 12
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
6 – TECHNICAL FEATURES
TYTYTRYRTYTRYRTYTYTRYTRYTRYTRYTRYTRYTRYTRYTRT SDSD
TT
MODEL S322 S328 M280 H360 H440-H440-2S
Engine
KUBOTA KUBOTA KUBOTA KUBOTA KUBOTA
Displacement cm^3 898 1123 1123 1498 1498
N° cylinder 3 3 3 4 4
R.p.m. 3000 3000 3150 3150 3150
Type 4 4 4 4 4
Cooling system LIQUID LIQUID LIQUID LIQUID LIQUIDO
Bore and Stroke mm 72x73.6 78x78.4 78x78.4 78x78.4 78X78.4
Power Hp 22 28 28 36 44
Fuel DIESEL DIESEL DIESEL DIESEL DIESEL
Sterter ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC
Battery Ah/V 70/12 70/12 70/12 70/12 70/12
Fuel tank l 24 24 24 24 24
Engine oil capacity l 3.5 3.5 3.5 4.8 4.8
Viscosity 15W40 15W40 15W40 15W40 15W40
The Turboloader is equipped with hydrostatic transmission with 4 hydraulics motors on the 4 wheels
commanded from a variable displacement pump. Guide by hydraulic steering wheel with double pedals for
forward and reverse motion. Service brake by hydraulic transmission and disc brake for parking and emergency,
that can be operated by hand for S version, and with electrical button for versions M and H.
Frontal fittings plate with automatically hooking and release. Possibility through frontal takings to connect
auxiliary accessories.
MODEL S322 S328 M280 H360 H440 H440-2S
Movement transmission HYDROSTATICS
Sauer/Danfoss
HYDROSTATICS
Sauer/Danfoss
HYDROSTATICS
Sauer/Danfoss
HYDROSTATICS
Sauer/Danfoss
HYDROSTATICS
Sauer/Danfoss
HYDROSTATICS
Poclain
Speed Km/h 0-12 0-12 0-12 0-12 0-20 0-24
Hydraulic oil capacity l 24 24 24 44 44 44
Kind of hydraulic oil ISO 46 ISO 46 ISO 46 ISO 46 ISO 46 ISO 46
Auxiliary hydraulic (max) 35 l/min – 200 bar 35 l/min – 200 bar 66 l/min – 200 bar 66 l/min – 200 bar 66 l/min – 200 bar 66 l/min – 200 bar
Max breakout force cm See load chart See load chart See load chart See load chart See load chart See load chart
Transmission 4 WD 4 WD 4 WD 4 WD 4 WD 4 WD
Chart 1
Chart 2

User Manual Turboloader
Page 13
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
7 - DIMENSION
MODEL S322 S328 M280 H360 H440/H440-2S
H (ground clearance) cm 17 17 25 18 18
Weight Kg 1250 1270 1440 ROPS
1560 CAB
1670 ROPS
1850 CAB
1710 ROPS
1860 CAB
Standard wheels 23x8.50-12 23x8.50-12 26x12.00-12 26x12.00-12 26x12.00-12
Telescopic arm stroke cm / 70 70 70 70
A (with fixed ROPS ) cm 207 207 211 211 211
A (with cab ) cm 216 216 220 220 220
B cm 268 268 255 255 255
C cm 111 111 126 126 126
D cm 258 258 308 308 308
A
B C
D
32°
H

User Manual Turboloader
Page 14
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com

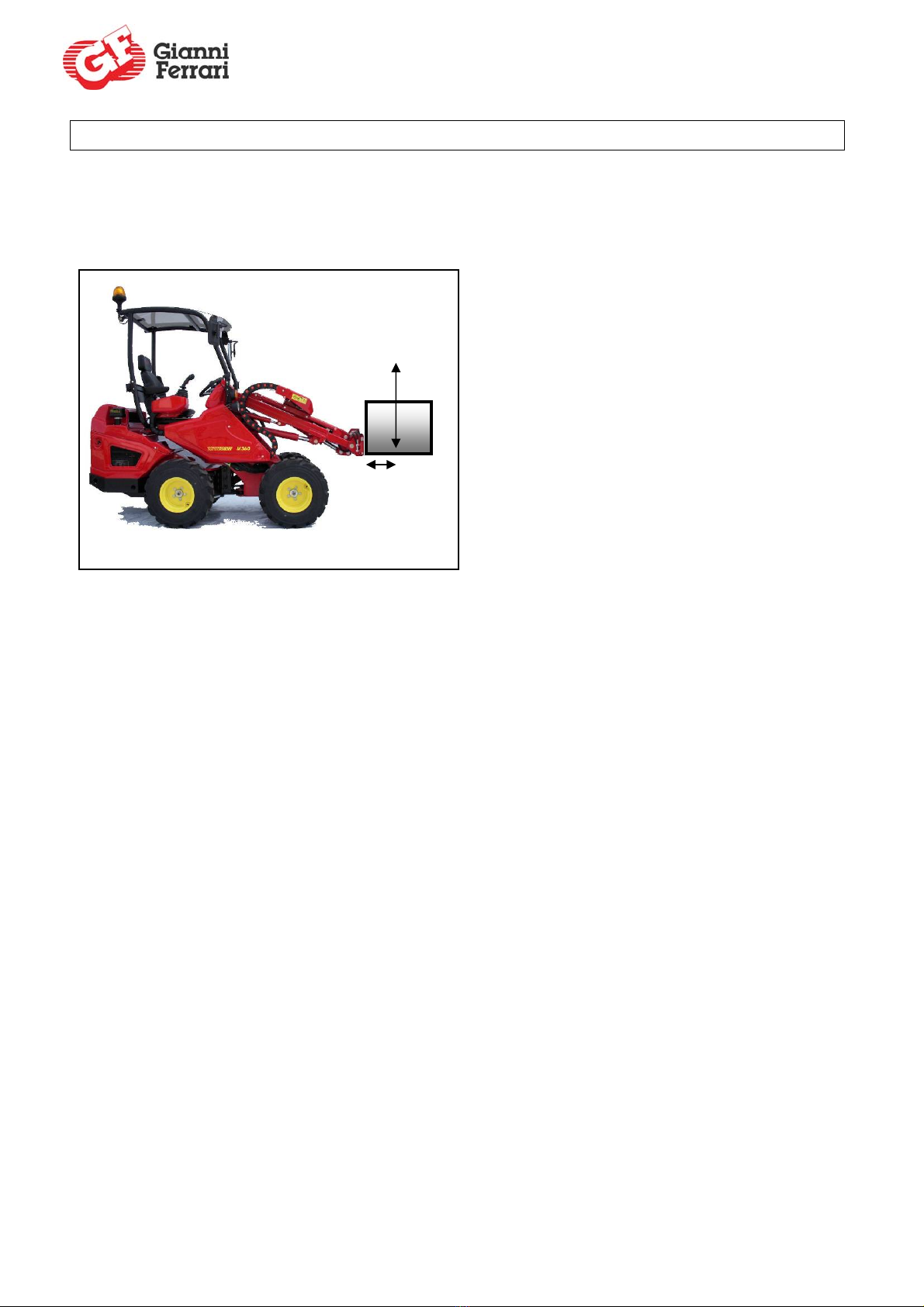

8 – LOAD DIAGRAM
The following diagram shown the different load capacity of the machine at different positions of the frontal arm
and different distances.
REQUIREMENTS FOR USE:
The values are valid in the following conditions :
- The weight raised includes the weight of the frontal attachment (see technical features of the attachment).
- The weight raised has the center of gravity at 50 cm of the boom plate.
- The work surface must not be sloping and irregular.
- The machine must not be steering.
- The weight must be positioned in the middle of the attachment.
- The operator must be on board.
50 cm
Bary-center

User Manual Turboloader
Page 15
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
WE RACOMMENDED TO LOAD WITH RETRACTED TELESCOPIC ARM AND DO NOT EXCEED
WITH THE LOADED ABOVE ADVISABLES. TO LOWER ALWAYS THE ARM WHEN WE
DECIDETO GO DOWN FROM THE MACHINE. EVERY ACTION NOT EXPRESSLY DESCRIBED
IN THIS MANUAL IS OF TOTAL RISK AND RESPONSIBILITY OF THE WORKER.
THE USE OF THE MACHINE IS CONSENTED ONLY IF THE LED OF THE ANTIROLLOVER DEVICE
DOES NOT SHOWN DANGER CONDITION.
BEFORE TO LIFT WEIGHTS OR ATTACHMENTS, BE SURE OF THE PERFECT MATCHING
BETWEEN MACHINE AND FRONTAL ATTACHMENT.

User Manual Turboloader
Page 16
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
9 – TRANSPORT
THE MOVING OF THE LOADER CAN ONLY BE EFFECTED WITH ENGINE TURNED ON
THROUGH HIS OWN CONTROLS .
The car if equipped of homologation for the road circulation, conforming to the in force legislation in the country
of use, can move to pubblic roads.
If it was unprovided it is Obligatory to enliven it through a fit (truck, towing etc.)
The machine may be transported either unpackaged or palletized.
It must be firmly fixed and fastened to the transporter loading platform.
Block the Loader using a handle brake. Block also the articulation joint using the equipment lock.
Effect the load and the unload of the Loader using and fixing homologated loading ramp at the mean of
transport. The slope of the ramp cannot be superior of 13° (see picture below).
If the machine is palletized, use a forklift.
FOR A PERFECT SAFETY BALANCING IS OPPORTUNE TO CLIMB ON THE RAMP WITH AT LEAST
ONE OF THE FITTINGS ATTACHED TO THE MACHINE
If there is not the possibility to use the loading ramp, lifting must be carried out by fixing suitable slings in 4 positions,
2 in the front side of the machine, and 2 on the rear side (see picture below).
H
M

User Manual Turboloader
Page 17
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
IT IS ABSOLUTELY FORBIDDEN PEOPLE'S TRANSPORT, ANIMALS OR THINGS ON THE MACHINE OR
ON THE EQUIPMENTS COLLECTED ON IT.
ARTICULATION JOINT BLOCK
The articulation joint block is used during the transport and lifting phases
to block the machine. In the Turboloader is necessary block the
articulation joint using the special lock equipment (see the side picture).
Remember always to remove the lock before to restart the engine.
USE ALWAYS THE LOCK DURING THE TRANSPORT AND LIFTING PHASES TO AVOID
DAMAGES ON PERSONS, ANIMALS OR THINGS DURING THESE MOVEMENTS .
BY – PASS ( we must decide if insert this paragraph )
In case of anomalies where is necessary stop immediately the machine, is possible carry out littles
displacements of it, operated on BY-PASS device. The picture below shows the position of the By-pass.
On the M and H series, the tow of the machine it is possible only raising the frontal wheels and acting on
the By-pass device
H440
H440-2s S – M - H360

User Manual Turboloader
Page 18
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
10 – CONTROLS AND INSTRUMENTS
The following picture shows the complete instruments and the operative control of the Turboloader.
1 Steering wheel 5 Cruise control
2 Switch for lights, turn indicator and horn 6 Dashboard
3 Parking brake handle 7 Multifunction Joistick (only M-H series)
4 Moving pedal 8 Side control panel
PEDALS AND PARKING BRAKE
The Turboloader is equipped with 2 pedals. One pedal for move the machine in forward, and one pedal for
move the machine in reverse.
1
2
4
6
3
7
8
5
FORWARD PEDAL
REVERSE PEDAL

User Manual Turboloader
Page 19
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
The parking brake on Turboloader S322-S328 can be operated manually
pulling the lever towards yourself. For the release, pull it towards yourself, lift
if slightly and release.
On the models M280 - H360 - H440 and H440-2S the engines on the front
wheels are equipped with hydraulic brake. The parking brake can be applied in
two ways:
1) Operation with pedal. It is mainly used during working phases if small
displacements and unit blocking are required, for ex. when using a bucket.
2) Operation with a button, if the unit blocking is required for a long period.
Using this operation it is possible to get out of the unit without it shuts off.
The brake disengages both forward and reverse everytime the pedal for
moving is applied.
This to protect the brakes on the hydraulic engines, in case the operator forgets
the unit braked. When the pedals are released, the unit blocks again.
SEAT
Adjustable comfort seat with arm and headrest.
1
2 3
4
Serie S

User Manual Turboloader
Page 20
©GF Gianni Ferrari Rev. 05 www.gianniferrari.com
1 Turning the lever we rule the hardness of the seat compatibly to the weight of the worker.
2 Pulling the lever we rule the distance from the seat to pedal and the steering wheel.
3 Pulling the lever we rule the slope of the back.
4 Vertical adjustment in 3 different settings. Carry out this operation when the operator is not seated, lifting the
seat a little then stop; to lower the seat, first lift it as high as it will go and then release.
It is allowed the use of the vertical setting only in the first position, because the machine, with 4-post ROPS or with
CAB is equipped also with FOPS structure.
MULTIFUNCTION JOYSTICK SERIES M and H
The hydraulic multifunction joystick commands the greatest part of the moves of the Turboloader, and it is
directly integrated with the guide position to avoid during the normal working operation some errors of move
that could bring damages to things/persons and/or animals presents in the ray of action of the machine.
The following picture shows the main functions.
1 Buttons to activate the big hydraulic frontal plugs:
Mode A big frontal plugs
Mode B little fontal plugs together the electrical frontal plug (only with 2-side hedgetrimmer and side reach
arm)
2 Button to activate the small hydraulic frontal plug
The function is activated pressing the button and mouving left or right the joystick
3 Button to activate the sliding arm:
The function is activated pressing the button and mouving left or right the joystick
Mouving the joystick toward right the telescopic arm comes out, toward left the telescopic arm comes back
4 The button has 3 positions:
In forward position is selected the transfer speed (only for H440-2S) and the butons 1 in Mode A
In central position is selected the work speed, and the buttons 1 in Mode A
In reverse position is selected the work speed and the buttons 1 in Mode B
5 Sensor of presence to activate the function of joystick
1
4
1
4
5
2
3
