Giant-Vac Bobcat Series User manual

Boobcat/Buntoon
Seriess
Actual product may differ slightly from product pictured above
ASSEMBLY
INSTRUCTIONS
OPERATOR'S
MANUAL
PARTS
LIST
Models covered:
2-B
3-B
3-BD
48-V
52-V
61-V
48-WB
52-WB
61-WB
Z-VVAC
Mower
Collection
System
Kits:
3063353
 3063354
 3063355
 3063356
Bagger
Blower
Weight Bar
3071097
3071098
3071100
3071101
3071102
3071103
3071104
3071105
Manual No 4-4947 (I.R. 2/9/04)

1preliminaries
Congratulations!
You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for,
your new Z-Vac Mower Collection System will provide years of dependable service. Please read and follow this instruc-
tion manual carefully in order to get the most out of your new equipment.
As you carefully unpack your unit, you will find the following items:
1 Z-Vac Blower Unit
1 Bagger Unit with Mounting Kit
1 Weight Bar Kit
1 Package containing operating manuals and warranty registration
Each product leaves our factory in excellent condition; occasionally, however, some damage may occur during shipment.
If any such damage is found upon initial inspection, immediately notify the transport carrier who delivered your machine,
as they are solely responsible for such damage, as well as any subsequent adjustments necessary.
Before assembly, please take a moment and record your model number and serial number below for future reference (both
numbers are located on the silver tag attached to the blower housing):
Model number_______________________________
Serial number________________________________
Also be sure to promptly fill out and return the warranty registration enclosed in your manual packet.
Your new Z-Vac requires very little assembly. Simply follow the instructions contained within this manual to begin enjoy-
ing the benefits of your new unit.
2GVTP ZVBB-R0203.1

safety rules regarding outdoor power equipment 2
TRAINING
-- Read, understand, and follow all instructions in the man-
ual and on the unit before starting. If the operator(s) or
mechanic(s) can not read English it is the owner's responsi-
bility to explain this material to them.
-- Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
-- All operators and mechanics should be trained. The
owner is responsible for training the users.
-- Only allow responsible adults, who are familiar with the
instructions, to operate the unit.
-- Never let children or untrained people operate or service
the equipment. Local regulations may restrict the age of the
operator.
-- The owner/user can prevent and is responsible for acci-
dents or injuries occurring to themselves, other people or
property.
PREPARATION
-- Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform the
job. Use only accessories and attachments approved by
the manufacturer.
-- Wear appropriate clothing including safety shoes, safety
glasses and ear protection. Long hair, loose clothing or jew-
elry may get tangled in moving parts.
-- Inspect the area where the equipment is to be used and
remove all objects such as rocks, toys and wire, which can
be thrown by the machine.
-- Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.
a) Use only an approved container.
b) Never remove fuel cap or add fuel with the engine run-
ning. Allow engine to cool before refueling. Do not smoke.
c) Never refuel or drain the machine indoors.
-- Check that operator's presence controls, safety switches
and shields are attached and functioning properly. Do not
operate unless they are functioning properly.
OPERATION
-- Never run an engine in an enclosed area.
-- Operate only in the daylight or with good artificial light,
keeping away from holes and hidden hazards.
-- Be sure of your footing while using pedestrian controlled
equipment, especially when backing up. Walk, don't run.
-- Do not operate in reverse unless absolutely necessary.
Always look down and behind before and while traveling in
reverse.
-- Be aware of the blower discharge direction and do not
point it at anyone. Do not operate the blower without hose
and bagger hood in place.
-- Never leave a running unit unattended. Always stop
engine before leaving unit.
-- Never operate with guards not securely in place. Be sure
all safety features are attached, adjusted properly and func-
tioning properly.
-- Never operate with the hose or hood removed or altered.
-- Do not change the engine governor setting or over speed
the engine.
-- Stop on level ground, shut off engine before leaving the
operator's position for any reason.
-- Stop equipment and inspect impeller blades after striking
objects or abnormal vibration occurs. Make necessary
repairs before resuming operations.
-- Keep hands and feet away intake and discharge areas.
-- Keep pets and bystanders away.
-- Do not operate the unit while under the influence of alco-
hol or drugs.
-- Use caution when crossing roads and sidewalks. Stop
engine if not blowing.
-- Use care when loading or unloading the machine into a
trailer or truck.
-- Use care when approaching blind corners, shrubs, trees
or other objects that may obscure vision.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra caution. If you cannot back up the
slope, or if you feel uneasy on it, do not drive on it.
Do
-- Mow across the face of slopes; never up and down.
-- Remove obstacles such as rocks, tree limbs, etc.
-- Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.
-- Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction.
Do Not
-- Do not start or stop on a slope. If tires lose traction, pro-
ceed slowly straight down the slope.
-- Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
-- Do not use near drop-offs, ditches, or embankments. The
operator could lose footing or balance or blower could sud-
denly turn over if a wheel is over the edge of a cliff or ditch,
or if an edge caves in.
-- Do not operate on slopes with wet grass. Reduced foot-
ing or traction could cause sliding.
-- Do not use on excessively steep slopes.
IMPORTANT! READ CAREFULLY THE FOLLOWING SAFETY RULES BEFORE
ASSEMBLING OR OPERATING UNIT.
3GVTP ZVBB-R0203.1

2safety rules regarding outdoor power equipment
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and its activity. Never assume that children will remain
where you last saw them.
-- Keep children out of the mowing area and under the
watchful care of another responsible adult.
-- Be alert and turn unit off if children enter the area.
-- Before and during reverse operation, look behind and
down for small children.
-- Never allow children to operate the unit.
-- Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
EMISSIONS
-- Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth defects,
or other reproductive harm.
-- Look for the relevant Emissions Durability Period and Air
Index information on the engine emissions label.
MAINTENANCE AND STORAGE
-- Always observe safe refueling and fuel handling practices
when refueling the unit after transportation or storage.
-- Always follow the engine manual instructions for storage
preparations before storing the unit for both short and long
term periods.
-- Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
-- Never store the machine or fuel container inside where
there is an open flame, such as in a water heater. Allow unit
to cool before storing.
-- Shut off fuel while storing or transporting. Do not store fuel
near flames or drain indoors.
-- Keep all hardware tight and keep all parts in good work-
ing condition. Replace all worn or damaged decals.
-- Never tamper with safety devices. Check their proper
operation regularly.
-- Clean leaves and debris from mufflers and engine to pre-
vent fires. Clean up oil or fuel spillage.
-- Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
-- Never make adjustments or repairs with the engine run-
ning unless specified otherwise.
-- Park machine on level ground. Never allow untrained per-
sonnel to service machine.
-- Carefully release pressure from components with stored
energy. (e.g. springs)
-- Only replace impellers. Never straighten or weld them.
-- Keep hands and feet away from moving parts.
-- Frequently check components and replace with manufac-
turer's recommended parts, when necessary.
-- Use only factory authorized replacement parts when mak-
ing repairs.
-- Always comply with factory specifications on all settings
and adjustments.
-- Only authorized service locations should be utilized for
major service and repair requirements.
-- Never attempt to make major repairs on this unit unless
you have been properly trained. Improper service proce-
dures can result in hazardous operation, equipment dam-
age and voiding of manufacturer's warranty.
4GVTP ZVBB-R0203.1

unit assembly 3
Deflector Removal - All Models
Remove hardware securing Discharge
Deflector to mower deck and remove deflector.
Important Note: Reattach hardware to deflec-
tor and store for future use. Never operate any
mower without a discharge deflector securely
in place.
Deck Pulley Guard Removal -
All Models
Remove hardware securing right deck pulley
guard to mower deck and remove guard. Set
hardware aside for future vac assembly step.
Important Note: Store guard for future use.
Never operate any mower without a pulley
guard securely in place.
Vac Pulley Installation - All Models
Lifting up foot rest/center deck cover to expose
center blade deck, insert a 3/8” drive breaker
bar with an extension into the tension release
hole in the blade belt idler arm and twist coun-
terclockwise to relieve tension, while slipping
blade belt from right blade drive pulley.
Note: Assistance may be needed for removal
of blade belt.
Remove right blade pulley, replacing with sup-
plied two-tiered Z-Vac drive pulley. Use same
hardware as hardware removed, making sure
to tighten securely to manufacturer’s specs.
Replace blade belt around bottom tier of pul-
ley, using method described above. Close foot
rest/center deck cover.
Note: Assistance may be needed for replace-
ment of blade belt.
5GVTP ZVBB-R0203.1

3unit assembly
6
Vac Belt Installation - All Models
Install Z-vac drive belt onto top tier of vac drive
pulley. Be sure belt runs through vac idler sys-
tem correctly; also be sure there is no belt
rollover.
Note: Pull back tension release lever on idler
arm (see inset) to give extra belt slack when
installing.
Belt Guard Installation - All Models
(61” shown)
Install Vac Drive belt guard using existing rider
hardware. Tighten securely.
Install vac unit pulley guard (inset) with three
5/16-18 x 3/4” ‘F’ thread bolts. Tighten secure-
ly.
Vac Unit Installation - All Models
(61” shown)
Fit Z-Vac unit into place over and against
mower discharge, aligning holes in discharge
mounting brackets with holes in Z-vac mount-
ing bracket. Insert one 3/8 x 2” clevis pin into
each of the two mounting holes, securing with
bridge pins.
Lock unit firmly in place with T-bolt as shown.
GVTP ZVBB-R0203.1

Weight Bar Kit Installation - All Models
(61” shown)
!! Warning: Weight kit must be installed
prior to installing bagger unit. Failure to do
so may result in longitudal tipping of unit.
Lay weight mount channel across front end of
unit as shown. Secure to unit with two clamp
plates, one under each caster arm, each held
on with two 3/8-16 x 3-1/4” hex bolts and two
reverse lock nuts. Tighten securely.
Secure weight bars to weight mount channel
with three 1/2-13 x 3-1/4” hex bolts and three
serrated flange nuts. Tighten securely.
!! Warning: Always install all supplied
weight bars onto weight mount channel.
Failure to do so may result in longitudal tip-
ping of unit.
Bagger Installation - 2 Bag Units
Assemble bumper mount plate onto rear
bumper bar of mower. Use two bar clamps on
top portion of plate, fastening from in front of
bumper bar, with four 3/8-16 x 1-1/4” hex bolts
and serrated flange nuts. Fasten bottom with
one bumper spacer and same hardware as
above. Tighten all hardware securely.
Assemble the upper reinforcement brace as
shown, using two 3/8-16 x 1-1/4” hex bolts, fit-
ted with two 3/8” flat washers, and securing
with two 3/8-16 serrated flange nuts. Do not
tighten hardware.
unit assembly 3
7
Top View
Rear View
GVTP ZVBB-R0203.1

Set bottom of support assembly onto pins in
bottom of bumper mount.
Holding support assembly upright, align holes
in support assembly with corresponding holes
in bumper mount and reinforcement brace.
Slide 5/8 x 17” locking pin through holes in
bumper mount, securing with 2-1/2” oal bridge
pin. Slide 3/8 x 18” locking pin through holes
in top of reinforcement brace, securing with 1-
7/8” oal bridge pin.
Now tighten all brace hardware securely.
3unit assembly
Bagger Installation - 2 Bag Units
(Cont.)
Install the reinforcement brace assembly onto
the unit, utilizing the square holes in the
engine base. Secure with four 5/16-18 x 3/4”
carriage bolts (inserted up from under the
engine base) and serrated flange nuts. Note:
Do not tighten brace hardware until support
assembly in following steps is installed.
Attach Cross Assembly (with attached hood
assembly) to Cover Support Assembly with
four 3/8-16 x 3/4 hex bolts and four 3/8-16 ser-
rated flange nuts. Tighten securely.
Attach Cover Latch Arm to Cover Support
Assembly with two 5/16-18 x 3/4 hex bolts and
5/16-18 serrated flange nuts. Tighten secure-
ly.
8
Bolts
Cross
Assembly
Cover Latch
Arm
GVTP ZVBB-R0203.1

Bagger Installation - 2 Bag Units
(Cont.)
Lift cover and install bags onto plate/channel
assembly by hooking slot in bag hanger onto
tabs in channel assembly.
Close cover and lock in place by hooking lock
knob into slot in cover latch arm.
Using the mounting bracket at the foot of the
Discharge Hose Standoff as a template, drill
two 7/16” holes into the right upper rear
bumper bar of the rider, just forward of the rear
radiator support bar bolt head. Fasten stand-
off to bumper bar with two 5/16-18 x 1 hex
bolts and serrated flange nuts. Tighten
securely. Note: Make sure standoff angles
upwards upon installation.
Proceed to Discharge Hose Installation.
Bagger Installation - 3 Bag Units
Preassemble bumper mount plate as shown,
securing two sets of two short clamp bars into
top of plate with one 3/8-16 x 1-3/4” hex bolt
and serrated flange nut. Leave nuts loose.
Also note position of bottom clamp bar that will
be addressed in following step.
unit assembly 3
9GVTP ZVBB-R0203.1

Assemble the upper reinforcement brace as
shown, using two 3/8-16 x 1-1/4” hex bolts,
each fitted with one 3/8” flat washer, and
secure with two 3/8-16 serrated flange nuts.
Do not tighten hardware.
Install the reinforcement brace assembly onto
the unit, utilizing the square holes in the
engine base. Secure with four 5/16-18 x 3/4
carriage bolts (inserted up from under the
engine base) and serrated flange nuts. Note:
Do not tighten brace hardware until support
assembly in following steps is installed.
3unit assembly
Bagger Unit Installation - 3 Bag Units
(Cont.)
Hook bumper mount plate onto rear bumper,
making sure one bar clamp is in front of
bumper, another behind. Secure in place with
same hardware in lower set of holes as in pre-
vious step. Do not tighten yet.
Repeat the same for the bottom part of the
mount, using the long clamp bar, one on the
inside and one on the outside of the bumper.
Insert two 3/8-16 x 1-3/4” bolts from the
bumper mount side, securing with two 3/8 flat
washers and two 3/8-16 nylon lock nuts.
Tighten securely.
10 GVTP ZVBB-R0203.1

Bagger Unit Installation - 3 Bag Units
(Cont.)
Install the plate/channel assembly onto the
support assembly using two 5/16-18 x 3/4” car-
riage bolts through the top holes, and two
5/16-18 x 1-1/4” carriage bolts for the bottom
holes. Secure with four 5/16-18 serrated
flange nuts.
Set bottom of support assembly onto pins in
bottom of bumper mount.
Holding support assembly upright, align holes
in support assembly with corresponding holes
in bumper mount and reinforcement brace.
Slide 5/8 x 17” locking pin through holes in
bumper mount, securing with 2-1/2” oal bridge
pin. Slide 3/8 x 18” locking pin through holes
in top of reinforcement brace, securing with 1-
7/8” oal bridge pin.
Now tighten all brace hardware securely.
Install Cover Latch Arm onto support assembly
by first inserting two 5/16-18 x 3/4” hex bolts
out through corresponding holes in the support
assembly. Then fit the latch arm over bolts
and secure with two 5/16-18 serrated flange
nuts.
unit assembly 3
11 GVTP ZVBB-R0203.1
Bolts

Lift cover and install bags onto plate/channel
assembly by hooking slot in bag hanger onto
tabs in channel assembly.
Close cover and lock in place by hooking lock
knob into slot in cover latch arm.
3unit assembly
Bagger Unit Installation - 3 Bag Units
(Cont.)

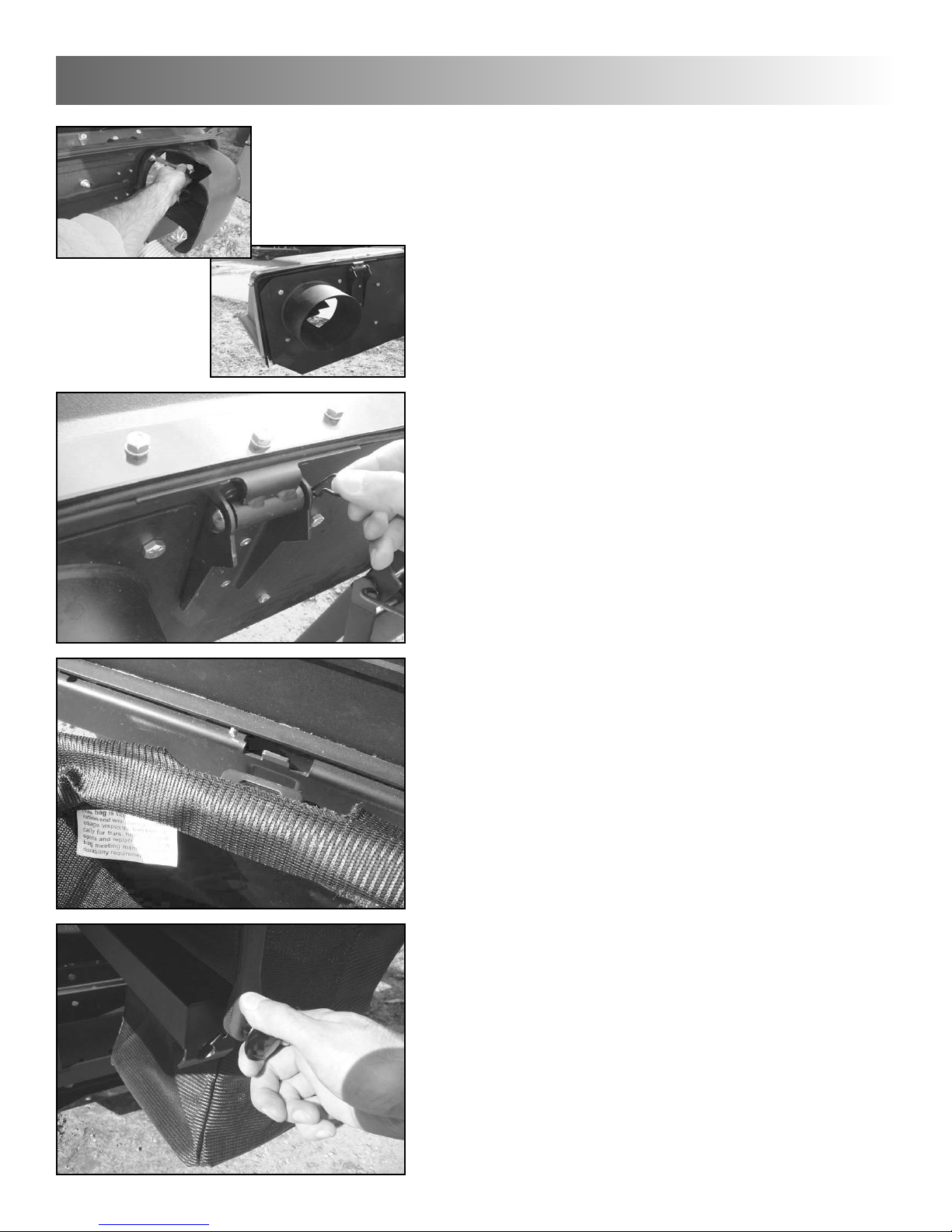

Install intake flange and inner deflector as
shown using four 5/16-18 x 1” hex bolts, flat
washers and nylon lock nuts. Tighten secure-
ly.
Note that the intake flange should be angled
downward.
Set cover on plate assembly, aligning hinges in
cover with hinges on plate. Secure with three
3/8 x 2-3/4” clevis pins and 1-3/4” oal bridge
pins.
12 GVTP ZVBB-R0203.1

Discharge Hose Installation - All
Models (3 Bag Unit shown)
Slip one hose clamp onto each end of hose (use the
clamp with the quick-release knob at the blower
end), and install hose between unit and bagger,
making careful note of direction sticker inside end of
hose (see inset). Tighten clamps securely.
Note: On 2 bag units, be sure to slip middle of hose
length into cradle of Discharge Hose Standoff, in
order to prevent hose from hitting rear wheel of
rider.
unit assembly 3
13
Assembly is complete. Refer to the operator’s manual of your rider for the
safest and most effective use of your new unit.
SOME IMPORTANT DO’S AND DON’TS FOR SAFE AND EFFECTIVE OPERATION:
DO...
...Inspect unit before each use to be sure all fasteners are securely tightened
and all components are securely in place.
...Be aware that installed blower unit engages along with mower deck - never
operate mower without hose, cover and bags in place.
...Inspect unit often for wear and damage. Replace worn or damaged items
promptly.
...Grease bearing units regularly with a quality lithium grease.
DO NOT...
...Operate the rider without the weight channel and bars installed. Rear tipping
of rider can result.
...Operate the unit without belt guards securely in place. Serious injury may
result.
...Overfill bags. A good rule of thumb is to empty bags at about 3/4 capacity.
...Store unit with bags full. Stretching and eventual tearing of bag material may
result.
GVTP ZVBB-R0203.1

4 illustratedpartslist - BLOWERGROUP:48-V,52-V,61-V

4 illustratedpartslist - BLOWERGROUP:48-V,52-V,61-V
Item Part Number Qty Description
1 3046782 1 WELDMENT, Blower Belt Guard
2 91121 1 NUT, 1/2-13 Hex Nyloc
3 90250 1 WASHER, 1/2" Flat SAE
4 3021097 1 PULLEY, A Groove Idler, Steel
5 35816 1 IDLER STUD (3/8-24 thread)
6 91804 2 WASHER, 9/16 Flat, Narrow Type
7 14409 2 FLANGE BEARING, 9/16" I.D.
8 91598 1 COTTER PIN, 1/8 x 3/4"
9 3046824 1 BELT RETAINER, Idler
10 91527 1 SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
11 3047253 1 WELDMENT, Idler Arm
12 91601 1 NUT, 5/16-18 Hex Flange Lock
13 91218 1 SCREW, 1/2-13 x 2-1/2" Hex Head Cap, GR5
14 3046781 1 WELDMENT, Blower Housing
15 3046853 1 BACK PLATE, Blower
16 91541 8 SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
17 3022832 2 BEARING, Pillow Block, Blower (includes grease fitting)
18 90839 8 NUT, 7/16-14 Hex Center Lock
19 3031920 4 SCREW, 7/16-14 x 1-1/2" Hex Head Cap, GR5
20 3046854 1 WELDMENT, Impeller, Fast Vac Blower
21 3031919 4 SCREW, 7/16-14 x 1-1/4" Hex Head Cap, GR5
22 91619 2 NUT, 3/8-16 Hex Flange Lock
23 3046813 2 BELT RETAINER
24 35867 2 PULLEY, Flat Idler, 2-3/4" O.D.
25 90122 9 WASHER, 3/8" SAE Flat
26 91560 1 SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR5
27 91518 1 NUT, 3/8-24 Hex Nyloc
28 91305 1 SCREW, 3/8-16 x 2", Hex Head Cap, GR5
29 92111 3 U-CLIP, 5/16-18
30 91541 3 SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
Ref 3071100 48-V Blower Kit
Ref 3071101 52-V Blower Kit
Ref 3071102 61-V Blower Kit

4 illustratedpartslist - BLOWERMOUNTGROUP:48-V,52-V,61-V

4 illustratedpartslist - BLOWERMOUNTGROUP:48-V,52-V,61-V
Item Part No. Qty. Description
1 3036316 1 BELT, Blower Unit Drive, Model 48-V, 61-V
1 3036322 1 BELT, Blower Unit Drive, Model 52-V
2 3037676 1 WELDMENT, 48" Belt Shield
2 3037677 1 WELDMENT, 52" Belt Shield
2 3037158 1 WELDMENT, 61" Belt Shield
3 3036315 1 PULLEY, Deck, Bobcat
4 3027487 1 WELDMENT, Mounting Bracket, 48" Fast-Vac
4 3027488 1 WELDMENT, Mounting Bracket, 52" Fast-Vac
4 3027471 1 WELDMENT, Mounting Bracket, 61" Fast-Vac
5 91541 4 SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
6 3027489 1 CLIP, Belt Guard Support (Model 48-V only)
-- 3027507 1 WELDMENT, Guard Support Bracket (Not Shown, 52-V, 61-V Only)
7 13966 2 PIN, Clevis
8 76988 2 HAIRPIN, Cotter
9 3032118 1 WELDMENT, T-Handle Pin
10 27168 1 SCREW, 5/16-18 x 1" Hex Head Cap, GR5
11 91601 1 NUT, 5/16-18 Hex Flange Lock
12 91067 1 NUT, 5/16-18 Hex Center Lock, GR B
13 3020807 1 SPRING, Idler, Fast Vac
14 91067 1 NUT, 5/16-18 Hex Center Lock, GR B
15 3046806 1 PULLEY, Blower Input, Model 48-V & 52-V
15 3046807 1 PULLEY, Blower Input, Model 61-V
16 12315 1 KEY, 1/4 Square x 1-7/16"
17 91617 1 SCREW, 3/8-16 x 6" Hex Head Cap, GR5
18 90951 2 NUT, 5/16-18 Hex Large Flange Center Lock
Ref 3071100 48-V Blower Kit
Ref 3071101 52-V Blower Kit
Ref 3071102 61-V Blower Kit

4 illustratedpartslist - TWINBAGCATCHER,2-B

4 illustratedpartslist - TWINBAGCATCHER,2-B
Item Part No. Qty. Description
1 3046861 1 ASSEMBLY, 2 Bag Cover and Screen
(includes Item No. 5, 12, 13, 14, 42, 43, 44, 45)
2 1704180 2 WINDOW, Cover
3 170440* 1 DECAL, Safety, Grass Bag
4 1667248 6 CLIP, Canoe
5 1910531 4 WASHER, .188 Rivet
6 90922 1 SCREW, #10-32 x 1-1/2 Hex Washer Head Machine w/Nylon Patch
7 91702 3 WASHER, .19 x .38 x .06 Flat
8 3021670 1 STRAP, Rubber
9 90376 5 NUT, #10-32 Hex Nyloc
10 3022838 1 KNOB
11 960367 2 PIN, Round Head
12 1703700 1 SCREEN
13 1704057 1 SEAL, Clip
14 91578 4 POP RIVET, 3/16 x .265 Alum.
15 1675707 2 TUBE CLIP, Grass Bag
16 1703807 2 HANGER, Grass Bag
17 90316 4 BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
18 1703855 2 HOOP, Grass Bag
19 3000847 2 GRASS BAG
20 1672023 2 CLAMP, Grass Bag
21 90187 4 WASHER, 5/16" Split Lock
22 91511 4 NUT, 5/16-18 Hex, GR5 or B
23 3022875 1 HOSE CLAMP, Upper
24 3022833 1 HOSE, Snapper Fast Vac
25 3022876 1 HOSE CLAMP, Lower, Fast Vac
26 91757 1 SCREW, #10-24 x 1-1/4" Hex Head Cap, GR5
27 91290 1 NUT, #10-24 Hex Nyloc
28 13844 2 HAIR PIN, 2.62 Cotter
29 1703822 1 CROSS ASSEMBLY
30 90074 5 BOLT, 1/4-20 x 3/4" Short Neck Carriage
31 91084 2 SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
32 1704507 1 STRAP, Tube Support
33 91702 1 WASHER, .191 I.D. Flat
34 3046722 1 WELDMENT, Hose Adapter/Deflector
35 91294 3 WASHER, 1/4" Flat
36 91603 5 NUT, 1/4-20 Hex Nyloc
37 90883 2 SCREW, 10F x 7/8" Pan Head Cross Recess
37a n/a 1 SCREW, #10-32 x 1

4 illustratedpartslist - TWINBAGCATCHER,2-B(cont’d)
