Chapter 1
Introduction
Overview
The Gigabyte WLMA102 Dual-Band Notebook Adapter Card delivers to you with today’s
fastest available wireless connection, and prepares you for the future. Without having to
swap notebook adapters, the WLMA102 lets you connect seamlessly to both 2.4GHz,
802.11b/g and 5.0GHz 802.11a wireless networks.
With Gigabyte’s exclusive SmartSetup 3, setup is a breeze. Connect and secure with
WPA in no time. The 802.11a wireless network operates in the less crowded 5GHz radio
band, so its becoming more popular as 802.11b/g networks get crowded with traffic.
The 32-bit PC Card WLMA102 Super G Wireless Adapter communicates over the 2.4GHz
802.11g wireless standard with throughput up to 15 times faster than the 11Mbps 802.11b
while still remaining fully backward compatible with that standard.
Notebook PC’s equipped with wireless adapters communicate with Wi-Fi Application
Points and wireless routers giving you the freedom of mobility, and the convenience of
getting online virtually wherever, and whenever there is a wireless network – keep in
touch with friends and family via email, instant messaging or just surfing the net, from
home, the airport, coffee shop or convention halls .
This manual will help you understand more about the powerful features and options of
your newWLMA102 Dual-Band A+GWireless Notebook Adapter.
Package Contents
•GN-WLMA102 Dual-Band A+GWireless Notebook Adapter w/32-bit
CardBus
•User Guide and Ez-Link Utility on CD-ROM
•Quick Start Guide
If there are any missing or damaged parts, please contact your local distributor
or dealer immediately.
Operating Modes
The GN-WLMA102 Notebook Card can operate in all of today’s wireless radio
bands:
4

Super G Wireless NotebookAdapter
•802.11b (11b) – The 802.11b wireless radio has a range of about 50
meters and a maximum throughput of 11 Mbit/s, however a significant
percentage of this bandwidth is used for communications overhead; in
practice the maximum throughput is about 5.5 Mbit/s. Although it’s
slower than 11g, it’s still the most commonly used network today.
•802.11g (11g) - In June 2003, a third standard for Wi-Fi was ratified:
802.11g. This version works in the 2.4 GHz band (like 802.11b) but
operates at 54 Mbit/s raw, or about 24.7 Mbit/s net, throughput like
802.11a. It is fully backwards compatible with 11b and uses the same
frequencies.
•802.11a (11a) - The 802.11a standard uses the 5 GHz band, and
operates at a raw speed of 54 Mbit/s, with net achievable speeds in
the mid-20 Mbit/s. The speed is reduced to 48, 36, 34, 18, 12, 9 then 6
Mbit/s as required to connect to slower AP’s. 802.11a has 12
non-overlapping channels, 8 dedicated to indoor and 4 to point to
point.
These and other advanced configuration options are explained further in
Chapter 3 - Configuring the WLMA102.
LEDs

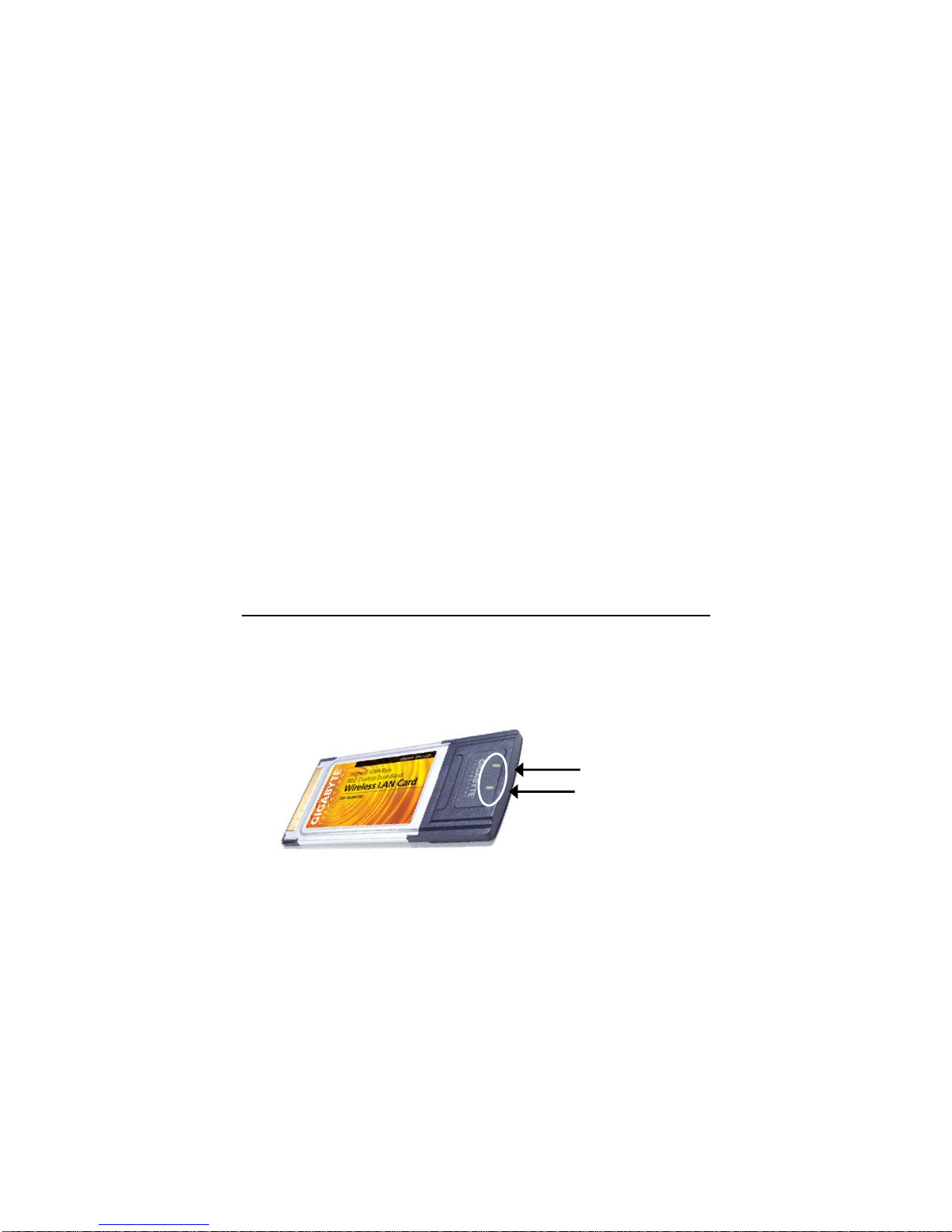

Fi
g
ure 1
–
Ada
p
ter LED
LED 1
LED 2
5

LED 1 LED 2 Meaning
Steady blink Steady blink Looking for network
association
Random blink Random blink Associated with
network. Blinking
increases with activity
on network
OFF OFF No power applied to
the card
Slow blink OFF Power save mode
Key Features
¾802.11a based wireless networking at up to 54Mbss
¾802.11b based wireless networking at up to 11Mbps.
¾802.11g based wireless networking at up to 54Mbps
¾Data rates up to 108Mbps in Super A and Super G modes*
¾Dynamically scales down the data rate as needed.
¾64/128/152-bit WEP encryption security
¾RADIUS supported
¾WPA-PSK pre-shared key authentication
¾Automatic device power management minimizes battery drain
*Theoretical throughput based on doubling of the 54Mbps radio channel.
6

Super G Wireless NotebookAdapter
Chapter 2
Installation
Installing Drivers & Ez-Link Utility
You should use the drivers that are included on the CD-ROM rather than
the default Windows drivers. The Gigabyte WLMA102 drivers have special
features and utilities that give you more stability and security than
Window’s default “Wireless Zero Configuration”.
Follow stepsA through G below to install the Wireless LAN drivers and
Ez-Link Utility.
A. First, insert your Setup CD-ROM into your notebook PC’s CD-ROM
drive. The Splash screen will automatically open.
Figure 2 – Welcome splash screen
Quick Installation Guide & Manual – Click to view the Quick Start Guide
and Users Guide
7

Install Wireless LAN Utility – Click to begin automatic wireless Utility
and driver installation
Visit the Gigabyte Website – Click to visit the Gigabyte support pages
Acrobat 5.0 – Installs Adobe Acrobat Reader.
Browse the CD – Opens Windows Explorer to view all files on the CD
Exit – Click to Exit the WLMA102 Welcome menu.
B. Next, insert your WLMA102 notebook card into your notebook PC.
With the label side up, insert your WLMA102 NotebookAdapter into
the free PCMCIA slot on your notebook PC.
C. Click “Install Wireless LAN Drivers and Utility”.
D. The Install Wizard will open as shown in figure 3 below. Click Next>
to let the WLMA102 drivers and Utility install.
Figure 3 – InstallShield Wizard
8

Super G Wireless NotebookAdapter

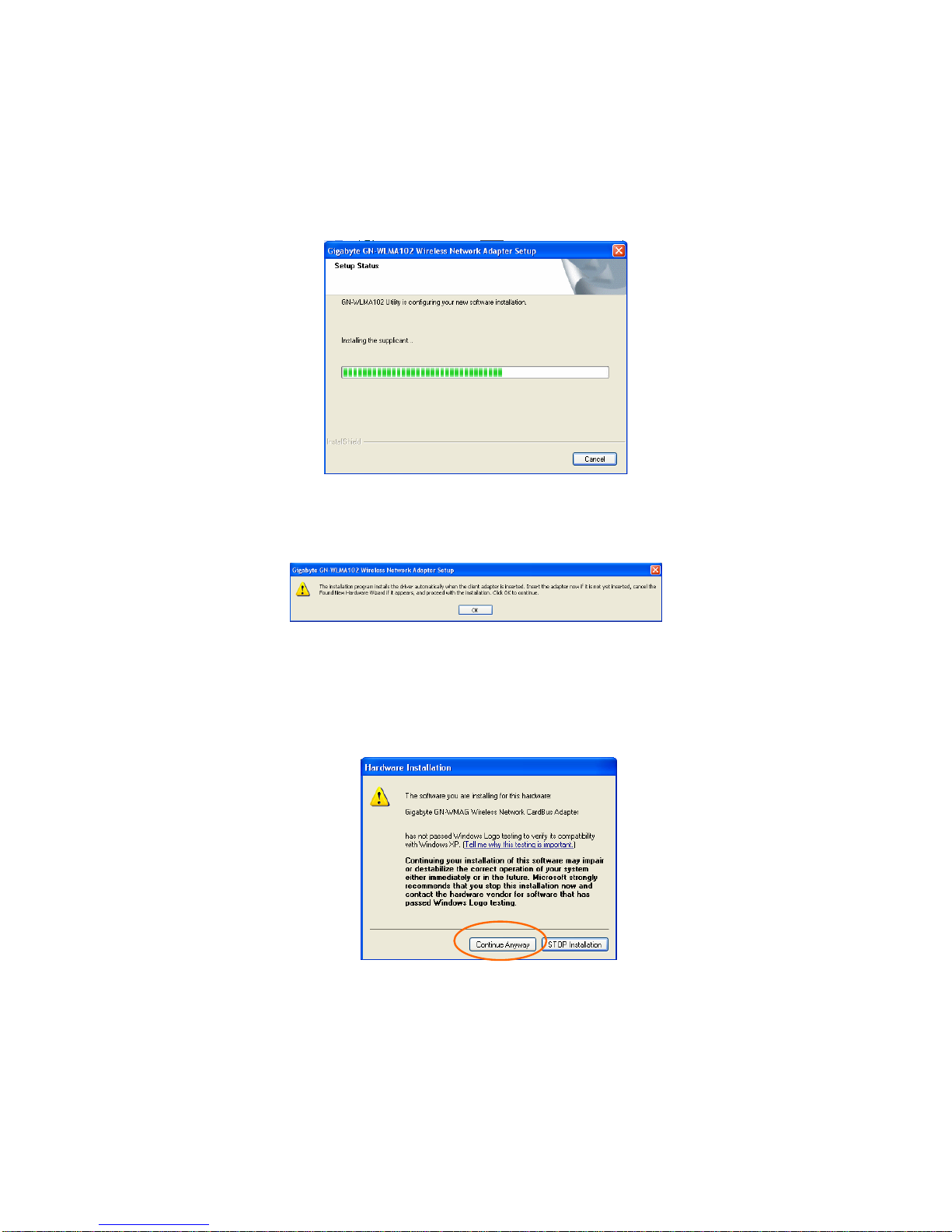

Figure 4 – Install progress
E. You will get a message to install your Notebook Adapter now, if you
have not already done so. Make sure your Adapter is firmly inserted,
and click OK..
Figure 5 – Insert Adapter Message
F. If you receive a message “The software you are installing has not
passed Windows Logo testing”, this is normal, and the software has
been tested to work with Windows. Click Continue Anyway. Follow
the installation prompts, and after completing installation, click OK.
Restart Windows, and remove the Setup CD-ROM from the CD-ROM
drive.
Figure 6. Windows Logo Warning
9

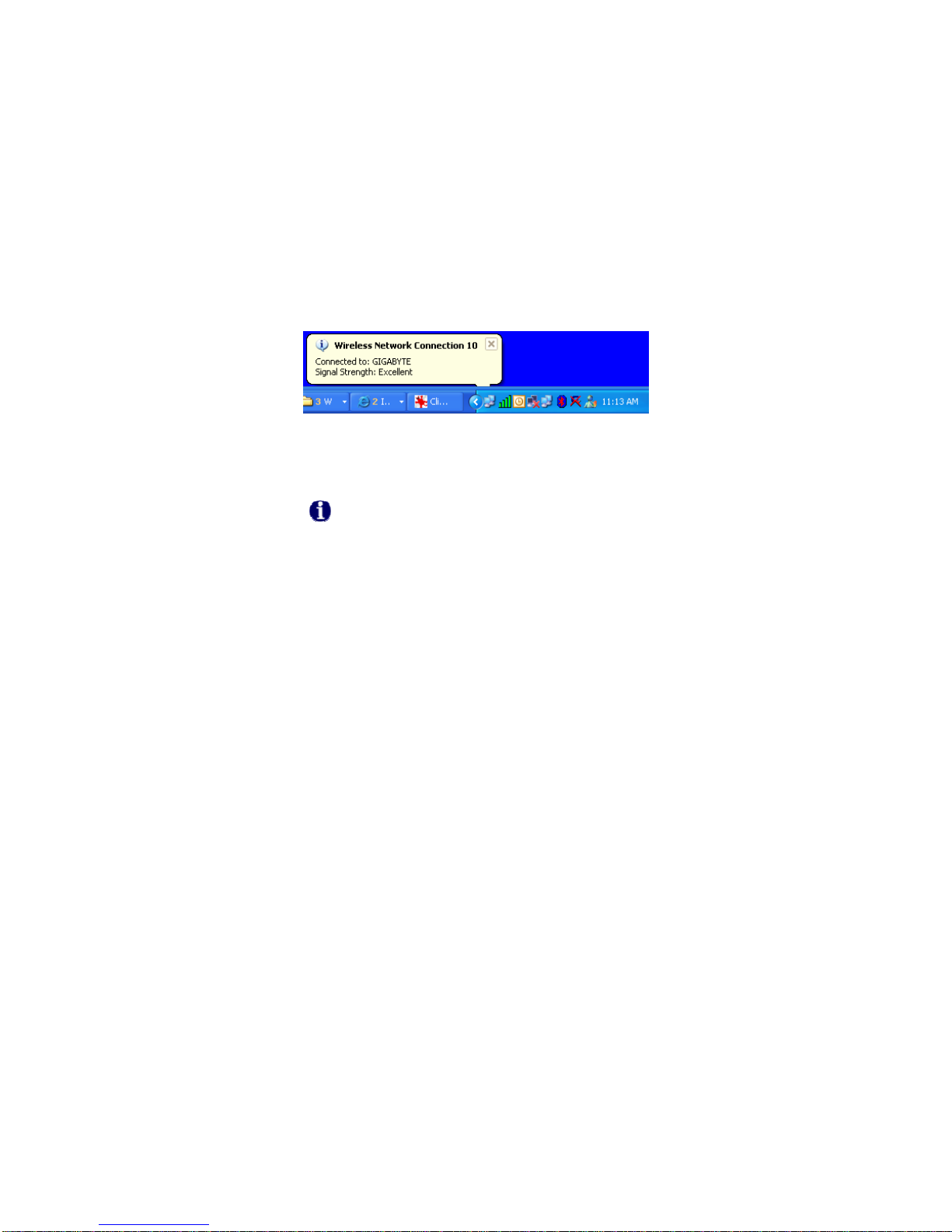

G. When the driver installation is complete, click Finish to close the
wizard. You will see the Utility Quick Start icon in your tray (the 4 bar
icon). If one or more wireless access points are available, you will
also see the information bubble message on your tray.
Figure 7. InstallShield Complete
Congratulations. Installation of your Wireless Adapter is complete.
.
The Gigabyte WLMA102 default wireless settings are:
Infrastructure Mode, NO security, accepts all 2.4GHz and
5GHz wireless traffic, Super A/G mode ON, and power
save mode = ‘normal’. To change these or other settings,
please see Configuring the WLMA102 in Chapter 3.
10

Super G Wireless NotebookAdapter
Chapter 3
Configuration
Using the Gigabyte Ez-Link Utility
This chapter explains how to use Ez-Link Wireless Utility to view the client
adapter’s status, and transmit and receive configuration settings. The
following topics are covered in this chapter:
Current Status - Displays the complete operation state of the WLMA102
Site Survey - Displays all visible AP’s in the immediate wireless network.
Profile Management – Create and modify connection configuration in a
“Profile”
Diagnostics - Displays details regarding network connection health, and
performance.
Adapter Information - Displays the card name, MAC ID, date and
versions of the driver.
In addition to enabling you to configure your Adapter for use in various types of
networks, Ez-Link Utility provides tools that enable you to assess the
performance of the Adapter and other devices on the wireless network.
Current Status Tab
Ez-Link Utility Link Information screen displays network mode, signal strength,
and link quality information about the current connection. To view your
Adapter’s status and settings, open Ez-Link Utility. The Current Status Tab
appears (see Figure 9).
11

Figure 9. Link Status Tab
Profile Name – Network configuration (Profile) your Adapter is currently
using. Creating and modifying a profile is done from the Profile
Management Tab.
Link Status – Displays the association status of the Adapter to a network.
(Not Associated, Associated, Authenticating, Authenticated, Authentication
Failed, Authentication Failed Retrying)
Wireless Mode – The frequency and rate which your current wireless
connection is capable of transmitting or receiving packets.
Network Type – Displays the network connection type, options are Ad-hoc
and Infrastructure.
Server Based Authentication – Indicates if an 802.1X compliant RADIUS
authentication server is utilized.
IP Address – The unique Internet Protocol ID for the notebook.
Current Channel – The wireless radio channel being used for the data
transmission.
Data Encryption – Type of encryption currently in use (if any)Ad-hoc.
Signal Strength – The length of the green bar represents relative wireless
12

Super G Wireless NotebookAdapter
network signal strength.
Click Advanced if you want to view more detailed status information for your
client adapter. The Advanced Status window appears (see Figure 7-3).
Figure 10 – Advanced Status Window
Network Name (SSID) - The name of the network to which your client
adapter is currently associated.
Server Based Authentication - The method by which authentication to a
back-end server is being performed to establish secure connectivity.
(None, LEAP, EAP-TLS, PEAP (EAP-GTC), or PEAP (EAP-MSCHAP V2))
Data Encryption - The data encryption type that was negotiated with the
access point (in infrastructure mode) or another client (in ad hoc mode)
upon association. (None, WEP, CKIP, or TKIP)
Authentication Type - Specifies whether the client adapter must share the
same WEP keys as the access point in order to authenticate or can
authenticate to the access point regardless of its WEP settings.
(Open or Shared)
Message Integrity Check - Indicates whether your client adapter is using
message integrity check (MIC) to protect packets sent to and received from
the access point.
MIC prevents bit-flip attacks on encrypted packets. During a bit-flip attack,
an intruder intercepts an encrypted message, alters it slightly, and
retransmits it, and the receiver accepts the retransmitted message as
legitimate.
Associated AP Name - The name of the access point to which your client
adapter is associated. It is shown only if the client adapter is in
13

infrastructure mode.
Note: This field shows up to 15 characters although the name of the
access point may be longer.
Associated AP IP Address - The IP address of the access point to which
your client adapter is associated. It is shown only if the client adapter is in
infrastructure mode.
Associated AP MAC Address - The MAC address of the access point to
which your client adapter is associated. It is shown only if the client adapter
is in infrastructure mode.
Power Save Mode - The client adapter's current power consumption
setting. (CAM (Constantly Awake Mode), Max PSP (Max Power Saving), or
Fast PSP (Power Save Mode))
Current Power Level - The power level at which your client adapter is
currently transmitting. The maximum level is dependent upon the radio
band used and your country's regulatory agency.
(10, 20, 30, 50, 63, or 100 mW (802.11b/g band),
10, 13, 20, 25, or 40 mW (802.11a band))
Available Power Levels - The power levels at which your client adapter
is capable of transmitting. The maximum level is dependent upon the radio
band used and your country's regulatory agency.
(10, 13, 20, 25, or 40 mW (802.11a); 10, 20, 30, 50, 63, or 100 mW
(802.11b/g))
Current Signal Strength - The signal strength for all received packets.
The higher the value, the stronger the signal. (0 to 100% or 0 to -100 dBm)
Current Signal Quality - The signal quality for all received packets. The
higher the value, the clearer the signal. (0 to 100%)
Current Noise Level - The level of background radio frequency energy in
the current radio band. The lower the value, the less background noise
present. (0 to -100 dBm)
Up Time - The amount of time (in hours:minutes:seconds) since the client
adapter has been receiving power. If the adapter has been running for
more than 24 hours, the time is displayed in days, hours:minutes:seconds.
802.11b Preamble - Indicates whether your client adapter is using only
long radio headers or short and long radio headers. (Short & Long or Long
Only)
Current Link Speed - The rate at which your client adapter is currently
transmitting data packets. (1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, or 54
14

Super G Wireless NotebookAdapter
Mbps)
Channel - The channel that your client adapter is currently using for
communications. This field displays Scanning while the client adapter
searches for a channel.
Frequency - The radio frequency that your client adapter is currently using
for communications. This field displays "Scanning" while the client adapter
searches for a frequency.
Channel Set - The regulatory domain for which your client adapter is
currently configured. This value is not user selectable. ( America, EMEA,
Japan, or Rest of World)
Click OK to close the Advanced Status window.
Site Survey Tab
The site survey screen displays a list of infrastructure and Ad-hoc networks
available for connection in the “Network Name” column. To connect to a
network, simply click on the network name, and press the Activate button. Note
that secure networks (represented by the key icon) will require a Passphrase.
Figure 10. Site Survey Tab
15

Network Name – The SSID or unique name of the wireless network.
Key Icon - Indicates a secure or open network
Signal Strength – The strength of signal, reported in dB.
Channel – The channel upon which the network broadcasts.
Wireless Mode – The radio frequency which the network broadcasts.
Profile Management Tab
Every session runs under a Profile – even if it is the ‘default’ Profile.
The Profile Management Tab displays your current wireless connection profile,
and its details. You may add as many wireless profiles as you wish, by
clicking New. You may even import and export your profile as a configuration
file. This is handy if the laptop is to be used between two or more AP’s. There
are two windows in the Profile Management Tab. The top window displays all
profiles, with a green radio icon next to the active profile. The bottom window
displays a brief summary of the configuration of the selected profile. Clicking
Modify allows you to change the wireless connection configuration settings.
Figure 11. Profile Management Tab
16

Super G Wireless NotebookAdapter
New – Click to create a new profile.
Modify – Click to modify the selected profile.
Remove – Click to remove the selected profile
Activate – Click to activate the selected profile (and simultaneously
de-activate the current profile)
Import – Import a profile configuration from file.
Export – Export a profile configuration to a file.
Order Profiles – Arranges the profiles in a list according to an order
which is convenient to you.
Radio - Toggle on or off the WLMA102 wireless radio receiver.
Profile Management > General Tab
Clicking Modify from the Profile Management Tab will present the Profile
Management Dialogs. There are three tabs here: General, Security, and
Advanced Tab.
Figure 12. Profile Management > General Tab
Profile Name – A user defined, free form name for the new profile.
Client Name – The Notebook PC name. This field is automatically
17

populated but can be edited as you wish.
Network Names – You may define up to three network names
which this profile is used when connecting.
Profile Management > Security Screen
The wireless security sub tab offers you the method of security (if any) you may
select. Select WPA, WPA-Passphrase, 802.1x, Pre Shared WEP, or None.
WPA is a security standard stronger than WEP encryption, and 802.1x is the
RADIUS authentication service. The default setting is None.

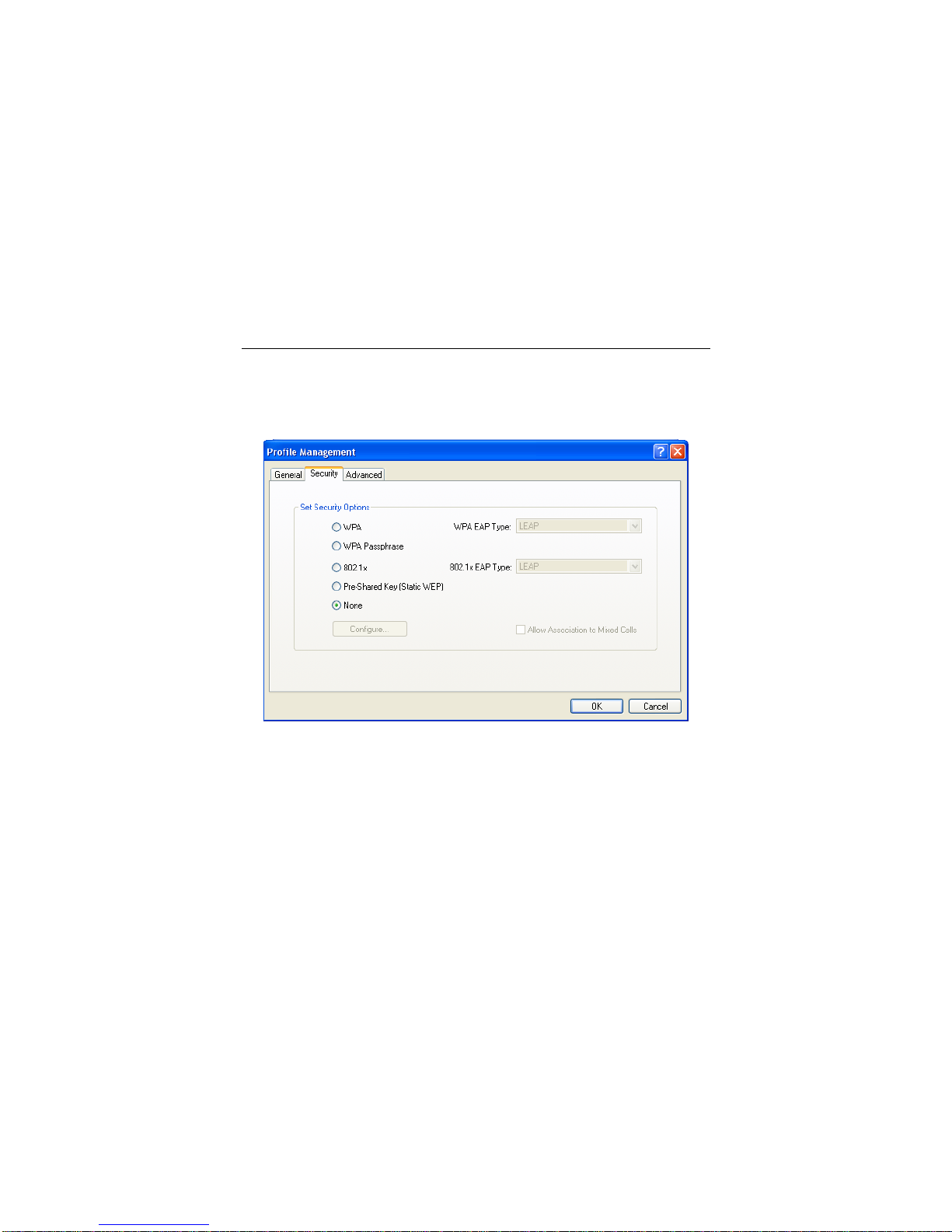

Figure 13. Profile Management > Security Tab
Set Security Method - WPA – Wi-Fi Protected Access - Choosing WPA
opens the WPA EAP drop-down menu. The options include TLS and
PEAP. Click on the Configure button and fill in the Define Certificate
dialog.
WPA-Passphrase - Enables WPA-Pre Shared Key (PSK).
Click on the Configure button and fill in the WPA Passphrase.
802.1x – RADIUS Authentication. Enables 802.1x security, and is only
available if a RADIUS Server is connected to the router) Choosing 802.1x
opens the 802.1x EAP type drop-down menu. The options include TLS,
PEAP, and LEAP.
Pre-Shared Key - Enables the use of pre-shared keys that are defined
on both the access point and the station. To define pre-shared encryption
18

Super G Wireless NotebookAdapter
keys, choose the Pre-Shared Key radio button and click the Configure
button to fill in the Define Pre-Shared Keys window.
Allow Associate to Mixed Cells – Check the Allow Association to Mixed
Cells check box if the access point to which the client adapter is to
associate (or the VLAN to which the client will be assigned) has WEP set
to Optional and static WEP is enabled on the client adapter. Otherwise,
the client is unable to establish a connection with the access point.
Uncheck the AllowAssociation to Mixed Cells check box if the access
point to which the client adapter is to associate (or the VLAN to which the
client will be assigned) does not have WEP set to Optional. This is the
default setting.
None – no security is set. (Default setting)
Select the type of security encryption (WPA, WPA-Passphrase, WEP or
RADIUS 802.1X) from the radio buttons, and click Configure. Depending on
the security selected, the following Configure Security Screens will appear.
Configure Pre Shared Key (WEP) Security
To use WEP, select if you want Hex or ASCII method, enter a pre-shared key,
select 64-bits, or 128-bits from the drop down box and click OK.
Note: ASCII text WEP keys are not supported on Gigabyte Routers,
you must choose the Hexadecimal (0-9,A-F) option if you are
connecting with these Access Points.
Figure 14. WEP key configuration
WPA-Passphrase - When you select WPA, the target 802.11
device must also be WPA enabled in order to communicate with
each other. Obtain the WPA Passphrase for the access point from
your system administrator and inter it in the WPA Passphrase field.
19

•WPA Passphrase must contain 8 to 63 ASCII text
characters or 64 hexadecimal characters.
•Your client adapter's WPA Passphrase must match the
Passphrase used by the access point with which you are
planning to communicate.
Click OK to save your changes and to return to the Profile
Management window.

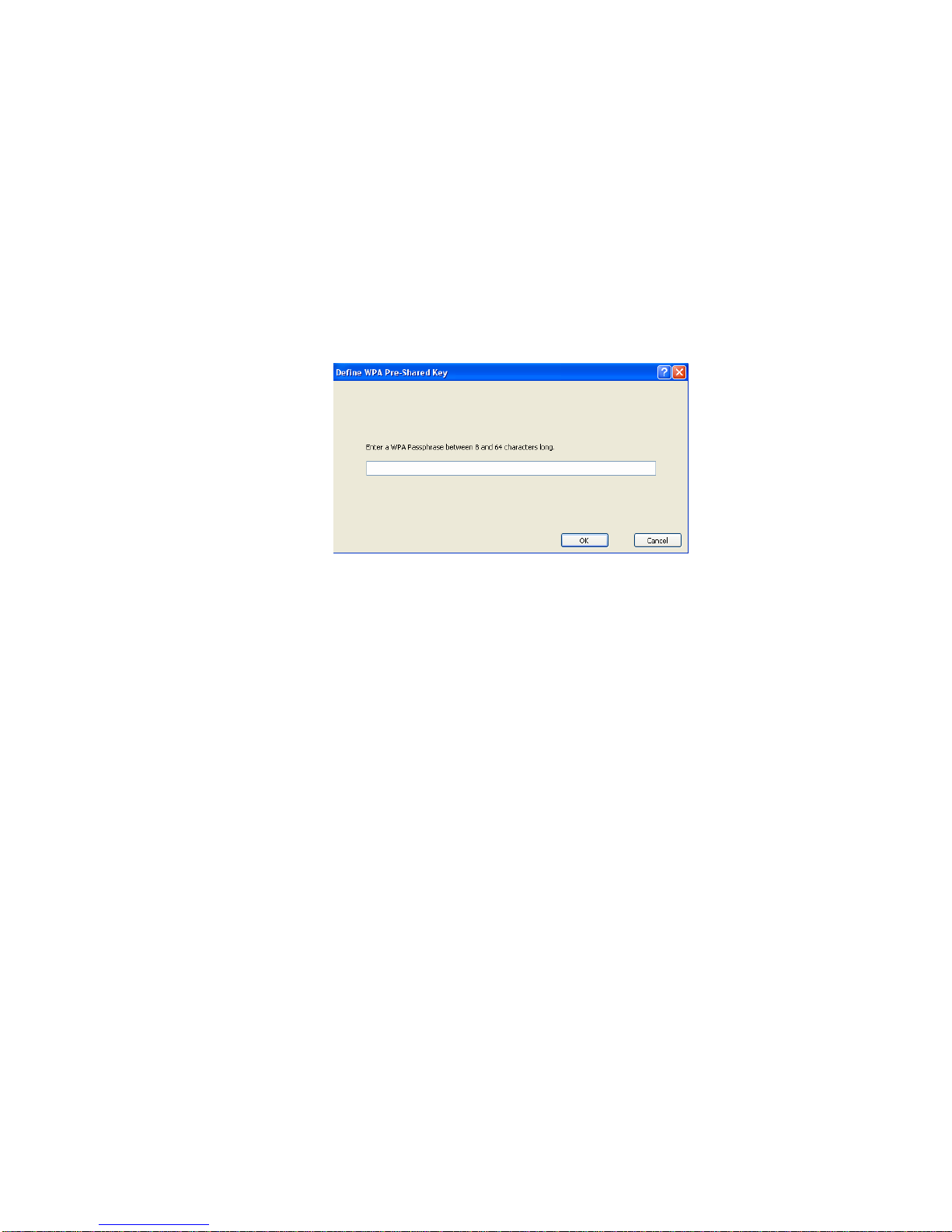

Figure 15. Enter WPA Passphrase
Using LEAP – Before you can enable LEAP authentication, your
network access point must be configured for LEAP authentication.
Perform one of the following from the Security Tab:
•If you want to enable LEAP without WPA, choose 802.1x
under Set Security Options and LEAP in the 802.1x EAP
Type drop-down box.
•If you want to enable LEAP with WPA, choose WPA under
Set Security Options and LEAP in the WPA EAP Type
drop-down box.
20
