1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BNZ motherboard. It is a PentiumII / III / Celeron
Processor based PC /AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / CeleronProcessor based PC / AT compatible
mainboard.
qSlot 1 supports PentiumII / III / Celeronprocessor running at 233-633
MHz.
qIntel 440BX chipset, Supports SDRAM / Ultra DMA/33 IDE / Keyboard and
PS/2 Mouse Power On / ACPI features.
qBuilt-in AGP ATi 3D RAGE PRO 3D graphics acceleration chip.
qBuilt-in YAMAHA 715E audio chip.
qBuilt-in INTEL SB82558B LAN chip.
qSupports 3xDIMMs using 3.3V SDRAM DIMM module.
qSupports 16 MB - 768 MB SDRAM memory on board.
qSupports ECC or Non-ECC type DRAM module.
q2xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse / Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q28.2 cm x 21.6 cm NLX SIZE form factor, 4 layers PCB.

Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128 × 2) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 512 KB included in CPU
•DISPLAY ATi RAGE Pro AGP Display Onboard (4MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA-36481)
•O.S. Windows® NT 4.0
•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.
Triones Bus Master IDE Driver 3.70
Intel PentiumII
Processor 266MHz (66×4) 350MHz (100×3.5)
Winbench98
CPU mark32 719 862
FPU Winmark 1380 1800
Business Disk 1840 1900
Hi-End Disk 4370 4620
Business Graphics 156 195
Hi-End Graphics 171 219
Winstone98
Business 29.4 34.1

6BNZ
1-3
Hi-End 32.8 37.4
1.4. BLOCK DIAGRAM
48MHz
3.3V SDRAM
DIMM Sockets
14.318MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
83977TF
SLOT1
Host Bus
INTEL
82443BX
CHIPSET
Clock Gen
Buffer
PIIX4
82371EB
CHIPSET
Clock Gen
66MHz 66/100
MHz
66/100
MHz
66/100MHz
33 MHz
66/100MHz
100MHz
ATi
RAGE PRO
SGRAM
14.318MHz

Introduction
1-4
1.5. INTRODUCE THE Pentium

II / III Processor

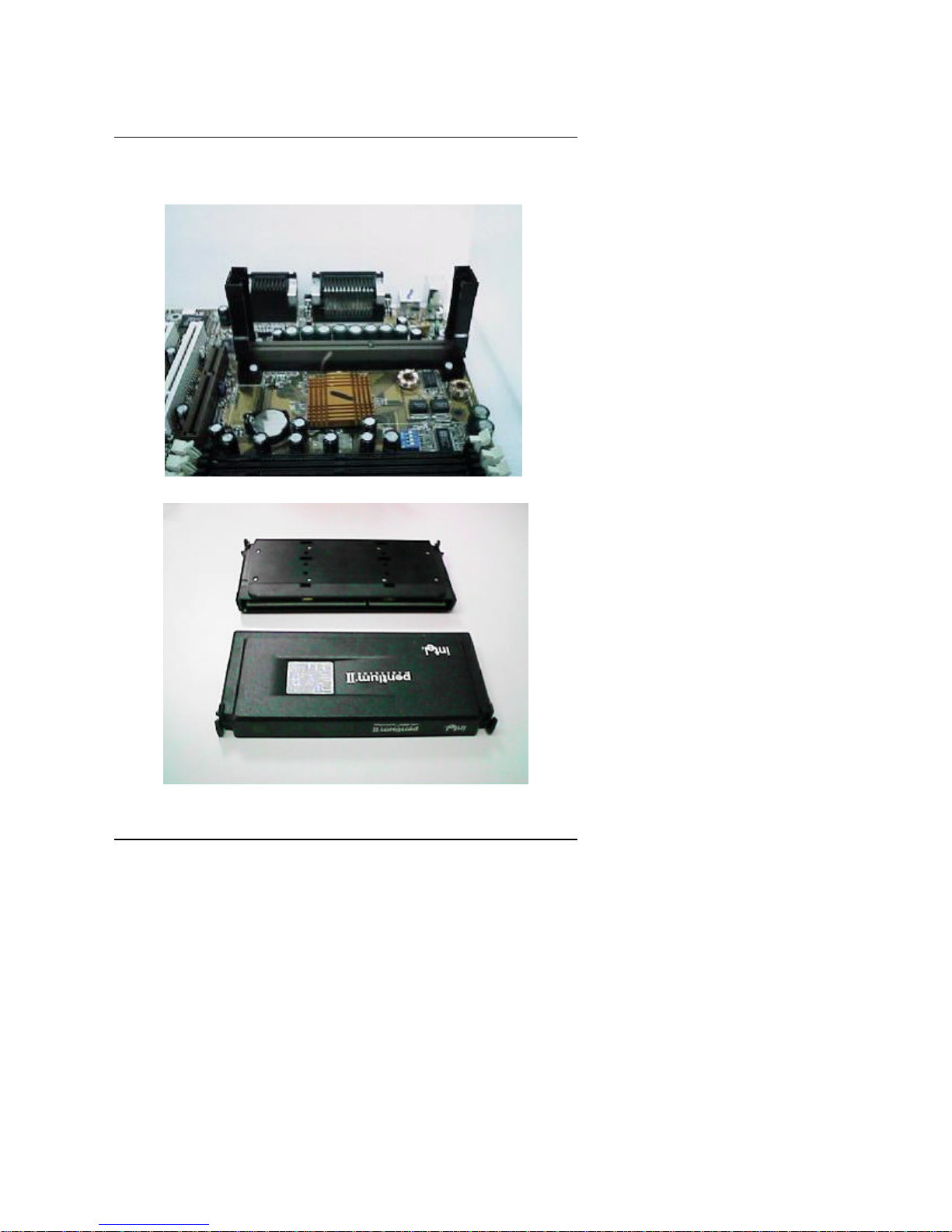

Figure 1: Universal Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor

6BNZ
1-5

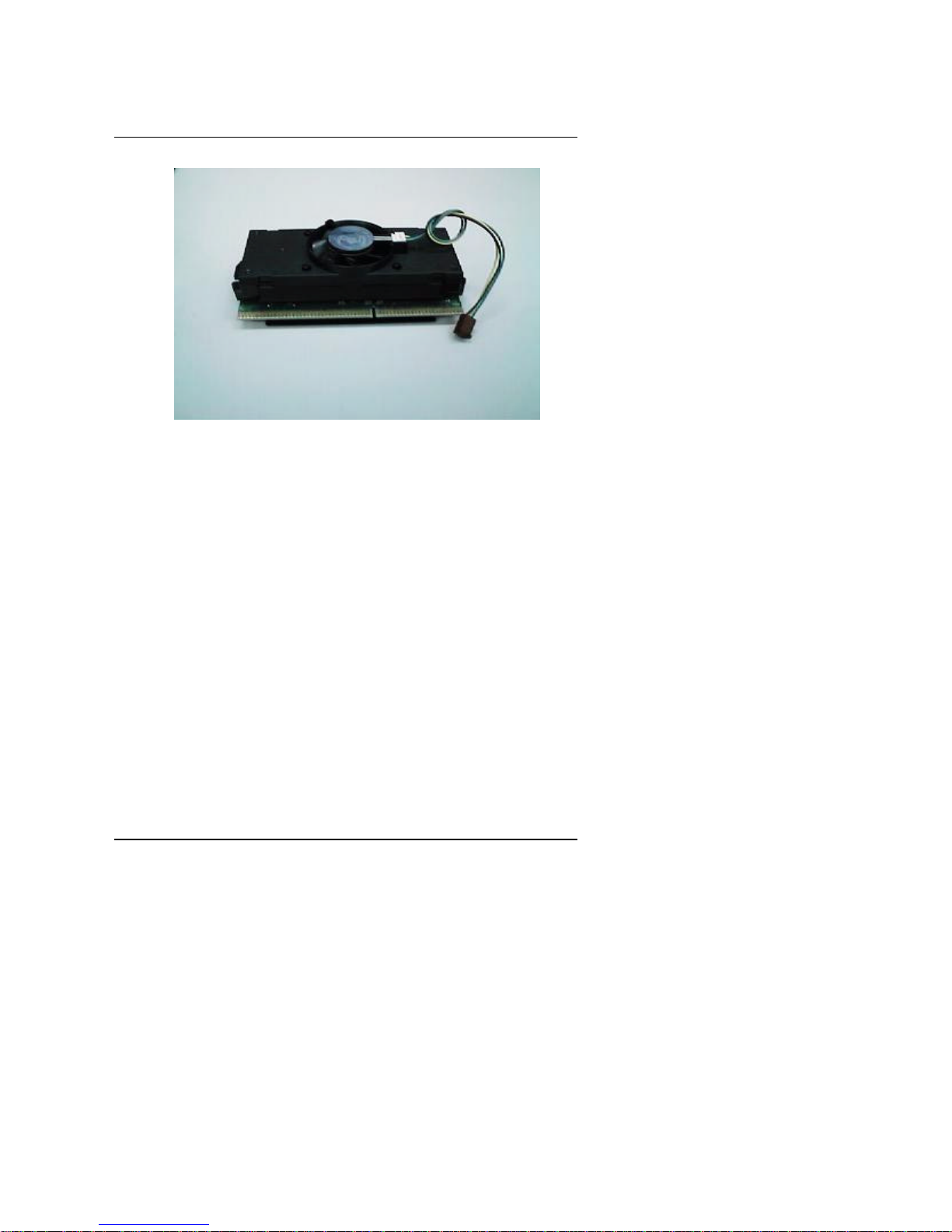

Figure 3: OEM PentiumIII Processor
1.6. What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used, the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / III / Celeron233 –633MHz..
−242 pins 66/100 MHz slot1 on board.
•SPEED −66 / 100MHz system speed.
−66 MHz AGP-Bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−H/W monitor power status (+5V, ±12V,
VGTL,5VSB, CPU voltage & CMOS battery
voltage).(Optional)
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−16 ~ 768 MB SDRAM.
−Supports 3.3V SDRAM type DRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB/512 KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −2 33MHz PCI-BUS.
−2 8MHz 16 bits ISA BUS.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.

6BNZ
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44/2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse/ Keyboard.
•LAN (Optional) −Built-in INTEL SB82558B LAN chip.
−Supports Wake On LAN.
•VGA −Built-in ATi 3D RAGE PRO 3D graphics
acceleration chip.
−Built-in 2M high speed SGRAM.
−For AGP 1.0 Interface compliant.
•SOUND −Built-in YAMAHA 715E audio chip.
−Supports Line Out, Line In, MIC, Joystick and
CD-Line.
•GREEN
FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI, ACPI Function.
•DIMENSION −NLX Form Factor, 4 layers PCB.

Specification
2-3
2.2. SOFTWARE
•DRIVER −Bus Master IDE Driver.
−INTEL Patch 95.
−VGA Utility Driver.
−Intel LAN Utility Driver (Optional).
−YAMAHA Sound Utility Driver (Optional).
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95 / 98,
WINDOWSNT, OS/2, NOVELL and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

6BNZ
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The mainboard package should contain the following:
•The 6BNZ mainboard and RISER card (Optional).
•Universal Retention Mechanism & Attach Mount
•USER'S MANUAL for mainboard.
•Cable set for IDE¡BFloppy and Joystick (Optional).
•Diskette or CD for Mainboard¡BVGA¡BSound and LAN Utility
(Optional).
The mainboard contains sensitive electric components, which can be easily
damaged by static electricity, so the mainboard should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the mainboard carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

Hardware Installation
3-2

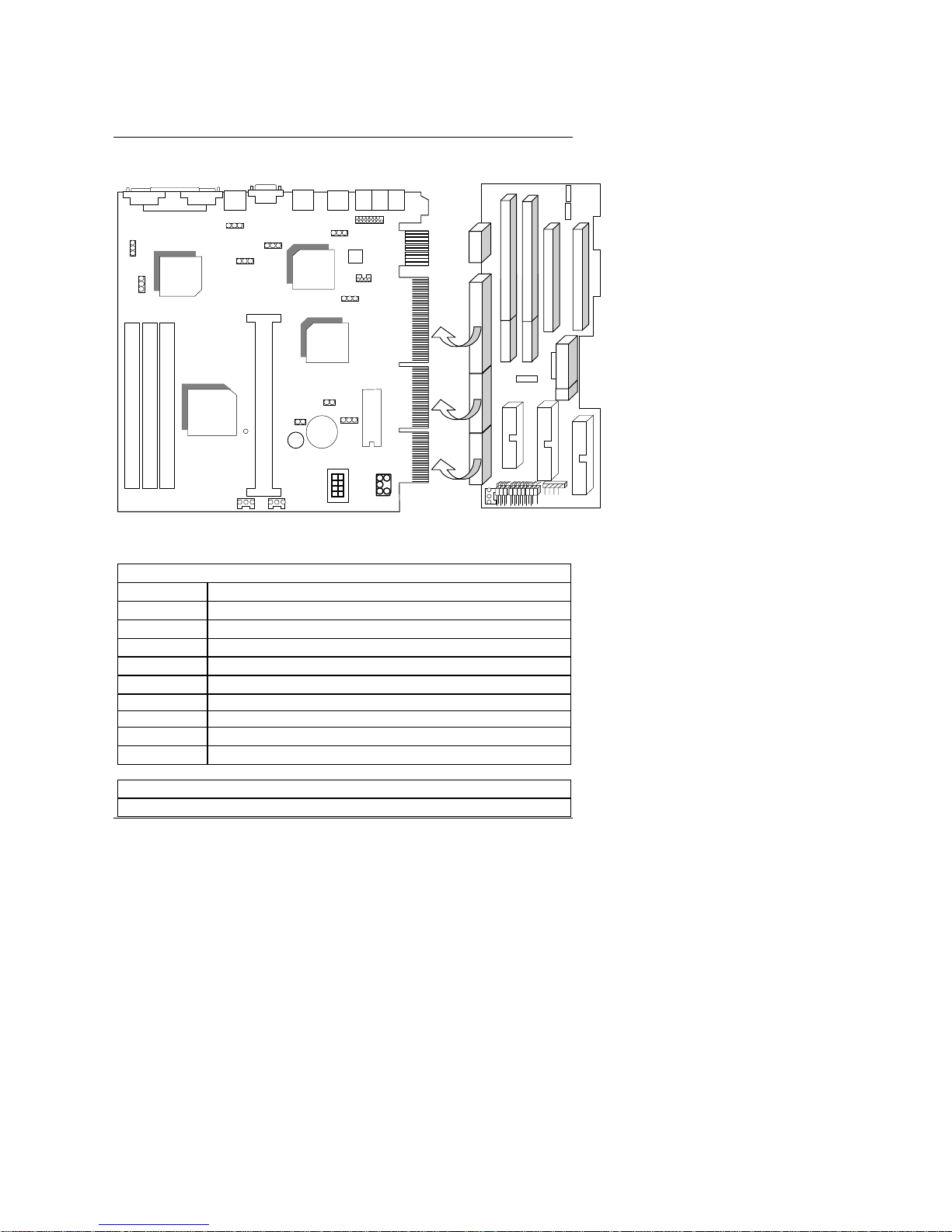

3.2. MAINBOARD LAYOUT
Internal
Buzzer
JP1
JP9
CN3
IIDE2
FLOPPY
POWER
PIIX4
82443BX
COMA COMB
LPT PS2 VGA USB
ATi
RAGE
PRO
DIMM3
DIMM2
DIMM1
JP4
J8
CPU
FAN
CPU
BAT1
BIOS
SW
SB-LINK
Intel
SB82558B
LAN
J11
J9 GAME
PORT
MIC LINE LINE
IN OUT
CD-ROM
BANK 0
BANK 1
BANK 2
SYSTEM
FAN
6BNZ
JP1
JP9
JP10
JP12
JP11
J14
J7 J12
JP6
CN4
CN3
×Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
VGA For VGA Port.
USB For USB Connector.
LPT For Printer port.
COMA For Serial port1 (COM A).
COMB For Serial port2 (COM B).
PS2 For PS/2 Keyboard and Mouse port.
GAME Port For Joystick / MIDI port. (Optional)
AUDIO Port For MIC / LINE-IN / LINE-OUT port. (Optional)
CD-ROM For CD Line-In port. (Optional)
LAN For LAN Connector port. (Optional)
tCPU
For PentiumII / III / Celeronprocessor installed

6BNZ
3-3
tJ8 : By PASS ATX PWR CTRL
Pin No. Function
Open Soft Off
Short Full On
tJP4 : Keyboard Power On Selection
Pin No. Function
1-2 Enabled Keyboard power on.
2-3 Disabled Keyboard power on.
tJ7 : CPU FAN (CPU Cooling FAN Power Connector)
Pin No. Function
1GND.
2+12V
3SENSE
tJ12 : SYSTEM FAN (System Cooling FAN Power Connector) (Optional)
Pin No. Function
1GND.
2+12V
3SENSE
tJP1 : System Acceleration
1-2 short System Speed is set to 66MHz.
2-3 short Set System Speed to Auto. (auto detect system speed)
OPEN System Speed is set to 100MHz.
tJ11 : For Wake On LAN Function Selection (Optional)
Pin No. Function
1-2 Enable Wake On LAN Function.
2-3 Disable Wake On LAN Function.
tJ9 : On-Board Sound Function (Optional)
Pin No. Function
1-2 Disable On-Board Sound Function.
2-3 Enable On-Board Sound Function.

Hardware Installation
3-4
tJP6 : SB-LINK (For PCI Sound Card Connector) (Optional)
Pin No. Function
1Signal
2GND
3NC
4Signal
5GND
6Signal
tJP11 : On-Board LAN Function (Optional)
Pin No. Function
1-2 Disabled On-Board LAN Function.
2-3 Enabled On-Board LAN Function.
tJP12 : Clear COMS Function
Pin No. Function
1-2 Clear CMOS.
2-3 Normal.
tJ14 : Internal Buzzer
Pin No. Function
Short Enabled Internal Buzzer.
Open Disabled Internal Buzzer .
tJP9 : Release On-Board VGA from occupying IRQ Resource
Pin No. Function
1-2 Non Release On-Board VGA from occupying IRQ Resource.
2-3 Release On-Board VGA from occupying IRQ Resource.
tJP10 : On-Board VGA Function
Pin No. Function
1-2 Disabled On-Board VGA Function.
2-3 Enabled On-Board VGA Function.

6BNZ
3-5
tCN4 : CD Audio Line In (optional)
Pin No. Function
1GND
2Right
3GND
4Left

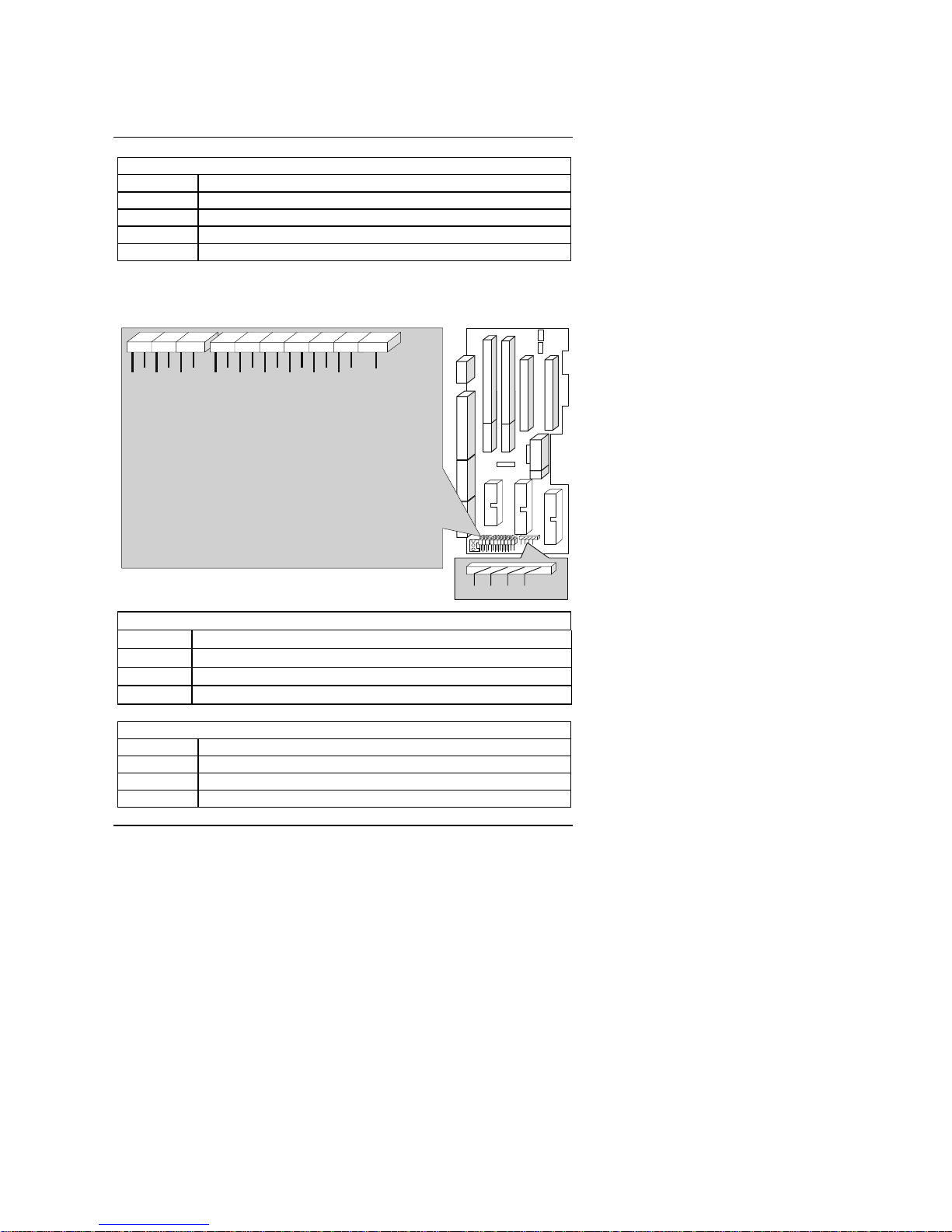

2RISER Connector :
SPK 1
RST SW : RESET SWITCH
Open : Normal Operation
Short : For Hardware Reset System
SUS SW : Suspend Function SWITCH
Open : Normal Operation
Short : For System Entering Green Mode
PWR SW : POWER SWITCH Connector
Open : Normal Operation
Short : For Hardware Power ON/OFF
PWR LED : POWER LED
SUS LED : Suspend LED
HDD LED : HDD Disk Active LED
LAN LED : LAN LED Connector (optional)
MDM WAKE : Modem Wake Up Connector (optional)
LAN WAKE : LAN Wake Up Connector (optional)
LAN MDM LAN
WAKE WAKE LED HDD SUS PWR PWR SUS PST
LED LED LED SW SW SW
JP1
JP9
CN3
IIDE1
IIDE2
FLOPPY
tI/O Connector
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
PLOPPY For Floppy port.
POWER For ATX POWER and POWER FAN connector(optional).
tJP1 : Wake on LAN (optional)
Pin No. Function
1+5V SB
2GND
3Signal

Hardware Installation
3-6
tJP9 : CD Audio Line In (optional)
Pin No. Function
1Left
2GND
3GND
4Right
tCN3 : CD Audio Line In(optional)
Pin No. Function
1GND
2Right
3GND
4Left
tSPK : SPEAKER Connector
Pin No. Function
1VCC
2NC.
3NC.
4Output
tSYSTEM FAN PWR : System Cooling FAN Power Connector
(Optional)
Pin No. Function
1GND.
2+12V
3SENSE
