Gigabyte 6EMMP User manual

6EMMP
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE..........................................................................................................1-1
1.2. KEY FEATURES...............................................................................................1-1
1.3. PERFORMANCE LIST......................................................................................1-2
1.4. BLOCK DIAGRAM ............................................................................................1-3
1.5. INTRODUCE THE PentiumII Processor ......................................................1-4
1.6. What is AGP?....................................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE.....................................................................................................2-1
2.2. SOFTWARE......................................................................................................2-2
2.3. ENVIRONMENT................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING.....................................................................................................3-1
3.2. MAINBOARD LAYOUT.....................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS .............................3-1
3.4. DRAM INSTALLATION.....................................................................................3-6
3.5. CPU SPEED SETUP ........................................................................................3-6
3.6. CMOS RTC & ISA CFG CMOS SRAM.............................................................3-7
3.7. SPEAKER CONNECTOR INSTALLATION .....................................................3-7
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-7
3.9. POWER LED CONNECTOR INSTALLATION ................................................3-7

Table Of Contents
2
3.10. IDE & ATAPI DEVICE INSTALLATION..........................................................3-8
3.11. PERIPHERAL DEVICE INSTALLATION........................................................3-8
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...............................................3-8
4. BIOS CONFIGURATION
4.1. ENTERING SETUP ..........................................................................................4-1
4.2. CONTROL KEYS..............................................................................................4-1
4.3. GETTING HELP................................................................................................4-2
4.4. THE MAIN MENU..............................................................................................4-2
4.5. STANDARD CMOS SETUP MENU .................................................................4-5
4.6. BIOS FEATURES SETUP................................................................................4-9
4.7. CHIPSET FEATURES SETUP.........................................................................4-13
4.8. POWER MANAGEMENT SETUP....................................................................4-16
4.9. PNP/PCI CONFIGURATION............................................................................4-21
4.10. LOAD BIOS DEFAULTS.................................................................................4-23
4.11. LOAD PERFORMANCE DEFAULTS.............................................................4-22
4.12. INTEGRATED PERIPHERALS ......................................................................4-23
4.13. SUPERVISOR/USER PASSWORD...............................................................4-30
4.14. IDE HDD AUTO DETECTION........................................................................4-31
4.15. SAVE & EXIT SETUP.....................................................................................4-32
4.16. EXIT WITHOUT SAVING...............................................................................4-33
APPENDIX A: On-Board Display Driver Installation
A.1. ATi RAGE PRO DISPLAY DRIVER INSTALLATION......................................A-1
A.2. YAMAHA SOUND DRIVER INSTALLATION...................................................A-6

6EMMP
21

6EMMP
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6EMMP motherboard. It is a PentiumII Processor based
PC / AT compatible system with AGP/ PCI / ISA Bus, and has been designed
to be the fastest PC / AT system. There are some new features allow you to
operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII Processor based PC / AT compatible mainboard.
qSlot 1 supports PentiumII processor running at 233-633 MHz.
qIntel 440EX chipset, Supports SDRAM / Ultra DMA/33 IDE.
qBuilt-in ATi RAGE PRO 3D graphics acceleration chip.
qBuilt-in PCI YAMAHA audio chip.
qSupports external Modem Ring-On on COM A&B and internal Modem
Ring-On.
qSupports Wake-up on LAN (JP7).
qSupports 2xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports 8 MB - 256 MB EDO / 256MB SDRAM memory on board.
q2xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q24.3 cm x 20 cm Micro-ATX form factor, 4 layers PCB.

Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128 x 1) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 512 KB included in CPU
•DISPLAY Onboard ATi AGP 3D graphics acceleration chip
(4MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA-38451)
•O.S. Windows NT 4.0
•DRIVER Display Driver at 1024 x 768 x 64K colors x 75Hz.
INTEL Bus Master IDE Driver 3.01
Intel PentiumII
Processor 266MHz(66x4) 333MHz(66x5)
Winbench98
CPU mark32 721 865
FPU Winmark 1380 1720
Business Disk 1800 1870
Hi-End Disk 4500 4710
Business Graphics 156 176
Hi-End Graphics 174 198
Winstone98Business 27.2 32.4
Hi-End 32.2 36.1

6EMMP
1-3
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port

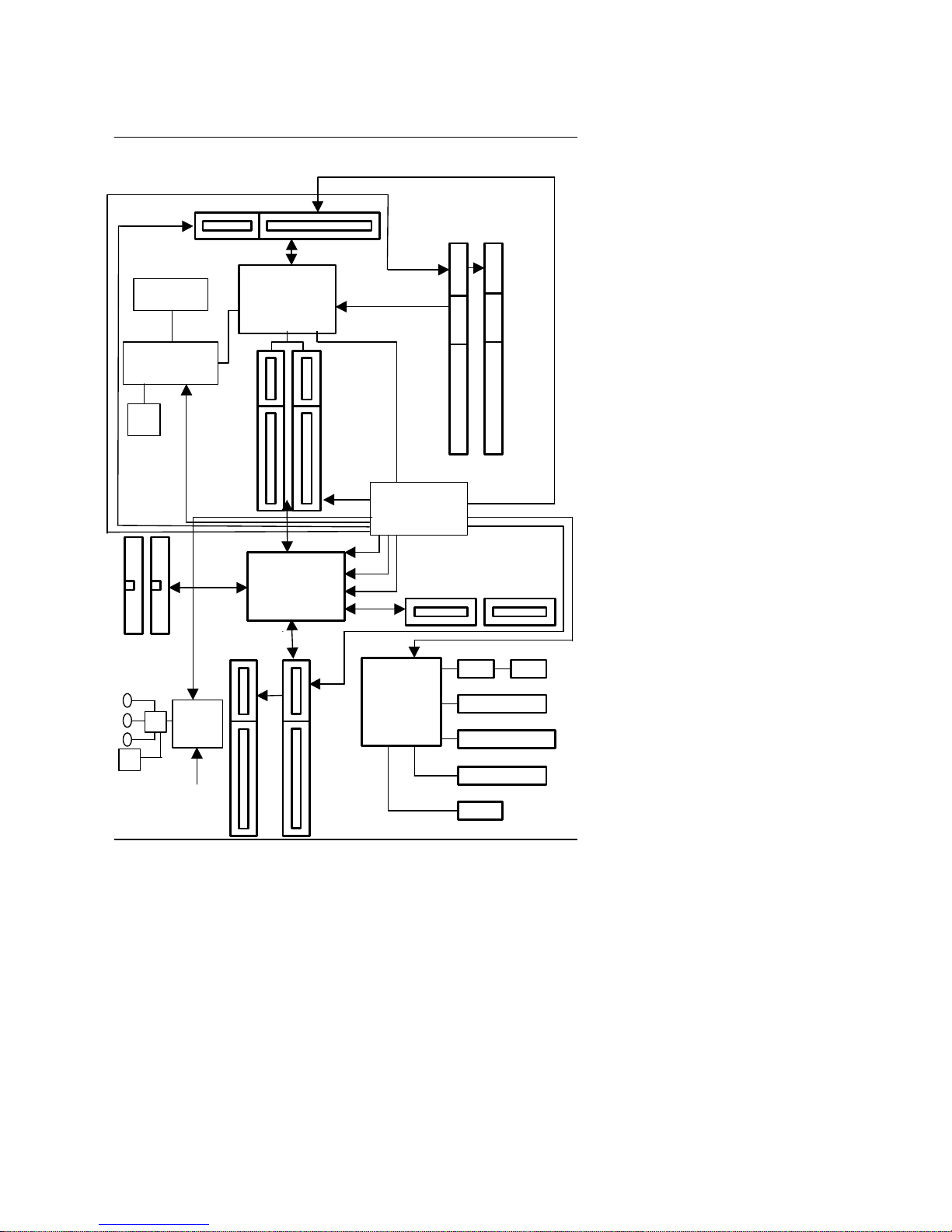

1.4. BLOCK DIAGRAM
PS/2 Keyboard
24MHz
33MHz
33MHz
33MHz
66MHz
66MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
IT8671F
Host Bus
PAC
82443EX
CHIPSET
PIIX4
82371EB
CHIPSET
Clock
Generator
ATi
RAGE PRO
VIDEO
MEMORY
100MHz
MIC
L-IN
L-OUT
YAMAHA
24.576MHz
14.318MHz
66MHz
VGA
Game
Port
AC-2

Introduction
1-4
1.5. INTRODUCE THE Pentium

II Processor

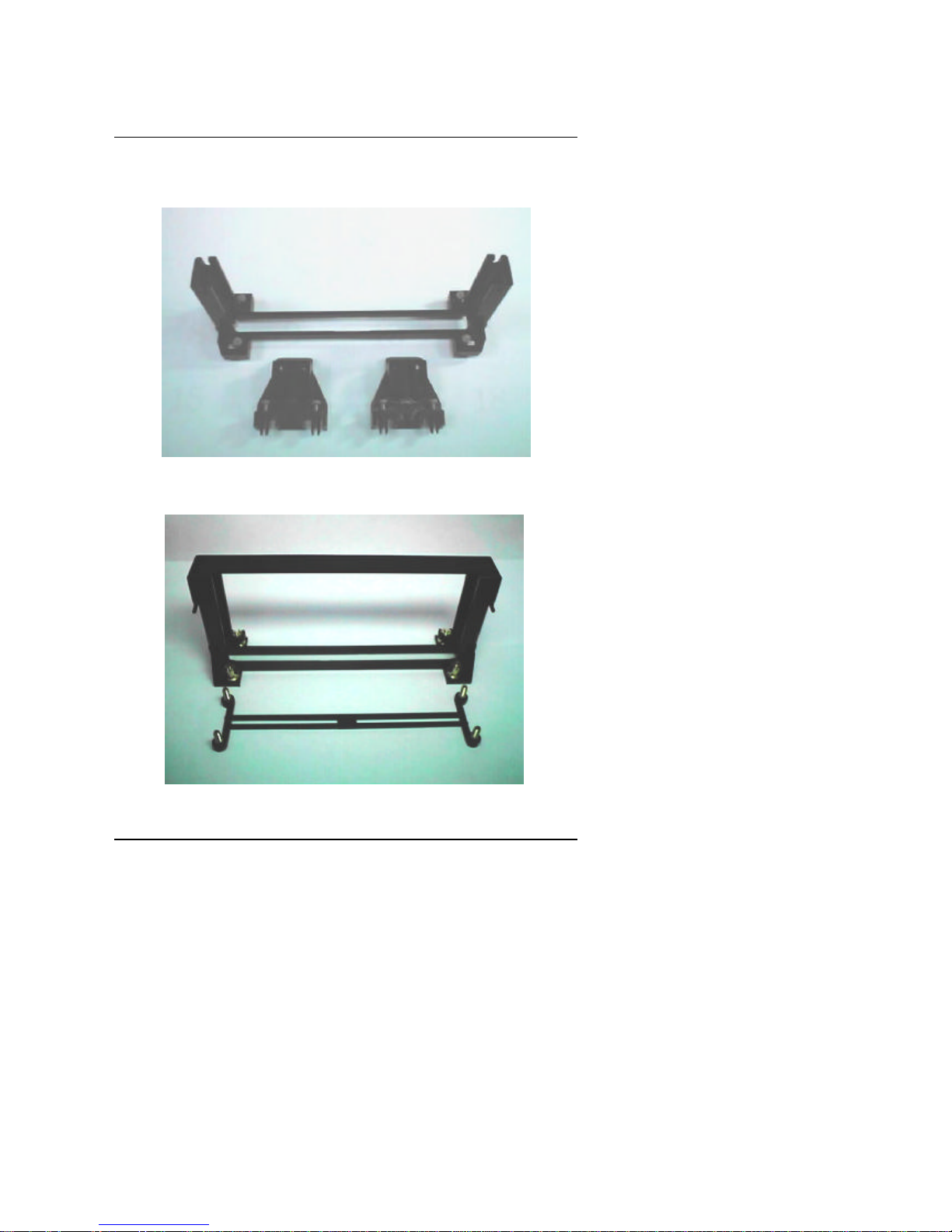

Figure 1:Retention Mechanism & attach Mount (Optional)

6EMMP
1-5
Figure 1:Retention Mechanism & attach Mount (Optional)

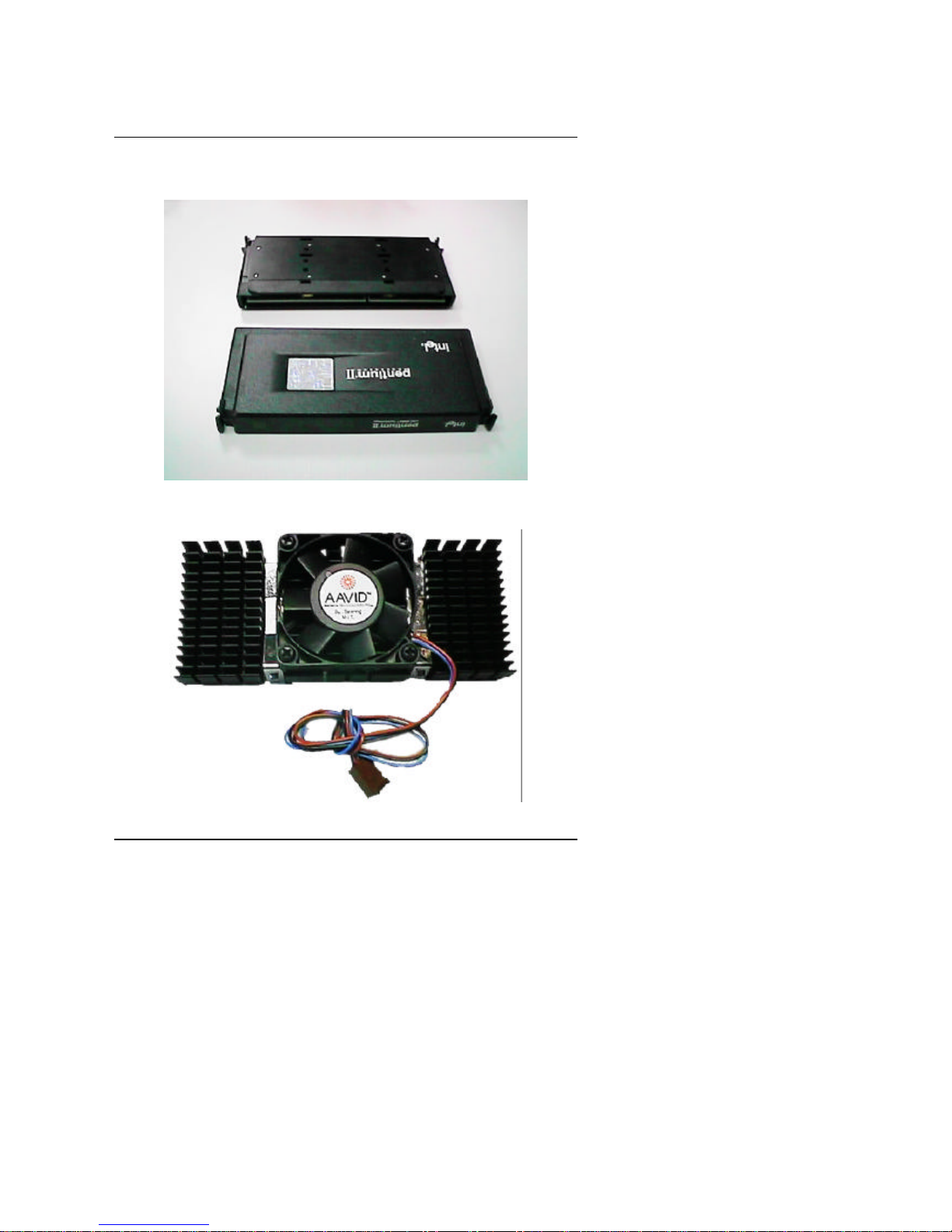

Figure 2:OEM PentiumII Processor
Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor

Introduction
1-6
Figure 4:Boxed PentiumII Processor & Heat sink support
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used, the port can transmit data
at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.

6EMMP
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII processor 233 –633 MHz.
−242 pins 66 MHz slot1 on board.
•SPEED −66 MHz system speed.
−66 MHz AGP bus speed. (133MHz 2X mode)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −2 banks 168 pins DIMM module sockets on board.
−Use 8 / 16 / 32 / 64 / 128 / 256 MB 50~60 ns DIMM
module DRAM.
−8 ~ 256MB EDO/256 MB SDRAM.
−Supports 3.3V SDRAM / EDO type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−256KB/512 KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −2 33MHz Master / Slave PCI-BUS.
−2 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports 1 PS/2 Mouse.
−Supports 1 PS/2 Keyboard.

Specification
2-2
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −Bus Master IDE Driver.
−INTEL Patch_95 Driver.
−YAMAHA Sound Driver.
−ATi RAGE PRO Driver.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

6EMMP
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The mainboard package should contain the following:
•The 6EMMP mainboard.
•The Retention Mechanism & Attach Mount
•USER'S MANUAL for mainboard.
•Cable set for IDE, Floppy devices and COM B (Optional).
•CDs or diskettes for Mainboard ¡BSound and VGA Utility.
The mainboard contains sensitive electric components, which can be easily
damaged by static electricity, so the mainboard should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling may
cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the mainboard carton, extract the system board and place it only
on a grounded anti-static surface component side up. Again inspect the board
for damage. Press down on all of the socket IC's to make sure that they are
properly seated. Do this only on with the board placed on a firm flat surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

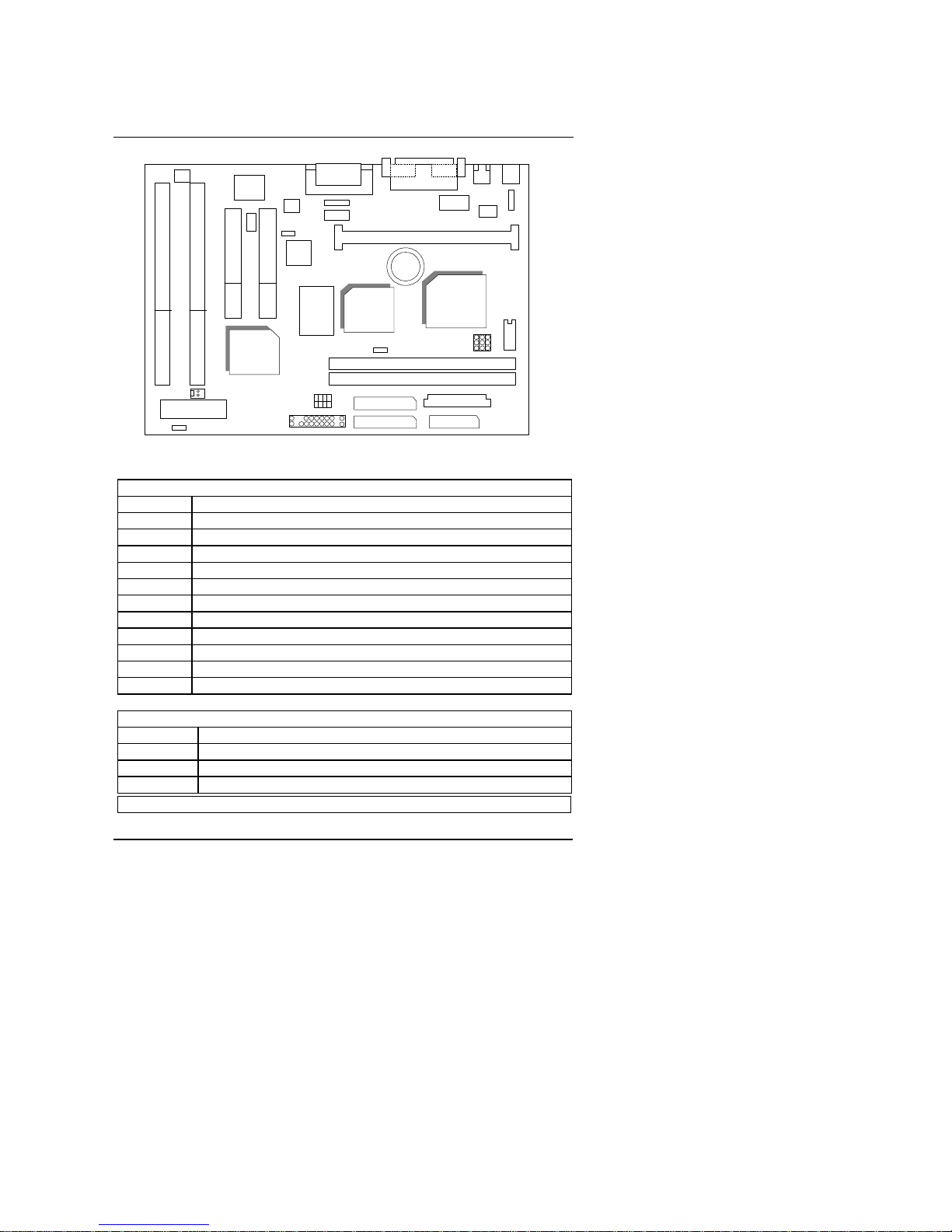

3.2. MAINBOARD LAYOUT

Hardware Installation
3-2
6EMMP
BIOS
YAMAHA
INTEL
443EX
ATi
RAGE PRO
AGP
PIIX4
SLOT1
SLOT3
SLOT4
SLOT2
PCI2
PCI1
GAME &
AUDIO
CN6
JP5
PS/2
USB
COM AVGA
LPT
COMB FAN PWR JP1
BAT1
SW IDE2
IDE1 FLOPPY
ATX POWER
JP6
DIMM1
DIMM2
CPU
J9
J11
JP8
JP9
VIDEO
MEMORY
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
PS/2 For PS/2 Keyboard / Mouse port.
FLOPPY
For Floppy port
COMB For Serial port2 (COM B).
COMA For Serial port1 (COM A).
LPT For LPT port.
VGA For VGA port.
GAME For GAME port.
AUDIO For MIC,LINE-IN,LINE-OUT port.
J11 For Internal Modem Ring Power ON port.
tFAN PWR : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tJP7 : Wake on Lan

6EMMP
3-3
Pin No. Function
1+5V SB
2GND
3Signal
tJP8 : Release Onboard VGA from occupying IRQ Resource
Pin No. Function
1-2 Close Disable Onboard VGA INT.
2-3 Close Enable Onboard VGA INT.
tJP9 : Onboard Sound Function Selection
Pin No. Function
1-2 Close Onboard Sound Function Enabled.
2-3 Close Onboard Sound Function Disabled.
tJ9 : System After Ac Back
Pin No. Function
Open Soft Off
Close Full On
tJP1 : Keyboard Power On Selection (Reserved)
Pin No. Function
1-2 Close Enabled Keyboard power on.
2-3 Close Disabled Keyboard power on.

Hardware Installation
3-4
JP5 : For 2X11 PINs Jumper
PW: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
LED: Power LED
PIN 1 : anode (+)
PIN 2 : cathode (-)
PIN 3 : cathode (-)
SPKR: Speaker Connector
PIN 1 : VCC
PIN 2 : NC
PIN 3 : NC
PIN 4 : Data
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (-)
1
1
1
PW LED HD
RES S P K R
GN
GD
JP5 1
1 1
1
+-

6EMMP
3-5
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (-)
1

Hardware Installation
3-6
3.4. DRAM INSTALLATION
The mainboard can be installed with 8 / 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 50 or 60 ns for EDO &
66~100 MHz for SDRAM. The DRAM memory system on mainboard consists
of bank 0 & bank 1.
Since 168 pins DIMM module is 64 bits width, using 1 PCS which can match a
64 bits system. The total memory size is 8MB ~ 256MB EDO / 256MB SDRAM.
The DRAM installation position refer to Figure 3.1, and notice the Pin 1 of
DIMM module must match with the Pin 1 of DIMM socket. Insert the DRAM
DIMM module into the DIMM socket at Vertical angle. If there is a wrong
direction of Pin 1, the DRAM DIMM module couldn't be inserted into socket
completely.
3.5. CPU SPEED SETUP
The default system bus speed is 66.6MHz. The user can change the DIP
SWITCH (SW) selection to set up the CPU speed for 233 - 366MHz processor.
The CPU speed must match with the frequency RATIO. It will cause system
hanging up if the frequency RATIO is higher than CPU's.
DIP SWITCH (SW)
1 2 3 4
FREQ.
RATIO
EXT.CLK.
MHz
INT.CLK.
MHz CPU Type
OFF OFF ON ON 3.5 66 233 PentiumII 233 MHz
( Celeron 233 MHz )
ON ON OFF ON 4 66 266 PentiumII 266 MHz
( Celeron 266 MHz )
OFF ON OFF ON 4.5 66 300 PentiumII 300 MHz
( Celeron 300/300A MHz )
ON OFF OFF ON 5 66 333 PentiumII 333 MHz
( Celeron 333 MHz )
OFF OFF OFF ON 5.5 66 366 PentiumII 366 MHz
( Celeron 366 MHz )

6EMMP
3-7
Main Clock JP2 JP3 JP4
66 MHz 1-2 1-2 1-2
75 MHz 1-2 2-3 1-2
83 MHz 2-3 2-3 2-3
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from metal
surface when the CPU is installed onto mainboard.
« Note: We don’t recommend you to setup your system speed to 75 or
83 MHz because these frequencies are not the standard
specifications for CPU, Chipset and most of the peripherals.
Whether your system can run under 75 or 83MHz properly will
depend on your hardware configurations: CPU, SDRAM, Cards,
etc.
3.6. CMOS RTC & ISA CFG CMOS SRAM
The mainboard contains RTC & CMOS SRAM on board. They have a power
supply from external battery to keep the DATA inviolate & effective. The RTC is
a REAL-TIME CLOCK device, which provides the DATE & TIME to system.
The CMOS SRAM is used for keeping the information of system configuration,
so the system can automatically boot OS every time. Since the lifetime of
internal battery is 5 years, the user can change a new Battery to replace old
one when it has consumed.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 - Pins connector
SPKR is used to connect speaker.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
TheRESET switchon panelprovides userswith HARDWARERESET function.
The system will do a cold start after the RESET switch is press and released by
user. The RESET switch is a 2 PINS connector and should be installed to RES
on mainboard.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of case. The power LED will light on
off or flash to indicate which step on the system. The connector should be
connected to LED of mainboard in correct direction.

Hardware Installation
3-8
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2)on board,which following
ATAPI standard SPEC. Any one IDE port can connected to two ATAPI devices
(IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI devices can exist
in a system. The HD is the active LED port for ATAPI devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the mainboard can be
mounted into the case and fixed by screw. To complete the mainboard
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of four PCI - Bus slots can be used.
3.12.PS/2 KEYBOARD & MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.
