Gigabyte GA-6VMM User manual

FCCComplianceStatement:
This equipment has been tested and found to
comply with limits for a Class B digital device ,
pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable
protection against harmful interference in
residential installations. This equipment
generates, uses, and can radiate radio
frequency energy, and if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause interference to radio or
television equipment reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected
-Consult the dealer or an experienced radio/television technician for
additional suggestions
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void Your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to
the following two conditions 1) this device may not cause harmful interference
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC.
Address: 18305 Valle
y
Blvd., Suite#A
LA Puent, CA 91744
Phone/Fax No: [phone]/ [phone]
hereby declares that the product
Product Name:
Model Number:
Mother Board
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
and (2) this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name: ERIC LU
Signature:
Date: Dec. 22, 2000
EricLu
GA-6VMM

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
Mother Board
GA-6VMM
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive
EN 55011 Limits and methods of measurement EN 61000-3-2* Disturbances in supply systems caused
of radio disturbance characteristics of EN60555-2 by household appliances and similar
industrial, scientific and medical (ISM electrical equipment “Harmonics”
high frequency equipment
EN55013 Limits and methods of measurement EN61000-3-3* Disturbances in supply systems caused
of radio disturbance characteristics of EN60555-3 by household appliances and similar
broadcast receivers and associated electrical equipment “Voltage fluctuations”
equipment
EN 55014 Limits and methods of measurement EN 50081-1 Generic emission standard Part 1:
of radio disturbance characteristics of Residual, commercial and light industry
household electrical appliances,
portable tools and similar electrical EN 50082-1 Generic immunity standard Part 1:
apparatus Residual, commercial and light industry
EN 55015 Limits and methods of measurement EN 55081-2 Generic emission standard Part 2:
of radio disturbance characteristics of Industrial environment
fluorescent lamps and luminaries
EN 55020 Immunity from radio interference of EN 55082-2 Generic immunity standard Part 2:
broadcast receivers and associated Industrial environment
equipment
EN 55022 Limits and methods of measurement ENV 55104 Immunity requirements for household
of radio disturbance characteristics of appliances tools and similar apparatus
information technology equipment
DIN VDE 0855 Cabled distribution systems; Equipment EN 50091- 2 EMC requirements for uninterruptible
part 10 for receiving and/or distribution from power systems (UPS)
part 12 sound and television signals
CE marking (EC conformity marking)
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
EN 60065 Safety requirements for mains operated EN 60950 Safety for information technology equipment
electronic and related apparatus for including electrical business equipment
household and similar general use
EN 60335 Safety of household and similar EN 50091-1 General and Safety requirements for
electrical appliances uninterruptible power systems (UPS)
Manufacturer/Importer
Signature : Rex Lin
(Stamp) Date : Dec. 22, 2000 Name : Rex Lin

6VMM
Socket 370 Processor Motherboard
USER'S MANUAL
Socket 370 Processor Motherboard
REV. 1.2 First Edition
R-12-01-001211

How This Manual Is Organized
This manual is divided into the following sections:
1) Revision History Manual revision information
2) Item Checklist Product item list
3) Features Product information & specification
4) Hardware Setup Instructions on setting up the motherboard
5) Performance & Block Diagram Product performance & block diagram
6) Suspend to RAM Instructions STR installation
7) @BIOSTM & EasyTuneIIITM @BIOSTM & EasyTuneIIITM introduction
8) BIOS Setup Instructions on setting up the BIOS
software
9) Appendix General reference

Table Of Content
Revision History P.1
Item Checklist P.2
Summary of Features P.3
Installation Guide P. 6
6VMM Motherboard Layout P.5

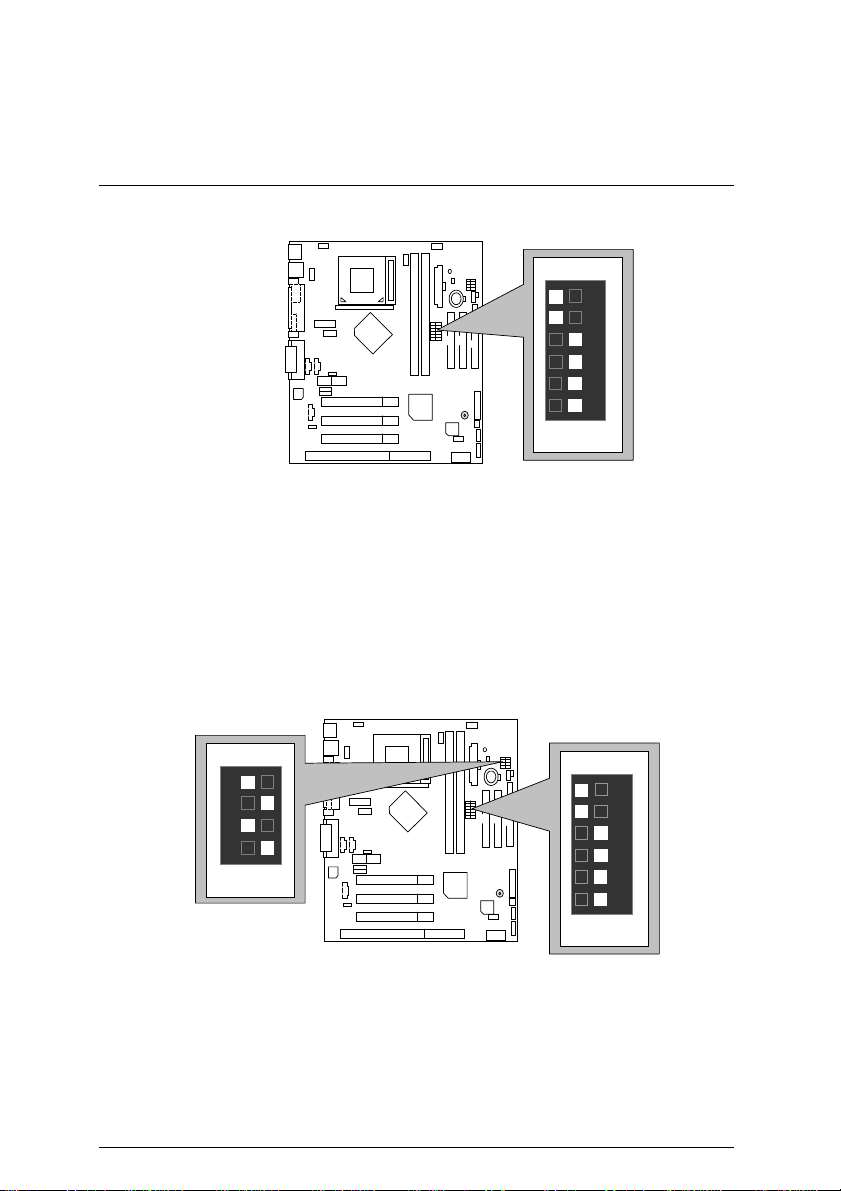

Page Index for CPU Speed Setup / Connectors / Panel and Jumper
Definition P.6
Performance List P.29
Block Diagram P.30
Suspend to RAM Installation P.31
@BIOSTM Introduction (Optional) P.37
EasyTuneIIITM Introduction (Optional) P.38
Memory Installation P.37
Page Index for BIOS Setup P.38
Appendix P.67

6VMM Motherboard
1
Revision History
Revision Revision Note Date
1.2 Initial release of the 6VMM motherboard user’s
manual. Dec.2000
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.
Dec. 11, 2000 Taipei, Taiwan, R.O.C

Item Checklist
2
Item Checklist
;The 6VMM motherboard
;Cable for IDE / floppy device
;Diskettes or CD (TUCD) for motherboard driver & utility
;6VMM user’s manual

6VMM Motherboard
3
Summary Of Features
Form Factor y 20.6 cm x 24.4 cm Micro ATX size form factor, 4 layers
PCB.
CPU y Socket 370 processor
Intel Pentium!!! 100/133MHz FSB, FC-PGA
Intel CeleronTM 66MHz FSB, FC-PGA
VIA CyrixIII 100/133MHz FSB, CPGA
y 2nd cache in CPU (Depend on CPU)
Chipset y VT8601A (Pro Media)
y VT82C686A
Clock Generator y ICS 9248DF-39
y 66/100/133 MHz system bus speeds (PCI 33MHz)
y
75/83/112/124/140/150 MHz system bus speeds
(reserved)
Memory y 2 168-pin DIMM sockets.
y Supports PC-100 / PC-133 SDRAM and VCM SDRAM
y Supports up to 1.0GB DRAM
y Supports only 3.3V SDRAM DIMM
I/O Control y VT82C686A
Slots y 3 PCI slot supports 33MHz & PCI 2.2 compliant
y 1 ISA slot
y 1 AMR(Audio Modem Riser) slot
On-Board IDE y 2 IDE bus master (DMA 33/ ATA 66 )IDE ports for up
to 4 ATAPI devices
y Supports PIO mode 3, 4 (UDMA 33/ATA 66) IDE &
ATAPI CD-ROM
On-Board
Peripherals y 1 floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and 2.88M bytes
y 1 parallel ports supports SPP/EPP/ECP mode
y 2 serial ports (COM A & COMB)
y 4 USB ports
y 1 IrDA connector for IR
Hardware Monitor y CPU / System fan revolution detect
y CPU / System temperature detect
y System voltage detect (Vcore,Vcc3,Vcc,+12V)
PS/2 Connector y PS/2Keyboard interface and PS/2Mouse interface
BIOS y Licensed AMI BIOS, 2M bit flash ROM
To be continued…

Summary of Features
4
On-Board VGA y Build Trident Blade 3D/Pro Media in VT8601A
y Support shared Memory Architecture
Additional Features y Supports Wake-on-LAN (WOL)
y Supports Internal / External modem wake up
y Supports USB K/B or Mouse wake up from S3
y Includes 3 fan power connectors.
y Poly fuse for keyboard over-current protection
y Support STR (Suspend-To-RAM) function
y Support @BIOS™ and EasyTuneIII™ (Optional)

6VMM Motherboard
5

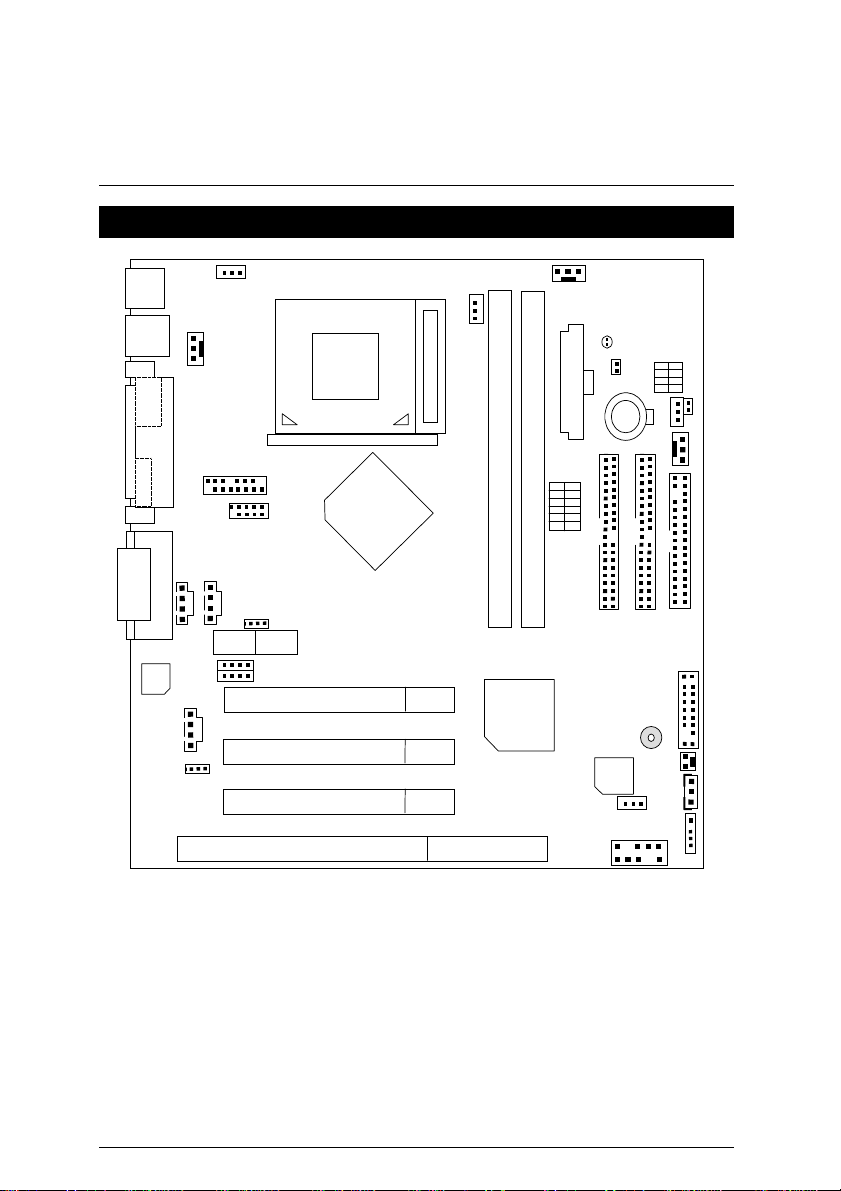

6VMM Motherboard Layout
LED1
6VMM
DIMM2
DIMM1
PCI1
PCI2
VT82C
686A
VT8601A
Game &
AUDIO VGA COM A
LPT
PS/2
BIOS
J1
J12
J10
BAT1
BZ1
FLOPPY
IDE2
IDE1
J6
SW2
JP2
JP3
J7 J5
ISA1
J3
J4
JP7
JP4
PCI3
USB1
J11
AC97
SW1
J2
JP10
USB2
AMR
JP6
JP5
COM B
PGA 370
CPU
ATX POWER
JP8
JP12
JP9
JP11

Installation Guide
6
Installation Guide
Getting Started
WARNING!
Computer motherboards and expansion cards contain very delicate Integrated
Circuit (IC) chips. To protect them against damage from static electricity, you
should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the
power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.
Installing the motherboard to the chassis…
If the motherboard has mounting holes, but they don’t line up with the holes on the base and
there are no slots to attach the spacers, do not become alarmed you can still attach the spacers
to the mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard
to cut off, so be careful of your hands). In this way you can still attach the motherboard to the
base without worrying about short circuits. Sometimes you may need to use the plastic springs
to isolate the screw from the motherboard PCB surface, because the circuit wire may be near by
the hole. Be careful, don’t let the screw contact any printed circuit write or parts on the PCB that
are near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

6VMM Motherboard
7

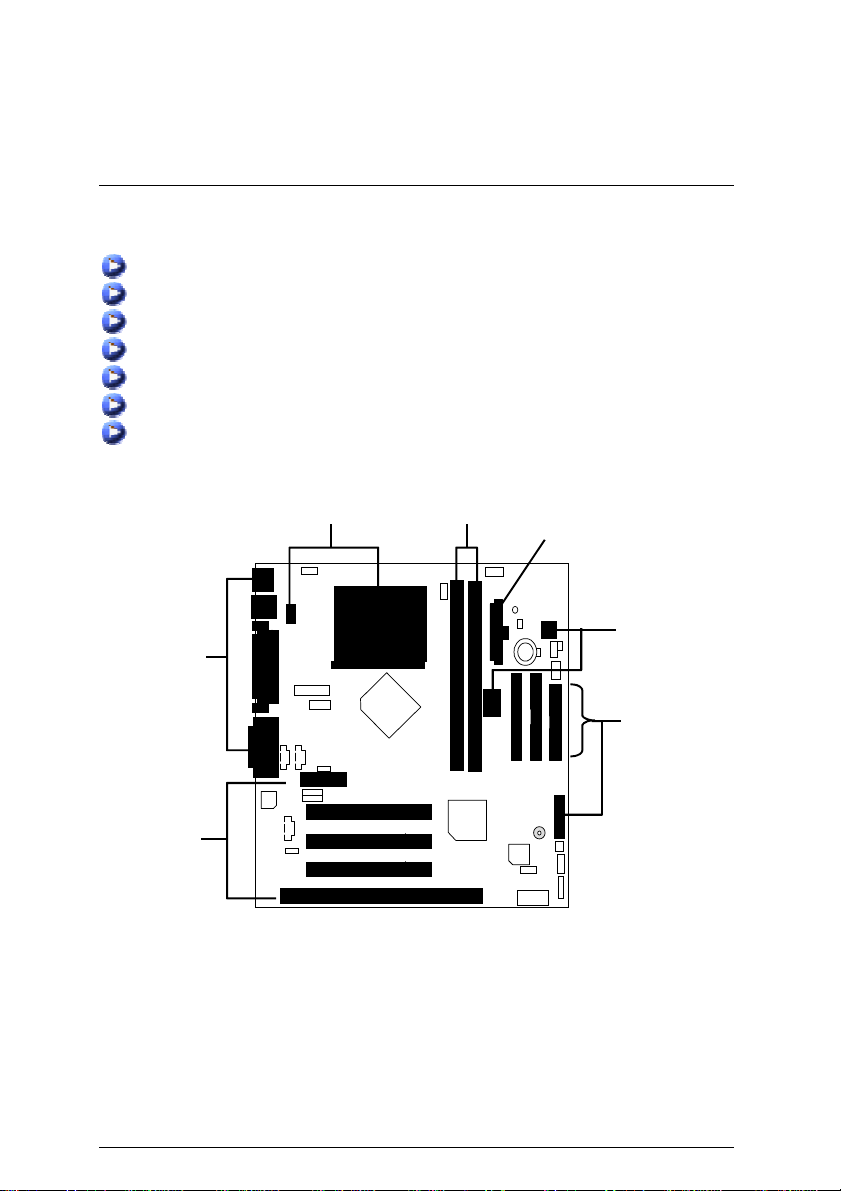

To set up your computer, you must complete the following steps:
Step 1 - Set system jumpers
Step 2- Install the Central Processing Unit (CPU)
Step 3-Install memory modules
Step 4-Install expansion cards
Step 5-Connect ribbon cables, cabinet wires, and power supply
Step 6-Set up BIOS software
Step 7-Install supporting software tools
Step 1
Step 2 Step 3
Step 4
Step 5
Step 5
Step 5

Installation Guide
8
CPU Installation
Please make sure the CPU type and speed is supported by your motherboard.
CPU Top View
CPU Bottom View
1.Pull the lever out and lift it up.
2.The notched corner should point toward the
end of the lever. The CPU will only fit in the
orientation as shown.
Socket Actuation Lever

6VMM Motherboard
9
CPU Heat Sink Installation:
Beware: Please check that the heat sink is in good contact with the CPU before you turn on your
system. Poor contact will cause over heat with might cause damage to your
processor!
3.Align CPU and insert it
(Please refer to your heatsink installation
manual for application of thermal grease to
provide better heat conduction between your
CPU and heatsink.)
4.Use compliant fan approved by Intel.
5.Hook one end of the cooler bracket to the CPU socket.
6. Hook the other end of the cooler bracket to the CPU socket.
(Please refer to the cooler’s installation manual for detailed installation steps)

Installation Guide
10
Memory Installation
The motherboard has 2 dual inline memory module (DIMM) sockets support 4 banks. The BIOS
will automatically detects memory type and size. To install the memory module, just push it
vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch.
Memory size can vary between sockets.
SDRAM
1. The DIMM slot has two notch, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically
into the DIMM slot. Then push it down.
3. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
Reverse the installation steps when you wish to remove the DIMM module.

6VMM Motherboard
11

Page Index for CPU Speed Setup / Connectors / Panel and Jumper
Definition Page
CPU Speed Setup P.12
Connectors P.20
ATX Power P.20
COM A / COM B / VGA / LPT Port P.20
CN1(PS/2 Keyboard &PS/2 Mouse Connector) P.21
USB 1 Connector P.21
USB 2 Connector P.22
Floppy Port P.22
Game & Audio Port P.23
IDE 1 (Primary)/ IDE 2(Secondary) Port P.23
J1 (CPU Fan) P.24
J2 (IR) P.24
J3 (Internal Modem Card Ring On) P.25
J4 (Wake On LAN) P.25
J5 (System Fan) P.26
J6 (Power Fan) P.26
J10 (TEL) P.27
JP10 / LED1(STR LED Connector &DIMM LED) P.27
J11 (AUX_IN) P.28
JP11 (Front Audio) P.28
J12 (CD Audio Line In) P.29
Panel and Jumper Definition P.30
J7 (2x11 Pins Jumper) P.30
JP2 (Clear CMOS Function) P.31
JP3 (Case Open) P.31
JP4 (USB Device Wake Up Selection) P.32
JP5/JP6/JP7 (Onboard AC97& AMR Select) P.32
JP8 (BIOS Write Protection) P.33
JP9 (STR Function Enabled) P.33
JP12 (Front MIC) P.34
BAT1 (Battery) P.34

CPU Speed Setup
12
CPU Speed Setup
The system bus speed is selectable at 66,100,133MHz and Auto. The user can select the
system bus speed (SW1) and change the DIP switch (SW2) selection to set up the CPU speed
for 300 – 1GB processor.
Set System Bus Speed
SW1: O:ON,
X : OFF
CPU (MHz) 1 2 3 4 5 6 PCI(MHz)
Auto X X X X O O 33.3
66 O O X X X X 33.3
75 O O O X X X 37.5
83 O O X O X X 41.6
100 O X X X X X 33.3
112 O X O X X X 37.3
124 X X X O X X 31
133 X X X X X X 33.3
140 X X O O X X 35
150 X X O X X X 37.5
The CPU speed must match with the frequency ratio. It will cause system hanging up if
the frequency ratio is higher than that of CPU.
SW2: DIP SWITCH
FREQ. RATIO 1 2 3 4
X 3 O X OO
X 3.5 XXOO
X 4 OOXO
X 4.5 XOXO
X 5 OXXO
X 5.5 XXXO
X 6 OOOX
X 6.5 XOOX
X 7 OXOX
X 7.5 XXOX
X 8 OOXX
X 8.5 XOXX
X 9 OXXX
X 9.5 XXXX

6VMM Motherboard
13
)
))
)For Auto Jumper Setting:
SW1
ON
6 5 4 3 2 1


Note:
1. If you use 66/100/133 MHz CPU, We recommend you to setup your system speed to
“Auto” value.
2. We don’t recommend you to set up your system speed to 75 , 83 , 112 , 124 , 140 ,150
MHz because these frequencies are not the standard specifications for CPU, Chipset
and most of the peripherals. Whether your system can run under 75 ,
83 ,112 ,124 ,140 ,150 MHz properly will depend on your hardware configurations: CPU,
SDRAM, Cards, etc.
1. CeleronTM 300A/66MHzFSB
SW2
ON
SW2
1 2 3 4
ON
SW1
6 5 4 3 2 1
