Welcome to use the 6VA motherboard. It is a PentiumII / III / Celeron
Processor based PC /AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / CeleronProcessor based PC / AT compatible
main board.
qSlot 1 supports PentiumII / III / CeleronProcessor running at 233-
633 MHz.
qVIA 82C693 chipset, Supports AGP / SDRAM / Ultra DMA33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 4xDIMMs using 3.3V SDRAM DIMM module.
qSupports 16MB ~ 1 GB SDRAM memory on board.
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 4xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA 33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT, 1x1.44MB Floppy port.
qSupports USB port & PS/2 Mouse port.
qLicensed AWARD BIOS, 2M bits FLASH RAM.
q25.5cm x 22.2 cm BABY AT SIZE form factor, 4 layers PCB.

Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU PentiumIII processor
•DRAM (128x1)MB SDRAM (MITSUBSHI M5M4V64S30ATP-8)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-630 AGP Display Card (16MB SGRAM)
•STORAGE Onboard IDE (Seagate ST34520A)
•O.S. Windows NT™4.0 SPK4
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
VIA Bus Master IDE Driver
Intel PentiumIII
Processor 450MHz(100x4.5
)400MHz(100x4)
Winbench99
CPU mark32 1130 1010
FPU Winmark 2280 2050
Business Disk 4450 4330
Hi-End Disk 10500 10300
Business Graphics 193 178
Hi-End Graphics 347 315
Winstone99
Business 29.7 25.8

6VA
1-3
Hi-End 27.3 25.6

Introduction
1-4
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port

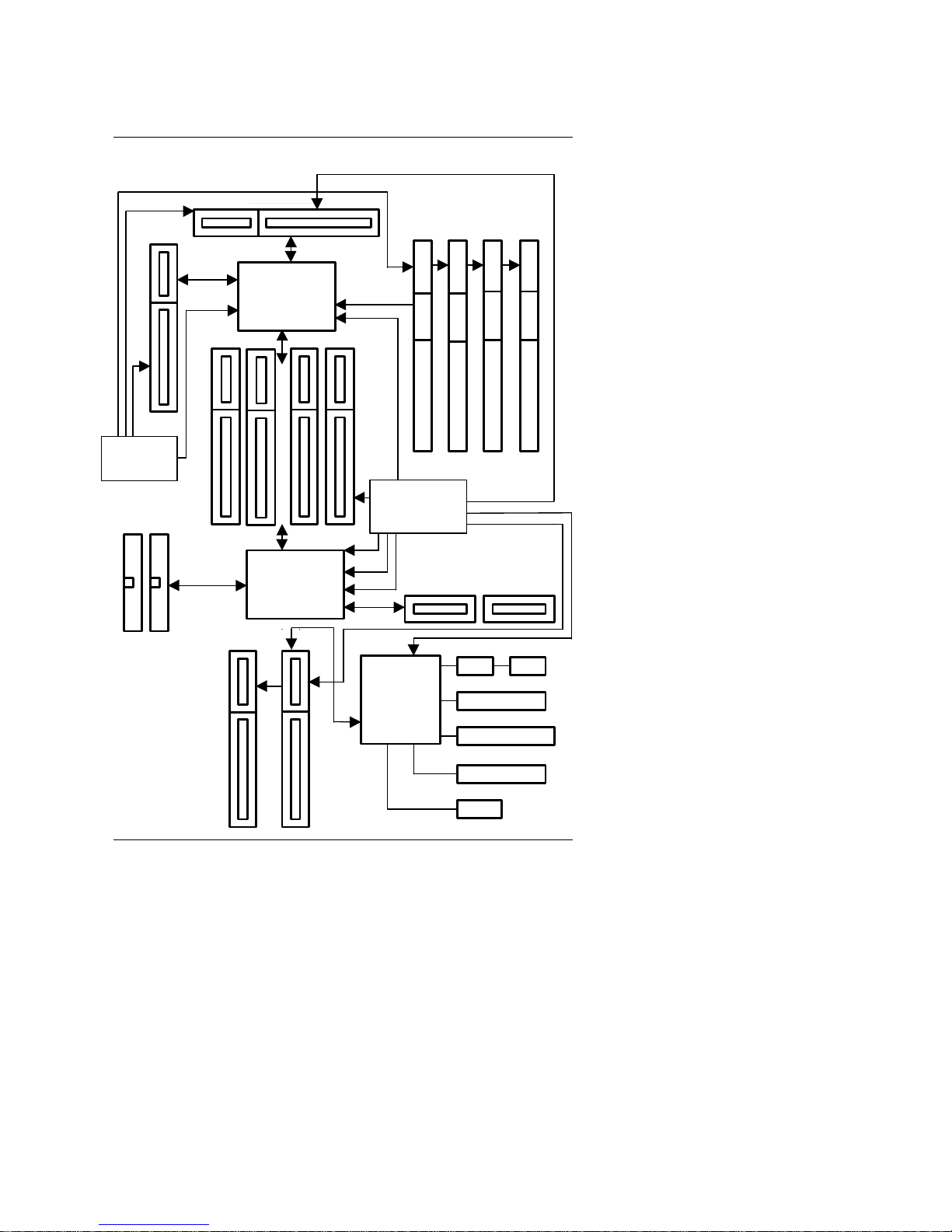

1.4. BLOCK DIAGRAM
66MHz
Ultra DMA/33
IDE Ports
24MHz
14.318MHz
33MHz
33MHz
33MHz
66MHz
66MHz
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
83977EF
66MHz
AGP SLOT Host Bus
VIA
82C693
CHIPSET
Clock
Gen
VIA
82C596A
CHIPSET
Clock
Gen
SLOT 1

6VA
1-5
1.5. INTRODUCE THE Pentium

II / III Processor

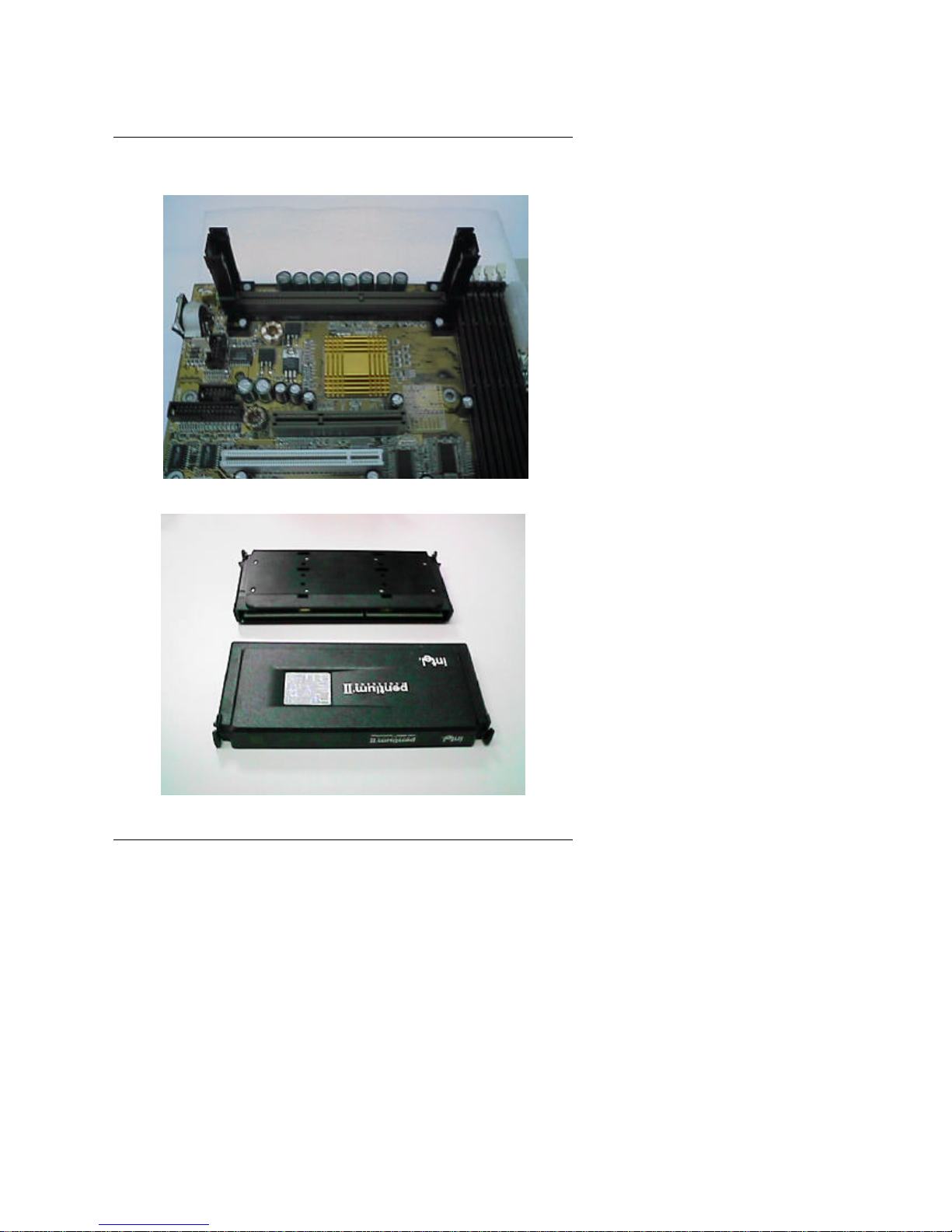

Figure 1: Universal Retention Mechanism & attach Mount

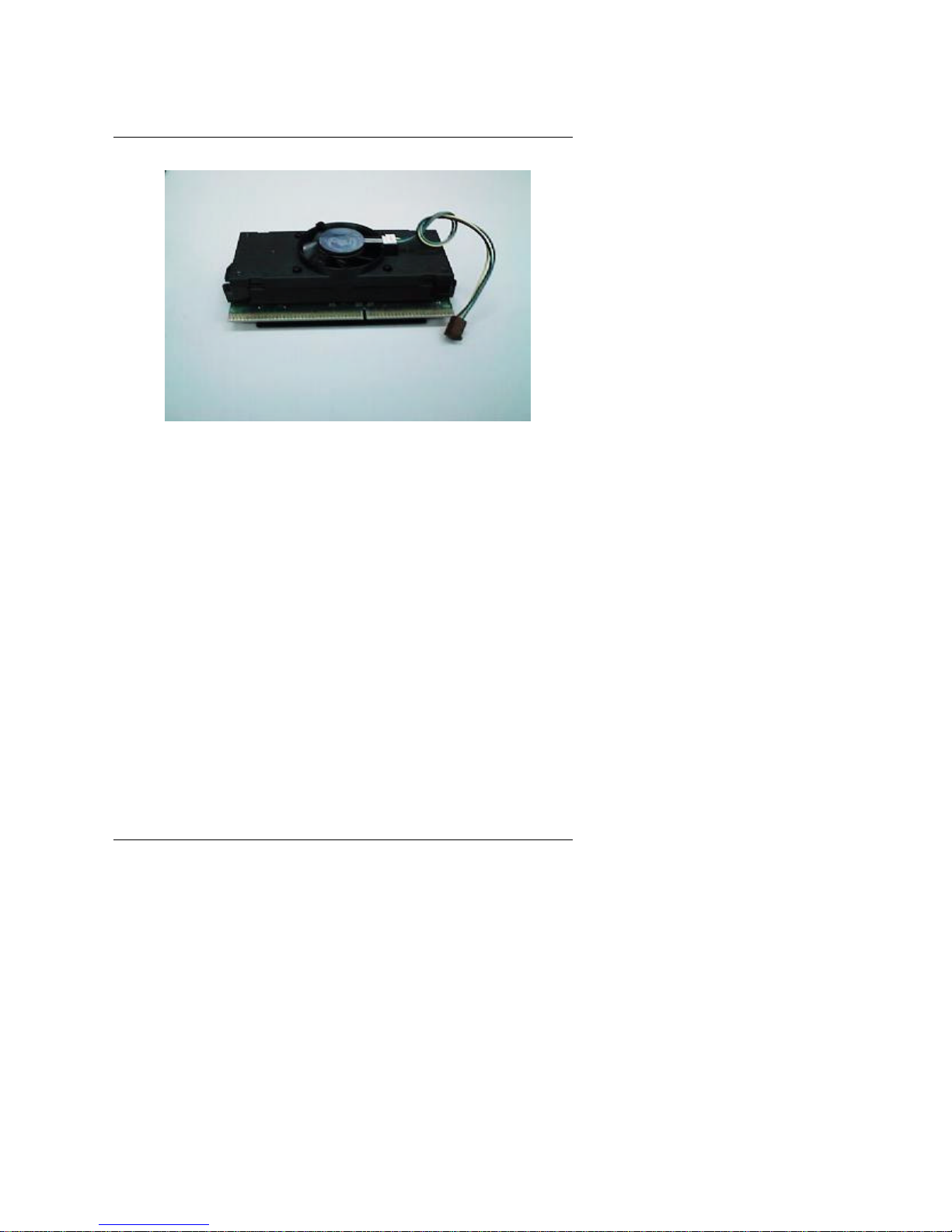

Figure 2:OEM PentiumII Processor

Introduction
1-6
Figure 3:OEM PentiumIII Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / III / CeleronProcessor
233 –633 MHz.
−242 pins 66/100MHz slot1 on board.
•SPEED −66 / 100MHz system speed.
−66 MHz AGP bus speed. (133MHz 2*mode)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −4 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−Supports 16MB ~ 1 GB SDRAM.
−Supports 3.3V SDRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB / 512 KB L2 cache memory included in
CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.
−2 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA 33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.

6VA
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse.
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −BABY AT Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −UUCD
Bus Master IDE Driver
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6VA main board.
•Universal Retention Mechanism & Attach Mount
•USER'S MANUAL for main board.
•Cable set for IDE, Floppy & I/O devices.
•CD for main board Utilities.
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the main board carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

6VA
3-2
3.2. MAINBOARD LAYOUT
PCB Ver : 2.8
82443LX
6VA
1
VIA
82C596
VIA
82C693
Winbond
83977-EF
BIOS
ISA 1
ISA 2
PCI 1
PCI 2
PCI 3
PCI 4 USB
AGP LPT
COM B
COM A PS/2
MOUSE
K.B
JP1
SLOT 1
JP8
J11
JP10
JP9
U14
J20
BAT1
IR
PWR
SPK
TD
TB
RST
GD GN
HD
SOFT PWR
J9
J19
J6
J21
POWER
PCB Ver : 3.0
82443LX
6VA
1
VIA
82C596
VIA
82C693
Winbond
83977-EF
BIOS
ISA 1
ISA 2
PCI 1
PCI 2
PCI 3
PCI 4 USB
AGP LPT
COM B
COM A PS/2
MOUSE
K.B
JP1
SLOT 1
JP8
J11
JP10
JP9
U14
J20
BAT1
IR
PWR
SPK
TD
TB
RST
GD GN
HD
SOFT PWR
J9
J19
J6
J21
POWER

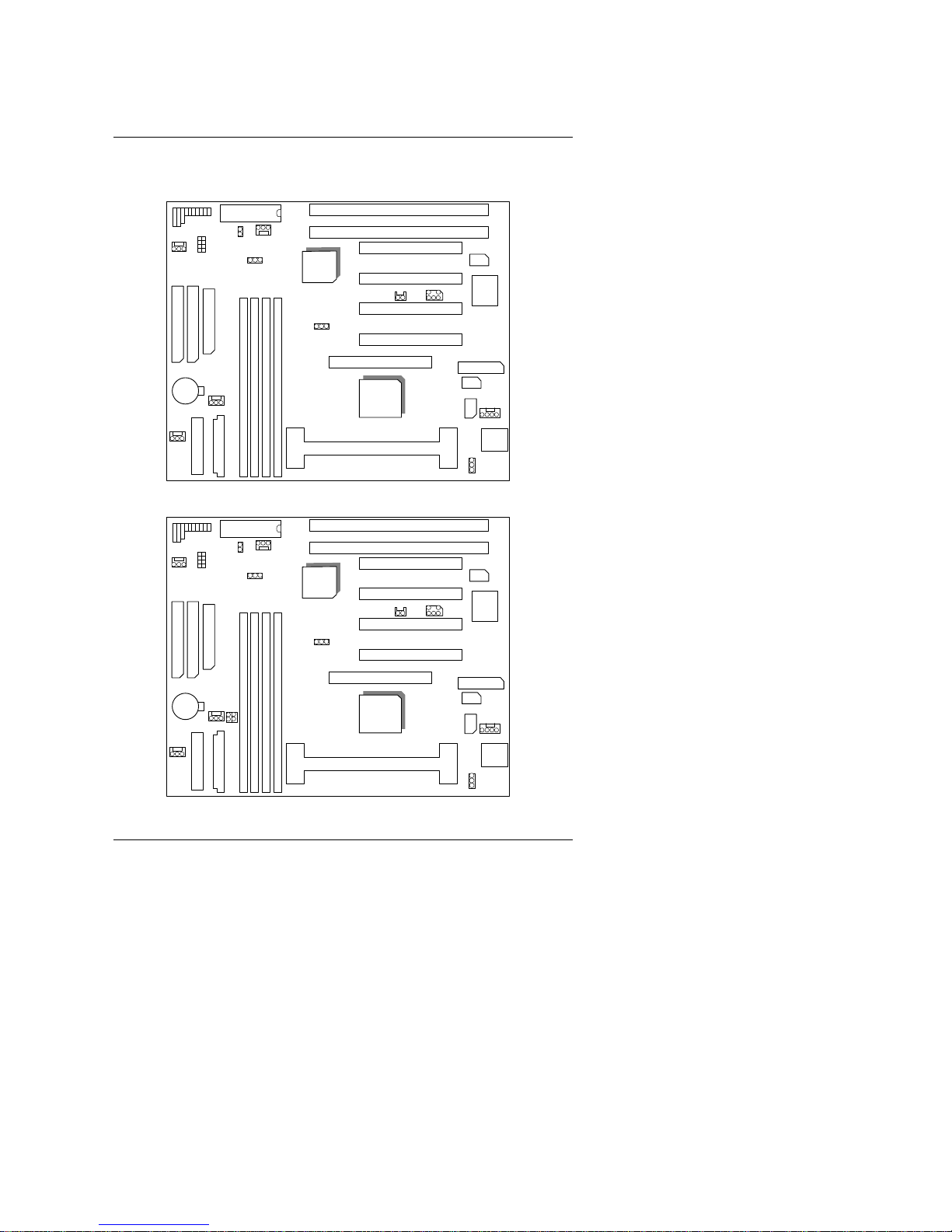

×Figure 3.1Ø

Hardware Installation
3-3
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
KB For Keyboard port.
PS/2 For PS/2 Mouse port.
FLOPPY For Floppy port
COMB For Serial port2 (COM B).
COMA For Serial port1 (COM A).
POWER For AT Power Connector.
ATX POWER For ATX Power Connector.
LPT For LPT port.
tCPU
For PentiumII / III / Celeronprocessor installed
tIR : INFRARED Connector (IR) -- Function Option
Pin Function
1IR Data Output
2GND
3IR Data Input
4NC
5POWER (+)
tPWR : POWER ON LED/ Key-Lock
Pin Function
1LED anode (+)
2LED cathode (−)
3LED cathode (−)
4Key-Lock
5GND
tSPK : SPEAKER Connector
Pin Function
1VCC
2NC
3NC
4Data

6VA
3-4
tTD : Turbo LED Connector
Pin Function
1LED anode (+)
2LED cathode (−)
tRST : RESET Switch
Open Normal operation
Close Reset system
tGD : Green LED Connector
Pin Function
1LED anode (+)
2LED cathode (−)
tGN : GN-SW
Open Normal operation
Close Enter Green Mode
tHD : Hard Disk active LED (HD-LED)
Pin Function
1LED anode (+)
2LED cathode (−)
tSoft PWR : Soft Power Switch
Pin Function
1GND
2CTRL-Signal
tJ6 :CPU FAN (CPU cooling FAN Power Connector)
Pin Function
1GND.
2+12V
3Signal
tJ20 : SYSTEM FAN
Pin Function
1GND.
2+12V
3Signal

Hardware Installation
3-5
tJP10 : CASE OPEN (Optional)
Pin Function
1Signal
2GND
tJP9 : Clear CMOS
Pin Function
1-2 Clear CMOS.
2-3 Normal
tJ19 : Internal Modem Card Ring PWR On
Pin Function
1Signal
2GND
tJ21 : Power FAN
Pin Function
1GND.
2+12V
3Signal
tJP1 : Keyboard Power On Selection
Pin Function
1-2 Enabled Keyboard power on.
2-3 Disabled Keyboard power on.
tJ11 : Wake on Lan
Pin Function
1+5V SB
2GND
3Signal
tSB-LINK : For PCI Audio / Sound Card use only
Pin Function
1Signal
2GND
3NC
4Signal
5GND
6Signal

6VA
3-6
tJP11&JP12(This function is support in PCB version 3.0 and above)
Pin No. Function
Open Normal
Close For Voodoo3 VGA card
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM. When system bus speed is set to 100MHz, 100MHz
SDRAM is required. The DRAM memory system on main board consists of
bank 0, 1, 2 & bank 3.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 16 MB ~ 1
GB SDRAM. The DRAM installation position refer to Figure 3.1, and notice
the Pin 1 of DIMM module must match with the Pin 1 of DIMM socket. Insert
the DRAM DIMM module into the DIMM socket at Vertical angle. If there is a
wrong direction of Pin 1, the DRAM DIMM module could not be inserted into
socket completely.
3.5. CPU SPEED SETUP
The system bus speed can be set to 66.6MHz or 100MHz form the jumper
(JP8). The user can change the DIP SWITCH selection to set up the CPU
speed for different processors. The CPU speed must match with the
frequency RATIO and Front Side Bus (FSB) speed. It will cause system
hanging up if the frequency RATIO and FSB Speed do not match with the
CPU.
Set system speed to 66MHz: JP8 pin 1-2 short will cause system
always run at 66 MHz FSB (Front Side Bus).
Set system speed to 100MHz: JP8 all pins open will cause system
always run at 100MHz FSB.

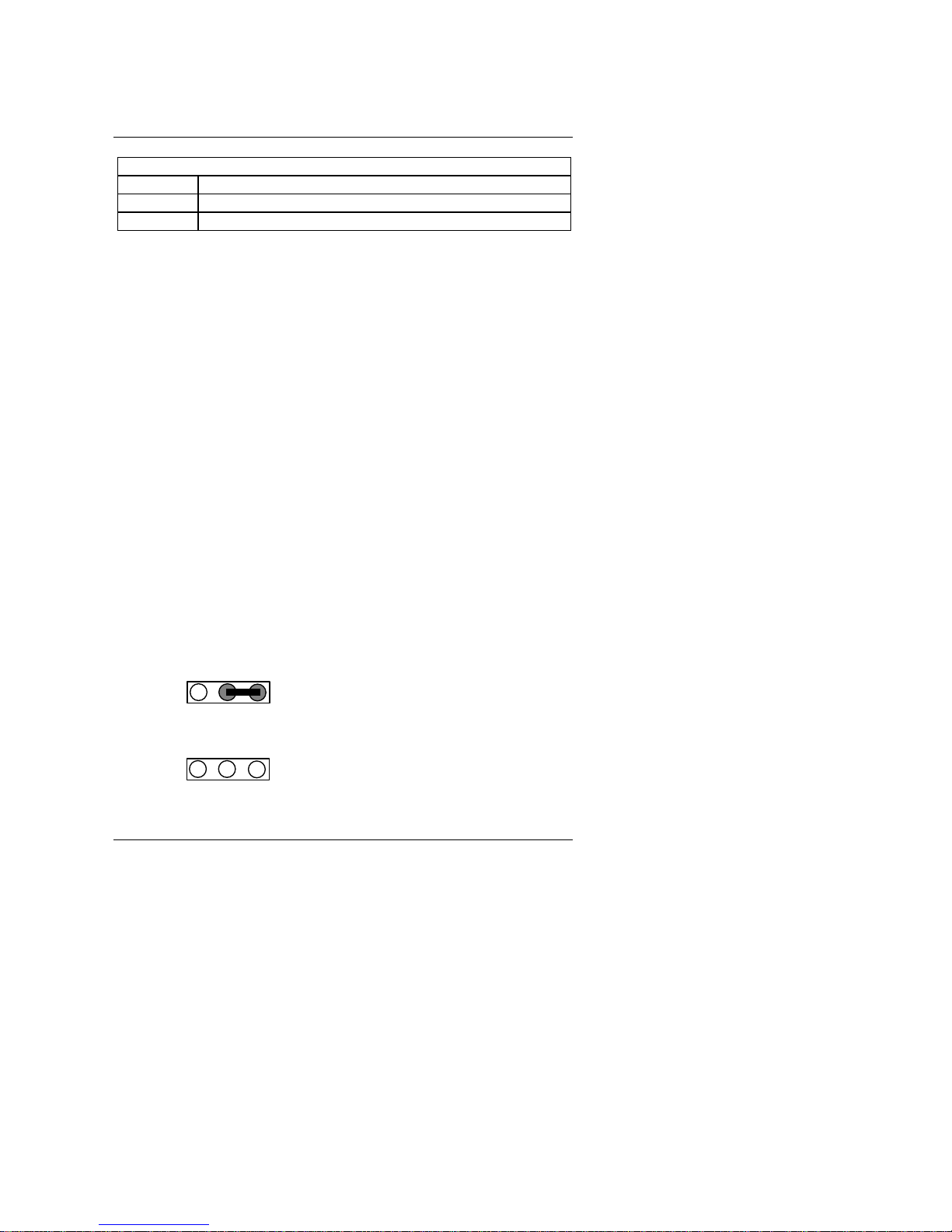

JP8
3 2 1
JP8
3 2 1

Hardware Installation
3-7
Set system speed to Auto: JP8 pin 2-3 short will detect system
speed 66/100MHz FSB automatically.
DIP SWITCH
FREQ. RATIO 1 2 3 4
X 3 ON OFF ON ON
X 3.5 OFF OFF ON ON
X 4 ON ON OFF ON
X 4.5 OFF ON OFF ON
X 5 ON OFF OFF ON
X 5.5 OFF OFF OFF ON
X 6 ON ON ON OFF
X 6.5 OFF ON ON OFF
X 7 ON OFF ON OFF
X 7.5 OFF OFF ON OFF
X 8 ON ON OFF OFF
X 8.5 OFF ON OFF OFF
X 9 ON OFF OFF OFF
X 9.5 OFF OFF OFF OFF
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from
metal surface when the CPU is installed onto main board.
JP8
3 2 1

6VA
3-8
3.6. CMOS RTC & ISA CFG CMOS SRAM
There're RTC & CMOS SRAM on board; they have a power supply from
external battery to keep the DATA inviolate & effective. The RTC is a REAL-
TIME CLOCK device, which provides the DATE & TIME to system. The
CMOS SRAM is used for keeping the information of system configuration, so
the system can automatically boot OS every time. Since the lifetime of
internal battery is 5 years, the user can change a new Battery to replace old
one after it cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPK is used to connect speaker. Anode connects +, Cathode connects −.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET button is pressed
and released by user. The RESET switch is a 2 PIN connector and should be
installed to RST on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of case. The power LED will light
on/off or flash to indicate which step on the system. The connector should be
connected to PWR of main board in correct direction.

Hardware Installation
3-9
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which
following ATAPI standard SPEC. Any one IDE port can connected to two
ATAPI devices (IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI
devices can exist in a system. The HD is the active LED port for ATAPI
devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the case and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of four PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.

6VA
4-1
4. BIOS CONFIGURATION
Award's BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This type of information is stored in battery-
backed CMOS SRAM so that it retains the Setup information when the power
is turned off.
4.1. ENTERING SETUP
Power ON the computer and press <Del> immediately will allow you to enter
Setup. If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" bottom on the system case. You may also restart by
simultaneously press <Ctrl>, <Alt>, and <Del> keys.
4.2. CONTROL KEYS
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu - Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -
Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
F2 key Change color from total 16 colors
F3 key Reserved
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for
Option Page Setup Menu
F6 key Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
