Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6ZXC motherboard. It is a PentiumII / III / Celeron
Processor based PC /AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / Celeron Processor based PC / AT compatible main
board.
qSlot 1 supports PentiumII / III / Celeron processor running at 333-650
MHz.
qIntel 440ZX chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 2xDIMMs using 3.3V SDRAM DIMM module.
qSupports 8 MB –256 MB SDRAM memory on board.
qSupports Non-ECC type DRAM module.
q1xAGP slot, 4xPCI Bus slots, 3xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse & 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2M bits FLASH ROM.
q30.5 cm x 18 cm ATX SIZE form factor, 4 layers PCB.

6ZXC
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumIII / Celeron Processor
•DRAM 128 MB SDRAM (TOSHIBA TC59S6408BFT-80)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-630 Voodoo banshee (16MB SGRAM)
•STORAGE Onboard IDE (Seagate ST34520A)
•O.S. Windows NT™4.0 SPK4
•DRIVER Display Driver at 1024 x 768 x 64K colors x 75Hz.
TRIONES Bus Master IDE Driver 3.60
Celeron PentiumIII
Processor 366MHz( 66x5.5 ) 550MHz(100x5.5)
Winbench99
CPU mark32 731 1380
FPU Winmark 1970 2800
Business Disk 4180 4590
Hi-End Disk 10200 10600
Business Graphics 177 248
Hi-End Graphics 335 440
Winstone99Business 27.1 34.7
Hi-End 24.4 32.9

Introduction
1-3
1.4. BLOCK DIAGRAM
3.3V SDRAM
DIMM Sockets
14.318MHz
33 MHz
33MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
ITE 8671
AGP
Host Bus
INTEL
82443ZX
CHIPSET
PIIX4
82371EB
CHIPSET
ICS 9148-26
SLOT 1
66MHz
66 /
100 MHz
66 /
100 MHz
33 MHz
66 /
100 MHz
24 MHz

6ZXC
1-4
1.5. INTRODUCE THE Pentium

II / III Processors
Figure 1: Universal Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor

Introduction
1-5
Figure 3: OEM PentiumIII Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs.32-Bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used the port can transmit
data at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads
–removing the effects of the reads-latency. Side band addressing can be
used to transmit the data address on a separate line in order to speed up the
transaction.

6ZXC
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / III/ Celeron processor 333 –650MHz.
−242 pins 66 / 100MHz slot1 on board.
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −2 banks 168 pins DIMM module sockets on board.
−Use 8 / 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−8 ~ 256MB SDRAM.
−Supports 3.3V SDRAM.
−Supports Non-ECC type DRAM.
•CACHE MEMORY −32 KB L1 cache memory included in CPU.
−128KB / 512 KB L2 cache memory included in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.
−3 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels onboard.
(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ ECP LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & PS/2 Keyboard.

Specification
2-2
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −INTEL Bus Master IDE Driver.
−Suspend to HD utility.
−INTEL Patch 95
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98,WINDOWS NT™, OS/2, NOVELL and
SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

6ZXC
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6ZXC main board.
•The Universal Retention Mechanism & Attach Mount
•USER’S MANUAL for main board.
•Cable set for IDE, Floppy devices.
•Diskettes for main board Utility.
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the main board carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that they
are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

Hardware Installation
3-2

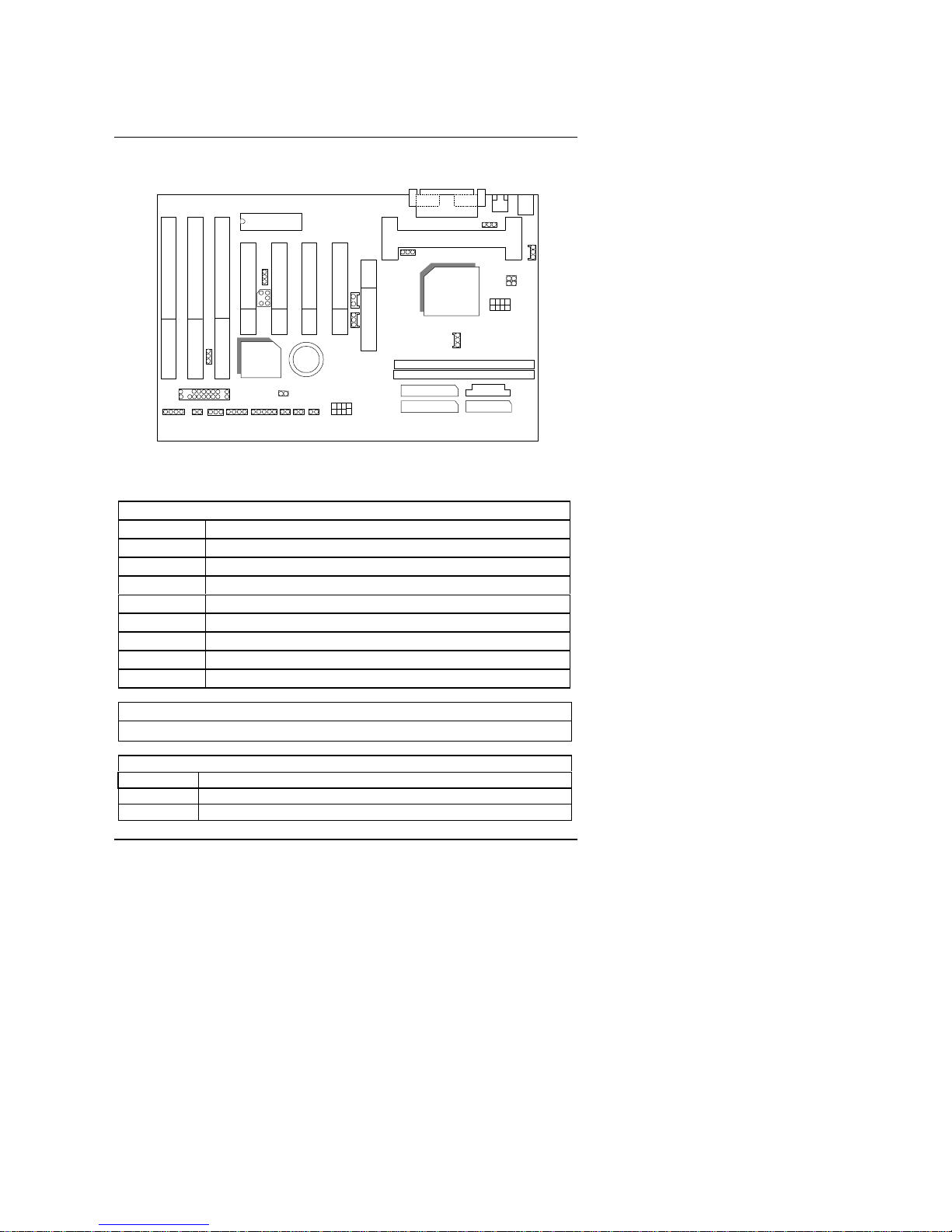

3.2. MAINBOARD LAYOUT
CPU
Intel
440ZX
PIIX4
J15
SW 2
BIOS
6ZXC
SLOT1
SLOT2
SLOT3
SLOT4
SLOT5
SLOT6
PCI 1PCI 2PCI 3PCI 4
AGP
BANK 1
BANK 0
IDE 2
IDE 1 FLOPPY
COM A COM B
LPT USB PS/2
ATX Power
JP1
SW 1
CPU FAN
JP7
JP8
BAT1
JP9
SPK RST
1
PWR
11 1 1 1 1 1
HD IR GN SOFT
PWR GD
JP10
PWR FAN
SYS FAN
RING PWR ON
Clear CMOS
JP13
JP12
×Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE 1 For Primary IDE port.
IDE 2 For Secondary IDE port.
PS/2 For PS/2 Keyboard / Mouse port.
Floppy For Floppy port
COM B For Serial port2 (COM B).[Support Modem ring on.]
COM A For Serial port1 (COM A).[Support Modem ring on.]
LPT For LPT port.
ATX Power For ATX Power connector.
tSlot 1
For PentiumII / III / Celeron Processor installed
tJP12 & JP13 (For PCB:2.0 and after use)
Pin No. Function
Open Normal (Default)
Short Close for Voodoo III VGA Card.

6ZXC
3-3
tCPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tPower FAN : Power FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tSystem FAN : System FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tJ15 : System After Ac Back
Open Soft Off
Short Full On
tJP1 : Keyboard Power On Selection
Pin No. Function
1-2 Enabled Keyboard power on.
2-3 Disabled Keyboard power on.(Default)
tJP10 : System Acceleration
1-2 short For 100MHz Turbo and other frequencies
2-3 short For 100MHz Normal (Default)
tJP7 : Wake on LAN Connector
Pin No. Function
1+5VSB
2GND
3CTRL-Signal

Hardware Installation
3-4
tJP11 : CLEAR CMOS Function
Pin No. Function
1-2 short CLEAR CMOS Function
2-3 short Normal Operation.(Default)
tInternal Ring Power on
Pin No. Function
1+5VSB
2GND
tJP8 SB-LINK : For PCI Sound Card Connector
Pin No. Function
1Signal
2GND
3NC
4Signal
5GND
6Signal
tIR: INFRARED Connector (OPTIONAL)
Pin No. Function
1IR DATA OUTPUT
2GND
3IR DATA INPUT
4NC
5POWER¡]¡Ï¡^
JP9 : 2*11PIN Jumper
JP9
PWR P+P
−
P
−
HD
RES SPKR
GN
GD
1
11
1

6ZXC
3-5
PWR: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P − P − : Power LED
PIN 1 : anode (+)
PIN 2 : cathode ( − )
PIN 3 : cathode ( − )
SPKR: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : NC
PIN 3 : NC
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (−)
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
1
1
1
1
+−

Hardware Installation
3-6
3.4. DRAM INSTALLATION
The main board can be installed with 8 / 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 67~100 MHz for SDRAM
when system bus speed is set to 66MHz. When system bus speed is set to
100MHz, 100MHz SDRAM is required. The DRAM memory system on main
board consists of bank 0 & bank 1.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 8 MB ~ 256MB
SDRAM. The DRAM installation position refer to Figure 3.1, and notice the Pin
1 of DIMM module must match with the Pin 1 of DIMM socket. Insert the
DRAM DIMM module into the DIMM socket at Vertical angle. If there is a
wrong direction of Pin 1, the DRAM DIMM module could not be inserted into
socket completely.
3.5. CPU SPEED SETUP
The system bus speed can be set to 66 / 100MHz form the DIP SWITCH
(SW1). The user can change the DIP SWITCH (SW2) selection to set up the
CPU speed for different processors. The CPU speed must match with the
frequency RATIO and Front Side Bus (FSB) speed. It will cause system
hanging up if the frequency RATIO and FSB Speed do not match with the
CPU.
DIP SWITCH (SW2)
1 2 3 4
FREQ.
RATIO
(SW2)
EXT.CLK.
MHz
(SW1)
AGP
INT.CLK.
MHz CPU Type
ON OFF OFF ON 566 66 333 PentiumII 333 MHz
(Celeron 333MHz)
OFF OFF OFF ON 5.5 66 66 366 PentiumII 366 MHz
(Celeron 366MHz)
ON ON ON OFF 666 66 400 PentiumII 400 MHz
(Celeron 400MHz)
OFF ON ON OFF 6.5 66 66 433 PentiumII 433 MHz
(Celeron 433MHz)
ON ON OFF ON 4100 66 400 PentiumII 400MHz
OFF ON OFF ON 4.5 100 66 450 PentiumII/III 450 MHz
ON OFF OFF ON 5100 66 500 PentiumII/III 500 MHz

6ZXC
3-7
OFF OFF OFF ON 5.5 100 66 550 PentiumII/III 550 MHz
ON ON ON OFF 6100 66 600 PentiumII/III 600 MHz
OFF ON ON OFF 6.5 100 66 650 PentiumII/III 650 MHz
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from metal
surface when the CPU is installed onto main board.
3.6. CMOS RTC & ISA CFG CMOS RAM
There're RTC & CMOS RAM on board; they have a power supply from
external battery to keep the DATA inviolate & effective. The RTC is a REAL-
TIME CLOCK device, which provides the DATE & TIME to system. The CMOS
RAM is used for keeping the information of system configuration, so the
system can automatically boot OS every time. Since the lifetime of internal
battery is 5 years, the user can change a new Battery to replace old one after
it cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPKR is used to connect speaker.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET switch is pushed and
released by user. The RESET switch is a 2 PIN connector and should be
installed to RST on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has Power LED lamp on the panel of case. The Power LED will light
on off or flash to indicate which step on the system. The connector should be
connected to PWR of main board in correct direction.

Hardware Installation
3-8
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which following
ATAPI standard SPEC. Any one IDE port can connected to two ATAPI devices
(IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI devices can exist
in a system. The HD is the active LED port for ATAPI devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the case and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of four PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse . The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.
