GA-6IWF Series
Socket 370 Processor Motherboard
USER’S MANUAL
Socket370ProcessorMotherboard
Rev.1.0FirstEdition
12ME-6IWF-1001

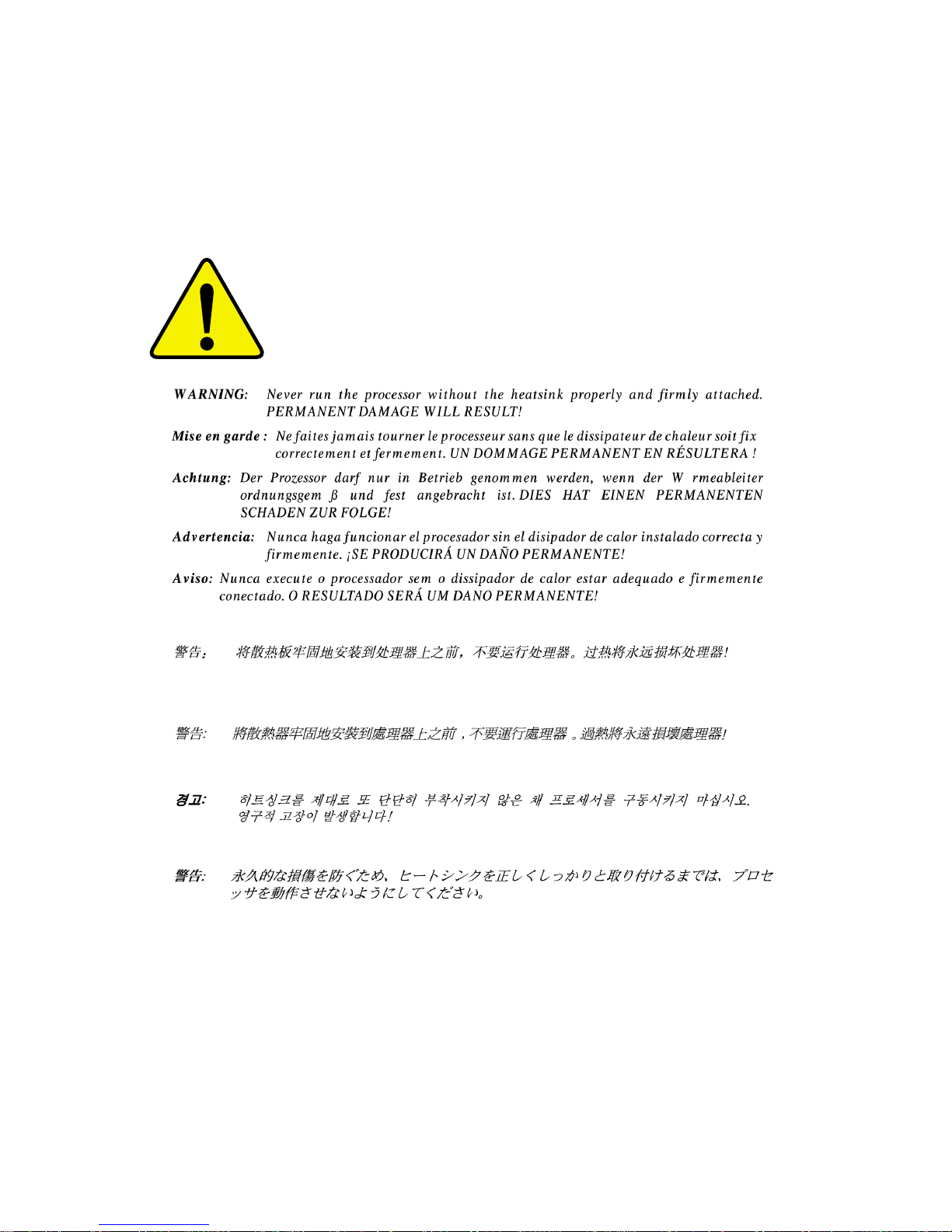

4
GA-6IWF Series Motherboard
Table of Content
Revision History.....................................................................................6
Item Checklist .........................................................................................6
WARNING!...............................................................................................7
Chapter 1 Introduction.............................................................................8
Summary of Features .................................................................................. 8
GA-6IWF Series Motherboard Layout ......................................................10
Chapter 2 Hardware Installation Process.............................................. 11
Step 1: Install the Central Processing Unit (CPU).....................................12
Step1-1:CPUInstallation ................................................................................................ 12
Step1-2:CPUHeatSinkInstallation................................................................................. 13
Step 2: Install memory modules................................................................14
Step 3: Install expension cards .................................................................15
Step 4: Connect ribbon cables, cabinet wires, and power supply ...........16
Step4-1:I/OBackPanelIntroduction ................................................................................ 16
Step4-2:ConnectorsIntroduction ..................................................................................... 18

5
Table of Content
Chapter 3 BIOS Setup ..........................................................................23
The Main Menu (For example: BIOS Ver. :F2).........................................24
Standard CMOS Features.........................................................................26
BIOS Features Setup.................................................................................29
Chipset Features Setup.............................................................................32
Integrated Peripherals ..............................................................................34
Power Management Setup .......................................................................41
PNP/PCI Configuration..............................................................................45
PC Health Status........................................................................................47
Frequency/Voltage Control........................................................................49
Load Fail-Safe Defaults.............................................................................50
Load Optimized Defaults...........................................................................51
Set Supervisor/User Password..................................................................52
Save & Exit Setup.......................................................................................53
Exit Without Saving ...................................................................................54
Chapter 4 Technical Reference ............................................................55
Block Diagram...........................................................................................55
@ BIOS Introduction..................................................................................56
Easy TuneIIITM Introduction .......................................................................57
Chapter 5 Appendix..............................................................................58

6
GA-6IWF Series Motherboard
Revision RevisionNote Date
1.0 InitialreleaseoftheGA-6IWFSeriesmotherboarduser'smanual. Oct.2001
TheGA-6IWFSeriesmotherboard
IDE cable x 1/ Floppy cable x 1
CDformotherboarddriver & utility (IUCD)
GA-6IWFSeriesuser’smanual
I/O Shield
Revision History
Item Checklist

7
WARNING!
Computermotherboards and expansioncards contain verydelicate Integrated Circuit(IC) chips.To
protectthemagainstdamagefromstaticelectricity,youshouldfollowsomeprecautionswheneveryou
workonyourcomputer.
1. Unplugyourcomputerwhenworkingontheinside.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothave
one,touchbothofyourhandstoasafelygroundedobjectortoametalobject,suchas
thepower supply case.
3. HoldcomponentsbytheedgesandtrynottouchtheICchips,leadsorconnectors,or
othercomponents.
4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe
componentswheneverthecomponentsareseparatedfromthesystem.
5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATX
powerconnectoronthemotherboard.
Ifthemotherboardhasmountingholes,buttheydon’tlineupwiththeholesonthebaseandthereare
noslotstoattachthespacers,donotbecomealarmedyoucanstillattachthespacerstothemounting
holes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,sobecareful
ofyourhands).Inthiswayyoucanstillattachthemotherboardtothebasewithoutworryingaboutshort
circuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthemotherboard
PCBsurface,becausethecircuitwiremaybenearbythehole.Becareful,don’tletthescrewcontact
anyprintedcircuitwriteorpartsonthePCBthatarenearthefixinghole,otherwiseitmaydamagethe
boardorcauseboardmalfunctioning.
Installing the motherboard to the chassis…
WARNING!

8
GA-6IWF Series Motherboard
Chapter 1 Introduction
tobecontinued......
Summary of Features
FormFactor 19.1cm x 23.0cm FlexATX size form factor, 4 layers PCB.
Motherboard GA-6IWFSeriesMotherboard
GA-6IWFE and GA-6IWFL
CPU Socket370 processor
supports all new Pentium®III processors (FC-PGA & FC-PGA2
package)
supportsCeleron processorsin FC-PGA & FC-PGA2 package
supports66/100/133MHzsystembusfrequency
2ndcachedependonCPU
Chipset Intel 82810E HOST/AGP/SDRAM Controller
FW82801BA (ICH2)
Memory 2168-pinDIMMsockets
Supports PC-100 SDRAM
Supports only 3.3V SDRAM DIMM
Supports up to 512MB SDRAM (Max)
I/OControl W83627HF
Slots 1CNR(CommunicationandNetworkingRiser)Slot
3 PCI slot supports 33MHz & PCI 2.2 compliant
On-BoardIDE 2IDEbusmaster (DMA33/ATA66/ATA100)IDEportsforupto4
ATAPI devices
SupportsPIOmode3,4 (UDMA33/ATA66/ATA100)IDE&ATAPI
CD-ROM
On-BoardPeripherals 1 Floppy portsupports2FDD with 360K, 720K,1.2M,1.44M
and 2.88Mbytes.
1ParallelportsupportsNormal/EPP/ECPmode
1 Serial port (COMA)
1 VGA port
4 USB ports (Rear USB x 2, Front USB x 2)
1IrDAconnectorforIR

9
Introduction
PleasesettheCPU hostfrequencyinaccordancewithyourprocessor’s specifications.
Wedon’trecommendyoutosetthesystembusfrequencyovertheCPU’sspecification
becausethesespecificbusfrequenciesarenotthestandardspecificationsforCPU,
chipsetandmostoftheperipherals.Whetheryoursystemcanrununder thesespecific
busfrequenciesproperlywilldepend onyourhardwareconfigurations,includingCPU,
Chipsets,SDRAM,Cards….etc.
"*" Only for GA-6IWFL.
HardwareMonitor CPU/Power/System Fan Revolutiondetect
CPU temperaturedetect
SystemVoltageDetect
On-Board Sound AC97 CODEC
LineIn/Line Out/Mic In/CD In/Game Port
On-Board LAN Build in ICH2 Chipset (KINNERETH 82562ET)*
PS/2Connector PS/2KeyboardinterfaceandPS/2Mouseinterace
BIOS Licensed AWARD BIOS, 2M/4M* bit Flash ROM
AdditionalFeatures STR(Suspend-To-RAM)
Wakeon LAN
USB KB/Mouse wake up from S3~S5
Supports @BIOSTM
SupportsEasyTuneIIITM

10
GA-6IWF Series Motherboard

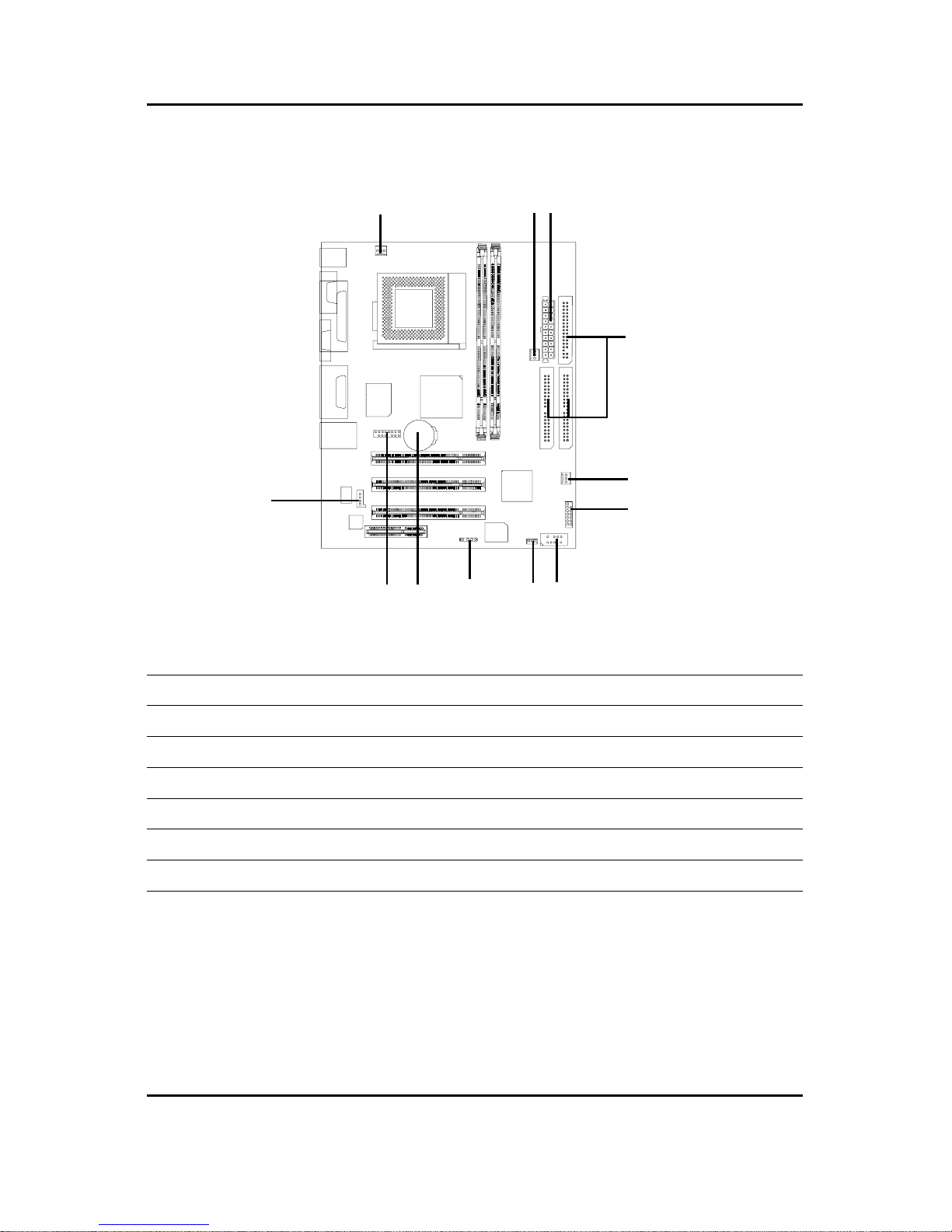

GA-6IWF Series Motherboard Layout
"*" Only for GA-6IWFL.
GA-6IWF(Eor L)
KB_MS
COMA
LPT
GAME
LINE_OUTMIC_IN
USB
F AUDIO
AC97
BATTERY
BIOS
SYS
FAN
ICH2
GMCH
SOCKET 370
CPU_FAN
ATXPWR
PWRFAN
FLOPPY
IDE1
IDE2
PCI1
PCI2
PCI3
DIMM1
CNR
F_USB
LINE_IN
LAN*
VGA
CD_IN
DIMM2
W83627HF
WAKEON LAN
F_PANEL
IR
KINNERETH*

11
Hardware Installation Process
Tosetupyourcomputer,youmustcompletethefollowingsetups:
Step1-InstalltheCentralProcessingUnit(CPU)
Step2-Installmemorymodules
Step3-Installexpansioncards
Step4- Connectribboncables,cabinetwires, andpowersupply
Step5-SetupBIOSsoftware
Step6-Installsupportingsoftwaretools
Chapter 2 Hardware Installation Process
Step 5
Step 5Step 2Step 1
Step 3
Step 4
Step 5

12
GA-6IWF Series Motherboard

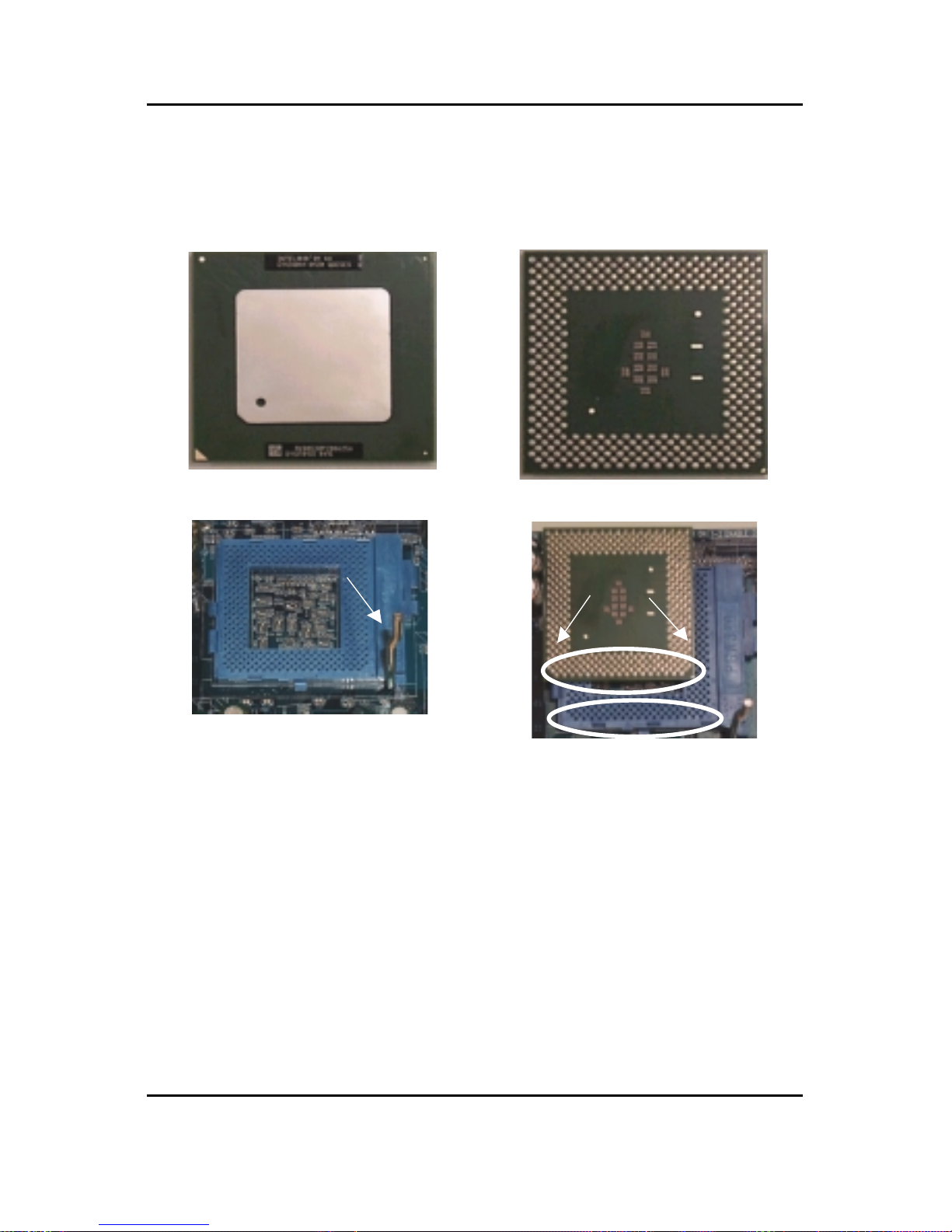

Step1-1: CPU Installation
CPU Top View CPU Bottom View
Socket Actuation Lever
1. Pull up the CPU socket level
andupto90-degreeangle.
Pin1 indicator
2. LocatePin1inthesocketandlook
fora(golden)cutedgeontheCPU
uppercorner.TheninserttheCPU
intothesocket.
Forexample:ThenewestPentiumIIIprocessor(FC-PGA2package).
Step 1: Install the Central Processing Unit (CPU)
Please make sure the CPU type is supported by the motherboard.
If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.

13
Hardware Installation Process
Step1-2:CPU Heat Sink Installation

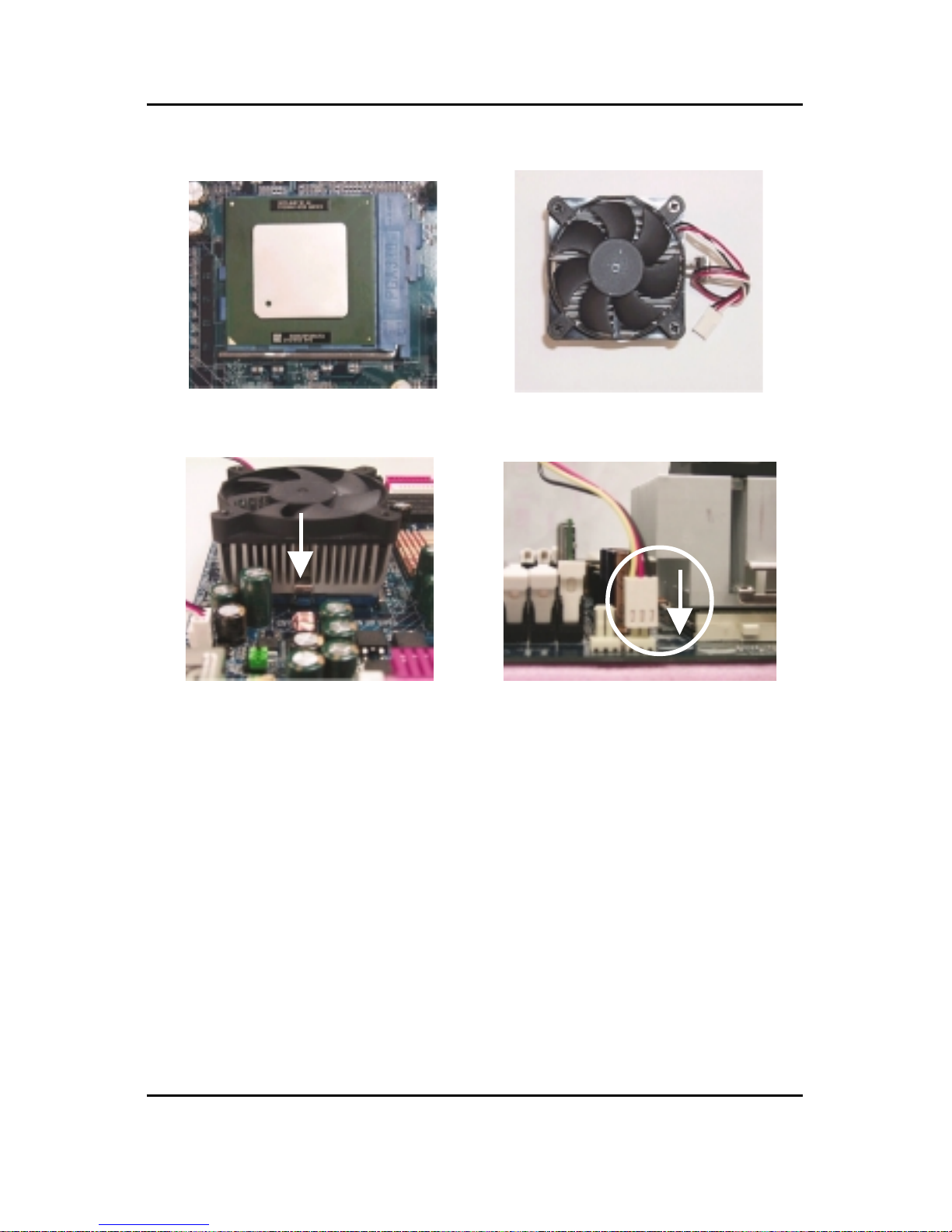

3. Fastentheheatsinksupporting-base
ontotheCPUsocketonthemain-
board.
2. UsequalifiedfanapprovedbyIntel.
4. Make sure the CPU fan is
pluggedtotheCPUfan connector,
thaninstallcomplete.
1. Press down the CPU socket
leverandfinishCPUinstallation.
Please use Intel approved cooling fan.
We recommend you to apply the thermal paste to provide better heat
conduction between your CPU and heatsink.
Make sure the CPU fan power cable is plugged in to the CPU fan connector,
this completes the installation.
Please refer to CPU heat sink user’s manual for more detail installation
procedure.

14
GA-6IWF Series Motherboard
Step 2: Install memory modules
Themotherboardhas2dualin-line memorymodule(DIMM)socketssupport4banks.TheBIOSwill
automaticallydetectsmemorytypeandsize.Toinstallthememorymodule,justpushitverticallyintothe
DIMMSlot.TheDIMMmodulecanonlyfitinonedirectionduetothetwonotch.Memorysizecanvary
betweensockets.

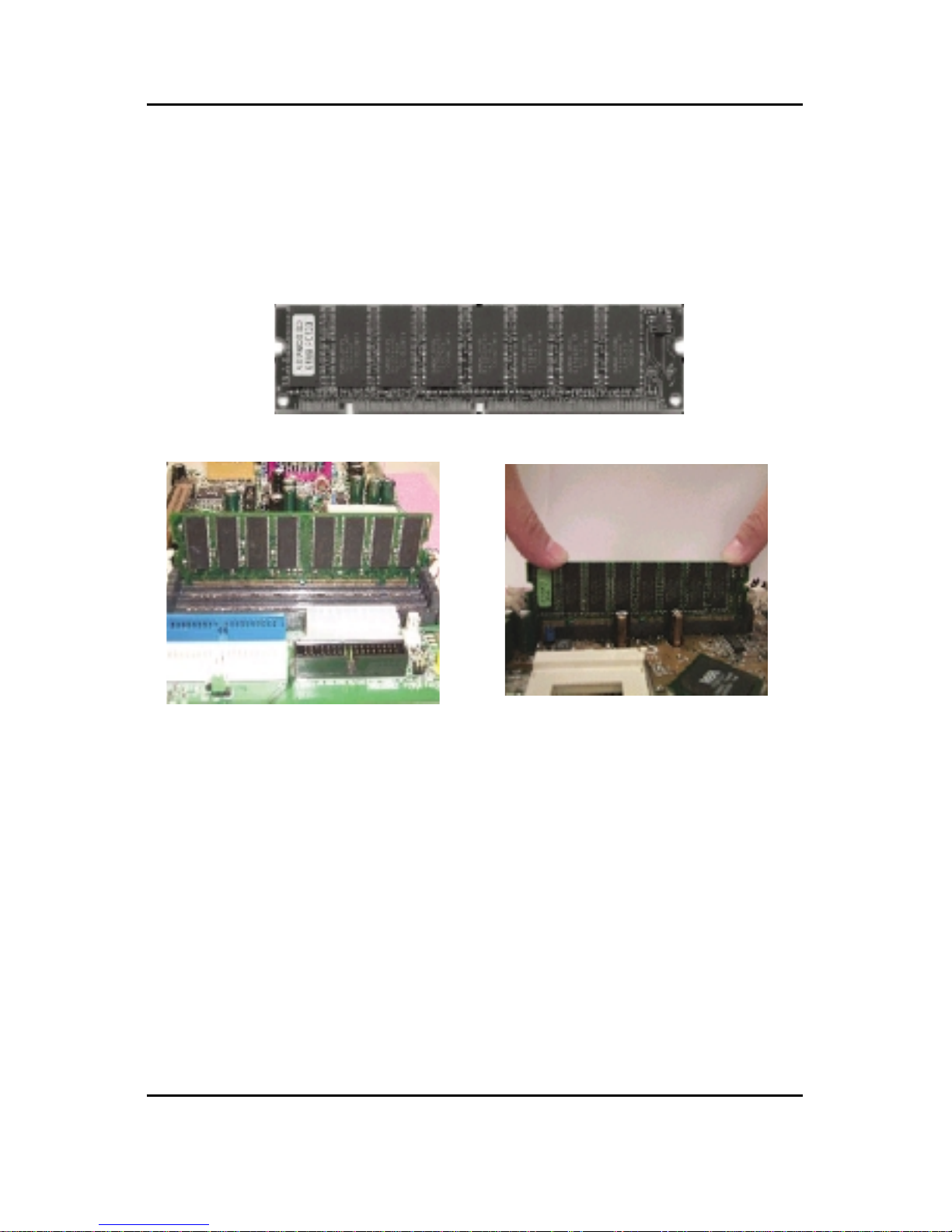

1. TheDIMMslothastwonotch,sothe
DIMMmemory module can only fitin
onedirection.
2. InserttheDIMMmemorymodule
verticallyintotheDIMMslot.Then
pushitdown.
3. Closetheplastic clip atbothedgesoftheDIMMslotstolocktheDIMM module.
Reversetheinstallationstepswhenyou wish toremovetheDIMMmodule.
SDRAM
When STR/DIMM LED is ON, do not install/remove SDRAM from socket.
Please note that the DIMM module can only fit in one direction due to the two
notches. Wrong orientation will cause improper installation. Please change
the insert orientation.

15
Hardware Installation Process
Step 3: Install expension cards
1. Readtherelatedexpansioncard’sinstructiondocumentbeforeinstalltheexpansioncardinto
thecomputer.
2. Removeyourcomputer’schassiscover,necessaryscrewsandslotbracketfromthecomputer.
3. Presstheexpansioncardfirmlyintoexpansionslotinmotherboard.
4. Besurethemetalcontactsonthecardareindeedseatedintheslot.
5. Replacethescrewtosecuretheslotbracketoftheexpansioncard.
6. Replaceyourcomputer’schassiscover.
7. Poweronthecomputer,ifnecessary,setupBIOSutilityof expansion card from BIOS.
8. Installrelateddriverfromtheoperatingsystem.
PCI Slot

16
GA-6IWF Series Motherboard
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step4-1:I/O Back Panel Introduction

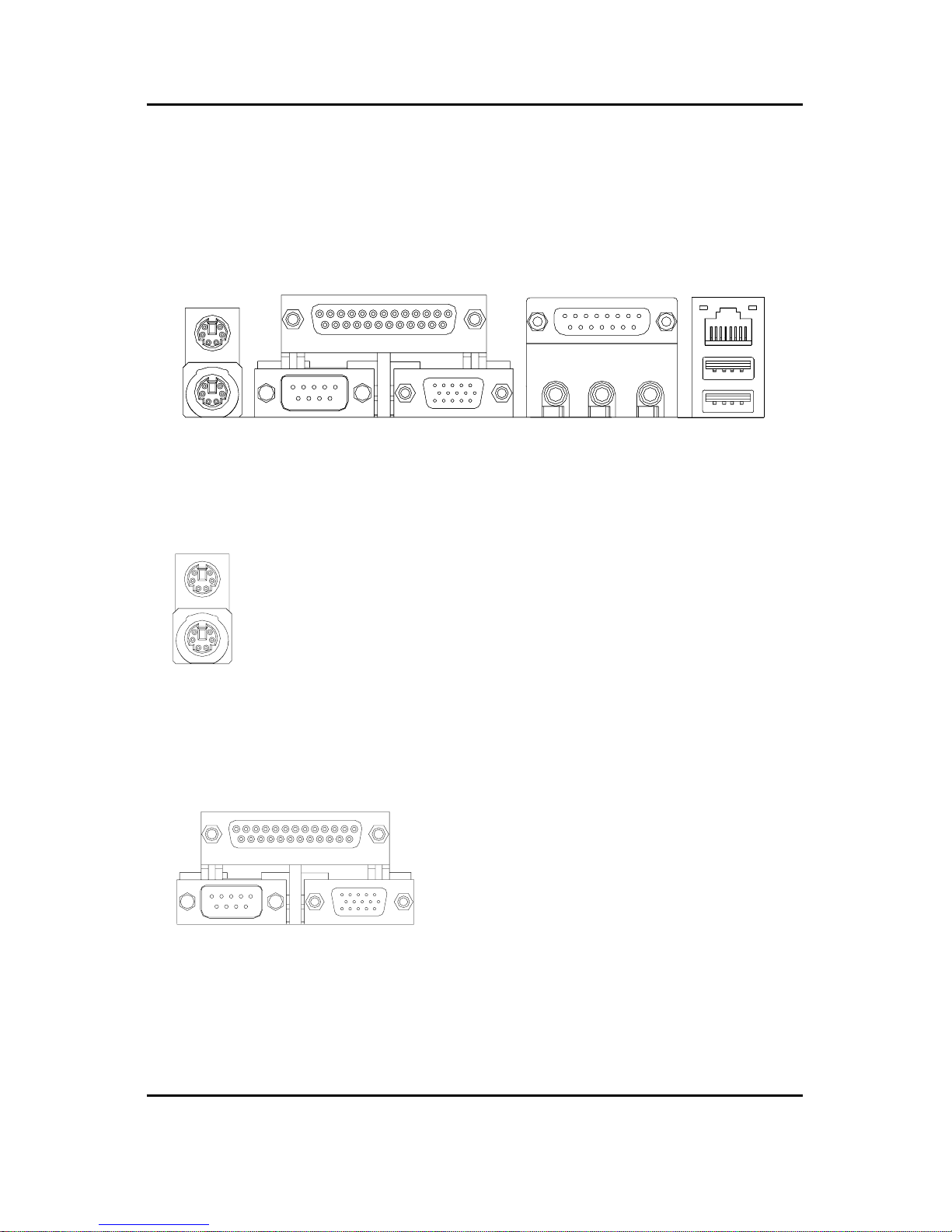

PS/2 Keyboard and PS/2 Mouse Connector
ThisconnectorsupportsstandardPS/2keyboard
andPS/2mouse.




PS/2MouseConnector
(6pinFemale)
PS/2KeyboardConnector
(6pinFemale)
 Parallel Port , Serial Port and VGA Port (LPT/COMA/VGA)
Thisconnectorsupports1standardCOM port
,1Parallelport and 1 VGAport.Device like
printercanbeconnectedtoParallelport;mouse
andmodemetccanbeconnectedtoSerialports.
ParallelPort
(25pinFemale)
COMA VGA
SerialPort
(9pinMale) VGA Port
(15pinFemale)

17
Hardware Installation Process

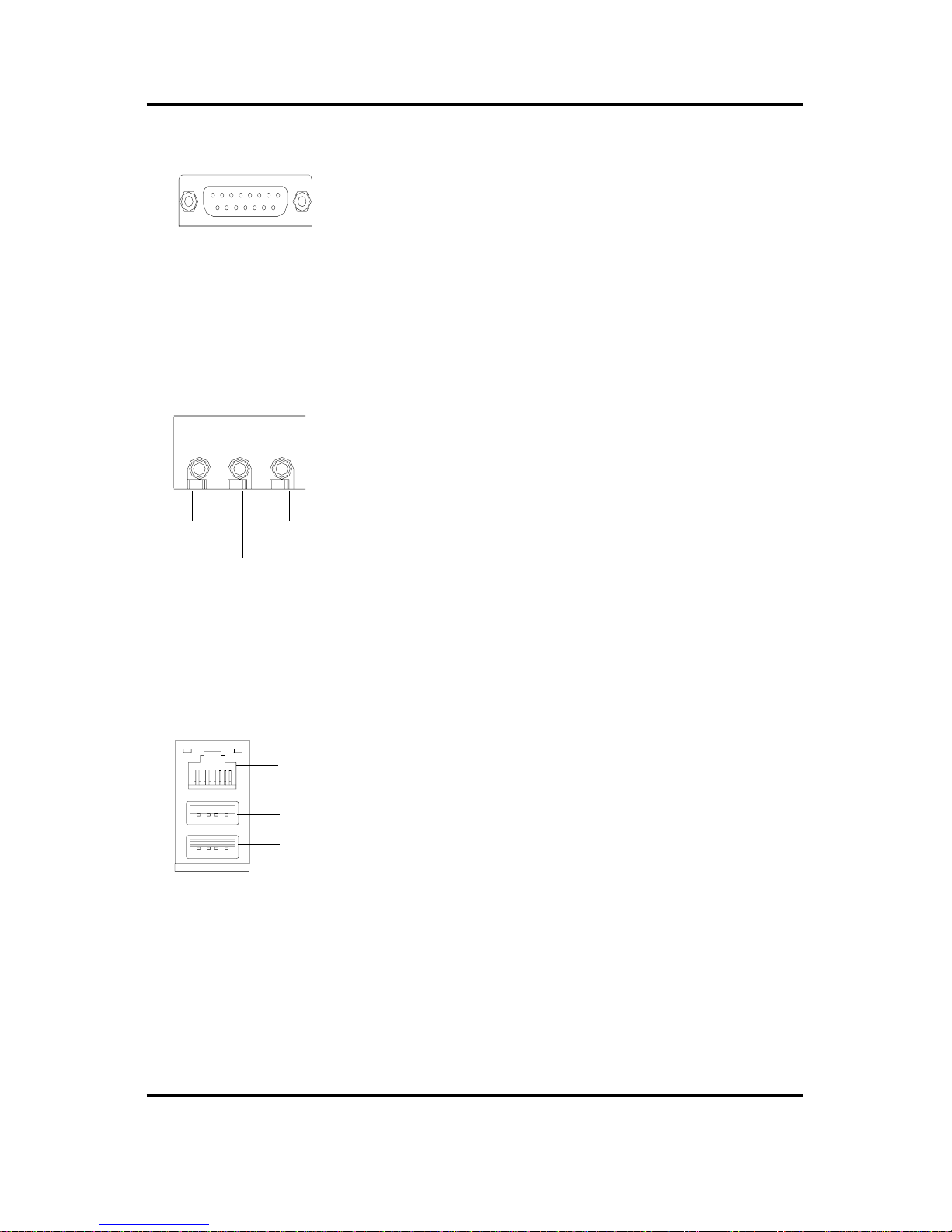

Game /MIDI Ports
Audio Connectors
Thisconnectorsupports joystick,MIDIkeyboard
andotherrelateaudiodevices.
Afterinstallonboardaudiodriver, youmay
connectspeakertoLineOutjack,microphoneto
MICIn jack. DevicelikeCD-ROM , walkmanetc
canbeconnectedtoLine-Injack.
LineIn
MIC In
LineOut
Joystick/MIDI (15pin Female)
USB & LAN Connector Beforeyouconnect your device(s)into USB
connector(s),pleasemakesureyourdevice(s)
suchas USBkeyboard,mouse, scanner,zip,
speaker..etc.HaveastandardUSBinterface.Also
makesureyourOS(Win95withUSBsupplement,
Win98,Windows 2000, Windows ME, WinNT
with SP 6) supports USB controller. If your OS
doesnotsupportUSBcontroller,pleasecontact
OSvendorforpossiblepatchordriverupgrade.
FormoreinformationpleasecontactyourOSor
device(s)vendors.
USB 0
USB 1
LAN*
"*" Only for GA-6IWFL.

18
GA-6IWF Series Motherboard
Step4-2: Connectors Introduction
A) CPUFAN H) WAKEONLAN
B) PWR FAN I ) IR
C) ATXPWR J) BATTERY
D) Floppy/IDE1/IDE2 K) F AUDIO
E) SYS FAN L) CD_IN
F) F_PANEL
G) F_USB
ABC
D
E
J
L
K
F
GHI

19
Hardware Installation Process

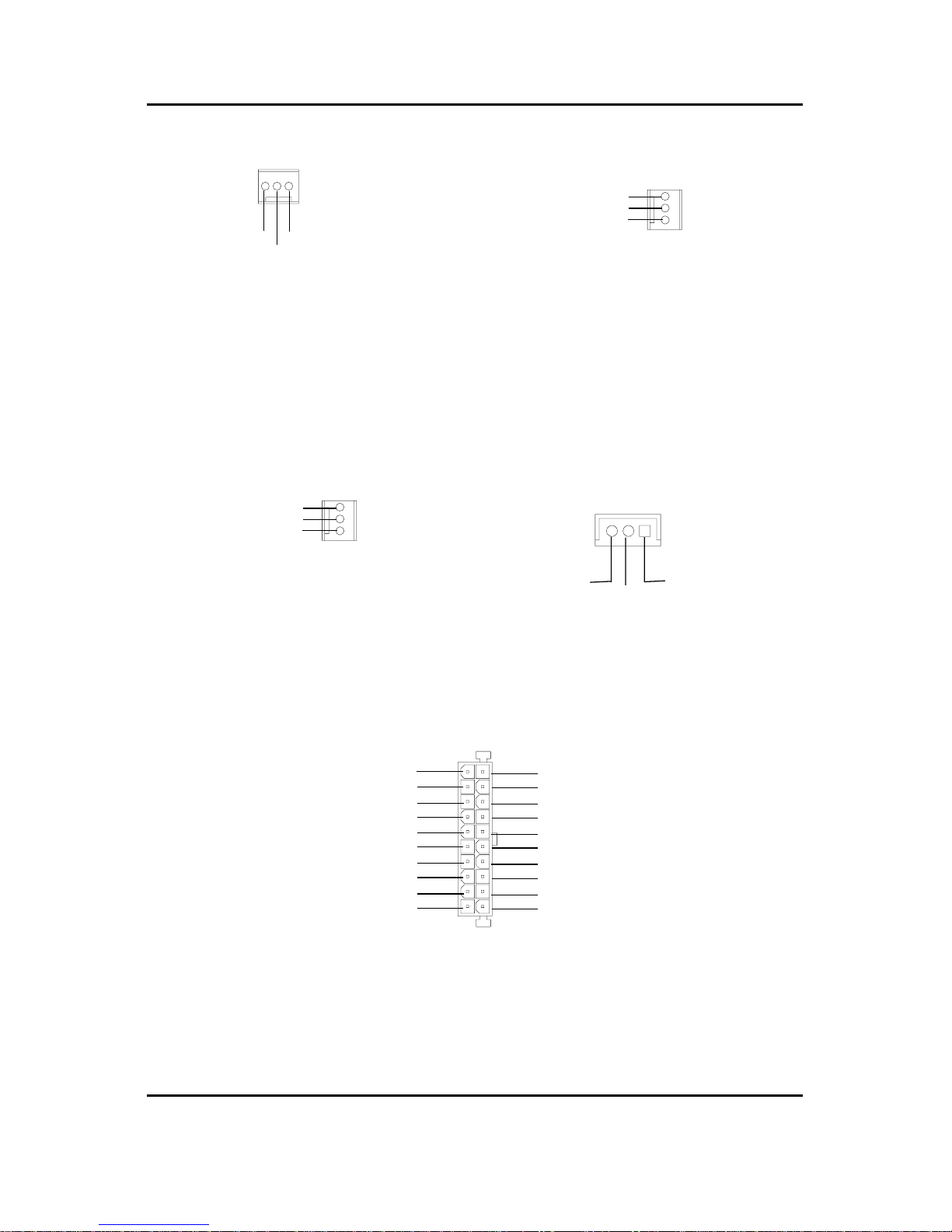

A) CPU_FAN (CPU_FAN Connector)
C) ATXPWR(ATX Power)
PS-ON(SoftOn/Off)
3.3V
3.3V
GND
GND
GND
VCC
VCC
+12V
5V SB (Stand by +5V)
PowerGood
3.3V
GND
GND
GND
GND
VCC
VCC
-12V
1
20
-5V
+12V/Control
GND
Sense
1
E) SYS_FAN (SYS_FAN Connector)
+12V/Control
GND
Sense
1
B) PWR_FAN (PWR_FAN Connector) H) WAKE ON LAN
+12V/Control
Sense
GND
1
TheCPUfanconnectorsupportsMax.current
upto600mA.
ACpowercordshouldonlybeconnectedtoyour powersupplyunitafterATXpowercableand
otherrelateddevicesarefirmlyconnectedtothemainboard.
+5V SB
GND
Signal
1

20
GA-6IWF Series Motherboard
K ) Front Audio Connector
D) Floppy / IDE1 / IDE2
1
Floppy
1
IDE2
1
IDE1
I ) IR
BecarefulwiththepolarityoftheIRconnector
whileyouconnecttheIR.Please contact you
nearestdealerforoptionalIRdevice.
Ifyouwanttouse"FrontAudio"connector,
youmustmove11-12,13-14Jumper.
Inordertoutilizethefrontaudioheader,your
chassismusthavefrontaudioconnector.Also
pleasemakesurethepinassigmentonthecable
isthesameasthepinassigmentontheMB
header.Tofindoutifthechassisyouarebuying
support front audioconnector, pleasecontact
yourdealer.
IRRX
NC
IRTX
GND
VCC
1
IncaseSpeaker(L)
GND GND GND
RearAudio(R)
RearAudio(L)
IncaseSpeaker(R)
GND
+12V
MIC
GND
GND
FrontAudio(R)
FrontAudio(L)
1
16 2
15
