Gigabyte GA-6OX User manual

FCC Compliance Statement:
This equipment has been tested and found to
comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable
protection against harmful interference in
residential installations. This equipment
generates, uses, and can radiate radio
frequency energy, and if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause interference to radio or
television equipment reception, which can be
determined byturning the equipmentoff and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected
-Consult the dealer or an experienced radio/television technician for
additional suggestions
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void Your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to
the following two conditions 1) this device may not cause harmful interference
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC.
Address: 18305 Valle
y
Blvd., Suite#A
LA Puent, CA 91744
Phone/Fax No: [phone]/ [phone]
hereby declares that the product
Product Name:
Model Number:
Mother Board
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may notcause harmful
and (2) this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name: ERIC LU
Signature:
Date: Nov. 24, 2000
EricLu
GA-6OX

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
Mother Board
GA-6OX
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive
EN 55011 Limits and methods of measurement EN 61000-3-2* Disturbances in supply systems caused
of radio disturbance characteristics of EN60555-2 by household appliances and similar
industrial, scientific and medical (ISM electrical equipment “Harmonics”
high frequency equipment
EN55013 Limits and methods of measurement EN61000-3-3* Disturbances in supply systems caused
of radio disturbance characteristics of EN60555-3 by household appliances and similar
broadcast receivers and associated electrical equipment “Voltage fluctuations”
equipment
EN 55014 Limits and methods of measurement EN 50081-1 Generic emission standard Part 1:
of radio disturbance characteristics of Residual, commercial and light industry
household electrical appliances,
portable tools and similar electrical EN 50082-1 Generic immunity standard Part 1:
apparatus Residual, commercial and light industry
EN 55015 Limits and methods of measurement EN 55081-2 Generic emission standard Part 2:
of radio disturbance characteristics of Industrial environment
fluorescent lamps and luminaries
EN 55020 Immunity from radio interference of EN 55082-2 Generic immunity standard Part 2:
broadcast receivers and associated Industrial environment
equipment
EN 55022 Limits and methods of measurement ENV 55104 Immunity requirements for household
of radio disturbance characteristics of appliances tools and similar apparatus
information technology equipment
DIN VDE 0855 Cabled distribution systems; Equipment EN 50091- 2 EMC requirements for uninterruptible
part 10 for receiving and/or distribution from power systems (UPS)
part 12 sound and television signals
CE marking (EC conformity marking)
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
EN 60065 Safety requirements for mains operated EN 60950 Safety for information technology equipment
electronic and related apparatus for including electrical business equipment
household and similar general use
EN 60335 Safety of household and similar EN 50091-1 General and Safety requirements for
electrical appliances uninterruptible power systems (UPS)
Manufacturer/Importer
Signature : Rex Lin
(Stamp) Date: Nov. 24, 2000 Name : Rex Lin

6OX
Socket 370 Processor Motherboard
USER'S MANUAL
Socket 370 Processor Motherboard
REV. 1.1 Third Edition
R-11-03-010301

How This Manual Is Organized
This manual is divided into the following sections:
1) Revision History Manual revision information
2) Item Checklist Product item list
3) Features Product information & specification
4) Hardware Setup Instructions on setting up the motherboard
5) Performance & Block Diagram Product performance & block diagram
6) Suspend to RAM Instructions STR installation
7) @ BIOS™& EasyTuneIII™@ BIOS™& EasyTuneIII™introduction
8) BIOS Setup Instructions on setting up the BIOS
software
9) Appendix General reference

Table Of Content
Revision History P.1
Item Checklist P.2
Summary of Features P.3
6OX Motherboard Layout P.5
Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition P.6
Performance List P.26
Block Diagram P.27
Suspend to RAM Installation (Optional) P.28
@BIOSTM Introduction P.34
EasyTuneIIITM Introduction P.35
Memory Installation P.37
Page Index for BIOS Setup P.38
Appendix P.74

6OX Motherboard
1
Revision History
Revision Revision Note Date
1.1 Initial release of the 6OX motherboard user’s manual. Nov.2000
1.1 Second release of the 6OX motherboard user’s manual. Nov.2000
1.1 Third release of the 6OX motherboard user’s manual. Mar.2001
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.
Mar. 1, 2001 Taipei, Taiwan, R.O.C

Item Checklist
2
Item Checklist
;The 6OX motherboard
;Cable for IDE / floppy device
;CD (IUCD) for motherboard driver & utility
;6OX user’s manual

6OX Motherboard
3
Summary Of Features
Form Factor y 30.6 cm x 19 cm ATX SIZE form factor, 4 layers PCB.
CPU y Socket 370 processor
Intel Pentium!!! 100/133MHz FSB, FC-PGA
Intel CeleronTM 66MHz FSB, FC-PGA
VIA CyrixIII 100MHz FSB, CPGA
(Please make sure your CPU is massproduction version)
y L2 cache in CPU (Depend on CPU)
Chipset y Intel 82815EP HOST / AGP / SDRAM Controller
y 82801BA I/O Controller Hub (ICH2)
Clock Generator y Realtek RTM560-25
y 66/100/133 MHz system bus speeds
Memory y 3 168-pin DIMM sockets
y Supports PC-100 / PC-133 SDRAM
y Supports up to 512MB(Max)
y Supports only 3.3V SDRAM DIMM
I/O Control y IT8712
Slots y 1 AGP Slot Supports 4Xmode & AGP 2.0 compliant
y 5 PCI Slots Supports 33MHz &PCI 2.2 compliant
y 1 CNR (Communication and Networking Riser) Slot
On-Board IDE y Supports PIO mode 3, 4, UDMA33/ATA66/ATA100 IDE
& ATAPI CD-ROM
y 2 IDE bus master (UDMA 33/ATA 66/ATA100) IDE ports
for up to 4 ATAPI devices
On-Board
Peripherals y 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88M bytes
y 1 parallel port supports SPP/EPP/ECP mode
y 2 serial ports (COM A & COM B)
y 4 USB ports
y 1 IrDA connector for IR/CIR
Hardware Monitor y CPU/Power Supply/System fan revolution detect
y CPUtemperature detect(Optional forVIA CyrixIII CPU)
y System voltage detect
y CPU overheat shutdown detect To be continued…

Summary of Features
4
BIOS y Licensed AWARD BIOS, 2M bit flash ROM
PS/2 Connector y PS/2 keyboard interface and PS/2 mouse interface
Additional Features y Supports Wake-on-LAN (WOL)
y STR (Suspend-To-RAM) (Optional)
y Supports Internal / External modem wake up
y Includes 3 fan power connectors
y Poly fuse for keyboard over-current protection
y Support @BIOS™ and EasyTuneIII™

6OX Motherboard
5
6OX Motherboard Layout
PCI1
PCI2
ICH2
FW82801BA
COM B COM A
LPT
PS/2
PCI3
PCI4
AGP
CNR
6OX
BAT1
USB1
ATX Power
Floppy
IDE2
IDE1
BIOS
BZ1
FW82815
LED1
PCI5
JP1
JP3
JP5
J1 JP6 J2 JP4
JP7
J10
JP13
JP15
JP14
CN9
J14
JP20
JP21
J13
J12
JP18
JP19
JP23
JP27 J11
DIMM3
DIMM2
DIMM1
SW1
PGA 370
CPU
JP12
JP22

6OX Motherboard Layout
6

Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Page
CPU Speed Setup P.7
Connectors P.9

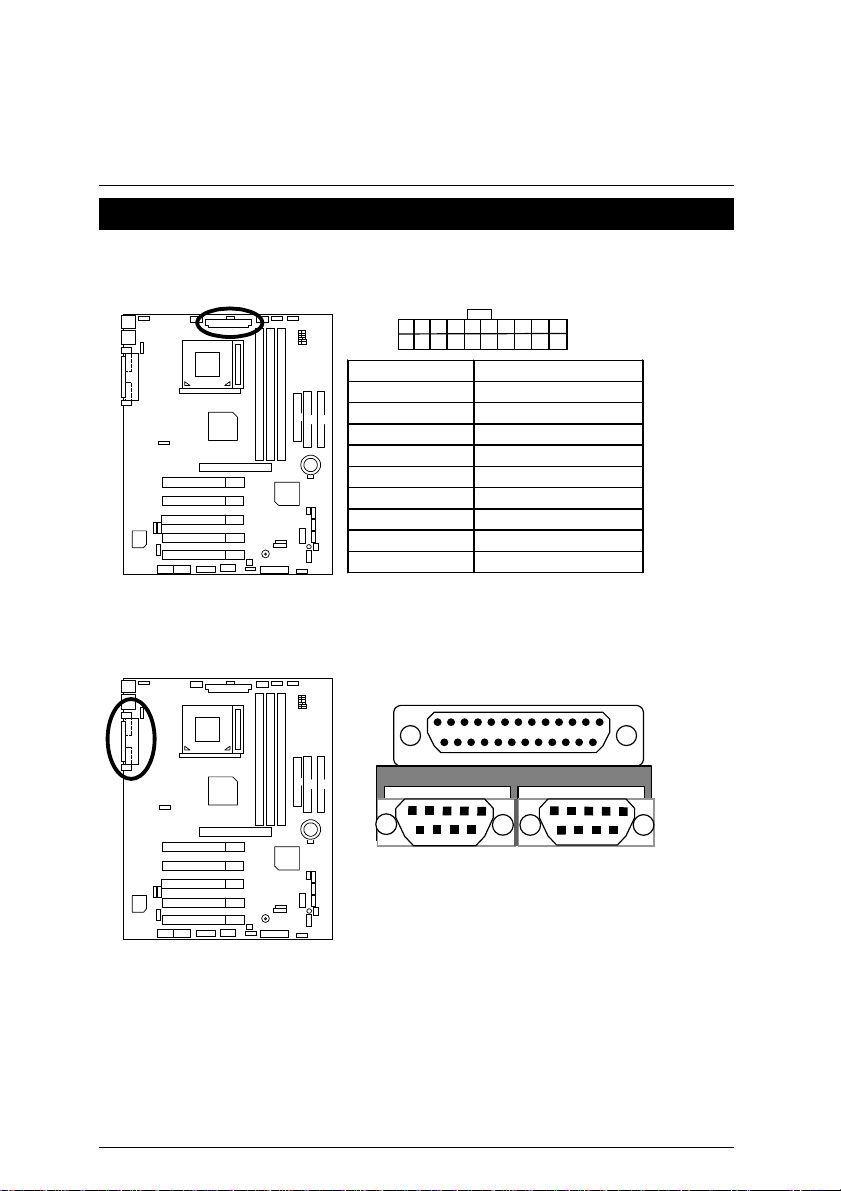

ATX Power P.9
COM A / COM B / LPT Port P.9
CN9 (Front USBPort) P.10
Floppy Port P.10
IDE 1(Primary)/ IDE 2(Secondary) Port P.11
J1 (CPU Fan) P.11
J2 (Power Fan) P.12
J10 (Extra SMBUS) P.12
J12 (Wake on LAN) P.13
J13 (Ring Power On) P.13
J14 (System Fan) P.14
JP7 (STR LED Connector) & LED 1 (DIMM LED) [Optional] P.14
JP13 (IR/CIR) P.15
JP27 (SCR) P.15
PS/2 Keyboard &PS/2 Mouse Connector P.16
USB1 Connector P.16
Panel and Jumper Definition P.17
J11 (2x11 Pins Jumper) P.17
JP1 (Rear USB Device Wake up Selection) P.18
JP3 (PS/2 Keyboard/Mouse Power On) P.18
JP4 (STR Enable) [Optional] P.19
JP5 (Over Voltage CPU Speed up) [Optional] P.19
JP6 (DIMM Over Voltage) [Optional] P.20
JP12 (Internal Buzzer Connector) [Optional] P.20
JP14 (Timeout Reboot Function) P.21
JP15 (Safe mode / Recovery / Normal) P.21
JP18 (Clear CMOS Function) P.22
JP19 (Front USB Device Wake up Selection) P.22
JP20 (FWH Flash Write Protection) P.23
JP21 (Top Block Lock) P.23
JP22 (Case Open) P.24
JP23 (PCI/AGP 3VAUX) P.24
BAT1 (Battery) P.25

6OX Motherboard
7
CPU Speed Setup
Thesystembusspeedisselectableat 55~153MHz. The user can select thesystembusspeedby
DIP switch SW1.
SW1: O : ON, X : OFF
CPU SDRAM 1 2 3 4 5 6
Auto Auto X X X X X X
55.00 82.50 O O O X O X
60.00 90.00 O O O X O O
66.80 100.20 O O O X X X
68.33 102.50 O O O X X O
70.00 105.00 O O O O O X
72.00 108.00 O O O O O O
75.00 112.50 O O O O X X
77.00 115.50 O O O O X O
83.00 83.00 O O X X O X
90.00 90.00 O O X X O O
100.30 100.30 O O X X X X
103.00 103.00 O O X X X O
112.50 112.50 O O X O O X
115.00 115.00 O O X O O O
120.00 120.00 O O X O X X
125.00 125.00 O O X O X O
128.00 128.00 O X O X O X
130.00 130.00 O X O X O O
133.70 133.70 O X O X X X
137.00 137.00 O X O X X O
140.00 140.00 O X O O O X
145.00 145.00 O X O O O O
150.00 150.00 O X O O X X
153.00 153.00 O X O O X O
125.00 93.75 O X X X O X
130.00 97.50 O X X X O O
133.70 100.28 O X X X X X
137.00 102.75 O X X X X O
140.00 105.00 O X X O O X
145.00 108.75 O X X O O O

CPU Speed Setup
8
CPU SDRAM 1 2 3 4 5 6
150.00 112.50 O X X O X X
153.33 115.00 O X X O X O
Auto Configuration:
CPU SDRAM
66 100
100 100
¹133 133
The following setting is suggested while using 133MHz FSB CPU with 100MHz system
memory:
CPU SDRAM 1 2 3 4 5 6
133.70 100.28 O X X X X X
0
00
0Note: Please set the CPU host frequency in accordance with your processor’s
specifications. We don’t recommend you to set the system bus frequency over
the CPU’s specification because these specific bus frequencies are not the
standard specifications for CPU, chipset and most of the peripherals. Whether
your system can run under these specific bus frequencies properly will depend
on your hardware configurations, including CPU, Chipsets, SDRAM,
Cards….etc.

6OX Motherboard
9
Connectors
ATX Power
Pin No. Definition
3,5,7,13,15-17 GND
1,2,11 3.3V
4,6,19,20 VCC
10 +12V
12 -12V
18 -5V
8 Power Good
9 5V SB stand by+5V
14 PS-ON(Soft On/Off)
11
10 1
20
COM A / COM B / LPT Port
COM A
LPT Port
COM B

Connectors
10

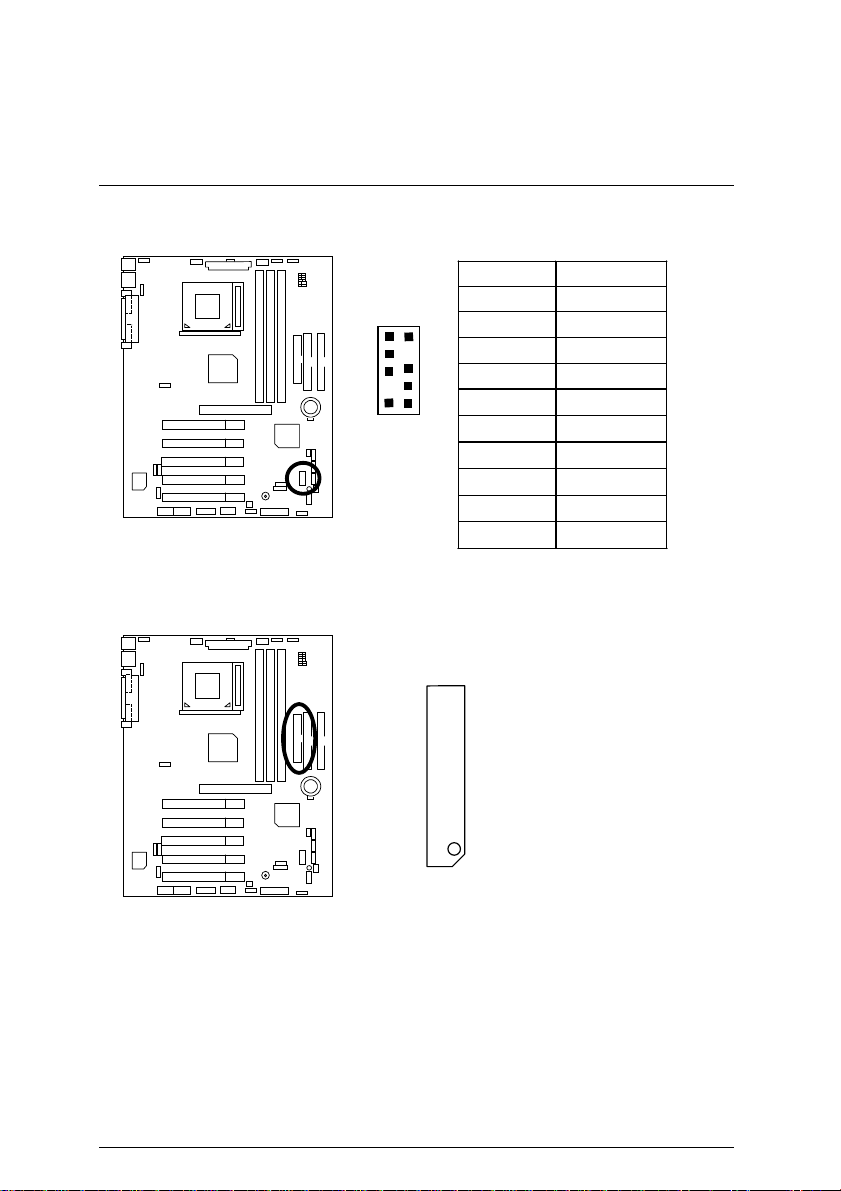

CN9: Front USB Port
9
1
10
2
Pin No. Definition
1 +5V
2 GND
3 USB D2-
4 NC
5 USB D2+
6 USB D3+
7 NC
8 USB D3-
9 GND
10 +5V
Floppy Port
Red Line

6OX Motherboard
11

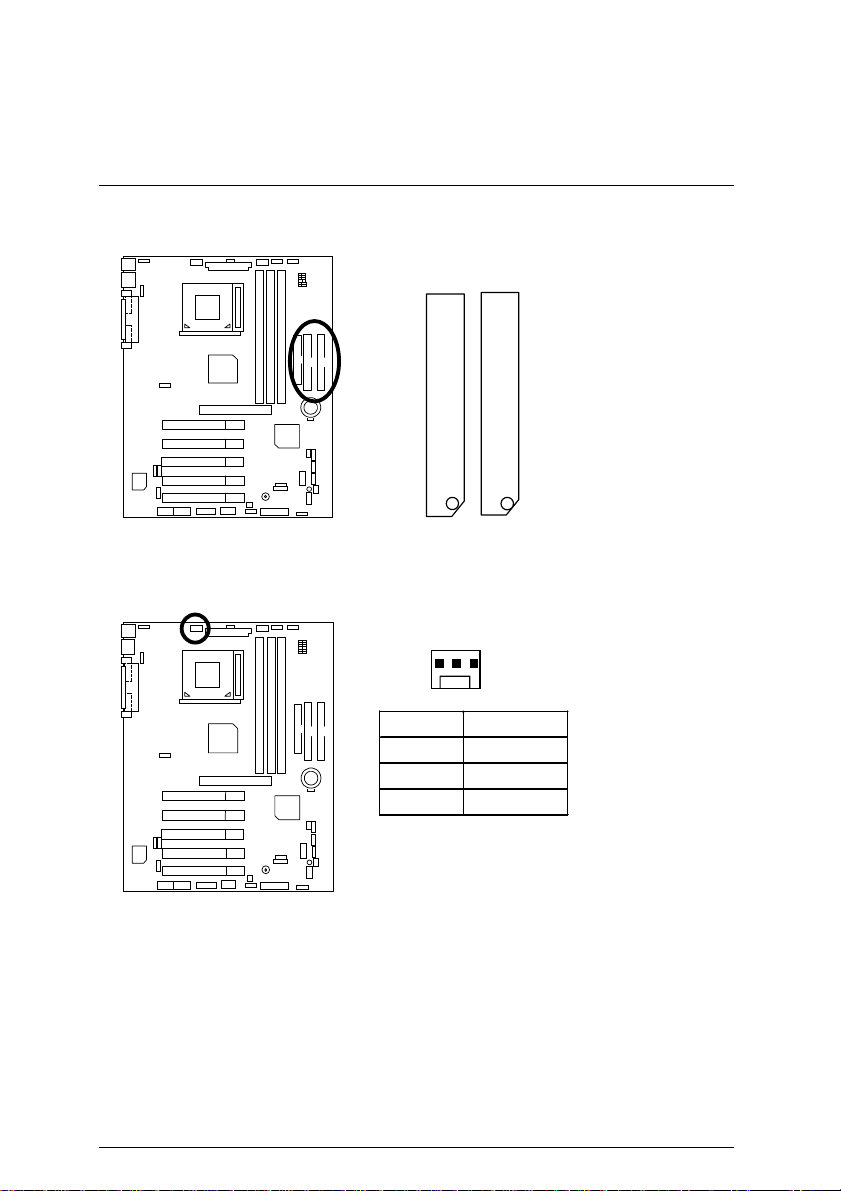

IDE1 (Primary), IDE2 (Secondary) Port
IDE 2 IDE 1
Red Line
J1: CPU Fan
Pin No. Definition
1 Control
2 +12V
3 SENSE
1

Connectors
12
J2: Power Fan
Pin No. Definition
1 Control
2 +12V
3 SENSE
1
J10: Extra SMBUS
1
Pin No. Definition
1 SMB CLK
2 NC
3 GND
4 SMB DATA
5 +5V

6OX Motherboard
13

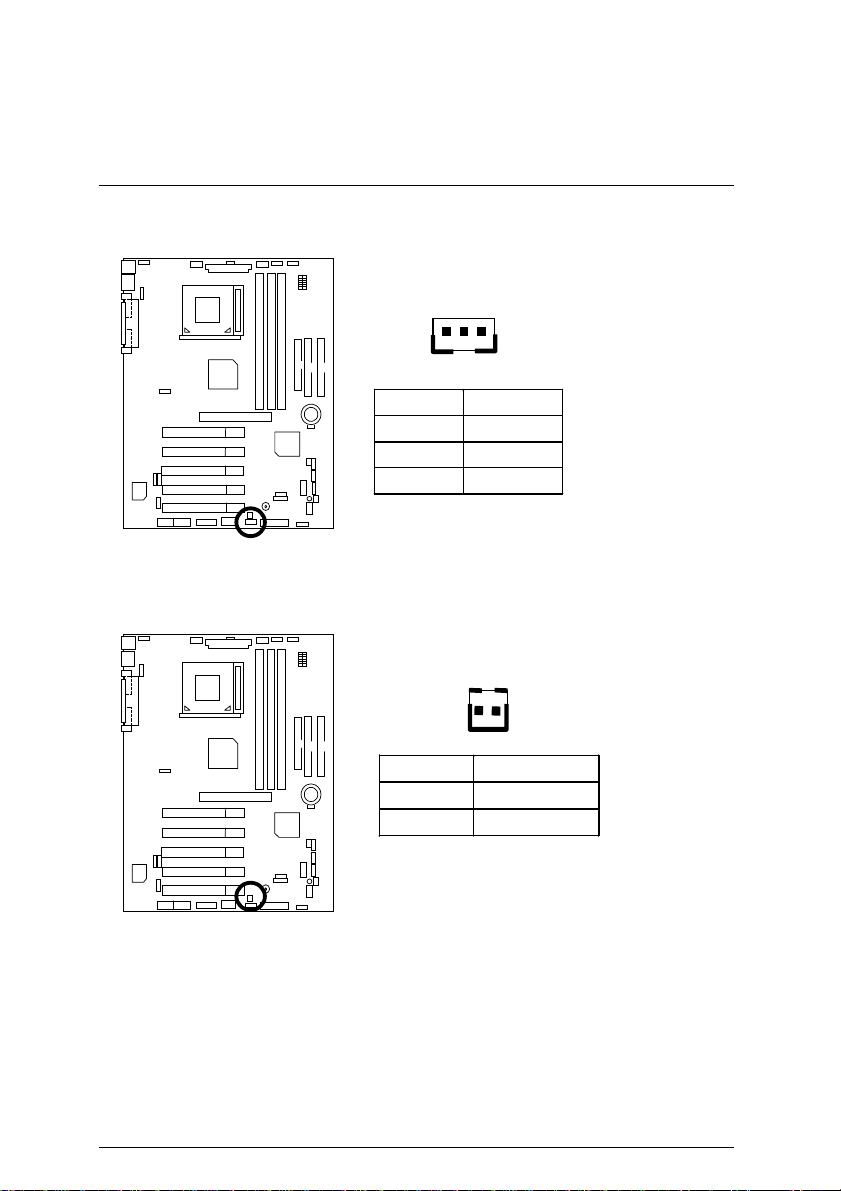

J12: Wake On LAN
Pin No. Definition
1 +5V SB
2 GND
3 Signal
1
J13: Ring Power On (Internal Modem Card Wake Up)
Pin No. Definition
1 Signal
2 GND
1
