CE marking (EC conformity marking)
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
EN 60065 Safety requirements for mains operated EN 60950 Safety for information technology equipment
electronic and related apparatus for including electrical business equipment
household and similar general use
EN 60335 Safety of household and similar EN 50091-1 General and Safety requirements for
electrical appliances uninterruptible power systems (UPS)
Manufacturer/Importer
Signature : Rex Lin
(Stamp) Date: Nov. 22, 2000 Name : Rex Lin

6OXC Series
Socket 370 Processor Motherboard
USER'S MANUAL
Socket 370 Processor Motherboard
REV. 1.0 First Edition
R-10-01-001113

How This Manual Is Organized
This manual is divided into the following sections:
1) Revision History Manual revision information
2) Item Checklist Product item list
3) Features Product information & specification
4) Hardware Setup Instructions on setting up the motherboard
5) Performance & Block Diagram Product performance & block diagram
6) Suspend to RAM Instructions STR installation
7) Four Speaker & SPDIF Four Speaker & SPDIF introduction
8) @ BIOSTM & EasyTuneIIITM @ BIOSTM & EasyTuneIIITM introduction
9) BIOS Setup Instructions on setting up the BIOS
software
10) Appendix General reference

Table Of Content
Revision History P.1
Item Checklist P.2
Summary of Features P.3
6OXC Series Motherboard Layout P.5
Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition P.6
Performance List P.33
Block Diagram P.34
Suspend to RAM Installation (Optional) P.35
Introduce Dual BIOS (Optional) P.41
Four Speaker & SPDIF Introduction (Optional) P.48
@ BIOSTM Introduction P.53
EasyTuneIIITM Introduction P.54
Memory Installation P.55
Page Index for BIOS Setup P.56
Appendix P.93

6OXC Series Motherboard
1
Revision History
Revision Revision Note Date
1.0 Initial release of the 6OXC Series motherboard user’s
manual. Nov.2000
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.
Nov. 13, 2000 Taipei, Taiwan, R.O.C

Item Checklist
2
Item Checklist
The 6OXC Series motherboard
Cable for IDE / floppy device
Diskettes or CD (IUCD) for motherboard driver & utility
6OXC Series user’s manual

6OXC Series Motherboard
3
Summary Of Features
Form Factor  30.5 cm x 21.5 cm ATX Size form factor, 4 layers PCB
Motherboard  6OXC series includes 6OXC, 6OXC-1
CPU  Socket 370 processor
Intel Pentium!!! 100/133MHz FSB, FC-PGA
Intel CeleronTM 66MHz FSB, FC-PGA
 L2 cache in CPU (Depend on CPU)
Chipset  Intel 815EP HOST / AGP / SDRAM Controller
 82801AA I/O Controller Hub (ICH)
Clock Generator  Realtek RTM560-25
 66/100/133 MHz system bus speeds
Memory  3 168-pin DIMM sockets
 Supports PC-100 / PC-133 SDRAM
 Supports up to 512MB(Max)
 Supports only 3.3V SDRAM DIMM
I/O Control  IT8712
Slots  1 AGP Slot Supports 4Xmode & AGP 2.0 compliant
 6 PCI Slots Supports 33MHz &PCI 2.2 compliant
 1 AMR (Audio Modem Riser) Slot
On-Board IDE  Supports PIO mode 3, 4, UDMA33/ATA66 IDE & ATAPI
CD-ROM
 2 IDE bus master (UDMA 33/ ATA 66) IDE ports for up
to 4 ATAPI devices
On-Board
Peripherals
 1 floppy port supports 2 FDD with 360K, 720K, 1.2M,
1.44M and 2.88M bytes
 1 parallel ports supports SPP/EPP/ECP mode
 2 serial ports (COM A & COM B)
 2 USB ports
 1 IrDA connector for IR/CIR
Hardware Monitor  CPU/Power/System fan revolution detect
 CPU temperature detect
 System voltage detect
 CPU overheat shutdown detect
To be continued…

Summary of Features
4
On-Board Sound  Creative CT5880 sound (Optional)
 AC’97 CODEC (Optional)
 Line In / Line Out / Mic In / AUX In / CD In / TEL /
SPDIF/Game Port / Four Speaker (Optional)
PS/2 Connector  PS/2 keyboard interface and PS/2 mouse interface
BIOS  Licensed AWARD BIOS, 2M bit flash ROM
 Support Dual BIOS (Optional)
Additional Features  Supports Wake-on-LAN (WOL)
 STR (Suspend-To-RAM) (Optional)
 Supports Internal / External modem wake up
 Includes 3 fan power connectors
 Poly fuse for keyboard over-current protection
 Support @BIOS™ and EasyTuneIII™

6OXC Series Motherboard
5
6OXC Series Motherboard Layout
PS/2
USB
COM
A
COM B LPT
J1
JP1
JP3
JP5
JP9
FW82815EP
CN7
JP30
J5 J6 J7
AGP
Game & Audio
DIMM1
DIMM2
DIMM3
JP4 LED1
JP6
JP7
J2
A
TX Powe
r
Floppy
IDE1
IDE2
SW1
BZ1
JP13
JP12
J10
J11
JP14
JP15
AC97
Creative
CT5880
JP28
JP16
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
JP22
JP24 AMR JP23 J12
J13
J15
J14 CN12 CN9
Main
BIOS
Backup
BIOS
JP19
JP18
JP21
JP20
ICH82801
BAT1
PGA 370
CPU
JP29
RTM560-25
W81181D
IT8712

6OXC Series Motherboard Layout
6

Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Page
CPU Speed Setup P.8
Connectors P.10
ATX Power P.10

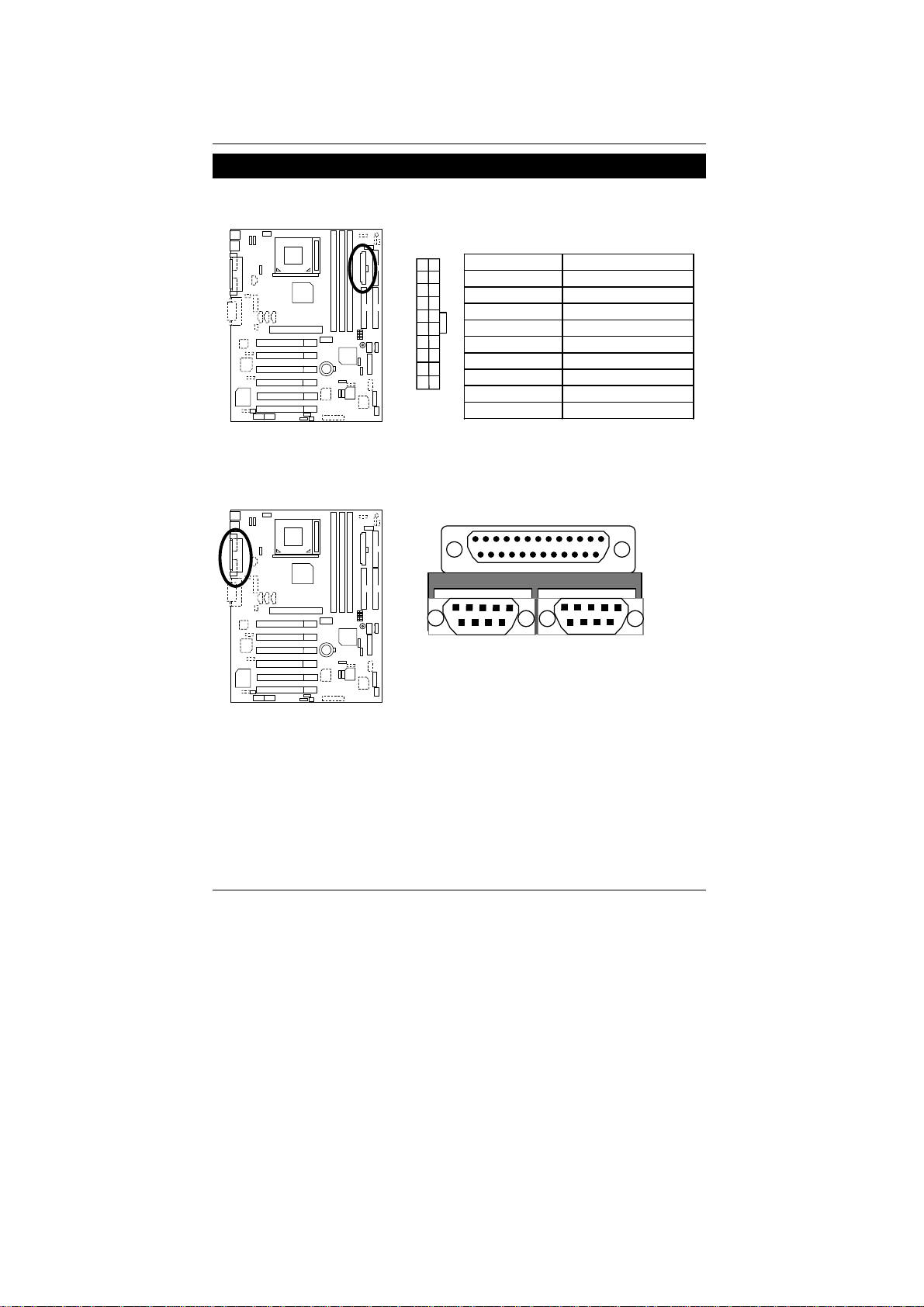

COM A / COM B / LPT Port P.10

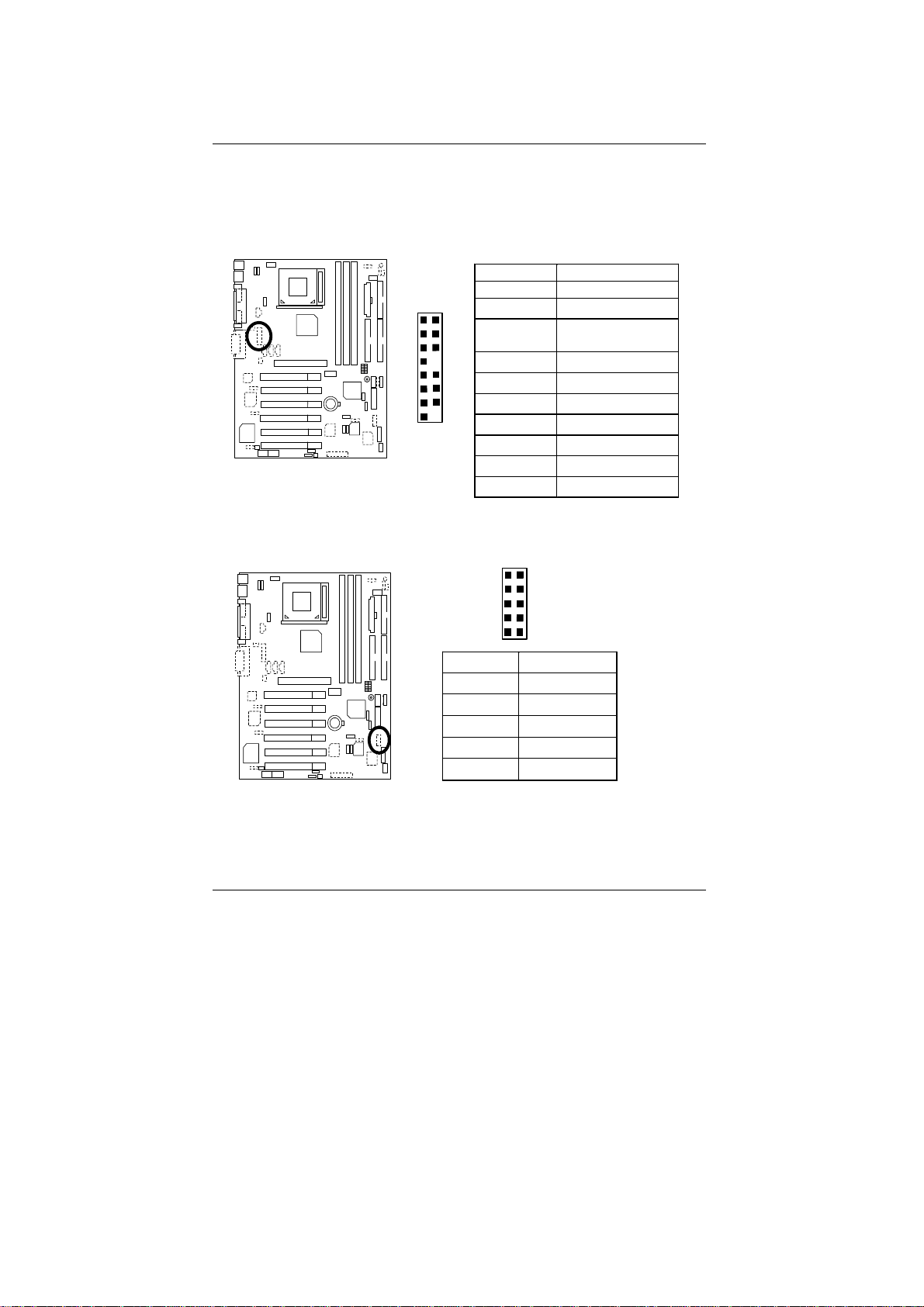

CN7 (Front Audio) [Optional] P.11
CN9 (Front USB Port) [Optional] P.11
CN12 (SCR) P.12
Floppy Port P.12

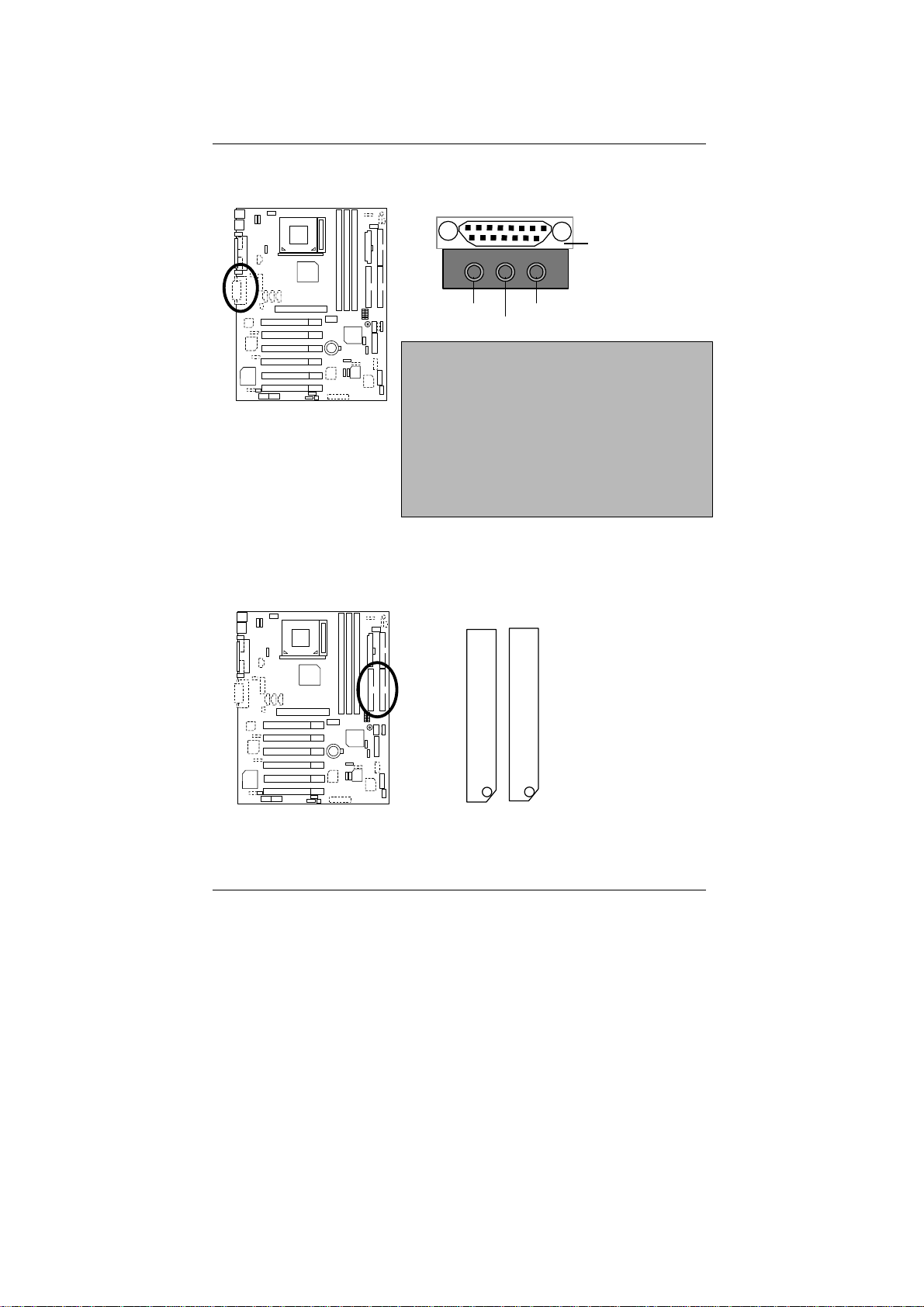

Game & Audio Port [Optional] P.13

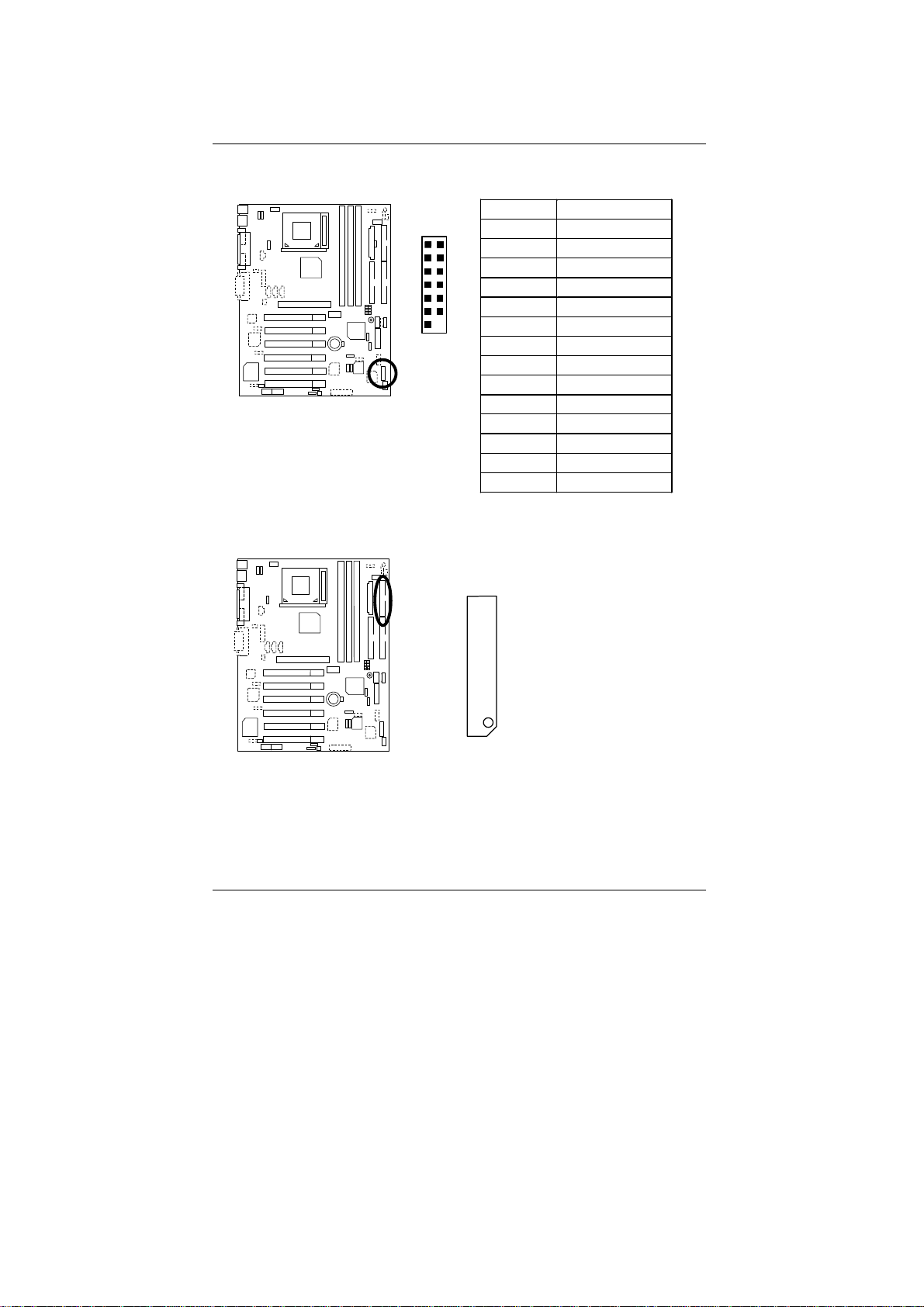

IDE 1(Primary)/ IDE 2(Secondary) Port P.13
J1 (CPU Fan) P.14
J2 (Power Fan) P.14
J5 (CD Audio Line In) [Optional] P.15
J6 (AUX_IN) [Optional] P.15
J7 (TEL) [Optional] P.16
J10 (Extra SMBUS) P.16
J12 (Wake on LAN) P.17
J13 (Ring Power On) P.17
J14 (System Fan) P.18
J15 (IA Port) [Optional] P.18
JP7 (STR LED Connector) & LED 1 (DIMM LED) [Optional] P.19
JP9 (SPDIF) [Optional] P.19
JP13 (IR/CIR) P.20
PS/2 Keyboard &PS/2 Mouse Connector P.20
USB Connector P.21
Panel and Jumper Definition P.22
J11 (2x11 Pins Jumper) P.22
JP1 (Rear USB Device Wake up Selection) P.23
JP3 (PS/2 Keyboard Power On) P.23
JP4 (STR Enable) [Optional] P.24
JP5 (Over Voltage CPU Speed up) P.24
JP6 (DIMM Over Voltage) [Optional] P.25
JP12 (Internal Buzzer Connector) [Optional] P.25
JP14 (Timeout Reboot Function) P.26
JP15 (Safe mode / Recovery / Normal) P.26
To Be Continued

6OXC Series Motherboard
7
JP16 (Onboard Sound Function Selection) [Optional] P.27
JP18 (Clear CMOS Function) P.27
JP19 (Front USB Device Wake up Selection) [Optional] P.28
JP20 (FWH Flash Write Protection) P.28
JP21 (Top Block Lock) P.29
JP22 (Case Open) P.29
JP23 (PCI/AGP 3VAUX) P.30
JP24 (AMR Selection) [Optional] P.30
JP28 (On board CODEC Function Selection) [Optional] P.31
JP29 (SPDIF Function Selection) [Optional] P.31
JP30 (Front MIC Selection) [Optional] P.32
BAT1 (Battery) P.32

CPU Speed Setup
8
CPU Speed Setup
Thesystembusspeedisselectableat 55~153MHz. The user can selectthesystembusspeedby
DIP switch SW1.
SW1: O : ON, X : OFF
CPU SDRAM 1 2 3 4 5 6
Auto Auto X X X X X X
55.00 82.50 O O O X O X
60.00 90.00 O O O X O O
66.80 100.20 O O O X X X
68.33 102.50 O O O X X O
70.00 105.00 O O O O O X
72.00 108.00 O O O O O O
75.00 112.50 O O O O X X
77.00 115.50 O O O O X O
83.30 83.30 O O X X O X
90.00 90.00 O O X X O O
100.30 100.30 O O X X X X
103.00 103.00 O O X X X O
112.50 112.50 O O X O O X
115.00 115.00 O O X O O O
120.00 120.00 O O X O X X
125.00 125.00 O O X O X O
128.00 128.00 O X O X O X
130.00 130.00 O X O X O O
133.70 133.70 O X O X X X
137.00 137.00 O X O X X O
140.00 140.00 O X O O O X
145.00 145.00 O X O O O O
150.00 150.00 O X O O X X
153.33 153.33 O X O O X O
125.00 93.75 O X X X O X
130.00 97.50 O X X X O O
133.70 100.28 O X X X X X
137.00 102.75 O X X X X O
140.00 105.00 O X X O O X
145.00 108.75 O X X O O O

6OXC Series Motherboard
9
CPU SDRAM 1 2 3 4 5 6
150.00 112.50 O X X O X X
153.33 115.00 O X X O X O
Auto Configuration:
CPU SDRAM
66 100
100 100
133 133
The following setting is suggested while using 133MHz FSB CPU with 100MHz system
memory:
CPU SDRAM 1 2 3 4 5 6
133.70 100.28 O X X X X X


Note: Please set the CPU host frequency in accordance with your processor’s
specifications. We don’t recommend you to set the system bus frequency over
the CPU’s specification because these specific bus frequencies are not the
standard specifications for CPU, chipset and most of the peripherals. Whether
your system can run under these specific bus frequencies properly will depend
on your hardware configurations, including CPU, Chipsets, SDRAM,
Cards….etc.

Connectors
10
Connectors
ATX Power
Pin No. Definition
3,5,7,13,15-17 GND
1,2,11 3.3V
4,6,19,20 VCC
10 +12V
12 -12V
18 -5V
8 Power Good
9 5V SB stand by+5V
14 PS-ON(Soft On/Off)
11
10
1
20
COMA/ COM B / VGA/ LPT Port
COM A
LPT Port
COM B

6OXC Series Motherboard
11
CN7: FrontAudio (Optional)
If the user do not need to use Front Audio connector, please set jumper
11-12 close & 13-14 close.
15
1
16
2
Pin No. Definition
1 Incase speaker (R)
2 Incase speaker (L)
3,4,5,6,
10,15 GND
7 +12V
8,16 NC
9 MIC
11 Front Audio (R)
13 Front Audio (L)
12 Rear Audio (R)
14 Rear Audio (L)
CN9: Front USB Port (Optional)
Pin No. Definition
1,10 +5V
2,9 GND
3,5 USBP0+/-
4,7 NC
6,8 USBP1+/-
9
1
10
2

Connectors
12
CN12: SCR: Smart Card Reader
Pin No. Definition
1 VCC
2 NC
3 NC
4 NC
5 SCRFET
6 SCRRST
7 SCRCLK
8 NC
9 NC
10 SCRIO
11 GND
12 SCRPRES
13 NC
14 NC
13
1
14
2
Floppy Port
Red Line

6OXC Series Motherboard
13
Game &Audio Port (Optional)
Line Out 1: Line Out or SPDIF (The SPDIF output is
capable of providing digital audio to external speakers
or compressed AC3 data to an external Dolby digital
decoder). In general, Line Out 1 is normally Line Out,
when it output digital signal, it will be change to SPDIF
Out automatically (see page 50 for more information).
Line In: In general, Line In is normally Line In. When
you select “Four Speaker” in Creative application
(see page 48 for more information), Line In will be
change to Line Out 2, then you can plug 2 pairs stereo
speaker into Line Out 1 and Line In simultaneously.
MIC In
Game
Port
Line In
Line Out 1
IDE1 (Primary), IDE2 (Secondary) Port
IDE 2 IDE 1
Red Line
