USER’S MANUAL
GA-8SIMLFS
P4 Titan-DDR Motherboard
Pentium®4 Processor Motherboard
Rev 2001

- 2 -GA-8SIMLFS Motherboard
English
Table of Content
WARNING! ............................................................................................... 3
Chapter 1 Introduction ............................................................................. 4
Features Summary ...................................................................................... 4
GA-8SIMLFS Motherboard Layout ............................................................. 6
Chapter 2 Hardware Installation Process ................................................ 7
Step 1: Install the Central Processing Unit (CPU)....................................... 8
Step 1-1 : CPU Installation.......................................................... 8
Step 1-2 : CPU Heat Sink Installation ......................................... 9
Step 2: Install memory modules ................................................................ 10
Step 3: Install expansion cards ................................................................. 11
Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 12
Step 4-1 : I/O Back Panel Introduction ..................................... 12
Step 4-2 : Connectors Introduction .......................................... 14

Introduction
English
- 3 -
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove theATX
power connector on the motherboard.
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are
no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting
holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful
of your hands). In this way you can still attach the motherboard to the base without worrying about short
circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard
PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the
board or cause board malfunctioning.
Installing the motherboard to the chassis…
WARNING!

- 4 -GA-8SIMLFS Motherboard
English
Chapter 1 Introduction
to be continued......
Features Summary
Form Factor y22.9cm x 24.3cm Micro ATX size form factor, 4 layers PCB.
CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor
y Support Intel ®Pentium ®4 (Northwood, 0.13 m) processor
yIntel Pentium®4 400MHz FSB
y2nd cache depends on CPU
Chipset ySiS 650GX Host/Memory controller
ySiS 961 MuTIOL Media I/O
Memory y2 184-pin DDR DIMM sockets
ySupports DDR266/200 SDRAM
ySupports up to 2 un-buffer Double-sided DIMM DDR266/200
ySupports up to 2GB DDR DRAM (Max)
ySupports only 2.5V DDR DIMM
ySupports 64bit DRAM integrity mode
I/O Control yW83697HF
Slots y1 Universal AGP slot (1X/2X/4X) device support
y3 PCI slot supports 33MHz & PCI 2.2 compliant
y1 CNR(Communication and Networking Riser) Slot
On-Board IDE y2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for up to 4
ATAPI devices
ySupports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE & ATAPI
CD-ROM
On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
y1 Parallel port supports Normal/EPP/ECP mode
y1 Serial port (COMA),1 VGA port,COMB on board
y4 USB ports (Rear USB x 2,by optional cable)
y1 FrontAudio Connector
y1 Serial IRQ Connector
y1 IrDA connector for IR

Introduction
English
- 5 -
Please set the CPU host frequency in accordance with your processor’s specifications.
We don’t recommend you to set the system bus frequency over the CPU’s specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,SDRAM,Cards….etc.
Hardware Monitor yCPU/System Fan Revolution detect
yCPU/System Fan Control
yCPU Overheat Warning
ySystem Voltage Detect
On-Board Sound yAC97 CODEC
yLine In/Line Out/Mic In/CD In /Game Port
On-Board LAN yBuilit in RTL8100L Chipset
y1 RJ45 port
On-Board VGA yBuilit in SiS650GX Chipset
PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interace
BIOS yLicensed Award BIOS, 2M bit Flash ROM
Additional Features yPS/2 Keyboard power on by password
yPS/2 Mouse power on
ySTR(Suspend-To-RAM)
yAC Recovery
yUSB KB/Mouse wake up from S3

- 6 -GA-8SIMLFS Motherboard
English

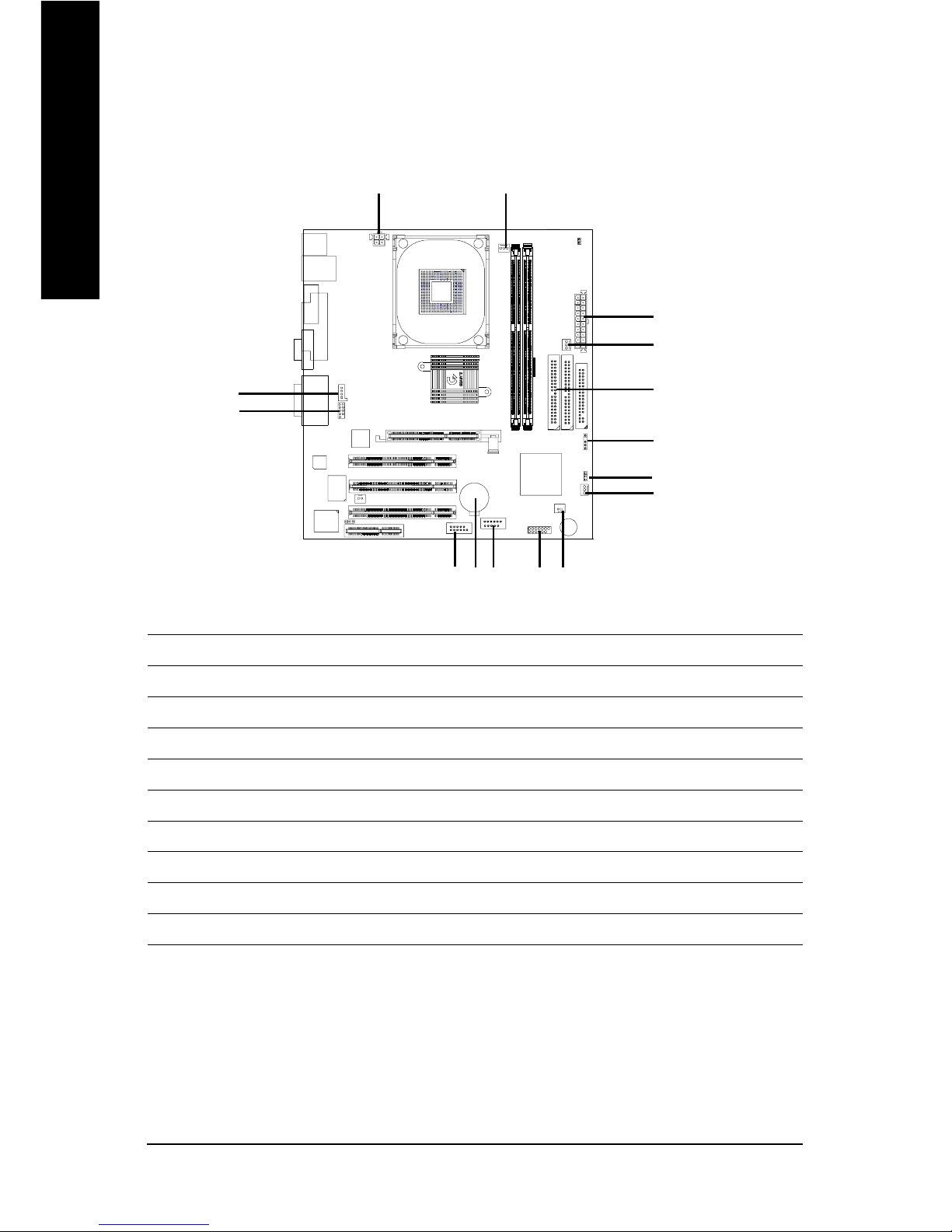

GA-8SIMLFS Motherboard Layout

- 7 - Hardware Installation Process
English
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Step 5- Setup BIOS software
Step 6- Install supporting software tools
Chapter 2 Hardware Installation Process
Step 2
Step4
Step3
Step 4
Step 4
Step1

- 8 -GA-8SIMLFS Motherboard
English
Step 1: Install the Central Processing Unit (CPU)
Step 1-1 : CPU Installation
Pin1 indicator Pin1 indicator
CPU Top View CPU Bottom View
Socket Actuation Lever
1. Pull up the CPU socket lever
and up to 90-degree angle.
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
3. Press down the CPU socket
lever and finish CPU installation.


Please make sure the CPU type is supported by the motherboard.


If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.

- 9 - Hardware Installation Process
English
Step 1-2: CPU Heat Sink Installation
1. Hook one end of the cooler
bracket to the CPU socket first.
2. Hook the other end of the
cooler bracket to the CPU
socket.


Please use Intel approved cooling fan.


We recommend you to apply the thermal tape to provide better heat
conduction between your CPU and heatsink.
(The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you
might pull the processor out of the CPU socket alone with the cooling fan, and
might damage the processor. To avoid this from happening, we suggest you to
either use thermal tape instead of thermal paste, or remove the cooling fan with
extreme caution.)


Make sure the CPU fan power cable is plugged in to the CPU fan connector,
this completes the installation.


Please refer to CPU heat sink user’s manual for more detail installation
procedure.

- 10 -GA-8SIMLFS Motherboard
English


Please note that the DIMM module can only fit in one direction due to the one
notches. Wrong orientation will cause improper installation. Please change
the insert orientation.
DDR
1. The DIMM slot has a notch, so the
DIMMmemory module can only fit in one direction.
2. Insert the DIMM memory module verticallyinto the
DIMM slot. Then push it down.
3. Close the plastic clip at both edges of theDIMM slots
to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.
Step 2: Install memory modules
The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot
.The DIMM module can only fit in one direction due to the notch. Memory size can vary between
sockets.
Total Memory Sizes With Unbuffered DDR DIMM
Devices used on DIMM 1 DIMM x 64 / x 72 2 DIMMs x 64 / x 72
64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes
64 Mbit (1Mx16x4 banks) 32 MBytes 64 MBytes
128 Mbit(4Mx8x4 banks) 256 MBytes 512 MBytes
128 Mbit(2Mx16x4 banks) 64 MBytes 128 MBytes
256 Mbit(8Mx8x4 banks) 512 MBytes 1 GBytes
256 Mbit(4Mx16x4 banks) 128 MBytes 256 MBytes
512 Mbit(16Mx8x4 banks) 1 GBytes 2 GBytes
512 Mbit(8Mx16x4 banks) 256 MBytes 512 MBytes

- 11 - Hardware Installation Process
English
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
AGP Card
Please carefully pull out the small
white- drawable bar at the end of
the AGP slot when you try to install/
Uninstall the AGP card. Please
align the AGP card to the onboard
AGP slot and press firmly down on
the slot .Make sure your AGP card
is locked by the small white-
drawable bar.
Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a
high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and
system integrators.
DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing
SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by
doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration path from
existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR
memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of
the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock
frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build
high performance and low latency DRAM subsystems that are suitable for servers, workstations, high-
end PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to
conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops
and notebook applications.
DDR Introduction

- 12 -GA-8SIMLFS Motherboard
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step4-1:I/O Back Panel Introduction
XX
XX
XPS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2 keyboard
and PS/2 mouse.
X
YZ [
\
YUSB & LAN Connector Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker..etc. Have a standard USB interface.Also
make sure your OS (Win 95 with USB supplement,
Win98, Windows 2000, Windows ME, Win NT
with SP 6) supports USB controller. If your OS
does not support USB controller, please contact
OS vendor for possible patch or driver upgrade.
For more information please contact your OS or
device(s) vendors.
USB 0
USB 1
LAN
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)

- 13 - Hardware Installation Process
English
[Game /MIDI Ports
\Audio Connectors
This connector supports joystick, MIDI keyboard
and other relate audio devices.
After install onboard audio driver, you may
connect speaker to Line Out jack, micro phone to
MIC In jack. Device like CD-ROM , walkman etc
can be connected to Line-In jack.
Line In
MIC In
Line Out
ZParallel Port , Serial Port and VGA Port (LPT/COMA/VGA)
This connector supports 1 standard COM port
,1 Parallel port and 1 VGA port. Device like
printer can be connected to Parallel port ; mouse
and modem etc can be connected to Serial ports.
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
Joystick/ MIDI (15 pin Female)

- 14 -GA-8SIMLFS Motherboard
English
Step4-2: Connectors Introduction
A) ATX_12V K) F_USB
B) CPU_FAN L) BATTERY
C) ATX M) COMB
D) PWR_FAN N) F_AUDIO
E) FDD/IDE1/IDE2 O) CD_IN
F) IR
G) CLR_CMOS
H) SYS_FAN
I) CI
J) F_PANEL
C
E
F
G
H
A B
D
IJLM K
N
O

- 15 - Hardware Installation Process
English
B ) CPU_FAN (CPU FAN Connector)
1
+12V/Control
Sense
GND
This connector (ATX +12V) suppliesthe CPU
operation voltage (Vcore).
If this " ATX+ 12V connector" is not connected,
system cannot boot.
A) ATX_12V ( +12V Power Connector)
Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating.The CPU fan connector
supports Max. current up to 600 mA.
H ) SYS_FAN (System FAN Connector)
4
+12V
GND
+12V
GND
3
2
1
D )PWR_FAN (Power FAN Connector)
1+12V/Control
Sense
GND 1+12V/Control
Sense
GND
I) CI (CASE OPEN) This 2 pin connector allows your system to
enable or disable the system alarm if the sys
tem case begin remove.
1
Signal
GND

- 16 -GA-8SIMLFS Motherboard
English
E ) FDD/ IDE1/ IDE2 (IDE1 / IDE2 / Floppy Connector)
1
Important Notice:
Please connect first harddisk to IDE1
and connect CDROM to IDE2.
N ) F_AUDIO (Front Audio Connector)
If you want to use "Front Audio" connector, you must move 5-6,9-10 Jumper. In order to
utilize the front audio header, your chassis must have front audio connector. Also please make
sure the pin assigment on the cable is the same as the pin assigment on the MB header. To find
out if the chassis you are buying support front audio connector, please contact your dealer.
IDE1
1
IDE2
1
FDD
O ) CD_IN (CD Audio Line In)
Front Audio (L)
1
Reserved
GND
RearAudio (R)
Rear Audio (L)
FrontAudio (R)
2
910
MIC
REF
POWER
1CD-L
CD-R
GND
L) Battery
+
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.

- 17 - Hardware Installation Process
English
C ) ATX (ATX Power) AC power cord should only be connected to
your power supply unit after ATX power cable
and other related devices are firmly
connected to the mainboard.
PS-ON(Soft On/Off)
3.3V
3.3V
GND
GND
GND
VCC
VCC
+12V
5V SB (Stand by +5V)
Power Good
3.3V
GND
GND
GND
GND
VCC
VCC
-12V
1
20
-5V
Be careful with the polarity of the front
panel USB connector. Check the pin
assignment while you connect the front panel
USB cable. Please contact your nearest dealer
for optional front panel USB cable.
K ) F_USB (Front USB Connector)
GND
USB Dy+
USB Dx+
GND
USB Over Current
USB Dx-
Power
1
Power
USB Dy-

- 18 -GA-8SIMLFS Motherboard
English
M ) COM B
1
NDCDB-
NRTSB-
NSOUTB
GND
NRIB-
NSINB NDTRB-
NDSRB-
NCTSB-
NC
Be careful with the polarity of the IR
connectorwhile you connect the IR. Please
contact you nearest dealer for optional IR
device.
F)IR
VCC(+5V)
IR Data Input
GND
IR Data Output
1
G ) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default
values by this jumper.
2-3 close: Normal
1
1
1-2 close: Clear CMOS

- 19 - Hardware Installation Process
English
J) F_PANEL (2x7 pins jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment above.
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
SPK (Speaker Connector) Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
RST (Reset Switch) Open: Normal Operation
Close: Reset Hardware System
PD+/PD_G-/PD_Y-(Power LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
Pin 3: LED cathode(-)
PW (Soft Power Connector) Open: Normal Operation
Close: Power On/Off
HD+
PD_Y-
214
113
PD+
PW-
PW+
RST-
SPK+
SPK-
1
1
RST+
HD-
PD_G-

- 22
-
GA-8SIML Motherboard
English
<Ç> Movetopreviousitem
<È> Movetonextitem
<Å> Movetotheiteminthelefthand
<Æ> Movetotheitemintherighthand
<Esc> MainMenu-QuitandnotsavechangesintoCMOSStatusPageSetupMenuand
OptionPageSetupMenu-ExitcurrentpageandreturntoMainMenu
<+/PgUp> Increasethenumericvalueormakechanges
<-/PgDn> Decreasethenumericvalueormakechanges
<F1> Generalhelp,onlyforStatusPageSetupMenuandOptionPageSetupMenu
<F2> Reserved
<F3> Reserved
<F4> Reserved
<F5> Reserved
<F6> Reserved
<F7> Reserved
<F8> DualBIOS/Q-Flashfunction
<F9> Reserved
<F10> Saveall the CMOSchanges, only forMain Menu
BIOSSetupisanoverviewoftheBIOSSetupProgram.Theprogramthatallowsuserstomodifythe
basicsystemconfiguration.Thistypeofinformationisstoredinbattery-backedCMOSRAMsothatit
retainstheSetupinformationwhenthepoweristurnedoff.
Chapter 3 BIOSSetup
ENTERING
PowerONthecomputerandpress<Del>immediatelywillallowyoutoenterSetup.
CONTROL
SETUP
KEYS
