6VXC7-4X
Socket 370 Processor Motherboard
USER'S MANUAL
Socket 370 Processor Motherboard
REV. 1.1 First Edition
R-11-01-000503

How This Manual Is Organized
This manual is divided into the following sections:
1) Revision History Manual revision information
2) Item Checklist Product item list
3) Features Product information & specification
4) Hardware Setup Instructions on setting up the motherboard
5) Performance & Block Diagram Product performance & block diagram
6) BIOS Setup Instructions on setting up the BIOS
software
7) Appendix General reference

Table Of Content
Revision History P.1
Item Checklist P.2
Summary of Features P.3
6VXC7-4X Motherboard Layout P.5
Page Index for CPU Speed Setup / Connectors / Panel and Jumper
Definition P.6
Performance List P.25
Block Diagram P.26
Memory Installation P.27
Page Index for BIOS Setup P.28
Appendix P.56

6VXC7-4X Motherboard
1
Revision History
Revision Revision Note Date
1.1 Initial release of the 6VXC7-4X motherboard user’s
manual. May.2000
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.
May. 3, 2000 Taipei, Taiwan, R.O.C

Item Checklist
2
Item Checklist
The 6VXC7-4X motherboard
Cable for IDE / floppy device
Diskettes or CD (TUCD) for motherboard driver & utility
Internal COM B Cable (Optional)
Internal USB Cable (Optional)
Cable for SCSI device
6VXC7-4X user’s manual

6VXC7-4X Motherboard
3
Summary Of Features
Form Factor  30.5 cm x 18.0 cmATX size form factor, 4 layers PCB.
CPU  Socket 370 processor
Intel Pentium!!! 100/133MHz FSB, Coppermine core FC-PGA
Intel CeleronTM 100MHz FSB, Mendocimo core PPGA
Intel CeleronTM 66MHz FSB, Mendocimo core PPGA
VIACyrixIII 133MHz FSB, PPGA(Optional)
 2nd cache in CPU (Depend on CPU)
Chipset  VT82C694X (VIAApollo Pro 133A)
 VT82C686A
Clock Generator  ICS 9248DF-39
 66/100/133 MHz system bus speeds (PCI 33MHz)
 75/83/112/124/140/150 MHz system bus speeds
(PCI 44MHz) (reserved)
Memory  3 168-pin DIMM sockets.
 Supports PC-100 / PC-133 SDRAM and VCM SDRAM
 Supports up to 1.5GB DRAM
 Supports only 3.3V SDRAM DIMM
 Supports 72bit ECC type DRAM integrity mode.
I/O Control  VT82C686A
Slots  1AGP slot supports 4X mode &AGP2.0 compliant
 5 PCI slot supports 33MHz & PCI 2.2 compliant
 1AMR(Audio Modem Riser) slot
 1 16-bit ISABus slots
On-Board IDE  2 IDE bus master (DMA33/ATA66 )IDE ports for up
to 4ATAPI devices
 Supports PIO mode 3, 4 (UDMA33/ATA66) IDE &
ATAPI CD-ROM
On-Board
Peripherals
 1 floppy port supports 2 FDD with 360K, 720K,1.2M,
1.44M and 2.88M bytes
 1 parallel ports supports SPP/EPP/ECP mode
 2 serial ports (COMA& COM B)
 2 USB ports
 1 IrDAconnector for Fast IrDA To be continued…

Summary of Features
4
Hardware Monitor  CPU / System fan revolution detect
 CPU / System temperature detect
 System voltage detect (Vcore,Vcc3,Vcc,+12V)
 CPU overheat shutdown detect
PS/2 Connector  PS/2Keyboard interface and PS/2Mouse interface
BIOS  LicensedAMI BIOS, 2M bit flash ROM
Additional Features  Support Wake-On-LAN (WOL)
 Support Internal / External Modem Ring On.
 Includes 3 fan power connectors.
 Poly fuse for keyboard over-current protection

6VXC7-4X Motherboard
5
6VXC7-4X Motherboard Layout
6VXC7-4
X
PCI1
PCI2
PGA 370 CPU
VT82C686A
VT82C694X
COMB
COMA
LPT
PS/2
BIOS
ATX POWER
JP16
BAT1
JP2
FLOPPY
IDE2
IDE1
AGP 1
JP15
SW2
JP1
J2
JP19
SW1
J3
J1
JP23
JP7
JP8
USB
AMR
PCI3
PCI4
PCI5
ISA 1
DIMM1
DIMM2
DIMM3
JP18
J4
JP30

6VXC7-4X Motherboard Layout
6

Page Index for CPU Speed Setup / Connectors / Panel and Jumper
Definition Page
CPU Speed Setup P.7
Connectors P.15
COM A / COM B / LPT Port P.15
USB Connector P.15
PS/2 Keyboard & PS/2 Mouse Connector P.16
JP16 (CPU Fan) P.16
JP15 (Power Fan) P.17
JP2 (System Fan) P.17
ATX Power P.18
Floppy Port P.18
IDE 1(Primary) / IDE 2(Secondary) Port P.19
J3 (Ring Power On) P.19
J1 (Wake On LAN) P.20
J4 (IR) P.20
Panel and Jumper Definition P.21
J2 (2x11 Pins Jumper) P.21
JP1 (Clear CMOS Function) P.22
JP23 (Case Open) P.22
JP19 (Support Cyrix CPU Selection)[Optional] P.23
JP7/JP8/JP18 (Onboard AC97& AMR Select)[Optional] P.23
JP30 (Over Voltage CPU Speed Up)[Optional] P.24
BAT1(Battery) P.24

6VXC7-4X Motherboard
7
CPU Speed Setup
The system bus speed is selectable at 66,100,133MHz and Auto. The user can select the
system bus speed (SW1) and change the DIP switch (SW2) selection to set up the CPU speed
for 300 - 866MHz processor.
Set System Bus Speed
SW1: O:ON,X : OFF
CPU (MHz) 1 2 3 4 5 6 PCI(MHz)
Auto XXXXOO33.3
66 OOXXXX33.3
75 OOOXXX37.5
83 OOXOXX41.6
100 OXXXXX33.3
112 OXOXXX37.3
124 XXXOXX31
133 XXXXXX33.3
140 X X O OX X 35
150 X XOX X X 37.5
The CPU speed must match with the frequency ratio. It will cause system hanging up if
the frequency ratio is higher than that of CPU.
SW2: DIP SWITCH
FREQ. RATIO 1 2 3 4
X 3 OXOO
X 3.5 XXOO
X 4 OOXO
X 4.5 XOXO
X 5 OXXO
X 5.5 XXXO
X 6 OOOX
X 6.5 XOOX
X 7 OXOX
X 7.5 XXOX
X 8 OOXX
X 8.5 XOXX
X 9 OXXX
X 9.5 XXXX

CPU Speed Setup
8


For Auto Jumper Setting:
SW1
ON
1 2 3 4 5 6


Note:
1. If you use 66/100/133 MHz CPU, We recommend you to setup your system speed to
“Auto” value.
2. We don’t recommend you to set up your system speed to 75 , 83 , 112 , 124 , 140 ,150
MHz because these frequencies are not the standard specifications for CPU, Chipset
and most of the peripherals. Whether your system can run under
75 ,83 ,112 ,124 ,140 ,150 MHz properly will depend on your hardware configurations:
CPU, SDRAM, Cards, etc.
1. CeleronTM 300A/66MHzFSB
SW1
ON
1 2 3 4 5 6
SW2
ON
SW2
1 2 3 4

6VXC7-4X Motherboard
9

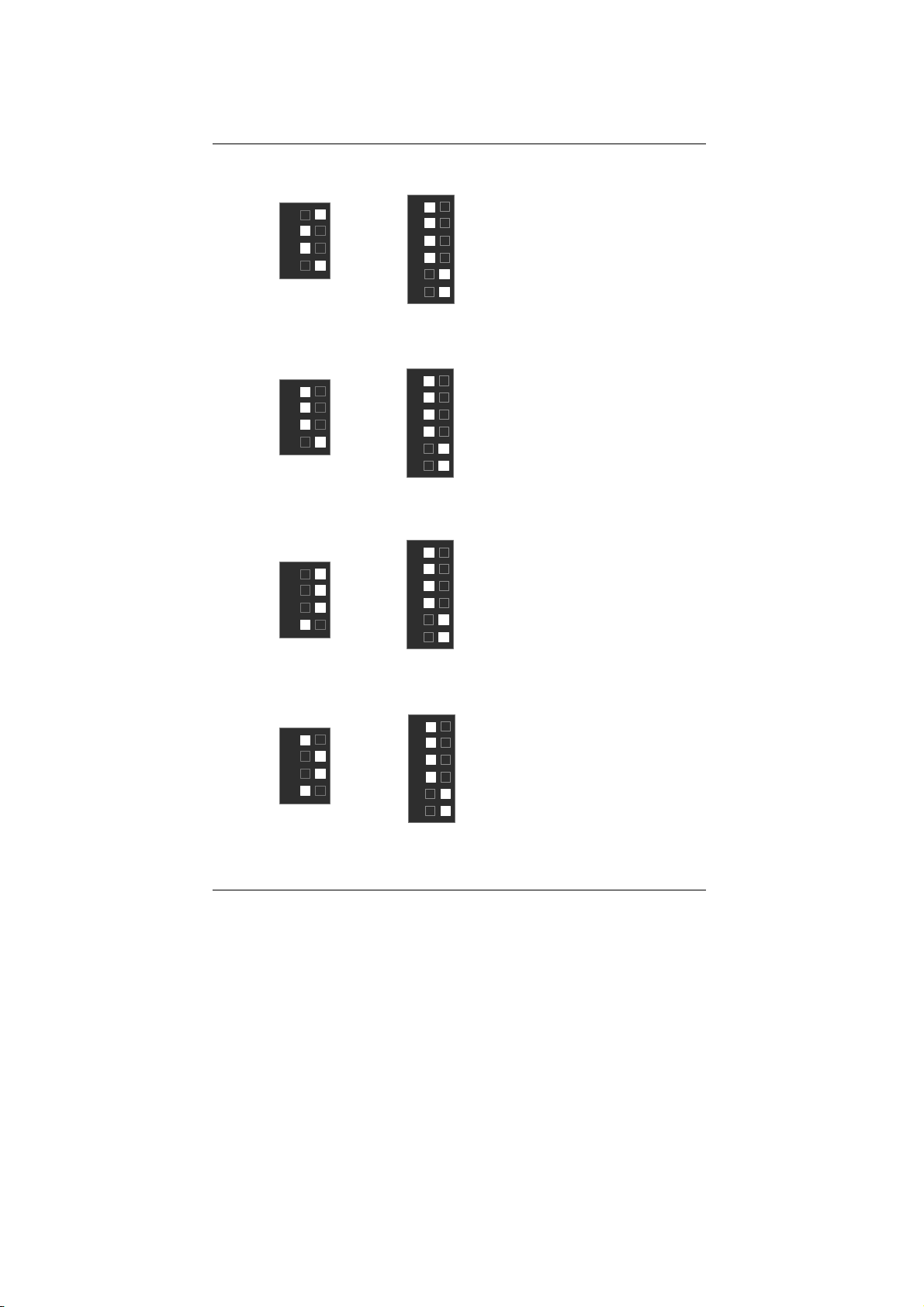

2. CeleronTM 333/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
3. CeleronTM 366/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
4. CeleronTM 400/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
5. CeleronTM 433/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6

CPU Speed Setup
10

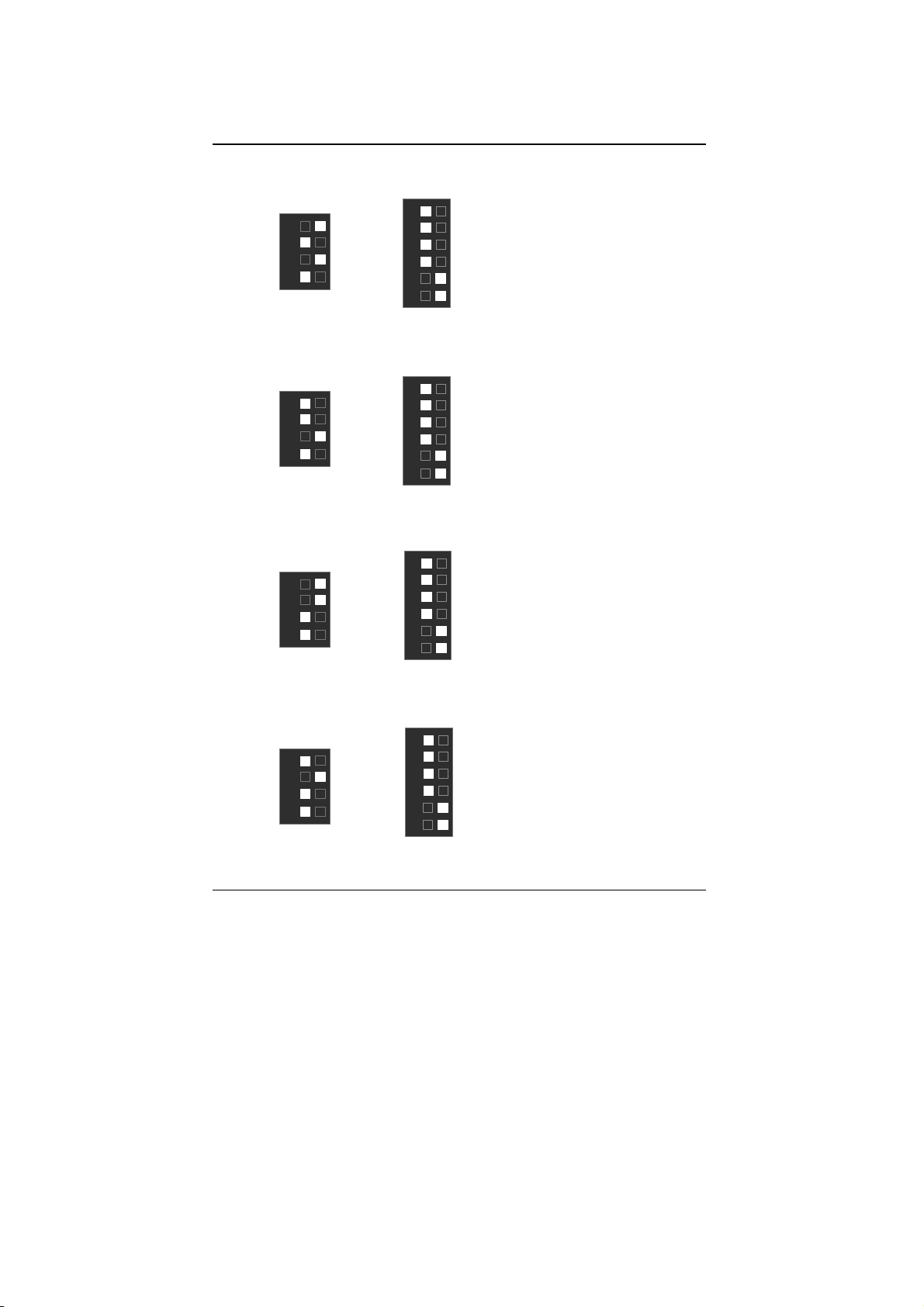

6. CeleronTM 466/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
7. CeleronTM 500/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
8. CeleronTM 533/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
9. CeleronTM 566/66MHzFSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6

6VXC7-4X Motherboard
11
10. Cyrix Joshua 300/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
11. Pentium!!! 500/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
12. Pentium!!! 550/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
13. Pentium!!! 600/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6

CPU Speed Setup
12
14. Pentium!!! 650/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
15. Pentium!!! 700/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
16. Pentium!!! 750/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
17. Pentium!!! 800/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6

6VXC7-4X Motherboard
13
18. Pentium!!! 850/100MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
19. Pentium!!! 533/133MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
20. Pentium!!! 600/133 MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
21. Pentium!!! 667/133MHz FSB
SW2
ON
1 2 3 4
SW1
ON
1 2 3 4 5 6
