Gigabyte GA-965P-S3 User manual

GA-965P-DS3/S3
Intel®CoreTM 2 Extreme quad-core / CoreTM 2 Quad /
Intel®CoreTM 2 Extreme dual-core / CoreTM 2 Duo /
Intel®Pentium®Processor Extreme Edition /
Intel®Pentium®D / Pentium®4 / Celeron®D LGA775 Processor Motherboard
User's Manual
Rev. 3301
12ME-I65PDS3-3301R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

Motherboard
GA-965P-DS3
Oct. 20, 2006
Motherboard
GA-965P-DS3
Oct. 20, 2006

Motherboard
GA-965P-S3
Jan. 18, 2007
Motherboard
GA-965P-S3
Jan. 18, 2007

Copyright
©2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to
change without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For quick installation, please refer to the "Hardware Installation Guide" included with the
product.
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to "Technology
Guide" section on Gigabyte's website to read or download the information you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 5 -
Table of Contents
ItemChecklist ................................................................................................................. 7
OptionalAccessories ...................................................................................................... 7
GA-965P-DS3/S3 Motherboard Layout ......................................................................... 8
Block Diagram ................................................................................................................ 9
Chapter 1 Hardware Installation ....................................................................................11
1-1 Considerations Prior to Installation ................................................................... 11
1-2 Feature Summary .......................................................................................... 12
1-3 Installation of the CPU and CPU Cooler ....................................................... 14
1-3-1 Installation of the CPU ......................................................................................... 14
1-3-2 Installation of the CPU Cooler ............................................................................ 15

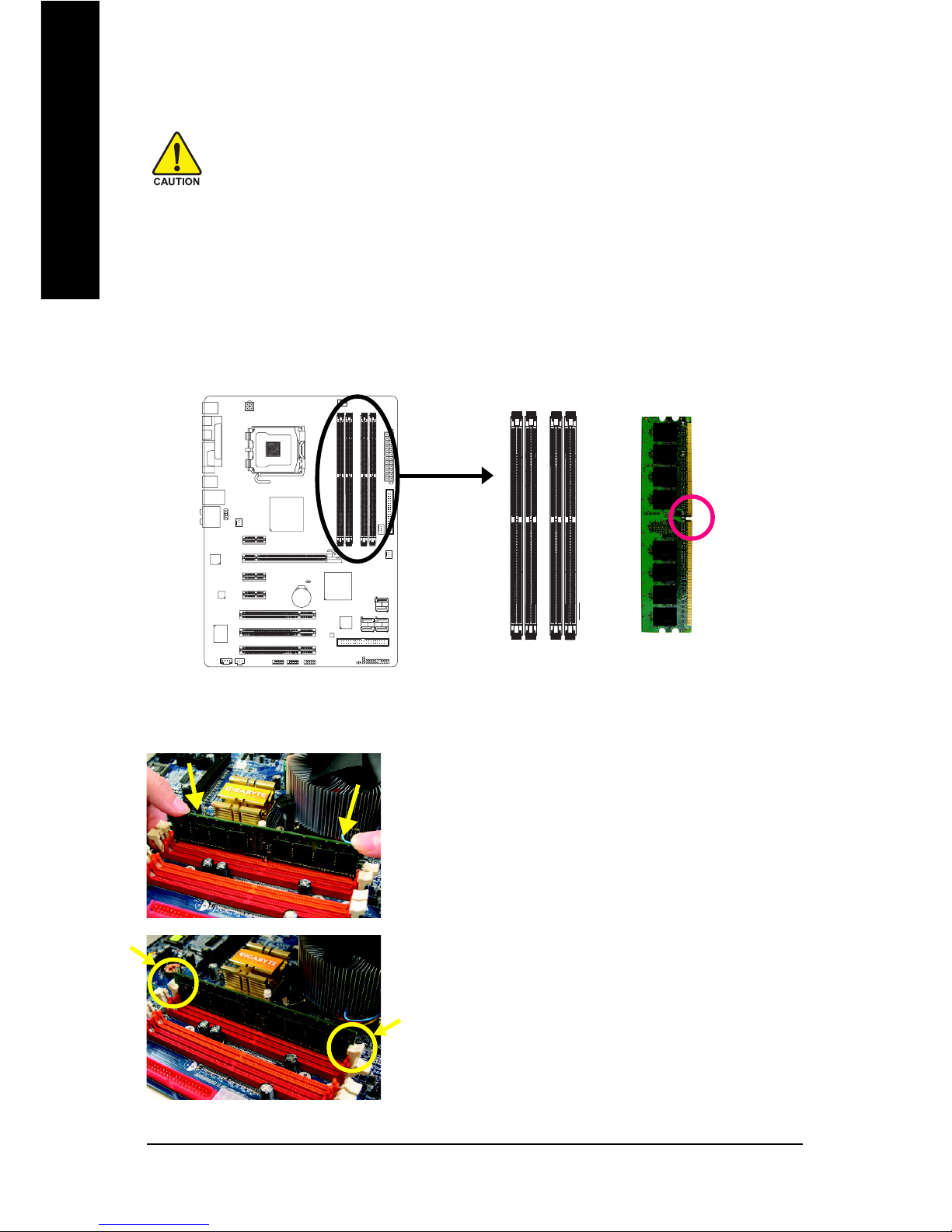

1-4 Installation of Memory .................................................................................... 16

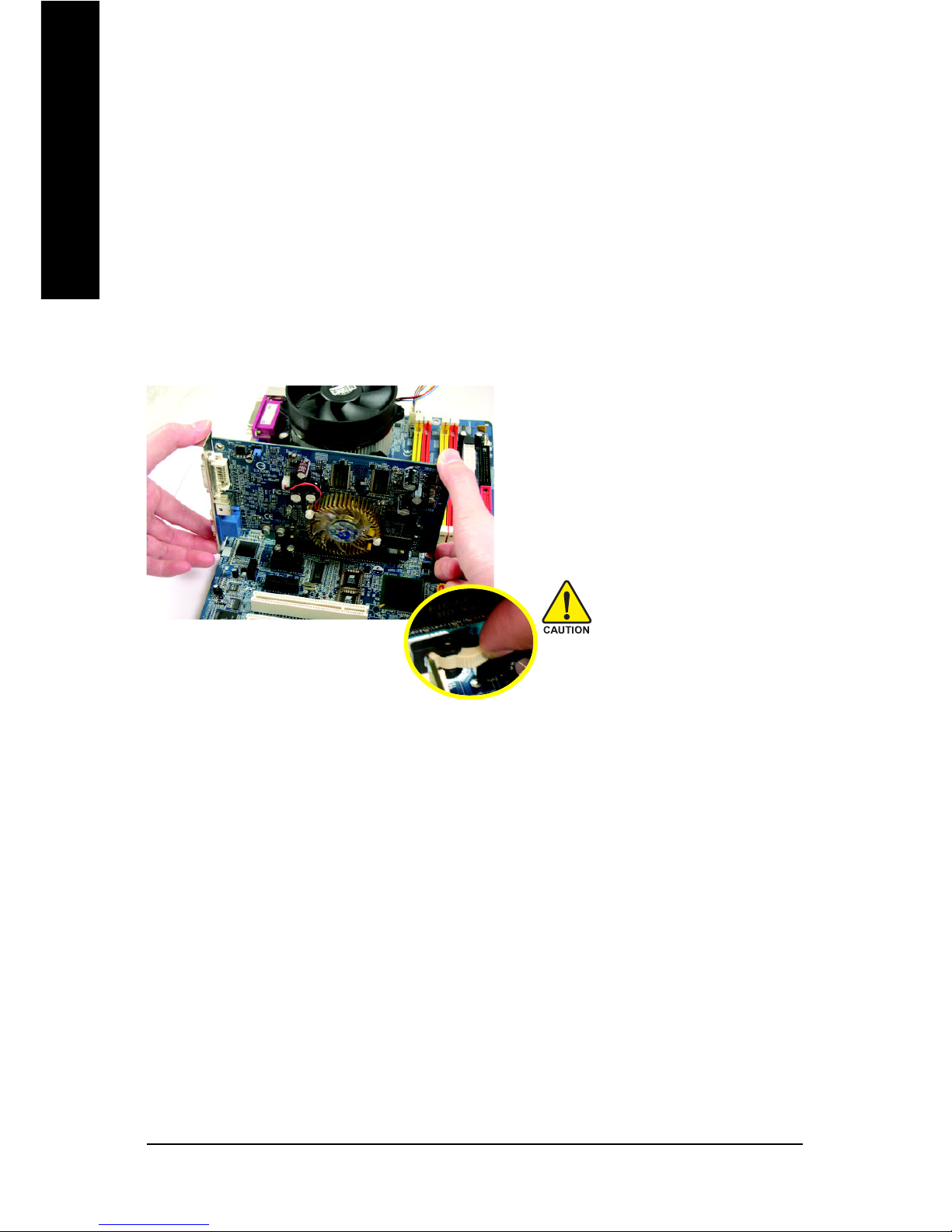

1-5 Installation of Expansion Cards ...................................................................... 18

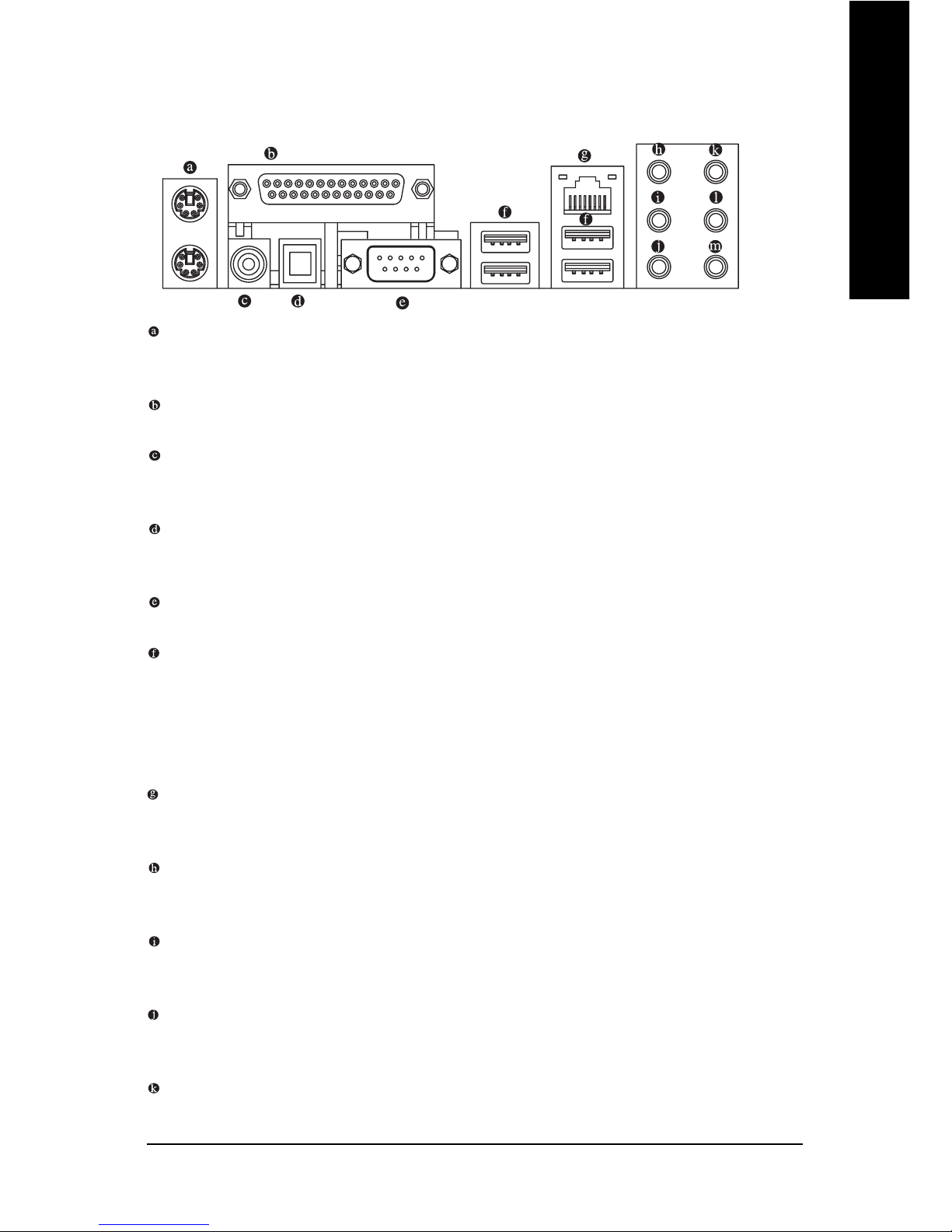

1-6 I/O Back Panel Introduction ........................................................................... 19
1-7 Connectors Introduction .................................................................................. 20
Chapter 2 BIOS Setup................................................................................................ 31
The Main Menu (Example BIOS Ver.: GA-965P-DS3, F10a) .................................. 32
2-1 Standard CMOS Features ............................................................................. 34
2-2 Advanced BIOS Features .............................................................................. 36
2-3 IntegratedPeripherals ..................................................................................... 38
2-4 Power Management Setup ............................................................................. 41
2-5 PnP/PCI Configurations ................................................................................. 43
2-6 PC Health Status ........................................................................................... 44
2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 46
2-8 Load Fail-Safe Defaults ................................................................................... 49
2-9 Load Optimized Defaults ................................................................................. 49
2-10 Set Supervisor/User Password ..................................................................... 50
2-11 Save & Exit Setup ......................................................................................... 51
2-12 Exit Without Saving ....................................................................................... 51

- 6 -
Chapter 3 Install Drivers ............................................................................................. 53
3-1 Install Chipset Drivers .................................................................................... 53
3-2 SoftwareApplications ..................................................................................... 54
3-3 Driver CD Information .................................................................................... 54
3-4 Hardware Information ..................................................................................... 55
3-5 Contact Us ..................................................................................................... 55
Chapter 4 Appendix ................................................................................................... 57
4-1 Unique Software Utilities ................................................................................ 57
4-1-1 EasyTune 5 Introduction ..................................................................................... 57
4-1-2 Xpress Recovery2 Introduction ......................................................................... 58
4-1-3 Flash BIOS Method Introduction ........................................................................ 60
4-1-4 Configuring SATA Hard Drive(s) (Controller: GIGABYTE SATA2) ................ 64
4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 77
4-2 Troubleshooting ............................................................................................... 82

- 7 -
Item Checklist
IDE Cable x 1 and FDD Cable x 1
SATA 3Gb/s Cable x 4 (GA-965P-DS3 only)
SATA 3Gb/s Cable x 2 (GA-965P-S3 only)
I/O Shield
* The items listed above are for reference only, and are subject to change without notice.
Optional Accessories
2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/R)
4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/R)
S/PDIF-IN Cable (Part Number: 12CR1-1SPDIN-01R)
e-SATA Cable (Part Number: 12CF1-3SATPW-11R)

- 8 -

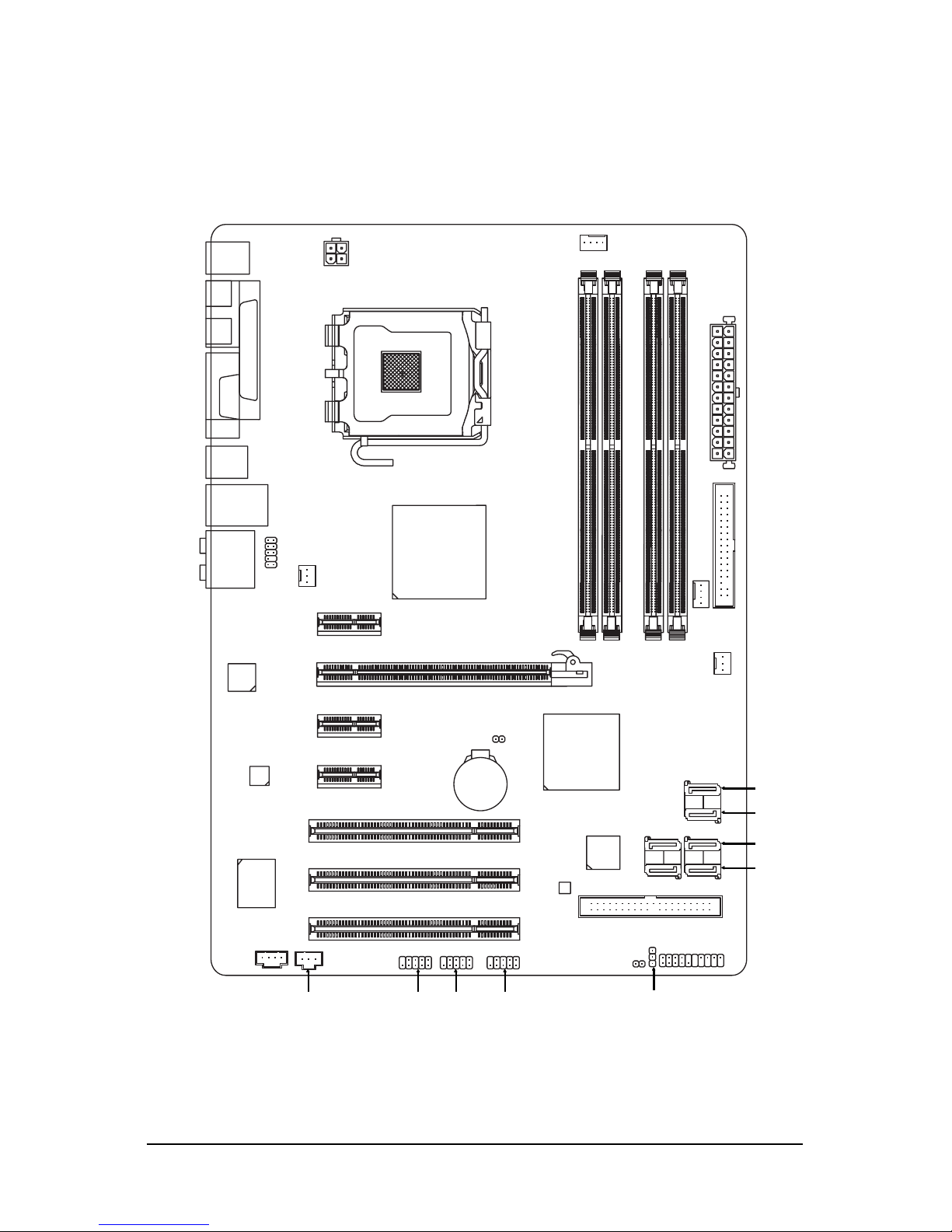

GA-965P-DS3/S3 Motherboard Layout
KB_MS
CPU_FAN
LGA775 ATX
GA-965P-DS3/S3
USB LAN
CD_IN
F_AUDIO
AUDIO
BIOS
PCIE_16
PCIE_3
F_USB1
IDE1
PCIE_1
SPDIF_I
CI
DDRII1
DDRII2
DDRII3
DDRII4
F_USB2
BATTERY
GSATAII0
F_PANEL
IT8718
SYS_FAN
SATAII0
ATX_12V
Intel®P965
Intel®ICH8
PWR_LED
FDD
PCIE_2
SATAII1
SATAII2
SATAII3
GIGABYTE
SATA2
PCI1
PCI2
PCI3
USB
CLR_CMOS
COM
COAXIAL
OPTICAL
LPT
CODEC
Marvell
88E8056
F_USB3
GSATAII1
PWR_FAN
NB_FAN

- 9 -
Block Diagram
(Note 1) Applies only when the GA-965P-DS3/S3 motherboard (rev. 3.3) is installed with a 1333 MHz
FSB processor. The system will automatically adjust BIOS to support 1333 MHz FSB by
overclocking when a 1333 MHz FSB processor is installed. In such a configuration, the actual
operating memory frequency will be 667 MHz or 833 MHz, depending on the memory being
installed.
(Note 2) To use a DDRII 800/667 memory module on the motherboard, you must install a 1333/1066/
800 MHz FSB processor.
CPU CLK+/-(333(Note 1)/266/200/133 MHz)
PCI Express x16
Host
Interface
MCH CLK (266/200/133 MHz)
DDRII 800/667/533 MHz DIMM(Note 2)
IT8718
BIOS
3 PCI
PCI Bus
3 PCI Express x1
PCI Express Bus
Dual Channel Memory
Floppy
PS/2 KB/Mouse
PCIe CLK
(100 MHz)
4 SATA 3Gb/s
LAN
RJ45
PCICLK (33 MHz)
PCIe CLK
(100 MHz)
Intel®
P965
Intel®
ICH8
LGA775
Processor
x1
x1
x1
ATA 33/66/100/133
IDE Channel
COM Port
LPT Port
Marvell
88E8056
2 SATA 3Gb/s
x1 x1
10 USB Ports
Center/Subwoofer
Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
GIGABYTE
SATA2

- 10 -

Hardware Installation- 11 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic pad or
within a electrostatic shielding container.
5. Please verify that the power supply is switched off before unplugging the power supply connector
from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required
for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the information
in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with the
motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the product,
please consult a certified computer technician.
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Chapter 1 Hardware Installation

GA-965P-DS3/S3 Motherboard - 12 -
English
1-2 Feature Summary
CPU LGA775 for Intel®CoreTM 2 Extreme quad-core / CoreTM 2 Extreme dual-core /
CoreTM 2 Quad / CoreTM 2 Duo / Pentium®processor Extreme Edition /
Pentium®D / Pentium®4 / Celeron®D
L2 cache varies with CPU
Front Side Bus Supports 1333(Note 1)/1066/800/533 MHz FSB
Chipset Northbridge: Intel®P965 Express Chipset
Southbridge: Intel®ICH8
LAN Onboard Marvell 88E8056 phy (10/100/1000 Mbit)
Audio Onboard Realtek ALC888 chip
Supports High Definition Audio
Supports 2 / 4 / 6 / 8 channel audio
Supports S/PDIF In/Out connection
Supports CD In connection
Storage ICH8 Southbrigde
- 1 FDD connector, allowing connection of 1 FDD device
- 4 SATA 3Gb/s connectors (SATAII0,1, 2, 3), allowing connection of 4
SATA 3Gb/s devices
Onboard GIGABYTE SATA2 chip
- 1 IDE connector (UDMA 33/ATA 66/ATA 100/ATA 133), allowing con-
nection of 2 IDE devices
- 2 SATA 3Gb/s connectors (GSATAII0,1), allowing connection of 2 SATA
3Gb/s devices
- Supports RAID 0, RAID 1, and JBOD for Serial ATA
O.S Support Microsoft Windows 2000/XP
Memory 4 DDRII DIMM memory slots (supports up to 8 GB memory)
Supports dual channel DDRII 800/667/533 unbuffered DIMMs(Note 2)
Supports 1.8V DDRII DIMMs
Expanstion Slots 1 PCI Express x16 slot
3 PCI Express x1 slots
3 PCI slots
Internal Connectors 1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
6 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 power fan connector
1 northbridge fan connector
1 front panel connector
1 front audio connector
1 CD In connector
"*" Only the GA-965P-DS3 adopts All-Solid Capacitor design.

Hardware Installation- 13 -
English
Internal Connectors 3 USB 2.0/1.1 connectors for additional 6 ports by cables
1 S/PDIF In connector
1 power LED connector
1 Chassis Intrusion connector
Rear Panel I/O 1 PS/2 keyboard port
1 PS/2 mouse port
1 S/PDIF Out connection (coaxial+optical)
1 parallel port
1 serial port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear
Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
I/O Control IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU warning temperature
CPU/System/Power fan failure warning
CPU Smart Fan Control
BIOS 1 8 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Additional Features Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune (Note 3)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Bundle Software Norton Internet Security (OEM revision)
Form Factor ATX form factor; 30.5cm x 21.0cm
(Note 1) Applies only when the GA-965P-DS3/S3 motherboard (rev. 3.3) is installed with a 1333 MHz
FSB processor. The system will automatically adjust BIOS to support 1333 MHz FSB by
overclocking when a 1333 MHz FSB processor is installed. In such a configuration, the actual
operating memory frequency will be 667 MHz or 833 MHz, depending on the memory being
installed.
(Note 2) To use a DDRII 800/667 memory module on the motherboard, you must install a 1333/1066/
800 MHz FSB processor.
(Note 3) EasyTune functions may vary depending on different motherboards.

GA-965P-DS3/S3 Motherboard - 14 -
English
1-3 Installation of the CPU and CPU Cooler
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use,
otherwise overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the CPU specifications. It is not
recommended that the system bus frequency be set beyond hardware specifications
since it does not meet the required standards for the peripherals. If you wish to set
the frequency beyond the proper specifications, please do so according to your hard-
ware specifications including the CPU, graphics card, memory, hard drive, etc.
HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires all
of the following platform components:
- CPU: An Intel®Pentium 4 CPU with HT Technology
- Chipset: An Intel®Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology
Fig. 1
Gently lift the metal
lever located on the
CPU socket to the
upright position.
Metal Lever Fig. 2
Remove the plastic
covering on the CPU
socket.
Fig. 3
Notice the small gold
colored triangle located
on the edge of the CPU
socket. Align the
indented corner of the
Fig. 4
Once the CPU is
properly inserted,
please replace the
load plate and push the
metal lever back into
its original position.
CPU with the triangle and gently insert the CPU into
position. (Grasping the CPU firmly between your
thumb and forefinger, carefully place it into the socket
in a straight and downwards motion. Avoid twisting or
bending motions that might cause damage to the CPU
during installation.)
1-3-1 Installation of the CPU

Hardware Installation- 15 -
English
1-3-2 Installation of the CPU Cooler
The CPU cooler may adhere to the CPU as a result of hardening of the heat paste.To prevent
such an occurrence, it is suggested that either thermal tape rather than heat paste be used for
heat dissipation or using extreme care when removing the CPU cooler.
Fig. 6
Finally, please attach the power connector of the
CPU cooler to the CPU fan header located on the
motherboard.
Fig. 3
Place the CPU cooler atop the CPU and make
sure the push pins aim to the pin hole on the
motherboard.Pressing down the push pins
diagonally.
Fig. 4
Please make sure the Male and Female push pin
are joined closely. (for detailed installation
instructions, please refer to the CPU cooler instal-
lation section of the user manual)
Fig. 5
Please check the back of motherboard after
installing. If the push pin is inserted as the picture,
the installation is complete.
Fig.1
Please apply an even layer of heat paste on the
surface of the installed CPU.
Fig. 2
(Turning the push pin along the direction of arrow is to
remove the CPU cooler, on the contrary, is to install.)
Please note the direction of arrow sign on the male
push pin doesn't face inwards before installation. (This
instruction is only for Intel boxed fan)
Male Push Pin
Female Push Pin
The top of Female Push Pin

GA-965P-DS3/S3 Motherboard - 16 -
English
The motherboard supports DDRII memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one direction.
The memory capacity used can differ with each slot.
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed
in only one direction. If you are unable to insert the module, please switch the direction.
1-4 Installation of Memory
Notch
DDRII
Fig.1
The DIMM socket has a notch, so the DIMM memory mod-
ule can only fit in one direction. Insert the DIMM memory
module vertically into the DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to
lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.

Hardware Installation- 17 -
English
Dual Channel Memory Configuration
The GA-965P-DS3/S3 supports the Dual Channel Technology. After operat-
ing the Dual Channel Technology, the bandwidth of memory bus will double.
The GA-965P-DS3/S3 includes 4 DIMM sockets, and each Channel has two
DIMM sockets as following:
Channel 0 : DDRII1, DDRII2
Channel 1 : DDRII3, DDRII4
If you want to operate the Dual Channel Technology, please note the following explanations
due to the limitation of Intel chipset specifications.
1. Dual Channel mode will not be enabled if only one DDRII memory module is installed.
2. To enable Dual Channel mode with two or four memory modules (it is recommended to
use memory modules of identical brand, size, chips, and speed), you must install them
into DIMM sockets of the same color.
The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side,
X:Empty)
2 memory modules
4 memory modules
DDR II 1 DDR II 2 DDR II 3 DDR II 4
DS/SS X DS/SS X
X DS/SS X DS/SS
DS/SS DS/SS DS/SS DS/SS
(Note) When memory modules of different size and chips are installed, a message which indicates
that memory is configured to Flex memory mode operation will appear during POST.
Intel®Flex Memory Technology offers easier upgrades by allowing different memory sizes to
be populated and remain in dual-channel mode.

GA-965P-DS3/S3 Motherboard - 18 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Installing a PCI Express x16 expansion card:
Please align the VGA card to the onboard
PCI Express x16 slot and press firmly
down on the slot. Make sure your VGA
card is locked by the latch at the end of
the PCI Express x16 slot. When you try
uninstall the VGA card, please gently
press the latch as the picture to the left
shows to release the card.

Hardware Installation- 19 -
English
1-6 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard
to the lower port (purple).
LPT (Parallel Port)
The parallel port allows connection of a printer, scanner and other peripheral devices.
COAXIAL (S/PDIF Out)
The SPDIF coaxial output port is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby Digital Decoder via a coaxial cable.
OPTICAL (S/PDIF Out)
The SPDIF optical output port is capable of providing digital audio to external speakers or com-
pressed AC3 data to an external Dolby Digital Decoder via an optical cable.
Serial Port
Connects to serial-based mouse or data processing devices.
USB Port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface.
Also make sure your OS supports USB controller. If your OS does not support USB controller,
please contact OS vendor for possible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
LAN Port
The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of
10/100/1000Mbps.
Center/Subwoofer Speaker Out
The default Center/Subwoofer Speaker Out jack. Center/Subwoofer speakers can be connected to
Center/Subwoofer Speaker Out jack.
Surround Speaker Out (Rear Speaker Out)
The default Surround Speaker Out (Rear Speaker Out) jack. Rear surround speakers can be
connected to Surround Speaker Out (Rear Speaker Out) jack.
Side Speaker Out
The default Side Speaker Out jack. Surround side speakers can be connected to Side Speaker Out
jack.
Line In
The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.

GA-965P-DS3/S3 Motherboard - 20 -
English
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
1-7 Connectors Introduction
In addition to the default speakers settings, the ~audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be connected
to the default Mic In jack ( ) . Please refer to the 2-/4-/6-/8- channel audio setup steps for
detailed software configuration information.
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) PWR_FAN
6) NB_FAN
7) FDD
8) IDE1
9) SATAII0/1/2/3
10) GSATAII0/1
11) F_PANEL
12) F_AUDIO
13) PWR_LED
14) CD_IN
15) SPDIF_I
16) F_USB1/F_USB2/F_USB3
17) CI
18) CLR_CMOS
19) BATTERY
2
3
10
1
16
7
4
815
18
14
12
17
9
13 11
19
5
6
