Gigabyte GA-EG41MF-S2H User manual

GA-EG41MF-S2H
LGA775 socket motherboard for Intel®CoreTM processor family/
Intel®Pentium®processor family/Intel®Celeron®processor family
User's Manual
Rev.1002
12ME-EG41MFS2H-1002R

Oct. 22, 2008
Motherboard
GA-EG41MF-S2H
Motherboard
Oct. 22, 2008
GA-EG41MF-S2H

Copyright
©2008 GIGA-BYTE TECHNOLOGY CO., LTD.All rights reserved.
Thetrademarksmentionedinthismanualarelegallyregisteredtotheirrespectiveowners.
Disclaimer
Informationinthis manualisprotected bycopyrightlaws andistheproperty ofGIGABYTE.
ChangestothespecificationsandfeaturesinthismanualmaybemadebyGIGABYTEwithoutprior
notice. Nopartofthismanualmaybereproduced,copied,translated,transmitted,orpublishedinany
formorbyanymeanswithoutGIGABYTE'spriorwrittenpermission.
Documentation Classifications
Inordertoassistintheuseofthisproduct,GIGABYTEprovidesthefollowingtypesofdocumentations:
Fordetailedproductinformation,carefullyreadtheUser'sManual.
For instructions on how to use GIGABYTE's unique features, read or download the
informationon/fromtheSupport\Motherboard\TechnologyGuidepageonourwebsite.
Forproduct-relatedinformation,checkonourwebsiteat:
http://www.gigabyte.com.tw

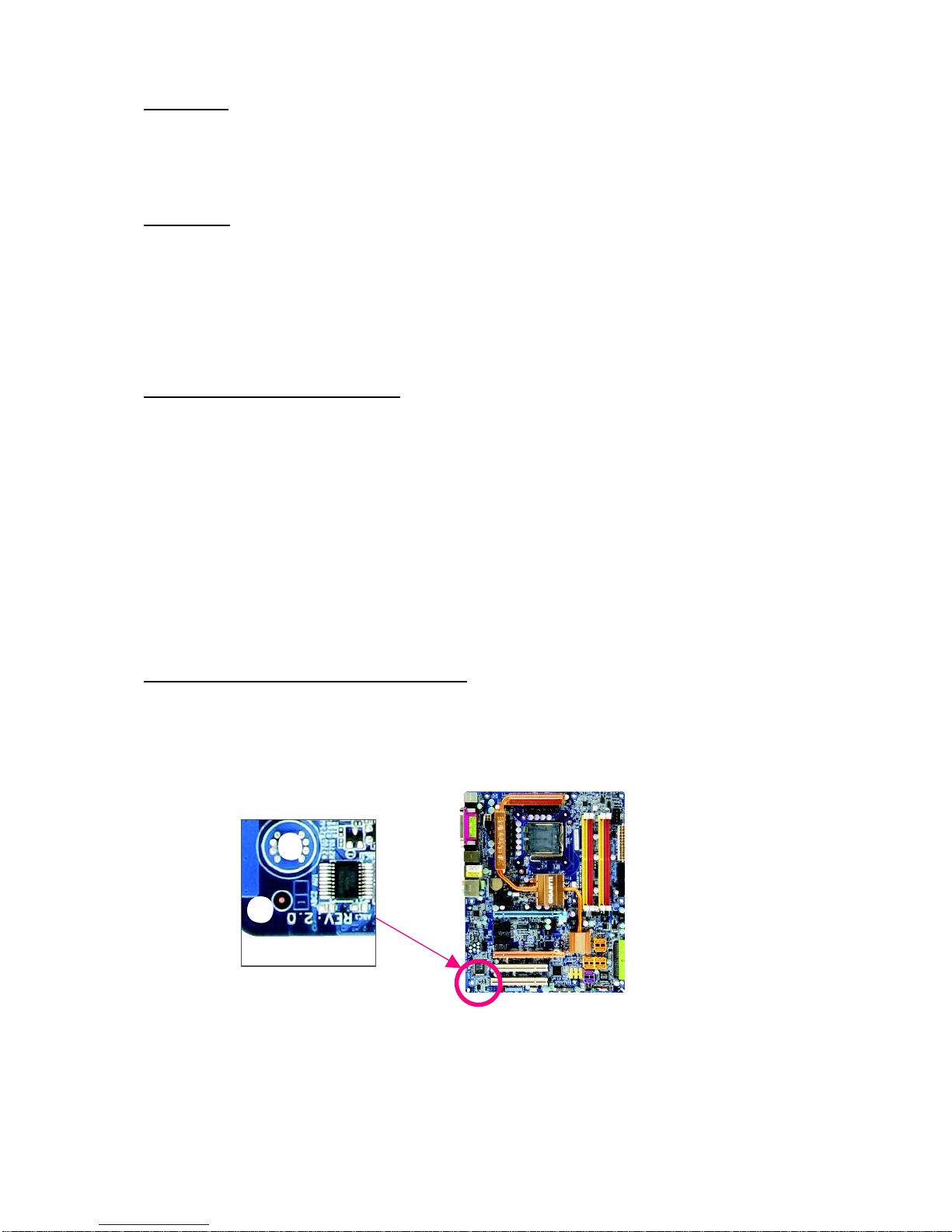

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboardBIOS,drivers,orwhenlookingfortechnicalinformation.
Example:

- 4 -
Table of Contents
BoxContents ................................................................................................................. 6
OptionalItems................................................................................................................. 6
GA-EG41MF-S2HMotherboard Layout......................................................................... 7
BlockDiagram................................................................................................................ 8
Chapter 1 HardwareInstallation .................................................................................... 9
1-1 InstallationPrecautions ..................................................................................... 9
1-2 ProductSpecifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler.............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 InstallingtheMemory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration................................................................ 16
1-4-2 Installing a Memory............................................................................................. 17

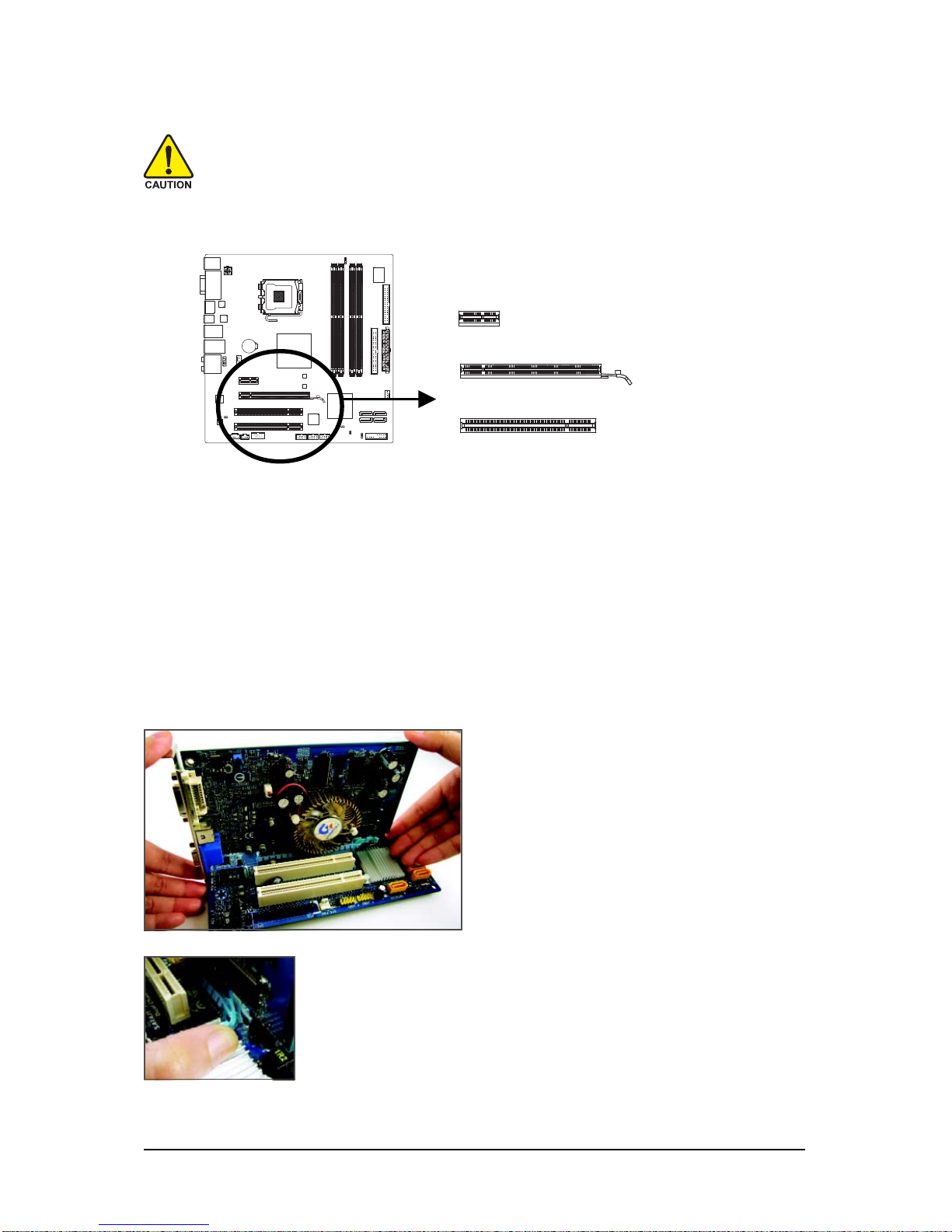

1-5 Installingan ExpansionCard ......................................................................... 18

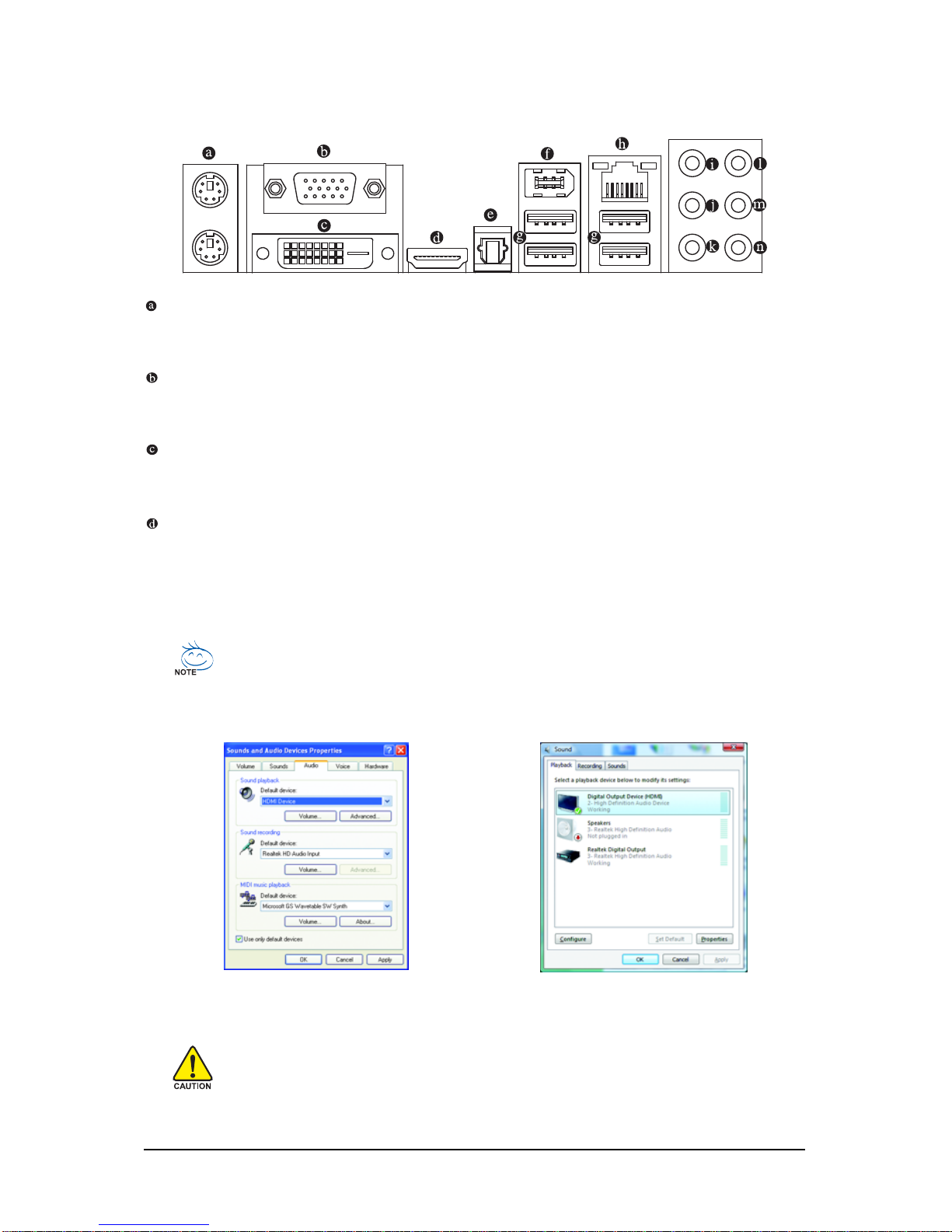

1-6 BackPanelConnectors ................................................................................. 19
1-7 InternalConnectors ........................................................................................ 22
Chapter 2 BIOSSetup................................................................................................. 33
2-1 StartupScreen................................................................................................ 34
2-2 TheMainMenu .............................................................................................. 35
2-3 MBIntelligentTweaker(M.I.T.) ....................................................................... 37
2-4 StandardCMOS Features ............................................................................. 44
2-5 Advanced BIOS Features.............................................................................. 46
2-6 AdvancedChipsetFeatures ........................................................................... 48
2-7 IntegratedPeripherals ..................................................................................... 50
2-8 PowerManagementSetup............................................................................. 53
2-9 PnP/PCIConfigurations................................................................................. 55
2-10 PC Health Status ........................................................................................... 56
2-11 LoadFail-SafeDefaults................................................................................... 57
2-12 LoadOptimizedDefaults ................................................................................. 57
2-13 Set Supervisor/User Password..................................................................... 58
2-14 Save & Exit Setup......................................................................................... 59
2-15 ExitWithoutSaving ....................................................................................... 59

- 5 -
Chapter 3 DriversInstallation ...................................................................................... 61
3-1 InstallingChipsetDrivers ............................................................................... 61
3-2 ApplicationSoftware....................................................................................... 62
3-3 TechnicalManuals.......................................................................................... 62
3-4 Contact........................................................................................................... 63
3-5 System........................................................................................................... 63
3-6 DownloadCenter............................................................................................ 64
Chapter 4 UniqueFeatures......................................................................................... 65
4-1 XpressRecovery2 ......................................................................................... 65
4-2 BIOS Update Utilities..................................................................................... 70
4-2-1 Updating the BIOS with the Q-Flash Utility...................................................... 70
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 73
4-3 EasyTune6.................................................................................................... 74
4-4 Dynamic Energy SaverAdvanced ................................................................ 75
4-5 Q-Share ......................................................................................................... 77
4-6 TimeRepair .................................................................................................... 78
Chapter 5 Appendix .................................................................................................... 79
5-1 ConfiguringAudioInputandOutput................................................................. 79
5-1-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 79
5-1-2 Installing the S/PDIF In Cable (Optional)........................................................... 81
5-1-3 Configuring Microphone Recording ................................................................... 82
5-1-4 Using the Sound Recorder................................................................................. 84
5-2 Troubleshooting............................................................................................... 85
5-2-1 Frequently Asked Questions ............................................................................. 85
5-2-2 Troubleshooting Procedure ................................................................................ 86
5-3 RegulatoryStatements ................................................................................... 88

- 6 -
•Theboxcontentsaboveare for reference only andtheactualitemsshalldepend on product package youobtain.
Thebox contentsare subject tochange withoutnotice.
•Themotherboardimageisforreferenceonly.
Box Contents
GA-EG41MF-S2Hmotherboard
Motherboarddriverdisk
User'sManual
OneIDEcableandone floppy disk drive cable
Two SATA3Gb/scables
I/O Shield
Optional Items
2-portUSB2.0bracket (Part No. 12CR1-1UB030-51R)
2-portIEEE1394abracket(PartNo.12CF1-1IE008-01R)
2-portSATApower cable (PartNo.12CF1-2SERPW-01R)
S/PDIF in cable (Part No. 12CR1-1SPDIN-01R)
COM port cable (Part No. 12CF1-1CM001-32R)

- 7 -
GA-EG41MF-S2H Motherboard Layout
KB_MS
ATX
GA-EG41MF-S2H
USB LAN
F_AUDIO
AUDIO
PCIE_16
IT8718
IDE
DDR2_1
ATX_12V
USB_1394
CPU_FAN
Intel®G41
CI
PHASELED
SATA2_0
Intel®ICH7
CLR_CMOS
M_BIOS
CD_IN
PCI1
BATTERY
RTL8111C
PCI2
SYS_FAN
B_BIOS
OPTICAL
DVI VGA
SiI1392
SPDIF_I
COMA
FDD
F_USB1 F_USB2
Level Shifter
HDMI
CODEC
SPDIF_O
DDR2_2 DDR2_3 DDR2_4
F1_1394
TSB43AB23
PWR_LED
PCIE_1
SATA2_2
SATA2_1 SATA2_3
F_PANEL
LGA775

- 8 -

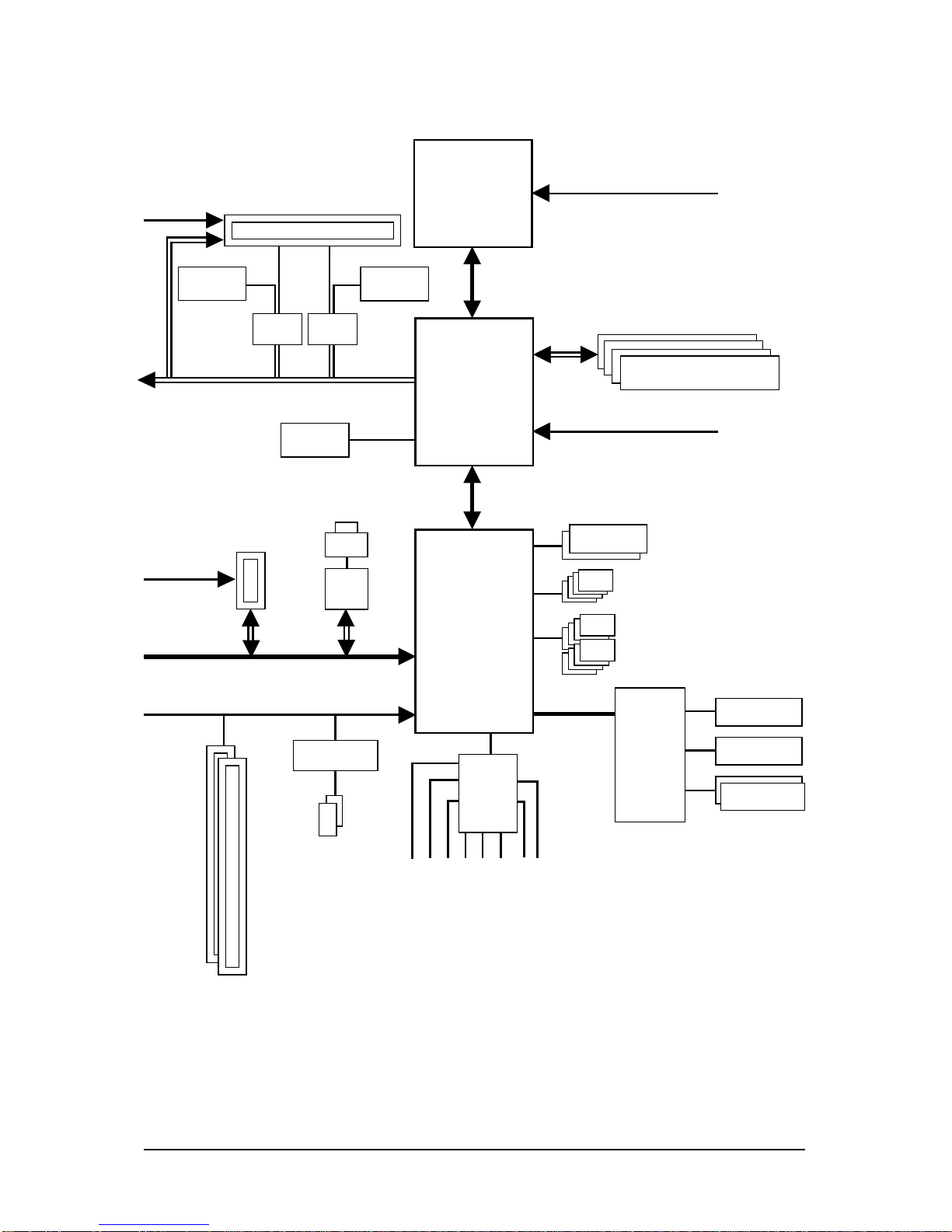

Block Diagram
(Note) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.
When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.
Dual BIOS
CPU CLK+/-
(333/266/200 MHz)
LGA775
Processor
Intel®G41
LPC BUS
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
2 PCI
PCI Bus Floppy
COM Port
Host
Interface
PCI Express Bus
GMCH CLK
(333/266/200 MHz)
PS/2 KB/Mouse
IT8718
4 SATA 3Gb/s
8 USB Ports
Intel®ICH7
1 PCI Express x1
PCIeCLK
(100MHz)
RTL
8111C
LAN
RJ45
x1 x1
2 IEEE 1394a
TSB43AB23
DDR2 800/667 MHz
Dual Channel Memory
1 PCI Express x16 (Note)
SwitchSwitch
PCIeCLK
(100MHz)
PCI Express x16
HDMI DVI-D
D-Sub
x4 x4
x8

Hardware Installation- 9 -
1-1 Installation Precautions
Themotherboardcontainsnumerousdelicateelectroniccircuitsandcomponentswhichcanbecome
damagedasaresult of electrostatic discharge (ESD).Priortoinstallation,carefully read the user's
manualandfollowtheseprocedures:
•Priortoinstallation,donotremoveorbreakmotherboardS/N(SerialNumber)stickeror
warrantystickerprovidedbyyourdealer.Thesestickersarerequiredforwarrantyvalidation.
•AlwaysremovetheACpowerby unpluggingthepower cordfromthe poweroutletbefore
installingorremovingthemotherboardorotherhardwarecomponents.
•Whenconnectinghardwarecomponentstotheinternalconnectorsonthemotherboard,
makesuretheyareconnectedtightlyandsecurely.
•Whenhandlingthemotherboard,avoidtouchinganymetalleadsorconnectors.
•Itisbesttowearanelectrostaticdischarge(ESD)wriststrapwhenhandlingelectronic
componentssuchasamotherboard,CPUormemory.IfyoudonothaveanESDwriststrap,
keepyourhandsdryandfirsttouchametalobjecttoeliminatestaticelectricity.
•Priortoinstallingthemotherboard,pleasehaveitontopofanantistaticpadorwithinan
electrostaticshieldingcontainer.
•Beforeunpluggingthepowersupplycablefromthemotherboard,makesurethepowersupply
hasbeenturnedoff.
•Beforeturningonthepower,makesurethepowersupplyvoltagehasbeensetaccordingto
thelocalvoltagestandard.
•Beforeusingtheproduct,pleaseverifythatallcablesandpowerconnectorsofyourhardware
componentsareconnected.
•Topreventdamagetothemotherboard,donotallowscrewstocomeincontactwiththe
motherboardcircuitoritscomponents.
•Makesuretherearenoleftoverscrewsormetalcomponentsplacedonthemotherboardor
withinthecomputercasing.
•Donotplacethecomputersystemonanunevensurface
.
•Donotplacethecomputersysteminahigh-temperatureenvironment.
•Turningonthecomputerpowerduringtheinstallationprocesscanleadtodamagetosystem
componentsaswell asphysicalharm totheuser.
•Ifyouareuncertainaboutanyinstallationstepsorhaveaproblemrelatedtotheuseofthe
product,pleaseconsultacertifiedcomputertechnician.
Chapter 1 Hardware Installation

GA-EG41MF-S2H Motherboard - 10 -
1-2 Product Specifications
CPU Support for an Intel®CoreTM 2 Extreme processor/
Intel®CoreTM 2 Quad processor/Intel®CoreTM 2 Duo processor/
Intel®Pentium®Dual-Core processo/Intel®Celeron®processor
in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB
Chipset North Bridge: Intel®G41 Chipset
South Bridge: Intel®ICH7
Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory(Note 1)
Dual channel memory architecture(Note 2)
Support for DDR2 800/667 MHzmemory modules
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics North Bridge:
- 1 x D-Sub port
- 1 x DVI-D port(Note 3) (Note 4)
SiI1392 chip:
- 1 x HDMI port(Note 4)
Audio Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16(Note 4)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
IEEE 1394a T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket
connected to the internal IEEE 1394a header)

Hardware Installation- 11 -
Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x serial port header
1 x power LED header
1 x chassis intrusion header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port(Note 3) (Note 4)
1 x HDMI port(Note 4)
1 x optical S/PDIF Out connector
4 x USB 2.0/1.1 ports
1 x IEEE 1394a port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control(Note 5)

GA-EG41MF-S2H Motherboard - 12 -
BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOSTM
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune(Note 6)
Support for Dynamic Energy Saver Advanced
Support for Time Repair
Support for Q-Share
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft®Windows®Vista/XP
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Because of chipset limitations, to avoid the system being unable to start or the memory being
incorrectly detected, if only one memory module is to be installed, we suggest that you install
it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you
install them on the DDR2_1 and DDR2_3 sockets. (Go to GIGABYTE's website for the latest
memory support list.)
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.
When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.
(Note 5) Whether the CPU/System fan speed control function is supported will depend on the CPU/
System cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.

Hardware Installation- 13 -
NotchNotch
AlignmentKey
AlignmentKey
LGA775CPU
LGA775CPUSocket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you
may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the fre-
quency beyond the standard specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

GA-EG41MF-S2H Motherboard - 14 -
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Step 1:
Completely raise the CPU socket lever.
CPU Socket Lever
Step 3:
Remove the protective socket cover from the
load plate. (To protect the CPU socket, always
replace the protective socket cover when the
CPU is not installed.)
Step 5:
Once the CPU is properly inserted, replace
the load plate and push the CPU socket lever
back into its locked position.
Step 2:
Lift the metal load plate from the CPU socket.
(DO NOT touch socket contacts.)
Step 4:
Hold the CPU with your thumb and index
fingers. Align the CPU pin one marking (triangle)
with the pin one corner of the CPU socket (or
you may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.

Hardware Installation- 15 -
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure
uses Intel®boxed cooler as the example cooler.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Before installing the cooler, note the direction
of the arrow sign on the male push pin.
(Turning the push pin along the direction of
arrow is to remove the cooler, on the contrary,
is to install.)
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin
Step 3:
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
Step 4:
You should hear a "click" when pushing down each
pushpin. Checkthatthe Male andFemale push pins
are joined closely. (Refer to your CPU cooler instal-
lation manual for instructions on installing the cooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may
damage the CPU.
Step 5:
After the installation, check the back of the
motherboard. If the push pin is inserted as the
picture above, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.

GA-EG41MF-S2H Motherboard - 16 -
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
When memory modules of different capacity and chips are installed, a message which says
memory is operating in Flex Memory Mode will appear during the POST. Intel®Flex Memory
Technology offers greater flexibility to upgrade by allowing different memory sizes to be
populated and remain in Dual Channel mode/performance.
Due to chipset limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same
colored DDR2 sockets for optimum performance.
3. Because of chipset limitations, to avoid the system being unable to start or the memory being
incorrectly detected, if only one memory module is to be installed, we suggest that you install
it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you
install them on the DDR2_1 and DDR2_3 sockets. (Go to GIGABYTE's website for the latest
memory support list.)
1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR2 memory sockets and supports Dual Channel
Technology. After the memory is installed, the BIOS will automatically detect the
specifications and capacity of the memory. Enabling Dual Channel memory mode
will double the original memory bandwidth.
The four DDR2 memory sockets are divided into two channels and each channel has two memory
sockets as following:
Channel 0: DDR2_1, DDR2_2
Channel 1: DDR2_3, DDR2_4
Two Modules
Four Modules
DDR2_1 DDR2_2 DDR2_3 DDR2_4
DS/SS - - DS/SS - -
- - DS/SS - - DS/SS
SS SS SS SS
DualChannelMemoryConfigurationsTable
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
DDR2_1 DDR2_2 DDR2_3 DDR2_4

Hardware Installation- 17 -
1-4-2 Installing a Memory
Notch
DDR2 DIMM
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on
this motherboard.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.
A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.

GA-EG41MF-S2H Motherboard - 18 -
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express Graphics Card:
PCI Slot
PCI Express x16 Slot
PCI Express x1 Slot
•Installing a Graphics Card:
Gently push down on the top edge of the card
until it is fully inserted into the PCI Express x16
slot. Make sure the card is securely seated in
the slot and does not rock.
•Removing the Card:
Gently push back on the lever on the slot and then lift the card straight out
from the slot.

Hardware Installation- 19 -
1-6 Back Panel Connectors
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.
DVI-D Port
The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to
this port.
HDMI Port
The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/
video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080
but the actual resolutions supported depend on the monitor being used.
Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats.
(AC3 and DTS require the use of an external decoder for decoding.)
InWindowsXP,selectStart>ControlPanel>Sounds
andAudioDevices>Audio,settheDefaultdevicefor
soundplaybacktoHDMI Device.
In Windows Vista, select Start>Control Panel>
Sound, select Digital Output Device (HDMI) and
thenclickSet Default.
•When removing the cable connected to a back panel connector, first remove the cable
from your device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side
to prevent an electrical short inside the cable connector.

GA-EG41MF-S2H Motherboard - 20 -
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
IEEE1394aPort
The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth
and hotplug capabilities. Use this port for an IEEE 1394a device.
USB Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
A. Dual Display Configurations:
This motherboard provides three display ports, DVI-D, HDMI, and D-Sub ports and supports dual-
display configurations. Note that the DVI-D+HDMI configuration only works in operating system
environments. In addition, under this configuration, the BIOS Setup and POST screens can only be
output from the HDMI port.
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the
recommended system requirements (or better) below.
•CPU: Intel®Dual-Core processor
•Memory: Two 1 GB DDR2 800 memory modules with dual channel mode enabled
•HDCP compliant monitor(s)
ActivityLED
Connection/
Speed LED
LAN Port
ActivityLED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
