Gigabyte GA-73UM-S2H User manual

GA-73UM-S2H
LGA775 socket motherboard for Intel®CoreTM processor family/
Intel®Pentium®processor family/Intel®Celeron®processor family
User's Manual
Rev. 1001
12ME-73UMS2H-1001R

Oct. 5, 2007
Motherboard
GA-73UM-S2H
Motherboard
GA-73UM-S2H
Oct. 5, 2007

Copyright
©2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
The logo is exclusively licensed to GIGABYTE UNITED INC. by GIGA-BYTE
TECHNOLOGY CO., LTD.
GIGABYTE UNITED INC. is designated by GIGA-BYTE TECHNOLOGY CO., LTD as the exclu-
sive global distributor of GIGABYTE branded motherboards.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision

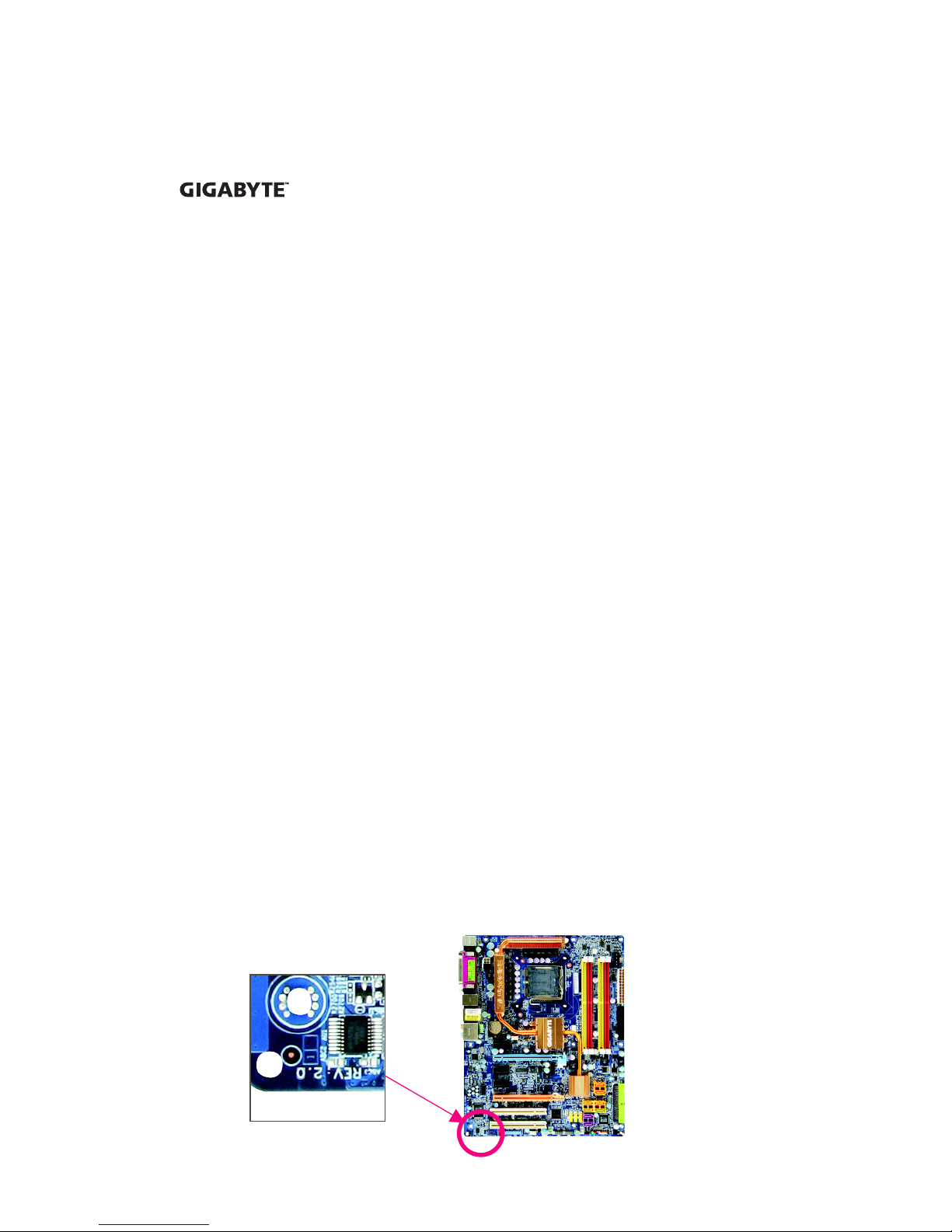

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents ................................................................................................................. 6
OptionalItems ................................................................................................................. 6
GA-73UM-S2H Motherboard Layout ............................................................................. 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions ..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Installing a Memory ............................................................................................. 16
1-5 Installing an Expansion Card ......................................................................... 17
1-6 Back Panel Connectors ................................................................................. 18
1-7 Internal Connectors ........................................................................................ 21
Chapter 2 BIOS Setup................................................................................................. 33
2-1 Startup Screen ................................................................................................ 34
2-2 The Main Menu .............................................................................................. 35
2-3 Standard CMOS Features ............................................................................. 37
2-4 Advanced BIOS Features .............................................................................. 39
2-5 IntegratedPeripherals ..................................................................................... 41
2-6 Power Management Setup ............................................................................. 45
2-7 PnP/PCI Configurations ................................................................................. 47
2-8 PC Health Status ........................................................................................... 48
2-9 MB Intelligent Tweaker(M.I.T.) ....................................................................... 50
2-10 Load Fail-Safe Defaults ................................................................................... 52
2-11 Load Optimized Defaults ................................................................................. 52
2-12 Set Supervisor/User Password ..................................................................... 53
2-13 Save & Exit Setup ......................................................................................... 54
2-14 Exit Without Saving ....................................................................................... 54

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 55
3-1 Installing Chipset Drivers ............................................................................... 55
3-2 SoftwareApplications ..................................................................................... 56
3-3 Driver CD Information .................................................................................... 56
3-4 Hardware Information ..................................................................................... 57
3-5 Contact Us ..................................................................................................... 57
Chapter 4 Unique Features ......................................................................................... 59
4-1 Xpress Recovery2 ......................................................................................... 59
4-2 BIOS Update Utilities ..................................................................................... 64
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 64
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 67
4-3 EasyTune 5 .................................................................................................... 69
4-4 Windows Vista ReadyBoost ........................................................................... 70
Chapter 5 Appendix .................................................................................................... 71
5-1 Configuring SATA Hard Drive(s) .................................................................... 71
5-1-1 Configuring the Onboard SATA Controller ......................................................... 71
5-1-2 Making a SATA RAID/AHCI Driver Diskette ..................................................... 76
5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...................... 77
5-2 ConfiguringAudio Input and Output ................................................................. 82
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 82
5-2-2 Installing the S/PDIF In and Out Cable (Optional) ............................................ 84
5-2-3 Configuring Microphone Recording ................................................................... 86
5-2-4 Using the Sound Recorder ................................................................................. 88
5-3 Troubleshooting ............................................................................................... 89
5-3-1 Frequently Asked Questions ............................................................................. 89
5-3-2 Troubleshooting Procedure ................................................................................ 90
Regulatory Statements ................................................................................................. 92

- 6 -
•The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
Box Contents
GA-73UM-S2H motherboard
Motherboard driver disk
Motherboard driver disk (for Windows Vista)
User's Manual
Intel®LGA775 CPU Installation Guide
One IDE cable and one floppy disk drive cable
Two SATA 3Gb/s cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-01R)
2-port SATA power cable (Part No. 12CF1-2SERPW-01R)
S/PDIF in and out cable (Part No. 12CR1-1SPINO-11R)
COM port cable (Part No. 12CF1-1CM001-32R)
LPT port cable (Part No. 12CF1-1LP001-01R)

- 7 -

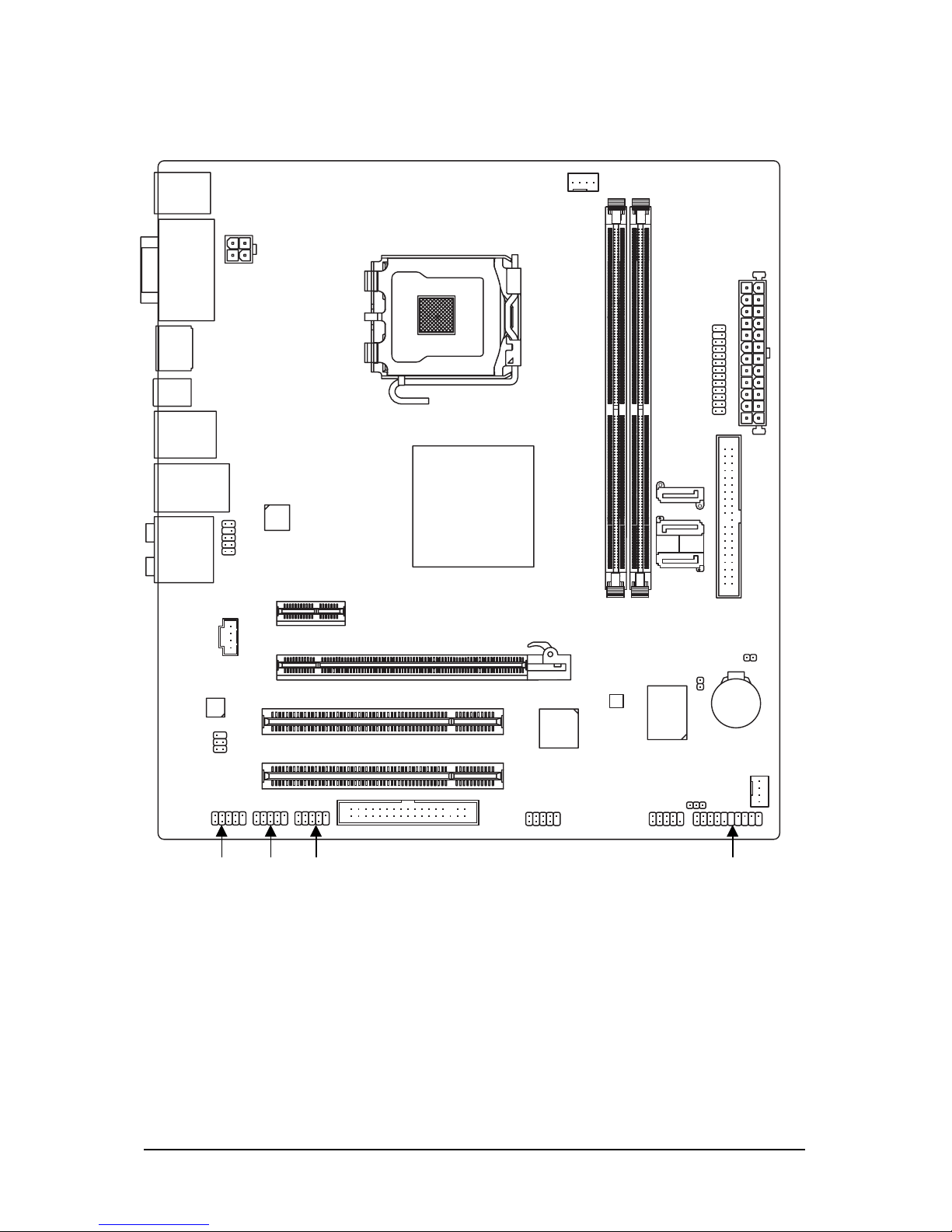

GA-73UM-S2H Motherboard Layout
KB_MS
LGA775
ATX
GA-73UM-S2H
USB LAN
CD_IN
F_AUDIO
AUDIO
BIOS
PCIE_16
IT8718
IDE
DDRII1
F1_1394
TSB43AB23
PCIE_1
PCI1 BATTERY
CI
CODEC
ATX_12V
ESATA 1394 USB
HDMI
CLR_CMOS
RTL
8211B
CPU_FAN
SATAII0
OPTICAL
PCI2
SYS_FAN
LPT
DVI VGA
nVIDIA®
GeForce 7150/
nForce 630i
DDRII2
SATAII2
SATAII1
F_PANEL
COMA
SPDIF_IO
F_USB3 F_USB1 F_USB2
PWR_LED
FDD

- 8 -

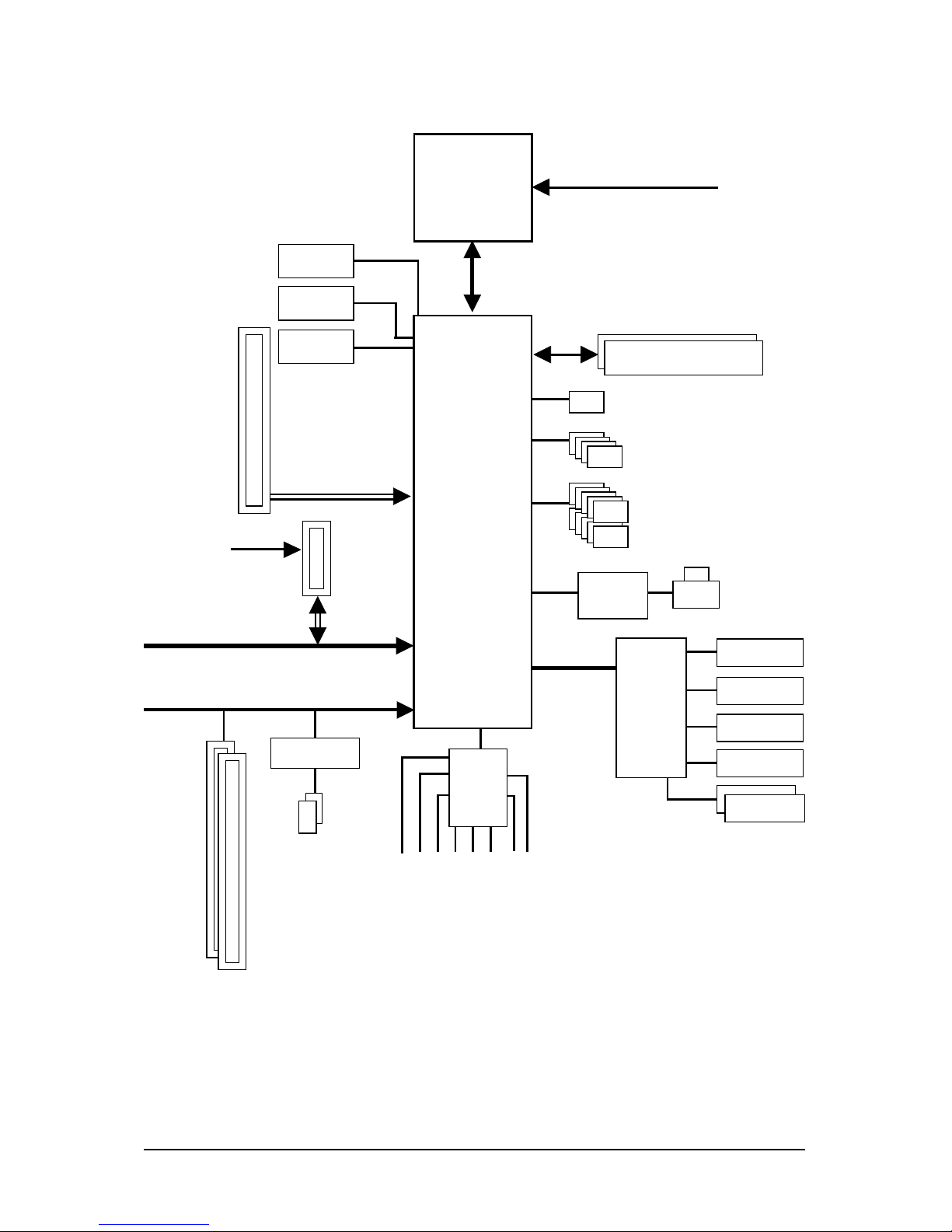

Block Diagram
(Note) Simultaneous output for DVI-D and HDMI is not supported.
LGA775
Processor
4 SATA 3Gb/s
LPC BUS
10 USB Ports
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
2 PCI
PCI Bus
2 IEEE 1394a
TSB43AB23
LPT Port
BIOS
Floppy
COM Port
PS/2 KB/Mouse
IT8718
Host
Interface
DDR2 800/667/533 MHz
1 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
x1
CPU CLK+/-
(333/266/200 MHz)
nVIDIA®
GeForce 7150/
nForce 630i
ATA-133/100/66/33
IDE Channel
LAN
RJ45
RTL
8211B
D-Sub
HDMI (Note)
DVI
PCIe CLK
(100 MHz)
PCI Express x16

Hardware Installation- 9 -
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and first touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface
.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Chapter 1 Hardware Installation

GA-73UM-S2H Motherboard - 10 -
1-2 Product Specifications
CPU Support for an Intel®CoreTM 2 Extreme processor/
Intel®CoreTM 2 Quad processor/Intel®CoreTM 2 Duo processor/
Intel®Pentium®processor Extreme Edition/Intel®Pentium®D processor/
Intel®Pentium®4 processor Extreme Edition/Intel®Pentium®4 processor/
Intel®Celeron®processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB
Chipset nVIDIA®GeForce 7150/nForce 630i
Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Support for DDR2 800/667/533 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics Integrated in the nVIDIA®GeForce 7150/nForce 630i chipset
Audio Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN RTL 8211B chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface nVIDIA®GeForce 7150/nForce 630i chipset:
- 3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up
to 3 SATA 3Gb/s devices
- 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA
3Gb/s device
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394a T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket
connected to the internal IEEE 1394a header)
USB Integrated in the nVIDIA®GeForce 7150/nForce 630i chipset
Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets
connected to the internal USB headers)

Hardware Installation- 11 -
Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
3 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
3 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 1)
1 x HDMI port
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS 1 x 4 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

GA-73UM-S2H Motherboard - 12 -
Unique Features Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 2)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft®Windows®Vista/XP
Form Factor Micro ATX Form Factor; 24.4cm x 22.0cm
(Note 1) The DVI-D port does not support D-Sub connection by adapter.
(Note 2) Available functions in Easytune may differ by motherboard model.

Hardware Installation- 13 -
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you
may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the fre-
quency beyond the standard specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
NotchNotch
Alignment Key
Alignment Key
LGA 775 CPU
LGA775 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU

GA-73UM-S2H Motherboard - 14 -

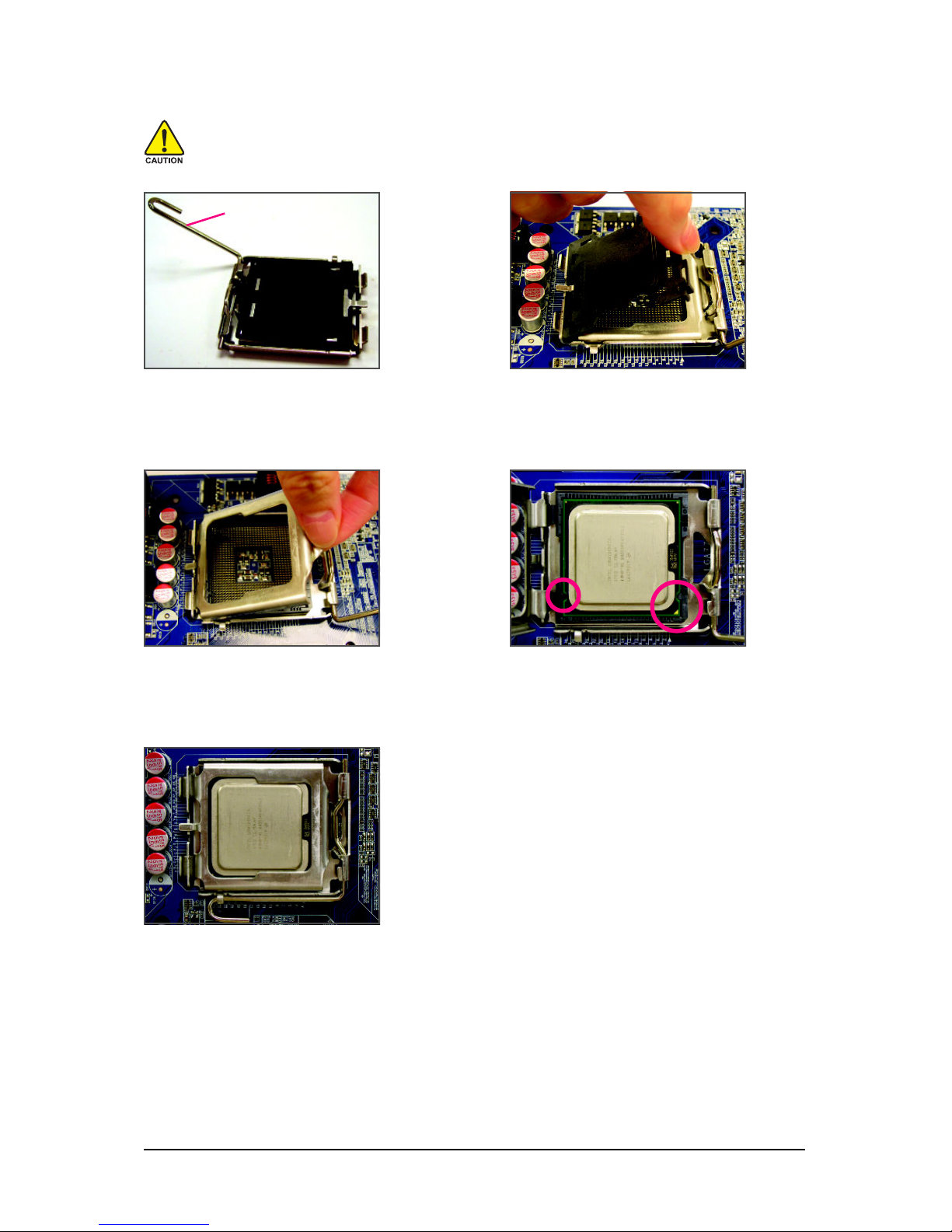

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Step 2:
Remove the protective socket cover.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Step 1:
Completely raise the CPU socket lever.
Step 4:
Hold the CPU with your thumb and index
fingers. Align the CPU pin one marking (triangle)
with the pin one corner of the CPU socket (or
you may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Step 3:
Lift the metal load plate on the CPU socket.
Step 5:
Once the CPU is properly inserted, replace
the load plate and push the CPU socket lever
back into its locked position.
CPU Socket Lever

Hardware Installation- 15 -

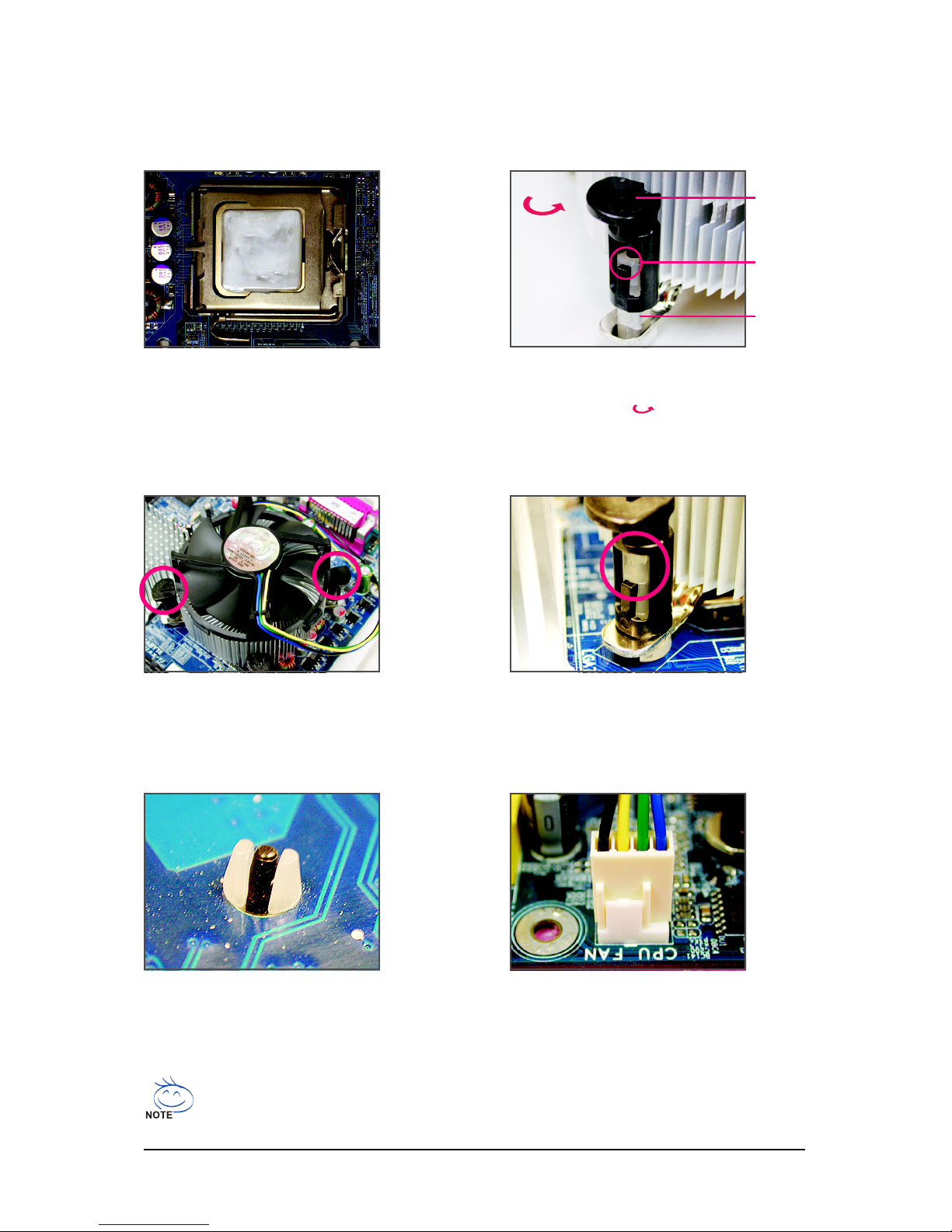

1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure
uses Intel®boxed cooler as the example cooler.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 3:
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
Step 4:
You should hear a "click" when pushing down each
push pin. Check that the Male and Female push pins
are joined closely. (Refer to your CPU cooler instal-
lation manual for instructions on installing the cooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may
damage the CPU.
Step 5:
After the installation, check the back of the
motherboard. If the push pin is inserted as the
picture above, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin
Step 2:
Before installing the cooler, note the direction
of the arrow sign on the male push pin.
(Turning the push pin along the direction of
arrow is to remove the cooler, on the contrary,
is to install.)

GA-73UM-S2H Motherboard - 16 -
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
1-4-1 Installing a Memory
Notch
DDR2 DIMM
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on
this motherboard.
A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.

Hardware Installation- 17 -
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.

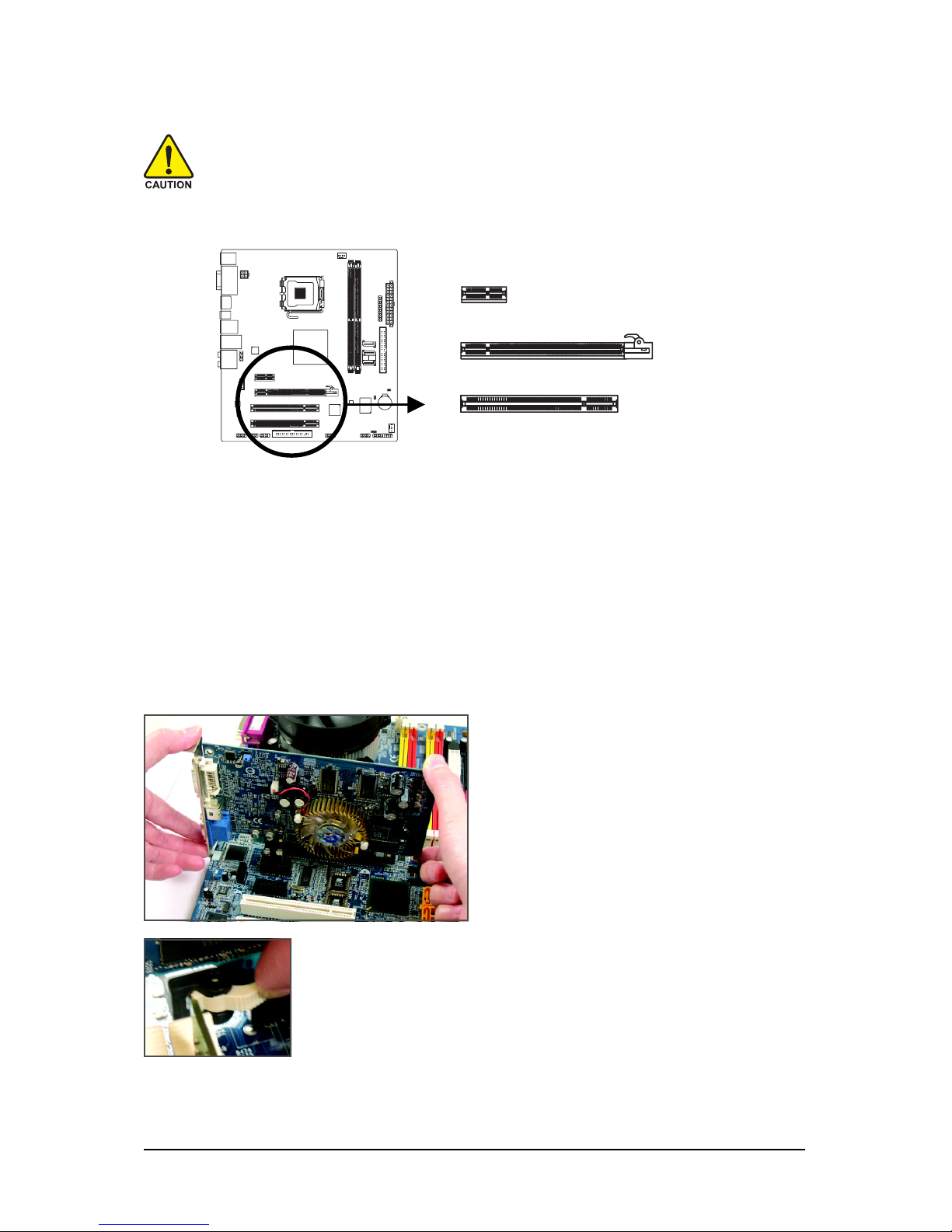

Example: Installing and Removing a PCI Express x16 Graphics Card:
•Installing a Graphics Card:
Gently insert the graphics card into the PCI Ex-
press x16 slot. Make sure the graphics card is
locked by the latch at the end of the PCI Ex-
press x16 slot.
•Removing the Card:
Press the white latch at the end of the PCI Express x16 slot to release the
card and then pull the card straight up from the slot.
PCI Express x1 Slot
PCI Slot
PCI Express x16 Slot

GA-73UM-S2H Motherboard - 18 -

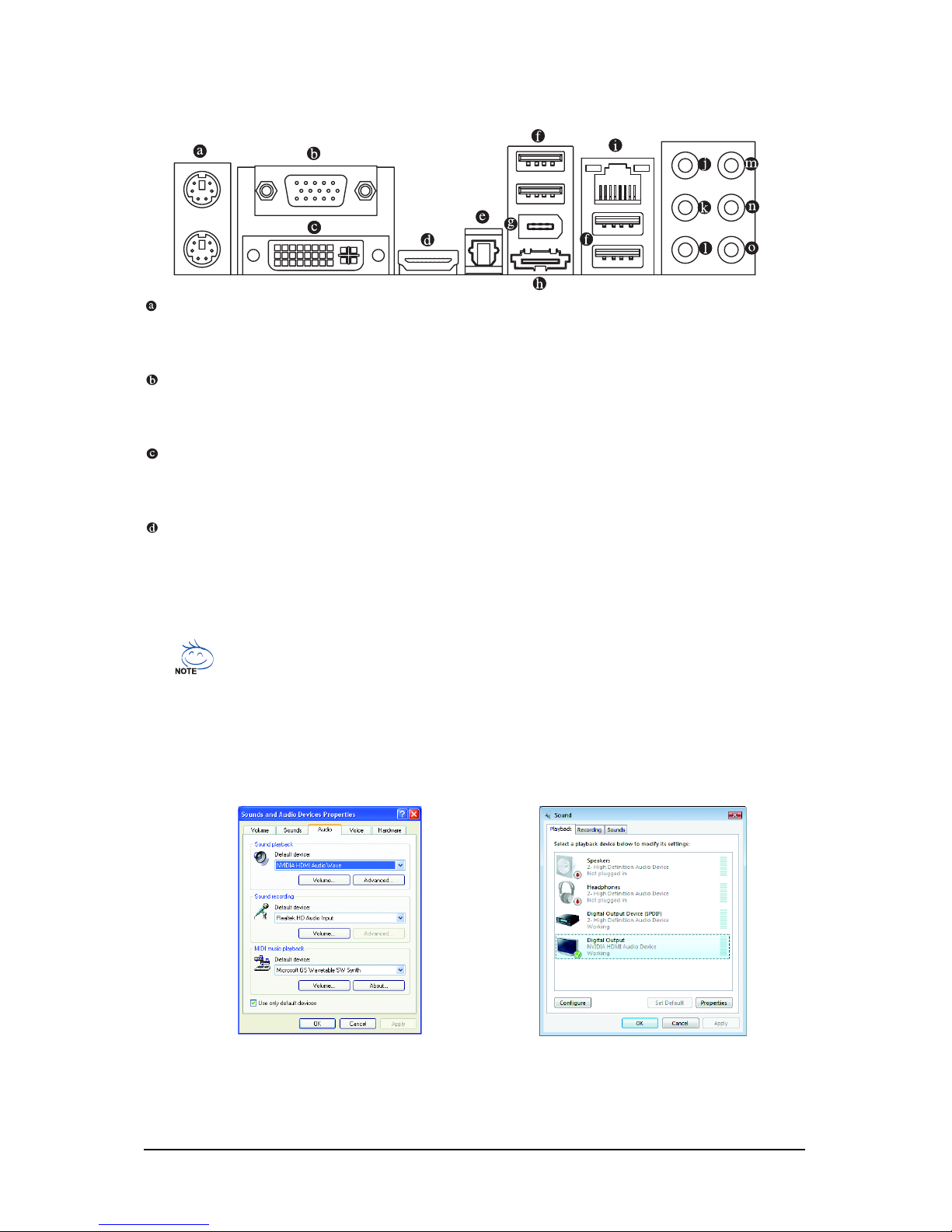

1-6 Back Panel Connectors
• After installing the HDMI device, make sure the default device for sound playback is the HDMI
device. (The item name may differ by operating system. Refer the figures below for details.)
• Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM
formats. (AC3 and DTS require the use of an external decoder for decoding.)
In Windows XP, select Start>Control Panel>Sounds
and Audio Devices Properties>Audio, set the Default
deviceforsoundplayback toNVIDIAHDMIAudio Wave.
In Windows Vista, select Start>Control Panel>
Sound, select NVIDIA HDMI Audio Device and then
click Set Default.
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub
connection to this port.
DVI-D Port
The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to
this port.
HDMI Port
The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/
video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080p
but the actual resolutions supported depend on the monitor being used.

Hardware Installation- 19 -
Center/Subwoofer Speaker Out Jack (Orange)
Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration.
Rear Speaker Out Jack (Black)
Use this audio jack to connect rear speakers in a 4/5.1/7.1-channel audio configuration.
Side Speaker Out Jack (Gray)
Use this audio jack to connect side speakers in a 7.1-channel audio configuration.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can
be used to connect front speakers in a 4/5.1/7.1-channel audio configuration.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical
audio. Before using this feature, ensure that your audio system provides an optical digital audio in
connector.
USB Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth
and hotplug capabilities. Use this port for an IEEE 1394a device.
eSATA 3Gb/s Port
The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s
standard. Use the port to connect an external SATA device or a SATA port multiplier.

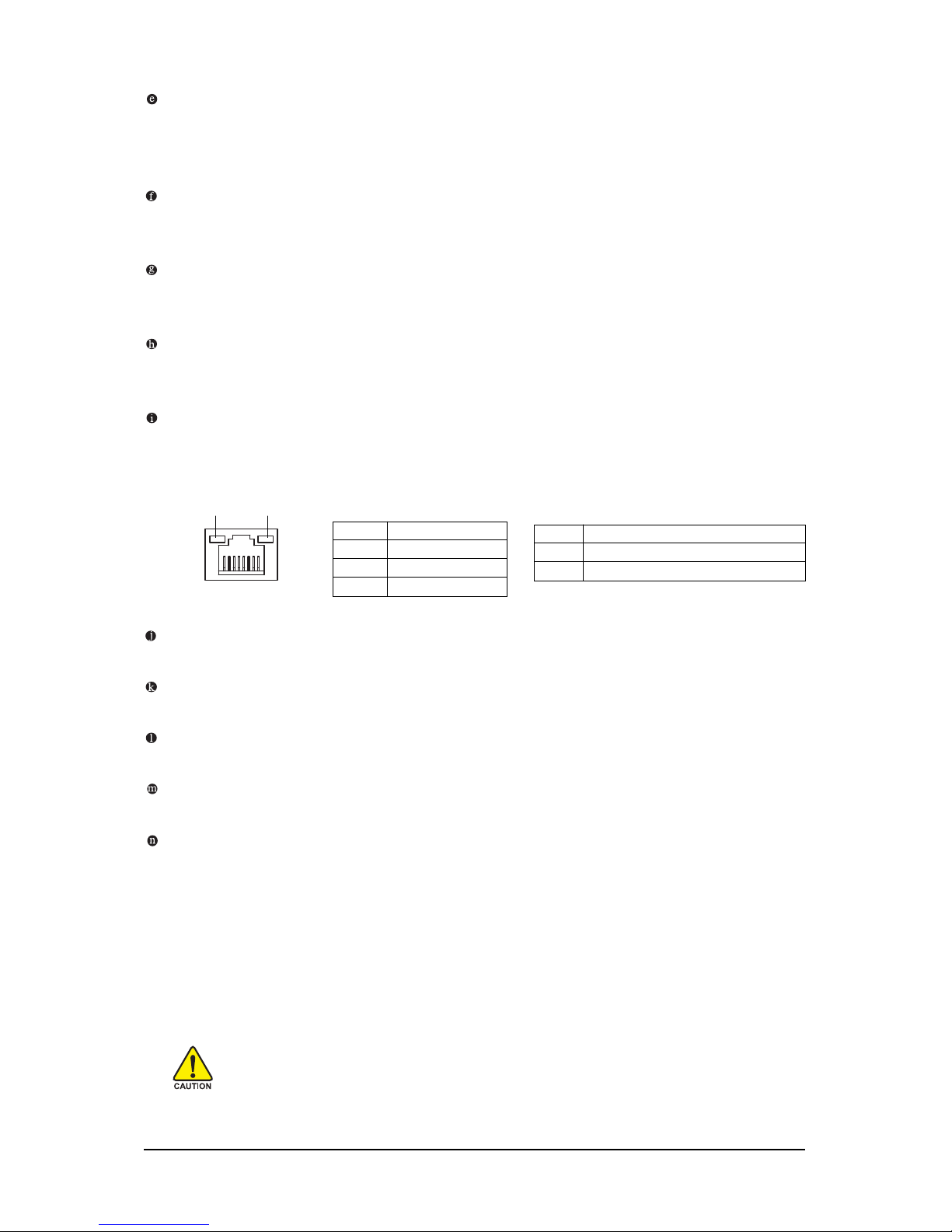

RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
•When removing the cable connected to a back panel connector, first remove the cable
from your device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side
to prevent an electrical short inside the cable connector.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gpbs data rate
Green 100 Mpbs data rate
Off 10 Mpbs data rate

GA-73UM-S2H Motherboard - 20 -
A. Dual Display Configurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below
shows the supported dual display configurations.
Dual
Display
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
HDMI + D-Sub Yes
In addition to the default speakers settings, the ~audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be
connected to the default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/
7.1-channel audio configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the
recommended system requirements (or better) below.
•CPU: Intel®CoreTM 2 Duo E6550 processor (2.33 GHz or faster). To support 1080p resolution,
be sure to use an Intel®CoreTM 2 Duo E6550 processor or faster; to support 720p resolution,
be sure to use an Intel®Pentium®E2160 processor or faster.
•Memory: 1 GB of DDR2 memory
•BIOS Setup: At least 256 MB of Frame Buffer Size (refer to Chapter 2, "BIOS Setup,"
"Advanced BIOS Features," for more information)
•Playback software: CyberLink PowerDVD 7.3 (Note: Hardware Acceleration is not supported)
File Format Suitable Resolution
Windows XP Windows Vista
Non-protected contents 1920 x 1080p 1920 x 1080p
HD-DVD 1920 x 1080p 1920 x 1080p
Blu-ray 1920 x 1080p 1920 x 1080p
