Gigabyte GA-HA65M-UD3H-B3 User manual

GA-HA65M-UD3H-B3
LGA1155 socket motherboard for Intel®Core™i7 processors/
Intel®Core™i5 processors/Intel®Core™i3 processors/
Intel®Pentium®processors/Intel®Celeron®processors
User's Manual
Rev. 1001
12ME-A65M3HB-1001R

Motherboard
GA-HA65M-UD3H-B3
Feb. 25, 2011
Feb. 25, 2011
Motherboard
GA-HA65M-UD3H-B3

Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-HA65M-UD3H-B3 Motherboard Layout ...................................................................7
GA-HA65M-UD3H-B3 Motherboard Block Diagram ......................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions ................................................................................... 9
1-2 ProductSpecications................................................................................... 10
1-3 Installing the CPU and CPU Cooler............................................................... 13
1-3-1 Installing the CPU ..................................................................................................13
1-3-2 Installing the CPU Cooler ......................................................................................15
1-4 Installing the Memory .................................................................................... 16
1-4-1 DualChannelMemoryConguration ....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card......................................................................... 18
1-6 Back Panel Connectors ................................................................................. 19
1-7 Internal Connectors ....................................................................................... 21
Chapter 2 BIOS Setup..................................................................................................31
2-1 Startup Screen............................................................................................... 32
2-2 The Main Menu.............................................................................................. 33
2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 35
2-4 Standard CMOS Features ............................................................................. 43
2-5 Advanced BIOS Features.............................................................................. 45
2-6 Integrated Peripherals ................................................................................... 47
2-7 Power Management Setup ............................................................................ 50
2-8 PC Health Status ........................................................................................... 52
2-9 Load Fail-Safe Defaults ................................................................................. 54
2-10 Load Optimized Defaults ............................................................................... 54
2-11 Set Supervisor/User Password ..................................................................... 55
2-12 Save & Exit Setup.......................................................................................... 56
2-13 Exit Without Saving........................................................................................ 56

- 5 -
Chapter 3 Drivers Installation .......................................................................................57
3-1 Installing Chipset Drivers............................................................................... 57
3-2 Application Software...................................................................................... 58
3-3 Technical Manuals ......................................................................................... 58
3-4 Contact........................................................................................................... 59
3-5 System ........................................................................................................... 59
3-6 Download Center........................................................................................... 60
3-7 New Utilities ................................................................................................... 60
Chapter 4 Unique Features...........................................................................................61
4-1 Xpress Recovery2 ......................................................................................... 61
4-2 BIOS Update Utilities.....................................................................................64
4-2-1 Updating the BIOS with the Q-Flash Utility.......................................................... 64
4-2-2 Updating the BIOS with the @BIOS Utility............................................................67
4-3 EasyTune 6 .................................................................................................... 68
4-4 Dynamic Energy Saver™2.............................................................................. 69
4-5 Q-Share ......................................................................................................... 71
4-6 Smart 6™....................................................................................................... 72
4-7 Auto Green..................................................................................................... 76
4-8 Cloud OC ....................................................................................................... 77
Chapter 5 Appendix......................................................................................................79
5-1 ConguringSATAHardDrive(s)................................................................... 79
5-1-1 ConguringMarvell88SE9172SATAController...................................................79
5-1-2 Installing the SATA RAID/AHCI Driver and Operating System............................ 86
5-2 ConguringAudioInputandOutput.............................................................. 91
5-2-1 Conguring2/4/5.1/7.1-ChannelAudio..................................................................91
5-2-2 ConguringS/PDIFOut.........................................................................................93
5-2-3 ConguringMicrophoneRecording.......................................................................93
5-2-4 Using the Sound Recorder ................................................................................... 96
5-3 Troubleshooting ............................................................................................. 97
5-3-1 Frequently Asked Questions .................................................................................97
5-3-2 Troubleshooting Procedure .................................................................................. 98

- 6 -
Box Contents
GA-HA65M-UD3H-B3 motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Two SATA cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.

- 7 -

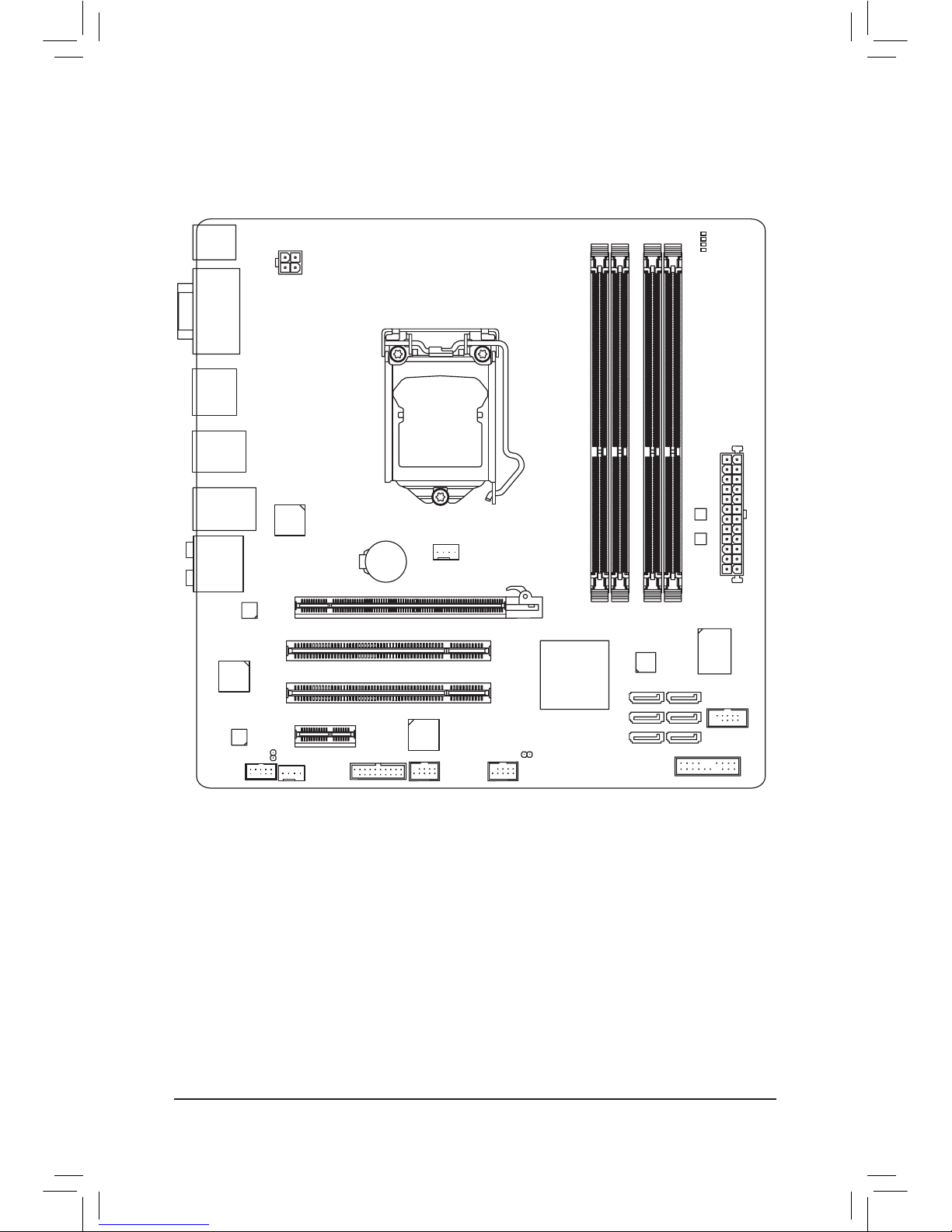

GA-HA65M-UD3H-B3 Motherboard Layout
KB_USB
CPU_FAN
LGA1155
ATX
GA-HA65M-UD3H-B3
F_AUDIO
AUDIO
B_BIOS
DDR3_1
DDR3_3
DDR3_2
DDR3_4
BAT
F_PANEL
ATX_12V
Intel®H61
SATA2_0
SATA2_1
SATA2_2
GSATA3_4
SATA2_3
USB30_20
CODEC
CLR_CMOS
M_BIOS
VGA_DVI
USB_LAN
PCIEX16
PCIEX1
PCI2
PCI1
F_USB1
F_USB2
F_USB30
COM
SYS_FAN
PHASE LED
HDMI
iTE IT8728
GSATA3_5
Etron
EJ168
Etron
EJ168
PCIe to
PCI Bridge
Realtek
RTL8111E
SPDIF_O
Marvell
88SE9172

- 8 -

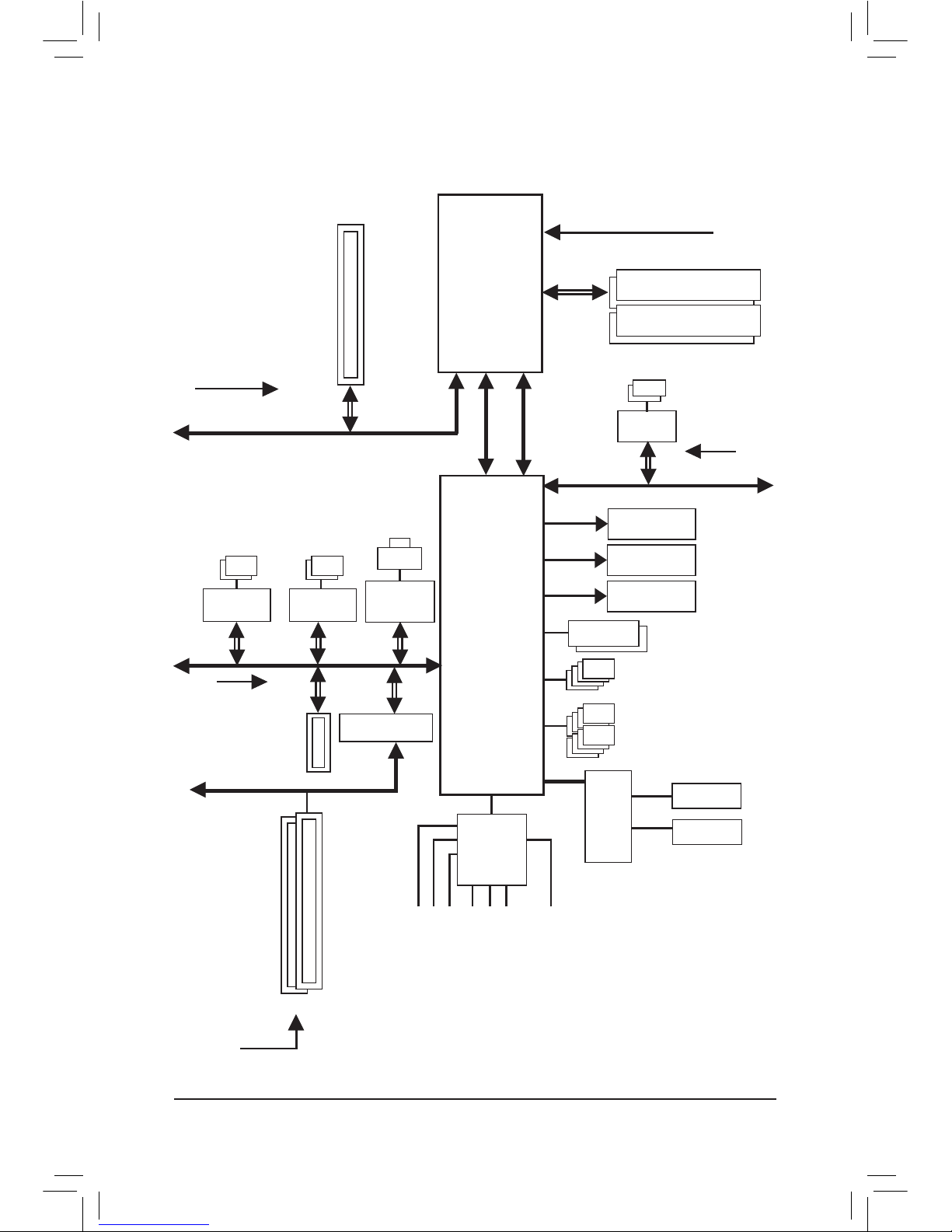

GA-HA65M-UD3H-B3 Motherboard Block Diagram
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC PS/2 KB/Mouse
LGA1155
CPU
Intel®H61
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (100 MHz)
1 PCI Express x16
Dual BIOS
COM Port
8 USB 2.0/1.1
LPC
Bus
DDR3 1333/1066/800 MHz
LAN
RJ45
D-Sub
DVI-D
HDMI
Realtek
RTL8111E
iTE
IT8728
4 SATA 3Gb/s
DMI Interface
FDI Interface
x16
Dual Channel Memory
x1
PCIe CLK
(100 MHz)
1 PCI
Express x1
x1
x1
2 PCI
PCI Bus
PCI CLK
(33 MHz)
x1
x1
Etron
EJ168
4 USB 3.0/2.0
Etron
EJ168
PCI Express Bus
2 SATA 6Gb/s
PCIe CLK (100 MHz)
x1
Marvell
88SE9172
PCIe to PCI Bridge

- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or•
warranty sticker provided by your dealer. These stickers are required for warranty validation.
Always remove the AC power by unplugging the power cord from the power outlet before•
installing or removing the motherboard or other hardware components.
When connecting hardware components to the internal connectors on the motherboard,•
make sure they are connected tightly and securely.
When handling the motherboard, avoid touching any metal leads or connectors.•
It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
Prior to installing the motherboard, please have it on top of an antistatic pad or within an•
electrostatic shielding container.
Before unplugging the power supply cable from the motherboard, make sure the power sup-•
ply has been turned off.
Before turning on the power, make sure the power supply voltage has been set according to•
the local voltage standard.
Before using the product, please verify that all cables and power connectors of your hard-•
ware components are connected.
To prevent damage to the motherboard, do not allow screws to come in contact with the•
motherboard circuit or its components.
Make sure there are no leftover screws or metal components placed on the motherboard or•
within the computer casing.
Do not place the computer system on an uneven surface• .
Do not place the computer system in a high-temperature environment.•
Turning on the computer power during the installation process can lead to damage to sys-•
tem components as well as physical harm to the user.
If you are uncertain about any installation steps or have a problem related to the use of the•
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation

Hardware Installation - 10 -
1-2 Product Specications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®H61 Express Chipset
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated in the Chipset:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio Realtek ALC889 codec
HighDenitionAudio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots
Storage Interface Chipset:
- 4 x SATA 3Gb/s connectors (SATA2_0~SATA2_3) supporting up to 4 SATA
3Gb/s devices
Marvell 88SE9172chip:
- 2 x SATA 6Gb/s connectors (GSATA3_4, GSATA3_5) supporting up to 2
SATA 6Gb/s devices
- Support for SATA RAID 0 and RAID 1.

- 11 - Hardware Installation
USB Chipset:
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
2 x Etron EJ168 chips:
- Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB brackets
connected to the internal USB headers)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x serial port header
1 x clearing CMOS jumper
Back Panel
Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker
Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8728 chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on
the CPU/system cooler you install.
BIOS 2x32Mbitash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Hardware Installation - 12 -
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Dynamic Energy Saver™2
Support for Smart 6™
Support for Auto Green
Support for ON/OFF Charge
Support for Cloud OC
Support for Q-Share
Bundled
Software Norton Internet Security (OEM version)
Operating
System Support for Microsoft®Windows 7/Vista/XP
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
*GIGABYTE reserves the right to make any changes to the productspecications and product-related information
without prior notice.

- 13 - Hardware Installation
1-3 Installing the CPU and CPU Cooler
1-3-1 Installing the CPU

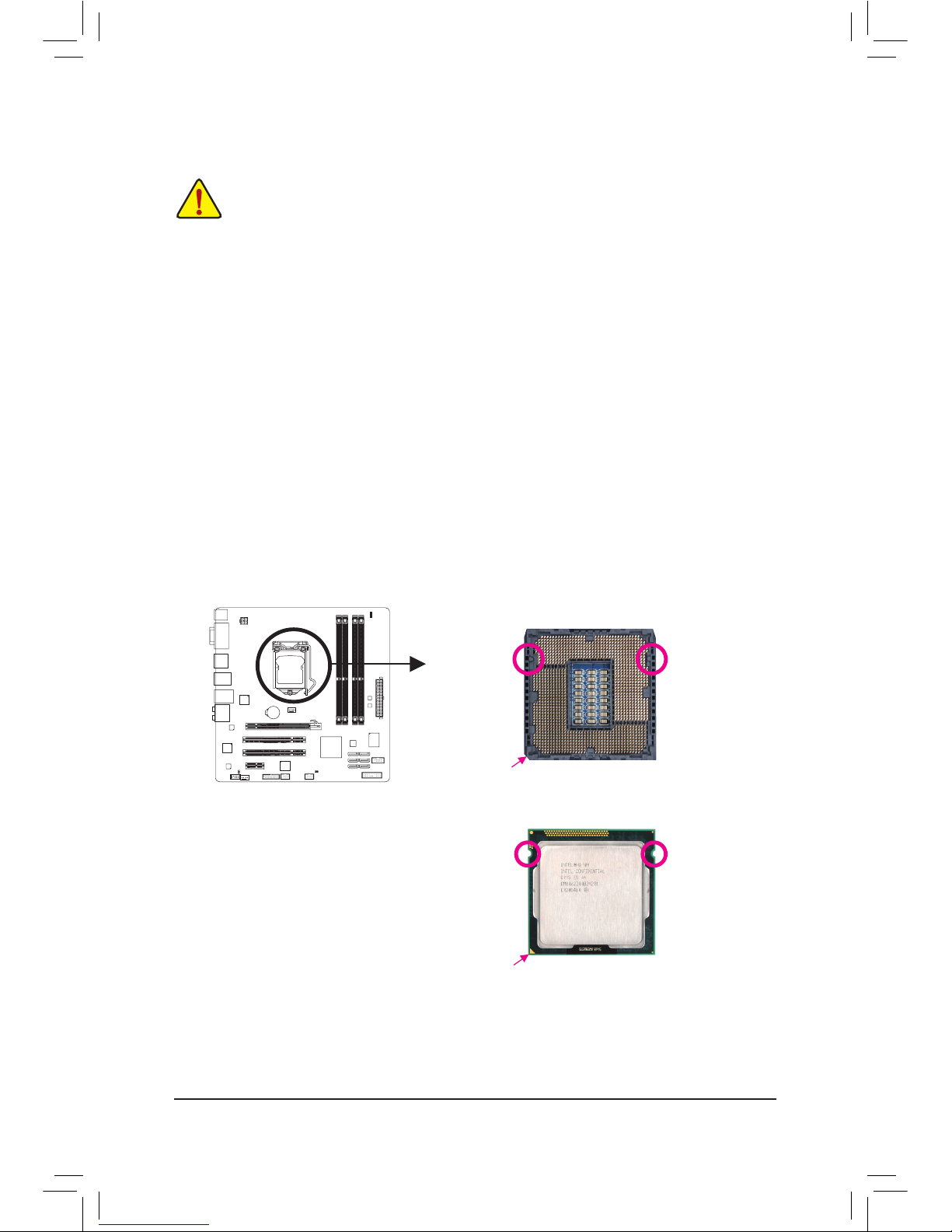

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Alignment KeyAlignment Key
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Notch
Notch
LGA1155 CPU
Triangle Pin One Marking on the CPU
Read the following guidelines before you begin to install the CPU:
Make sure that the motherboard supports the CPU.•
(Go to GIGABYTE's website for the latest CPU support list.)
Always turn off the computer and unplug the power cord from the power outlet before installing•
the CPU to prevent hardware damage.
Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may•
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
Apply an even and thin layer of thermal grease on the surface of the CPU.•
Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-•
age of the CPU may occur.
SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended•
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graph-
ics card, memory, hard drive, etc.

Hardware Installation - 14 -
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Before installing the CPU, make sure to turn off the computer and unplug the power cord from
the power outlet to prevent damage to the CPU.
Step 1:
Gently press the CPU socket lever handle down
andawayfromthesocketwithyournger.Then
completely lift the CPU socket lever and the metal
load plate will be lifted as well.
Step 3:
HoldtheCPUwithyourthumbandindexngers.
Align the CPU pin one marking (triangle) with the
pin one corner of the CPU socket (or you may
align the CPU notches with the socket alignment
keys) and gently insert the CPU into position.
Step 5:
Push the CPU socket lever back into its locked
position.
Step 4:
Once the CPU is properly inserted, use one
hand to hold the socket lever and use the other
to lightly replace the load plate. When replacing
the load plate, make sure the front end of the
load plate is under the shoulder screw.
NOTE:
Hold the CPU socket lever by the handle, not the
lever base portion.
Step 2:
Remove the CPU socket cover as shown. Hold
your index finger down on the rear grip of the
socket cover and use your thumb to lift up the
front edge (next to the "REMOVE" mark) and
then remove the cover. (DO NOT touch socket
contacts. To protect the CPU socket, always re-
place the protective socket cover when the CPU
is not installed.)

- 15 - Hardware Installation
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure uses
Intel®boxed cooler as the example cooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between the
CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage
the CPU.

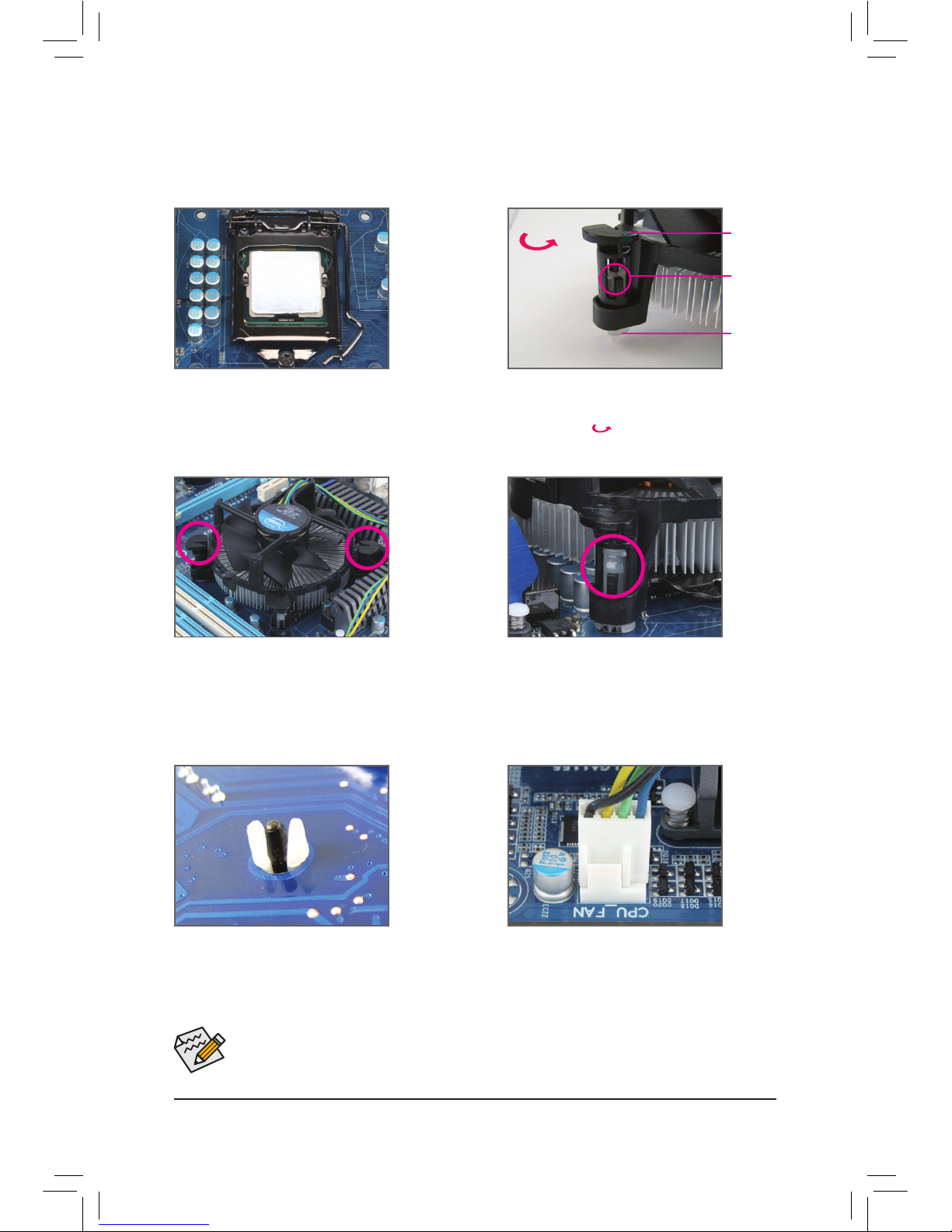

Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Male Push
Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of the
Arrow Sign on
the Male Push
Pin
Step 2:
Before installing the cooler, note the direction of
the arrow sign on the male push pin. (Turn-
ing the push pin along the direction of arrow is to
remove the cooler, on the contrary, is to install.)
Step 3:
Place the cooler atop the CPU, aligning the four
push pins through the pin holes on the mother-
board. Push down on the push pins diagonally.
Step 4:
You should hear a "click" when pushing down
each push pin. Check that the Male and Female
push pins are joined closely. (Refer to your CPU
cooler installation manual for instructions on
installing the cooler.)
Step 5:
After the installation, check the back of the moth-
erboard. If the push pin is inserted as the picture
above shows, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on the
motherboard.

Hardware Installation - 16 -
1-4 Installing the Memory
DualChannelMemoryCongurationsTable
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.1.
When enabling Dual Channel mode with two or four memory modules, it is recommended that2.
memory of the same capacity, brand, speed, and chips be used for optimum performance.
1-4-1 Dual Channel Memory Conguration

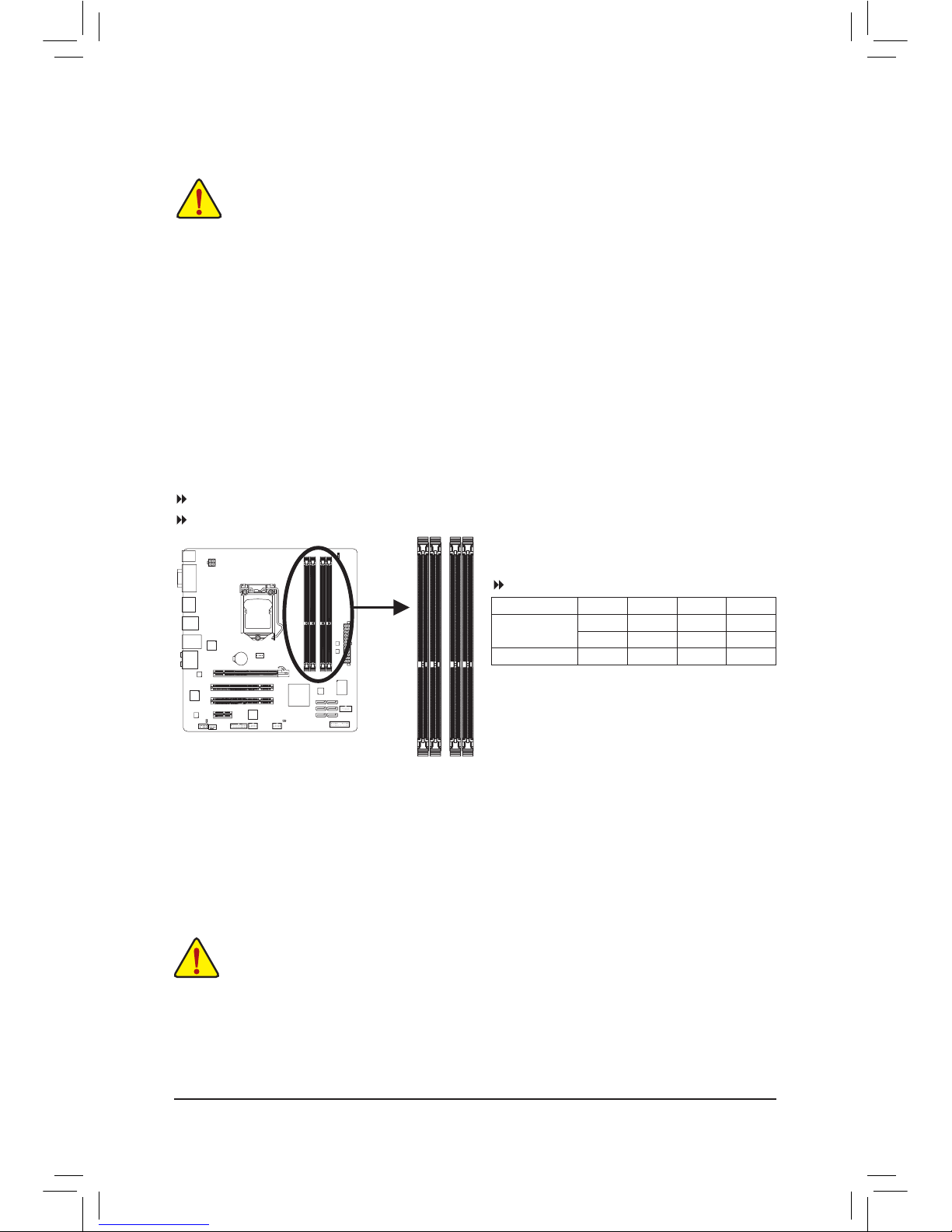

This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
memoryis installed,the BIOSwillautomatically detectthe specicationsand capacityofthe memory.En-
abling Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_1, DDR3_2
Channel 1: DDR3_3, DDR3_4
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the•
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing•
the memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direc-•
tion. If you are unable to insert the memory, switch the direction.
DDR3_1 DDR3_2 DDR3_3 DDR3_4
Two Modules DS/SS - - DS/SS - -
- - DS - - DS
Four Modules SS SS SS SS
DDR3_1 DDR3_2
DDR3_3 DDR3_4
•If one or two single-sided memory modules are to be installed, be sure to install it/them in the
DDR3_1 socket or/and the DDR3_3 socket. If three single-sided memory modules are to be
installed, two of them must be installed in the DDR3_1 and DDR3_3 sockets. Due to a hard-
ware limitation, if you have already installed two double-sided memory modules, any additional
memory module will not be supported.
•If four DDR3 1333 MHz memory modules are installed, the maximum memory speed will be lim-
ited to 1066 MHz.

- 17 - Hardware Installation
1-4-2 Installing a Memory
Notch
DDR3 DIMM
ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectly
install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory module
onthesocket.Asindicatedinthepictureontheleft,placeyourn-
gers on the top edge of the memory, push down on the memory and
insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install
DDR3 DIMMs on this motherboard.

Hardware Installation - 18 -
1-5 Installing an Expansion Card
Follow the steps below to correctly install your expansion card in the expansion slot.
Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.1.
Align the card with the slot, and press down on the card until it is fully seated in the slot.2.
Make sure the metal contacts on the card are completely inserted into the slot.3.
Secure the card’s metal bracket to the chassis back panel with a screw.4.
After installing all expansion cards, replace the chassis cover(s).5.
Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your6.
expansion card(s).
Install the driver provided with the expansion card in your operating system.7.
Example: Installing and Removing a PCI Express Graphics Card:
•Installing a Graphics Card:
Gently push down on the top edge of the card until
it is fully inserted into the PCI Express slot. Make
sure the card is securely seated in the slot and
does not rock.
•Removing the Card:
Press the latch at the end of the PCI Express slot to release the card and then
pull the card straight up from the slot.
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing
an expansion card to prevent hardware damage.
PCI Express x1 Slot
PCI Express x16 Slot
PCI Slot

- 19 - Hardware Installation
1-6 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasaUSBkey-
board/mouse,USBprinter,USBashdriveandetc.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.
DVI-D Port (Note)
TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
DVI-D connection to this port.
HDMI Port
TheHDMI(High-DenitionMultimediaInterface)providesanall-digitalaudio/videointerfacetotransmit
the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to
this port. The HDMI Technology can support a maximum resolution of 1920x1200 but the actual resolu-
tions supported depend on the monitor being used.
After installing the HDMI device, make sure the default device for sound playback is the HDMI•
device.(Theitemnamemaydifferfromoperatingsystem.Refertothegurebelowfordetails.)
Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats.•
(AC3 and DTS require the use of an external decoder for decoding.)
In Windows 7, select Start>Control Panel>Hardware
and Sound>Sound>Playback, set Intel(R) Display Audio
to the default playback device.
(Note) The DVI-D port does not support D-Sub con-
nection by adapter.

Hardware Installation - 20 -
Center/Subwoofer Speaker Out Jack (Orange)
Usethisaudiojacktoconnectcenter/subwooferspeakersina5.1/7.1-channelaudioconguration.
Rear Speaker Out Jack (Black)
Usethisaudiojacktoconnectrearspeakersina4/5.1/7.1-channelaudioconguration.
Side Speaker Out Jack (Gray)
Usethisaudiojacktoconnectsidespeakersina7.1-channelaudioconguration.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
usedtoconnectfrontspeakersina4/5.1/7.1-channelaudioconguration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
In addition to the default speakers settings, the ~audiojackscanbereconguredtoperform
different functions via the audio software. Only microphones still MUST be connected to the
default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/7.1-channel audio con-
gurationinChapter5,"Conguring2/4/5.1/7.1-ChannelAudio."
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour•
device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to•
prevent an electrical short inside the cable connector.
USB 3.0/2.0 Port
TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.
UsethisportforUSBdevicessuchasaUSBkeyboard/mouse,USBprinter,USBashdriveandetc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Dual Display Congurations for the Onboard Graphics:
This motherboard provides three video output ports: D-Sub, DVI-D, and HDMI.
 Dualmonitorcongurationsaresupported inoperating systemenvironmentonly,butnot duringthe
BIOS Setup or POST process.
