Gigabyte GA-K8S760M User manual

GA-K8S760M
User's Manual
AMD Socket 754 Processor Motherboard
Rev. 1001
12ME-K8S760M-1001
Copyright
© 2003 GIGABYTE TECHNOLOGYCO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on motherboard, this may void the warranty of this motherboard.
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.

Mother Board
GA-K8S760M
Feb. 16, 2004

Motherboard
Feb. 16, 2004
GA-K8S760M

- 4 -GA-K8S760M Motherboard
English

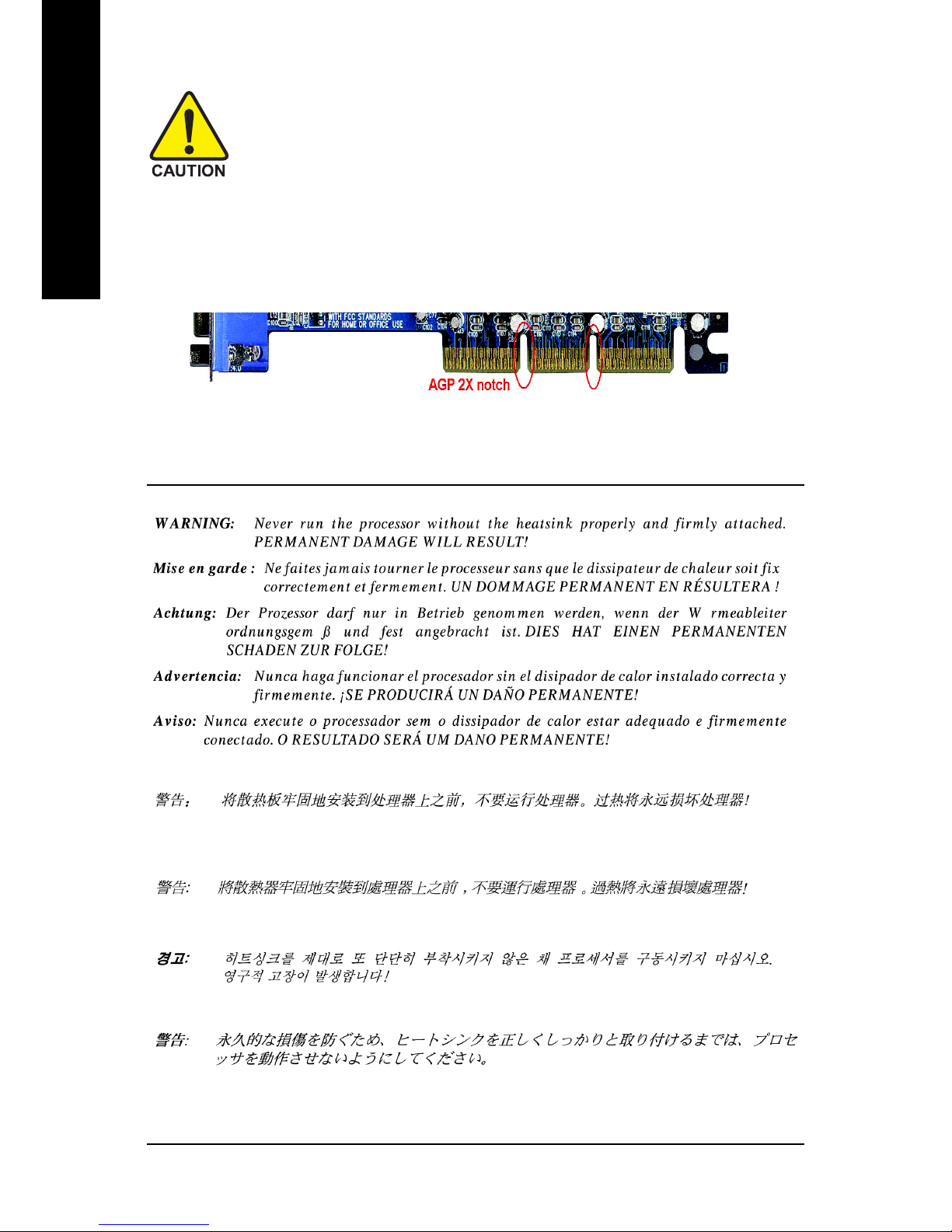

When you are installing the AGP card, please make sure the following notice is fully under-
stood and practiced. If your AGP card has "AGP 4X/8X (1.5V) notch" (show below), please
make sure your AGP card is AGP 4X/8X.
Caution: AGP 2X card is not supported by SiS 760. You might experience system
unable to boot up normally. Please insert an AGP 4X/8X card.
AGP 4X/8X notch
Read Me First!

Read Me First!
English
- 5 -
Prepare your computer...
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other
components.
4. Place components on a grounded antistatic pad or on the bag that came with the components
whenever the components are separated from the system.
5. Ensure that theATX power supply is switched off before you plug in or remove the ATX power
connector on the motherboard.
Installing the motherboard to the chassis...
If the motherboard has mounting holes, but they don't line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it
may damage the board or cause board malfunctioning.

- 6 -GA-K8S760M Motherboard
English
Table of Contents
Read Me First! ........................................................................................ 4
Chapter 1 Introduction ............................................................................ 8
Features Summary ...................................................................................... 8
GA-K8S760M Motherboard Layout........................................................... 10
Block Diagram ........................................................................................... 11
Chapter 2 Hardware Installation Process ............................................. 13
Step 1: Install the Central Processing Unit (CPU)..................................... 14
Step 2: Install Memory Modules ................................................................ 16
Step 3: Install Expansion Cards ................................................................ 18
Step 4: Install I/O Peripherals Cables ....................................................... 19
Step 4-1: I/O Back Panel Introduction............................................................................ 19
Step 4-2: Connectors Introduction .................................................................................. 21
Chapter 3 BIOS Setup ......................................................................... 35
The Main Menu (For example: BIOS Ver. : F1z) ...................................... 36
Standard CMOS Features......................................................................... 38
Advanced BIOS Features .......................................................................... 41
Integrated Peripherals .............................................................................. 43
Power Management Setup ....................................................................... 47
PnP/PCI Configurations............................................................................. 50
PC Health Status........................................................................................ 51
Frequency/Voltage Control ........................................................................ 53
Top Performance ...................................................................................... 55
Load Fail-Safe Defaults............................................................................. 56

Table of Content
English
- 7 -
Load Optimized Defaults ........................................................................... 57
Set Supervisor/User Password .................................................................. 58
Save & Exit Setup....................................................................................... 59
Exit Without Saving .................................................................................... 60
Chapter 4 Technical Reference ........................................................... 61
@BIOSTM Introduction ................................................................................. 61
EasyTuneTM 4 Introduction ......................................................................... 62
Flash BIOS Method Introduction............................................................... 63
2- / 4- / 6-Channel Audio Function Introduction ........................................ 78
Jack-Sensing Introduction......................................................................... 84
Xpress Recovery Introduction ................................................................... 86
Serial ATA RAID BIOS Utility Operation Introduction ................................. 89
Chapter 5 Appendix ............................................................................. 97

- 8 -GA-K8S760M Motherboard
English
Form Factor y24.4cm x 24.4cm Micro ATX size form factor, 4 layers PCB
CPU ySocket 754 for AMD AlthlonTM 64 processor (K8)
128K L1& 256K / 512K / 1M L2 cache on die
y1600MHz System Bus
ySupports core frequencies in excess of 1.6GHz(2800+) and faster
Chipset ySiS 760 H.T. Bus/AGP/VLINK Controller
ySiS 964 Integrated Peripheral Controller (PSIPC)
Memory y2 184-pin DDR DIMM sockets
ySupports DDR400/333/266/200 DIMM
ySupports 128MB/256MB/512MB/1GB unbuffered DRAM
ySupports up to 2GB DRAM (Max)
ySupports only 2.5V DDR DIMM
I/O Control yIT8705
Slots y1AGP slot supports 8X/4X mode,AGP3.0 8X interface at 533MHz
y3 PCI slots support 33MHz & PCI 2.2 compliant
On-Board IDE y2 IDE controllers provide IDE HDD/CD-ROM (IDE1, IDE2) with
PIO, Bus Master(DMA33/ATA66/ATA100/ATA133) operation modes
Serial ATA y2 Serial ATA connectors in 150 MB/s operation mode
yBuilt-in SiS 964
On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88M bytes
y1 Parallel port supports Normal/EPP/ECP mode
y1 Serial port (COMA), 1 VGA port, COMB on board
y8 x USB 2.0/1.1 ports
y3 x IEEE1394 prots (by cable)
y1 IrDA connector for IR
y1 Front Audio connector
Hardware Monitor yCPU/System fan revolution detect
yCPU temperature detect
yCPU warning temperature
ySystem voltage detect
yCPU/System fan fail warning
yThermal shutdown function
to be continued...
Chapter 1 Introduction
Features Summary

Introduction
English
- 9 -
On-Board LAN yBuilt-in RTL8100C (10/100 Mbit)
y1 RJ45 port
On-Board Sound yALC655 CODEC
ySupports Jack Sensing function
yLine Out / 2 front speaker
yLine In / 2 rear speaker (by s/w switch)
yMic In / center & subwoofer (by s/w switch)
ySPDIF In / Out
yCD In / AUX In / Game Connector
On-Board SATA RAID yOnboard SiS 964
y2 Serial ATA connectors in 150 MB/s operation mode
ySupports Disk striping (RAID0) or DISK Mirroring (RAID1)
yUp to 2 SATA devices
On-Board IEEE1394 yBuilt-in TSB43AB23
PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface
BIOS yLicensed AWARD BIOS
ySupports Q-Flash
Additional Features yPS/2 Keyboard password power on
yPS/2 Mouse power on
ySTR(Suspend-To-RAM)
yAC Recovery
yUSB KB/Mouse wake up from S3
yPoly fuse for keyboard over-current protection
ySupports Thermal Shutdown function
ySupports @BIOS
ySupports EasyTune 4
Overclocking yOver Clock (CPU/DDR/AGP/PCI) by BIOS
Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification because
these specific bus frequencies are not the standard specifications for CPU, chipset and most of the
peripherals. Whether your system can run under these specific bus frequencies properly will
depend on your hardware configurations, including CPU, Chipsets, Memory, Cards…etc.

Introduction
English
- 10 -
F_USB2 F_USB1
F1_1394
TSB43AB23
F2_1394

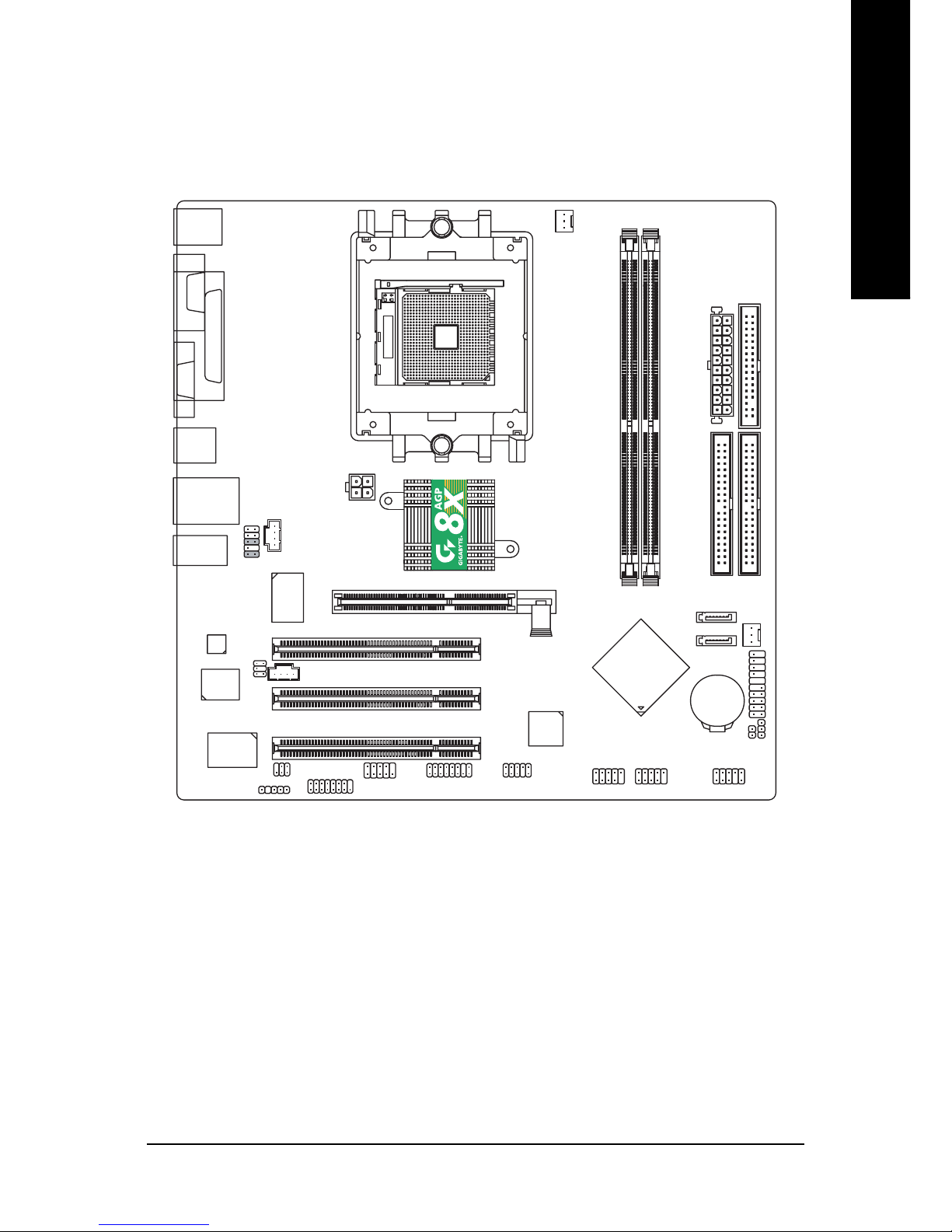

GA-K8S760M Motherboard Layout
GA-K8S760M
MS_KB
COMA
LPT
SOCKET 754
CPU_FAN
VGA
ATX
R_USB
FDD
PCI2
CODEC
GAME
AUX_IN
IR INFO_LINK
CD_IN
RTL
8100C
SPDIF_IO
PCI3
PWR_LED
BAT
SiS 964
F_PANEL
CLR_CMOS
USB LAN
ATX_12V
IDE2IDE1
DDR2
PCI1
BIOS
SUR_CEN
SYS_FAN
F_AUDIO
DDR1
AUDIO
AGP
SiS 760
IT8705
SATA1
SATA0
COMB

Introduction
English
- 11 -
Block Diagram
SiS 760
CPUCLK+/- (200MHz)
H.T. Bus 800MHz
33 MHz
14.318 MHz
AGP
4X/8X
AGPCLK
(66MHz)
3 PCI
PCICLK
(33MHz)
RJ45
AC97 Link
RTL8100C
MIC
LINE-IN
LINE-OUT
6 Channel
CODEC
2 Serial ATA
400/333/266/200MHz
DDR RAM
SiS 964 LPC BUS
8 USB
Ports
IT8705
24 MHz
33 MHz
ATA33/66/100/133
IDE Channels
LAN1
AMD
Althlon™64
processor (K8)
BIOS
Game Port
Floppy
PS/2 KB/Mouse
2 COM Ports
IR
LPT Port
TSB43AB23
3 IEEE1394
Ports
VGA Port

- 12 -GA-K8S760M Motherboard
English

Hardware Installation Process
English
- 13 -

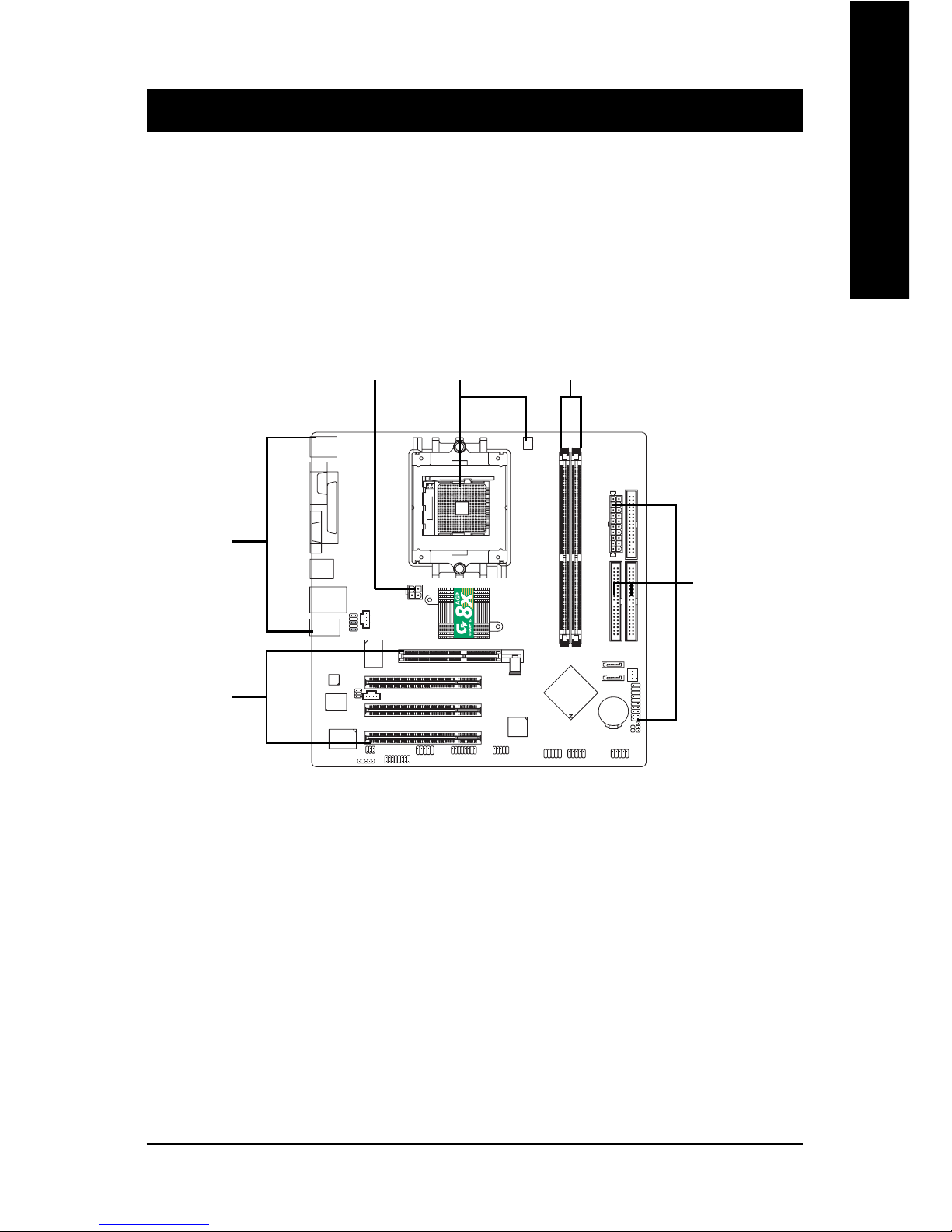

Tosetupyourcomputer,youmustcompletethefollowingsteps:
Step1-InstalltheCentralProcessingUnit(CPU)
Step2-Installmemorymodules
Step3-Installexpansioncards
Step4-InstallI/OPeripheralsCables
Chapter 2 Hardware Installation Process
Step 4
Step 3
Step 4
Step 4
Congratulations!Youhaveaccomplishedthehardwareinstallation!
Turnonthepowersupplyorconnectthepowercabletothepoweroutlet.Continuewiththe
BIOS/softwareinstallation.
Step 2
Step 1

- 14 -
GA-K8S760M Motherboard
English

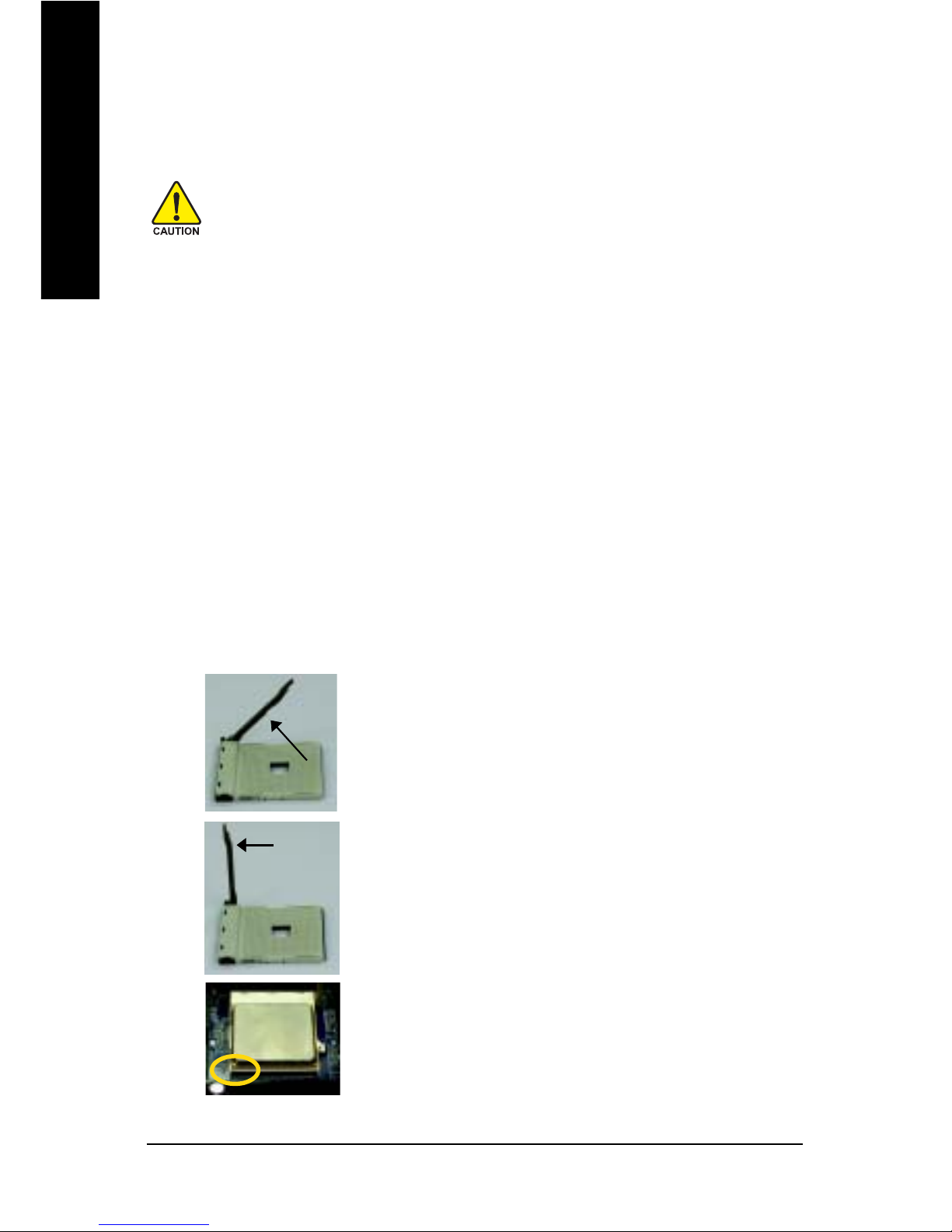

Step 1: Install the Central Processing Unit (CPU)
Socket
Actuation Lever
Theinstallationoftheprocessorandcoolingfanisperformedinfourmainsteps:
Step1-1.Processorinsertion
Step1-2.Applyingthermalgrease
Step1-3.Coolingfanattachment
Step1-4.Connectingprocessorfanpower
Beforeinstallingtheprocessorandcoolingfan,adheretothefollowingwarning:
1. Theprocessorwilloverheatwithouttheheatsinkand/orfan,resultinginpermanent
irreparabledamage.
2. Neverforcetheprocessorintothesocket.
3. Applythermalgreasebetweentheprocessorandcoolingfan.
4. Pleasemakesurethe CPUtypeis supportedbythe motherboard.
5. IfyoudonotmatchtheCPUsocketPin1andCPUcutedgewell,itwillcauseimproper
installation. Pleasechangetheinsertorientation.PleaseuseAMDapprovedcooling
fan.
Step1-1. First, check the processor pins to see that none are bent. Move the socket lever to the
unlocked position as shown in Figure 1 & Figure 2.(90oto the plane of the motherboard) prior
to inserting the processor. The A1 pin location is designated on the processor by a copper
triangle that matches up to a triangle on the socket as shown in Figure 3. Align the processor
to the socket and gently lower it into place. Do not force the processor into the socket.
Figure 1. Angling the rod to 65-degree maybe feel a
kind of tight , and then continue pull the rod to 90-
degree when a noise "cough" made.
Figure2. Pull the rod to the 90-degree directly.
Angling the
rod to 650
Figure 3. A1 pin location on the Socket and
Processor.Move the socket lever to the locked posi-
tion while holding pressure on the center of the
processor.

Hardware Installation Process
English
- 15 -
Step1-2. When the processor is installed in the socket, apply thermal grease to the processor (as
shown in Figure 4) prior to installing the heatsink. AMD recommends using a high thermal
conductivity grease (such as Shin-Etsu types G751 or G749, or an equivalent product) for
the thermal interface material rather than a phase change material. Phase change materials
develop strong adhesive forces between the heatsink and processor.
Removing the heatsink under such conditions can cause the processor to be
removed from the socket without moving the socket lever to the unlocked
position and then damage the processor pins or socket contacts.
** We recommend you to apply the thermal tape to provide better heat conduction between your
CPU and heatsink. (The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the processor.
To avoid this from happening, we suggest you to either use thermal tape instead of thermal
paste, or remove the cooling fan with extreme caution.)
Figure 4. Application of Thermal Grease to the processor.
Step 1-4. Connect the fan power wires to the header on the motherboard as shown in Figure 7.
Figure 7. Connecting the Fan Power Wires
Step 1-3.Once the thermal grease has been applied to the processor, the heatsink can be attached to
the processor. Align the heatsink assembly with the support frame mating with the backer
plate standoffs as shown in Figure 5&6.
Figure 5&6. Alignment of Heatsink
Assembly with Standoffs

- 16 -
GA-K8S760M Motherboard
English

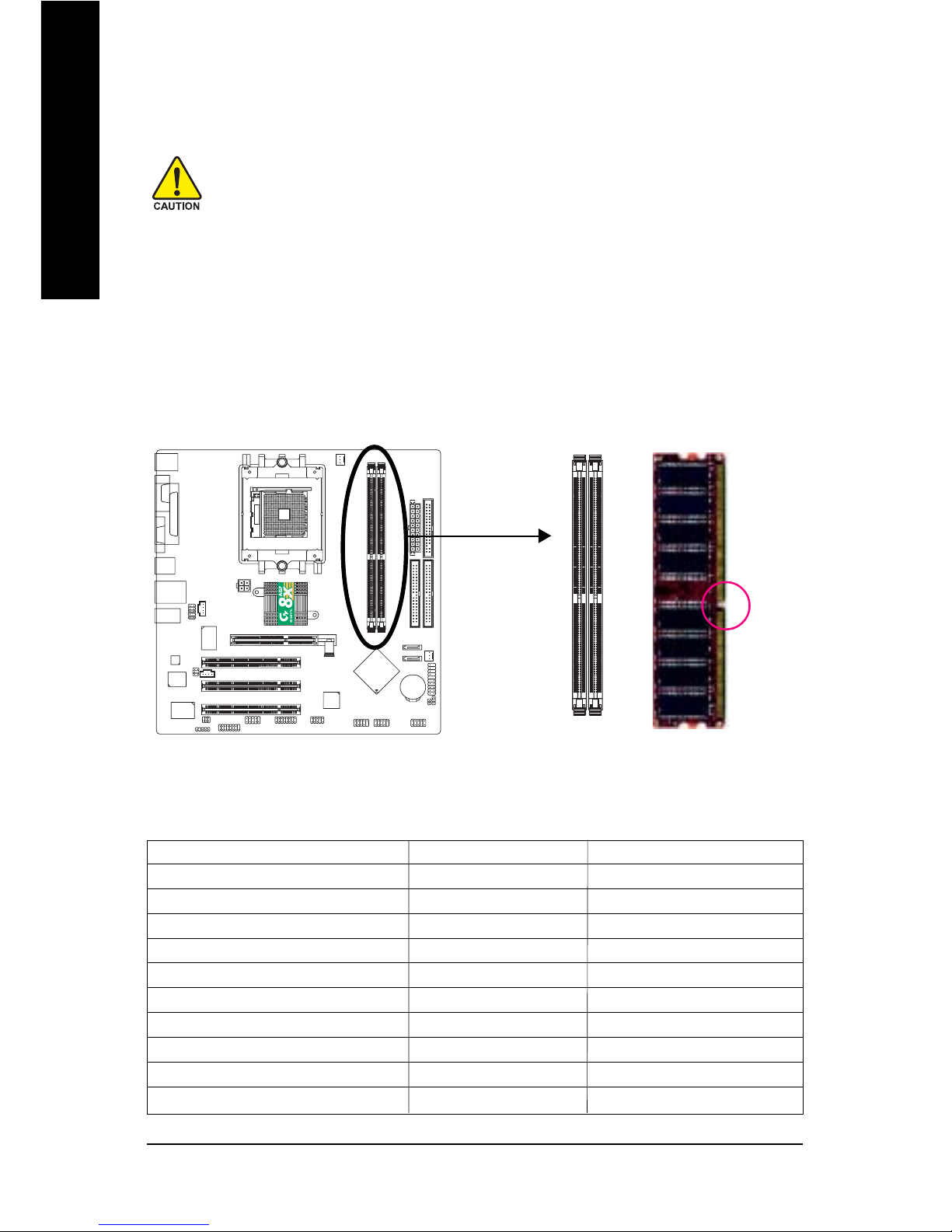

Before installing the memory modules, adhere to the following warning:
1.Please note that the DIMM module can only fit in one direction due to
the notch. Wrong orientation will cause improper installation. Please
change the insert orientation.
Step 2: Install Memory Modules
The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM
socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary
betweensockets.
DDR
Notch
Total Memory Size Per Chip Select
Device Used on DIMMs Size Per CS Comments
64 Mbit (2Mx8-bitsx4 banks) 64 Mbyte
64 Mbit (1Mx16-bitsx4 banks) 32 Mbyte
128 Mbit(4Mx8-bitsx4 banks) 128 Mbyte
128 Mbit(2Mx16-bitsx4 banks) 64 Mbyte
256 Mbit(8Mx8-bitsx4 banks) 256 Mbyte
256 Mbit(4Mx16x4 banks) 128 Mbyte
512 Mbit(16Mx8-bitsx4 banks) 512 Mbyte
512 Mbit(8Mx16-bitsx4 banks) 256 Mbyte
1 Gbit(32Mx8-bitsx4 banks) 1 Gbyte
1 Gbit(16Mx16-bitsx4 banks) 512 Mbyte

Hardware Installation Process
English
- 17 -
DDR Introduction
Established on the existing SDRAM infrastructure, DDR (Double Data Rate) memory is a high
performance and cost-effective solution that allows easy adoption for memory vendors, OEMs, and
system integrators.
DDR memory is a great evolutionary solution for the PC industry that builds on the existing
SDRAMarchitecture,yetmaketheawesomeadvancesinsolvingthesystemperformancebottleneck
bydoublingthememorybandwidth. Nowadays,withthehighestbandwidthof3.2GB/s ofDDR400
memory and complete line of DDR400/333/266/200 memory solutions, DDR memory is the best
choiceforbuildinghighperformanceandlowlatencyDRAMsubsystemthataresuitableforservers,
workstations,andfullrangeofdesktopPCs.

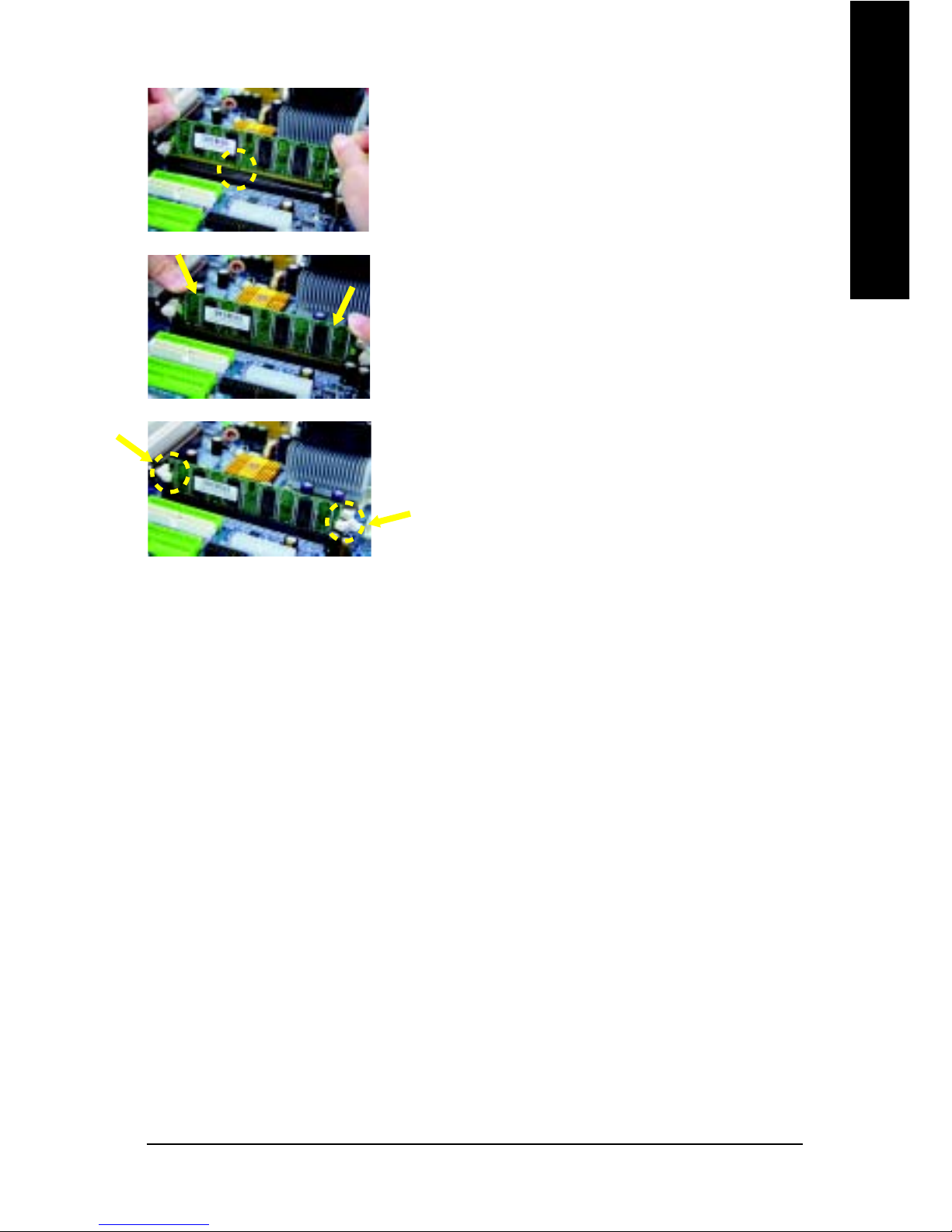

1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM
socket. Then push it down.
3. Close the plastic clip at both edges of the DIMM sockets
to lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.

- 18 -
GA-K8S760M Motherboard
English
Step 3: Install Expansion Cards
1. Readtherelatedexpansioncard'sinstructiondocumentbeforeinstall theexpansioncardintothe
computer.
2. Removeyourcomputer'schassiscover,screwsandslotbracketfromthecomputer.
3. Presstheexpansioncardfirmlyintoexpansionslotinmotherboard.
4. Besurethemetalcontactsonthecardareindeedseatedintheslot.
5. Replacethescrewtosecuretheslotbracketoftheexpansioncard.
6. Replaceyourcomputer'schassiscover.
7. Poweronthe computer,if necessary,setupBIOS utilityof expansioncardfrom BIOS.
8. Installrelateddriverfromtheoperatingsystem.
AGP Card
Pleasecarefullypulloutthesmallwhite-drawablebarattheendoftheAGPslotwhenyoutrytoinstall
/uninstalltheAGPcard.PleasealigntheAGPcardtotheonboardAGPslotandpressfirmlydownon
theslot. Make sureyour AGPcard islockedby thesmall white-drawablebar.

Hardware Installation Process
English
- 19 -
Step 4: Install I/O Peripherals Cables
Step 4-1: I/O Back Panel Introduction
X
Y
Z
[
\
YParallel Port, Serial Port and VGA Port (LPT/COMA/VGA)
ParallelPort(25pinFemale)
COMA VGA
SerialPort
(9pinMale) VGAPort
(15pinFemale)
Thisconnectorsupports1standardCOM port,
1 Parallel port and 1 VGA port. Device like
printercanbeconnectedtoParallelport;mouse
andmodemetccanbeconnectedtoSerialports.
XPS/2 Keyboard and PS/2 Mouse Connector
ThisconnectorsupportsstandardPS/2
keyboardandPS/2 mouse.
PS/2Mouse Connector
(6pinFemale)
PS/2KeyboardConnector
(6pinFemale)

- 20 -
GA-K8S760M Motherboard
English
\Audio Connectors Afterinstallonboardaudiodriver,youmay
connectspeakertoLineOutjack,microphoneto
MICInjack. DevicelikeCD-ROM,walkmanetc.
canbeconnectedtoLine-Injack.
Pleasenote:
Youareabletouse2-/4-/6-channelaudio
featurebyS/Wselection.
If you want to enable 6-channel function, you
have2chooseforhardwareconnection.
Method1:
Connect"FrontSpeaker"to"LineOut"
Connect"Rear Speaker"to "LineIn"
Connect "Center and Subwoofer" to "MIC In".
Method2:
You can refer to page 28, and contact your
nearest dealerforoptional SUR_CENcable.
If you want the detail information for 2-/4-/6-channel audio setup
installation, please refer to page 78.

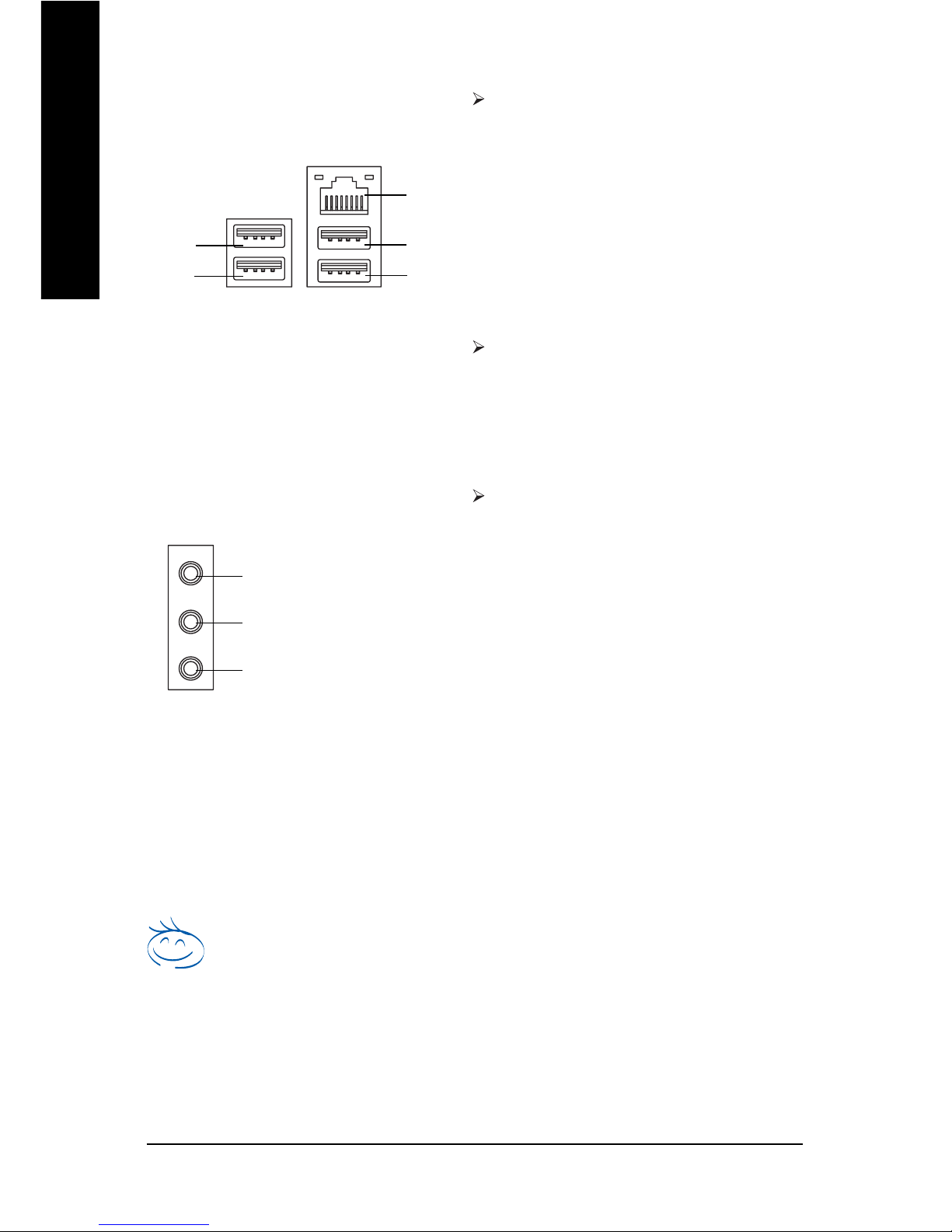

Z/[USB/LAN Connector Before you connect your device(s) into USB
connector(s),pleasemake sureyourdevice(s)
such as USB keyboard,mouse, scanner, zip,
speaker...etc.Havea standardUSBinterface.
Also make sure your OS supports USB
controller. If your OS does not support USB
controller, please contact OS vendor for
possible patch or driver upgrade. For more
informationpleasecontactyourOSordevice(s)
vendors.
LANconnectorisfastEthernetwith10/100Mbps
speed.
USB 6
USB 7
LAN
USB 4
USB 5
LineIn(RearSpeaker)
MIC In (Center and Subwoofer)
LineOut(FrontSpeaker)
