Gigabyte GA-Z87M-D3H User manual

GA-Z87M-D3H
GA-H87M-D3H
User's Manual
Rev. 1002
12ME-Z87MD3H-1002R

Motherboard
GA-Z87M-D3H GA-H87M-D3H
Mar. 29, 2013
Mar. 29, 2013
Motherboard GA-Z87M-D3H/GA-H87M-D3H

Copyright
©2013 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE
without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of
documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at: http://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:
1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before
updating motherboard BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-Z87M-D3H/GA-H87M-D3H Motherboard Layout......................................................7
GA-Z87M-D3H/GA-H87M-D3H Motherboard Block Diagram .........................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the CPU and CPU Cooler ............................................................... 13
1-3-1 Installing the CPU...................................................................................................13
1-3-2 Installing the CPU Cooler .......................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 DualChannelMemoryConguration .....................................................................16
1-4-2 Installing a Memory ................................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Back Panel Connectors.................................................................................. 19
1-7 Internal Connectors........................................................................................ 21
Chapter 2 BIOS Setup ..................................................................................................31
2-1 Startup Screen ............................................................................................... 32
2-2 The Main Menu .............................................................................................. 33
2-3 M.I.T. .............................................................................................................. 35
2-4 System ........................................................................................................... 45
2-5 BIOS Features ............................................................................................... 46
2-6 Peripherals..................................................................................................... 50
2-7 Power Management....................................................................................... 54
2-8 Save & Exit..................................................................................................... 56
Chapter3 ConguringSATAHardDrive(s)...................................................................57
3-1 ConguringSATAControllers......................................................................... 57
3-2 Installing the SATA RAID/AHCI Driver and Operating System....................... 69

- 5 -
Chapter 4 Drivers Installation........................................................................................73
4-1 Chipset Drivers............................................................................................... 73
4-2 Application Software ...................................................................................... 74
4-3 Information ..................................................................................................... 74
Chapter 5 Unique Features...........................................................................................75
5-1 BIOS Update Utilities ..................................................................................... 75
5-1-1 Updating the BIOS with the Q-Flash Utility.............................................................75
5-1-2 Updating the BIOS with the @BIOS Utility .............................................................78
5-2 APP Center .................................................................................................... 79
5-2-1 EasyTune................................................................................................................80
5-2-2 EZ Setup.................................................................................................................81
5-2-3 USB Blocker ...........................................................................................................86
Chapter 6 Appendix ......................................................................................................87
6-1 ConguringAudioInputandOutput............................................................... 87
6-1-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................87
6-1-2 ConguringS/PDIFOut..........................................................................................89
6-1-3 ConguringMicrophoneRecording........................................................................90
6-1-4 Using the Sound Recorder .....................................................................................92
6-2 Troubleshooting.............................................................................................. 93
6-2-1 Frequently Asked Questions...................................................................................93
6-2-2 Troubleshooting Procedure ....................................................................................94
Regulatory Statements.............................................................................................. 96
Contact Us ................................................................................................................ 99

- 6 -
Box Contents
5GA-Z87M-D3H or GA-H87M-D3H motherboard
5Motherboard driver disk
5User's Manual
5Quick Installation Guide
5Two SATA 6Gb/s cables
5I/O Shield
Optional Items
2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)
eSATAbracket(PartNo.12CF1-3SATPW-4*R)
3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)
COMportcable(PartNo.12CF1-1CM001-3*R)
LPTportcable(PartNo.12CF1-1LP001-0*R)
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.

- 7 -

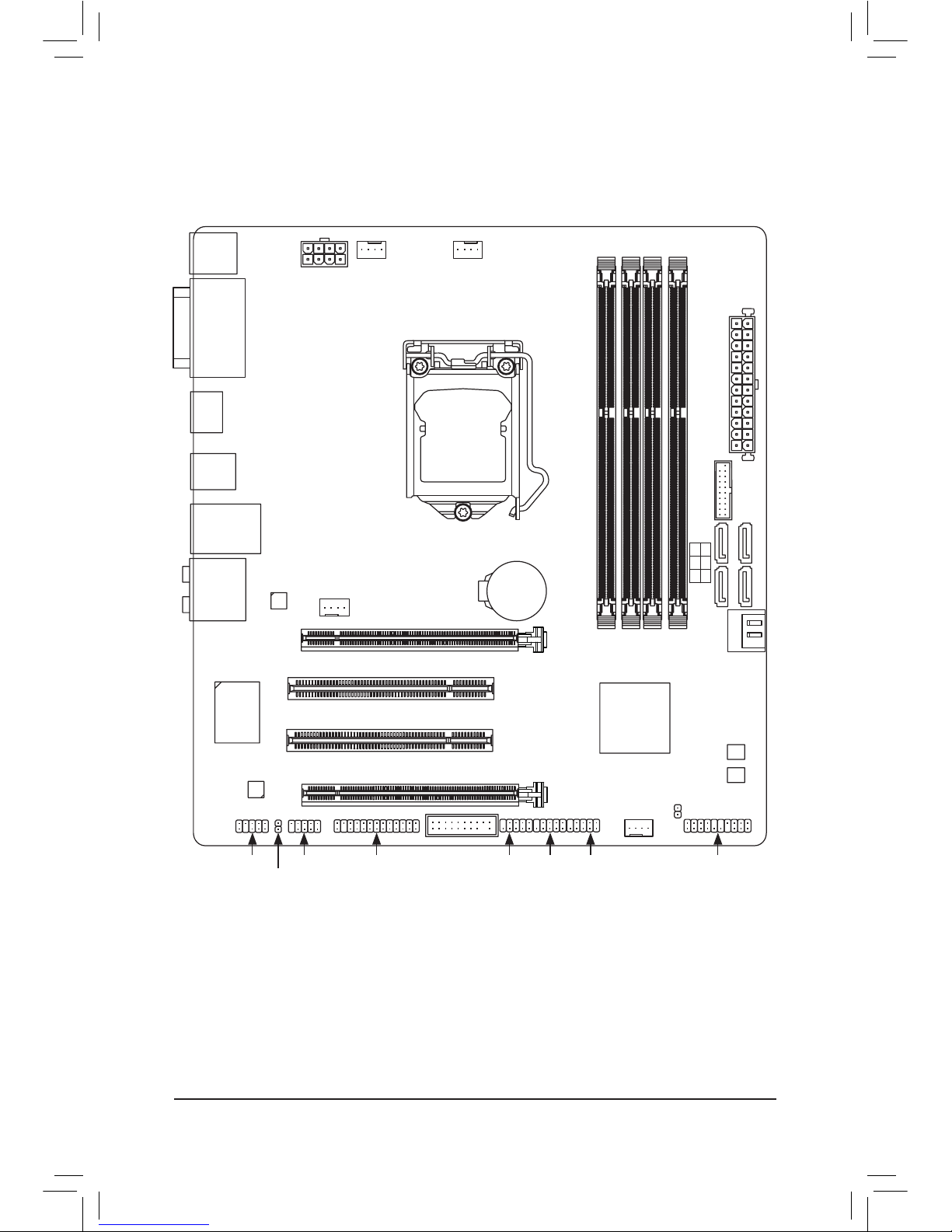

GA-Z87M-D3H/GA-H87M-D3H Motherboard Layout
MOnly for GA-Z87M-D3H.
NOnly for GA-H87M-D3H.
KB_MS_USB
CPU_FAN
SYS_FAN2
SYS_FAN3
LGA1150
ATX
GA-Z87M-D3H/
GA-H87M-D3H
F_AUDIO
AUDIO
M_BIOS
DDR3_4 DDR3_3 DDR3_2 DDR3_1
BAT
F_PANEL
ATX_12V_2X4
Intel®Z87 M
Intel®H87 N
135 024 F_USB30
R_USB30
CODEC
CLR_CMOS
B_BIOS
VGA_DVI
USB30_LAN
PCIEX16
PCI1
PCI2
PCIEX4
SPDIF_O
F_USB1F_USB2F_USB3LPT
TPM
COM
SYS_FAN1
HDMI
Realtek®
GbELAN
iTE® Super I/O
SATA3

- 8 -
D-Sub
DVI-D
HDMI
GA-Z87M-D3H/GA-H87M-D3H Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
PS/2 KB/Mouse
COM
LPT
LPC
Bus
LGA1150
CPU
PCI Express Bus
CPUCLK+/-(100MHz)
PCIe CLK
(100MHz)
1 PCI Express x16
x16
DMI 2.0
FDI
DDR31600/1333MHz
Dual Channel Memory
LAN
RJ45
PCI Express Bus
PCIe CLK
(100MHz) Realtek®
GbELAN
PCIe to
PCI Bridge
1 PCI Express x4
x4 x1
PCI Bus
x1
Dual BIOS
6 USB 3.0/2.0
6 SATA 6Gb/s
8 USB 2.0/1.1
Intel®Z87 M
Intel®H87 N
iTE®
Super I/O
MOnly for GA-Z87M-D3H.
NOnly for GA-H87M-D3H.
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Rear Speaker Out
CODEC
2 PCI
PCI CLK
(33MHz)

- 9 -
Hardware Installation
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Priorto installation, do not removeor break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•Whenconnectinghardwarecomponentstotheinternalconnectorsonthemotherboard,make
sure they are connected tightly and securely.
•Whenhandlingthemotherboard,avoidtouchinganymetalleadsorconnectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.

Hardware Installation
- 10 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1150 package
(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)
L3 cache varies with CPU
Chipset Intel®Z87M/H87NExpress Chipset
Memory 4x1.5VDDR3DIMMsocketssupportingupto32GBofsystemmemory
 * DuetoaWindows32-bitoperatingsystemlimitation,whenmorethan4GBofphysical
memoryisinstalled,theactualmemorysizedisplayedwillbelessthanthesizeof
the physical memory installed.
Dual channel memory architecture
SupportforDDR31600/1333MHzmemorymodules
Support for non-ECC memory modules
SupportforExtremeMemoryProle(XMP)memorymodules
(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemory
modules.)
Onboard
Graphics
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
 - 1xDVI-Dport,supportingamaximumresolutionof1920x1200
 * TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.
- 1 x HDMI ports, supporting a maximum resolution of 4096x2160
 * SupportforHDMI1.4aversion.
- Maximum shared memory of 1 GB
Audio Realtek®ALC892 codec
HighDenitionAudio
2/4/5.1/7.1-channel
 * Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Realtek®GbELANchip(10/100/1000Mbit)
Expansion Slots 1xPCIExpressx16slot,runningatx16(PCIEX16)
 * Foroptimumperformance,ifonlyonePCIExpressgraphicscardistobeinstalled,
besuretoinstallitinthePCIEX16slot.
(ThePCIEX16slotconformstoPCIExpress3.0standard.)
1xPCIExpressx16slot,runningatx4(PCIEX4)
(ThePCIEX4slotconformstoPCIExpress2.0standard.)
2 x PCI slots
Multi-Graphics
Technology Support for AMD CrossFire™technology
MOnly for GA-Z87M-D3H.
NOnly for GA-H87M-D3H.

- 11 -
Hardware Installation
Storage Interface Chipset:
- 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB Chipset:
 - Upto8USB2.0/1.1ports(2portsonthebackpanel,6portsavailablethrough
theinternalUSBheaders)
 - Upto6USB3.0/2.0ports(4portsonthebackpanel,2portsavailablethrough
theinternalUSBheader)
Internal
Connectors
1x24-pinATXmainpowerconnector
1x8-pinATX12Vpowerconnector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1xTrustedPlatformModule(TPM)header
1 x Clear CMOS jumper
Back Panel
Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1xDVI-Dport
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6xaudiojacks(Center/SubwooferSpeakerOut/RearSpeakerOut/SideSpeaker
Out/LineIn/LineOut/Microphone)
I/O Controller iTE®I/O Controller Chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
 * Whetherthefanspeedcontrolfunctionissupportedwilldependonthecooleryou
install.

Hardware Installation
- 12 -
BIOS 2x64Mbitash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features Support for Q-Flash
SupportforXpressInstall
Support for APP Center
 * AvailableapplicationsinAPPCentermaydifferbymotherboardmodel.Supported
functionsofeachapplicationmayalsodifferdependingonmotherboardspecications.
- @BIOS
- EasyTune
- EZ Setup
- USB Blocker
SupportforON/OFFCharge
Bundled
Software
NortonInternetSecurity(OEMversion)
Intel®Rapid Start Technology
Intel®Smart Connect Technology
Intel®Smart Response Technology
Intel®Small Business Advantage N
Operating
System SupportforWindows8/7
Form Factor MicroATXFormFactor;24.4cmx22.5cm
* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
* PleasevisittheSupport & Downloads\UtilitypageonGIGABYTE'swebsitetocheckthesupportedoperatingsystem(s)
for the software listed in the "Unique Features" and "Bundled Software" columns.
NOnly for GA-H87M-D3H.

- 13 -
Hardware Installation
1-3 Installing the CPU and CPU Cooler
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•LocatethepinoneoftheCPU.TheCPUcannotbeinsertediforientedincorrectly.(Oryoumay
locatethenotchesonbothsidesoftheCPUandalignmentkeysontheCPUsocket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.

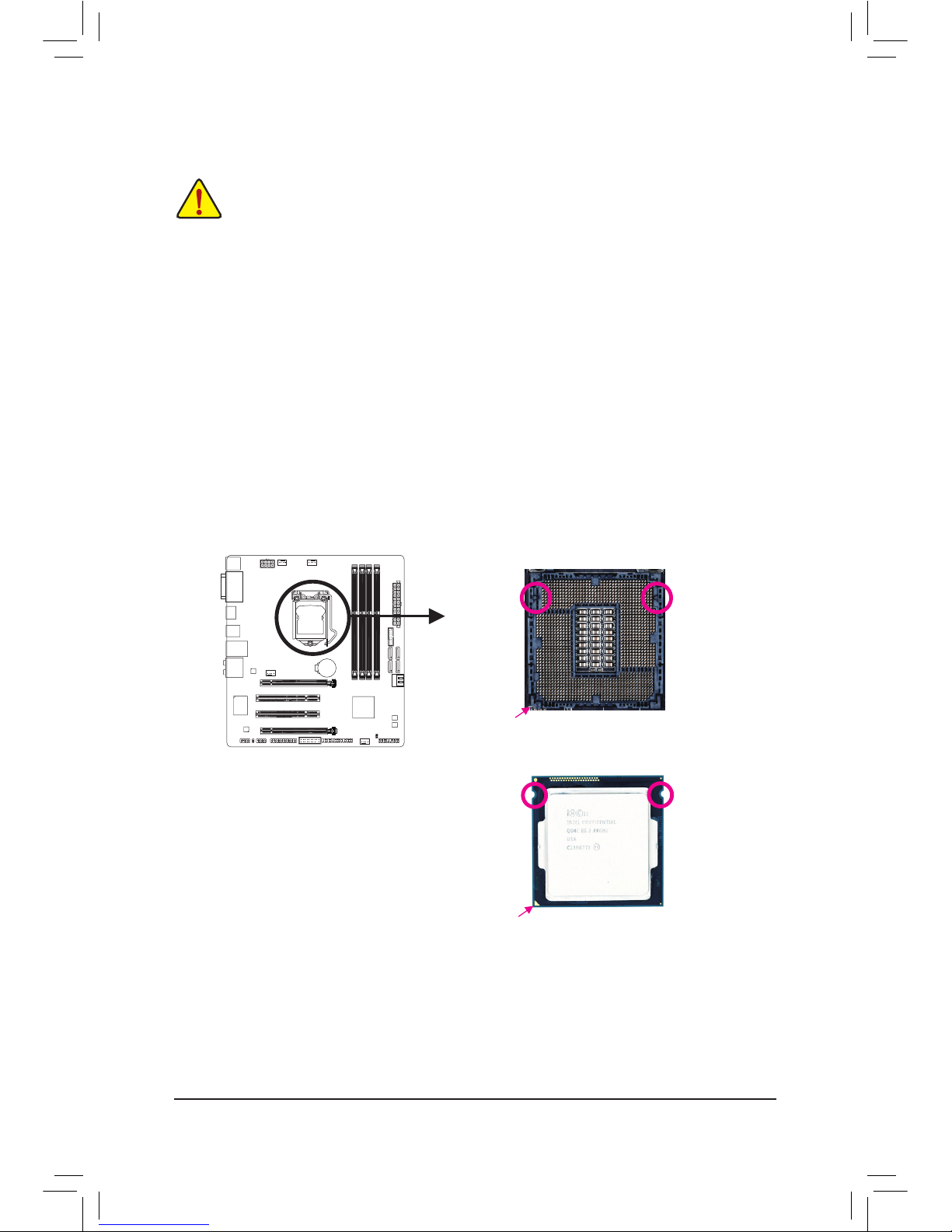

Notch
Alignment KeyAlignment Key
Notch
LGA1150 CPU
LGA1150 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU

Hardware Installation
- 14 -
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Step 1:
Gently press the CPU socket lever handle down
andawayfromthesocketwithyournger.Then
completely lift the CPU socket lever and the metal
load plate/plastic cover will be lifted as well.
Step 2:
HoldtheCPUwithyourthumbandindexngers.
AligntheCPUpinonemarking(triangle)withthe
pinonecorneroftheCPUsocket(oryoumayalign
theCPUnotcheswiththesocketalignmentkeys)
and gently insert the CPU into position.
Step 4:
Finally, secure the lever under its retention tab to
complete the installation of the CPU.
NOTE:
Hold the CPU socket lever by the handle, not the lever base portion.
•Before installing the CPU, make sure to turn off the computer and unplug the power cord from
the power outlet to prevent damage to the CPU.
•To protect the socket contacts, do not remove the protective plastic cover unless the CPU is
inserted into the CPU socket. Save the cover properly and replace it if the CPU is removed.
Step 3:
Once the CPU is properly inserted, carefully
replacetheloadplate.Whenreplacingtheload
plate, make sure the front end of the load plate
is under the shoulder screw. Then press the CPU
socket lever. The protective plastic cover may
pop off from the load plate during the process of
engagingthelever.Removethecover.(Savethe
cover properly and always replace it when the
CPUisnotinstalled.)

- 15 -
Hardware Installation
1-3-2 Installing the CPU Cooler
FollowthestepsbelowtocorrectlyinstalltheCPUcooleronthemotherboard.(Thefollowingprocedureuses
Intel®boxedcoolerastheexamplecooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between the CPU
cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.
Step 1:
Apply an even and thin layer of thermal grease on
the surface of the installed CPU.
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin
Step 2:
Before installing the cooler, note the direction of the
arrow sign onthemalepushpin.(Turningthe
push pin along the direction of arrow is to remove
thecooler,onthecontrary,istoinstall.)
Step 3:
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
Step 4:
You should hear a "click" when pushing down each
push pin. Check that the Male and Female push
pins are joined closely.
(RefertoyourCPUcoolerinstallationmanualfor
instructionsoninstallingthecooler.)
Step 5:
After the installation, check the back of the
motherboard. If the push pin is inserted as the
picture above shows, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
coolertotheCPUfanheader(CPU_FAN)onthe
motherboard.

Hardware Installation
- 16 -
1-4 Installing the Memory

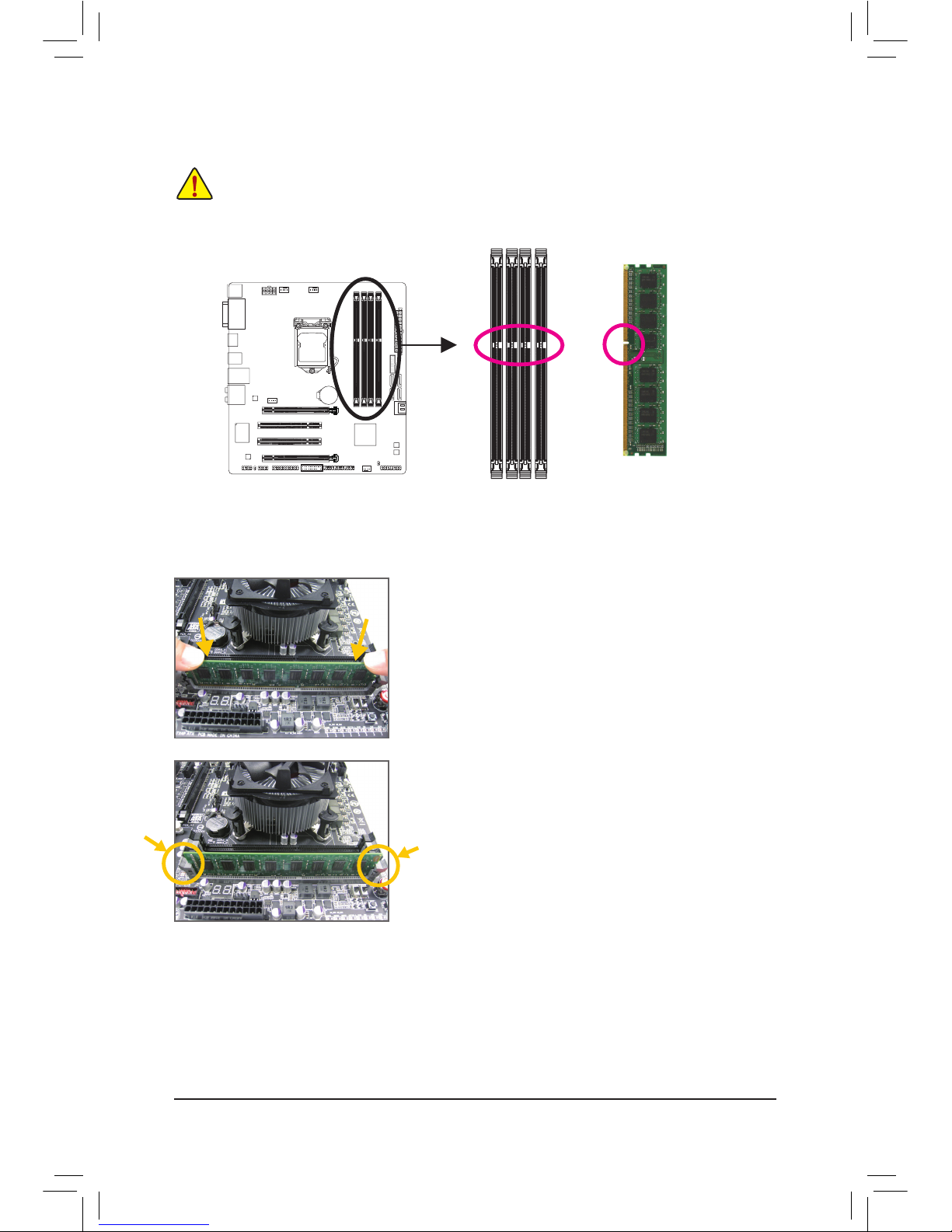

DDR3_4 DDR3_2 DDR3_3
DDR3_1
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. WhenenablingDualChannelmodewithtwoorfourmemorymodules,itisrecommendedthatmemory
of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling
Dual Channel mode with two memory modules, we recommend that you install them in the DDR3_1
and DDR3_2 sockets.
(SS=Single-Sided,DS=Double-Sided,"--"=NoMemory)
DualChannelMemoryCongurationsTable
DDR3_4 DDR3_2 DDR3_3 DDR3_1
Two Modules - - DS/SS - - DS/SS
DS/SS - - DS/SS - -
Four Modules DS/SS DS/SS DS/SS DS/SS
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemorymodules.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
1-4-1 DualChannelMemoryConguration
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
memoryisinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.Enabling
Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel A: DDR3_1, DDR3_3
Channel B: DDR3_2, DDR3_4

- 17 -
Hardware Installation
1-4-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs
are not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this
motherboard.
Notch
DDR3 DIMM
ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectlyinstall
your memory modules in the memory sockets.
Step 1:
Notetheorientationofthememorymodule.Spreadtheretainingclips
at both ends of the memory socket. Place the memory module on the
socket.Asindicatedinthepictureontheleft,placeyourngerson
the top edge of the memory, push down on the memory and insert it
vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.

Hardware Installation
- 18 -
1-5 Installing an Expansion Card
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. Afterinstallingallexpansioncards,replacethechassiscover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your
expansioncard(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express Graphics Card:
•Installing a Graphics Card:
Gently push down on the top edge of the card until
it is fully inserted into the PCI Express slot. Make
sure the card is securely seated in the slot and
does not rock.
PCI Slot
PCI Express x16 Slot
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
•Removing the Card:
Gently push back on the lever on the slot and then lift the card straight out from
the slot.

- 19 -
Hardware Installation
1-6 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchas a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200
(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports
D-Sub connection to this port.
DVI-D Port (Note)
TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200
(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports
DVI-Dconnectiontothisport.
HDMI Port
The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD
MasterAudioformats.Italsosupportsupto192KHz/24bit8-channelLPCMaudio
output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution
is 4096x2160, but the actual resolutions supported are dependent on the monitor being used.
(Note) TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.
After installing the HDMI device, make sure to set the default sound playback device to HDMI.
(Theitemnamemaydifferdependingonyouroperatingsystem.Thescreenshotbelowisfrom
Windows8.)
InWindows8,selectAllapps>ControlPanel>Hardware
andSound>Sound>Playback,setIntel(R)DisplayAudio
to the default playback device.
Triple-DisplayCongurationsfortheOnboardGraphics:
Triple-displaycongurationsaresupportedafteryouinstallmotherboarddriversinOS.Onlydual-display
congurationsaresupportedduringtheBIOSSetuporPOSTprocess.

Hardware Installation
- 20 -
Theaudiojackscanbereconguredtoperformdifferentfunctionsviatheaudiosoftware(supported
functionsforeachjackmayvarybasedonhardwarespecication).OnlymicrophonesstillMUST
be connected to the default Mic in jack. Refer to the instructions on setting up a 2/4/5.1/7.1-channel
audiocongurationinChapter6,"Conguring2/4/5.1/7.1-ChannelAudio."
Center/Subwoofer Speaker Out Jack (Orange)
Usethisaudiojacktoconnectcenter/subwooferspeakersina5.1/7.1-channelaudioconguration.
Rear Speaker Out Jack (Black)
Thisjackcanbeusedtoconnectfrontspeakersina4/5.1/7.1-channelaudioconguration.
Side Speaker Out Jack (Gray)
Usethisaudiojacktoconnectsidespeakersina7.1-channelaudioconguration.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used
toconnectfrontspeakersina4/5.1/7.1-channelaudioconguration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
Activity LED
Connection/
Speed LED
LANPort
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off Nodatatransmissionorreceivingisoccurring
USB 3.0/2.0 Port
TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.
Use this port for USB devices Use this port for USB devices such as a USB keyboard/mouse, USB printer,
USBashdriveandetc.
RJ-45 LAN Port
TheGigabitEthernetLAN portprovidesInternetconnectionat upto1Gbpsdata rate.Thefollowing
describesthestatesoftheLANportLEDs.
•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosidetoprevent
an electrical short inside the cable connector.
