Z690 AORUS XTREME WB
(Z690 AORUS XTREME WATERFORCE)
User's Manual
Rev. 1001
12ME-Z69XTRB-1001R

Copyright
©2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without
prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of
documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at: https://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:

- 3 -
Table of Contents
Chapter 1 Product Introduction.......................................................................................4
1-1 Motherboard Layout......................................................................................... 4
1-2 Motherboard Block Diagram ............................................................................ 5
1-3 Box Contents.................................................................................................... 6
Chapter 2 Hardware Installation .....................................................................................7
2-1 Installation Precautions.................................................................................... 7
2-2 Product Specications...................................................................................... 8
2-3 Installing the CPU and CPU Cooler ............................................................... 12
2-4 Installing the Memory..................................................................................... 17
2-5 Installing an Expansion Card ......................................................................... 19
2-6 Setting up an AMD CrossFire™ Conguration................................................ 20
2-7 Back Panel Connectors.................................................................................. 21
2-8 Internal Connectors........................................................................................ 23
Chapter 3 BIOS Setup ..................................................................................................35
Chapter 4 Installing the Operating System and Drivers................................................37
4-1 Operating System Installation ........................................................................ 37
4-2 Drivers Installation.......................................................................................... 38
Chapter 5 Appendix ......................................................................................................39
5-1 Conguring a RAID Set.................................................................................. 39
5-2 Debug LED Codes ......................................................................................... 40
Regulatory Notices.................................................................................................... 44
Contact Us ................................................................................................................ 48

- 4 -

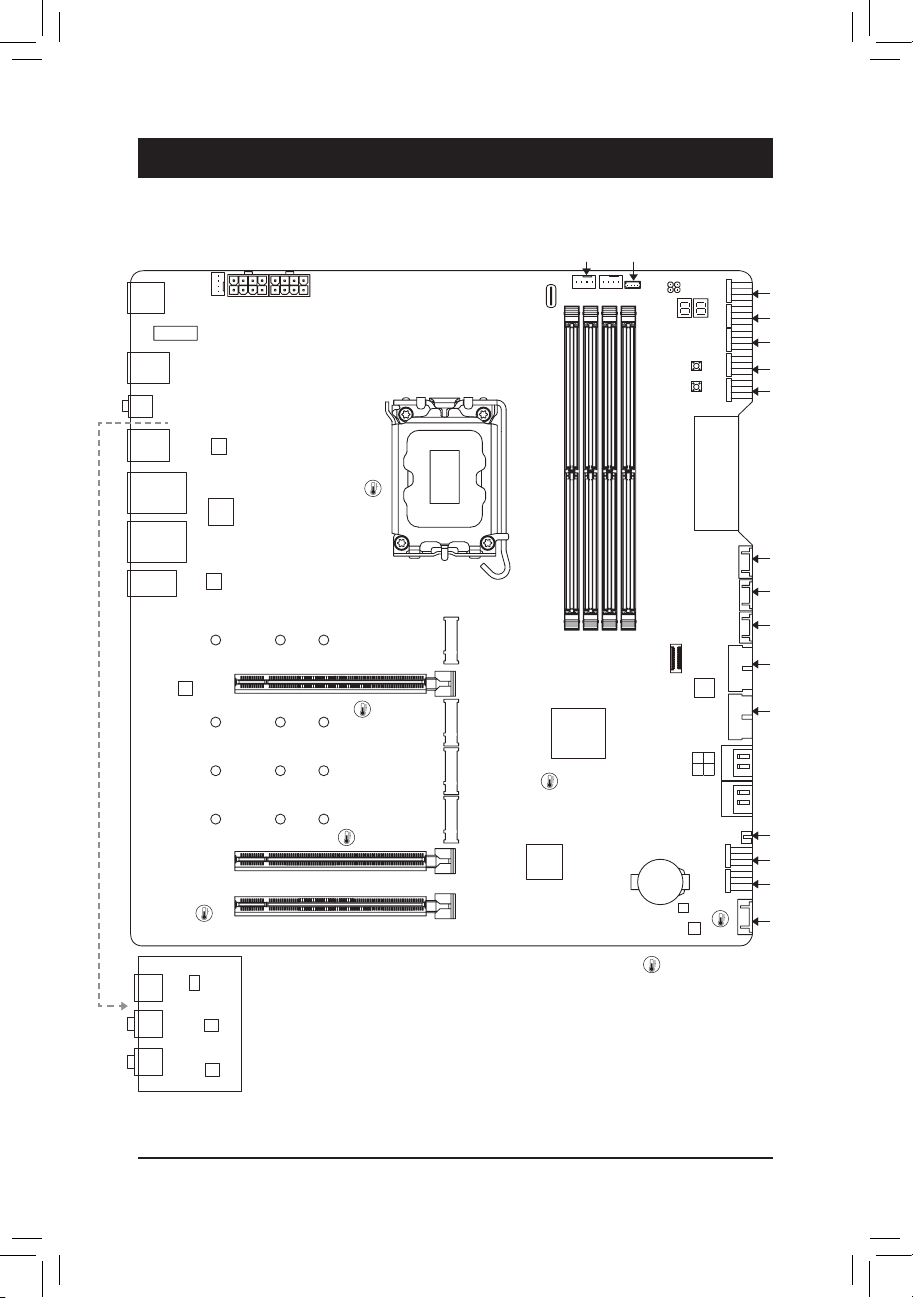

1-1 Motherboard Layout
(Note) For debug code information, please refer to Chapter 5.
Chapter 1 Product Introduction
Temperature Sensor
M2_WIFI
LGA1700
ATX
U32G2_1
Intel®Z690
M_BIOS
USB 3.2 Gen 2 Hub PCIEX16
PCIEX8
F_U320G
DB_PORT (Note)
EC_TEMP2
SYS_FAN1
60
80
110
M2A_CPU
M2P_SB
CPU_FAN
iTE®
Super I/O
LED_C1
LED_C2
PW_SW
ATX_12V_2X4_2
ATX_12V_2X4_1
SATA3 5 7
4 6
REAR_BUTTON
EC_TEMP1
RST_SW
SYS_FAN5_
PUMP
SYS_FAN4
SYS_FAN3
SYS_FAN2
SYS_FAN6_
PUMP
F_PANEL
NOISE_
SENSOR
F_U32_2
SYS_FAN8_
PUMP
F_USB1
PCIEX4_1
U32G2_3
Intel®2.5GbE
LAN
M2Q_SB
M2M_SB
DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
BAT
USB 3.2
Gen 1 Hub F_U32_1
60
80
110
60
80
110
60
80
110
Marvell®AQtion AQC113C
10GbE LAN
CMOS
U32G2_2
TYPEC_1
U32G2
_LAN2
TYPEC_2
U32G2
_LAN1
Intel®
Thunderbolt™4
Controller
USB 2.0 Hub
OPTICAL
MIC_IN
LINE_OUT
ESS ES9280AC
DAC
ESS ES9080
ESS ES9080
SYS_FAN7_
PUMP
LED_DDR
Z690 AORUS XTREME WB (Z690 AORUS XTREME WATERFORCE)
CPU_OPT
LED_CPU

- 5 -

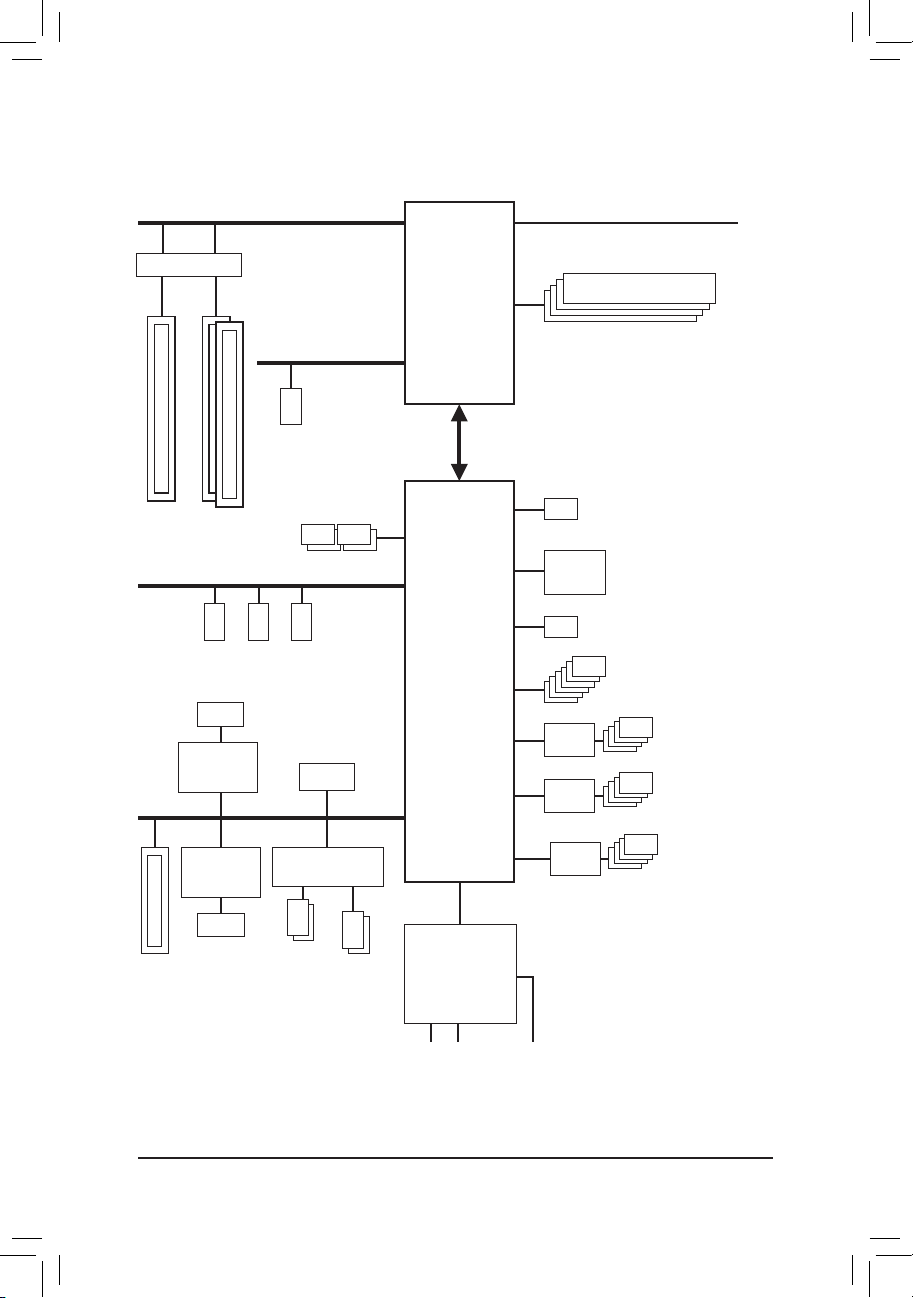

1-2 Motherboard Block Diagram
LGA1700 CPU
CPU CLK+/- (80~800 MHz)
DMI 4.0
LAN1
RJ45
4 SATA 6Gb/s
(SATA3 4~7)
eSPI
Bus
SPI
Bus
PCI Express 4.0 Bus
PCI Express 3.0 Bus
Line Out
MIC
S/PDIF Out
ESS ES9280AC DAC
+
2 ESS ES9080
iTE®
Super I/O
4 USB 3.2 Gen 1
6 USB 3.2 Gen 2 Type-A
Intel®Z690
x4 x2
1 PCI Express x4
USB 3.2
Gen 1 Hub
4 USB 2.0/1.1
BIOS
M.2 WIFI
PCI Express 5.0 Bus
PCI Express 4.0 Bus
1 M.2 Socket 3
(M2A_CPU)
3 M.2 Socket 3
(M2P_SB, M2Q_SB, M2M_SB)
Marvell®AQtion
AQC113C
10GbE LAN
1 USB Type-C®,
with USB 3.2 Gen 2x2 support
DDR5 4800/4000 MHz
LAN2
RJ45
x1
Intel®
2.5GbE LAN
USB 2.0
Hub
4 USB 3.2 Gen 2 Type-A
USB 3.2
Gen 2 Hub
x16
1 PCI Express x16
x8
2 PCI Express x8
Switch
or
Intel®Thunderbolt™4
Controller
or
2 Intel®Thunderbolt™4
2 USB Type-C®, with
USB 3.2 Gen 2 support

- 6 -
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
1-3 Box Contents
5Z690 AORUS XTREME WB (Z690 AORUS XTREME WATERFORCE) motherboard
5One water cooling kit
5One AORUS USB ash drive with drivers
5User's Manual
5Quick Installation Guide
5Two antennas
5Four SATA cables
5Two integrated extension cables for addressable and RGB LED strips
5One AORUS RGB FAN Commander
5One front panel extension cable
5One front USB header extension cable
5One noise detection cable
5One ESSential USB DAC
5Two Velcro Cable Ties
5Two thermistor cables
5M.2 screws
5One G Connector
5One AORUS RGB Memory Armor

- 7 -
2-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before connecting or unplugging the power supply cable from the motherboard, make sure
the power supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature or wet environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
•If you use an adapter, extension power cable, or power strip, ensure to consult with its
installation and/or grounding instructions.
Chapter 2 Hardware Installation

- 8 -
2-2 Product Specications
CPU LGA1700 socket: Support for 12th Generation Intel®Core™i9 processors/Intel®
Core™i7 processors/Intel®Core™i5 processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®Z690 Express Chipset
Memory Support for DDR5 4800/4000 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Prole (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated Graphics Processor+Intel®Thunderbolt™4 Controller:
- 2 x Intel®Thunderbolt™4 connectors (USB Type-C®ports), supporting
DisplayPort and Thunderbolt™video outputs and a maximum resolution of
5120x2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of
Thunderbolt™devices that can be used is dependent on the number of the PCI
Express devices being installed. (Refer to Chapter 2-7, "Back Panel Connectors,"
for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3
(Graphics specications may vary depending on CPU support.)
Audio 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
DTS®Sound Unbound™
High Denition Audio
2-channel
Support for S/PDIF Out
* The line out jack and the optical S/PDIF out connector can only be used one at a time.
LAN Marvell®AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless
Communication
Module
Intel®Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is
populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
(The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)

- 9 -
Multi-Graphics
Technology Support forAMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies
Storage Interface CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2
SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2
SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe
4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel®Optane™Memory Ready
* System acceleration with Intel®Optane™Memory can only be enabled on the M.2
connectors supported by the Chipset.
USB Chipset+Intel®Thunderbolt™4 Controller:
- 2 x USB Type-C®ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
- 1 x USB Type-C®port with USB 3.2 Gen 2x2 support, available through the
internal USB header
- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 2 Hub:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB header (with the
included front USB header extension cable)
Internal
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
1 x water cooling kit CPU LED header (LED_CPU)
1 x AORUS RGB Memory Armor power header (LED_DDR)
4 x system fan headers
4 x system fan/water cooling pump headers
1 x noise detection header
2 x integrated extension cable headers for addressable and RGB LED strips
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x USB Type-C®header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
2 x temperature sensor headers
1 x power button
1 x reset button

- 10 -
Back Panel
Connectors
1 x Q-Flash Plus button
1 x OC Ignition button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt™4 connectors (USB Type-C®ports, with USB 3.2 Gen 2 support)
10 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
1 x optical S/PDIF Out connector
2 x audio jacks
* The mic in jack supports only mono microphone input.
I/O Controller iTE®I/O Controller Chip
Hardware
Monitor
Voltage detection
Temperature detection
Fan speed detection
Water cooling ow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan
(pump) you install.
Noise detection
BIOS 1 x 256 Mbit ash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard specications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

- 11 -
Please visit GIGABYTE's website
for support lists of CPU, memory
modules, SSDs, and M.2 devices.
Please visit the Support\Utility List
page on GIGABYTE's website to
download the latest version of apps.
Bundled
Software
Norton®Internet Security (OEM version)
cFosSpeed
Operating
System Support for Windows 10 64-bit
Form Factor E-ATX Form Factor; 30.5cm x 28.5cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information without
prior notice.

- 12 -
2-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications, please do so according to your hardware specications including the CPU, graphics
card, memory, hard drive, etc.
A. Note the CPU Orientation
Note the alignment keys on the motherboard CPU socket and the notches on the CPU.
Please visit GIGABYTE's website for details on hardware installation.
Notch
Notch
LGA1700 CPU
Triangle Pin One Marking
on the CPU
Alignment Key
LGA1700 CPU Socket
Triangle Pin One Marking
of the CPU Socket
Alignment Key
Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load
plate automatically after you insert the CPU and close the load plate.

- 13 -
B. Installing the CPU
Follow the steps below to correctly install the CPU into the motherboard CPU socket.
w
u
Do not force to engage the CPU socket locking lever when the CPU is not installed correctly
as this would damage the CPU and CPU socket.
v
jGently press the CPU socket lever handle
down and away from the socket.
kCompletely lift up the CPU socket lock-
ing lever.
lUse the finger tab on the side of the
metal load plate to lift open the metal
load plate with the plastic protective cover
attached to it.
Hold the CPU with your ngers by the edges.
Align the CPU pin one marking (triangle) with
the pin one corner of the CPU socket (or you
may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Make sure the CPU is properly installed and
then close the load plate. The plastic protec-
tive cover will pop off, just remove it. Secure
the lever under its retention tab to complete
the installation of the CPU.
* Always replace the plastic protective cover
when the CPU is not installed to protect the
CPU socket.
j
k
l
Finger Tab
Pin One
j
k
l

- 14 -
C. Installing the Water Cooling Kit
•Before installing the water cooling kit, ensure the motherboard can boot normally.
•If you want to install an M.2 SSD, you have to install the M.2 SSD rst before installing the water cooling kit.
•The water cooling kit provides a G1/4" inlet and a G1/4" outlet. Please choose the barbs (not
included) that suit your requirements.
•Depending on your hardware requirements, apply appropriate amount of the provided thermal
paste on the water cooling kit.
•After the water cooling kit is placed on the motherboard, press the OC Ignition button rst and then
press the power button to check whether the cooling uid can be injected properly. Then complete the
injection. Unplug the power supply and tighten the screws included in the water cooling kit. The type and
number of the included screws are as below. Make sure you use the right screws before the installation:
Refer to the pictures below to install the water cooling kit on the motherboard.

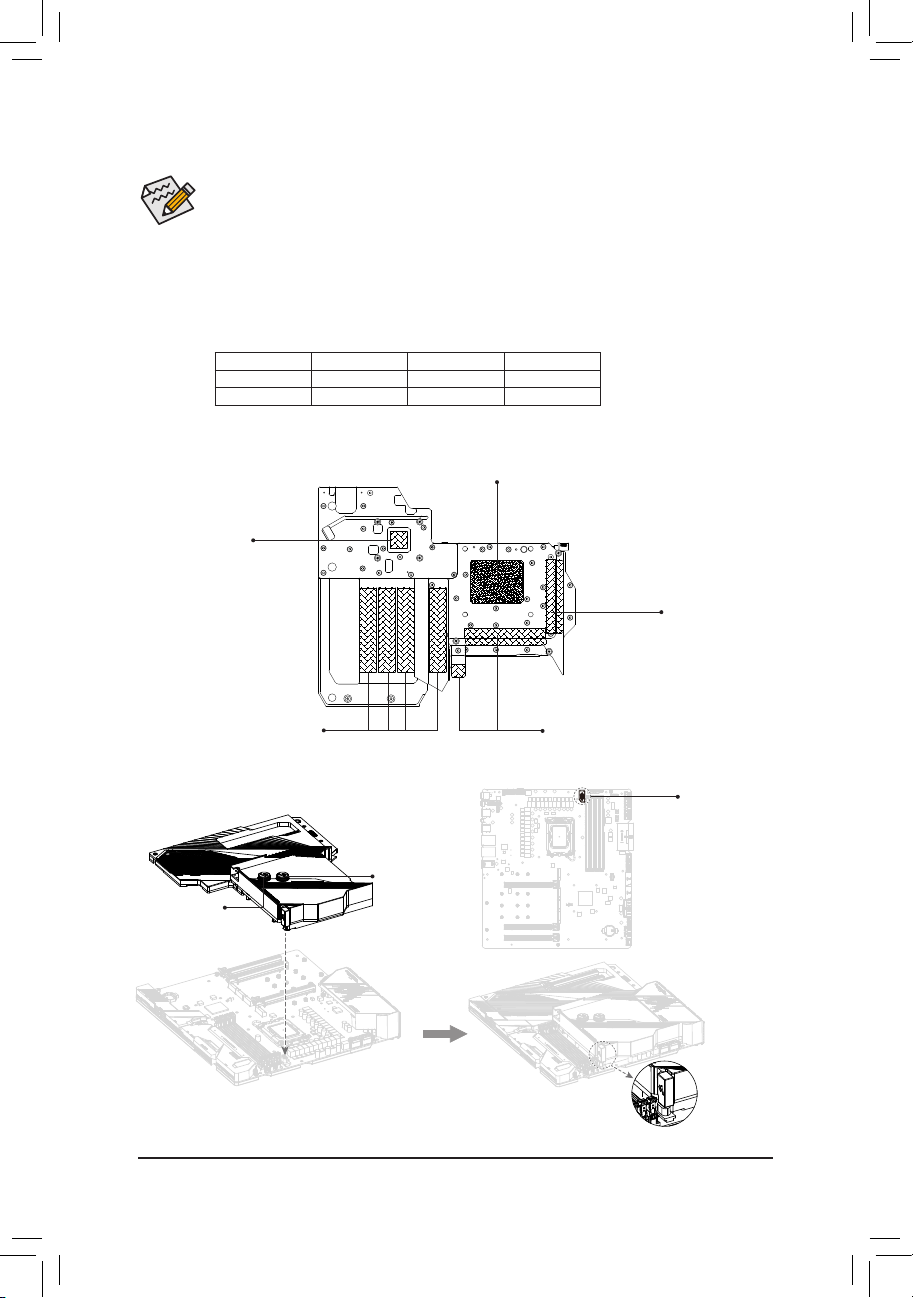

Step 1: Carefully take the water cooling kit out of its package and remove the protective plastic lms from the
CPU area and thermal pads.
Step 2: Then place the water cooling kit on the motherboard as indicated below. Insert the Type C® connector
on the side of the water cooling kit into the LED_CPU header on the motherboard.
Screw M2*6 M3*10.8 M3*6.5 (with washer)
Reference Torque 2.0~2.5 (kgf-cm) 3.5~4.0 (kgf-cm) 3.5~4.0 (kgf-cm)
Number 247
Thermal Pad
Thermal Pad
CPU Area
Thermal Pad
M.2 SSD Thermal Pad (Noe)
Inlet
Outlet
LED_CPU
(Note) Remove the M.2 SSD thermal pads based on your M.2 SSD installation needs.

- 15 -
Step 4:
Tighten the three screws (M3*6.5) with washers to the mounting holes in the CPU area (refer to the top right
picture). Then tighten the four screws (M3*6.5) with washers to the mounting holes in the chipset area in a
diagonal sequence (refer to the bottom right picture). Make sure the water cooling kit is securely attached.
Step 3:
Carefully ip the motherboard over, fasten the CPU backplate using the four screws (M3*10.8) in a diagonal
sequence.
Screw
(M3*10.8)
Screw with washer
(M3*6.5)

- 16 -
Step 5:
Finally, tighten the two screws (M2*6) to secure the water cooling kit to the M.2 standoffs as indicated. After
completing the steps above, connect your water cooling components.
Screw
(M2*6)

- 17 -
2-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported
memory speeds and memory modules.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
Dual Channel Memory Conguration
This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory
is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual
Channel memory mode will double the original memory bandwidth.
The four memory sockets are divided into two channels and each channel has two memory sockets as following:
Channel A: DDR5_A1, DDR5_A2
Channel B: DDR5_B1, DDR5_B2
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used.
When installing a single memory module, we recommend that you install it in the DDR5_A2
socket.
DDR5_A1
DDR5_A2
DDR5_B1
DDR5_B2
* Recommended Dual Channel Memory Conguration:
DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
2 Modules - - DS/SS - - DS/SS
4 Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

- 18 -
Installing the AORUS RGB Memory Armor (Note)
Refer to the illustrations below to install the AORUS RGB Memory Armor.
Screw
(M2*6)
Step 1:
Remove the connector cap from the LED_DDR header on the motherboard. Then connect the power cable on the
side of the AORUS RGB Memory Armor to the LED_DDR header. (Note: Always replace the connector cap when the AORUS
RGB Memory Armor is not installed.)
Step 2:
Align the AORUS RGB Memory Armor with the motherboard in the direction as indicated below and secure it
with the three included screws (M2*6).
(Note) The AORUS RGB Memory Armor is only compatible with the AORUS Memory DDR5 Module.

- 19 -
2-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your
expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
PCIEX16 Slot

- 20 -
2-6 Setting up an AMD CrossFire™ Conguration
(Note) The bridge connector(s) may be needed or not depending on your graphics cards.
A. System Requirements
-Windows 10 64-bit operating system
-A CrossFire-supported motherboard with two PCI Express x16 slots and correct driver
-CrossFire-ready graphics cards of identical brand and chip and correct driver
-CrossFire(Note) bridge connector
-A power supply with sufcient power is recommended (Refer to the manual of your graphics cards for the
power requirement)
B. Connecting the Graphics Cards
Step 1:
Observe the steps in "2-5 Installing an Expansion Card" and install the graphics cards on the PCIEX16 and
PCIEX8 slots.
Step 2:
Insert the CrossFire(Note) bridge connectors in the CrossFire gold edge connectors on top of the cards.
Step 3:
Plug the display cable into the graphics card on the PCIEX16 slot.
C. Conguring the Graphics Card Driver
To Enable CrossFire Function
After installing the graphics card driver in the operating
system, go to the AMD RADEON SETTINGS screen.
Browse to Gaming\Global Settings and ensure AMD
CrossFire is set to On.
Procedure and driver screen for enabling CrossFire technology may differ by graphics cards and
driver version. Refer to the manual that came with your graphics cards for more information about
enabling CrossFire technology.
