GIRBAU SLI9 User manual

SLI9 / SLI14 / SLI23 / SLI34
Installation/Operator Manual
WARNING: Foryoursafetytheinformation
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injuryordeath.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinityof thisor anyother appliance.
— WHATTODO IFYOU SMELLGAS:
• Donot tryto lightany appliance.
• Donot touchanyelectrical switch.
• Donot useanyphone inyour
building.
• Cleartheroom, building or areaof
alloccupants.
• Immediatelycallyourgassupplier
froma neighbor’s phone. Follow
thegas supplier’s instructions.
• Ifyoucannot reachyourgas
supplier, callthe firedepartment.
— Installation and service must be
performedbyacompetentprofessional.
AVERTISSEMENT: Assurez-vousdebien
suivrelesinstructionsdonnéesdanscette
noticepour réduireau minimumlerisque
d’incendie ou d’explosion ou pour éviter
toutdommagematériel,touteblessureou
lamort.
— Nepas entreposerni utiliserd’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareilou de toutautre appareil.
— QUE FAIRE SI VOUS SENTEZ UNE
ODEURDE GAZ:
• Nepas tenter d’allumerd’appareils.
• Netouchezàaucuninterrupteur.
Nepas vousservir des téléphones
setrouvantdanslebâtiment.
• Évacuezla pièce, lebâtiment oula
zone.
• Appelezimmédiatement votre
fournisseurde gazdepuis unvoisin.
Suivezlesinstructions du
fournisseur.
• Sivous nepouvez rejoindrele
fournisseurde gaz,appelez le
servicedesincendies.
— L’installation et l’entretien doivent
être assurés par un professionnel
compétent.
Part No. 113432
Girbau SA
CarreteraManlleu, KM1
Vic, Barcelona 54380 Spain
PhoneNo. 3493 8861100
Fax No. 34 93 886 0785
[email protected]

IMPORTANT NOTE TO PURCHASER
Information must be obtained from your local gas supplier on the
instructionstobefollowediftheusersmellsgas. Theseinstructions
mustbe postedin aprominent locationnear the dryer.
FOR YOUR SAFETY
Do not store or use gasoline
orother flammablevapors
andliquids inthe vicinity of
thisor anyother appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
nid’autres vapeursou liquides
inflammablesà proximité decet
appareilou de toutautre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer
reserves the right to make changes from time to time, without notice or obligation, in prices, specifications,
colors, and material, and to change or discontinue models. The illustrations included in this manual may not
depict your particular dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATEOFPURCHASE __________________________________________________ MODELNO. ________________________
RESELLER’SNAME ______________________________________________________________________________________
SERIAL NUMBER(S) ______________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the Girbau, SAfactory. When ordering replacement
parts from the factory, you can FAX your order to 34 93 886 0785 or telephone your order to 3493 886 1100.
Please specify the dryer model number and serial number in addition to the description and part number, so
that your order is processed accurately and promptly.
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

IMPORTANT
You must disconnect and lockout the electric
supply and the gas supply or the steam supply
before any covers or guards are removed from
the machine to allow access for cleaning,
adjusting,installation,ortestingofanyequipment
perOSHA standards.
Pleaseobserve allsafety precautionsdisplayed
on the equipment and/or specified in the
installationmanualincludedwiththe dryer.
Beforeinstallation,checkthatthelocaldistribution
conditions, nature of gas and pressure, and
adjustmentof theappliances arecompatible.
CAUTION
Dryer(s)shouldnever beleftunattended whilein
operation.
When discarding or storing your old clothes
dryer, remove the door.
Lorsque vous entreposez ou mettez votre
sécheuse au rebut, enlevez-en la porte.
“Caution: Label all wires prior to disconnection
whenservicingcontrols. Wiringerrorscancause
improperoperation.”
«Attention: Lor des opérations d’entretien des
commandes étiqueter tous fils avant de les
déconnecter. Toute erreur decâblage peut étre
unesource de dangeret depanne.»
WARNING
Childrenshouldnot beallowedtoplay onornear
thedryer(s). Childrenshouldbesupervisedifnear
dryer(s)in operation.
Under no circumstances should the dryer door
switch(es), lint door/drawer switch(es), or heat
safetycircuit(s) ever bedisabled.
Thedryermustnever beoperatedwithanyof the
back guards, outer tops, or service panels
removed. Personalinjury orfirecould result.
Thedryermustnever beoperatedwithoutthelint
filter/screen in place, even if an external lint
collectionsystem isused.
FOR YOUR SAFETY
Donotdrymop headsinthedryer. Donotuse
dryerin thepresence ofdry cleaningfumes.
The dryers must not be installed or stored in an
area where it will be exposed to water and/or
weather.
Thewiringdiagramforthedryerislocatedbehind
thecontrolpanel.
Table of Contents _______
Safety Precautions ................................ 4
Specifications ........................................ 6
Installation Procedures ...................... 14
LocationRequirements .............................................. 14
Unpacking/SettingUp ................................................ 14
DryerEnclosure Requirements .................................. 14
FreshAir SupplyRequirements ................................. 15
ExhaustRequirements............................................... 15
ElectricalInformation ................................................. 17
GasInformation ......................................................... 20
Convertingfrom OneFamily ofGas toAnother .......... 23
GasPressureTesting ................................................ 25
SteamInformation ...................................................... 25
WaterInformation....................................................... 26
PreparationforOperation/Start-Up ............................. 27
PreoperationalTest .................................................... 27
PreoperationalInstructions ........................................ 28
ShutdownInstructions................................................ 28
Service/Parts Information .................. 28
Service ....................................................................... 28
Parts.......................................................................... 28
Routine Maintenance .......................... 29
Cleaning..................................................................... 29
Data Label Information ....................... 30
List of Acronyms_____________________________
HVAC Heating, Ventilating, andAir-Conditioning
in WC Inchesof WaterColumn
L.C.D. LiquidCrystal Display
L.E.D. LightEmitting Diode
L.P. LiquidPropane
OSHA OccupationalSafety andHealthAdministration
UL UnderwritersLaboratory

4 Girbau, SA 113432-1
Safety Precautions ____________________
Warning
For your safety, the information in this manual
must be followed to minimize the risk of fire or
explosion and to prevent property damage, personal injury,
or loss of life.
The dryer must never be operated with any of the back
guards, outer tops, or service panels removed. Personal
injury or fire could result.
Failure to properly install, maintain, and/or operate dryer
according to this manual and operator’s manuals included
with dryer may result in conditions which can cause serious
injury, death and/or property damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Purchaser and user should consult the local gas supplier for
proper instructions to be followed in the event the user smells
gas. The instructions should be posted in a prominent
location.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency, or gas supplier.
Dryers must be exhausted to the outdoors.
Although the manufacturer produces a very versatile dryer,
there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
Warning
Dry only water washed fabrics. Do not dry articles
spotted or washed in dry cleaning solvents,
combustible detergents, or “all purpose” cleaner.
Explosion could result.
Do not dry rags or articles coated or contaminated with
gasoline, kerosene, oil, paint, or wax. Explosion could
result.
Do not dry mop heads. Contamination by wax or
flammable solvents will create a fire hazard.
Do not use heat for drying articles that contain plastic,
foam, sponge rubber, or similarly textured rubber
materials. Drying in a heated tumbler may damage
plastics or rubber and also may be a fire hazard.
A program should be established for the inspection and
cleaning of lint in the burner area, exhaust ductwork, and
area around the back of the dryer. The frequency of inspection
and cleaning can best be determined from experience at
each location.
Do not operate steam dryers with more than 150 psi (10.34
bar) steam pressure. Excessive steam pressure can damage
the steam coil and/or harm personnel.
Replace leaking flexible hoses or other steam fixtures
immediately. Do not operate the dryer with leaking flexible
hoses. Personal injury may result.
Warning
The collection of lint in the burner area and
exhaust ductwork can create a potential fire
hazard.
For personal safety, the dryer must be electrically grounded
in accordance with local and/or country codes. In the absence
of these codes use the National Electrical Code ANSI/NFPA
NO. 70-LATEST EDITION or in Canada, the Canadian
Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST
EDITION.
Note
Failure to electrically ground the dryer properly will
void the warranty.
Warning
Personal injury or fire could result should the dryer
door switch, lint door/drawer, or heat safety circuit
ever be disabled.
Remove articles from the dryer as soon as the drying cycle
has been completed.
Warning
Articles left in the dryer after the drying and cooling
cycles have been completed can create a fire
hazard.
For safety, proper operation, and optimum performance, the
dryer must not be operated with a load less than 66% of its
rated capacity.
Warning
You must disconnect and lockout the electric
supply and the gas supply or the steam supply
before any covers or guards are removed from the
machine to allow access for cleaning, adjusting,
installation, or testing of any equipment per OSHA
standards.
Important
The dryer must be installed in a location/
environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
The operation of this appliance may affect the operation of
other types of gas appliances, which take their air for safe
combustion from the same room. If in doubt, consult the
appliance manufacturer(s).
Use this dryer only for its intended purpose, drying fabrics.
Warning
To reduce the risk of personal injury, install
lockable doors to prevent public access to the rear
of the dryers.
!
!
!
!
!
!
!
!
!

113432-1 [email protected] 5
Exhaust duct outlet should be checked periodically for
blockages, and if any found, removed.
Important
A means of restraint must be used to prevent
straining of the gas supply when the appliance is
moved.
An external means of power removal (disconnect device)
must be provided by the installer.
CE ONLY
Important
This appliance must only be installed and
operated in the country of destination indicated on
the dryer’s data plate. If the appliance is to be installed and
operated in a country other than the one indicated on the
data plate, a data plate amendment must be obtained from
Girbau.
Warning
This appliance must only operate with the gas type
indicated on the dryer’s data plate. If the appliance
is converted (gas type is changed), a data plate
amendment must be obtained from Girbau.
This appliance may cause spillage of products of
combustion from an open-flue appliance fitted in the same
room, and that such an appliance shall be tested for
clearance of products with the appliance in operation and
all windows and doors closed.
!
!
!
NOTES ____________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
NOTES ____________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________
___________________________________________

6 Girbau, SA 113432-1
MAXIMUM CAPACITY(DRY WEIGHT) 20 lb 9.07 kg
TUMBLER DIAMETER 25-3/4” 65.41 cm
TUMBLER DEPTH 24” 60.96 cm
TUMBLER VOLUME 7-1/2 cu ft 212.38 L
TUMBLER/DRIVE MOTOR 1/4 hp 0.19 kW
BLOWER/FAN MOTOR 1/3 hp 0.25 kW
DOOR OPENING (DIAMETER) 19-3/8” 49.21 cm
DOOR SILL HEIGHT 13” 33.02 cm
WATERCONNECTION 3/4”-11.5 NH
DRYERS PER 20’/40’ CONTAINER 42 / 84
DRYERS PER 48’/53’ TRUCK 96 / 108
VOLTAGE AVAILABLE 120-240v 1ø 2w 50/60 Hz
APPROXIMATE NET WEIGHT 245 lb 111.13 kg
APPROXIMATE SHIPPING WEIGHT 265 lb 120.20 kg
AIRFLOW 230 cfm 6.51 cmm
HEATINPUT 40,000 Btu/hr 10,080 kcal/hr
EXHAUST CONNECTION (DIAMETER) 4” 10.16 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 3/8” M.N.P.T.
3/8” M.B.S.P.T. (CE ONLY)
VOLTAGE AVAILABLE 200-416v 1,3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 245 lb 111.13 kg
APPROXIMATE SHIPPING WEIGHT 265 lb 120.20 kg
AIRFLOW 230 cfm 6.51 cmm
EXHAUST CONNECTION (DIAMETER) 4” 10.16 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
kW Btu/hr kcal/hr
4.1 13,843 3,488
5.0 17,065 4,300
5.4 18,430 4,644
5.6 19,112 4,816
6.1 20,819 5,246
6.5 22,184 5,590
6.8 23,208 5,848
7.4 25,255 6,364
7.5 25,597 6,450
8.1 27,644 6,966
VOLTAGE AVAILABLE 120-240v 1ø 2w 50/60 Hz
APPROXIMATE NET WEIGHT 253 lb 114.76 kg
APPROXIMATE SHIPPING WEIGHT 273 lb 123.83 kg
AIRFLOW 230 cfm 6.51 cmm
STEAM CONSUMPTION 45 lb/hr 20.41 kg/hr
OPERATING STEAM PRESSURE 125 psi max 8.62 bar
EXHAUST CONNECTION (DIAMETER) 4” 10.16 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
BOILER HORSEPOWER (NORMALLOAD) 1.2 Bhp
SUPPLYCONNECTION 1/2” F.N.P.T.
RETURN CONNECTION 1/2” F.N.P.T.
SLI9 Specifications _________________________________________________________________
Shaded areas are stated in metric equivalents 4/13/05
GasElectricSteam
!Note
The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

113432-1 [email protected] 7
SLI9 Specifications _________________________________________________________________

8 Girbau, SA 113432-1
MAXIMUM CAPACITY(DRYWEIGHT) 30 lb 13.61 kg
TUMBLER DIAMETER 30” 76.20 cm
TUMBLER DEPTH 27” 68.58 cm
TUMBLER VOLUME 11.04 cu ft 312.62 L
TUMBLER/DRIVE MOTOR 1/4 hp 0.18 kW
BLOWER/FAN MOTOR 1/2 hp 0.37 kW
DOOR OPENING (DIAMETER) 19-3/8” 49.21 cm
DOOR SILL HEIGHT 14-7/8” 37.78 cm
WATER CONNECTION 3/4”-11.5 NH
DRYERS PER 20’/40’ CONTAINER 12 / 28
DRYERS PER 48’/53’ TRUCK 34 / 38
VOLTAGE AVAILABLE 120-240v 1ø 2w 50/60 Hz
APPROXIMATE NET WEIGHT 285 lb 129.27 kg
APPROXIMATE SHIPPING WEIGHT 310 lb 140.61 kg
AIRFLOW 360 cfm 10.19 cmm
HEATINPUT 55,000 Btu/hr 13,860 kcal/hr
EXHAUST CONNECTION (DIAMETER) 6” 15.24 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 3/8” M.N.P.T.
3/8” M.B.S.P.T. (CE ONLY)
VOLTAGE AVAILABLE 200-416v 1,3ø 2,3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 285 lb 129.27 kg
APPROXIMATE SHIPPING WEIGHT 310 lb 140.61 kg
AIRFLOW 360 cfm 10.19 cmm
EXHAUST CONNECTION (DIAMETER) 6” 15.24 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
kW Btu/hr kcal/hr
7.9 26,962 6,794
8.3 28,327 7,138
9.0 30,716 7,740
11.3 38,566 9,719
12.4 42,320 10,665
12.5 42,661 10,751
13.5 46,074 11,611
VOLTAGE AVAILABLE 120-240v 1ø 2w 50/60 Hz
APPROXIMATE NET WEIGHT 305 lb 138.35 kg
APPROXIMATE SHIPPING WEIGHT 330 lb 149.69 kg
AIRFLOW 360 cfm 10.19 cmm
STEAM CONSUMPTION 63 lb/hr 28.58 kg/hr
OPERATING STEAM PRESSURE 150 psi max 10.34 bar
EXHAUST CONNECTION (DIAMETER) 6” 15.24 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
BOILER HORSEPOWER (NORMAL LOAD) 1.75 Bhp
SUPPLYCONNECTION 1/2” F.N.P.T.
RETURN CONNECTION 1/2” M.N.P.T.
SLI14 Specifications ________________________________________________________________
GasElectricSteam
Shaded areas are stated in metric equivalents 9/30/05
!Note
The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

113432-1 [email protected] 9
SLI14 Specifications ________________________________________________________________

10 Girbau, SA 113432-1
SLI23 Specifications ________________________________________________________________
!Note
The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
Shaded areas are stated in metric equivalents 9/30/05
MAXIMUM CAPACITY (DRY WEIGHT) 50 lb 22.68 kg
TUMBLER DIAMETER 37” 93.98 cm
TUMBLERDEPTH 25-3/4” 65.41 cm
TUMBLER VOLUME 16.02 cu ft 453.64 L
TUMBLER/DRIVE MOTOR 1 hp 0.75 kW
BLOWER/FAN MOTOR 1/2 hp 0.37 kW
DOOR OPENING (DIAMETER) 27-3/8” 69.55 cm
DOOR SILL HEIGHT 16” 40.64 cm
WATER CONNECTION 3/4”-11.5 NH
DRYERS PER 20’/40’ CONTAINER 10 / 22
DRYERS PER 48’/53’ TRUCK 28 / 30
VOLTAGE AVAILABLE 120-240v 1ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 545 lb 247.21 kg
APPROXIMATE SHIPPING WEIGHT 565 lb 256.28 kg
AIRFLOW 525 cfm 14.87 cmm
HEATINPUT 90,000 Btu/hr 22,680 kcal/hr
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 1/2” M.N.P.T.
1/2” F.B.S.P.T. (CE ONLY)
VOLTAGE AVAILABLE 200-416v 1,3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 545 lb 247.21 kg
APPROXIMATE SHIPPING WEIGHT 565 lb 256.28 kg
AIRFLOW 525 cfm 14.87 cmm
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
kW Btu/hr kcal/hr
13.4 45,733 11,525
14.7 50,170 12,643
14.8 50,511 12,729
16.0 54,606 13,761
VOLTAGE AVAILABLE 120-240v 1ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 545 lb 247.21 kg
APPROXIMATE SHIPPING WEIGHT 565 lb 256.28 kg
AIRFLOW 525 cfm 14.87 cmm
STEAM CONSUMPTION 127.5 lb/hr 57.83 kg/hr
OPERATING STEAM PRESSURE 150 psi max 10.34 bar
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
BOILER HORSEPOWER (NORMAL LOAD) 3.75 Bhp
SUPPLYCONNECTION 3/4” F.N.P.T.
RETURN CONNECTION 3/4” M.N.P.T.
GasElectricSteam

113432-1 [email protected] 11
SLI23 Specifications ________________________________________________________________

12 Girbau, SA 113432-1
MAXIMUM CAPACITY(DRY WEIGHT) 75 lb 34.02 kg
TUMBLER DIAMETER 37” 93.98 cm
TUMBLER DEPTH 35-1/2” 90.17 cm
TUMBLER VOLUME 22.09 cu ft 625.52 L
TUMBLER/DRIVE MOTOR 1 hp 0.75 kW
BLOWER/FAN MOTOR 1/2 hp 0.37 kW
DOOR OPENING (DIAMETER) 27-3/8” 69.53 cm
DOOR SILLHEIGHT 16” 40.64 cm
WATER CONNECTION 3/4”-11.5 NH
DRYERS PER 20’/40’ CONTAINER 9 / 20
DRYERS PER48’/53’ TRUCK 25 / 27
VOLTAGE AVAILABLE 120-240V 1ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 600 lb 272.16 kg
APPROXIMATE SHIPPING WEIGHT 620 lb 281.23 kg
AIRFLOW 560 cfm 15.86 cmm
HEATINPUT 110,000 Btu/hr 27,720 kcal/hr
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 1/2” M.N.P.T.
1/2” F.B.S.P.T. (CE ONLY)
VOLTAGE AVAILABLE 200-416V 1,3ø 3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 600 lb 272.16 kg
APPROXIMATE SHIPPING WEIGHT 620 lb 281.23 kg
AIRFLOW 560 cfm 15.86 cmm
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
kW Btu/hr kcal/hr
18.4 62,763 15,816
20.2 68,975 17,382
20.3 69,418 17,493
20.4 69,521 17,519
22.0 75,084 18,921
VOLTAGE AVAILABLE 120-240V 1ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 600 lb 272.16 kg
APPROXIMATE SHIPPING WEIGHT 620 lb 281.23 kg
AIRFLOW 560 cfm 15.86 cmm
STEAM CONSUMPTION 136 lb/hr 61.69 kg/hr
OPERATING STEAM PRESSURE 150 psi max 10.34 bar
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
BOILER HORSEPOWER (NORMAL LOAD) 4 Bhp
SUPPLYCONNECTION 3/4” F.N.P.T.
RETURN CONNECTION 3/4” M.N.P.T.
SLI34 Specifications ________________________________________________________________
!Note
The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
Shaded areas are stated in metric equivalents 9/30/05
GasElectricSteam

113432-1 [email protected] 13
SLI34 Specifications ________________________________________________________________

14 Girbau, SA 113432-1
!
Installation Procedures _______________
Installation should be performed by competent professional
in accordance with local, state, and country codes. In the
absence of these codes, the installation must conform to
applicableAmerican National Standards:ANSI Z223.1-LATEST
EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-
LATEST EDITION (National Electrical Code) or in Canada,
the installation must conform to applicable Canadian
Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/
CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes
Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for
Electrical Connections).
Location Requirements _______________
Before installing the dryer, be sure the location conforms to
local, state, and country codes. In the absence of such codes
or ordinances the location must conform with the National
Fuel Gas CodeANSI.Z223.1 LATEST EDITION, or in Canada,
the installation must conform to applicable Canadian
Standards: CAN/CGA-B149.1-M91 (Natural Gas) or
CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for
General Installation and Gas Plumbing).
The dryer must be installed on a sound level floor capable of
supporting its weight. Carpeting must be removed from the
floor area that the dryer is to rest on.
The dryer must not be installed or stored in an area where it
will be exposed to water and/or weather.
Dryers installed in residential garages must be elevated
18-inches (45.72 cm) above the floor.
Provisions for adequate air supply must be provided as noted
in this manual (refer to Fresh Air Supply Requirements
section).
Clearance provisions must be made from combustible
construction as noted in this manual (refer to Dryer Enclosure
Requirements section).
Provisions must be made for adequate clearances for
servicing and for operation as noted in this manual (refer to
Dryer Enclosure Requirements section).
The dryer must be installed with a proper exhaust duct
connection to the outside as noted in this manual (refer to
Exhaust Requirements section).
The dryer must be located in an area where correct exhaust
venting can be achieved as noted in this manual (refer to
Exhaust Requirements section).
Important
The dryer should be located where a minimum
amount of exhaust ducting will be necessary.
The dryer must be installed with adequate clearance for air
openings into the combustion chamber.
Caution
This dryer produces combustible lint and must be
exhausted to the outdoors. Every 6 months,
inspect the exhaust ducting and remove any lint buildup.
Important
The dryer must be installed in a location/
environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
Unpacking/Setting Up _________________
Remove protective shipping material (i.e., plastic wrap and
optional shipping box) from the dryer.
Important
Dryer must be transported and handled in an
upright position at all times.
The dryer can be moved to its final location while still attached
to the skid or with the skid removed. To remove the skid from
the SLI9, simply lift the unit off of the skid; for the SLI14, SLI23,
or SLI34, locate and remove the 2 bolts securing the base of
the dryer to the wooden skid. One is located at the center
rear and the other is at the center front.
With the skid removed, use caution and assure all four
leveling legs are fully retracted if the dryer is to be slid into its
final position.
Leveling Dryer
The dryer is equipped with 4 leveling legs, 1 at each corner of
the base. For optimum performance the dryer should be
level front-to-back and side-to-side.

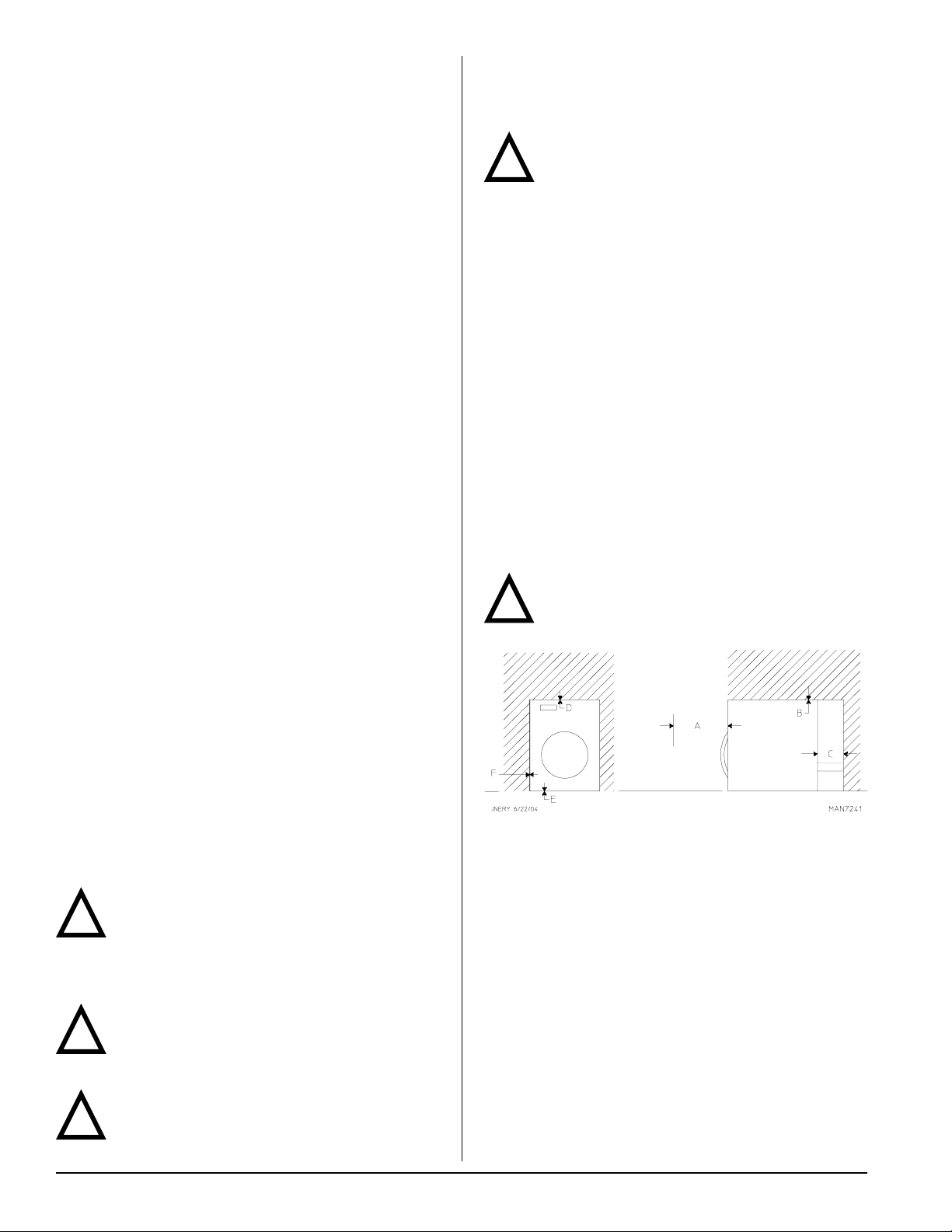

Dryer Enclosure Requirements _______
Commercial Type II
Bulkheads and partitions should be made of noncombustible
material.
Note
Allowances must be made for opening the control
door.
A The requirement to allow the door to open completely for
the SLI9 is 30-inches (76.2 cm), SLI14 is 33-inches (83.8
cm), and SLI23 and SLI34 is 40-inches (101.6 cm).
B A minimum overhead clearance of 6-inches (15.24 cm)
is required.
C Dryer should be positioned a minimum of 12-inches
(30.48 cm) away from the nearest obstruction. 24-inches
(60.96 cm) is recommended for ease of installation,
maintenance, and service.
D 1/16” (1.5875 mm) minimum is required.
E Flooring should be level or below dryer cabinet for ease
of removing panels during maintenance.
F Dryers may be positioned sidewall to sidewall, however
a 1/16” (1.5875 mm) minimum allowance must be made
for the opening and closing of the control door, along
with the removal of panels during maintenance.
!
!
!
!

113432-1 [email protected] 15
Domestic Type I (SLI9, SLI14, SLI23 Only)
!
!
!
!
A = 6-inches (15.24 cm) B = 24-inches (60.96 cm)
EXAMPLE: For SLI23, 2 unrestricted openings measuring
6-inches by 24-inches (15.24 cm by 60.96 cm) are acceptable.
If a closet door is installed: unobstructed air openings are
required. The air openings shall be located 3-inches
(7.62 cm) from the lower opening (above floor level) and upper
opening (below ceiling). The total free area of the air openings
in the door shall not be less than 130 inch2(838.708 cm2) for
SLI9; 179 inch2(1154.836 cm2) for SLI14; and 293 inch2
(1890.319 cm2) for SLI23. Louvered doors with equivalent
air openings are acceptable.
No other fuel-burning appliance shall be installed in the same
closet as the dryer.
Fresh Air Supply Requirements _______
When the dryer is operating, it draws in room air, heats it,
passes this air through the tumbler, and exhausts it out of the
building. Therefore, the room air must be continually
replenished from the outdoors. If the make-up air is
inadequate, drying time and drying efficiency will be adversely
affected. Ignition problems and sail switch “fluttering”
problems may result, as well as premature motor failure from
overheating. The dryer must be installed with provisions for
adequate combustion and make-up air supply.
Air supply (make-up air) must be given careful consideration
to ensure proper performance of each dryer. As a general
rule, an unrestricted air entrance from the outdoors of 110
inch2(710 cm2) is required for each SLI34, 90 inch2(580 cm2)
for each SLI23, 55 inch2(354 cm2) for each SLI14, and 40
inch2(258 cm2) for each SLI9. (Based on 1 inch2[6.5 cm2] per
1,000 Btu [252 kcal].)
It is not necessary to have a separate make-up air opening
for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner
that the make-up air is distributed equally to all the dryers.
To compensate for the use of registers or louvers used over
the openings, this area must be increased by approximately
33%. Make-up air openings should not be located in an area
directly near where exhaust vents exit the building.
Allowances must be made for remote or constricting
passageways or where dryers are located at high altitudes
or predominantly low pressure areas.
Note
Component failure due to dry cleaning solvent
fumes will void the warranty.
A = 10-inches (25.4 cm) B = 11-inches (27.94 cm)
EXAMPLE: For a bank of 4 SLI14 dryers, 2 unrestricted
openings measuring 10-inches by 11-inches (25.4 cm by
27.94 cm) are acceptable.
Important
Make-up air must be free of dry cleaning solvent
fumes. Make-up air that is contaminated by dry
cleaning solvent fumes will result in irreparable damage to
the motors and other dryer components.
Exhaust Requirements ________________
Exhaust ductwork should be designed and installed by a
qualified professional. Improperly sized ductwork will create
excessive back pressure, which results in slow drying,
increased use of energy, and shutdown of the burner by the
airflow (sail) switch, burner hi-limits, or lint chamber hi-limit
protector thermostat. The dryer must be installed with a proper
exhaust duct connection to the outside.
The dryer shall not be exhausted into any gas vent, chimney,
wall, ceiling or concealed space of a building.
Caution
This dryer produces combustible lint and must be
exhausted to the outdoors.
Improperly sized or installed exhaust ductwork can create
a potential fire hazard.
The ductwork should be laid out in such a way that the
ductwork travels as directly as possible to the outdoors with
as few turns as possible. There should be a minimum
6-inch (15.24 cm) clearance between the back guard and the
first bend in the ductwork for ease of servicing. Single or
independent dryer venting is recommended. It is suggested
that the use of 90° turns be avoided; use 30° and/or 45°
bends instead. The radius of the elbows should preferably
be 1-1/2 times the diameter of the duct. All ductwork should
be smooth inside with no projections from sheet metal
screws or other obstructions, which will collect lint. When
adding ducts, overlap the duct being connected. All ductwork
joints must be taped to prevent moisture and lint from
escaping into the building. Back draft dampers must be
installed in all commonly ducted systems. Inspection doors
should be installed at strategic points in the exhaust ductwork
for periodic inspection and cleaning of lint from the ductwork.
Important
It is recommended that exhaust or booster fans
not be used in the exhaust ductwork system.

16 Girbau, SA 113432-1
!

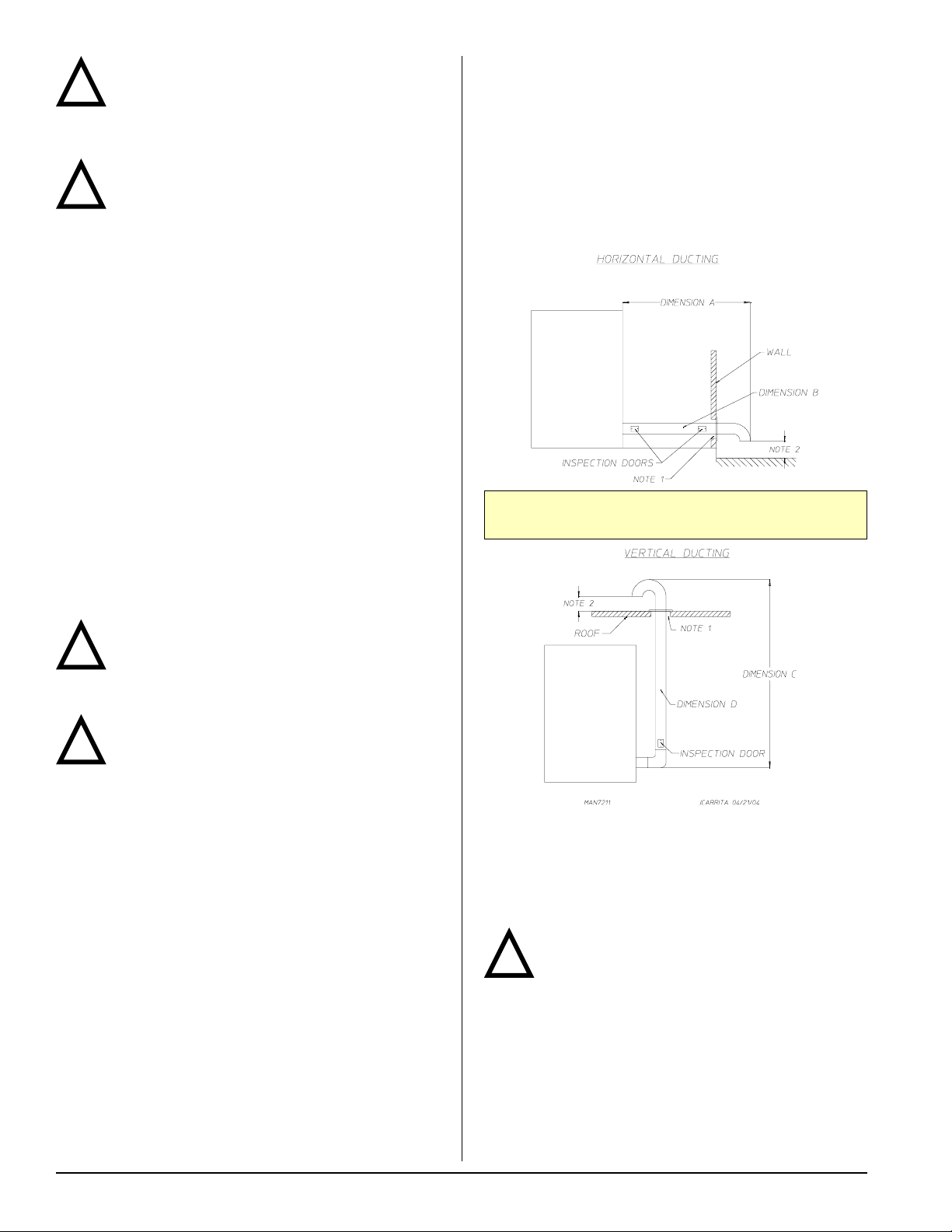

NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)
larger than the duct (all the way around). The duct must be centered
within this opening.
NOTE 2 Distance should be 2 times the diameter of the duct to the nearest
obstruction.
Multiple Dryer (Common) Venting
Important
For extended ductwork runs, the cross-sectional
area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum
limits as noted in this manual, a professional HVAC firm
should be consulted for proper venting information.
If it is not feasible to provide separate exhaust ducts for each
dryer, ducts from individual dryers may be channeled into a
“common main duct.” The individual ducts should enter the
bottom or side of the main duct at an angle not more than 45º
in the direction of airflow. The main duct should be tapered,
with the diameter increasing before each individual duct is
added.
A = 20 feet (6.10 meters)
B = SLI9 – 4-inches (10.16 cm)
SLI14 – 6-inches (15.24 cm)
SLI23, SLI34 – 8-inches (20.32 cm)
!
!
C = 12 feet (3.66 meters)
D = SLI9 – 4-inches (10.16 cm)
SLI14 – 6-inches (15.24 cm)
SLI23, SLI34 – 8-inches (20.32 cm)
!Important
Exhaust back pressure measured by a
manometer/magnehelic in the exhaust duct must
be no less than 0 and must not exceed 0.6 in WC (1.48
mb).
Note
When the exhaust ductwork passes through a wall,
ceiling, or roof made of combustible materials, the
opening must be 2-inches (5.08 cm) larger than the duct
(all the way around). The duct must be centered within this
opening.
As per the National Fuel Gas Code, “Exhaust ducts for type
2 clothes dryers shall be constructed of sheet metal or
other noncombustible material. Such ducts shall be
equivalent in strength and corrosion resistance to ducts
made of galvanized sheet steel not less than 26 gauge
(0.0195-inches [0.50 mm]) thick.”
The ductwork for this appliance must be suitable for the
appliance category in accordance with national installation
regulations of the country of destination.
Outside Ductwork Protection
To protect the outside end of the horizontal ductwork from the
weather, a 90° elbow bent downward should be installed
where the exhaust exits the building. If the ductwork travels
vertically up through the roof, it should be protected from the
weather by using a 180° turn to point the opening downward.
In either case, allow at least twice the diameter of the duct
between the duct opening and the nearest obstruction (refer
to the diagram).
Important
Do not use screens, louvers, or caps on the
outside opening of the exhaust ductwork.
Single Dryer Venting
Important
For extended ductwork runs, the cross-sectional
area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum
limits as noted in this manual, a professional HVAC firm
should be consulted for proper venting information.
Horizontal Venting
When horizontal dryer venting is used, the length of the
ductwork from the dryer to the outside exhaust outlet, must
not exceed 20 feet (6.10 meters). The minimum diameter of
this ductwork must be at least 4-inches (10.16 cm) for SLI9,
6-inches (15.24 cm) for SLI14, and 8-inches (20.32 cm) for
SLI23 and SLI34. Including tumbler/dryer elbow connections
or elbows used for outside protection from the weather, no
more than 1 elbow should be used in the exhaust duct run. If
more than 1 elbow is used, the cross-sectional area of the
ductwork must be increased.
!
Vertical Venting
When vertical dryer venting is used, the length of the ductwork
from the dryer to the outside exhaust outlet, must not exceed
12 feet (3.66 meters). The minimum diameter of this ductwork
must be at least 4-inches (10.16 cm) for SLI9, 6-inches (15.24
cm) for SLI14, and 8-inches (20.32 cm) for SLI23 and SLI34.
Including tumbler/dryer elbow connections or elbows used
for outside protection from the weather, no more than 3
elbows should be used in the exhaust duct run. If more than
3 elbows are used, the cross-sectional area of the ductwork
must be increased.

113432-1 [email protected] 17
Important
No more than 4 dryers should be connected to 1
main common duct.
The illustration below shows the minimum cross-sectional
area for multiple dryer round or square venting. These figures
must be increased if the main duct run from the last dryer to
where it exhausts to the outdoors is longer than 12 feet (3.656
meters) or has more than 1 elbow in it.
!
NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)
larger than the duct (all the way around). The duct must be centered
within this opening.
NOTE 2 Distance should be 2 times the diameter of the duct to the nearest
obstruction.
A= SLI94-inch(10.16 cm)
SLI146-inch (15.24 cm)
SLI238-inch (20.32 cm)
SLI348-inch (20.32 cm)
B = 12 feet (3.656 meters)
Electrical Information _________________
Electrical Requirements
All electrical connections must be made by a properly licensed
and competent electrician. This is to ensure that the electrical
installation is adequate and conforms to local, state, and
national regulations or codes of the country of origin. In the
absence of such codes, all electrical connections, materials,
and workmanship must conform to the applicable
requirements of the National Electrical Code ANSI/NFPANO.
70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION.
Important
Failure to comply with these codes or ordinances,
and/or the requirements stipulated in this manual
can result in personal injury or component failure.
Note
Component failure due to improper installation will
void the warranty.
Eachdryershouldbeconnectedtoanindependentlyprotected
branch circuit. The dryer must be connected with copper
wire only. Do not use aluminum wire, which could cause a
firehazard. Thecopperconductorwire/cable must be ofproper
ampacity and insulation in accordance with electric codes
for making all service connections.
Note
The use of aluminum wire will void the warranty.
An individual ground circuit must be provided to
each dryer, do not daisy chain.
Component failure due to improper voltage application will
void the warranty.
The manufacturer reserves the right to make changes in
specifications at any time without notice or obligation.
Important
A separate protected circuit must be provided to
each dryer.
The dryer must be connected to the electric supply shown on
the data label. In the case of 208 VAC or 240 VAC, the supply
voltage must match the electric service specifications of the
data label exactly.
Important
The wire size must be properly sized to handle the
related current.
Warning
208 VAC and 240 VAC are not the same. Any
damage done to dryer components due to
improper voltage connections will automatically void the
warranty.
!
!
!
!
!
!
NUMBER OF DRYERS 4 3 2 1
MINIMUM CROSS-
SECTIONAL AREA SQ IN 120 120 80 54
SQ CM 774.2 774.2 516.1 348.4
MINIMUM ROUND
DUCT DIAMETER IN 12 12 10 8
CM 30.48 30.48 25.4 20.32
MultipleDryerVenting with8-Inch (20.32cm)Diameter
525cfm (14.87cmm) ExhaustConnections atCommon Duct
SLI23
NUMBER OF DRYERS 4 3 2 1
MINIMUM CROSS-
SECTIONAL AREA SQ IN 120 120 80 54
SQ CM 774.2 774.2 516.1 348.4
MINIMUM ROUND
DUCT DIAMETER IN 12 12 10 8
CM 30.48 30.48 25.4 20.32
MultipleDryerVenting with8-Inch (20.32cm)Diameter
560cfm (15.86cmm) ExhaustConnections atCommon Duct
SLI34
NUMBER OF DRYERS 4 3 2 1
MINIMUM CROSS-
SECTIONAL AREA SQ IN 80 80 54 30
SQ CM 516.1 516.1 348.4 193.55
MINIMUM ROUND
DUCT DIAMETER IN 10 10 8 6
CM 25.4 25.4 20.32 15.24
SLI14
MultipleDryerVenting with6-Inch (15.24cm)Diameter
360cfm (10.19cmm) ExhaustConnections atCommon Duct
NUMBER OF DRYERS 4 3 2 1
MINIMUM CROSS-
SECTIONAL AREA SQ IN 80 80 54 30
SQ CM 516.1 516.1 348.4 193.55
MINIMUM ROUND
DUCT DIAMETER IN 10 10 8 6
CM 25.4 25.4 20.32 15.24
SLI9
MultipleDryerVenting with4-Inch (10.16cm)Diameter
230cfm (6.51cmm) ExhaustConnections atCommon Duct

18 Girbau, SA 113432-1
Electric Models Only
All electrically heated dryers must be connected to the electric
service shown on the dryer’s data label. The connecting
wires must be properly sized to handle the rated current.
1/25/06
Warning (Gas Models Only)
Dryers built for use with a voltage between 200
and 240 must verify the input voltage during
installation. If the nominal voltage is outside of the
medium tolerances shown on the diagram below, adjust
the autotransformer, located near the burner assembly. To
adjust the autotransformer wiring, place the red wire on the
appropriate tap (HIGH, MED, LOW) of the autotransformer.
For additional wiring details, refer to the electrical diagram
located on the inside of the control panel.
Electrical Service Specifications
Gas and Steam Models Only
!
TERM LINE VOLTAGE
50 Hz 60 Hz
HIGH 260
226 283 249
MED 239
208 260 230
LOW 217
189 236 208
ELECTRICAL SERVICE SPECIFICATIONS
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOTTHE SAME. When ordering, specify exact voltage.
When fuses are used they mustbe dual element, time delay, currentlimiting, class RK1 or
RK5 ONLY. Calculate/determine correct fuse value, by applying either local and/or National
Electrical Codes to listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others,
calculate/verifycorrect breaker size according to appliance amp drawrating and type
of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE SERVICE APPROX. AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
SLI9 Gas
120 1ø 2 8.9 — 15
200 1ø 2 7.7 7.8 15
208 1ø 2 7.6 — 15
220 1ø 2 — 7.4 15
230 1ø 2 — 7.3 15
240 1ø 2 7.2 — 15
SLI14 Gas
120 1ø 2 10.3 — 15
200 1ø 2 8.7 8.8 15
208 1ø 2 8.4 — 15
220 1ø 2 — 8.1 15
230 1ø 2 — 7.8 15
240 1ø 2 7.7 — 15
SLI23 Gas
120 1ø 2 15.6 — 20
200 1ø 2 10.5 — 20
208 1ø 2 10.5 — 20
220 1ø 2 10.0 — 20
240 1ø 2 9.7 — 20
220 1ø 2 — 10.7 20
230 1ø 2 — 10.8 20
SLI23 Steam
120 1ø 2 14.4 — 20
200 1ø 2 8.2 — 20
208 1ø 2 8.2 — 20
220 1ø 2 7.8 — 20
240 1ø 2 7.6 — 20
220 1ø 2 — 8.4 20
230 1ø 2 — 8.5 20
SLI34 Gas
120 1ø 2 15.6 — 20
200 1ø 2 10.5 — 20
208 1ø 2 10.5 — 20
220 1ø 2 10.0 — 20
240 1ø 2 9.7 — 20
220 1ø 2 — 10.7 20
230 1ø 2 — 10.8 20
SLI34 Steam
120 1ø 2 14.4 — 20
200 1ø 2 8.2 — 20
208 1ø 2 8.2 — 20
220 1ø 2 7.8 — 20
240 1ø 2 7.6 — 20
220 1ø 2 — 8.4 20
230 1ø 2 — 8.5 20
1/25/06
ELECTRICAL SERVICE SPECIFICATIONS
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOTTHE SAME. Whenordering, specify exact voltage.
When fuses are used theymust be dual element, time delay, current limiting, class RK1 or RK5
ONLY. Calculate/determine correct fuse value, by applying either localand/or National Electrical
Codes to listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) type ONLY. For others, calculate/verify correct
breaker size according to appliance amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE
SERVICE OVEN kW
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
SLI9
200 1ø 2 5.6 32.7 32.7 45
208 1ø 2 4.1 24.2 — 35
208 1ø 2 6.1 34.0 — 45
240 1ø 2 5.4 27.1 — 35
240 1ø 2 8.1 38.4 — 50
208 3ø 3 6.5 22.7 — 30
240 3ø 3 7.5 22.6 — 30
230 1ø 2 5.0 — 26.4 35
230 1ø 2 7.4 — 36.8 50
380 3ø 4 6.8 — 15.0 20
400 3ø 4 7.5 — 15.5 20
416 3ø 4 8.1 — 15.8 20
SLI14
200 1ø 2 12.5 68.0 67.7 90
208 1ø 2 7.9 43.5 — 60
208 1ø 2 13.5 70.4 — 90
240 1ø 2 9.0 42.6 — 60
240 1ø 2 13.5 61.4 — 80
208 3ø 3 13.5 43.0 — 60
240 3ø 3 13.5 37.6 — 50
230 1ø 2 8.3 — 41.3 60
230 1ø 2 12.4 — 59.1 80
380 3ø 4 11.3 — 22.6 30
400 3ø 4 12.4 — 23.1 30
416 3ø 4 13.5 — 23.7 30
SLI23
200 1ø 2 14.8 82.1 — 110
208 1ø 2 16.0 85.1 — 110
220 1ø 2 13.4 68.8 — 90
240 1ø 2 16.0 74.2 — 100
208 3ø 3 16.0 52.6 — 70
220 3ø 3 13.4 43.0 — 60
240 3ø 3 16.0 46.0 — 60
380 3ø 4 13.4 28.0 — 40
220 1ø 2 13.4 — 69.4 90
230 1ø 2 14.7 — 72.3 100
220 3ø 3 13.4 — 43.6 60
230 3ø 3 14.7 — 45.3 60
380 3ø 4 13.4 — 28.6 40
400 3ø 4 14.8 — 29.8 40
416 3ø 4 16.0 — 30.7 40
SLI34
200 1ø 2 20.3 109.8 — 150
208 1ø 2 22.0 113.9 — 150
220 1ø 2 18.5 91.7 — 125
240 1ø 2 22.0 99.2 — 125
208 3ø 3 22.0 69.2 — 90
220 3ø 3 18.5 56.2 — 80
240 3ø 3 22.0 60.4 — 80
380 3ø 4 18.4 35.6 — 45
220 1ø 2 18.5 — 92.3 125
230 1ø 2 20.2 — 96.3 125
220 3ø 3 18.5 — 56.8 80
230 3ø 3 20.2 — 59.1 80
380 3ø 4 18.4 — 36.2 50
400 3ø 4 20.4 — 37.8 50
416 3ø 4 22.0 — 39.1 50

113432-1 [email protected] 19
Grounding
A ground (earth) connection must be provided and installed
in accordance with local, state, and national regulations or
codes of the country of origin. In the absence of these codes,
grounding must conform to applicable requirements of the
NationalElectricalCodeANSI/NFPANO.70-LATESTEDITION,
or in Canada, the installation must conform to applicable
Canada Standards: Canadian Electrical Codes Parts 1 & 2
CSAC22.1-1990 or LATESTEDITION. Thegroundconnection
may be to a proven earth ground at the location service panel.
For added personal safety, when possible, it is suggested
that a separate ground wire (size per local codes) be
connected from the ground connection of the dryer to a
grounded cold water pipe. Do not ground to a gas pipe or hot
water pipe. The grounded cold water pipe must have
metal-to-metal connection all the way to the electrical ground.
If there are any nonmetallic interruptions, such as, a meter,
pump, plastic, rubber, or other insulating connectors, they
must be jumped out with a wire (size per local codes) and
securely clamped to bare metal at both ends.
Important
For personal safety and proper operation, the dryer
must be grounded.
Provisions are made for ground connection in each dryer at
the electrical service connection area.
Warning
Electrical Grounding Instructions – This dryer is
equipped with a 3-prong (grounding) plug for your
protection against shock hazard and should be plugged
directly into a properly grounded 3-prong receptacle. Do
not cut or remove the grounding prong from this plug.
Electrical Connections
A wiring diagram is located behind the control panel for
connection data.
If local codes permit, power to the dryer can be made by the
use of a flexible UL listed power cord/pigtail (wire size must
conform to rating of dryer), or the dryer can be hard wired
directly to the service breaker panel. In both cases, a strain
relief must be installed where the wiring enters the dryer.
For CE Models Only
The means for disconnection from the supply must be
incorporated into wiring having a minimum contact separation
of 3.0mm in all poles.

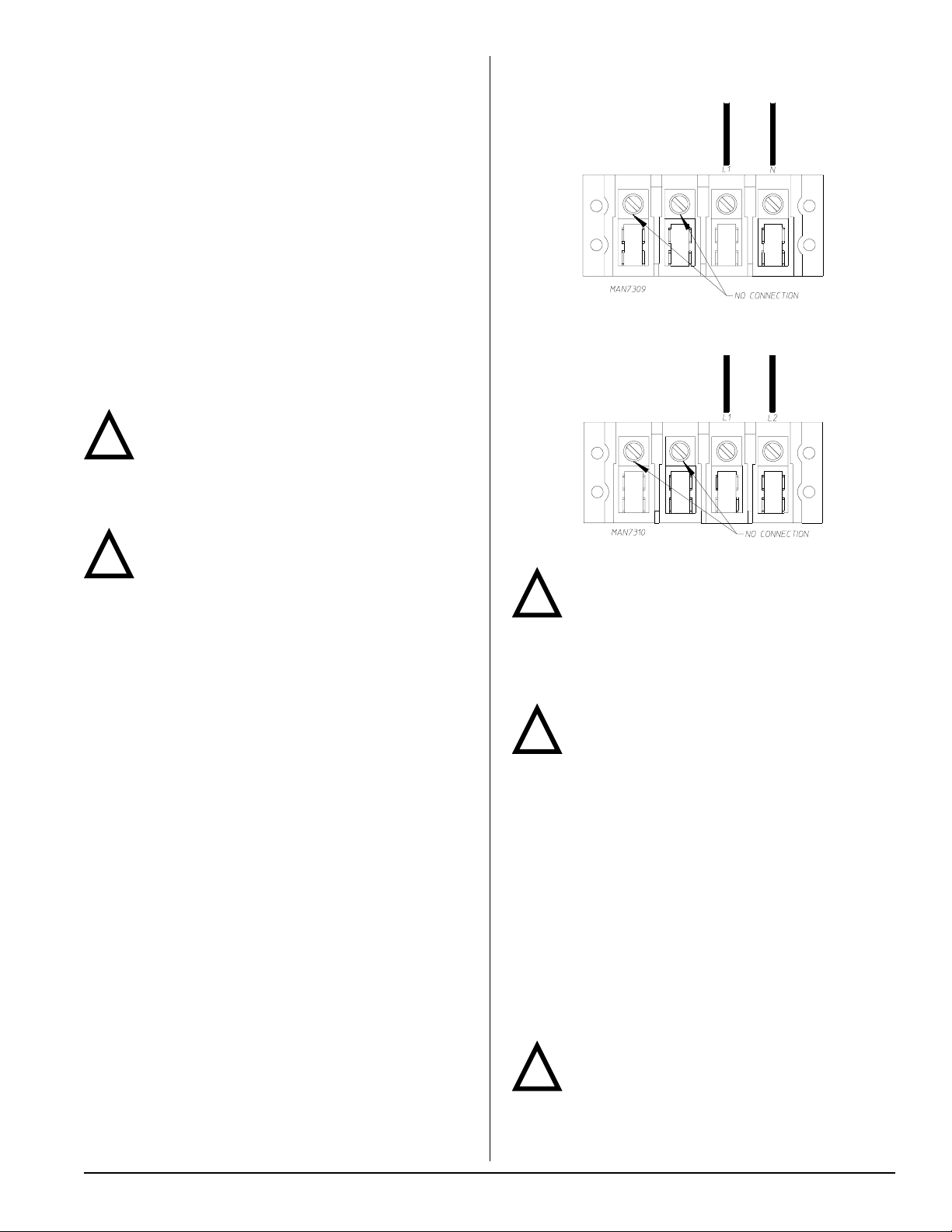

Single-Phase (1ø)
Wiring Connections/Hookup
The electrical input connections are made into the rear service
box located at the upper right area of the dryer. The ground
connection is made to the copper lug, also provided in this
box. To gain access, the service box cover must be removed.
!
200-240V Application without Neutral
!Caution
The dryer must be grounded. A ground lug has
been provided for this purpose.
Input connection wiring must be sized properly to handle the
dryer’s current draw. This information is printed on the dryer’s
data label.
Important
A strain relief must be used where the input wiring
enters the oven assembly.
Electrically Heated Models Only
The electrical input connections are made at the rear service
box located at the right upper section of the dryer. The ground
connection is made to a copper lug also provided in this
area. To gain access, remove rear service cover.
The only electrical input connections to the dryer are the
3-phase (3ø) power leads (L1, L2, L3, and sometimes neutral)
and ground. Single-phase (1ø) power for the control circuit
and for any single-phase (1ø) motors (if present) is done
internally to the dryer by the factory at the oven contactor. No
single-phase (1ø) input connection is required on a 3-phase
(3ø) dryer.
The neutral will only be used on 4-wire service. This is typical
for 380-416V, 50 Hz.
Caution
The dryer must be grounded. A ground lug has
been provided for this purpose.
Input connection wiring must be sized properly to handle the
dryer’s current draw. This information is printed on the dryer’s
data label.
!
!
!
Gas and Steam Models Only
120-240V Application with Neutral

20 Girbau, SA 113432-1
!
!
Gas Information _______________________
It is your responsibility to have all plumbing connections,
materials, and workmanship conform to local and state
regulations or codes of the country of destination. In the
absence of such codes, all plumbing connections, materials,
and workmanship must conform to the applicable local
requirements. In the USA this is the National Fuel Gas Code
ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian
Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or
CAN/CGAB149.2-M91 (L.P. Gas) or LATESTEDITION.
In Australia, the fuel gas code is AS 5601/AG 601, local
authority, gas, electricity, and any other relevant statutory
regulations.
It is important that gas pressure regulators meet applicable
pressure requirements, and that gas meters be rated for the
total amount of all the appliance Btu being supplied.
Important
Failure to comply with these codes or ordinances,
and/or the requirements stipulated in this manual,
can result in personal injury and improper operation of the
dryer.
Electric Models Only
Single-Phase (1ø) Wiring Connections/Hookup
Two Element Configuration
Three Element Configuration
3-Phase (3ø) Wiring Connections/Hookup
!
!
!Important
For ease of service, the individual gas supply line
of each dryer must have its own manual shutoff
valve.
The dryer and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess
of 1/2 psig (3.5 kPa) for non-CE dryers or 50 mb for CE
dryers.
Failure to isolate or disconnect the dryer from supply as
noted can cause irreparable damage to the gas valve,
voiding the warranty.
Note
The dryer must be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure test of the gas supply
system at test pressures equal to or less than 1/2 psig (3.5
kPa) for non-CE dryers or 50 mb for CE dryers.
Warning
Fire or explosion could result due to failure of
isolating or disconnecting the gas supply as noted.
Note
Undersized gas piping will result in ignition
problems, slow drying, increased use of energy,
and can create a safety hazard.
The dryer must be connected to the type of heat/gas indicated
on the data label and pressure must be confirmed. If this
information does not agree with the type of gas available, do
not operate the dryer. Contact the reseller who sold the dryer
or contact the manufacturer.
The input ratings shown on the data label are for elevations
up to 2,000 feet (610 meters), unless elevation requirements
of over 2,000 feet (610 meters) were specified at the time the
dryer order was placed with the factory. The adjustment or
conversion of dryers in the field for elevations over 2,000 feet
(610 meters) is made by changing each burner orifice. If this
conversion is necessary, contact the reseller who sold the
dryer or contact the manufacturer.
Important
If connection to this appliance is made with a
flexible hose, it must be suitable for the appliance
category in accordance with national installation
regulations of the country of destination, and if in doubt the
installer must contact the supplier. The manufacturer of
this appliance does not recommend the use of flexible gas
supply line/hose. An external gas supply shutoff must be
provided.
CE Dryers
There is an N.P.T. to B.S.P.T. adaptor included with each dryer,
which must be installed to the gas inlet. The adaptor is
shipped in the tumbler.
Important
Pipe joint compounds that resist the action of
natural, propane, and butane gases must be used.
!
!
