GIRBAU ED260 Manual

Code no. 576017
Rev. no. 02/0415
Model
From Machine No.
ED260
ED340
ED460
ED660
2,215,001
2,240,001
2,265,001
2,290,001
Operation and Maintenance
Instruction Manual
for ED COIN dryers
GIRBAU, SA
Crta de Manlleu, km. 1
08500 VIC (Barcelona) • SPAIN
National sales:
T.(+ 34) 902 300 359
International sales:
T.(+ 34) 938 862 219
Service:
T.(+ 34) 902 300 357
www.girbau.es
For USA and CANADA:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh • USA
Tel. 1(920) 231-8222
info@continentalgirbau.com
www.continentalgirbau.com
EN
COIN
Control
ED260/ED340
ED460/ED660

Contents 2
Code no. 576017
Rev. no. 02/0415
CONTENTS
SAFETY INSTRUCTIONS......................................................................................................................................... 5
1. PRIOR INFORMATION..........................................................................................................................................9
1.1. Applications for the manual ................................................................................................................................ 9
1.2. General description of the machine.................................................................................................................... 9
1.2.1. Functional features................................................................................................................................... 9
1.3. EC declaration of conformity .............................................................................................................................. 9
1.4. Dos and don'ts in using the machine.................................................................................................................. 9
2. MANAGEMENT AND CONTROL SYSTEM........................................................................................................11
2.1. Control panel .................................................................................................................................................... 13
2.1.1. User interface......................................................................................................................................... 13
2.1.2. Keypad functions on system tools and edit menus................................................................................ 13
2.2. Interpreting the main on-screen icons.............................................................................................................. 14
3. OPERATING MODES..........................................................................................................................................15
4. PROGRAM EXECUTION MODE.........................................................................................................................16
4.1. Before starting a program................................................................................................................................. 16
4.2. Information displayed while the program is running......................................................................................... 17
4.3. Program pause................................................................................................................................................. 17
4.4. Increasing the drying time ................................................................................................................................ 17
4.5. End of the cycle................................................................................................................................................ 17
4.6. Stop modes....................................................................................................................................................... 18
4.6.1. Normal stopping ..................................................................................................................................... 18
4.6.2. General Stop .......................................................................................................................................... 18
4.7. Pre-set programs.............................................................................................................................................. 19
4.7.1. Initial content of the programs................................................................................................................ 19
4.7.2. Explaining the program functions........................................................................................................... 19
5. PROGRAM EDIT MODE......................................................................................................................................20
5.1. Access to Program Edit Mode.......................................................................................................................... 20
5.2. Editing a program ............................................................................................................................................. 20
6. SYSTEM TOOLS MODE......................................................................................................................................24
6.1. Accessing the Tools mode menus.................................................................................................................... 24
6.2. Menus making up the System Tools mode ...................................................................................................... 25
7. CONFIGURATION MENU....................................................................................................................................26
7.1. Settings............................................................................................................................................................. 26
7.1.1. General settings ..................................................................................................................................... 26
7.1.2. Options................................................................................................................................................... 27
7.1.3. Prices...................................................................................................................................................... 28
7.1.3.1. Machines WITHOUT a clock option................................................................................................28
7.1.3.2. Machines WITH clock option...........................................................................................................29
7.1.4. Tables..................................................................................................................................................... 32
7.2. Clock................................................................................................................................................................. 33
7.3. Access codes.................................................................................................................................................... 34
8. INFORMATION MENU.........................................................................................................................................34
9. ACCOUNTING MENU..........................................................................................................................................35
10. TROUBLESHOOTING.......................................................................................................................................36
10.1. Troubleshooting operation problems.............................................................................................................. 36
10.2. Alarms............................................................................................................................................................. 37
10.2.1. List of main alarms............................................................................................................................... 38
10.2.2. Troubleshooting.................................................................................................................................... 38
10.3. Freeing a person trapped inside the machine................................................................................................ 43

Contents 3
Code no. 576017
Rev. no. 02/0415
11. USER MAINTENANCE INSTRUCTIONS..........................................................................................................44
11.1. Clean and check the lint filter ......................................................................................................................... 45
11.2. Cleaning the machine..................................................................................................................................... 45
11.3. Checking safety mechanisms......................................................................................................................... 46
11.4. Preventative maintenance programme........................................................................................................... 47
11.5. Cleaning the inverter ...................................................................................................................................... 48
11.6. General checks............................................................................................................................................... 49
11.7. List of most common spare parts ................................................................................................................... 50
12. REMOVAL FROM SERVICE AND DISMANTLING ..........................................................................................51

Safety instructions 4
Code no. 576017
Rev. no. 02/0415
DANGER!
WARNING
FOR YOUR SAFETY THE INFORMATION IN THIS MANUAL MUST BE FOLLOWED TO MINIMIZE THE
RISK OF FIRE OR EXPLOSION OR TO PREVENT PROPERTY DAMAGE, PERSONAL INJURY OR
DEATH.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location:
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
IMPORTANT NOTE TO PURCHASER
Post in a prominent location instructions to be followed in the event the user smells gas. The information to be
posted shall be obtained by consulting with the local gas supplier.

Safety instructions 5
Code no. 576017
Rev. no. 02/0415
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions before using the appliance.
2. Keep all instructions in an easily accessible place in order to resolve any queries, and in case of loss
request a new one from your dealer.
3. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive substances, as they give off vapours that could ignite or
explode.
4. Do not allow children to play with or inside the machine. Close supervision of children is necessary when
the appliance is used near children.
5. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
6. Do not reach into the appliance if the drum is moving.
7. Do not install or store this appliance where it will be exposed to the weather.
8. Do not tamper with controls.
9. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published user-repair instructions that you understand and have
the skills to carry out.
10. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the
fabric softener or product.
11. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
12. Clean lint screen before or after each load.
13. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint,
dust, and dirt.
14. The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
15. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire.
16. DO NOT REMOVE any safety device OR MODIFY OR MANIPULATE any component or part of the
machine. DO NOT INSTALL any extra elements inside the machine.
17. Any part of the machine that is replaced may affect its operation and the user’s safety. For this reason, USE
ONLY THE MANUFACTURER’S ORIGINAL SPARE PARTS. Failure to comply with this warning can
cause serious accidents, malfunctions and the loss of the machine’s guarantee and certifications.
18. Failure to comply with or observe the legislation and regulations covering health, safety and prevention of
risks in the workplace applicable in the country where the machine has been installed, or actions contrary to
common sense, MAY CAUSE personal injury or even death to the user.
19. The machine should only be used for those purposes established by the manufacturer and following the
instructions for use set out in the instruction manuals. Any use not specified in the manuals may lead to
additional risks. Pay special attention to information headed DANGER, WARNING and PRECAUTION.
20. The room where the machine is located MUST comply with the environmental conditions (air venting,
temperature, humidity, etc.) specified in the technical specifications table. NEVER INSTALL THE MACHINE
IN ENVIRONMENTS where it will be splashed with water or where there is a very high level of humidity in
the atmosphere.
21. Clearly mark out danger areas and PREVENT public access to them when the machine is operating. Do not
expose yourself to drainage areas or to vapour, condensation, combustion gas or ventilation outlets.
22. All machines working at temperatures present a fire risk. Take EXTREME care: CLEAN the machine of
inflammable materials: lint, fluff, soot, etc. on a regular basis. KEEP the environment free of combustible
materials and PLACE suitable extinguishers near the machine in easily accessible places.
23. All installations required for the proper operation of the machine MUST be carried out by a duly accredited
Registered Installation Contractors (see Note 3), in compliance with the legal regulations applicable in the
country of use.
24. The machine MUST be commissioned by the Authorised Technical Service in the presence of the Customer
Technical Service (see Notes 2 and 4) or a responsible person appointed by the customer.

Safety instructions 6
Code no. 576017
Rev. no. 02/0415
25. This machine MUST BE USED by personnel who are properly trained in how to use it (see Note 1).
26. NEVER START THE MACHINE, OR USE IT, IF THE FOLLOWING ARE ABSENT, INCORRECTLY
POSITIONED OR MALFUNCTIONING:
COVERS (GUARDS) AND PROTECTIVE DEVICES
SAFETY DEVICES
CONTROL ELEMENTS
27. DO NOT USE the machine if you notice any abnormal noise or smell or if you suspect that the machine is
faulty or defective.
28. On completion of the day's work, TURN OFF the manual fluid supply valves and DISCONNECT the
electrical power. To avoid the risk of fire, DO NOT leave HOT AND DRY linen inside the dryers.
29. The inspections required by the regulations applicable to the country where the machine is being used must
be carried out. It is advisable to request an overall, detailed service of the machine by the Authorised
Technical Service every year (see Note 2).
30. WARNIG!!
INSPECTION, MAINTENANCE OR REPAIR OPERATIONS
Before carrying out any action on the machine:
Close and mechanically lock the manual fluid supply valves.
Check that the bath has COMPLETELY drained, that no part of the machine is at a high temperature
and that no circuits or containers are under pressure.
Check that all the machine’s moving parts are halted or in their rest position. Securely fix all the
machine’s moving parts that could cause an accident.
To reduce the risk of electric shock:
COMPLETELY disconnect the machine from the mains power supply and take steps to prevent
accidental reconnection. TURNING OFF THE ON SWITCH OR PRESSING THE STOP KEY IS NOT
ENOUGH.
Disconnect the electrical connection of any circuit external to the machine; for example external dosing
equipment, central vending units, linen feeders or folders, etc. The electrical connection for these circuits
is independent of the machine’s electrical connection.
To prevent the risk of electrical discharge caused by residual voltage, wait at least five minutes before
removing any guard or cover from the machine.
Failure to follow these warnings may cause a serious accident.
31. CONTACT the Installation Contractors or the Authorised Technical Service (see Notes 3 and 2) in the event
of any doubt, anomaly or problem.
32. It is advisable to copy and enlarge the SAFETY INSTRUCTIONS and place them in a visible place in the
laundry.
33. THE MANUFACTURER ACCEPTS NO RESPONSIBILITY IF THESE SAFETY INSTRUCTIONS AND ALL
THE INFORMATION IN THE CORRESPONDING MANUALS ARE NOT FOLLOWED.
SAVE THESE INSTRUCTIONS.

Safety instructions 7
Code no. 576017
Rev. no. 02/0415

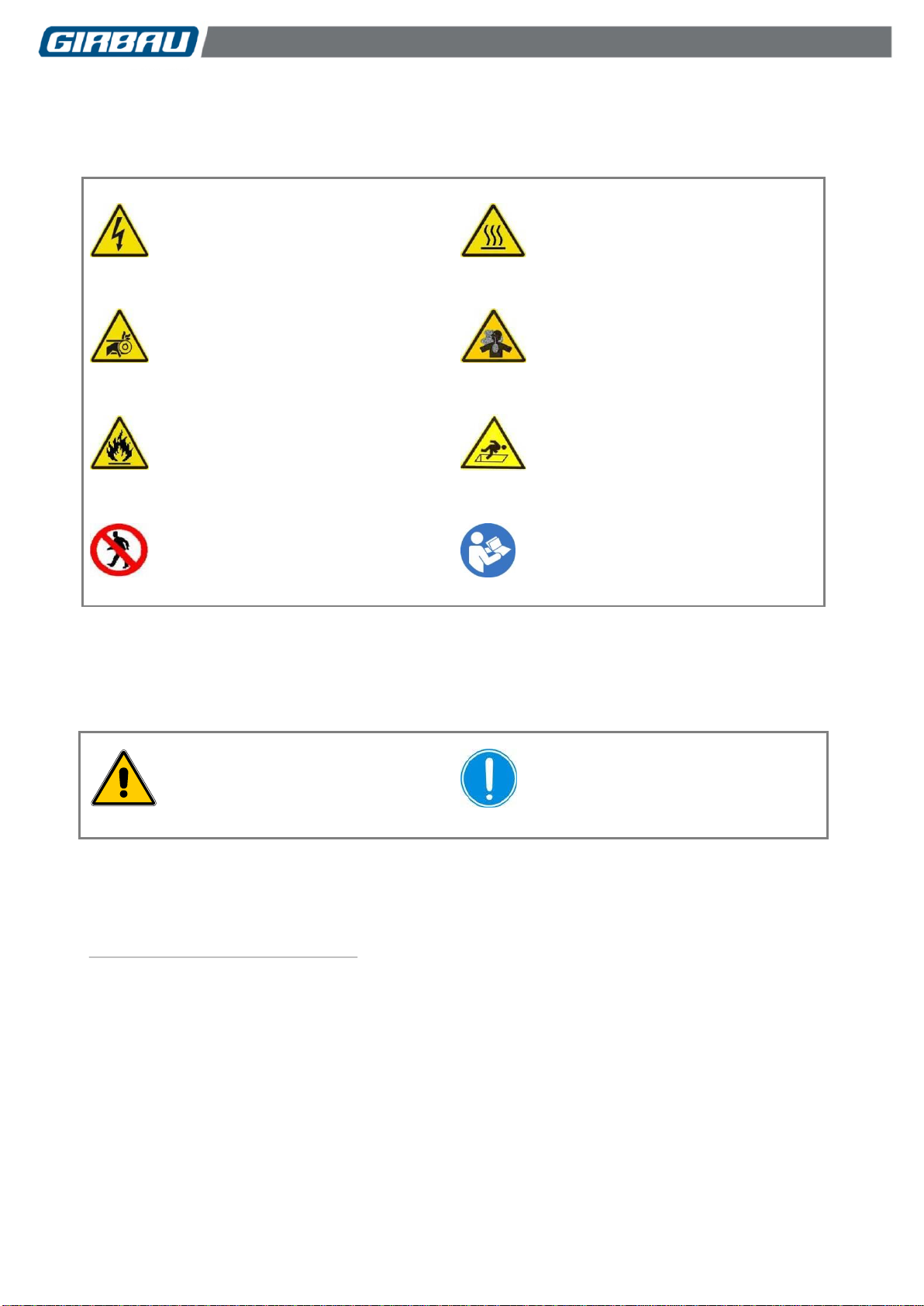

SYMBOLS USED IN MACHINE LABELLING
Electrical risk
Protective guard for elements carrying
an electric current.
High temperature risk
Handle with caution.
Use adequate protection.
Mechanical risk
Protective guard for moving parts.
Risk of inhaling harmful or irritant
vapours
Keep the doors/covers closed.
Use adequate protection.
Flame risk (only on some machines)
Protective guard for flame.
Risk of falling
Use proper access and safety methods.
Access prohibited
Refer to instruction
manual/booklet
SYMBOLS USED IN THIS MANUAL
Symbol used to highlight a possible
HAZARD, WARNING or NOTE.
This symbol is used to emphasise a
particular explanation.
TRANSLATION OF THE ORIGINAL MANUAL
NOTES:
(1) Trained personnel refers to those who have read and understood the Instruction Manual, who have been trained by the Authorised
Technical Service or by a representative of the customer present at the start-up who is familiar with the operation of the machine and is
authorised to use it.
(2) Authorised Technical Service (ATS) is one that has been recognised under contract and properly trained by the manufacturer.
(3) Registered Installation Contractors are those officially approved by the government of the country the machine is to be installed.
(4) Customer Technical Service (CTS) is one that has been authorised by the customer and which has sufficient basic technical knowledge
to correctly interpret and carry out the actions attributed to it in this manual. The manufacturer strongly recommends that the customer
should have its own technical service, particularly in laundries with large-scale machinery installations.

Safety instructions 8
Code no. 576017
Rev. no. 02/0415
IMPORTANT INSTRUCTIONS FOR USE AND PRESERVATION
1. INTENDED USE OF THE MACHINE AND INAPPROPRIATE USE. This machine is designed and intended
solely for processing fabrics washed in a water bath or that have been previously treated in these
conditions. Any use other than this is contraindicated without written authorisation from the manufacturer.
2. Maximum output, performance, reliability and durability are achieved when the machine is installed, used
and maintained correctly, and if a comprehensive and detailed service is carried out annually by the
Authorised Technical Service.
3. The machine’s MATERIALS that are in direct contact with the chemical products involved in treating the
linen are detailed in the manual.
4. The user must consult the supplier of the chemical products USED THROUGHOUT THE WHOLE LINEN
TREATMENT PROCESS regarding the risks associated with its products and their combination. It must be
confirmed that the products are not flammable, ARE MUTUALLY COMPATIBLE, and that they will not
cause oxidisation or deterioration of the machine or any injury to the people using them.
It should be noted that, under certain conditions of use, hypochlorite (bleach) generates chlorine gas.
Chlorine is a corrosive, oxidising substance which, at high concentrations and temperatures, damages
stainless steel and elastomers.
This same effect can also be caused by other strongly oxidising agents, including ozone.
5. FOLLOW the treatment recommendations for each fabric indicated by its manufacturer. THE
MANUFACTURER OF THE MACHINE accepts no responsibility for damage caused by inappropriate
treatment of a fabric.
6. Periodically CLEAN the outside of the machine to prevent damage to its metal parts. This will improve
safety and extend its life. To clean the machine, use water and detergent. Rinse with a damp cloth and
then dry off. To remove accumulated lint, use a suitable vacuum cleaner. Water jet or pressurised steam
cleaning is prohibited.
7. NEVER use aggressive products to clean the machine or the premises. There are products on the market
that give off highly corrosive vapours.
8. If the machine is left idle for long periods of time, it must be thoroughly PROTECTED from humidity and
temperature variations.
9. Faults arising from improper machine operation may VOID THE WARRANTY.
10. When asking for information on your machine, MENTION the model and serial number. This information
can be found on the specification nameplate incorporated into the machine.
With every machine, the manufacturer provides all the necessary technical information and documents required
for its use. KEEP IT IN GOOD CONDITION.

Prior information 9
Code no. 576017
Rev. no. 02/0415
1. PRIOR INFORMATION
1.1. Applications for the manual
This manual applies to COIN CONTROL dryer models ED260, ED340, ED460 and ED660 in their versions with
different heating systems.
This control is designed for dryers installed in coin-op establishments.
1.2. General description of the machine
Main features of the dryer
Front-loading rotary dryer.
A stainless steel drum with large perforation area consisting of pressed holes.
Double glazed drum access door with air cavity (an option without air cavity is also available).
Lint filter that has a large surface area and is easy to access for cleaning.
Pressure switch for air flow leak detection.
Multiple controls that ensure the safe use of the machine.
1.2.1. Functional features
Dryer operation controlled by microprocessor.
Control of the temperature, drying time, drum rotation speed and linen wetness.
Three drying programs available.
Program modification menu. These menus are displayed graphically to aid in understanding the various
operations.
The programs are activated by inserting coins or tokens into the washing machine’s coin meter or via a
signal sent by the central vending unit.
Setting the price of programs. An option for automatically changing the prices for each program depending
on time band and day of the week.
Individual meters for the programs run.
Payment control menu.
1.3. EC declaration of conformity
The Installation instruction Manual for the ED dryers contains a copy of the EC declaration of conformity.
1.4. Dos and don'ts in using the machine
CAUTION!
COIN-OP FACILITIES MUST BE DESIGNED SO THAT THE MACHINE CAN BE USED SAFELY, PROVIDING
AN ERGONOMICALLY CORRECT EXECUTION OF THE LOADING AND UNLOADING OPERATIONS, AS
WELL AS EASY ACCESS TO SUPERVISORY BODIES.
Further information about the heights of the work stations can be found in the corresponding
installation instructions Manual.
THE OWNER OR MANAGER OF THE ESTABLISHMENT MUST INSTRUCT USERS ON THE CORRECT
USE OF THE MACHINES, THE CONTRAINDICATIONS FOR USE AND THE RISKS THAT CAN ARISE
FROM INAPPROPRIATE USE.
CAUTION!
APPROPRIATE USE:
THIS MACHINE HAS BEEN CONCEIVED AND DESIGNED FOR THE INDUSTRIAL DRYING OF LAUNDRY
ITEMS WASHED IN WATER FREE FROM INFLAMMABLE OR EXPLOSIVE PRODUCTS. ANY USE OTHER
THAN DESCRIBED, CARRIED OUT WITHOUT WRITTEN AUTHORISATION FROM THE MANUFACTURER,
WILL BE TAKEN AS INAPPROPRIATE TO THE TERMS OF USE.

Prior information 10
Code no. 576017
Rev. no. 02/0415
CAUTION!
INADVISABLE USE
It is totally prohibited to:
Operate the machine without the covers and guards correctly in place and secured.
Dry linen that has been previously treated or washed in petrol, dry cleaning solvents or other flammable or
explosive substances. These substances GIVE OFF VAPOURS that could ignite or explode.
Iron fabrics or fibres at temperatures above those recommended by the manufacturer of the material.
Dry articles of linen containing components unable to withstand the drying temperatures.
Disconnect the power supply until the cooling-down cycle has fully completed, EXCEPT IN AN
EMERGENCY.
IMPORTANT WARNINGS
It is important to advise users on the following safety points.
The machine should not be used without covers or guards being fitted, or if any indication of faults,
deterioration or malfunction is detected.
The use of appropriate clothing is recommended, avoiding very loose items of clothing that might get
caught.
Jewellery or accessories worn on the hands, arms, neck, etc. should be avoided.
DANGER!
RISK OF SPONTANEOUS COMBUSTION
Because of the temperature of the linen, there is a potential risk of spontaneous combustion of the laundry load
inside the dryer.
To avoid the risk of spontaneous combustion, it is very important to follow these instructions:
Finish off drying programs with the cooling phase and do not remove the load until the cycle is completely
finished.
Once the drying cycle has finished or in situations where there is a power failure, remove the linen quickly
from inside the dryer.
Do not allow lint to accumulate in critical areas of the machine. Lint is readily flammable.
No washing machine can completely remove oils from fabrics. Never dry articles of linen that are stained
with oil. Never dry articles of linen containing rubber. Use the dryer ONLY to dry fabrics washed in water.
DANGER!
SPECIFIC WARNING FOR ELECTRIC-HEATED DRYERS
If the machine is at a high temperature and the fan stops or the power supply is disconnected, the heat
accumulated in the heater box is released through the grille in the top cover as hot air. Therefore:
This ventilation grille must not be obstructed.
Do not place any object or substance on this cover.
Do not touch the dryer’s top cover.
DANGER!
SPECIFIC WARNINGS FOR GAS-HEATED DRYERS
When stopping the machine, always shut off the manual gas stopcock. Always turn off the gas heating before
stopping the machine.
DANGER!
SPECIFIC WARNINGS IN PROCESSES FOR DRYING MOPS
Some chemicals used in cleaning processes with mops are inflammable and are not easily removed during the
washing of mops.
For this reason it is advisable to:
Never dry mops that have not previously been washed in a water bath.
Ensure that the processes of washing mops completely eliminates the residual chemicals that they are
impregnated with.

Management and control system 11
Code no. 576017
Rev. nº 02/0415
2. MANAGEMENT AND CONTROL SYSTEM
CAUTION!
THE REGULATIONS FOR SAFETY AT WORK AND ACCIDENT PREVENTION MUST BE METICULOUSLY
FOLLOWED.
DO NOT USE THE MACHINE WITHOUT SUITABLE TRAINING AND EXTENSIVE OPERATING
KNOWLEDGE.
NEVER START OR USE THE MACHINE IF ANY OF THE FOLLOWING ARE MISSING, INCORRECTLY
POSITIONED OR MALFUNCTIONING:
COVERS ( GUARDS) AND PROTECTIVE DEVICES
SAFETY DEVICES
CONTROL ELEMENTS.
BEFORE HANDLING THE LINEN INSIDE THE DRYER, WAIT UNTIL THE DRUM HAS COMPLETELY
HALTED.
TO AVOID HANDLING CLOTHES AT A HIGH TEMPERATURE, IT IS HIGHLY RECOMMENDED TO
PROGRAMME A COOLING-DOWN PHASE AT ALL TIMES AT THE END OF A PROGRAM.
DANGER!
MECHANICAL RISKS
To avoid the risk of being caught up in the machine’s moving parts it is essential for hair to be tied
up and suitable fitted clothing to be worn.
Jewellery must not be worn.
Do not use the machine without all the cover and safety guards correctly in place.
Disconnect the power supply and close the gas supply valves and other sources of heating before
removing any form of protection.
ELECTRICAL RISKS
It is essential for the machine to be connected to external protection (earthed).
HIGH TEMPERATURE RISKS
Do not remove any safety guards without first making sure the machine is cool (<35 ºC / 90 ºF).
Do not put the hands anywhere near the exposed surface of the drum, particularly, the laundry
output area or the heating circuit elements.
Always programme a cooling-down phase at the end of a program.
FIRE RISKS
Lint and soot are highly flammable substances.
It is essential to avoid these building up inside the machine and the exhaust ducting running from
the machine to the outside.
To achieve this, all the places likely to collect lint and soot must be regularly cleaned (e.g.: covers,
exhaust ducting, filter, fan, etc.).
Also keep the area around the machine free from lint and any other inflammable materials or
substances.
Remove the linen from inside the dryer without delay. This will prevent creases in the fabric and
reduce the risk of spontaneous combustion.

Management and control system 12
Code no. 576017
Rev. nº 02/0415
DANGER! (AUSTRALIA ONLY)
According to A.G.A specs.:
Do not use or store flammable materials in the appliance storage drawer or near this appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Do not modify this appliance.
This appliance shall not be used to dry off solvents or drycleaning fluids.

Management and control system 13
Code no. 576017
Rev. nº 02/0415

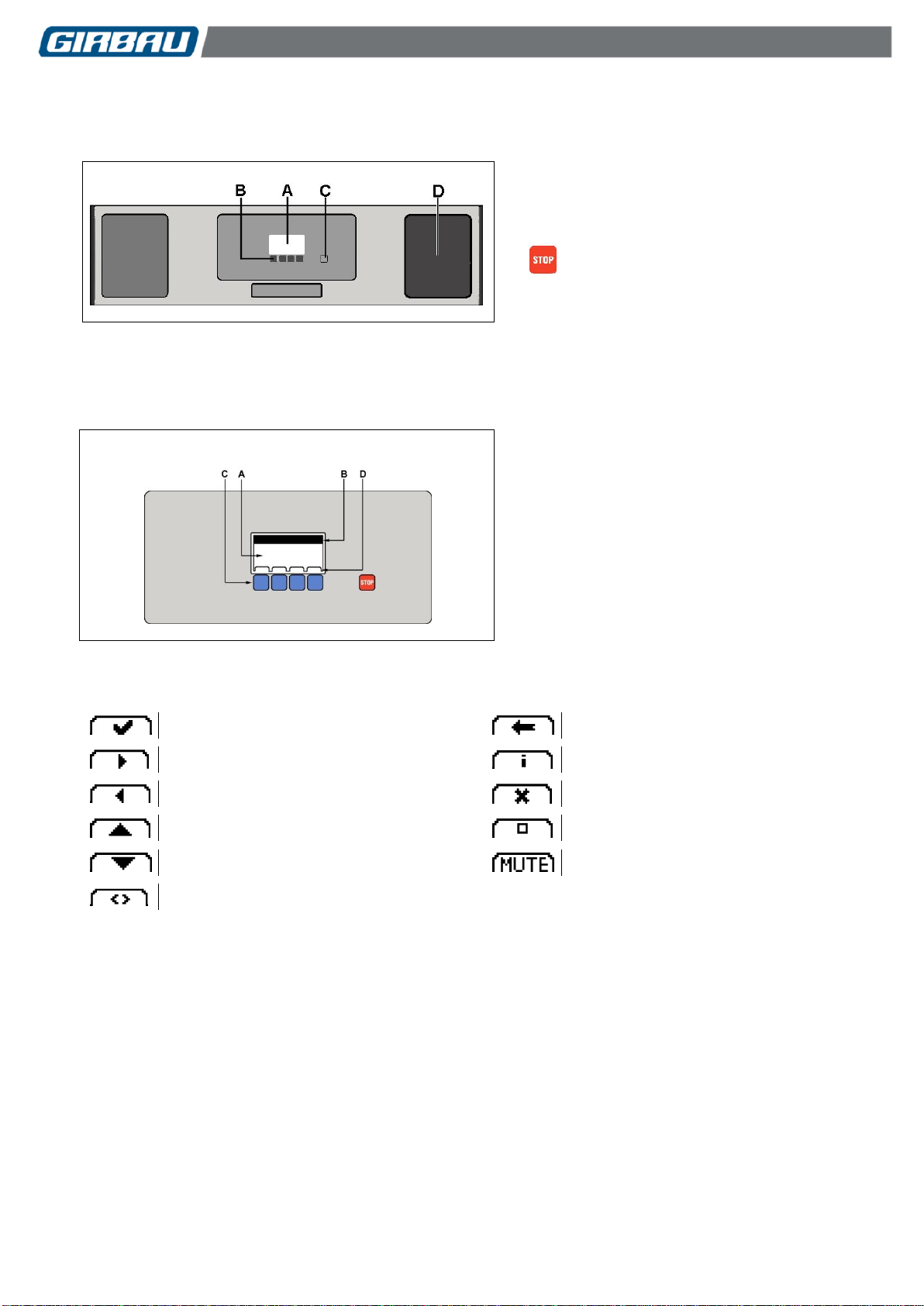

2.1. Control panel
User interaction devices on the dryer
A.-LCD display. Displays all the operating
information.
B.-Multifunction keypad. Allows interaction
with the machine.
C.-key. Key for stopping the program.
D.-Coin meter box, coin reader, tokens, cards,
start button, etc. (depending on option).
2.1.1. User interface
Enables the user to interact with the different operations run by the dryer.
A.-Display. General overview of menus,
programs and functions.
B.-Specific information on system tools and
edit menus. Further information on indicated
menus.
C.-Program selection keypad. (On system tools
and edit menus this keypad runs other
functions).
D.- Function indicator bar. Displays the function
assigned to the corresponding key.
2.1.2. Keypad functions on system tools and edit menus
Confirm key
Back to previous menu
Move to the right
Information
Move to the left
Cancellation
Scroll up
Halt alarm
Scroll down
Silence alarm
Confirmation/Modification
Screen in text mode. Used in SYSTEM TOOLS mode menus. The language for the texts can be
selected in the settings menu. Refer to Section 7.1.1.

Management and control system 14
Code no. 576017
Rev. nº 02/0415
2.2. Interpreting the main on-screen icons
ICON
EXPLANATION
Access to the drying programs
Access to edit mode
Access to tools mode
Temperature indication
Time indication
Heating activated
Heating turned off
Duration of a program
Rotation speed
Type of reversal
Cool down
Loading indication
Selecting a program
Payment indication
Unloading indication

Operating modes 15
Code no. 576017
Rev. nº 02/0415

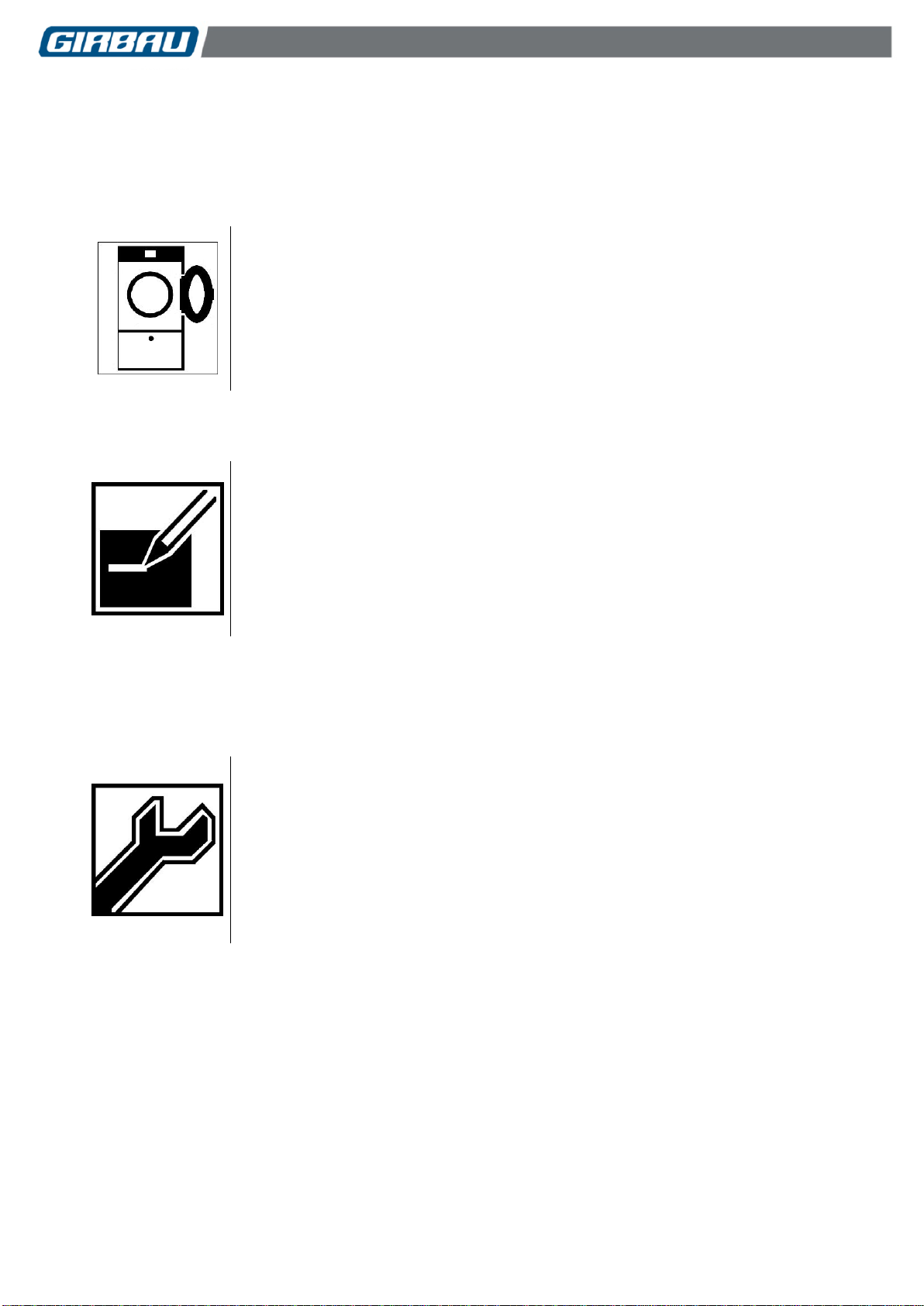

3. OPERATING MODES
The control of the machine is divided into THREE MAJOR OPERATING AREAS or INTERVENTION MODES
according to user levels.
PROGRAM EXECUTION MODE
A mode aimed at dryer users such as clients of coin-op facilities.
This mode contains information intended for selecting and starting a drying program on
payment of the preset amount.
Information regarding this intervention mode: Chapter 4 on this manual.
PROGRAM EDIT MODE
A mode aimed at owners or managers of coin-op facilities. This mode contains
information aimed at editing drying programs and adapting the dryer to the needs of
different customers and markets.
It allows the content of the pre-set programs to be modified.
The information that appears on the screen in the program management menu is in
graphic mode.
Information regarding this intervention mode: Chapter 5 on this manual.
SYSTEM TOOLS MODE
Mode for the owners or managers of the self-service establishments and the technicians in charge of
connecting the dryers’ peripheral or auxiliary equipment. This mode contains information aimed at editing
drying programs and adapting the dryer to the needs of different customers and markets.
This area offers specific menus for CONFIGURING THE SYSTEM.
Among other features:
Configuring operation settings.
Setting the system clock (machines with clock option).
Controlling access and security code.
Information about the characteristics and life of the machine.
Price management and accounting control.
The information in this area is in text mode.
Information regarding this intervention mode: Chapter 6 –9 on this manual.

Program execution mode 16
Code no. 576017
Rev. nº 02/0415
4. PROGRAM EXECUTION MODE
4.1. Before starting a program
Group the fabrics to be dried into homogeneous loads. Avoid
mixing articles of different thicknesses and moisture level, since
this will slow down the drying to the detriment of fine materials.
To aid the movement of air through the inside of the drum, the
load must not exceed the nominal capacity.
Nominal capacity by models. (Load ratio 1/20):
CAPACITY
MODEL
ED260
ED340
ED460
ED660
kg
13
17
23
33
lb
28.7
37.5
50.7
72.8
Check labels and/or characteristics of the garments or fabrics to
be dried and choose a program in accordance with these
characteristics.
Do not dry linen with accessories that cannot be machine dried.
Select a program
The display will show the price of the selected program.
Very hot program
Hot program
Warm program
Program pause
Making the payment for the program.
This operation has multiple modes depending on the option
installed in the dryer:
Inserting coins (1 or 2 slot coin meter box)
Inserting tokens.
Payment by card
Payment at central vending unit
…/…
Use the method of payment that is appropriate for the
characteristics of the dryer.
Confirm the start command by pressing the key corresponding to
the selected program again (machines with the CONFIRM
START option active; OPTIONS menu, section 7.1.2).
Once the payment for the program has been made, the dryer will
start up.
Further information regarding the payment modes can be found
in Chapters 7 and 9.

Program execution mode 17
Code no. 576017
Rev. nº 02/0415

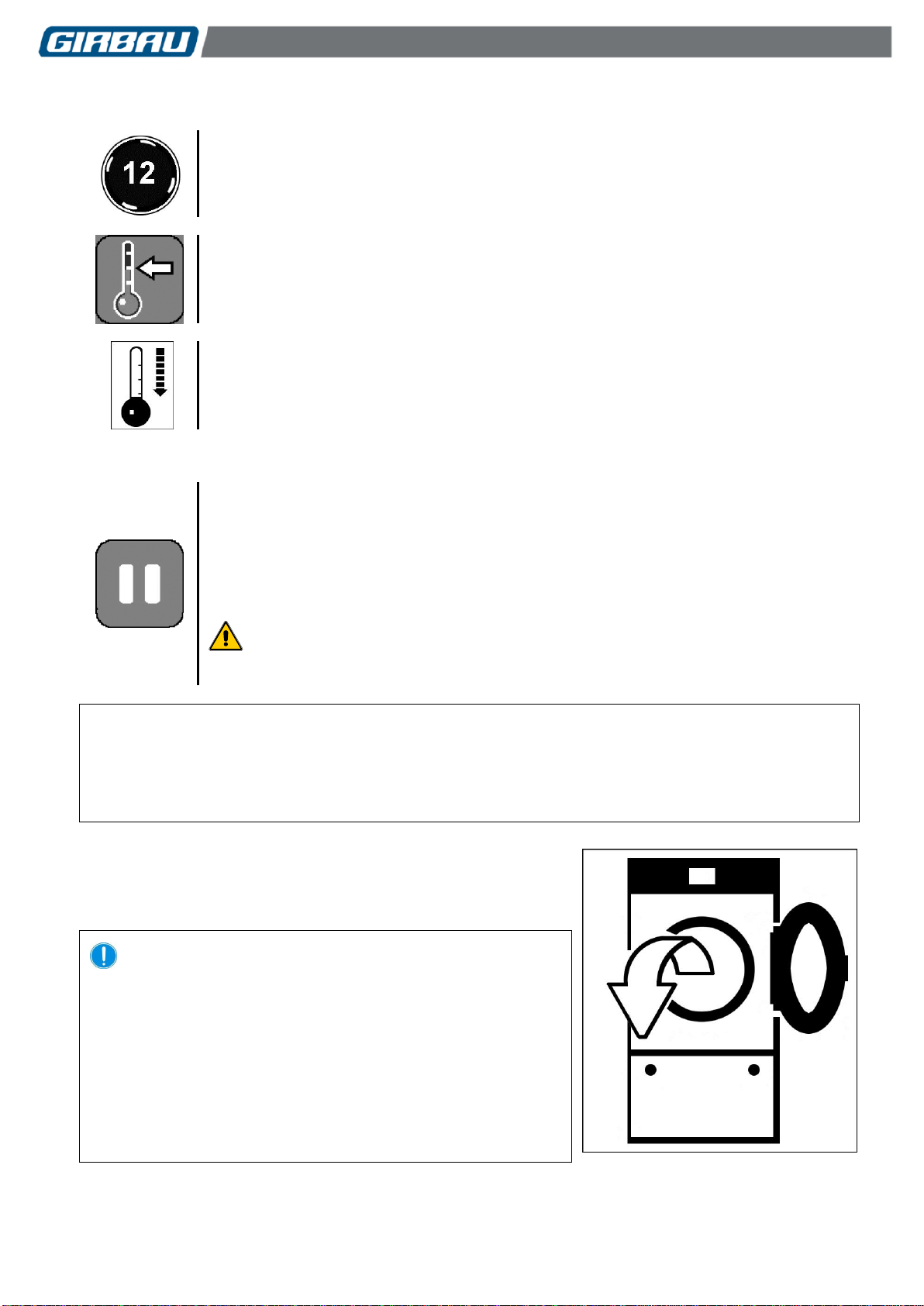

4.2. Information displayed while the program is running
This includes the drying and cooling down phases.
The time remaining for the program in minutes is displayed in the centre of the icon.
Drying phase.
The heating system maintains the programmed temperature.
Cooling-down phase.
4.3. Program pause
The program pause allows the user to halt the rotation of the drum and check the level of
moisture in the linen.
Program pause operation:
Halts the rotation of the drum and turns off the heating system.
Pressing the PAUSE button again resumes the drying phase.
If no action is taken for twenty seconds after the pause command, the cycle resumes.
DANGER!
Do not open the door while the drum is turning.
4.4. Increasing the drying time
During the cycle, the drying time can be increased by inserting coins or tokens or increasing the payment via
the central vending unit.
The increase will be proportional to the number of tokens inserted or the amount paid.
To enable this feature, the +min option in Sections 7.1.2 and 7.1.3 needs to be activated.
See also the COUNT OVERPAYMENT option in the OPTIONS menu (Section 7.1.2).
4.5. End of the cycle
Once the cooling stage has ended, the machine informs the user of
the end of the drying cycle acoustically and on screen.
Precautions at the end of the drying cycle.
N.B. It is very important:
To remove the linen from inside the dryer without delay. This will
prevent creases in the fabric and reduce the risk of spontaneous
combustion.
To clean the lint filter on a regular basis. Lint prevents extraction
and reduces the performance of the dryer. Use the indication for
periodic cleaning of the lint filter in the General Settings
Configuration menu (Section 7.1.1). Further information about
cleaning the filter can be found in Chapter 11.
Do not cancel the cooling-down phase.

Program execution mode 18
Code no. 576017
Rev. nº 02/0415
Standby mode at end of program
On completing the drying program and corresponding cooling-down phase, and while the door remains
unopened, the machine will remain in standby mode.
During standby mode, provided that the internal temperature is high, the dryer will rotate the drum and run the
fan intermittently.

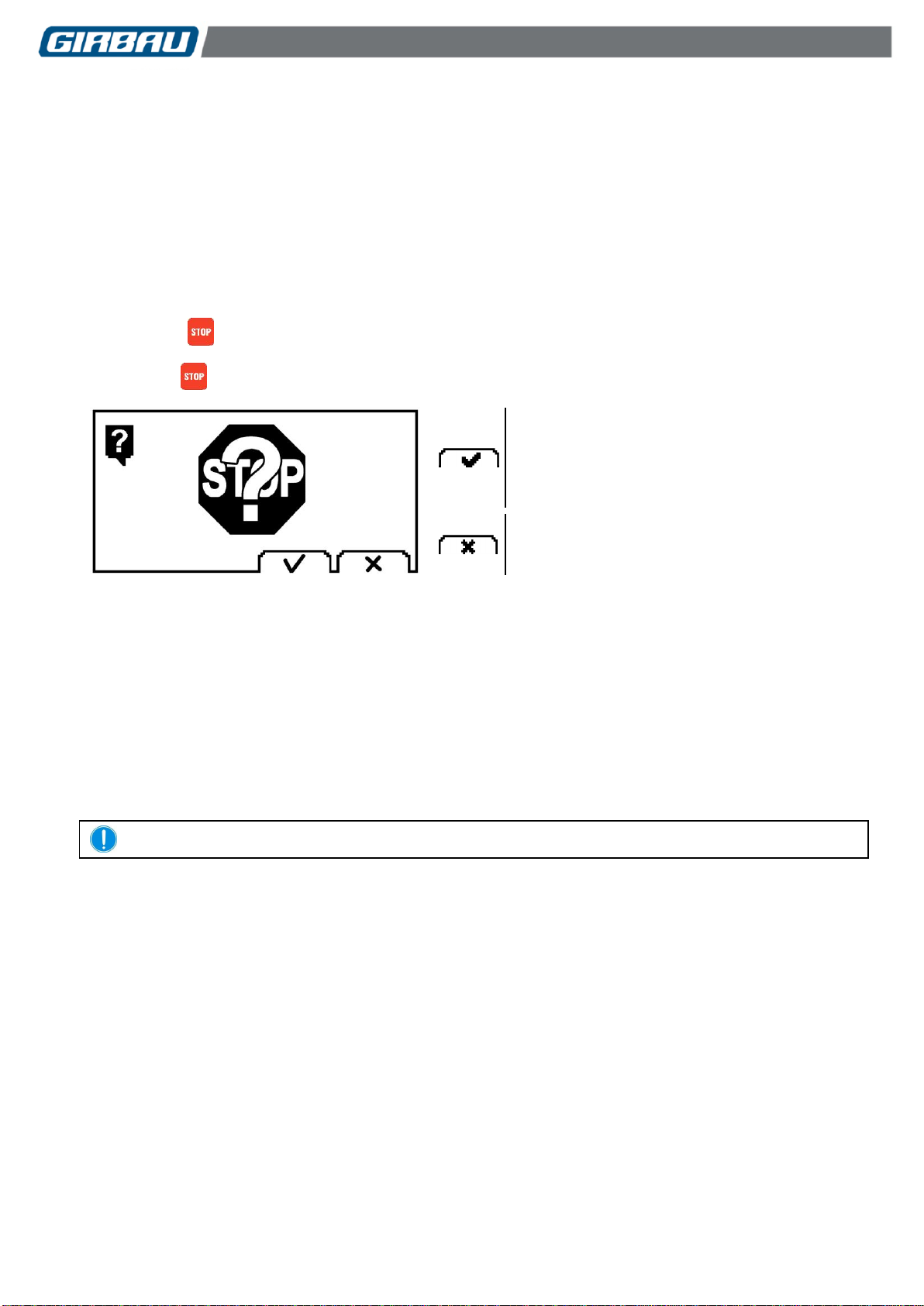

4.6. Stop modes
4.6.1. Normal stopping
Pressing the key
Pressing the button halts the heating system and the program.
The following icon is displayed on screen, requesting confirmation of the Stop command.
Ending the program
The program will end definitively.
While the dryer’s internal temperature is high,
the suction fan will continue to run.
Cancelling the STOP command
The program will continue from the point where it
was interrupted.
If after a few seconds the door is still closed and neither of the two options is selected, the program will
continue.
Opening the door while the STOP icon is displayed will end the program.
Opening the door during the drying stage:
The rotation and heating will stop.
On re-closing, the program will continue.
Opening the door will not stop the program time.
4.6.2. General Stop
Models ED460 and ED660 only.
Disconnecting the mechanically lockable breaker switch, located at the rear of the machine. COMPLETELY
disconnects the machine from the power supply. Suitable for maintenance procedures and when the machine is
idle for long periods.
Mechanically locking breaker switch
Set the breaker switch at the " 0" position.
Fit a padlock on the bottom opening to prevent the breaker switch being handled by others.

Program execution mode 19
Code no. 576017
Rev. nº 02/0415
4.7. Pre-set programs
The dryer allows three drying
programs to be selected:
Very hot program
Hot program
Warm program
4.7.1. Initial content of the programs
The factory-set content of the three drying programs is the following:
PROG.
DRYING TIME
HEATING
DRYING
TEMPERATURE
INPUT
TEMPERATURE
ROTATION
SPEED
ROTATION
COOLING-DOWN
TIME
28’
80ºC
176ºF
200ºC
392ºF
2’
28’
65ºC
149ºF
200ºC
392ºF
2’
28’
50ºC
122ºF
200ºC
392ºF
2’
4.7.2. Explaining the program functions
DRYING TIME
Duration of the drying phase.
The drying time countdown starts the moment the program starts.
HEATING
Option for activating the dryer’s heating system or not.
DRYING TEMPERATURE
Maximum temperature of the drying phase. When the temperature sensor detects a value equal to or greater
than the set temperature, the heating system is switched off.
INPUT TEMPERATURE
Maximum temperature of the air entering the machine. When the input temperature sensor detects a value
equal to or greater than the set temperature, the heating system is switched off.
ROTATION SPEED
Drum rotation speed (the rotation speed defined in the TABLES menu. Section 7.1.4).
ROTATION
The drum’s start, stop and reverse rotation intervals. (The rotation reversal intervals defined in the TABLES
menu. Section 7.1.4).
COOLING-DOWN TIME
Stage following the drying phase during which the dryer operates with the heating system off.
This stage is very important to lower the temperature of the linen, prevent creases in the fabric and reduce
the risk of fire due to combustion spontaneous.

Edit mode 20
Code no. 576017
Rev. nº 02/0415
5. PROGRAM EDIT MODE

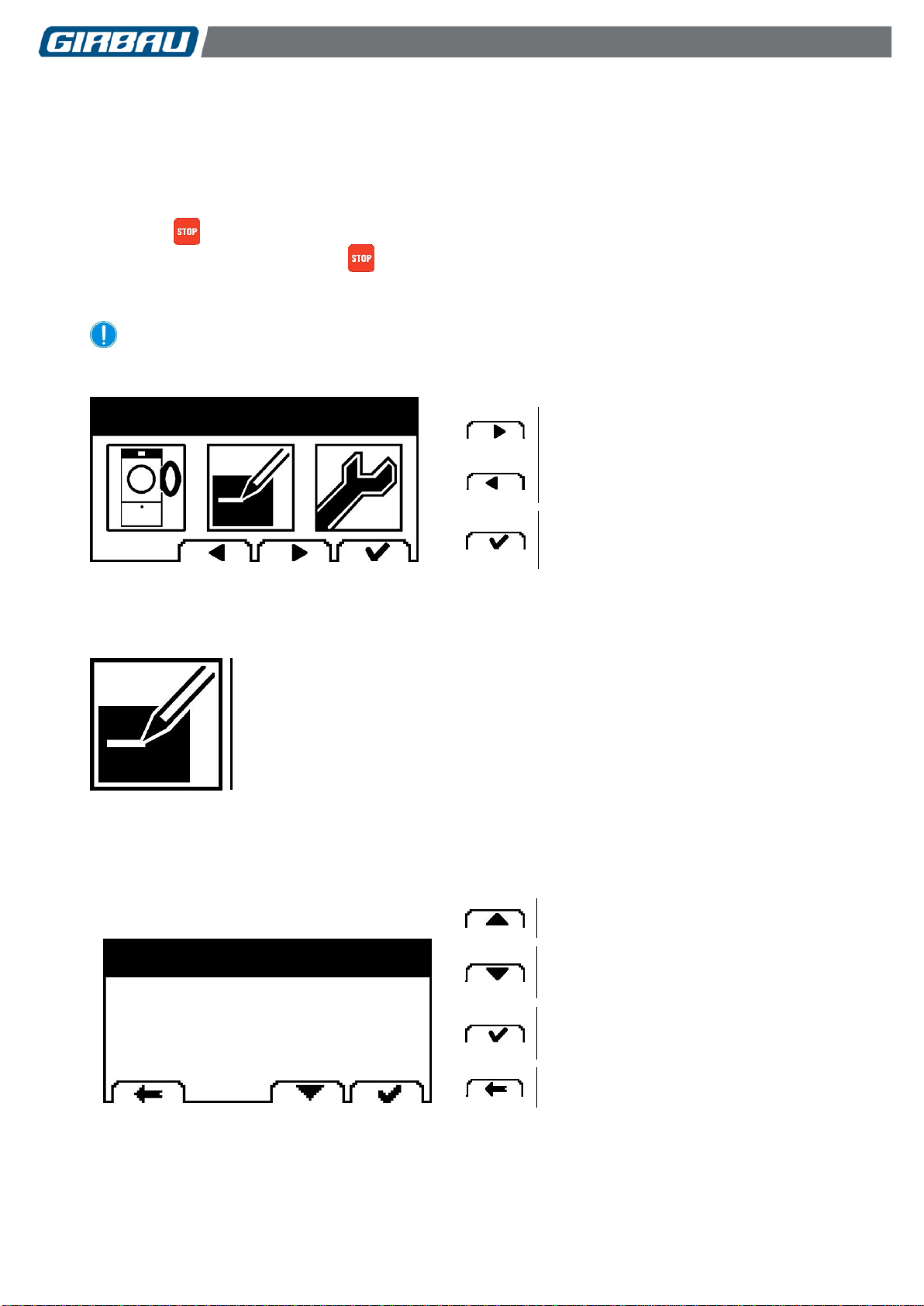

5.1. Access to Program Edit Mode
To access the Program Edit Mode, the dryer should not be running any programs.
Access
Hold the key down for a few seconds. The dryer will emit a beep and freeze the instruction display.
Enter the access code and press the key.
The dryer screen will display the three intervention modes.
Select the icon for the mode to be run.
Selecting the Run Programs mode makes it possible to leave Advanced Mode.
Selecting the intervention mode
Confirming the selection
In the Edit menu it is possible to modify the values of the programs.
5.2. Editing a program
Selecting the program
Scrolling up.
Scrolling down.
Selecting a program.
Accessing the following screen.
Back to the previous menu.
Modifying
1: VERY HOT
2: HOT
3: WARM
Start
This manual suits for next models
7
Table of contents
Other GIRBAU Dryer manuals
Popular Dryer manuals by other brands

Siemens
Siemens WT45M232GB Installation and operating instruction

Bosch
Bosch WTW874M9SN Installation and operating instructions

LG
LG DLE7060 E Series owner's manual

Hisense
Hisense DCGE802 User's operation manual

Excel Dryer
Excel Dryer XLERATORsync Installation and owner's manual

Tesla
Tesla WT8C91M user manual
