3300060 Pentium® M All-in-One Capa Board User’s Manual
Introduction 1
C h a p t e r 1
Introduction
The 3300060 is an Intel®Pentium®M/Celeron™M CPU
equipped Capa board with graphics, Fast Ethernet and audio
interface. Designed with the space-limited applications in mind,
the 3300060 is practically the finest embedded Pentium®M
board that exists. Using a standardized format conforming to
the size of a 3.5”Hard Disk drive, 3300060 Series adapt an
Intel®low power consumption Pentium®M microprocessors. To
simplify system integration, it packs provisions such as super
I/Os, UXGA, LCD, Ethernet, solid state disk, all on a single
board. Unique embedded features such as 2 serial ports (1 x
RS-232, 1 x RS-232/422/485) (optional 2* RS-232 ports via
stacking kit) with +5V/12V power capability and that allow
adoption of an extensive array of PC peripherals. The
industrial-grade construction of 3300060 series allows your
system to endure the continuous operation in hostile
environments where stability and reliability are basic
requirements. System dependability of 3300060 series are
enhanced by its built-in watchdog timer, a special industrial
feature not commonly seen on other motherboards.

3300060 Pentium® M All-in-One Capa Board User’s Manual
2 Introduction
Designed for the professional embedded developers, the
Pentium®M embedded board 3300060 Series is virtually the
ultimate one-step solution for embedded system applications.
1.1 Specifications
zCPU: Intel®Pentium®M 1.1/1.4GHz and Celeron®M
600M/1GHz
zSystem Chipset: Intel®852GM + ICH*4
zBus Clock: 400MHz
zBIOS:
Phoenix-Award BIOS, Y2K compliant
4Mbit Flash, DMI, Plug and Play
SmartView for multiple LCD type selection, display
mode option and application extension features
RPL/PXE Ethernet Boot ROM
“Load Optimized Default” to backup customized
Setting in the BIOS flash chip to prevent from CMOS
battery fail
zSystem Memory:
One 200-Pin DDR SODIMM socket
Maximum DDR of up to 1GB DDR266
zL2 Cache: integrated in CPU
zOnboard IDE:
1 parallel ATA-100
PATA-100 as PIO Mode 0-4, DMA Mode 0-2 and Ultra
DMA/33/66/100
zCompact Flash Socket:
One Compact Flash Type II Socket
zOnboard Multi I/O:
One floppy port
1 x RS-232
1 x RS-232/422/485
Optional 2*RS-232 ports via 3300060D stacking kit

3300060 Pentium® M All-in-One Capa Board User’s Manual
Introduction 3
zUSB Interface: 4 USB ports with fuse protection and
complies with USB Spec. Rev. 2.0
zReal Time Clock: Integrate Intel®ICH*4
zWatchdog Timer:
1~255 seconds; up to 255 levels
zGraphics/Streaming:
Integrate Intel®852GM GMCH
Unified Memory Architecture shares system memory
up to 32MB
Single display mode maximum resolutions:
CRT: 2048 x 1536@ 75Hz
LVDS LCD: 1600 x 1200
DualView display mode:
CRT: 2048 x 1536@ 75Hz
LVDS LCD: 1600 x 1200
LCD backlight control supported
Optional Dual LVDS LCD via stacking kit 3300060D with
Chrontel CH7305 converter
zEthernet:
Realtek 8100C PCI Bus 10/100M Base-T
Wake On LAN (via ATX power supply)
Equipped with RJ-45 interface
Optional with Realtek RTL8110S for 10/100/1000Base-T
2nd Ethernet supported by optional stacking kit 3300060E
zAudio:
Realtek ALC202A AC’97 codec audio
Amplify for speaker-out with 2.5W for each channel
MIC-in, Line-in, Line-out/Speaker-out (jumper
selectable)
zPower Management: ACPI (Advanced Configuration
and Power Interface)

3300060 Pentium® M All-in-One Capa Board User’s Manual
4 Introduction
zForm Factor: 3.5” hard disk drive form factor
NOTE: Specifications are subject to change without notice.
1.2 Utilities Supported
zChipset Driver
zEthernet Driver
zVGA Drivers
zAudio Drivers

3300060 Pentium® M All-in-One Capa Board User’s Manual
Jumpers and Connectors 5
C h a p t e r 2
Jumpers and Connectors

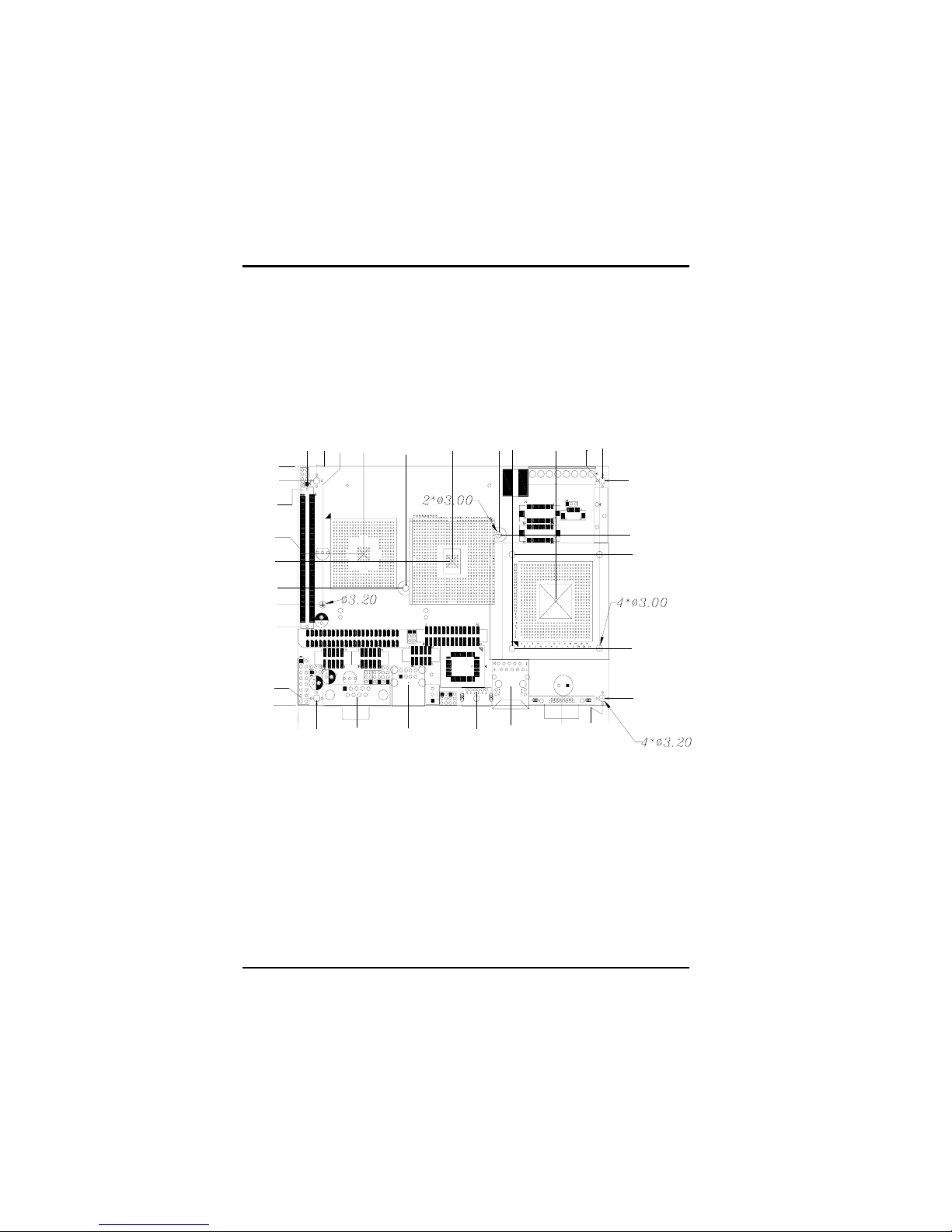

2.1 Board Layout and Fixing Holes
44.20
11.68
3.18
34.54
94.74
4.45
8.89
27.66
51.89
84.00
100.00
124.00
141.66
100.66
30.99
8.89
146.05
143.05
66.09
25.10
143.05
98.37
121.16
72.52
50.72
94.32
74.81
6
3.12
51.43
1
04.65
98.37
6
6.29
3.18
0.00
0.00

3300060 Pentium® M All-in-One Capa Board User’s Manual
6 Jumpers and Connectors
2.2 Placement

3300060 Pentium® M All-in-One Capa Board User’s Manual
Jumpers and Connectors 7
2.3 Jumper Settings
The 3300060 Series is configured to match the needs of your
application with the proper jumper settings. The table below is a
summary of all the jumpers and their corresponding functions
onboard the 3300060 Series. The succeeding tables show the
correct jumper settings for the onboard devices.
3300060 Jumper setting：
Jumper Default Setting Jumper Setting
JP2 LVDS Voltage select: 3.3V Short 1-2
JP3 Clear CMOS Setting: Normal Short 1-2
JP4 Compact Flash Power Select: 3.3V Short 1-2
JP5 Audio Line Out/Speaker Out: Line Out Short 1-3, 2-4
JP6 COM2 Mode Select: RS-232 Short 1-2
JP7 COM2 Mode Select: RS-232 Short 3-5,4-6
JP8 COM2 Mode Select: RS-232 Short 3-5,4-6
CN9 Pin 1: DCD Short 3-5
JP9 COM2 Mode
Select CN9 Pin 8: RI Short 4-6
CN15 Pin 1: DCD Short 3-5
JP10 COM1 Mode
Select CN15 Pin 8: RI Short 4-6
2.3.1 Audio Output Select Jumper: JP5
Options Settings
Line Out Short 1-3, 2-4 (default)
Speaker Out Short 3-5, 4-6
JP5
246
135
2.3.2 CMOS Clear Jumper: JP3
Options Settings JP3

3300060 Pentium® M All-in-One Capa Board User’s Manual
8 Jumpers and Connectors
Normal Short 1-2 (default)
Clear CMOS Short 2-3
1
2
3
2.3.3 Compact Flash Power: JP4
Options Settings
3.3V Short 1-2(default)
5V Short 2-3
JP4
1
2
3
2.3.4 COM1 Mode Select: JP10
COM1 JP10
*Pin 1=DCD
*Pin 1=5V Short 3-5(default)
Short 1-3
*Pin 8=RI
*Pin 8=+12V Short 4-6(default)
Short 2-4
JP10
2.3.5 COM2 Mode Select: JP9
COM2 JP9
*Pin 1=DCD
*Pin 1=5V Short 3-5(default)
Short 1-3
*Pin 8=RI
*Pin 8=+12V Short 4-6(default)
Short 2-4
JP9
2.3.6 COM2 Mode Select for RS-232/422/485:
JP6/JP7/JP8
格式化: 項目符號及編號

3300060 Pentium® M All-in-One Capa Board User’s Manual
Jumpers and Connectors 9
COM2 JP6 JP7 JP8
RS-232 (default) 1-2 3-5, 4-6 3-5, 4-6
RS-422 3-4, 7-8 1-3, 2-4 1-3, 2-4
RS-485 5-6, 7-8 1-3, 2-4 1-3, 2-4
JP6
2
4
6
1
3
5
87
JP7/JP8
2
4
6
1
3
5
2.3.7 LVDS Voltage Setting: JP2
VDDM Settings
5V Short 2-3
3.3V Short 1-2(default)
JP2
123

3300060 Pentium® M All-in-One Capa Board User’s Manual
10 Jumpers and Connectors
2.4 Connectors
The connectors allow the CPU card to connect with other parts of
the system. Some problems encountered by your system may be a
result from loose or improper connections. Ensure that all
connectors are in place and firmly attached. The following table
lists the function of each connector on the 3300060 Series.
Their corresponding pin assignments are described in Chapter 3.
Connectors Label Connectors Label
Power Connector CN1 LAN1 RJ-45 Connector CN11
LVDS Channel B Connector CN2 USB Port0 & Port1 Connector CN12
LVDS Voltage Connector CN3 6-Pin Mini Dim Keyboard/Mouse
Connector
CN13
LVDS Channel A Connector CN4 VGA Connector CN14
Printer Port Connector CN5 Serial Port1 Connector CN15
Parallel IDE Connector CN6 FDD Connector CN16
USB Port2 & Port3 Connector CN7 Compact Flash Connector CN17
Audio Connector CN8 Digital I/O CN18
Serial Port2 Connector CN9 Extension Slot J1
Front Panel Bezel Connector CN10 DDR SO-DIMM DIMM1
2.4.1 Enhanced IDE Interface Connector: CN6
The 3300060 includes a PCI bus enhanced IDE controller that
can support master/slave mode and post write transaction
mechanisms with 64-byte buffer and master data transaction.
44-pin IDE Interface Connector:
Pin Description Pin Description Pin Description
1 Reset # 2 GND 3 Data 7
4 Data 8 5 Data 6 6 Data 9
7 Data 5 8 Data 10 9 Data 4
10 Data 11 11 Data 3 12 Data 12

3300060 Pentium® M All-in-One Capa Board User’s Manual
Jumpers and Connectors 11
13 Data 2 14 Data 13 15 Data 1
16 Data 14 17 Data 0 18 Data 15
19 GND 20 No connector 21 No connector
22 GND 23 IOW # 24 GND
25 IOR # 26 GND 27 IOCHRDY
28 No connector 29 No connector 30 GND-Default
31 Interrupt 32 No connector 33 SA1
34 No connector 35 SA0 36 SA2
37 HDC CS0 # 38 HDC CSI # 39 HDD Active #
40 GND 41 VCC 42 VCC
43 GND 44 N.C
2.4.2 Front Panel Bezel Connector: CN10
Power LED
This 3-pin connector, designated at Pins 1 and 5 of CN10,
connects the system power LED indicator to its respective switch
on the case. Pin 1 is +, and pin 5 is assigned as -. The Power
LED lights up when the system is powered ON.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, and 8 of CN10 connect to the case-mounted speaker
unit or internal buzzer. Short pins 4-6 when connecting the CPU
card to an internal buzzer. When connecting an external speaker,
set these jumpers to Open and install the speaker cable on pin 8
(+) and pin 2 (-).
ATX Power On/Off Button
This 2-pin connector, designated at Pins 9 &10 of CN10,
connects the ATX power button of the front panel to the

3300060 Pentium® M All-in-One Capa Board User’s Manual
12 Jumpers and Connectors
3300060 CPU card - allowing user to control the power on/off
state of the ATX power supply.
System Reset Switch
Pins 11 &12 of CN10 connect to the case-mounted reset switch
and allow rebooting of your computer instead of turning OFF the
power switch. This is a preferred method of rebooting in order to
prolong the life of the system’s power supply.
HDD Activity LED
This connector extends to the hard drive activity LED on the
control panel. This LED will flash when the HDD is being accessed.
Pins 15 &16 of CN10 connect the hard disk drive and the front
panel HDD LED. Pins 15 is -, and pin 16 is assigned as +.
Keyboard Lock
Pins 13 and 14 of CN10 are Keyboard Lock setting. Short the
Pins 13 and 14 for Keyboard Lock.
2.4.3 VGA Connector: CN14
The 3300060 has three connectors that support CRT VGA and
flat panel displays, individually or simultaneously. VGA1 is a slim
type 15-pin D-Sub connector commonly used for the CRT VGA
display, Configuration of the VGA interface is done via the
software utility and no jumper setting is required. The following
two tables are the pin assignments for the CRT/VGA connector
and the flat panel connector.
VGA1: CRT/VGA Connector Pin Assignment
Pin Description Pin Description Pin Description
1 Red 2 Green 3 Blue
4 N/A 5 GND 6 AGND
7 AGND 8 AGND 9 N/A
10 GND 11 N/A 12 DDC DAT
13 Horizontal Sync 14 Vertical Sync 15 DDC CLK
2.4.4 Parallel Port: CN5
The 3300060 has a multi-mode parallel port, CN5, to support:
