Chapter 1 – Introducing the GESBC-3130 Single Board
Computer
GESBC-3130 Overview
The GESBC-3130 is a low cost compact sized single board computer based on NXP LPC-3130
processor. With a large peripheral set targeted to a variety of applications, the GESBC-3130 is
well suited for industrial controls, digital media servers, audio jukeboxes, thin clients, set-top
boxes, point-of-sale terminals, biometric security systems, and GPS devices.
Advanced Features
The heart of the GESBC-3130 is the LPC-3130 which is the one in a series of ARM926EJ-S-based
processors. The NXP LPC3130 combines an 180 MHz ARM926EJ-S CPU core, high-speed USB
2.0 On-The-Go (OTG), up to 192 KB SRAM, NAND flash controller, flexible external bus
interface, four channel 10-bit ADC, and a myriad of serial and parallel interfaces in a single chip
targeted at consumer, industrial, medical, and communication markets.
The list below summarizes the features of the GESBC-3130.
•180MHz Processor Core – ARM926EJ-S with MMU
•32 MB SDRAM
•128MB NAND FLASH
•1 10/100 Mbps Ethernet port
•4 channel 10-bit Analog-to-Digital Converter (ADC
•RS-232 Universal Asynchronous Receiver / Transmitters (UART)
•High speed USB OTG Port
•Real-Time Clock with battery backup
•Hardware Debug Interface
•SD/MMC Socket
•GPIO Ports
•1 I2C Ports
•1 SPI Port
Figure 1 below shows a picture of the GESBC-3130 Single Board Computer.

GESBC-3130 User’s Manual
Version 1.0 Page 5 of 18 20-Jun-11

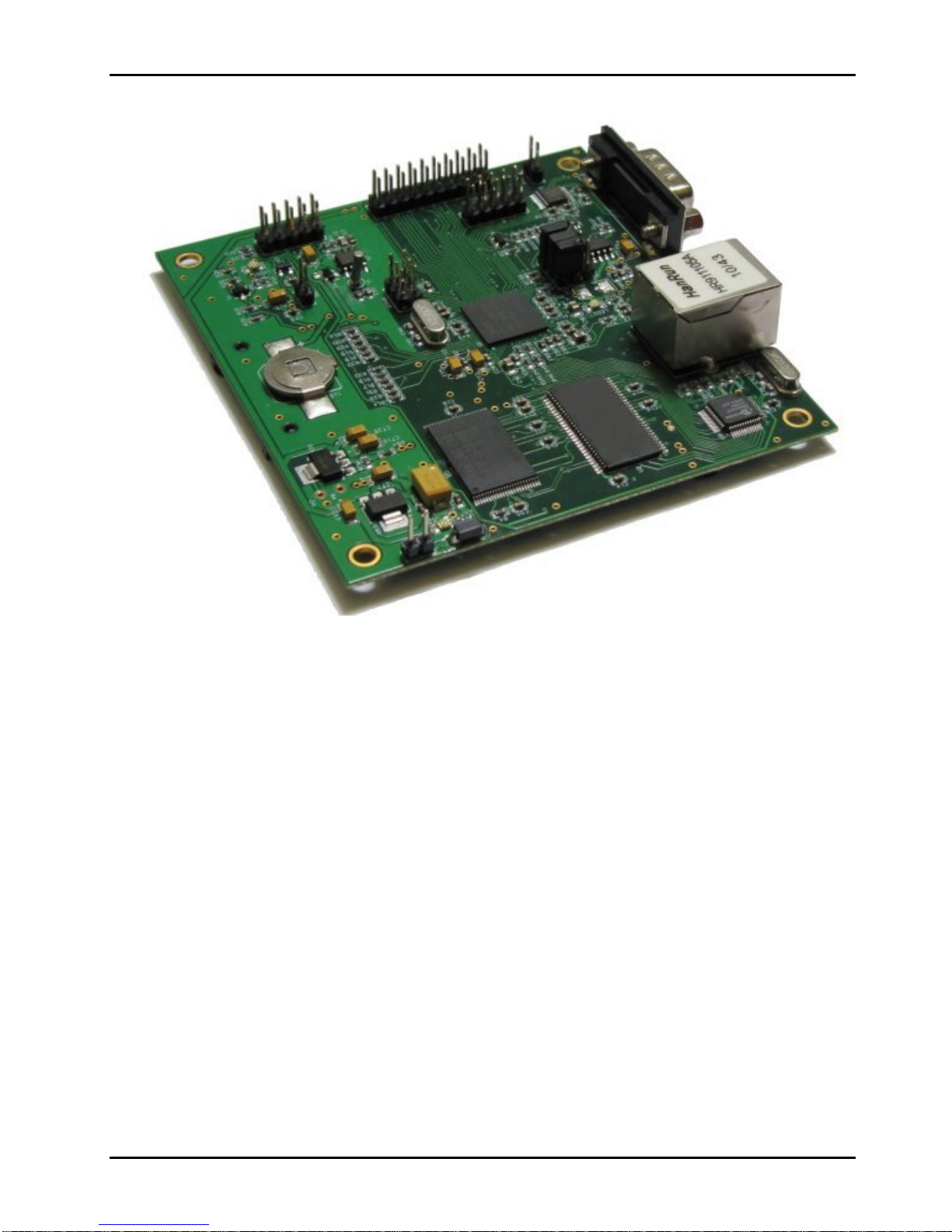

Figure 1. GESBC-3130 Single Board Computer
LPC-3130
The GESBC-3130 is shipped with the NXP LPC-3130 processor. For more information regarding
the LPC-3130 processor please see the LPC-3130 datasheet.
SDRAM
The GESBC-3130 is shipped with 32MBytes of SDRAM.
FLASH
The GESBC-3130 is shipped with 128MB NAND FLASH.
USB
The GESBC-3130 is shipped with high speed USB OTG port.
UART
The GESBC-3130 is shipped with a full RS-232 interface with modem control signals
Ethernet
The GESBC-3130 is shipped with 10/100 BASE-T Ethernet port.

GESBC-3130 User’s Manual
Version 1.0 Page 6 of 18 20-Jun-11
Chapter 2 – Getting Started
This chapter describes the GESBC-3130 working environment and familiarizes the user with its
components and functionality. This chapter contains the following sections:
•Assembly and Connections
oDescribes how to assemble and connect components to the GESBC-3130 Single
Board Computer
•Operation
oDescribes how to operate the GESBC-3130 Single Board Computer
Assembly and Connections
In order to use the GESBC-3130 the user must first assemble and connect the peripherals to the
GESBC-3130, as described in the following procedure.
1. Place the GESBC-3130 on a static free surface.
2. Make sure all of the jumpers are in the factory default position. The unit is shipped in a
factory default configuration. If the user is uncertain that the GESBC-3130 has the jumpers
in the factory default configuration, please see the next section regarding board
configuration.
3. Connect 5V regulated power supply to J1 on the board.
4. Connect null modem serial cable between GESBC-3130 debug port and PC/terminal serial
port.
5. Launch a terminal emulator, such as HyperTerminal, or minicom, on the PC configured to
connect to the serial port of the GESBC-3130. Configure the serial port with the following
parameters: 115200 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.
6. Connect the board to a local area network (optional)
Operation
A few seconds after applying power to the GESBC-3130, debug information will be displayed on
the terminal program. The following figures show what this should look like.

GESBC-3130 User’s Manual
Version 1.0 Page 7 of 18 20-Jun-11
Please see

GESBC-3130 User’s Manual
Version 1.0 Page 8 of 18 20-Jun-11
Chapter 4 – Software Description for more details regarding the software functionality.
Configurations
The GESBC-3130 has multiple boot mode. It can boot from SD/MMC card, USB port, UART, or
on-board NAND FLASH. Jumpers are used to configure the GESBC-3130 to boot in different
modes. The following table lists all the settings for each boot mode.
Table 1 Boot Mode Configuration
JP2 JP3 JP4 Boot Mode
L L L NAND FLASH boot
L H H SD/MMC card boot
H H L UART boot
L H L USB boot

GESBC-3130 User’s Manual
Version 1.0 Page 9 of 18 20-Jun-11
Chapter 3 – GESBC-3130 Function Blocks
LPC-3130
The GESBC-3130 Single Board Computer uses the NXP LPC-3130 as the core processor on this
development board. The top-level features of LPC-3130 processor are the following:
•ARM926EJ-S RISC Core Processor
•180MHz
•16Kbyte Instruction Cache
•16 Kbyte Data Cache
•MMU
•100 MHz System Bus
•16 bit SDRAM Interface
•8/16 bit SRAM / FLASH / ROM Interface
•Fast UART
•High Speed USB OTG Port with on-chip Physical
•4 channel 10 bit ADC
•SPI Port
•2 I2C Port
•Serial Audio Interface
•General Purpose I/O Pins (GPIO)
•JTAG Interface
More detailed information regarding the LPC-3130 processor can be found at www.NXP.com.
SDRAM
The GESBC-3130 is shipped with 32MB SDRAM. It occupies memory location from 0x3000-
0000 to 0x31FF-FFFF.
FLASH
The GESBC-3130 is shipped with 128 Mbytes of NAND FLASH memory.

GESBC-3130 User’s Manual
Version 1.0 Page 10 of 18 20-Jun-11
USB
The GESBC-3130 Single Board Computer provides one high speed USB OTG port. The USB On-
The-Go block enables usage in both device mode and in host mode. This means that you can
connect to a PC to exchange data, but also to another USB device such as a digital camera or MP3
player. The USB port are brought out by a USB type A/B mini connector.
RS-232 Port
The GESBC-3130 Single Board Computer is shipped with one fast RS-232 UART interface. The
fast UART on the GESBC-3130 serves as a debug port by U-boot and Linux kernel. The UART
connector is the DB-9 connector on GESBC-3130. The signal designation is listed in the
following table.
Table 2 UART Port CON8 Connector on GESBC-3130
Pin Number Signal Name Pin Number Signal Name
1 NC 2 RX
3 TX 4 NC
5 GND 6 NC
7 RTS 8 CTS
9 NC 10 N/A
I2C Bus, SPI Bus, PWM output
The GESBC-3130 Single Board Computer provides one I2C bus interface, one SPI bus, and one
PWM output on connector CON2. The I2C bus on the CON2 is the I2C1 on the LPC-3130
processor.
Table 3 CON2 I2C bus, SPI bus, PWM output
Pin Number Signal Name Pin Number Signal Name
1 SDA 2 SPI CS
3 SCL 4 SPI CLK
5 PWM output 6 SPI MISO
7 3.3V 8 SPI MOSI
9 GND 10 SPI CS_IN
Ethernet
The GESBC-3130 Single Board Computer is shipped with support for a complete Ethernet
interface. The Media Access Controller (MAC) supports 1/10/100 Mbps transfer rates and
interfaces to industry standard physical layer devices.
