GMX RIDER X User manual

ASSEMBLY MANUAL
Read and understand this entire manual before riding!
DO NOT RETURN TO STORE!
NOTE: Manual illustrations are for demonstration purposes only. Illustrations man not reflect exact appearance of actual procduct.
WWW.GMXMOTORBIKES.COM.AU
ATV OFF ROAD - GMX RIDER X

CONGRATULATIONS ON YOUR GMX PURCHASE!
This assembly guide covers basic step by step instructions to assist you with the assembly process.
Products are always subject to further improvement, which will cause some dierence between vehicle and this manual,
without further notice. We wish you happy riding.
UNPACKING
Please CAREFULLY remove all external box and metal frame packaging
TIP: These parts can be sharp so when unpacking the packaging hand with caution.
CHECK LOOSE PARTS
On most occasions your bike will come 90% assembled (depending on the model). Please go through all lose parts and check
packaging that has been taken out, to ensure no parts get thrown out so you can assemble your GMX Product.
READ MANUAL
Ensure that you read and go over the manual and UNDERSTAND before assembling product.
PLEASE NOTE: Minor assembly is required, but in the interest of safety it is recommended that you have this bike assembled
by a skilled bike mechanic.
TO DOWNLOAD YOUR COMPLETE OWNER’S MANUAL GUIDE PLEASE VISIT http://www.gmxmotorbikes.com.au/download-centre
or you can contact us via phone on 1300 766 469 for all inquiries.

CHECK BRAKES
ARE ADJUSTED
CORRECTLY PRIOR
TO RIDING.
YOU MUST CHECK
THAT THE CHAIN
IS ADJUSTED
CORRECTLY PRIOR
TO RIDING.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLY AND OPERATING OF YOUR VEHICLE.
Swing tags have been placed on your vehicle for you to identify checks that are located within this manual. Once you have performed the
check required remove these swing tags and nylon loops attaching them to the vehicle.
MAKE SURE TO REMOVE THE SWING TAGS AND TAKE SPECIAL NOTICE TO REMOVE THE NYLON LOOP.
The tags and loops that need to be removed from this model: GMX 125cc Rider X
ONCE SWING TAGS AND NYLON LOOPS ARE REMOVED YOU ARE ACKNOWLEDGING THAT THESE
CHECKS HAVE BEEN PERFORMED
There may be a“Spare Parts Package”within the carton so please check all of the packaging
and DO NOT THROW OUT
WARNINGS
SWING TAG’S & WARNINGS
BRAKE ADJUSTMENT x2CHAIN ADJUSTMENT
ALWAYS LEAVE IN
THE OFF POSITION
WHEN NOT IN USE
OR REMOVE KEYS
KEY REMOVAL
WARNING
Please use unleaded fuel
90 Octane or above
UNLEADED FUEL ONLY
WARNING: This product is powered by a 4 stroke engine and comes with transport oil in the engine.
THE OIL NEEDS TO BE DRAINED AND REPLACED WITH MOTORCYCLE OIL 10W/40 or 10W/50 IS REQUIRED
IF THE OIL CHANGE IS NOT PERFORMED YOU MAY INTERNALLY DAMAGE THE ENGINE AND CLUTCH AND VOID YOUR WARRANTY
DO NOT USE MOTOR CAR OIL
DO NOT USE OIL WITH FRICTION MODIFIERS
OIL WILL NEED TO BE CHANGED EVERY 3 MONTHS IN A HOTTER CLIMATE OR THE NOTHERN HEMISPHERE
- There is an oil drain plug located underneath you quad/dirt bike and is highlighted with an oil drain plug sticker. This is a 14mm bolt.
- DO NOT remove the other bolt located under the engine.
- Place an oil receptacle under the drain hole, undo bolt and let oil drain from the vehicle. Please note: Dispose of oil correctly
- Tighten bolt back up, remove dipstick (oil ll point) and ll the vehicle with suggested correct amount of oil required. Tighten
TO AVOID DAMAGE TO GEARBOX AND
MOTOR. WHEN SELECTING GEAR AND
CHANGING GEARS, RELEASE THE
THROTTLE. DO NOT USE EXCESSIVE
FORCE ON GEAR LEVER.
GEAR LEVER

GMX MOTORBIKES WARRANTY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
The manufacturer warrants this product to be free of manufacturing defects for a period of 12 months from date of purchase. This Limited Warranty does
not cover normal wear and tear( exclusions apply) or any damage, failure or loss caused by improper assembly, maintenance, or storage or use of the GMX
product. Some parts will have a limited warranty period, please see below. This warranty is a part replacement warranty.
3 Month Parts Replacement Parts
Electrical components, suspension, drive train and brakes/ttings.
30 Days Parts Replacement Parts
Bearings, tires, tubes, cables, clutches, brake pads, seats
Minor assembly is required and in the interest of safety and warranty it is recommended that you have this product assembled by a qualied, skilled small
engine mechanic.
You may need to provide proof of being assembled by a skilled mechanic if not a report from a small engine mechanic advising of the issues to process
your warranty claims.
The warranty is a parts replacement warranty and labor is not included, defective parts may need to be sent back for inspection.
This Limited Warranty will be void if the product is ever;
- Used in a manner other than for recreation or transportation
- Modied in anyway
- Rented or commercial use.
The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.
Always adhere to the maximum load of the product, over loading the product will void the warranty.
How a claim is made
When making a claim, you will need to provide proof of purchase, condition photos of the item. This information is required to be submitted via the
support center and communication is made through the support center. When the claim is created, the customer will receive the claim number and the
customer support team should reply within 48 hours.

PERSONS CONSIDERING RIDING THIS VEHICLE SHOULD READ THE SAFETY INFORMATION AND LABELS SUPPLIED.
This label should be seen as a permanent part of your OFF ROAD VEHICLE , if it becomes damaged or removed please contact
a member of our team through our website www.gmxmotorbikes.com.au this is the most ecient way to get the most up
to date information regarding our products.
GMX Motorbikes strongly recommend that anyone considering operating any of our products follow these instructions to
avoid serious injury and/or death:
1. Read this manual carefully and follow the operating procedures described.
2. Never operate an OFF ROAD VEHICLE without proper training or instruction. Beginners should receive training from a
certied instructor.
3. Always follow the age recommendation of the specic GMX model.
4. Children under the age of 16 should be supervised by an adult at all times. (Safety is the sole responsibility of
parental guardians)
5. Never operate an OFF ROAD VEHICLE without wearing an approved motorcycle helmet that ts correctly. For more
information on correctly tting a helmet please contact your local transport authority. These can be found at the following
government link http://australia.gov.au/topics/transport
6. GMX strongly recommend the use of eye protection (goggles and/or face shield), gloves, boots, long-sleeved shirt or jacket,
and long pants.
7. Never consume alcohol or drugs before or while operating any OFF ROAD VEHICLE.
8. Never operate at speeds too fast for your skills or the conditions. Always go at a speed that is appropriate for the terrain,
visibility and your experience.

9. Never attempt any kind of stunts/jumps.
10. Always inspect your OFF ROAD VEHICLE before each use to make sure it is in safe operating condition.
11. Always keep both hands on the handlebars and both feet on the footboards of the OFF ROAD VEHICLE during operation.
12. Always be alert to changing conditions of terrain, weather and visibility when operating the OFF ROAD VEHICLE .
13. Never operate on excessively rough, slippery or loose terrain.
14. Always follow proper procedures for turning as described in this manual.
15. Never operate the OFF ROAD VEHICLE on hills.
16. Always follow proper procedures for climbing slopes as described in this manual. Check the terrain carefully before you
start up any slope. Never go over the top of a slope at a high speed.
17. Always follow proper procedures for going down slopes and for braking on slopes
Check the terrain carefully before you start down any slope. Never go down a slope at high speed. Go straight down the slope
where possible.
18. Never attempt to turn the OFF ROAD VEHICLE around on any slope until you have mastered the turning technique described
in this manual on level ground. Avoid crossing the side of a steep slope if possible.
19. Never attempt to operate over large obstacles, such as large rocks or fallen trees. Always follow proper procedures when
operating over obstacles as described in this manual.
20. Never operate a OFF ROAD VEHICLE in near a swimming pool
21. Wet brakes may have reduced operating ability. Test your brakes after contact with water. If necessary, apply them
several times to let friction dry out the linings.

22. Always use the correct size and type of tires specied in this manual. Always maintain proper tire pressure as described in
this manual.
23. Never modify an OFF ROAD VEHICLE through improper installation or use of accessories.
24. Never exceed the stated load capacity for any GMX Motorbikes product.
25. Ensure the safe handling of ANY petrochemicals required for the maintenance of your GMX product.
26. GMX Motorbikes will not be held responsible for violations of local road laws, GMX range of OFF ROAD VEHICLE are
designed solely for private, o road usage unless otherwise stated.
EXHAUST SYSTEM
GMX Motorbikes advise that the exhaust on the machine can become very hot during and following operation. To prevent
burns, avoid touching the exhaust system. Park the machine in a place where Pedestrians or children are not likely to come
in contact.
FUEL HANDLING
Precautions should be taken when handling any type of petrochemicals. Gasoline can catch re, and is toxic to life and the
environment. GMX motorbikes recommend the following safety tips to avoid accidents, injury/death:
- Always turn o the engine when re-fuelling. Do not refuel right after the engine has been running and is still very hot.
- Do not spill gasoline on the engine or exhaust pipe/muer when refuelling.
- Never refuel in any proximity to any sources of ignition such as smokers, open ames or embers etc.
- When transporting the machine in another vehicle, be sure it is kept upright and that the fuel cock is in the “OFF” position.
Otherwise, fuel may leak out of the carburettor or fuel tank.
- Gasoline is poisonous and can cause injuries, in the case of swallowing gasoline, inhaling gasoline vapours or contact with
eyes, see your doctor immediately.
- In the case of gasoline contact on your skin, wash with soap and water. If gasoline spills on your clothing, change your clothes.

FILLING THE TANK
The fuel tank capacity is 3.0Ltr in total (including the reserve). Open the fuel cap by unscrewing it, and carefully ll the tank
within a viewable level.
PRECAUTION: Do not overow the fuel tank, lling should be accomplished using a fuel funnel to avoid spills
(please refer to the safety and precautions section of your manual)
Operating the Fuel Tap
The fuel tap is designed as a safety feature to be able to isolate the supply of fuel to the system.
ON: When the fuel lock is in the “ON” position, the fuel circuit is open and in full supply.
OFF: When the fuel lock is in the “OFF” position, the fuel circuit is closed. This is recommended when the bike is not in use.
STARTING THE ENGINE
Warning: Never operate this engine or any engine in an enclosed space. Failure to operate combustion engines
with correct ventilation can result in Carbon monoxide poisoning and even death by suocation.
Set the key into the ignition and turn clockwise.
Set the Kill switch in the “ON” position.
Ensure the vehicle has an appropriate amount of fuel
Set the fuel tap into the “ON” position.
When cold ensure the kill switch on the left handle grip is in the “ON” position.
Open the choke by moving the choke handle up
Rotate the throttle 1/8 for extra fuel injection.

Kick down hard on the kick start, releasing immediately (failure to remove your foot from the kick start can damage the starting
mechanism). Where the model has an electric start, push the starter button until the engine has started (do not hold down the
button for more than 5 seconds at a time as this may damage the battery).
Twist the throttle to keep the revs of the engine up whilst the engine reaches optimum operating temperature.
Once the engine is at running temperature, turn the choke handle all the way down (closed position)
PLEASE NOTE: Warm up the engine for 3-5mins prior to each usage. Over revving the engine is harmful to the engine, especially
when cold. The running in of the engine is considered to be for the rst 500km, during this time avoid steep inclines and high
speeds. Avoid over revving the engine at all times.
Turning o the engine
In a stand still position, in neutral gear, remove your grip on the throttle
Turn the kill switch into the “OFF” position, followed by the key ignition.
Set the fuel tap into the “OFF” position.
PLEASE NOTE: In an emergency release the throttle, hold in the clutch and turn “OFF”the kill switch. Slow down as quickly as is
safe to do so.

GMX Motorbikes promote safety as paramount. As such, it is advised that before each and every use of your OFF ROAD VEHICLE
that you actively walk around your vehicle and check that everything appears in order. Maintenance should be undertaken
regularly and servicing should be carried out by the appropriate persons. GMX recommend any work being carried out on any
of our range of OFF ROAD VEHICLE’S should be done by an approved mechanic.
The following list has been provided for you by GMX Motorbikes as an advisory process before each ride. This should be
completed at the discretion of the rider and any faults discovered during the checklist should be FULLY resolved before
riding the OFF ROAD VEHICLE.
FRONT AND REAR BREAKS
When checking the breaks, ensure all cables are in place and there are no leaks. Check the breaking mechanism works
manually before riding. Some brakes are adjustable for performance reasons; brake adjustments are sensitive and in the
interest of safety should only be carried out by a skilled mechanic.

FUEL LINE AND TANK
It is important to check for any fuel leaks around the tanks and along fuel lines. OFF ROAD VEHICLE engines become hot
during use and therefore pose a re risk.

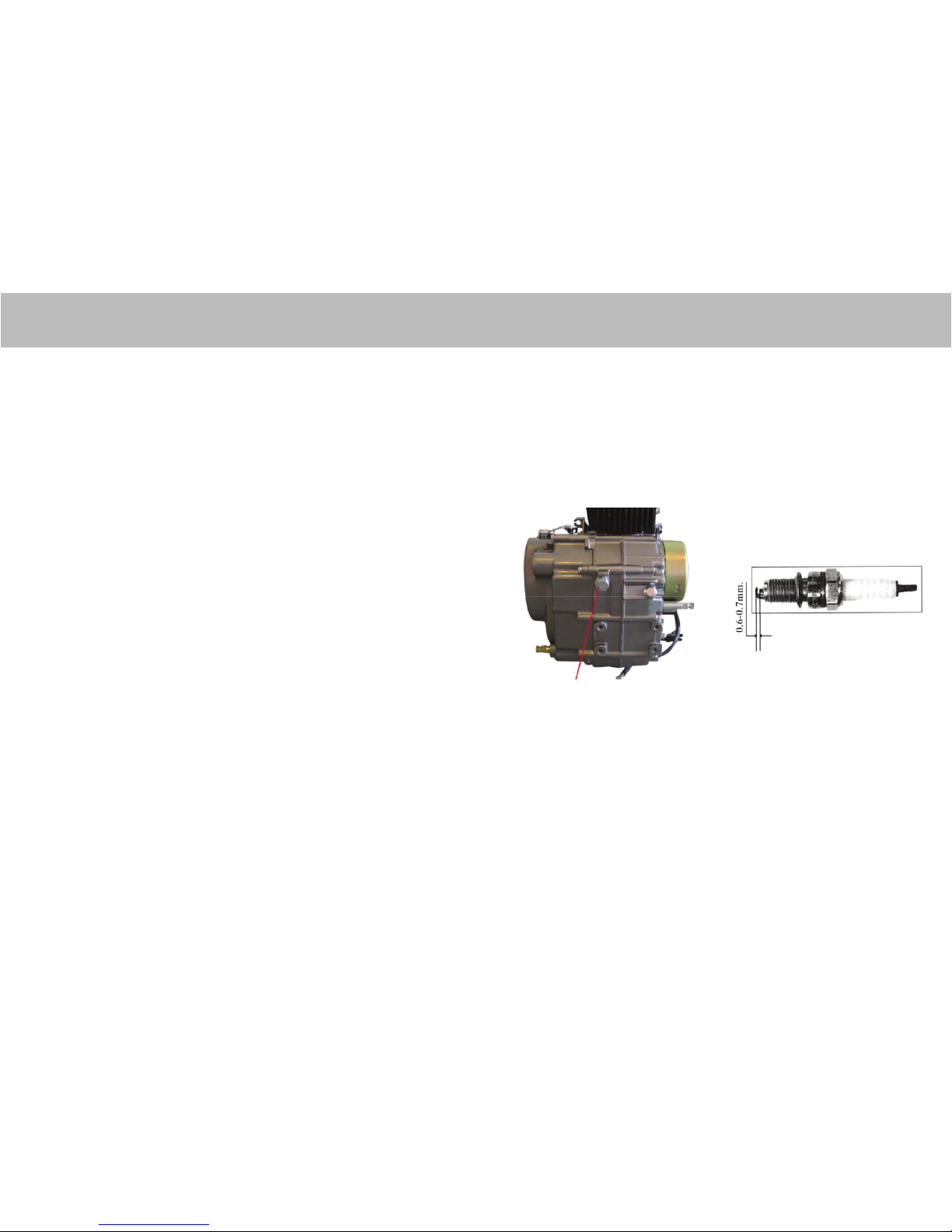

OIL LEVELS
Oil Levels Should be checked prior to each usage, the“dipstick”can be found on the right cover of the crack case, much like a car
this is used to check the oil levels, if the engine is low on oil top up to a suitable level. The dipstick should always be replaced
rmly and securely. The oil supplied with the vehicle is transport oil that should be changed after the rst 4 hours of usage.
Replacing the oil
- Remove the“sump plug”
- Drain the oil from the engine
- Replace the sump plug
- Rell the engine with a high quality oil suitable for the engine
PLEASE NOTE: Never maintain the engine when it is hot as this can cause injury, leaks of petrochemicals can cause res,
explosions and even death.

SPARK PLUG
- Remove the coil/lead from the spark plug
- Remove the spark plug with the correct tool
- Clean around the contactors (where the spark is emitted from) or replace the unit
- Ensure the Gap at the contactors is 0.6-0.7mm
PLEASE NOTE: If you do not feel competent to full ANY
maintenance tasks, please consult a qualied mechanic.
AIR FILTER
Check the air lter after each usage of the vehicle. Where applicable
remove the air lter for cleaning
Wash the lter or soak it with an air lter cleaner or machine oil, if the lter is in any way damaged, please source a
replacement lter appropriate for tting to the Carburettor.
CAUTION: Make sure the air lter is correctly tted to the bike; failure to t the lter will result in contaminants entering the
engine and cause fatal damage to the engine components
THROTTLE
The throttle of your vehicle directly aects the speed of your OFF ROAD VEHICLE it should be in perfect working order
before each time you ride your OFF ROAD VEHICLE . Check and ensure that the cable and all mechanical parts included in the
throttle system are moving freely.

The carburettor is also considered part of the throttle system and may also require adjustment. It is not advised to make
adjustments whilst the engine is running. Repeat adjustments whilst the engine id o and test each adjustment afterwards.
To adjust the carburettor:
- Support the vehicle by means of the side stand
- Adjust the idling speed using the adjustment screw (recommended r/min are aprox. 1500 r/min)
PLEASE NOTE: Do not make adjustments to a cold engine as this is the most changeable state of the engines running.
Adjustments should not be made by unqualied persons, if in doubt please consult a qualied mechanic.
CHAIN
It is advisable to visually check the chain of your OFF ROAD VEHICLE before each use. Its general condition is important, there
should be no obstructions to the chain, it should be well lubricated and under the correct tension
LIGHTS
Should your OFF ROAD VEHICLE include front/rear lights or signalling lights, it is important to ensure these are in good
working condition prior to using your OFF ROAD VEHICLE
SWITCHES
Any switches included with your vehicle can be very important to the control of the OFF ROAD VEHICLE ; these should be
checked prior to every use of the vehicle.
TIRES
GMX Motorbikes advise that you should check the condition and wear of your tires before every ride. Tire pressure should be
check intermittently Tires can be damaged by rough terrain
In the event of any discrepancies or faults discovered during your safety checks, please contact an approved mechanic.

GENERAL CLEANLINESS
The cleaning of your vehicle can prolong the life of many component parts such as, plastics brakes and frame etc. Jet washing can
cause damage to certain components.
PLEASE NOTE: Some cleaning chemicals can remove oils and lubricants that are vital to the running condition of the OFF ROAD
VEHICLE . It is highly recommended that all lubricated areas are treated with the correct lubricants. Do not use corrosive
detergents for the cleaning of the vehicle. Brakes can be rendered ineective if wet or contaminated with detergents, please
allow for drying time prior to reusing the vehicle after cleaning.
GMX Motorbikes promote the use of safety equipment during the use of your OFF ROAD VEHICLE; the following list is an
advisory guideline of the equipment that should be obtained before using your OFF ROAD VEHICLE for the rst time, and to be
used for every ride regardless of experience and skill level.
HELMET
A helmet is the most important piece of protective equipment and should be worn at all times the vehicle is being ridden.
– Select a helmet that complies with Australian Standards
– Ensure the helmet ts the operator snugly, is securely fastened and provides good,
all-round visibility. A poorly-tting or loose helmet can become dislodged in an incident and then oer no protection at all.
– Operators should not share helmets but instead use personal helmets for size and hygiene reasons.
EYE PROTECTION
Eye protection is recommended to prevent eye injuries and prevent branches, bugs, dust or sand hitting your face and
distracting you. Sunglasses are unlikely to provide adequate physical protection.

GLOVES
Gloves are recommended to provide protection from abrasions and help to keep your hands from getting sore, tired or cold.
Note that rigger’s gloves may become slippery when wet and are not advisable for use with quad bikes.
FOOTWEAR
• Sturdy footwear is recommended (preferably boots that come up past your ankle with strong uppers for
gear changes.)
• Heels will prevent your feet from slipping off the foot decks.
CLOTHING
• Arms and legs should be covered to reduce abrasions to the body, even in hot weather.
• Trousers should be close-tting and in good condition
If you do not intend to use the Vehicle for extended periods of time, it is important to prepare the vehicle correctly for storage
and check the vehicle very carefully prior to putting the OFF ROAD VEHICLE back into service.
PLEASE NOTE: Incorrect storage can cause damage to the working components of the OFF ROAD VEHICLE and in turn
the engine.
- Change the engine oil (Dirty oil can cause damaging sediments to be left in the engine)
- Drain the fuel system entirely and treat the components with a machine oil or anti rust agent (Stale fuel can cause
damage to the carburettor, please refer to the safety precautions for handling petro chemicals)
- Remove the spark plug and inject 20ml of clean engine oil into the cylinder, kick the kick start several times to
distribute engine oil around the top end of the engine. Replace the spark plug ATTENTION: Ensure the ignition is
“OFF”so that the engine cannot re and the spark plug cannot spark)
- Make sure the vehicle is clean, dry and lubricated
- Check tyre pressure and inate where necessary, “Chock”the wheels to avoid misshaping the tyres/tubes.
- Store the vehicle in a cool dry place. It is advised to wrap the bike in a protective sheet to avoid UV damage or
unnecessary scratches/damage

ASSEMBLY
There be a seperate package with the parts required for assembly. Locate this package to start your assembly.
1.Front wheel – Remove the axle and spacers from the forks and place aside. Place the two spacers in the
bearing caps as this will make it easier to slide the axle in place.
****NOTE: Small spacer on the disc side and large on the opposite side**** Pic 1 + 2
Pic 1 Pic 2
Slide the wheel into the forks placing the brake disc into the calliper Pic. 3, slide axle in Pic. 4, attach the axle
nut, tighten. Pic. 5
Pic 3 Pic 4 Pic 5

ASSEMBLY

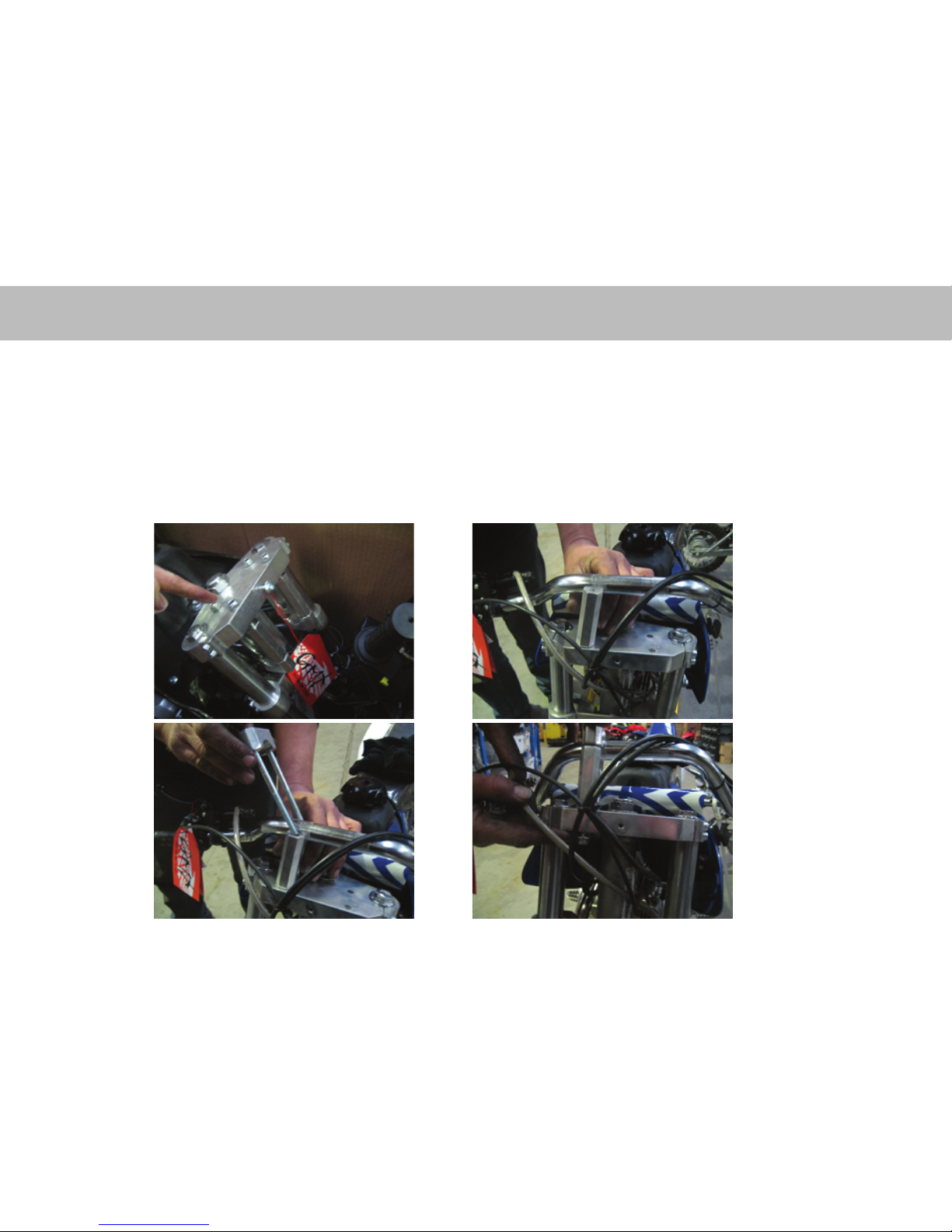

2. Handlebars – Handlebar brackets may be attached to the forks Pic. 6 or in a separate box. Remove the
bolts holding the brackets to the forks and place aside. Place together in the following order:-
Bottom bracket, handlebars (Pic. 7), top bracket slide bolts in (Pic. 8), attach nuts and tighten nger tight.
Put the handle bars in the correct position and tighten nuts. Pic. 9
NOTE: Do left bracket rst and then right bracket and careful not to pinch cables.
Pic 6 Pic 7
Pic 8 Pic 9

ASSEMBLY
3. Front Mudguard and Race Plate – locate the front mudguard and place into position with the 3 bolts holes
under underneath and tighten screws in place. Pic. 10
Pic 10 Pic 11
There will be two holes in the bottom of the race plate to sit over the two prongs on the mudguard. Pic 11
Place over the top and put the plate in place, attach screw and tighten. Pic. 12

ASSEMBLY

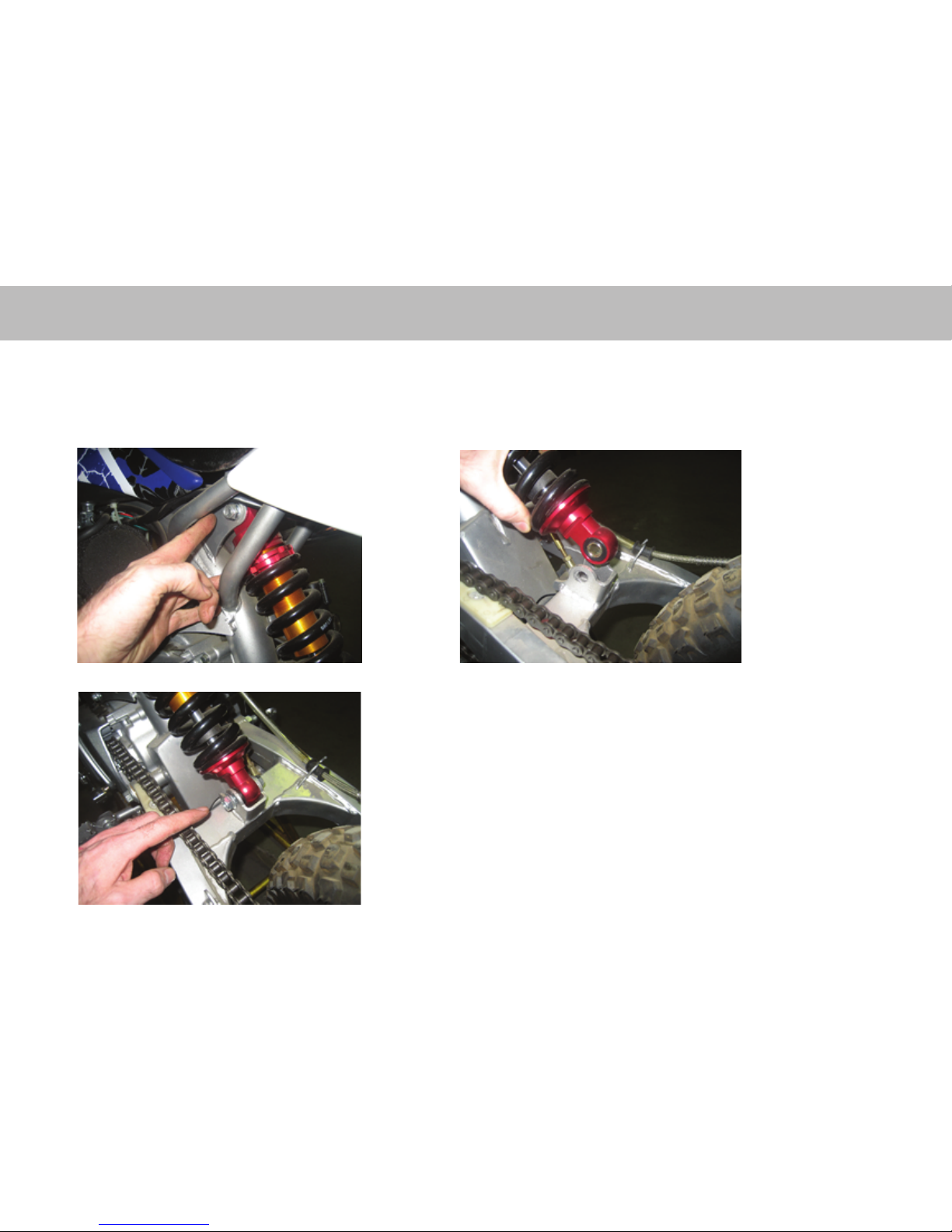

4. Rear Shock Absorber – locate the rear shock in packaging and place in correct position on the frame and in
Pic. 13, slide bolt in, tighten nut. Move the swing arm down and place the bottom of the shock in correct
position. Pic. 14 + 15, slide bolt in, tighten nut.
Pic 13 Pic 14
Pic 15

ASSEMBLY
