Godrej DWF EON VES 12B UI STSL User manual

This image is for representation purpose only.
DWF EON VES 12B UI STSL
Dishwasher
USER MANUAL
HOW TO GET THE BEST OUT OF YOUR
GODREJ
EON VESTA DISHWASHER

Icon Type Meaning
WARNING
Serious injury or death risk
RISK OF ELECTRIC SHOCK
Dangerous voltage risk
FIRE
Fire risk
CAUTION
Injury or property damage risk
IMPORTANT / NOTE
Operating the system correctly
Congratulations!
You are now the proud owner of a new Godrej Eon Vesta
Dishwasher Machine. You can look forward to years of
smooth, trouble-free usage from your dishwasher, as well as
considerable savings in time, money and effort. Please read
this manual carefully as it will tell you how to operate your
machine optimally in order to get the best results. If you
need any further clarifications, do contact your nearest
Godrej dealer or any of our service centres/offices. We
would be glad to help you. We wish you an easier, more
convenient life with your new Godrej Eon Vesta Dishwasher.
1

CONTENTS
1. SAFETY INSTRUCTIONS
1.1 General Safety Warnings
1.2 Installation Warnings
1.3 During Use
2. INSTALLATION
2.1 Machine Positioning
2.2 Water Connection
2.3 Water Inlet Hose
2.4 Drain Hose
2.5 Electrical Connection
2.6 Fitting the Machine Undercounter
3. TECHNICAL SPECIFICATIONS
3.1 General Appearance
3.2 Technical Specifications
4. BEFORE USING THE APPLIANCE
4.1 Preparing your Dishwasher for first use
4.2 Fill the Salt
4.3 Test Strip
4.4 Water Hardness Table
4.5 Water Softener System
4.6 Setting
4.7 Detergent Usage
4.8 Filling the Detergent
4.9 Using Combined Detergents
4.10 Rinse-aid Usage
4.11 Filling the Rinse-aid and Setting
5. LOADING YOUR DISHWASHER
5.1 Recommendations
5.2 Alternative Basket Loads
6. PROGRAMME TABLE

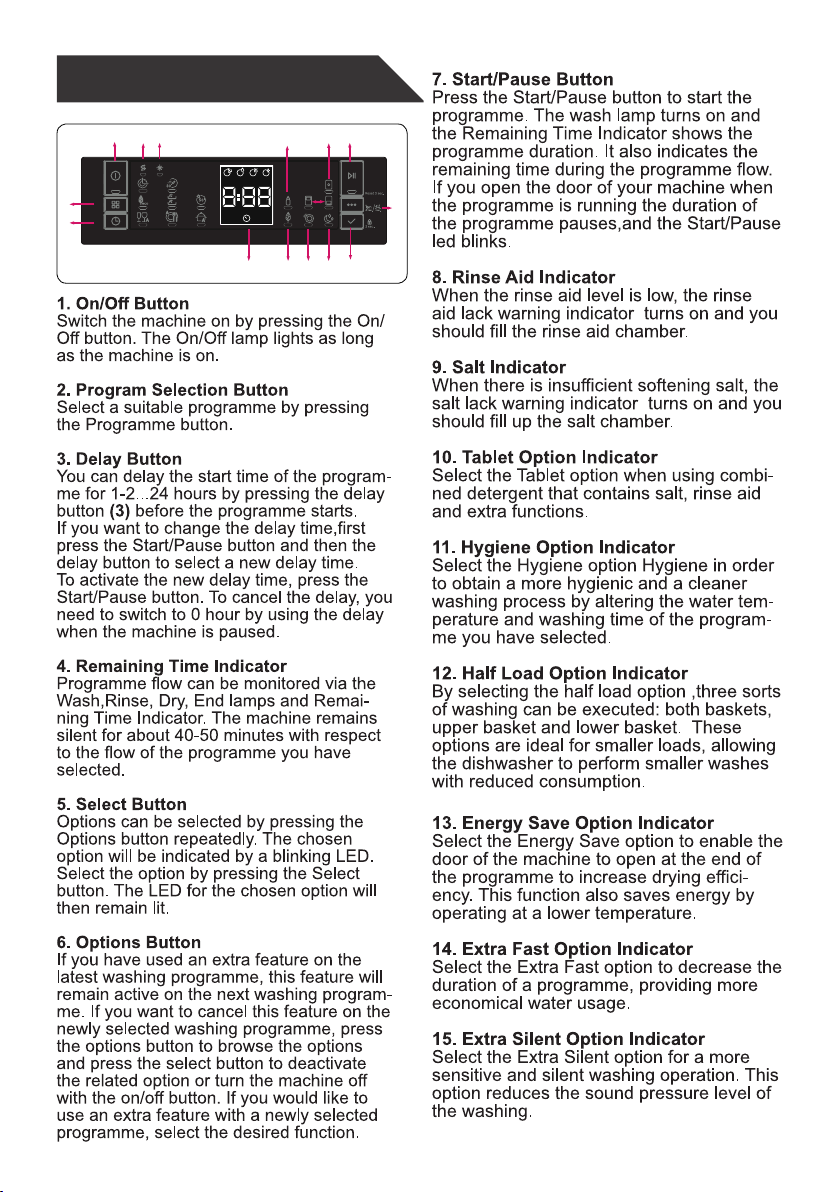

7. THE CONTROL PANEL
7.1 Changing a Programme
7.2 Cancelling a Programme
8. CLEANING AND MAINTENANCE
8.1 Cleaning the Machine and Filters
8.2 Spray Arms
9. TROUBLESHOOTING
10. PRACTICAL INFORMATION
11. PRODUCT SPECIFICATIONS
12. BRANCH ADDRESS/SERVICE CONNECT
2

Unplug the machine before installation.
Your machine must only be installed by
an authorised service agent. Installation
by anyone other than an authorised agent
may cause your warranty to be void.
Check that the indoor electrical fuse
system is connected in line with safety
regulations.
All electrical connections must match
the values on the plate.
Ensure the machine does not stand on
the electrical supply cable.
 This appliance can be used by children
aged from 8 years and above, and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning the
use of the appliance in a safe way and
understand hazards involved. Children
should not be allowed to play with the
appliance.
 Remove packaging and keep it out of
reach of children.
Keep children away from detergents
and rinse aids.
There may be some residue left in the
machine after washing. Keep children
away from the machine when it is open.
Never use an extension cord or a
multiple socket connection.
The plug should be accessible after
the machine is installed.
 After installation, run your machine
unloaded for the first time.
The machine must not be plugged in
during positioning.
Always use the coated plug supplied
with your machine.
If the electrical cable is damaged, it
should only be replaced by a qualified
electrician.
 Read these instructions carefully before
using your appliance and keep this
manual for future reference.
 Choose a suitable and safe place to
install your machine.
 Do not install the appliance in a damp
and dusty place. Do not install or store the
appliance in any outdoor area or any area
that is subjected to weathering conditions
such as direct sunlight, wind or rain or
temperatures below freezing.
 Only original spare parts should be used
with the machine.
Please check the packaging of your
machine before installation and the outer
surface of the machine once the
packaging has been removed. Do not
operate the machine if it appear damaged
or if the packaging has been opened.
 Packaging materials protect your
machine from any damage that might
occur during transportation. The
packaging materials are environment
friendly as they are recyclable. Use of
recycled material reduces raw material
consumption and decreases waste
production.
1.2 Installation Warning
1.1 General Safety Warning
1. SAFETY INSTRUCTIONS
 This machine is for domestic use only; do
not use it for other purposes. Commercial
use will void the guarantee.
Do not stand, sit or place loads on
the open door of the dishwasher.
Only use detergents and rinse aids
produced specifically for dishwashers.
Our company is not responsible for any
damage that may occur due to misuse.
Do not drink water from the machine.
1.3 During Usage
3

opened. For effective drying, keep the
door open for 30 minutes after a
programme has ended.
Do not stand in front of the door after the
auto-open signal sounds. In the case of a
malfunction, repair should only be
performed by Godrej authorised service
provider, otherwise the warranty will be
void.
Before repair work, the machine
should be disconnected from the mains.
Do not pull the cable to unplug the
machine. Switch off the water tap.
Operation at a low voltage will cause a
decline in performance levels.
For safety, disconnect the plug once a
program has finished.
To avoid an electric shock, do not
unplug the machine with wet hands.
Pull the plug to disconnect the
machine from the mains, never pull on
the cord.
Due to the danger of explosion, do not
place any chemical dissolving agents into
the machine's washing section.
 Check the heat-resistance of plastic items
before washing them in the machine.
Only put items in the machine which
are suitable for dishwashing, and take
care not to overfill the baskets.
Do not open the door while the
machine is in operation, hot water may
spill out. Safety devices ensure the
machine stops if the door is opened.
The machine door should not be left
open. It may cause accidents.
Place knives and other sharp objects
in the cutlery basket in a blade-down
position.
For models with the automatic door-
opening system, when the Energy Save
option is active, the door will open at the
end of a program. To prevent damage to
your dishwasher, do not attempt to close
the door for one minute after it has
1.3 During Usage
PACKING AND THE ENVIRONMENT
Packaging materials protect your machine from damage that may occur during transportation. The
packaging materials are environmentally friendly as they are recyclable. The use of recycled material
reduces raw material consumption and therefore decreases waste production.
CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and Regulations
and the requirements listed in the standards referenced. Producer company has its right to amend
design and technical specifications reserved.
Conformity with the standards and Test data / EC Declaration of Conformity
All stages related to the machine are executed in accordance with the safety rules provided in all
relevant directives of the European Community.
2004/108/EC/, 2006/95/EC, IEC 436/DIN 44990, EN 50242.
 Some machine components and packaging consist of recyclable materials.
 Plastics are marked with international abbreviations:(>PE<, >PP<, etc. )
 The cardboard parts consist of recycled paper. They can be put into waste paper containers for
recycling.
 Material unsuitable for domestic waste must be disposed off at recycling centres.
 Contact a relevant recycling centre to obtain information about disposal of different materials.
RECYCLING
4

2. INSTALLATION
2.1 Machine positioning
When positioning the machine, place it in an
area where dishes can be easily loaded and
unloaded. Do not put the machine in an area
where the ambient temperature falls below
0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap and
drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped and that
the machine does not stand on the electrical
cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed on
flat ground otherwise it will be unstable and
the door of the machine will not close
properly. Do not place the machine in open
area where water splashing is prevalent .
2.2 Water connection
We recommend fitting a filter to your water
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will also
help prevent yellowish deposit formation
after washing.
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine's hose.
WARNING: Run water through the new
hose before connecting.
2.3 Water inlet hose
5
WARNING: Connect the hose directly to
the water inlet tap. The pressure supplied by
the tap should be a minimum of 0.03 MPa
and a maximum of 1 MPa. If the pressure
exceeds 1 MPa, a pressure relief valve must
be fitted between the connection.
WARNING: After the connections are
made, turn the tap on fully and check for
water leaks. Always turn off the water inlet
tap after a wash program has finished.
lHow to Attach the Magic Hose Joint
1. Loosen the four screws and slide the top
of the Magic Hose Joint (Section A in the
figure) onto the faucet. Then, securely
tighten the four screws provided with the
Magic Hose Joint using a screwdriver
to secure the top of the joint to the faucet.
2. Remove the CAUTION label from the
Magic Hose Joint.
3. Turn the male couple on the joint (section
B in the figure) clockwise to attach it
securely to the top of the joint (Section A
in the figure)
lThe appliance is to be connected to the
water mains using new water supply
Hose and Magic Hose Joint. Old hose
sets should be reused.
CAUTION:
If outer diameter of faucet is larger than
calbre of the Joint Ring, loosen the four
screws and remove the Joint Ring from the
Magic Hose Joint

Connect water drain hose directly to water
drain hole or to the sink outlet spigot. This
connection should be minimum 50 cm and
maximum 110 cm from floor plane.
IMPORTANT: Items will not wash
properly if a drain hose longer than 4m
is used.
Connecting the Water Supply Hose to the
Magic Hose Joint
1. While pushing the sleeve on the female
coupler (section D in the figure) of the joint
down with your fingers, connect the
female coupler to the male coupler
(section C in the figure).
2. Release the sleeve, then push the
Water Supply Hose up into the Magic
Hose Joint until it clicks into place.
3. Pull the Water Supply Hose down to
make sure that it is securely attached.
2.4 Drain Hose
An Aqua stop water spout is available
with some models. Do not damage it or
allow it to become bent or twisted.
6

2.5. Electrical connection
2.6. Fitting the machine undercounter
If you wish to fit your machine undercounter,
there must be sufficient space to do so and
the wiring-plumbing must be suitable to do
so (1). If the space under the countertop is
suitable for fitting your machine, remove the
worktop as shown in the illustration (2).
WARNING: After removing the top
panel of your dishwasher, the machine
should be placed in a space of the
dimensions shown in the figure below.
A: If there is no felt on the top of the
product; you should take into account
this product's height.
B1: If there is felt on the top of the product
with 2nd basket; you should take into
account this product's height.
B2: If there is felt on the top of the product
with 3rd basket; you should take into
account this product's height.
WARNING: Your machine is set to
operate at 220-240 V.
The indoor fuse current value should
be 10-16 A.
WARNING: The countertop, of which
the machine will be placed under, must be
stable in order to prevent imbalance. The top
panel of the dishwasher must be removed to
fit the machine under the countertop.
To remove the top panel, remove the screws
that hold it on, located at the rear of the
machine. Then, push the panel 1 cm from the
front towards the rear and lift it. Adjust the
machine feet according to the slope of the
floor (3).
Fit your machine by pushing it under the
counter taking care not to crush or bend the
hoses (4).
The earthed plug of the machine
must be connected to an earthed outlet
supplied by suitable voltage and current.
In the absence of earthing
installation, an authorised electrician
should carry out an earthing installation.
In the case of use without earthing
installed, we will not be responsible for
any loss of use that may occur.
H1: min A
H2: min B1
H3: min B2
A B
All
Products B B
1 2
(±2 mm) 820 mm 830 mm 835 mm
Product’s Height
7

3. TECHNICAL SPECIFICATIONS
13
3.1 General appearance
1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch
13. Turbo Drying Unit: This system
provides better drying performance for
your dishes.
3.2 Technical Specifications
Capacity
Height
Height (Without worktop)
Width
Depth
Net Weight
Electricity input
Total power
Heating power
Pump power
Drain pump power
Water supply pressure
Current
12 place settings
850 mm
820 mm
598 mm
598 mm
53,6 kg
220-240 V, 50 Hz
1900 W
1800 W
100 W
30 W
0.03 MPa (0.3 bar) -1 MPa (10 bar)
10A
8

4. BEFORE USING THE APPLIANCE
4.1Preparing your Dishwasher for first use
 Check whether the electricity and supply
water specifications match the values
indicated in the installation instructions
for the machine.
 Remove all packaging materials inside
the machine.
 Set the water softener level.
 Fill the rinse aid compartment.
4.2 Fill the salt (IF AVAILABLE)
 To fill with softener salt, open the salt
compartment cap by turning it counter
clockwise.
 (1) (2) At first use, fill the compartment
with 1 kg salt and water (3) until it is
almost overflowing. If available, using the
funnel (4) provided will make filling easier.
Replace the cap and close it.
 After every 20th-30th wash, add salt into
your machine until it fills up
(approx. 1 kg).
Use softener salt specifically produced for
use in dishwashers.
When you start your dishwasher, the salt
compartment is filled with water, therefore
put the softener salt in prior to starting your
machine.
If the softener salt has overflowed and you do
not start the machine immediately, run a
short washing program to protect your
machine against corrosion.
4.3. Test Strip
NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above
90 dF, we recommend that you use filter and refinement devices.
Run water
through the
tap (1min.)
Keep the
strip in the
water (1sec)
Shake the
strip.
Wait
(1min.)
Set the hardness level of
your machine.
1
2
3
4
5
6
1 2
3
4
SALT
9

4.4 Water Hardness Table
4.5. Water Softener System
 The dishwasher is equipped with a water
softener which reduces the hardness in
the mains water supply. To find out the
hardness level of your tap water, contact
your water company or use the test strip
(if available).
4.6 Setting
 Turn the machine on by pressing the
On/Off button.
 Press the Program button for at least 3
seconds immediately after the machine
is turned on.
 Release the Program button when SL
is shown. Next, the last setting level is
displayed.
 Press the program button to set the
desired level. Each press of the program
button increases the level. Once level 6
has been reached, the next press returns
the level to 1.
 The last selected water hardness level is
stored in the memory by turning the
machine off with the On/Off button.
4.8. Filling the detergent
 Push the latch to open the dispenser and
pour in the detergent.
 Close the lid and press it until it locks in
place. The dispenser should be refilled
just before the start of each programme.
 If the dishes are heavily soiled, place
additional detergent in the pre-wash
detergent chamber.
4.9. Using combined detergents
 These products should be used
according to the manufacturers
instructions.
 Never put combined detergents into the
interior section or the cutlery basket.
 Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
co mpo n en t s d epe ndi ng on th e
combination.
 We recommend you do not use
c om b i ne d d e te r g en t s i n s h o r t
programmes. Please use powder
detergents instead.
4.7. Detergent usage
 Only use detergents specifically
designed for domestic dishwashers.
 Add the recommended amount of
detergent for the selected programme to
ensure the best performance.
 Keep your detergents in cool, dry places
out of reach of children.
 See the detergent manufacturers
instructions for a further information.
DETERGENT
Level German dH French
dF
British
dE Indicator
1 0-5 0-9 0-6 L1 is seen on the display.
2 6-11 10-20 7-14 L2 is seen on the display.
3 12-17 21-30 15-21 L3 is seen on the display.
4 18-22 31-40 22-28 L4 is seen on the display.
5 23-31 41-55 29-39 L5 is seen on the display.
6 32-50 56-90 40-63 L6 is seen on the display.
10

 Please use powder detergents in such
programmes.
 If you encounter problems when using
combined detergents, please contact
the detergent manufacturer.
 When you stop using combined
detergents, make sure that water
hardness and rinse aid settings are set to
correct level.
4.10. Rinse-aid usage
 Rinse-aid makes dishes sparkle and
helps them to dry without spotting. 
Rinse-aid is required for stain-free
utensils and clear glasses.
 Use only rinse-aid for domestic
dishwashers.
4.11. Filling the rinse-aid and setting
 To fill the rinse aid compartment, open
the rinse-aid compartment cap.
 Fill the compartment with rinse aid to the
MAX level and then close the cap.
 Be careful not to overfill the rinse aid
compartment and wipe up any spills.
WARNING: Use only those rinse aid
materials which are allowed for use in the
machine. As rinse aid residues left as a result
of overflowing will create extremely high
amounts of foam and thus reduce the
washing performance, remove the excess
amount of rinse aid by wiping it with a rag.
In order to change the rinse aid level,
follow the below steps before turning on
the machine:
 Push the programme button and hold it
down.
 Turn on the machine.
 Hold down the programme button until
the LEDs flash twice. Rinse aid set
follows water hardness set.
 The machine will display the current
setting.
 Change level by pushing the programme
button.
 Switch off the machine to save the
setting.
The factory setting is 4. If the dishes are
not drying properly or are spotted,
increase the level. If blue stains form on
your dishes, decrease the level.
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
Wash LED is on.
2 1 dose is
dispensed
Dry LED is on.
3 2 doses are
dispensed
End LED is on.
4 3 doses are
dispensed
Wash and Dry LEDs
are on.
5 4 doses are
dispensed
Wash and End LEDs
are on.
11

5. LOADING YOUR DISHWASHER
 For best results, follow these loading
guidelines.
 We recommend that you place large items
(pots, pans, lids, plates and bowls) which
are heavily soiled in the lower basket.
 The upper basket is designed for delicate
and lighter dishware such as glasses,
coffee and tea cups and saucers. Position
the dishes so that they will not get moved
by the spray of water.
 Cutlery should be placed in the cutlery
b a sk e t . I t em s s h o u l d b e l o ad e d
individually into the appropriate slots with
their handles downwards. Long utensils
should be placed horizontally on the
baskets.
WARNING: Take care not to obstruct the
rotation of spray arms.
WARNING: Always place sharp utensils
with the sharp point down and open utensils
with their openings down.
Upper Basket Height adjustment
Turn the Rail Stop Clips, at the ends of the
rails, to the sides to open them (as shown in
the image below), then pull out and remove
the basket. Change the position of the
wheels, then reinstall the basket to the rail,
making sure to close the Rail Stop Clips.
When the upper basket is in the higher
position, large items such as pans can be
placed on the lower basket.
5.1 Recommendations
Remove any coarse residue on dishes before
placing the dishes in the machine. Start the
machine with full load.
Height Adjustable Rack (peg type)
The height adjustable racks enable glasses
and cups to be placed on or under the racks.
The racks can be adjusted to 2 different
heights. Cutlery and utensils can also be
placed on the racks horizontally.
NOTE: Do not overload the drawers or
place dishes in the wrong basket.
1
2
12

5.2 Alternative basket loads Lower basket
Upper basket
Incorrect loads
Unsuitable items for dishwashing
 Cutlery and utensils made of wood.
 Delicate decorative glasses, craft and
antique utensils. These utensils are not
dishwasher-proof.
 Plastic parts not resistant to heat.
 Copper and tin utensils.
 Utensils which are soiled with ash, wax,
lubricating grease or ink.
 Aluminium and silver parts have a
tendency to discolour and fade during
during the wash cycle. Some types
of glass (e.g. crystal glass objects) may
turn cloudly after many wash cycles.
Glass and utensil damage Causes:
 Glass type and glass production
process.
 Chemical composition of the detergent.
 Water temperature of the wash
programme.
Recommendation:
 Use only glasses and porcelain which
the manufacturer designates as
dishwasher-proof.
 Use a detergent which protects utensils.
 Take glass and cutlery out of the
dishwasher as soon as possible after the
programme ends.
Unloading the dishwasher
 To prevent water from dripping off the
upper basket onto the utensils in the
lower basket, it is recommended to
empty the appliance from the bottom
up.
Tip: Hot utensils are sensitive to shock!
Therefore, when the programme ends,
leave the utensils to cool down in the
dishwasher until they can be handled.
Note: When the programme ends, water
droplets can still be seen inside the
appliance. This does not affect the drying
of the utensils.
13

14
6. PROGRAMME TABLE
NOTE: THE PROGRAMME DURATION MAY CHANGE ACCORDING TO THE
AMOUNT OF DISHES, THE WATER TEMPERATURE, THE AMBIENT TEMPERATURE AND
SELECTED ADDITIONAL FUNCTIONS.
 Only use powder detergent for short programmes.
 Short programmes do not include drying.
 To assist drying, we recommend slightly opening the door after a cycle is complete.
Programme
Duration
(min)
Description
Mini
14'
14
Quick
30' 40°C
30
Eco
(Reference)
239
Smart
30°-50°C
79-91
Smart
50°-60°C
100-122
Smart
60°-70°C
111-179
To rinse
dishes
that you
plan to
wash
later.
For
lightly
soiled
dishes
and a
quick
wash.
Standard
program
me for
normally
soiled,
daily-
used
dishes.
Auto
programme
for
normally
soiled
dishes.
Auto
programme
for heavily
soiled
dishes.
Automatic
programme
for delicate
dishes
which are
not heavily
soiled.
Super
50
Suitable
for
normally
soiled
daily
dishes
with
faster
program.
Dual
Pro Wash
60°C
113
For both
lightly
soiled
delicate
glasswar
e and
heavily
soiled
crockery
at the
same
time.
50' 65°C
Icon @ i le 

 Q � 

7. THE CONTROL PANEL
15
19 8
3
2
4
7
6
5
10
12
11
13 14 15

16
Press the Start/
Pause button.
After the programme stops, select
your desired programme via the
programme selection button.
Start the newly selected programme
by pressing the Start/Pause button.
The new programme will resume
the course of the old programme.
Press the Start/Pause
button for 3 seconds.
During cancellation, the
End light blinks.
The machine discharges the water
inside it in about 30 seconds.
When the End light turns on,
switch your machine off by
pressing the On/Off button.
Pull the plug out of the outlet. Turn off the
water tap.
Switch your machine off with the On/Off button
after the programme has ended and the End light
turns on.

17
Natural Ion Tech (Model Depending)
This function provides extra hygiene to the
machine thanks to Ion Technology. It operates
as an independent program. This function is
activated by pressing Options button (6) for 3
seconds in ready state. At the end of 3
seconds, “Ion” will be displayed which
indicates that Natural Ion Tech function is
activated. The button is released after “Ion” is
displayed. If there is no intervention by user,
24 hours after activation of Natural Ion Tech
function, it is automatically cancelled.
Note: If machine is turned off, Natural Ion Tech
function is cancelled.
Note: Natural Ion Tech function does not work
with any program.
Crystalight (Model Depending)
This technology which have Ion and Light
Technology together, provides to extra
hygiene. It prevents bad odor during a washing
program that includes a drying step.
Crystalight function is activated or deactivated
before starting program in ready state by
pressing Options button (6) for 6 seconds.
Meanwhile display counts from 1 to 6. At the
end of 6 seconds, “UV1” will be displayed
which indicates Crystalight function is
activated. When it is deactivated, at the end of
6 seconds, “UV0” will be displayed. Crystalight
setting follows Natural Ion Tech setting.
Default set is “UO”.
Note: If user does not deactivate Crystalight
function at the end of program, it will remain
active until the machine turns off.
Note: If Crystalight or Natural Ion Tech
function is active, Natural Ion Tech led lights
up like dimming during door is open.

8. CLEANING AND MAINTENANCE
Cleaning your Dishwasher is important to
maintain the machine's service life.
Oil and lime may build up in your
Dishwasher over time. If this occurs:
 Fill the detergent compartment but do not
load any dishes. Select a programme
which runs at high temperature and run
the Dishwasher empty. If this does not
clean your Dishwasher sufficiently, use a
cleaning agent designed for use with
dishwashers.
Wipe the door seals regularly with a
damp cloth to remove any accumulated
residue.
the metal filter (3).Rinse the filter with water
until it is free of residue. Reassemble the
filters. Replace the filter insert, and rotate it
clockwise (4).
 Never use your Dishwasher without a
filter.
 Incorrect fitting of the filter will reduce
the washing effectiveness.
 Clean filters are necessary for proper
running of the machine.
To remove and clean the filter combination,
turn it counter clockwise and remove it by
lifting it upwards (1).Pull the coarse filter out
of the micro filter (2).Then pull and remove
8.2 Spray arms
Make sure that the spray holes are not
clogged and that no food waste is stuck to
the spray arms. If there is any clogging,
remove the spray arms and clean them under
water. To remove the upper spray arm undo
the nut holding it in position by turning it
clockwise and pulling it downwards. Make
sure that the nut is properly tightened when
refitting the upper spray arm.
8.1. Cleaning machine and filters
Clean the filters and spray arms at least once
a week. If any food waste remains on the
coarse and fine filters, remove them and
clean them thoroughly with water.
a) Micro Filter b) Coarse Filter
c) Metal Filter
2
b
a
34
c
1
18
Notes;
 Only clean the appliance with special
detergents/appliance cleaners which are
suitable for use with dishwashers.
 Regularly wipe the door seals using a
damp cloth and a little washing liquid.
This will keep the door seal clean and
hygienic.

19
 Leave the door open slightly if the
appliance will not be used for a while.
This will prevent an unpleasant odour
from developing.
 Never clean the dishwasher using a
steam cleaner. The manufacturer is not
liable for any consequential damage.
 Wipe the front of the dishwasher and the
control panel regularly using a damp
cloth and a little washing liquid
 Do not use sponges with a rough surface
or abrasive detergents. These could
scratch the surface alignment.
 For dishwashers with a stainless steel
front, avoid using sponge cloth, or rinse
these thoroughly several times before
using them for the first time. This will
prevent corrosion.
WARNING: Health Hazard due to
detergents containing chlorine!
Always use chlorine - free detergents.
