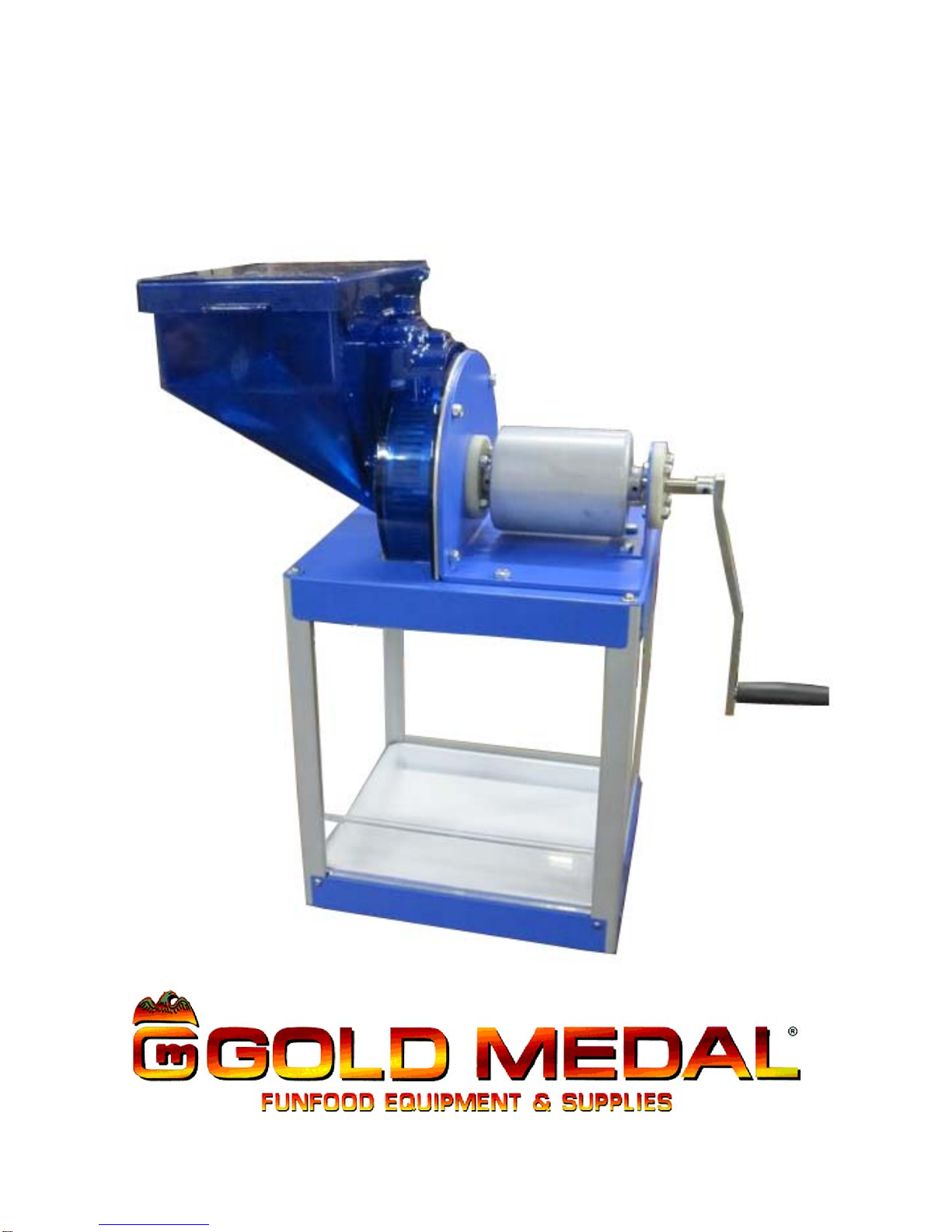

Goldmedal Simply Sno 1813 User manual
Part No. 22136
September 2009
Simply Sno
Instruction Manual
Model #1813
Cincinnati, OH 45241-4807 USA
Simply Sno
#1813
2
SAFETY PRECAUTIONS
Simply Sno
#1813
3
INSTALLATION
MACHINE DESCRIPTION
The Simply Sno Shaver is a manual ice shaver. The Shaver consists of the hopper, which houses the band
shaving blade, impeller, hopper lid, counterweight, and the base cabinet.
ICE REQUIREMENTS
The Simply Sno Shaver can take ice cubes small or medium in size if you break the block into pieces
approximately 2 to 3 inches in size.
NOTE: The ice will not enter the shaving chute if the pieces are too large.
MACHINE OPERATION
TO OPERATE THE SNO-PRO
1. Raise hopper lid.
2. Fill hopper with Ice.
3. Close lid
4. Rotate handle to shave ice
NOTE:
Never allow any foreign or metallic objects around the shaver area of the Manual Ice Shaver. Ice picks,
scoops, and debris that may be in the ice often damage blades.
Harder ice will result in finer snow, while soft ice will result in coarser snow.
Simply Sno
#1813
4
MAINTENANCE INSTRUCTIONS
Simply Sno
#1813
5
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include the machine’s model name, serial number, and date of manufacture (located on the
machine nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
(800) 543-0862
(513) 769-7676
Fax: (513) 769-8500
or, place orders online:
Web Page: www.gmpopcorn.com
Simply Sno
#1813
6
INSTALLING NEW SHAVER BLADES
Inspect your equipment before replacing the blades. Use a flashlight to examine the blades in the
shaver body. If the blades appear to be nicked or bent, then the blades should be replaced.
Follow this procedure:
1. Remove the 4 top cover pan bolts.
2. Place upper assembly on corner of table.
3. Remove 4 bolts that are attached to the hopper.
4. Remover hopper.
5. The Shaver band blade has 6 tabs on the exterior of the hopper. Twist the tabs to align with the
slots in the hopper. Once all 6 are aligned with the slot openings, rotate clockwise, then push
the tabs thru the slots removing the blade.
6. Re-installing new band blade, Note: the orientation of the snow guide, to the snow nozzle.
Make sure blade is properly orientated. Push the 6 band blade tabs into the slots. Make sure
band blade rests in the bottom groove in the hopper, and seats flush on the bottom of the
groove. You may need to flex the blade to seat flush.
7. Now tap and rotate the 6 tabs counterclockwise to lock the band blade in place, slightly twist
the tabs.
8. Re-Install the hopper onto upper assembly by reinstalling the 4 hopper attachment bolts.
9. Place upper assembly back onto top cover pan, placing hopper into cutout.
10. Re-install top cover pan bolts.
11. Reinstall the 4 bolts in the top cover.
Simply Sno
#1813
7
MODEL 1813 ASSEMBLY
Hopper Lid
p/n 12734B
Elec B cove
r
p/n 12735B
Shave Band Blade
p/n 12728
Ice Shield
p/n 23256
Crank And Handle
p/n 23246
Drain Hose
p/n 23257
Side Glass
p/n 23251
Sno Pan
p/n 23241
Counter Weight
p/n 23245
Hoppe
r
p/n 12729B
Front Glass
p/n 23250
Set Screw
Simply Sno
#1813
8
© The text, descriptions, graphics and other material in this publication are the proprietary and
exclusive property of Gold Medal Products Company and shall not be used, copied, reproduced,
reprinted or published in any fashion, including website display, without its express written consent.
WARRANTY
WE WARRANT to the original purchaser the Gold Medal equipment sold by us to
be free from defects in material or workmanship under normal use and service. Our
obligation under this warranty shall be limited to the repair or replacement of any
defective part for a period of six (6) months from the date of sale to the Original
Purchaser with regard to labor and two (2) years with regard to parts and does not
cover damage to the equipment caused by accident, alteration, improper use, voltage,
abuse, or failure to follow instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. We neither assume, nor authorize any other person
to assume for us, any other obligation or liability in connection with the sale of said
GOLD MEDAL equipment or any part thereof.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that
person, firm, association, or corporation who was billed by the GOLD MEDAL
PRODUCTS COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-
543-0862 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE
EQUIPMENT PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS
CONCERNING THE REPAIR OR REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
GOLD MEDAL PRODUCTS COMPANY
10700 Medallion Drive
Cincinnati, Ohio 45241-4807 USA
www.gmpopcorn.com
Phone: 1-800-543-0862
Fax: 1-800-542-1496
