5554

Instruction Manual

SAFETY PRECAUTIONS

3
INSTALLATION
FORWARD
This manual covers the model # 5554 PIZZA OVEN.
You can be very proud of your 5554 PIZZA OVEN. In addition to being an attractive "eye
catcher", it contains various engineering innovations which make it the leader in the industry.
The exterior of the machine is designed and built-up to present an attractive appearance for
many years.
OVEN / WARMER COMBO
INSTALLATION
CHECKING SHIPMENT
Unpack the shipping crate and check thoroughly for any damage which may have occurred in
transit. Any claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
Voltage for your warmer is 120 Volt, 60 Cycle, single phase. The 5554 oven will draw a
maximum of 11.5 amps. Your electrician must furnish sufficient current for the proper operation
of your machine. We recommend that this machine be fused on a line by itself. The switches
and controls which operate the warmer are located on the top front of the machine.
NOTE: These instructions apply to all machines manufactured after 4/1/1975 and supercedes
any sticker or wiring instructions you may have received. Failure to wire properly will void the
warranty and can result in damage to the blower, heat element, lights, etc.

4
OPERATING INSTRUCTIONS
CONTROLS AND THEIR FUNCTIONS
ON/OFF SWITCH
Flipping this switch to the "ON" position energizes the machine turning on the fan motor and
The heat elements.
MALFUNCTION LIGHT
If the malfunction light goes on, the appliance is malfunctioning. TURN OFF OR
DISCONNECT FROM POWER SUPPLY AND HAVE SERVICED BY A QUALIFIED
TECHNICIAN.
START BUTTON
This button starts the count-down sequence on the digital control.
MODE BUTTON
Changes mode from time setting, to temperature setting, to viewing current temperature.
UP BUTTON
Depressing the button increases the time or temperature accordingly.
DOWN BUTTON
Depressing the button decreases the time or temperature accordingly
EASY STEPS FOR USING UNIT
1. Prepare Oven for Operation
a. Place stone a desired level. IF BEING USED FOR THE FIRST TIME, THE STONE MUST
BE PREDRIED. THIS IS A ONE TIME ONLY PROCEDURE WHEN THE STONES ARE
NEW OUT OF THE BOX. PLEASE FOLLOW THE INSTRUCTIONS BELOW FOR THE
PROCEDURE:
1. Place stone on baking pan in center position in oven.
2. Set oven at 200 deg. Leave at 200 for 2 hours.
3. Set oven at 300 deg. Leave at 300 for 2 hours.
4. Set oven at 400 deg. Leave at 400 for 1 hour.
5. Set oven at 450 deg. Leave at 450 for 1 hour.
CAUTION: a slight odor & outgassing may occur during initial heat up. This is normal as the
decks are adjusting to their environment.
b. Turn on power switch
c. Depress mode button to time setting and enter time using up and down buttons.
d. Depress mode button to temperature setting and enter setting with up and down buttons.
e. When oven reaches 200 degrees F the L.E.D. will show the temperature.
f. Load food product when oven reaches desired temperature.
g. Depress start button to display count-down sequence.
h. When control beeps cook cycle is complete. Remove food product.
i. Repeat steps F thru H for additional cycles.
WARNING!
DO NOT BAKE FROZEN PRODUCT ON PIZZA STONE.
DOING SO WILL CAUSE THE STONE TO SHATTER.
PLEASE REMOVE THE STONE AND USE THE ALUMINUM
BAKING PAN ONLY.

5
CARE AND CLEANING
The stainless steel body of the Warmer is easy to keep clean. Usually a damp cloth will remove
all dirt and grease spots. NEVER USE ABRASIVES on the stainless steel body. The glass
should always be clean and sparkling. Remember the inside of the glass must be cleaned too.

6
MAINTENANCE INSTRUCTIONS

7
ORDERING SPARE PARTS
1. Identify the desired part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity desired.
3. Please include your model name and machine serial number (located on the machine
nameplate) with your order.
1. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
or, place orders at:
[phone]
[phone]
Fax: [phone]

8
PARTS LIST – OVEN / WARMER COMBO
Model # 5554
Item Part
No. No. Description Quantity
1 22038 Lead-in Cord 1
2 38324 Push Button Boot 1
3 39763 Element Support Rod 2
4 39764 Drip Pan 1
5 39796 Back Panel Insulation 1
6 39797 Oven Door Weldment 1
7 39799 Oven Door Back Weldment 1
8 39838 Oven Chamber Weldment 1
9 39840 Left Side Panel Weldment 1
10 39842 Right Side Panel Weldment 1
11 39781 Right Access Plate 1
12 39782 Dome Weldment 1
13 39786 Bottom Plate 1
14 39837 Back Panel 1
15 39845 Left and Right Insulation 2
16 39788 Top Insulation 1
17 39390 Pizza Stone 1
18 40721 Axial Fan 1
19 40807 Handle 1
20 41031 Switch, Oil Pump 1
21 41033 Pilot Light 1
22 42798 Switch, Lighted Rocker 1
23 39846 Insulation, Oven Door 1
24 43288 500 Watt Heat Element 1
25 47199 Blower Plug and Cord 1
26 47155 Rubber Feet ¾ inch 6
27 49673 Heat Sink 1
28 50017 Heat Element 900 Watt 1
29 76346 Type “J” Thermocouple 1
30 76540 Digital Baker Control 1
31 76541 Solid State Relay 1
32 76544 Spacer, .280 x .250 OD 5
33 87163 Strain Relief 1
34 39794 Baking Pan 1

9
CABINET WIRING IS #16AWG MGT, CSA STYLE A-24, 26/30 STRAND TYPE A NICKLE

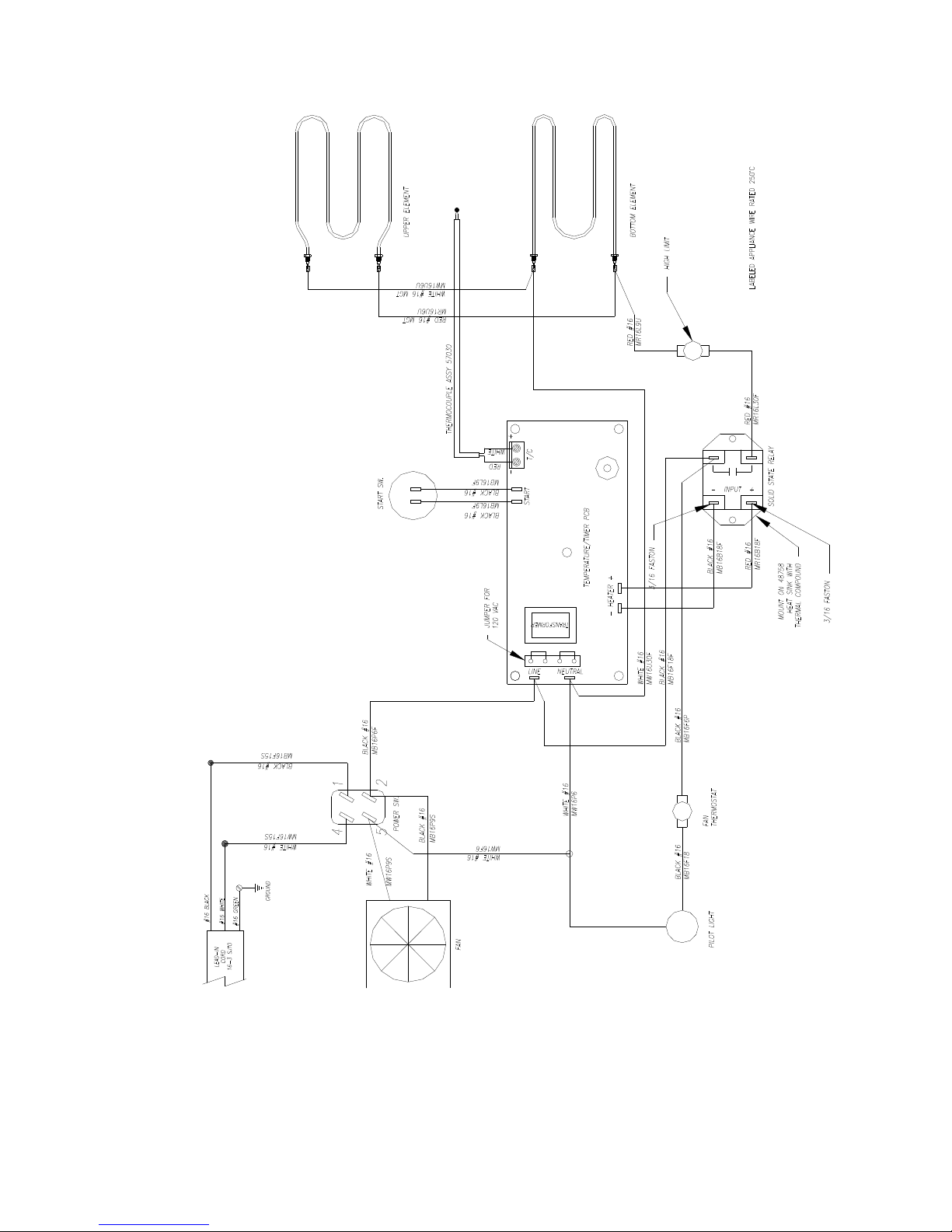

WIRING DIAGRAM FOR 5554 PIZZA OVEN

10
WARRANTY
WE WARRANT to the original purchaser the Gold Medal equipment sold by us to
be free from defects in material or workmanship under normal use and service. Our
obligation under this warranty shall be limited to the repair or replacement of any
defective part for a period of six (6) months from the date of sale to the Original
Purchaser with regard to labor and two (2) years with regard to parts and does not
cover damage to the equipment caused by accident, alteration, improper use, voltage,
abuse, or failure to follow instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. We neither assume, nor authorize any other person
to assume for us, any other obligation or liability in connection with the sale of said
GOLD MEDAL equipment or any part thereof.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that
person, firm, association, or corporation who was billed by the GOLD MEDAL
PRODUCTS COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-
543-0862 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE
EQUIPMENT
PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING
THE REPAIR OR REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
GOLD MEDAL PRODUCTS COMPANY
10700 Medallion Drive
Cincinnati, Ohio 45241-4807 USA
www.gmpopcorn.com
Phone: [phone]
Fax: [phone]
